1. Background
An ecological risk assessment is the process to evaluate the likeliness of an environment to be impacted as a result of exposure to one or more environmental stressors. It is a flexible process, not only to organize and analyze data, information, assumptions, and uncertainties but also evaluate the likelihood of adverse ecological effects (1). However, the heavy metals are included as earth's crust forming components and also are naturally present all around the ecosystem. Their concentration can considerably increase via human activities (2). Nevertheless, many researchers have studied the adverse effects of heavy metals on various ecosystems in the past two decades.
Different human activities can contaminate urban soils. As an example, the transportation of goods and passengers (3), industries, factories and mining (4), agriculture (5), livestock (6), dust (7), municipal waste (8) can be specified.
Innumerable studies have been carried out worldwide related to the soil pollution importance and its negative impact on population health and the environment, such as Ireland (9), Italy (10), Spain (11), Zimbabwe (12), Australia (13), China (14) and also in some Iranian cities like Tehran (15), Isfahan (16), Hamadan (17) and Birjand (6).
Exposure to dust containing heavy metals leads to varied issues, including physical and mental retardation, decreased intelligence quotient, reduced concentration, headaches, cancer, increased blood pressure, renal and liver problems related to the nervous system, general weakness, and dysfunction of internal organs or aggravates via other diseases, and in some cases leads to death (18).
The study area was located on the west side of Birjand, 5 km off Birjand-Kerman road in South Khorasan Province. The potential sources of pollutants in this area were from agriculture and animal husbandry activities, urban activities, the presence of small shops and casual works and also passing one of the main roads of province along this residential area. There is also an industrial estate that can be considered as one of the essential human pollutant sources in environment (17).
2. Objectives
The purpose of this study was to assess the pollution index and ecological risk of heavy metals including lead (Pb), cadmium (Cd), copper (Cu), zinc (Zn) and chromium (Cr) in surface soils of the Amir-Abad Area, Birjand City, Iran.
3. Materials and Methods
3.1. Sampling
As the Figure 1 shows, the grid map is used to select the samples in the study area. Five sampling points at each sampling station (fourat the corners and one at the center of the grid) were collected.

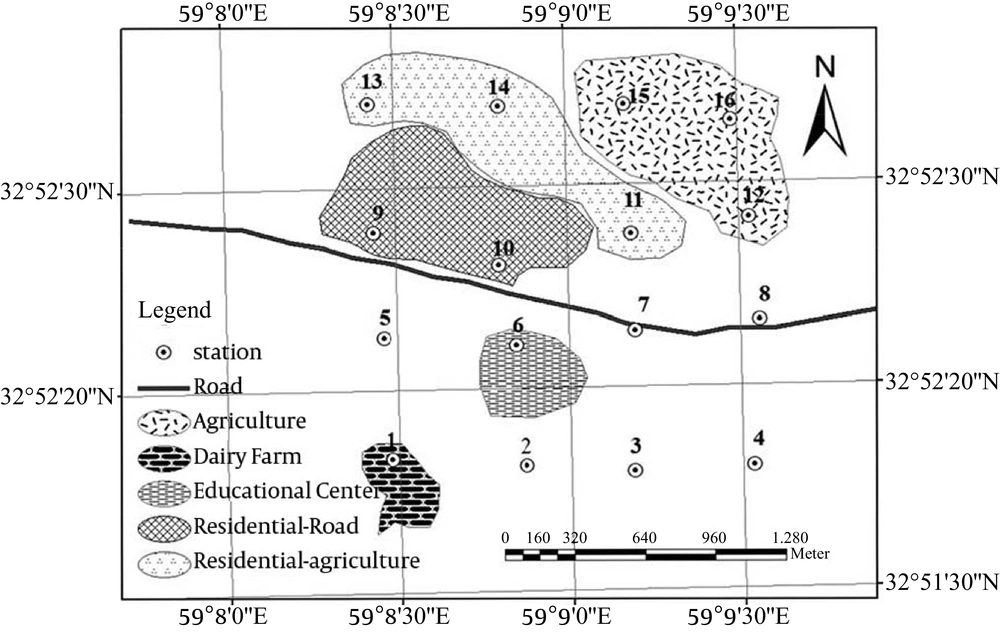

Figure 1.
Mapof the Study Area With Sampling Stations
The samples were collected at 16 stations with different land uses between 0 and 20 cm soil depths, at each station, 5 samples with 3 replications were collected using the plastic spatula after removing the debris, rock pieces and physical contaminants.
A composite sample of 1.5 kg weight was prepared after mixing the 5 samples obtained from each station. Geographical locations of points were determined by global positioning systems. The samples were passed through a 2-mm sieve after air drying and to determine the concentration of heavy metals, the samples were extracted by acid chloride and nitric acid and total concentrations of toxic elements were read using the atomic absorption spectrophotometry (18).
3.2. Calculation of Ecological Risk
The ecological risks of heavy metals were calculated using the following equations (19).
Equation 1.
Equation 2.
Equation 3.
Where"Cs" is the concentration of study metals, "Bn"is natural background value. "PI"is contamination index, "Er" is the indicator of each element’s ecological risk and RI is the determinative of the total ecological risk.
The toxic response factor for a given compoundisshown by "Tr", "Er" is the potential risk index for given substance and "RI" is the potential ecological risk index for each area.
The results were analyzed after calculating the ecological risk for each element and the total ecological risk was evaluated. The following ranges of "RI" values were considered in the present study; low ecological risk RI < 150, moderate ecological risk 150 ≤ RI < 300, high ecological risk 300 ≤ RI < 600 and considerable ecological risk RI > 600 (19).
To calculate the background values in different studies, these values were chosen from previous researches (15), and to assess the amount of ecological risk, the "RI" and "Er" values were calculated using the equation2.
4. Results
The toxic metals via human activities can lead to soil pollution. These heavy metals are one of the most important pollutants that can cause serious problems to human health, plants and other organisms by entering the food chains (4). Table 1 depicts the comparison between the average concentration of the elements in the study area and the average concentration in the earth's crust. The results showed that the concentration of all elements except Cr were higher than the average of background values.
Table 1. Average Concentrations of Heavy Metals in This Study and Earth Crust Level a
| Zn, mg/kg | Cr, mg/kg | Pb, mg/kg | Cd, mg/kg | Cu, mg/kg | |
|---|---|---|---|---|---|
| Surface soil in present study | 94.09 ± 38.6 | 63.79 ± 11.5 | 46.59 ± 12.4 | 1.53 ± 0.7 | 60.15 ± 11.4 |
| Earth's crust (15) | 75 | 100 | 14 | 0.2 | 50 |
a Abbreviations: Zn, zink; Cr, chromium; Pb, lead; Cd, cadmium; Cu, cupper.
Equation 1 was used to assess the ecological risk of soil pollution via pollution index. Contamination levels were classified into six categories based on the pollution severity.
Table 2.Classification of Pollution Index
| Pollution Levels | Amounts |
|---|---|
| Unpolluted | 0 |
| Unpolluted- moderate | 1 |
| Moderate pollution | 2 |
| Moderate-high pollution | 3 |
| High pollution | 4 |
| High-very high pollution | 5 |
| Very high pollution | 6 |
The results in Table 3 showed that most of the samples indicated low to moderate pollution. However, some users, especially residential-road areas demonstrated very high pollution.
| Station Number | Land use | Coordinates | Cd | Cr | Zn | Cu | Pb | |
|---|---|---|---|---|---|---|---|---|
| N | E | |||||||
| 1 | Dairy farm | 32.860 | 59.141 | 6.5 | 0.8 | 4.6 | 3.3 | 1.4 |
| 2 | Natural land | 35.861 | 59.143 | 0.3 | 0.2 | 0.4 | 0.3 | 1 |
| 3 | Natural land | 32.859 | 59.153 | 3 | 0.2 | 0.3 | 0.2 | 0.9 |
| 4 | Natural land | 32.855 | 59.158 | 4.1 | 0.2 | 0.3 | 0.2 | 1.1 |
| 5 | Natural land | 32.865 | 59.142 | 1.8 | 0.3 | 0.2 | 0.4 | 1.2 |
| 6 | Educational center | 32.866 | 59.143 | 8.5 | 0.6 | 0.8 | 0.4 | 2 |
| 7 | Road | 32.867 | 59.143 | 3.5 | 0.2 | 1.7 | 0.8 | 4.5 |
| 8 | Road | 32.862 | 59.158 | 2.2 | 0.7 | 1.2 | 0.8 | 4.7 |
| 9 | Residential- road | 32.869 | 59.145 | 14.6 | 1.9 | 1.6 | 4.5 | 7.9 |
| 10 | Residential- road | 32.865 | 59.143 | 42.9 | 1.9 | 1.6 | 4.1 | 11.9 |
| 11 | Residential-agriculture | 32.65 | 59.151 | 8 | 0.6 | 1.5 | 1 | 3.2 |
| 12 | Agriculture | 32.868 | 59.158 | 2.3 | 0.6 | 1.1 | 0.6 | 4.2 |
| 13 | Residential-agriculture | 32.878 | 59.138 | 5.1 | 0.4 | 1.4 | 0.7 | 3.6 |
| 14 | Residential-agriculture | 32.879 | 59.142 | 4.7 | 0.4 | 1.7 | 0.9 | 2.4 |
| 15 | Agriculture | 32.880 | 59.152 | 7.3 | 0.9 | 0.9 | 0.5 | 1.6 |
| 16 | Agriculture | 32.881 | 59.155 | 7.6 | 0.3 | 0.7 | 0.5 | 1.8 |
a Abbreviations: N, North; E, East.
b There is no unit, they are just number.
5. Discussion
The results of varied concentrations and their respective ecological risks are shown in Table 4. The average lead concentration was 59.46 mg/kg, which was higher than its average in the earth's crust. The concentration of Pb was higher than the earth’s crust in all the stations except stations 2 and 3 (Tables 1 and 2). Generally, lead is released from smelting, motor-vehicle exhaust fumes and corrosions of lead pipe work (20).
The average copper concentration was 60.15 mg/kg, which was higher than its relative concentration in the earth’s crust. However, this was true only for the station 2 and 10 (Tables 1 and 4). Both these stations caused the total concentration of this element to overpass than its average in the earth’s crust. Cupper is extensively utilized in electrical cables, cooking appliances, pipes, chemical factories, metal melting furnaces, pigments and fertilizers (21). Although it is one of the essential elements for humans, but its overdoses could lead to neurological complications, hypertension, liver and kidney dysfunctions and even death (22).
| Station | Pb | Cu | Zn | Cr | Cd | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Concentration, mg/kg | Era | concentration, mg/kg | Er | Concentration, mg/kg | Er | Concentration, mg/kg | Er | Concentration, mg/kg | Er | RIa | Ecological Risk | |
| 1 | 19.4 ± 4.2 | 6.9 | 165.1 ± 74.7 | 16.5 | 346.5 ± 201.3 | 4.6 | 81.7 ± 24.8 | 1.6 | 1.3 ± 0.4 | 195 | 225 | moderate |
| 2 | 13.9 ± 6.3 | 4.9 | 17.1 ± 5.5 | 1.7 | 33 ± 11.8 | 0.4 | 15.42 ± 8.6 | 0.3 | 0.05 ± 0.01 | 7.5 | 15 | low |
| 3 | 12.2 ± 2.5 | 4.3 | 11.4 ± 3.8 | 1.2 | 24.8 ± 15.3 | 0.3 | 20.11 ± 6.4 | 0.4 | 0.6 ± 0.01 | 90 | 96 | low |
| 4 | 15.4 ± 4.3 | 5.5 | 11.7 ± 4.6 | 1.1 | 21.2 ± 7.6 | 0.28 | 22.63 ± 12.1 | 0.5 | 0.82 ± 0.03 | 123 | 130 | low |
| 5 | 17.3 ± 8.1 | 6.2 | 20.6 ± 9.7 | 2.1 | 18.2 ± 4.6 | 0.24 | 34.25 ± 17.9 | 0.7 | 0.36 ± 0.1 | 54 | 63 | low |
| 6 | 28.2 ± 13.4 | 10 | 19.3 ± 8.3 | 1.9 | 56.7 ± 27.3 | 0.75 | 95.7 ± 56.3 | 1.2 | 1.7 ± 0.7 | 255 | 287 | moderate |
| 7 | 62.8 ± 29.6 | 22.4 | 41.6 ± 21.4 | 4.1 | 125.2 ± 49.6 | 1.67 | 23.14 ± 16.1 | 0.5 | 0.69 ± 0.2 | 103 | 132 | low |
| 8 | 56.1 ± 18.4 | 23.2 | 37.5 ± 16.2 | 3.7 | 93 ± 31.9 | 1.24 | 67.45 ± 31 | 1.3 | 0.44 ± 0.2 | 66 | 96 | low |
| 9 | 109.9 ± 37.5 | 39.2 | 226.7 ± 84.8 | 22.5 | 118 ± 74.1 | 1.57 | 186.34 ± 69.5 | 3.7 | 2.92 ± 1.1 | 438 | 505 | high |
| 10 | 166.6 ± 79.3 | 59.5 | 202.6 ± 96.1 | 20.2 | 122.6 ± 32.9 | 1.63 | 192.03 ± 80.4 | 3.8 | 8.57 ± 3.6 | 1285 | 1370 | considerable |
| 11 | 45.4 ± 23.7 | 16.2 | 48 ± 12.4 | 4.8 | 113 ± 65.3 | 1.52 | 64.67 ± 41.4 | 1.3 | 1.59 ± 0.8 | 238 | 262 | moderate |
| 12 | 58.2 ± 25.1 | 20.8 | 30.3 ± 16.7 | 3 | 80.1 ± 56.2 | 1.07 | 56.8 ± 11.4 | 1.2 | 0.46 ± 0.1 | 69 | 95 | low |
| 13 | 49.7 ± 18.6 | 17.2 | 36.3 ± 29.1 | 3.6 | 105.4 ± 83.8 | 1.41 | 36.60 ± 9.2 | 0.7 | 1.01 ± 0.3 | 151 | 175 | moderate |
| 14 | 33.4 ± 16.8 | 11.9 | 42.5 ± 19.4 | 4.4 | 127 ± 42.2 | 1.69 | 36.92 ± 18.5 | 0.7 | 0.93 ± 0.3 | 139 | 158 | moderate |
| 15 | 22.2 ± 11.1 | 7.9 | 24.5 ± 14 | 2.4 | 68.5 ± 33.3 | 0.91 | 88.73 ± 36.2 | 1.8 | 1.46 ± 0.9 | 219 | 232 | moderate |
| 16 | 25.5 ± 13.2 | 9.1 | 27.2 ± 12.1 | 2.7 | 52.2 ± 12.1 | 0.69 | 34.40 ± 17.7 | 0.7 | 1.51 ± 0.8 | 226 | 240 | moderate |
| P Value | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | |||||||
a Abbreviations: Er, Ecological risk; RI, Determinative of the total ecological risk.
b There is no unit for them they are just number.
The average Cd concentration was 1.53 mg/kg, which was higher than the earth's crust. Except the second station, the concentration of Cd in other stations was higher than the earth's crust (Tables 1 and 4). Cadmium occurrence in the environment is from both natural and anthropogenic sources. Environmental levels are greatly enhanced by the existing industrial operations as Cd is commonly used as a pigment in paint, plastics, ceramics and glass manufacturing companies. Cadmium is highly toxic, producing symptoms such as nausea, vomiting, respiratory difficulties, cramps and loss of consciousness at high doses. Chronic exposure to this metal can lead to anemia, anosmia (loss of sense of smell), cardiovascular diseases, renal problems and hypertension (17).
The average zinc concentration was 94.09, which was higher than the average concentration of the earth's crust, but it was lower in station 2 to 6, 15 and 16 (Tables 1 and 4). This element is essential for growth of humans, animals and plants and is potentially dangerous for biosphere if present in high concentrations. It is often found in limestone. The main sources of pollution are industries and the use of liquid manure, composted materials and agrochemicals, such as fertilizers and pesticides in agriculture (23). Anemia, muscle pain, stroke, blood diseases and even death can be caused by zinc overdoses (17).
The average chromium concentration was 79.63 mg/kg, which was lower than the average of the earth's crust, but at stations 9 and 10 it was higher than the average of the Earth's crust (Tables 1 and 4). The major sources of chromium are textile factories, tanneries, pharmaceuticals and metals. Pigments containing oil compounds and greases also contain some amount of chromium (4). Chromium is considered as an essential trace element for the maintenance of an effective glucose, lipid and protein metabolism. High doses of chromium cause liver and kidney damage and chromate dust, which is carcinogenic (24).
Table 4 shows the result of ecological risk of heavy metals in surface soils of different land uses. The ecological risk of agriculture and livestock land use was moderate and as indicated by the ecological risks of each element (Er), cadmium is responsible for the pollution. The ecological risk of road and dairy farm land uses were low and road- residential land uses (station 9 and 10) demonstrated high and considerable ecological risk where Cd > Pb > Cu > Cr > Zn were sequentially the most responsible elements. In the study of heavy metals (Cu, Cr, Pb, Ni, Cd, Zn, Fe, Mn and Li) for the determination of the ecological risks in Tehran city also demonstrated the high ecological risk at all samples (25).
The calculated potential ecological risk index at the Golestan Province, Iran, indicated that approximately 68% and 5% of the studied samples had medium and high pollution levels, respectively, whereas a moderate and high potential ecological risk covered about 90% of this province (26).
Population growth and modernization increase the contamination of soils and environment; therefore, it is essential to refine the soil and continually monitor the heavy metals. The average concentrations of Pb, Cu, Zn and Cd in surface soils of the study area were higher than their concentrations in the earth's crust indicating the presence of heavy metals in anthropogenic soils. The pollution index revealed that most of the samples were in moderate or not polluted areas, but was very high with considerable ecological risk in residential-road land uses.
