Method Development
The development of the method for identifying and quantifying nitrosamines (NDMA, NDEA, NMBA, NEIPA) was divided into several steps, with the significant steps being the development of chromatographic separation parameters settings of mass spectrometry detection.
An essential criterion of chromatographic separation was the possibility to separate the pharmaceutical substance from nitrosamines under discussion. This criterion significantly enhances the method’s selectivity and reduces the probability of impaired MS detector sensitivity due to contamination with high concentrations of non-target components (pharmaceutical substances). Another valuable parameter of chromatographic separation is its duration (less than 10 minutes). This fact allows using this method for routine quality control, thus for many samples within a limited time.
The chromatographic column was selected with the help of publications describing the development of nitrosamine analysis methods in pharmaceutical substances (
14). We selected a short column with sufficient efficiency for mid-polar compounds. Solvents used as a mobile phase for chromatography were selected experimentally by analyzing nitrosamine standards. The combination described in Experimental is the most efficient for separating nitrosamines under discussion and pharmaceutical substances.
The study demonstrated that the addition of substances that boost ionization improves method sensitivity and reproducibility. For boosting the ionization process, formic acid (with the concentration in the mobile phase of 0.1%) and ammonium formate (with a concentration of 10 mmol/L) were added to the methanol and water as follows. Formic acid (with a concentration in the mobile phase of 0.1%) was added to methanol in the mobile phase. Typical chromatograms of the NDMA standard are given in
Figure 1.
As shown in
Figure 1, the addition of substances that boost ionization significantly improves the NDMA response.
Following the selection of conditions and parameters for chromatographic separation, the next important step is selecting and optimizing MS detection parameters. Nitrosamine standard solutions were analyzed in the Scan mode to identify parent ions. Selected parent ions were used to choose optimal MRM transitions. Stock standard solution of nitrosamine impurities (NDMA, NDEA, NMBA, NEIPA) with a concentration of 0.2 µg/mL was analyzed in the Scan mode for optimal MRM transition selection. The highest and largest peak areas were recorded with the analysis settings described in Experimental
. The obtained results almost wholly correlate with the results published in scientific studies describing the development and validation of nitrosamine determination methods in pharmaceutical substances (
15). For different works of obtained MS detection parameters, the nitrosamine solution with a 1.1 ng/mL concentration was analyzed using MassHunter Workstation Software Optimizer, version B.07.01. Once the workout of MS detection parameters had been completed, chemical ionization parameters were optimized. The highest sensitivity was achieved with the corona current of 4 µA. This parameter correlates with the data from publications.
A chromatogram of Valsartan, Losartan, and Irbesartan model mixture with the concentration of 1.1 ng/mL of nitrosamines under discussion and in the settings described in Experimental presented at
Figure 2.
As the method meets the acceptance criteria, it was validated. The method was validated as per FDA guidelines for analytical method validation. The method was validated for all major validation parameters (LOQ, LOD, linearity, precision, accuracy).
Method Validation
Specificity
Method specificity was confirmed with the analysis of a mixture of Valsartan, Losartan, and Irbesartan standards. The primary acceptance criterion for specificity was the lack of foreign peaks and pharmaceutical substance peaks at the point of nitrosamine detection (
Figure 4).
Figure 3 shows a chromatogram of a mixture of Valsartan, Losartan, and Irbesartan standards. Because of the retention time of the Irbesartan peak, the chromatographic gradient was adjusted as follows:
0 – 1.5 min, as per the gradient in Experimental
1.5 – 6 min. Phase ratio – 5:95.
Limit of Detection (LOD)
To evaluate the limit of detection for the established method, Valsartan, Losartan, and Irbesartan model mixtures were analyzed with nitrosamine concentrations of 0.2; 0.4; 0.6; 0.8; and 1.1 ng/mL, respectively. The primary acceptance criterion for the limit of detection was a signal-to-noise (S/N) ratio of 3. Experiments helped in setting the method limit of detection of 0.2 ng/mL. With this concentration, the mean S/N ratio obtained with three consecutive measurements was 3.7.
Limit of quantification (LOQ)
The limit of quantification of the method was obtained with the analysis of model mixtures with the concentrations of 0.2; 0.4; 0.6; 0.8; and 1.1 ng/mL. The acceptance criterion for this parameter was a signal-to-noise (S/N) ratio of 10. Experimentally the limit of quantification was set to 0.4 ng/mL. As NMBA impurity ionizes significantly better than the other impurities under discussion, its limit of quantification is considerably lower than the mentioned value. No studies of method sensitivity for NMBA impurity were conducted. Model chromatograms of nitrosamine impurities with a concentration of 0.4 ng/mL are given in
Figure 4.
Linearity
Method linearity was assessed with a sequential analysis of model mixtures of pharmaceutical substances (Valsartan, Losartan, and Irbesartan) with nitrosamine concentrations of 0.4; 0.6; 0.8; 0.9; and 1.1 ng/mL. The primary acceptance criterion for the method was correlation coefficient R
2 > 0.99. Linearity was determined as the function y = ax + b. For linear dependence, mean values obtained with three consequential measurements were used. The equation and correlation coefficient for each nitrosamine in the pharmaceutical substances are given in
Table 3.
Accuracy
Method accuracy was assessed using recovery of 80 – 120 %. RSD between parallels should be NMT 10%. Recovery is calculated using
. “Injected” value was calculated using external calibration: nitrosamine impurity standards with the concentrations of 0.4; 0.6; 0.8; 0.9; and 1.1 ng/mL were analyzed. Method recovery is summarized in
Table 4.
Precision
To determine the precision of the suggested method, repeatability results were assessed. For the test, nitrosamine concentrations in model mixtures were 0.4 ng/mL. The primary acceptance criterion for repeatability was RSD ≤10%.
Determination of nitrosamine impurities in substances purchased from Chinese manufacturers
By the developed method was studied for one batch of both Valsartan, Losartan, and Irbesartan substances. These substances were obtained from Chinese manufacturers, described in Materials and methods. The obtained results are described in
Figure 5.
How it was shown in
Figure 5 the developed method allows us to determine low amounts of nitrosamine impurities in the valsartan, Losartan, and irbesartan substances.
The comparison of the developed method with available FDA and EMA methods shows the following advantages. One of the developed method’s main advantages is the highest sensitivity - 0,2 ng/mL LOQ for all determined nitrosamines (NDMA, NDEA, NMBA, NEIPA). Method FDA has only 3 ng/mL – LOQ for six nitrosamines, including two nitrosamines that are not regulated by the regulatory authorities (
16). Moreover, this method includes using rare and expensive equipment (LC-ESI-HRMS) and is less suited to routine quality control than the developed method. Other FDA methods are presented by GC-MS methods. GC-MS (headspace) method has lower LOQ and requires to use of additional equipment (Headspace) (
17). The method of GC-MS with direct injection is able to the simultaneous determination of 10 nitrosamine impurities. It has lower LOQ, a much longer time of analysis, and has a risk of column clogging by the high value of the valsartan drug substances (
18). Moreover, GC-MS methods are not able to determine nitrosamine in losartan and irbesartan substances. Comparison of the developed method with EMA LC-MS/MS shows the following advantages. Despite the method, EMA has the same sensitivity 0,2 ng/mL, it can determine only 2 nitrosamines (NDMA, NDEA) for one analysis (
19). Other EMA methods of nitrosamine determination detect only 1 nitrosamine or have a much lower LOQ (
20).
The comparison shows us that the developed method has various advantages. The main advantages are a higher sensitivity than FDA methods available in the literature and less expensive equipment.

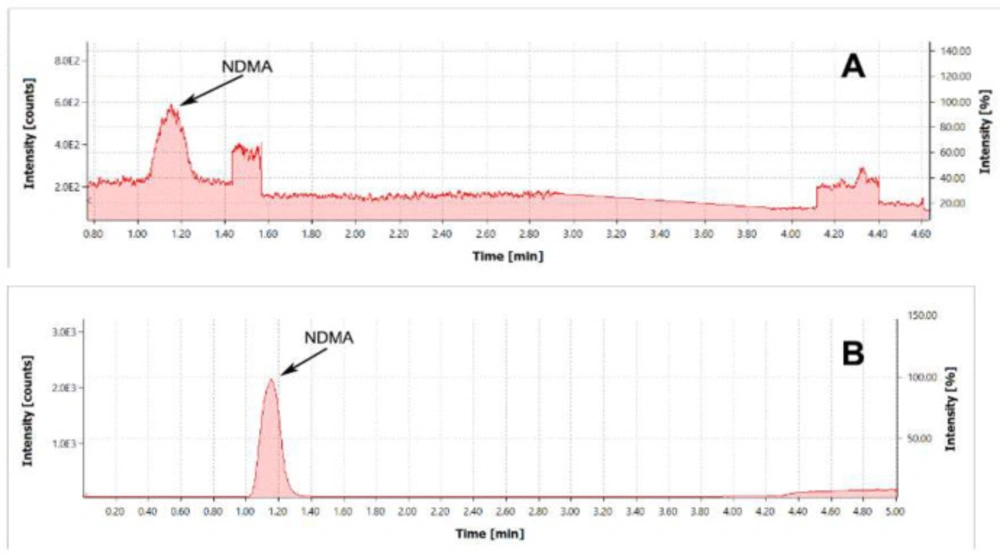

(A) Chromatogram of NDMA standard with the concentration of 0.2 µg/mL. TIC MRM (75.1 -> 58.1) Type of ionization – APCI. Mobile phase composition: formic acid 0.1 % in methanol. (B) Chromatogram of NDMA standard with the concentration of 0.2 µg/mL. TIC MRM (75.1 -> 58.1) Type of ionization – APCI. Mobile phase composition: formic acid 0.1% in methanol and ammonium formate 10 mmol/L water

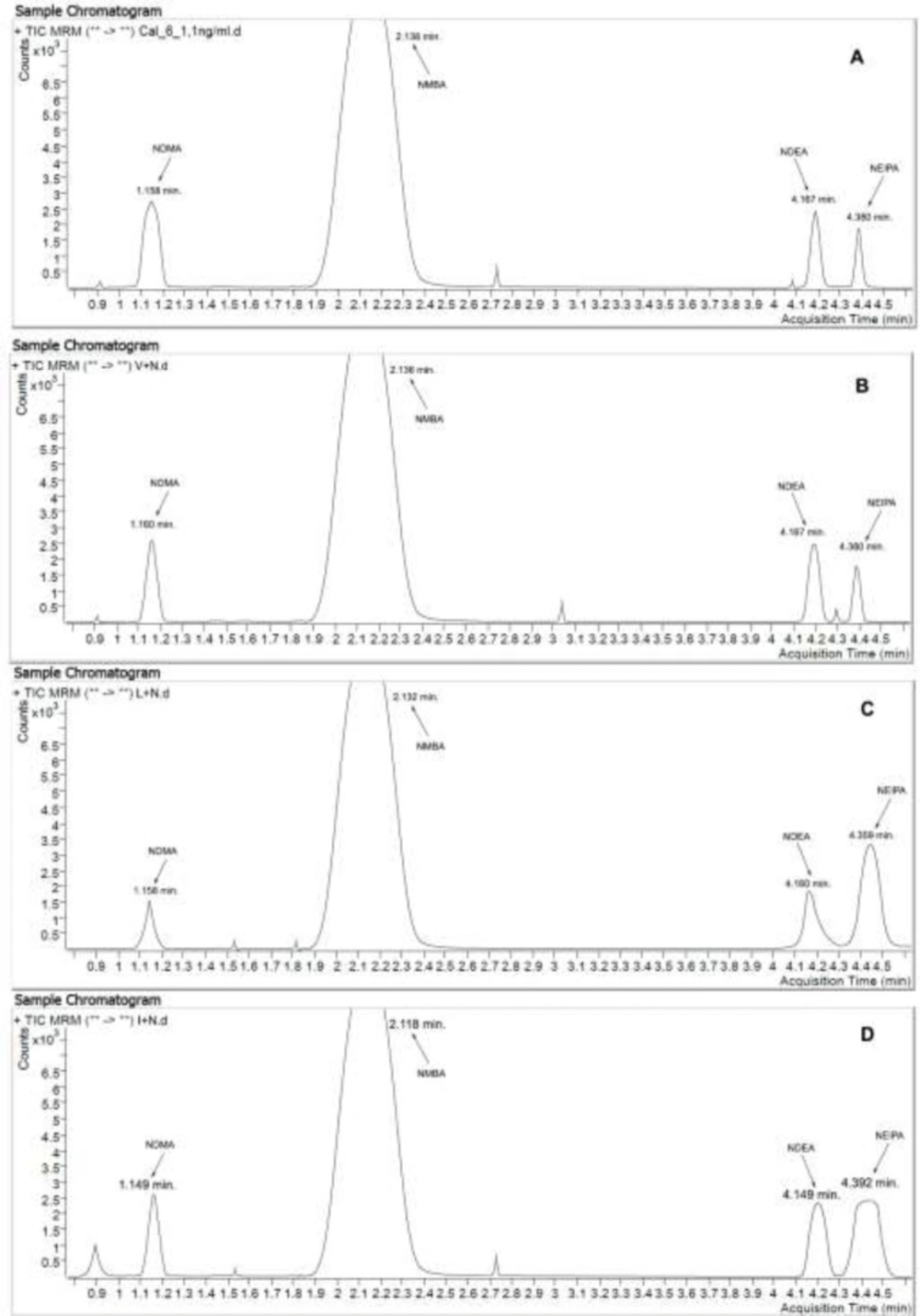

(A) Chromatogram of standard mixture with addition of nitrosamines (concentration: 1.1 ng/mL). TIC MRM (75.1 -> 58.1; 147.1 -> 117.1; 103.1 -> 29.1; 117.1 -> 75.1). (B) Chromatogram of Valsartan model mixture with addition of nitrosamines (concentration: 1.1 ng/mL). TIC MRM (75.1 -> 58.1; 147.1 -> 117.1; 103.1 -> 29.1; 117.1 -> 75.1). (C) Chromatogram of Losartan model mixture with addition of nitrosamines (concentration: 1.1 ng/mL). TIC MRM (75.1 -> 58.1; 147.1 -> 117.1; 103.1 -> 29.1; 117.1 -> 75.1). (D) Chromatogram of Irbesartan model mixture with addition of nitrosamines (concentration: 1.1ng/mL). TIC MRM (75.1 -> 58.1; 147.1 -> 117.1; 103.1 -> 29.1; 117.1 -> 75.1)

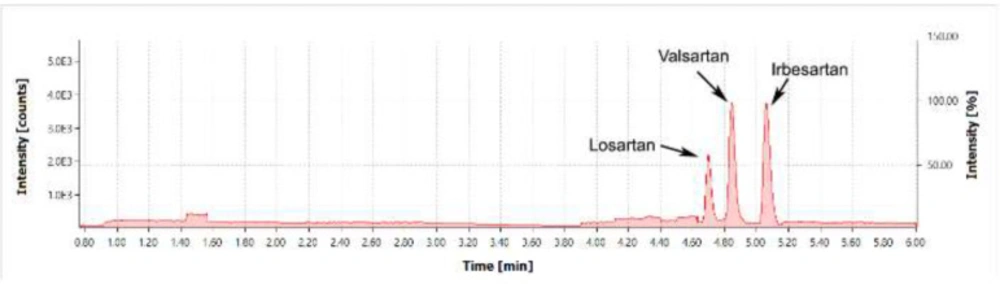

Chromatogram of a mixture of Valsartan, Losartan, and Irbesartan standards obtained in the SCAN mode, range: 150-500 m/z

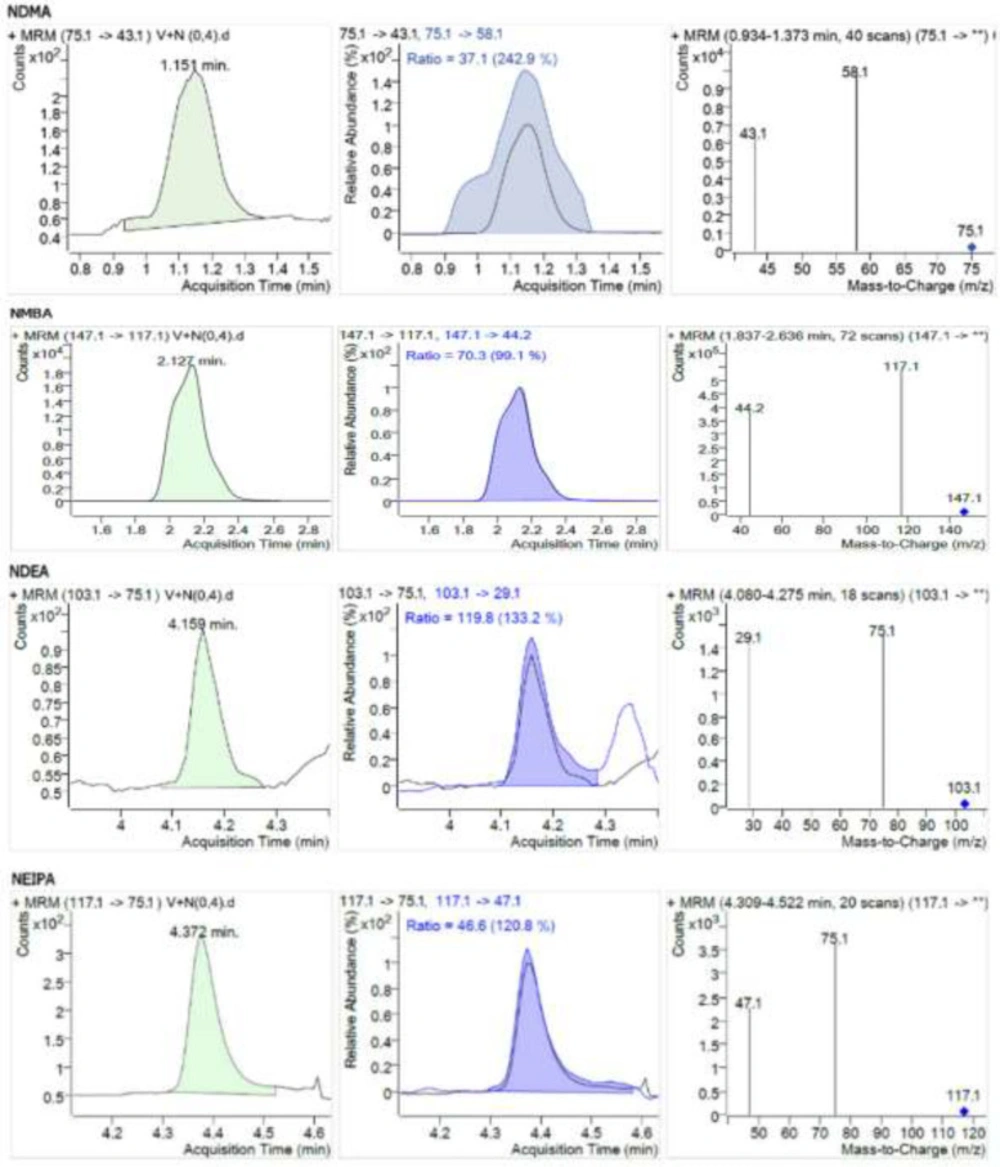

Chromatogram of Valsartan model mixture with addition of nitrosamines (concentration NDMA, NDEA, NMBA, NEIPA: 0.4 ng/mL).

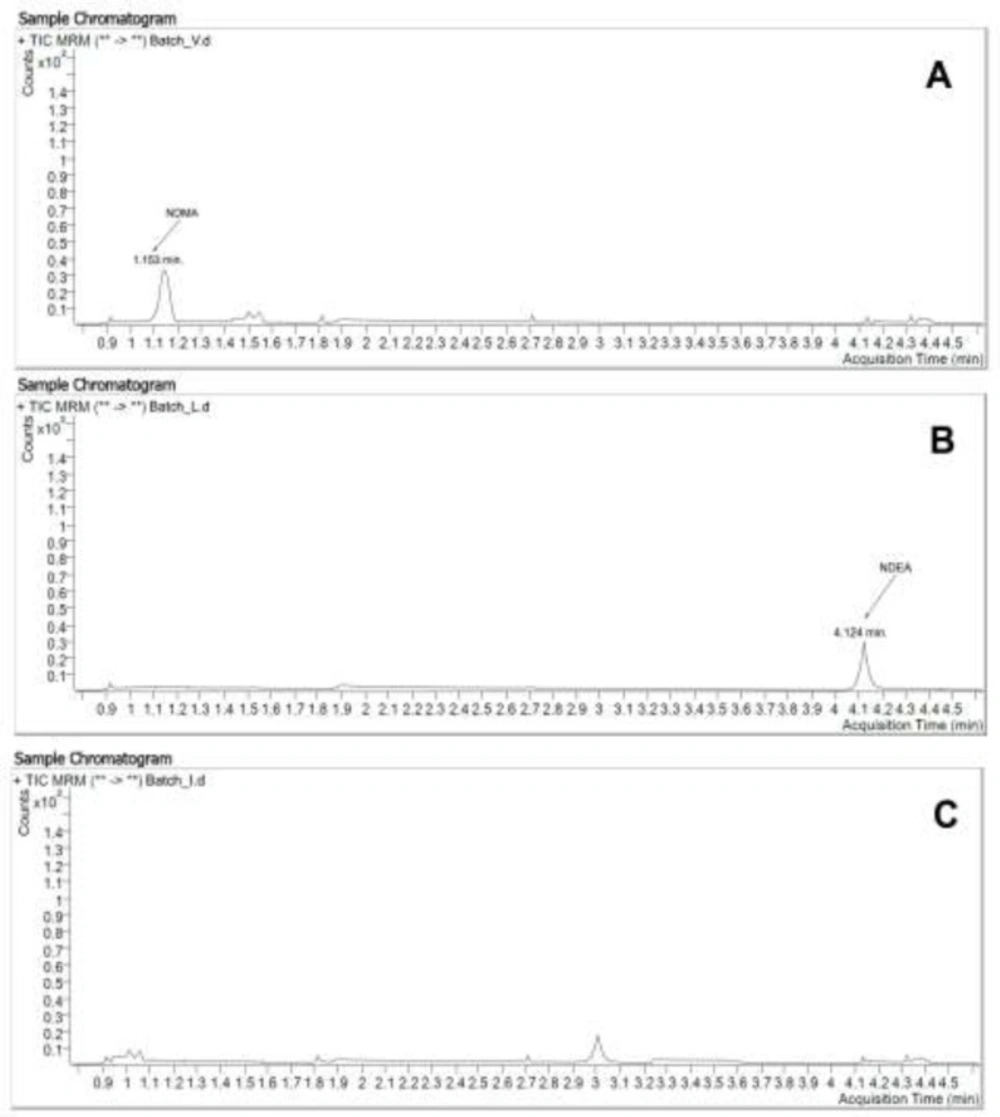

(A) Chromatogram of Valsartan substance. NDMA < 0,4 ng/mL. NDEA, NMBA, NEIPA – not founded. (B) Chromatogram of Losartan substance. NDEA < 0,4 ng/mL. NDMA, NMBA, NEIPA – not founded. (C) Chromatogram of Irbesartan substance. NDMA, NDEA, NMBA, NEIPA – not founded
| Solution | Volumetric flask capacity(mL) | Standard aliquot volume (µL) | Final concentration (ng/mL) |
|---|
| Calibration standard 1 | 100 | 100 | 0.2 |
| Calibration standard 2 | 100 | 200 | 0.4 |
| Calibration standard 3 | 100 | 300 | 0.6 |
| Calibration standard 4 | 100 | 400 | 0.8 |
| Calibration standard 5 | 100 | 450 | 0.9 |
| Calibration standard 6 | 100 | 550 | 1.1 |
| Gradient elution parameter |
|---|
| Time (min) | Mobile phase А, (%) | Mobile phase B, (%) |
|---|
| 0 | 95 | 5 |
| 0.5 | 95 | 5 |
| 1 | 50 | 50 |
| 1.5 | 5 | 95 |
| 5 | 5 | 95 |
| Other analysis settings |
| Column temperature | 50 С |
| Flow rate | 0.4 mL/min |
| Mobile phase A | 0.1% formic acid in 10 мМ ammonium formate aqueous solution |
| Mobile phase B | 0.1% formic acid in methanol |
| Injection volume | 8 µL |
| Stop time | 5 min |
| Post time | 3.5 min |
| MS configuration and source settings |
| Type of ionization source | APCI (atmospheric-pressure chemical ionization) |
| Drying gas temperature | 350 ºС |
| APCI heater | 350 ºС |
| Drying gas flow rate | 6 L/min |
| Nebulizer pressure | 40 psi |
| Capillary voltage, positive | 4,000 V |
| APCI needle positive | 4 µA |
| Time frame – NDMA | 0.986 – 1.556 min |
| Time frame – NMBA | 1.845 – 2.711 min |
| Time frame – NDEA | 4.082 – 4.284 min |
| Time frame – NEIPA | 4.300 – 4.597 min |
| Retention time and characteristic MRM transitions for nitrosamines under discussion |
| Retention time(min) | Precursor ion(m/z) | FragmentorVoltage(V) | Product ion 1(Qualifier)(m/z) | Collision energy(V) | Production 2(Quantifier)(m/z) | Collision energy(V) |
| NDMA | 1.168 | 75.1 | 30 | 43.1 | 17 | 58.1 | 13 |
| NMBA | 2.190 | 147.1 | 55 | 44.2 | 12 | 117.1 | 8 |
| NDEA | 4.156 | 103.1 | 75 | 75.1 | 9 | 29.1 | 13 |
| NEIPA | 4.380 | 117.1 | 50 | 47.1 | 17 | 75.1 | 17 |
| Valsartan model mixture | Losartan model mixture | Irbesartan model mixture |
|---|
| Linear dependence equation and correlation coefficient |
|---|
| NDMA | y = 0.0043x + 0.0046R² = 0.9985 | y = 0.0043x - 0.0395R² = 0.9989 | y = 0.0042x + 0.2838R² = 0.9974 |
| NDEA | y = 0.0043x - 0.0254R² = 0.9989 | y = 0.0043x - 0.0222R² = 0.9986 | y = 0.0041x + 0.4656R² = 0.994 |
| NMBA | y = 3.10-5x + 0.1197R² = 0.9989 | y = 3.10-5x - 0.0175R² = 0.9977 | y = 3.10-5x + 0.7113R² = 0.9941 |
| NEIPA | y = 0.0043x - 0.0822R² = 0.998 | y = 0.0043x + 0.0194R² = 0.9992 | y = 0.0003x + 0.7113R² = 0.9941 |
| Pharmaceutical substance | Valsartan | Losartan | Irbesartan |
|---|
| Nitrosamine | Injected(ng/mL) | Recovered (ng/mL) | R, (%) | Recovered(ng/mL) | R, (%) | Recovered (ng/mL) | R, (%) |
|---|
| NDMA | 0.4 | 0.392 | 97.8 | 0.389 | 95.8 | 0.394 | 98.3 |
| 0.389 | 0.376 | 0.391 |
| 0.393 | 0.385 | 0.372 |
| 0.6 | 0.591 | 97.2 | 0.581 | 96.1 | 0.594 | 95.4 |
| 0.586 | 0.584 | 0.541 |
| 0.574 | 0.566 | 0.557 |
| 0.8 | 0.811 | 97.5 | 0.819 | 95.6 | 0.820 | 95.6 |
| 0.744 | 0.731 | 0.768 |
| 0.787 | 0.745 | 0.739 |
| NDEA | 0.4 | 0.375 | 97.5 | 0.390 | 95.5 | 0.395 | 97.3 |
| 0.368 | 0.384 | 0.347 |
| 0.427 | 0.372 | 0.353 |
| 0.6 | 0.568 | 90.3 | 0.642 | 93.7 | 0.538 | 95.9 |
| 0.542 | 0.510 | 0.574 |
| 0.516 | 0.536 | 0.523 |
| 0.8 | 0.764 | 93.1 | 0.777 | 97.5 | 0.715 | 101.1 |
| 0.749 | 0.764 | 0.821 |
| 0.723 | 0.801 | 0.782 |
| BMSA | 0.4 | 0.396 | 98.3 | 0.391 | 98.5 | 0.389 | 98.5 |
| 0.393 | 0.395 | 0.388 |
| 0.391 | 0.396 | 0.394 |
| 0.6 | 0.596 | 99.1 | 0.594 | 99.1 | 0.591 | 99.1 |
| 0.597 | 0.595 | 0.589 |
| 0.592 | 0.595 | 0.593 |
| 0.8 | 0.790 | 99.2 | 0.794 | 99.3 | 0.794 | 100.7 |
| 0.799 | 0.793 | 0.795 |
| 0.792 | 0.798 | 0.799 |
| NEIPA | 0.4 | 0.376 | 93.5 | 0.383 | 91.9 | 0.395 | 95.7 |
| 0.364 | 0.376 | 0.348 |
| 0.383 | 0.344 | 0.337 |
| 0.6 | 0.582 | 94.3 | 0.594 | 94.8 | 0.546 | 94.3 |
| 0.569 | 0.548 | 0.559 |
| 0.547 | 0.566 | 0.543 |
| 0.8 | 0.786 | 97.2 | 0.737 | 90.7 | 0.720 | 94.9 |
| 0.790 | 0.722 | 0.771 |
| Replication | 1 | 2 | 3 | 4 | 5 | 6 | RSD (%) |
|---|
| Description |
|---|
| NDMA | Peakarea | 829 | 918 | 910 | 924 | 872 | 907 | 4.06 |
| NDEA | 931 | 814 | 930 | 800 | 875 | 929 | 6.87 |
| NMBA | 120070 | 119399 | 123274 | 125207 | 124018 | 123027 | 1.86 |
| NEIPA | 830 | 927 | 902 | 925 | 810 | 957 | 6.57 |
