1. Background
Born in 1940 in Kunshan, Jiangsu, China, Zhengshi Wu initiated his training under his father, Yuwen Wu. Notably, he is the nineteenth-generation successor of the 'Chetang Wu Family's School of Wind Disorders'. He graduated from Shanghai Jiao Tong University School of Medicine and completed his postgraduate studies at Guizhou University of Traditional Chinese Medicine (1). As a chief physician and expert in traditional Chinese medicine, he mentors the second cohort of veteran Traditional Chinese Medicine (TCM) experts, is the recipient of a State Council special allowance, and leads national and provincial initiatives to preserve TCM expertise. His expertise in Miao medicine, specifically O. opipara, has led to breakthroughs in the treatment of conditions such as ulcerative colitis and irritable bowel syndrome.
Miao medicine is a traditional medical system practiced in the Miao ethnic areas of China, encompassing a unique system of medical theories and treatment methods. It features distinctive medicinal practices, particularly in the multi-ethnic regions of Southwest China. One widely used Miao medicine is O. opipara, which has long been popular among the Miao communities for its effectiveness in alleviating diarrhea and purging heat for detoxification purposes. Consequently, it has been widely applied for the treatment of diarrheal diseases. Zhengshi Wu, utilizing his profound knowledge of TCM and extensive clinical experience, has systematically explored and applied O. opipara, achieving favorable outcomes, particularly in the treatment of ulcerative colitis and irritable bowel syndrome.
Osbeckia opipara is derived from the roots and fruits of the plant Jinjinxiang (Malvaceae family), also known as 'Guanzicao', 'Lijiguan', 'Yangtianguan', 'Daoshuilian', 'Gaojiaohonggang', and 'Kuoye Jinjinxiang', a commonly used herbal medicine in Miao areas. Characterized by a cool nature, with sour and astringent tastes, it enters the 'heat meridian'. Its primary functions are to clear heat, promote diuresis, detoxify, stop bleeding, and attenuate diarrhea. Thus, it is predominantly used for the treatment of damp-heat dysentery, diarrhea, lung heat, cough, and hemoptysis (2).
At present, studies on O. opipara are scarce. The primary components identified in the root of O. opipara are phenols, tannins, and various other substances, which have demonstrated potent antioxidant, anti-inflammatory, and anti-tumorigenic properties (3-6). However, there is still a paucity of reports on the quality assessment of O. opipara. Given the diversity and complexity of chemical components in traditional Chinese medicines, it is challenging to comprehensively reflect the quality of materials using a single or a few index components. The fingerprint technique of traditional Chinese medicine is a comprehensive, quantifiable identification method used to evaluate the quality of Chinese medicine, authenticate its origin, distinguish between species, and ensure consistency and stability. Creating a unique fingerprint for traditional Chinese medicine can provide an in-depth representation of the various chemical components present in Chinese medicine and its formulations, ultimately facilitating the assessment of the quality of ingredients (7-9). The combination of cluster analysis with HPLC fingerprint profiles not only streamlines original data processing but also retains most information, addressing numerous challenges encountered in the multivariate quality evaluation of traditional Chinese medicine (10).
To systematically develop and utilize the Miao medicine O. opipara, commonly used by the renowned traditional Chinese medicine practitioner Wu Zhengshi, and to ensure its quality, this study collected samples from 11 batches of O. opipara. During the creation of HPLC fingerprint profiles, cluster analysis was employed to examine variations among individual batches, identify the chemical components responsible for these differences, and elucidate the variability among different batches of O. opipara.
2. Objectives
Overall, this study is anticipated to provide a theoretical reference for quality control and the exploration of the pharmacodynamic material basis in O. opipara.
3. Methods
3.1. Instruments
Instruments used in this study included a versatile high-speed grinder procured from Zhejiang Hongjingtian Industrial & Trade Co., Ltd., a numerical control ultrasonic cleaner model KQ-300DE acquired from Kunshan Ultrasonic Instruments Co., Ltd., a high-performance liquid chromatograph LC-20AT obtained from Shimadzu Corporation in Japan, and a laboratory-specific ultrapure water machine purchased from Sichuan Walter Co., Ltd.
3.2. Reagents
Methanol (Tianjin Concord Technology Co., Ltd.); Acetonitrile (Tianjin Concord Technology Co., Ltd.); Formic acid (Tianjin Komio Chemical Reagent Co., Ltd.); Tannic acid (Chengdu Mansite Biotechnology Co., Ltd.); Ultrapure water (self-prepared).
3.3. Medicinal Materials
Professor Zhou Jing from the School of Pharmacy at Guizhou University of Traditional Chinese Medicine confirmed the medicinal ingredients of O. opipara collected from various regions in Guizhou, including Guiyang, Zunyi, Liupanshui, Bijie, and Anshun. The voucher specimen (20200816) was archived at the Herbarium of Guizhou University of Traditional Chinese Medicine. All samples were processed products of the dried fruits and roots of O. opipara. Details are listed in Table 1. After pulverization, the medicinal materials were sieved through a 50-mesh screen, and the resulting powders were stored in a desiccator in a cool, dry environment.
Table 1.Information on Osbeckia opipara
| No. | Origin | Altitude (m） | Processing Method | Remarks |
|---|---|---|---|---|
| S1 | Huaxi District, Gaopo Township, Shuitang Village, Guiyang City, Guizhou Province | 1340 | Drying | Self-collected |
| S2 | Longgang Town, Kaiyang County, Guiyang City, Guizhou Province, Doupeng Mountain | 1228 | Drying | Self-collected |
| S3 | Yushe National Forest Park, Shuicheng County, Liupanshui City, Guizhou Province | 2266 | Drying | Self-collected |
| S4 | Huangguoshu Town, Zhenning Buyi and Miao Autonomous County, Anshun City, Guizhou Province | 1090 | Drying | Self-collected |
| S5 | Tunshang Village, Zhenfeng County, Qianxinan Buyi and Miao Autonomous Prefecture, Guizhou Province | 910 | Drying | Self-collected |
| S6 | Xiaoshui Township, Tongzi County, Zunyi City, Guizhou Province | 1152 | Drying | Self-collected |
| S7 | Weixin Town, Nayong County, Bijie City, Guizhou Province | 1692 | Drying | Self-collected |
| S8 | Jiaozi Mountain, Yushetown, Shuicheng County, Liupanshui City, Guizhou Province | 2038 | Drying | Self-collected |
| S9 | Dalongjing Village, Baixing Town, Nayong County, Bijie City, Guizhou Province | 1632 | Drying | Self-collected |
| S10 | Gaopo Miao Ethnic Township, Huaxi District, Guiyang City, Guizhou Province | 1459 | Drying | Self-collected |
| S11 | Changpo, Ziyun Miao and Buyi Autonomous County, Anshun City, Guizhou Province | 1264 | Drying | Self-collected |
4. Results
4.1. Preparation of Solutions
4.1.1. Preparation of Reference Solution
A pre-defined amount of tannic acid reference substance was weighed and dissolved in methanol to yield a solution containing 1.084 mg of tannic acid per milliliter. This solution was then stored at 2 - 8°C.
4.1.2. Preparation of Test Sample Solution
One gram of O. opipara medicinal material powder was weighed and added to 10 mL of methanol, and the mixture was ultrasonicated for 30 minutes. The mixture was then filtered, and the filtrate was transferred into a 10 mL volumetric flask, thoroughly mixed, and filled up to the mark with methanol. The solution was subsequently filtered through a 0.45 μm microporous membrane to collect the filtrate, which served as the test sample solution.
4.2. Optimization of Chromatographic Conditions
4.2.1. Investigation of Optimal Flow Rate
As displayed in Figure 1, the impact of three varying flow rates (0.5 mL/min, 0.8 mL/min, and 1.0 mL/min) on the experimental outcomes was investigated under identical conditions. The duration of each peak separation was prolonged at flow rates of 0.5 mL/min and 0.8 mL/min. Conversely, the peaks exhibited enhanced intensity, stability, and separation and eluted more rapidly at a flow rate of 1.0 mL/min. Hence, a flow rate of 1.0 mL/min was selected for the subsequent experiments.

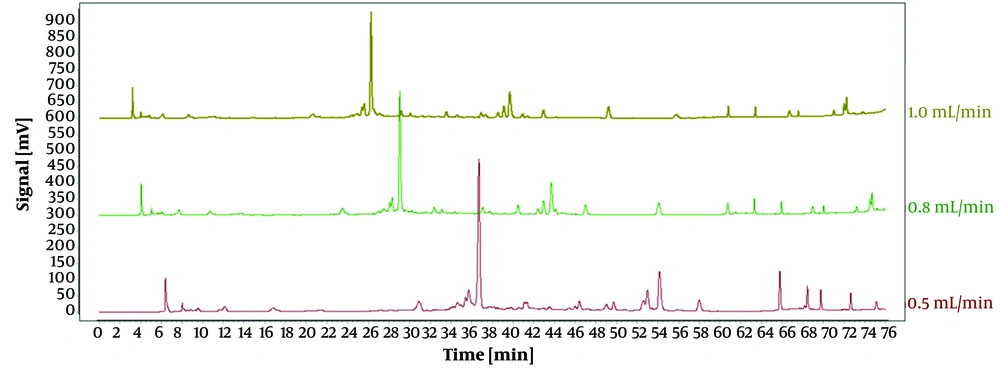

Figure 1.
High-performance liquid chromatography (HPLC) chromatograms of Osbeckia opipara at different flow rates
4.2.2. Investigation of Injection Volume
Under identical conditions, the impact of different injection volumes (5 µL, 10 µL, and 15 µL) on the experiment was assessed, with results illustrated in Figure 2. Using an injection volume of 10 µL, the peaks demonstrated enhanced intensity, stability, and separation. Consequently, an optimal injection volume of 10 µL was selected.

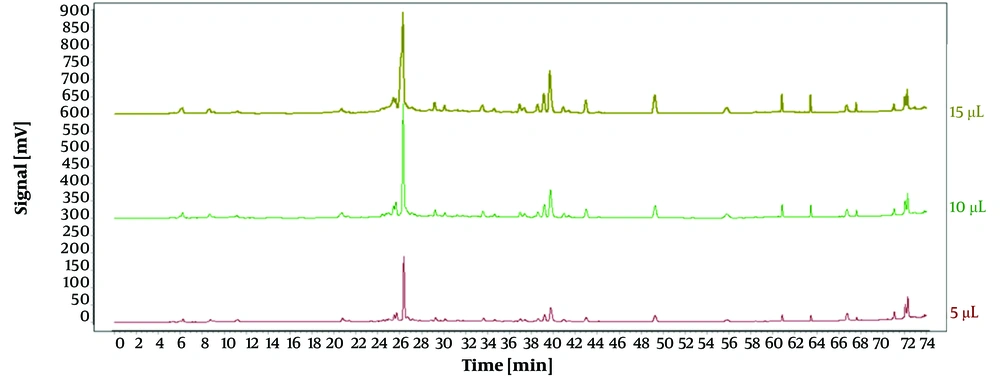

Figure 2.
High-performance liquid chromatography (HPLC) chromatograms of Osbeckia opipara at different injection volumes
4.2.3. Investigation of Mobile Phase
The impacts of four distinct mobile phase setups were examined under identical conditions: Water-methanol (S1), water-methanol with 0.1% acetic acid (S2), water-methanol with 0.1% formic acid (S3), and water-0.1% formic acid in acetonitrile with 0.1% formic acid (S4). The results are depicted in Figure 3. The solution containing 0.1% formic acid in water and 0.1% formic acid in acetonitrile effectively separated all components with improved peak intensity, stability, and resolution. Hence, this setup was chosen as the mobile phase system for the subsequent experiments.

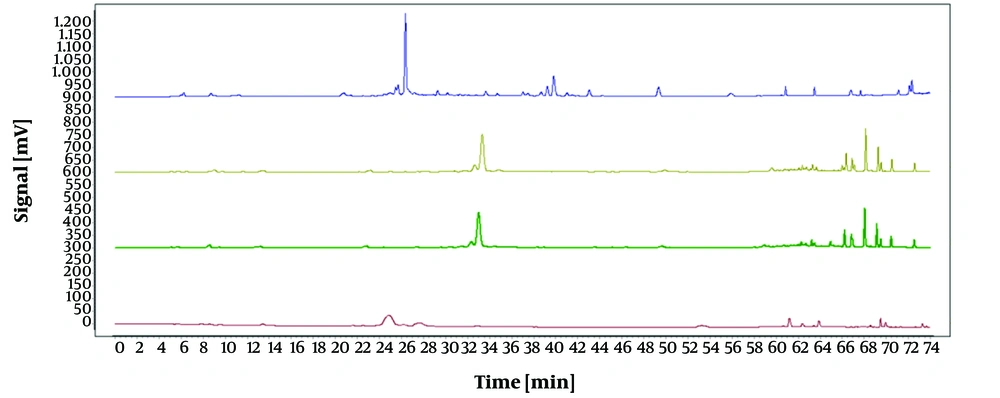

Figure 3.
High-performance liquid chromatography (HPLC) chromatograms of O. opipara with different mobile phases.
4.2.4. High-performance Liquid Chromatography Chromatographic Conditions
Following multiple optimization experiments, the most effective chromatographic parameters were determined to be as follows: A Nano ChromCore C18 column (250 mm × 4.6 mm, 5 μm), a constant column temperature of 30°C, an injection volume of 10 µL, detection at a wavelength of 254 nm, a flow rate of 1.0 mL/min, and a mobile phase A containing 0.1% formic acid in water and mobile phase B comprising 0.1% formic acid in acetonitrile. The gradient elution conditions are summarized in Table 2.
Table 2.Gradient Elution Program
| Time (min) | 0.1% Formic Acid in Water (Phase A) | 0.1% Formic Acid in Acetonitrile (Phase B) |
|---|---|---|
| 0.01 | 95% | 5% |
| 5 | 95% | 5% |
| 8 | 90% | 10% |
| 10 | 87% | 13% |
| 45 | 82% | 18% |
| 50 | 82% | 18% |
| 60 | 55% | 45% |
| 75 | 10% | 90% |
| 85 | 95% | 5% |
4.3. Methodological Validation
4.3.1. Evaluation of Precision
The test sample solution was prepared as described in section '3.1.2' and injected six times consecutively following the chromatographic conditions outlined in section '3.2.4'. The results are delineated in Figure 4. Interestingly, the Relative Standard Deviation (RSD) for the relative retention times of all shared peaks fell within the range of 0.03% to 0.3%. As presented in Table 3, the correlation coefficients all exceeded 0.99, with an RSD of the correlation coefficient at 0.4%, indicating satisfactory precision. The calculation formula is:
where SD is the standard deviation of the sample and

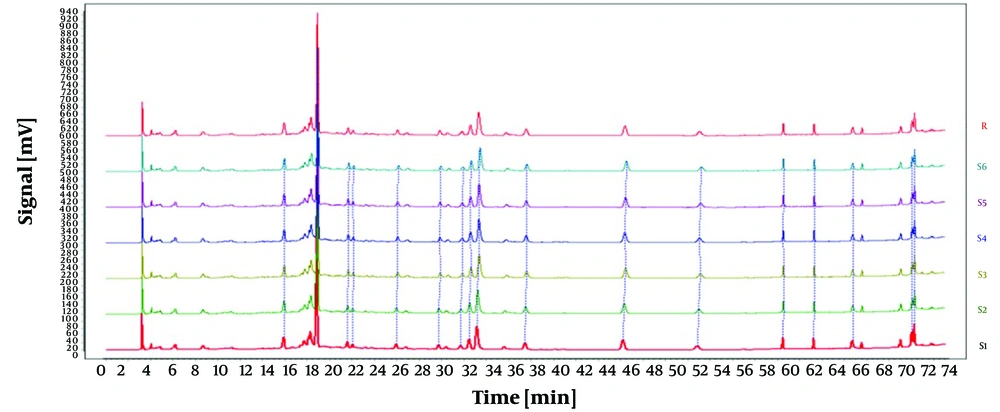

Figure 4.
Precision experiment
Table 3.Results of the Precision Experiment
| Injection | Correlation Coefficient | RSD |
|---|---|---|
| 1 | 0.999 | |
| 2 | 0.998 | |
| 3 | 0.994 | 0.4% |
| 4 | 0.999 | |
| 5 | 0.999 | |
| 6 | 0.999 |
4.3.2. Repeatability Test
Five parallel test sample solutions were prepared as summarized in section 3.1.2 and subsequently analyzed by injection following the procedures detailed in section 3.2.4. The results are portrayed in Figure 5. Each shared peak exhibited an RSD for its relative retention times below 0.3%. As detailed in Table 4, the correlation coefficients all exceeded 0.98, and the RSD of the correlation coefficients was 1.2%, demonstrating good repeatability.

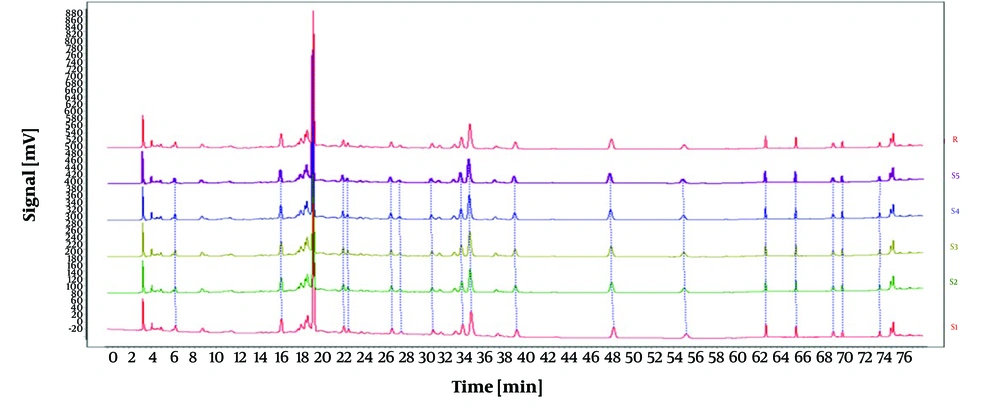

Figure 5.
Repeatability experiment
Table 4.Results of the Repeatability Experiment
| Sample (Portion) | Correlation Coefficient | RSD |
|---|---|---|
| 1 | 0.996 | |
| 2 | 0.99 | |
| 3 | 0.991 | 1.2% |
| 4 | 0.993 | |
| 5 | 0.987 |
4.3.3. Stability Test
The test sample solution was prepared as outlined in section 3.1.2 and injected at 0, 2, 4, 8, 12, and 24 hours according to the steps described in section 3.2.4. The results are shown in Figure 6. As anticipated, each shared peak exhibited an RSD for its relative retention times below 0.3%. As presented in Table 5, the correlation coefficients were greater than 0.98, with an RSD of the correlation coefficients at 1.2%, implying good stability.

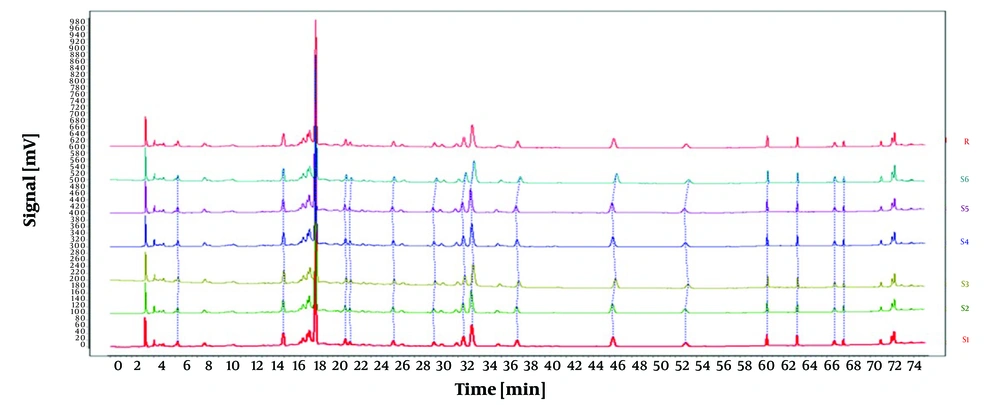

Figure 6.
Stability experiment
Table 5.Results of the Stability Experiment
| Time (h) | Correlation Coefficient | RSD |
|---|---|---|
| 0 | 0.988 | |
| 2 | 0.994 | |
| 4 | 0.997 | |
| 8 | 0.992 | 1.2% |
| 12 | 0.992 | |
| 24 | 0.986 |
4.4. Establishment of O. opipara HPLC Chromatographic Fingerprint
In this experiment, samples of O. opipara were collected from 11 different regions. The samples were prepared as outlined in section 3.1.2, while the chromatographic conditions were identical to those mentioned in section 3.2.4. The fingerprint profile for the medicinal material was created by importing the chromatograms from the 11 samples of O. opipara into the 'Traditional Chinese Medicine Chromatographic Fingerprint Similarity Evaluation System, Version A'. This profile included 13 common peaks (as shown in Figure 7).

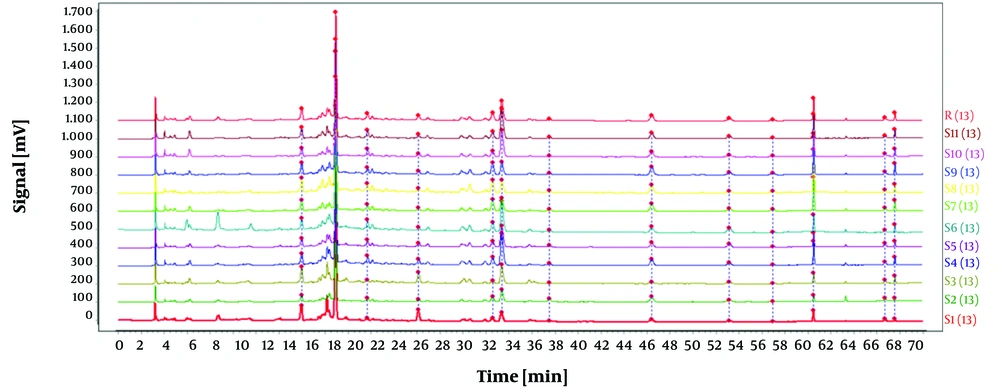

Figure 7.
Chromatograms of 11 batches of Guizhou Osbeckia opipara medicinal material
To establish the characteristic and comprehensive fingerprint, 11 batches of the O. opipara samples from different origins were analyzed by HPLC and standardized by the Similarity Evaluation System for Chromatographic Fingerprint of Traditional Chinese Medicine (Version 2004A). There are 13 common peaks in the HPLC fingerprints with good resolution, which were regarded as the reference chromatogram (Figure 8). Among these 13 common peaks, peak 8 was chosen as the reference peak (S) due to its high content, high intensity, and moderate retention time in the O. opipara chromatograms. The relative retention time (RRT) and relative peak area (RPA) with respect to the reference peak were then measured (12). The RRT and RPA statistics in HPLC fingerprints were useful for the quality assessment of O. opipara.

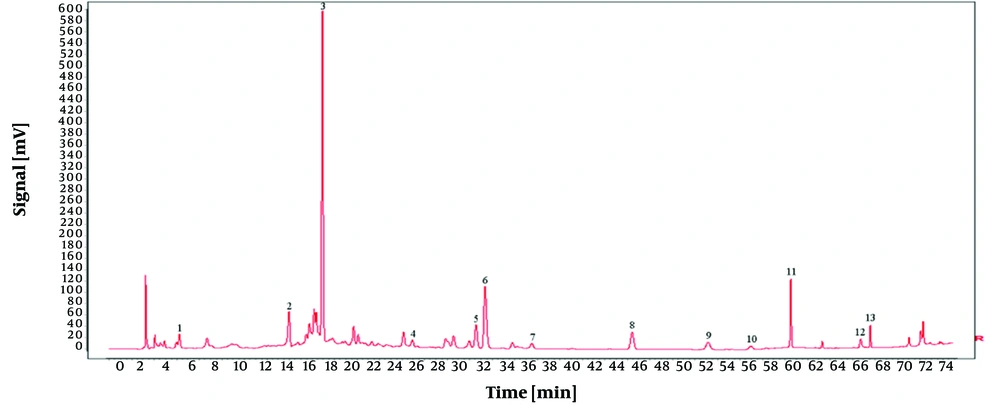

Figure 8.
Common pattern diagram of 11 batches of Guizhou Osbeckia opipara medicinal material
The reference substance was prepared as outlined in section 3.1.1, and the chromatographic conditions were identical to those outlined in section 3.2.4. Additionally, peaks corresponding to the retention time of the reference substance tannic acid were identified by comparing the reference chromatogram with the standard pattern reference chromatogram, as illustrated in Figure 9. The findings demonstrated that the RSD for the relative retention times of all shared peaks was below 0.3%, suggesting that their compositions were nearly identical. However, variations in the peak areas of some peaks suggested that the abundance of components may differ among different batches of O. opipara.

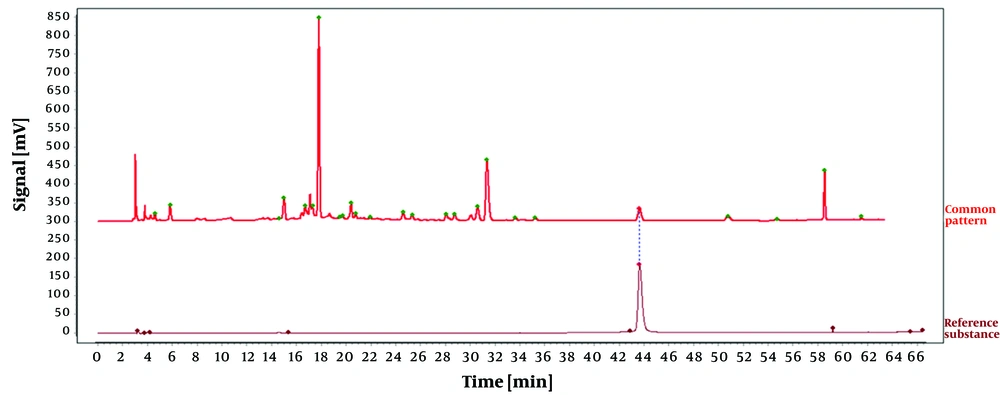

Figure 9.
Comparison diagram between reference substance and common pattern diagram
4.5. Chemometric Methods Analysis of O. opipara Medicinal Material Fingerprint
4.5.1. Similarity Analysis of 11 Batches of O. opipara Medicinal Material Collected from Different Areas
Next, the chromatograms of the 11 batches of O. opipara test samples were matched with the reference fingerprint chromatogram. Similarity evaluation was conducted by comparing the peak areas through correlation coefficient similarity, a method derived from the Chinese Pharmacopoeia (13).
As shown in Table 6, the similarity of the 11 batches of O. opipara medicinal material all exceeded 0.9, indicating a high degree of consistency.
Table 6.Similarity Calculation Results of 11 Batches of O. opipara from Guizhou
| S1 | S2 | S3 | S4 | S5 | S6 | S7 | S8 | S9 | S10 | S11 | Reference Fingerprint | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S1 | 1 | 0.908 | 0.948 | 0.886 | 0.903 | 0.841 | 0.911 | 0.922 | 0.916 | 0.846 | 0.866 | 0.916 |
| S2 | 0.908 | 1 | 0.962 | 0.978 | 0.978 | 0.951 | 0.966 | 0.956 | 0.953 | 0.959 | 0.968 | 0.982 |
| S3 | 0.948 | 0.962 | 1 | 0.958 | 0.953 | 0.903 | 0.958 | 0.965 | 0.959 | 0.925 | 0.944 | 0.977 |
| S4 | 0.886 | 0.978 | 0.958 | 1 | 0.991 | 0.96 | 0.958 | 0.946 | 0.948 | 0.991 | 0.996 | 0.987 |
| S5 | 0.903 | 0.978 | 0.953 | 0.991 | 1 | 0.954 | 0.957 | 0.943 | 0.945 | 0.982 | 0.987 | 0.984 |
| S6 | 0.841 | 0.951 | 0.903 | 0.96 | 0.954 | 1 | 0.909 | 0.89 | 0.898 | 0.957 | 0.961 | 0.942 |
| S7 | 0.911 | 0.966 | 0.958 | 0.958 | 0.957 | 0.909 | 1 | 0.993 | 0.992 | 0.945 | 0.952 | 0.988 |
| S8 | 0.922 | 0.956 | 0.965 | 0.946 | 0.943 | 0.89 | 0.993 | 1 | 0.995 | 0.922 | 0.936 | 0.982 |
| S9 | 0.916 | 0.953 | 0.959 | 0.948 | 0.945 | 0.898 | 0.992 | 0.995 | 1 | 0.926 | 0.94 | 0.982 |
| S10 | 0.846 | 0.959 | 0.925 | 0.991 | 0.982 | 0.957 | 0.945 | 0.922 | 0.926 | 1 | 0.996 | 0.973 |
| S11 | 0.866 | 0.968 | 0.944 | 0.996 | 0.987 | 0.961 | 0.952 | 0.936 | 0.94 | 0.996 | 1 | 0.982 |
| Reference Fingerprint | 0.916 | 0.982 | 0.977 | 0.987 | 0.984 | 0.942 | 0.988 | 0.982 | 0.982 | 0.973 | 0.982 | 1 |
4.5.2. Cluster Analysis Using SPSS
Using the peak areas of the common peaks from 11 samples of O. opipara as variables, a systematic cluster analysis was conducted using SPSS 26.0 analysis software (Figure 10). The between-groups linkage method was employed, with Euclidean distance as the measure for clustering. At a distance of 25, all objects formed a single large category without further division, indicating marginal differences between O. opipara samples originating from different areas (Numbers 1 - 13 in the analysis correspond to the order of O. opipara in Table 1).

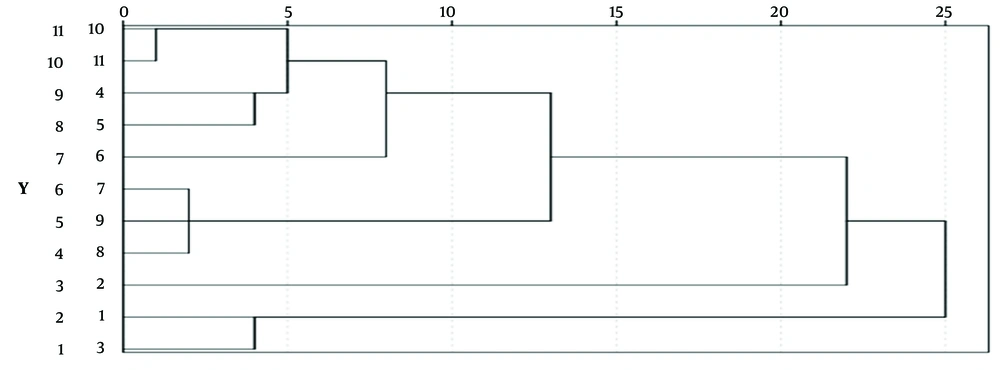

Figure 10.
Cluster diagram of 11 batches of Osbeckia opipara
5. Discussion
In addition to investigating chromatographic conditions, this study also explored the impact of extraction solvents on extraction efficiency. Specifically, the study examined water, methanol, and a water-methanol mixture (20: 80) as extraction solvents. When water was used as the solvent, fewer peaks were separated, and many could not be effectively isolated. The addition of methanol, particularly at an 80: 20 methanol-water ratio, significantly optimized extraction efficiency, allowing for the extraction of several substances. Using pure methanol as the solvent resulted in all components being baseline separated, with peaks exhibiting better intensity, stability, and separation.
This study has laid a preliminary foundation for elucidating the chemical composition and pharmacological characteristics of a specific traditional Chinese medicine. To better understand its chemical makeup and mechanisms, it is essential to utilize sophisticated analytical methods such as Gas Chromatography-Mass Spectrometry (GC-MS) and Liquid Chromatography-Mass Spectrometry (LC-MS). These methodologies are not only capable of identifying a broader spectrum of secondary metabolites but are also instrumental in elucidating their influence on the efficacy of the product.
Furthermore, it is critical to explore the pharmacological actions and mechanisms of action of the products and associated metabolites. While the traditional applications of Chinese medicine offer valuable insights into their potential effects, scientific validation is key. Cellular and animal experiments are crucial to reveal the potential pharmacological actions and underlying mechanisms, which is pivotal for evaluating the clinical applicability of these herbal medicines (14). Additionally, safety assessment is a critical component of research in traditional Chinese medicine. Comprehensive toxicological evaluations, including acute and chronic toxicity studies, are vital to ensuring the safety of the herbal constituents (15).
Although our research provides a basis for understanding the chemical and pharmacological properties of the medicine, the lack of clinical studies limits our understanding of its effects on the human body. Further clinical trials are warranted to evaluate the effectiveness and safety of O. opipara in human subjects.
In summary, our study laid a preliminary theoretical foundation and outlined a research direction for the further exploration of traditional Chinese medicine. Future studies should aim to comprehensively analyze the components, investigate their pharmacological mechanisms and safety profiles, and establish stringent quality control standards in order to provide scientific validation and evidence for the Miao ethnic medicine O. opipara, commonly utilized by the esteemed traditional Chinese medicine practitioner Wu Zhengshi for the treatment of intestinal diseases.
5.1. Conclusions
This study established the fingerprint profile of O. opipara using HPLC. Specifically, a common model was generated using thirteen characteristic peaks that exhibited high responses and favorable separation. The quality of the medicinal material was assessed using the software 'Traditional Chinese Medicine Chromatographic Fingerprint Similarity Evaluation System' developed by the National Pharmacopoeia Committee. The findings indicated that the similarity among the 11 sets of O. opipara herbal material exceeded 0.9, suggesting that the reference spectrum derived from these 11 sets could serve as the official fingerprint pattern for O. opipara. The approach used in this research provides a theoretical framework for ensuring the quality of O. opipara, enabling its assessment and authentication.
