A Case of Pulmonary Artery Hydatid Cyst Observed on Endobronchial Ultrasound

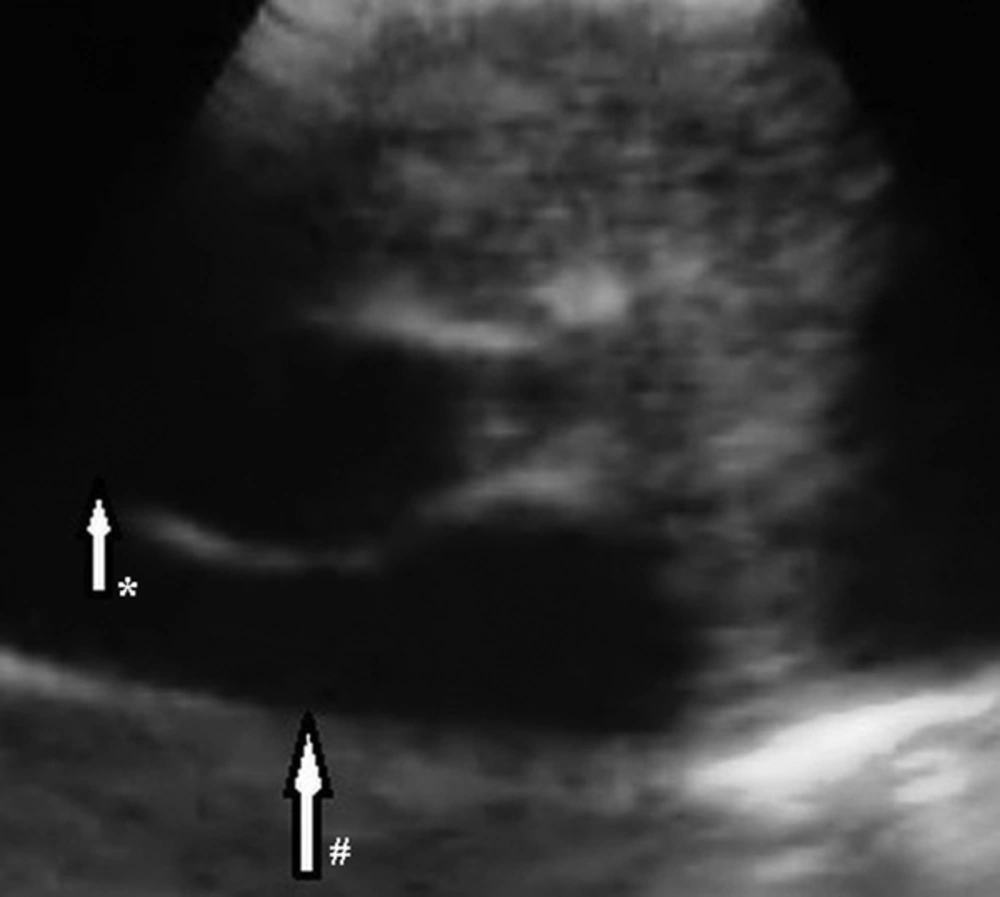

Echinococcosis in an important parasitic infection that is still a common health problem in undeveloped and developing countries (1). The liver is the most common site of involvement, followed by the lung. Hydatid disease is often asymptomatic. Symptoms depend on the size and location of the cyst (2). Pulmonary embolism of hydatid cysts is extremely rare (3). The right atrium, right ventricle, and liver have been reported as embolic origins of such cysts (4). Here, we present a case of embolism of a hydatid cyst inside the left main pulmonary artery. The cyst was in the upper segmental branch of the lingular artery, and segmental and sub segmental branches of the lower lobe artery. However, no hydatid cysts were found in other organs. This case is interesting because there are only a few cases in which isolated pulmonary artery hydatid cyst without other organ involvement has been reported in the literature. We believe that this case is the first example of pulmonary artery hydatid cyst diagnosed by EBUS.

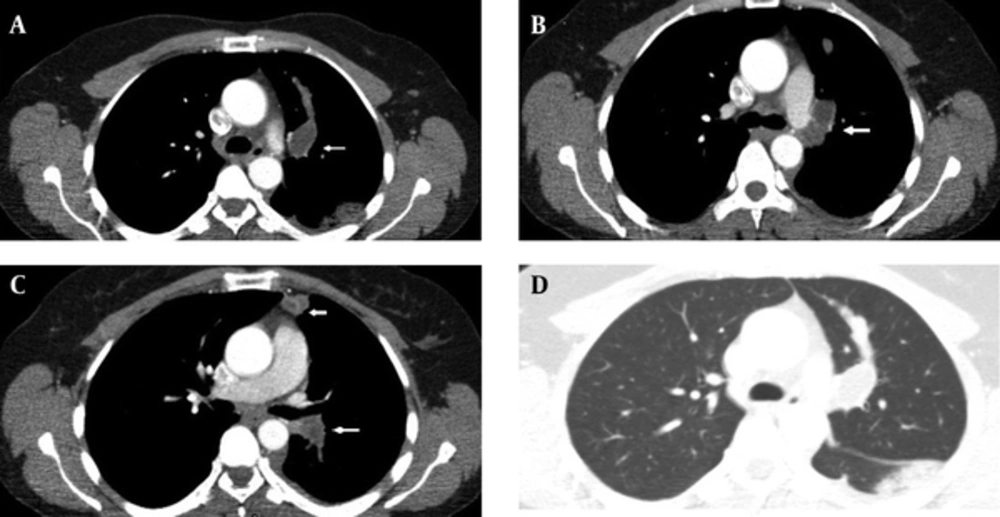

A 48-year-old woman presented with a one-month history of cough. She had no complaints of sputum, chest pain, or dyspnea, but she had a suspicious history of hemoptysis. She had never smoked. She had a dog in her childhood and she also lived in the rural area. Her physical examination was normal. No abnormal signs were observed on her chest radiograph. Pulmonary function tests and laboratory test results were within normal limits except for eosinophilia and minimally elevated D-dimer in the blood test. D-dimer level of the patient was 600 ng/mL, while normal limits are 0-500. A negative D-dimer result may exclude pulmonary embolism, but there are many reasons that cause D-dimer elevation such as infection, trauma, deep venous thrombosis, and disseminated intravascular coagulation. In this case, the reason of elevated D-dimer was parasitic infection. The patient was treated with 250-mg fluticasone dry powder twice daily in an inhaler and montelukast once daily under a suspicious diagnosis of allergic asthma; she asked for a control examination 2 weeks later. At the control examination, she still complained of coughing. Thoracic computed tomography (CT) was performed to investigate the etiology of cough and her minimally elevated D-dimer level. Filling defects were observed inside the left main pulmonary artery, upper segmental branch of the lingular artery, and segmental and subsegmental branches of the lower lobe artery on her thoracic CT angiogram (Figure 1A-D). This finding at the main and superior branch of the lingular artery showed continuity with an 18 × 16 mm nodular opacity considered likely to be a cystic embolism. The right pulmonary artery and its branches were clear. Subcutaneous low-molecular-weight heparin anticoagulant therapy was administered on the basis of the suspicious diagnosis of pulmonary thromboembolism. Left and right ventricular parameters on echocardiographic evaluation were normal. Systolic pulmonary artery pressure was 25 mm Hg. No intracardiac thrombi, or any thrombosis in the deep veins of the lower extremities were observed. Clinical and radiological findings were not completely compatible with thromboemboli. Because pulmonary artery filling defects appeared more well-circumscribed and smooth, and they showed continuity with an 18×16 mm nodular cystic opacity different from usual features of emboli, the other reasons such as pulmonary artery sarcoma and hydatid cyst causing filling defects in the pulmonary artery on CT were investigated. So for assessment of the other differential diagnoses, the patient underwent endobronchial ultrasound (Olympus EvisExera II CV180). An anechoic cystic area was visualized inside the left pulmonary artery (Figure 2). We performed endobronchial Doppler ultrasound to investigate whether it was a cystic lesion that was causing the filling defects inside the pulmonary artery. Doppler ultrasonography revealed a cystic formation that made the vascular filling defect inside the left pulmonary artery. Thoracic magnetic resonance angiography was performed to investigate the cyst in more detail and it revealed cystic formations in the left pulmonary artery (Figure 3A-D). MRI scans revealed the findings of hydatid cysts. The lesions were hyperintense both on T1-W and T2-W MRI images that showed the liquid within the cyst was rich of protein. On MRI examination, either distal branches of the pulmonary artery were not filled with contrast and showed cystic lesions in them. The nature was the same in the lesions on the proximal branches of the pulmonary artery. Indirect hemagglutination and specific IgE tests were performed to confirm the diagnosis of hydatid cyst; both results were positive. Anticoagulant therapy was stopped, and albendazole treatment was initiated. The patient was scanned for frequent locations of organ involvement of hydatid cysts, but no other cysts were observed. We consulted with cardiovascular surgeons for surgery. The cardiovascular surgeons suggested thoracotomy and embolectomy, but the patient refused the operation. The diagnosis of pulmonary artery hydatid cyst was decided by the patient’s history of living in an endemic area, thoracic CT, MRI and EBUS findings and also positive serology tests. Both proximal and distal lesions in the pulmonary arteries had the same nature. So anticoagulant therapy was stopped and albendazole treatment was administered to the patient. There was no complaint of coughafter one year follow-up visits. The size of the cyst in the left pulmonary artery on control thoracic CT scans shrunk 7.9 mm in diameter after one year of albendazole treatment (Figure 4A and B). Albendazole therapy was continued for 2 years.

Hydatidosis is a parasitic infection caused by the larval stage of Echinococcus granulosus. The liver (70%) and lungs (25%) are the organs most often affected. Although cardiac involvement is observed in only 0.2-3% of cases, early diagnosis and treatment are important (5). In primary cardiac hydatidosis, larvae usually reach the myocardium via the coronary circulation, the pulmonary circulation, or a patent foramen ovale. Intestinal lymphatic vessels, thoracic duct, superior and inferior vena cava, and hemorrhoidal and pulmonary veins may be involved (6). A variety of cardiac sequelae including sudden cardiac death, massive pulmonary embolism, and pulmonary hypertension may be encountered clinically. Echocardiography, CT, and magnetic resonance imaging (MRI) can be used to identify cardiac hydatidosis (7). The pulmonary arteries are an exceptionally rare location for hydatid cysts involvement. Hydatid cysts located in the pulmonary arteries are frequently the consequence of embolisms from primary cardiac locations (8). In the present case, a hydatid cyst was located inside the left pulmonary artery and its branches, without any cyst in the heart or other organs. Intra-arterial hydatid cysts grow slowly into the lumen, ultimately occluding it. In the pulmonary arteries, this process may occur over a long period. Because pulmonary arteries have adequate pulmonary perfusion through the bronchial arteries, cases may be initially asymptomatic before the presentation of dyspnea. Symptoms can be observed when the cysts compress a vital structure or interrupt blood circulation, which may also lead to anaphylactic shock (9). The present patient only presented with cough and no dyspnea. In this case, the cough might be the result of compression of the left lower bronchus by the cyst. Hydatid cysts usually have a characteristic appearance on MRI; an oval lesion hypo intense and hyper intense on T1-and T2-weighted images, respectively. In this case, the lesions were hyper intense both on T1-W and T2-W MRI images that shows the liquid within the cyst was rich of protein (10). In the differential diagnosis of pulmonary artery hydatid cyst, pulmonary thromboembolism (fat, amniotic fluid, septic emboli, particulate material) and primary arterial tumors such as sarcoma should be considered since they also make intraluminal defects (11). Radiological findings and the patients’ clinical features help to make the differential diagnosis since patients with disseminated pulmonary artery thrombosis show a more aggressive clinical manifestation. Hydatid disease may involve the heart, including the left ventricle (60%), right ventricle (10%), pericardium (7%), pulmonary artery (6%), and interventricular septum (4%) (12). Because of the significant risk of cyst rupture and anaphylactic shock, surgery should be performed promptly after diagnosis. Extraction of the lesion is recommended, even in asymptomatic patients (13). Echocardiography, spiral CT, MRI, CT angiography, magnetic resonance imaging angiography, and conventional pulmonary angiography can be used for the diagnostic investigation of patients suspected of hydatid pulmonary embolism. If there is no history of hydatid disease, its existence can be suspected based on the presence of anti-echinococcal antibodies and eosinophilia in blood tests (14). The present case had eosinophilia and positive indirect hem agglutination and specific IgE test results. The diagnosis of hydatid cysts mainly depends on radiological and immunological diagnostic tests. Imaging methods are sometimes limited by the small size of the lesion and the atypical images that are difficult to distinguish from abscesses or neoplasms. Routine laboratory diagnosis of hydatid cysts depends on detection of specific antibody response. According to WHO manual for hydatid cysts, CT findings alone allow a correct diagnosis of 61% hydatid cysts of the liver, lung, kidney, spleen and some other sites and the correct diagnosis rate is 94% if CT is combined with serology (15). According to a comma, the sensitivity value of ELISA was 92.5% and the specificity of ELISA was 97.3%. The sensitivity and specificity of IHA was 100% and 83.3-99%, respectively (16). However, it should be kept in mind that embolectomy of the hydatid cyst from the main pulmonary truncus increases morbidity and mortality (16). The present patient rejected embolectomy because of its high risks of morbidity and mortality. Many hydatid cysts are asymptomatic and are diagnosed incidentally by clinic or radiology. Most symptomatic cysts have ruptured and may have been secondarily infected (17). Symptoms are usually absent or nonspecific and include chest pain, dyspnea on exercise, and fever. Eosinophilia occurs in 20% of the cases and may be associated with recent rupture (18). Radiological findings range from purely cystic lesions to a completely solid appearance. Hydatid cysts can be solitary or multiple and vary in size (16). In the present case, a cystic filling defect was found inside the main pulmonary artery and a solid defect was found inside the left lower intermediate artery. Rupture into the cardiac chambers occurs most often in the right ventricle and can cause anaphylaxis, or pulmonary or systemic embolism of the daughter cysts (19). Repeated pulmonary emboli may produce pulmonary arterial hypertension and multiple lung cysts (20). In the present case, left ventricular systolic function, the right atrium, and the systolic pulmonary artery pressure were normal and no intracardiac thrombus was found. EBUS is increasingly used for lung cancer staging and the assessment of sarcoidosis (21). It is useful for producing real-time images of both lymph nodes and pulmonary arteries (22). It can be used to diagnose intrapulmonary arterial mass (22, 23). After one year of treatment with albendazole, in the follow-up thoracic CT scan, there was a decrease in the size of the cystic lesion in the left pulmonary artery. As a result, albendazole treatment can be an alternative therapy for surgery especially for patients who reject operation.
