Breast Sparganosis Mimicking Ipsilateral Breast Tumor Recurrence in a Patient with a History of Breast Conserving Surgery: A Case Report

Sparganosis is a rare parasite infection caused by a migrating plerocercoid larva belonging to the genus Spirometra, which is usually found in East Asia (1). It is transmitted by drinking larvae-containing water or consuming raw secondary intermediate hosts such as frogs or snakes (2). This condition most commonly manifests as migrating subcutaneous nodules and can involve various sites, including the abdomen, genitals, extremities, central nervous system, and chest (3). The breast is a rare site of infection (4). Breast sparganosis may mimic malignancy clinically and radiologically and may lead to misdiagnosis (5). Thus, accurate diagnosis and treatment can be challenging, particularly in cases of breast sparganosis with coexisting or treated breast cancer (6, 7). To our knowledge, there has been no case report about breast sparganosis mimicking ipsilateral breast tumor recurrence (IBTR) presented with multimodal imaging findings including mammography, ultrasound, magnetric resonance imaging, and 18F-fluoro-2-D-glucose positron emission tomography/computed tomography. Herein, we report an interesting case of breast sparganosis mimicking IBTR in a patient with a history of breast conserving surgery (BCS) for breast cancer with multimodal imaging findings and a brief literature review.

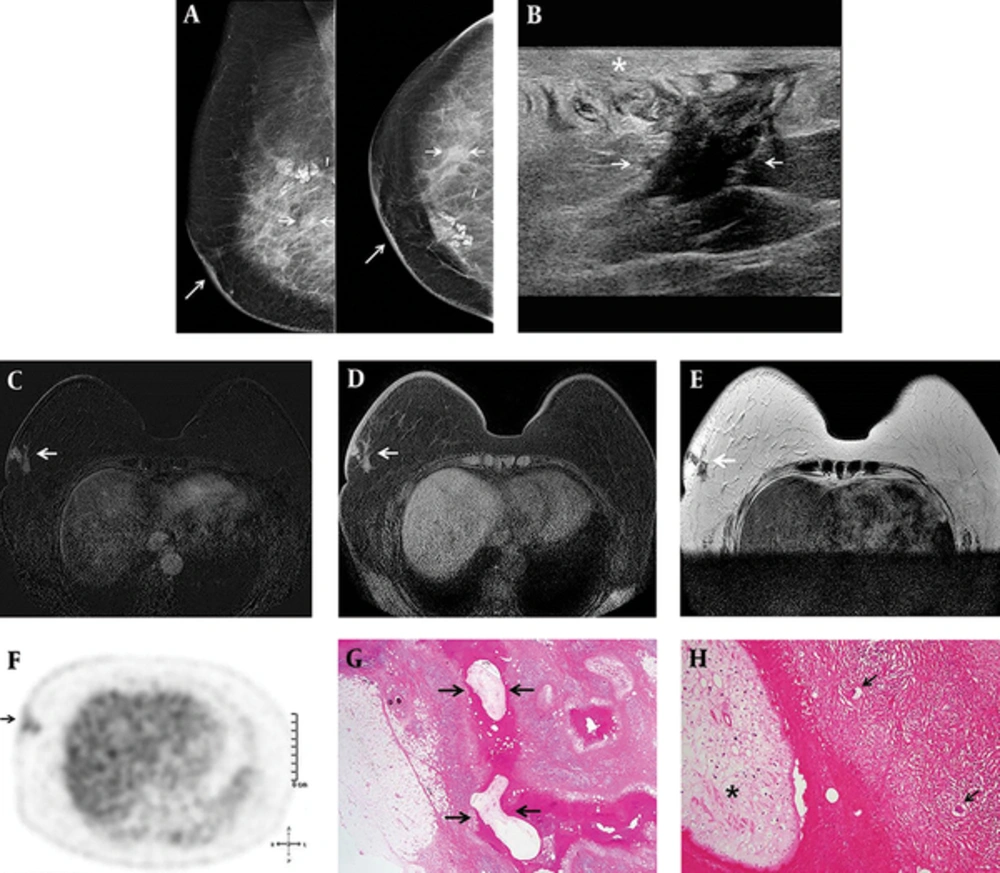

The patient was a 66-year-old woman who had a history of BCS and radiation therapy for invasive ductal carcinoma of the right breast. Histopathological examination revealed a 1 cm sized, grade II invasive ductal carcinoma and all resected axillary lymph nodes were negative for malignancy. Immunohistochemistry staining for estrogen receptor (ER), progesterone receptor (PR), and human epidermal growth factor receptor (HER-2) were all negative. The patient underwent postoperative surveillance for four years and was doing fine, until sternal metastasis and metastatic lymph nodes in the right lower neck, right supraclavicular, mediastinal, and right internal mammary regions were detected on 18F-fluoro-2-D-glucose (18FDG) positron emission tomography/computed tomography (PET/CT). Subsequently, the patient underwent adjuvant chemotherapy with docetaxel and doxorubicin. On follow-up 18FDG PET/CT after six cycles of systemic chemotherapy, 18FDG uptake of all metastatic foci had regressed. Three weeks before her admission, she visited our hospital for post-treatment surveillance. She did not complain of any symptoms and breast examination revealed no breast lumps. However, mammography revealed a newly developed asymmetry with thickening of the overlying skin in the right mid outer breast (Figure 1). Ultrasound showed an indistinct irregular hypoechoic structure surrounded by a poorly-defined hyperechoic lesion in the subcutaneous fat layer of the right lower outer breast and edematous change of the overlying skin. Dynamic contrast enhanced magnetic resonance imaging (DCE-MRI) revealed a clustered ring enhancement involving the skin and subcutaneous fat tissue in the right lower outer breast. These lesions had slightly high signal intensity on T1-weighted images and low signal intensity on T2-weighted images. The differential diagnosis includes postoperative fat necrosis, abscess, and IBTR. However, postoperative fat necrosis characteristically occurs at the treated site, and it is usually isointense to fat elsewhere in the breast with adjacent enhancement on MRI. Although breast abscesses were present as rim enhancement on MRI, the patient did not complain of any inflammatory symptoms such as sensation of warmth, redness, or painful swelling. Considering her history of breast cancer, IBTR was suspected. 18FDG-PET/CT revealed nodular lesions with mildly increased FDG uptake that had a maximal standardized uptake value (SUVmax) of 2.1 in the right lower outer breast. Surgical excision was performed and the pathologic findings confirmed sparganosis with granulomatous inflammation and multinucleated giant cells.

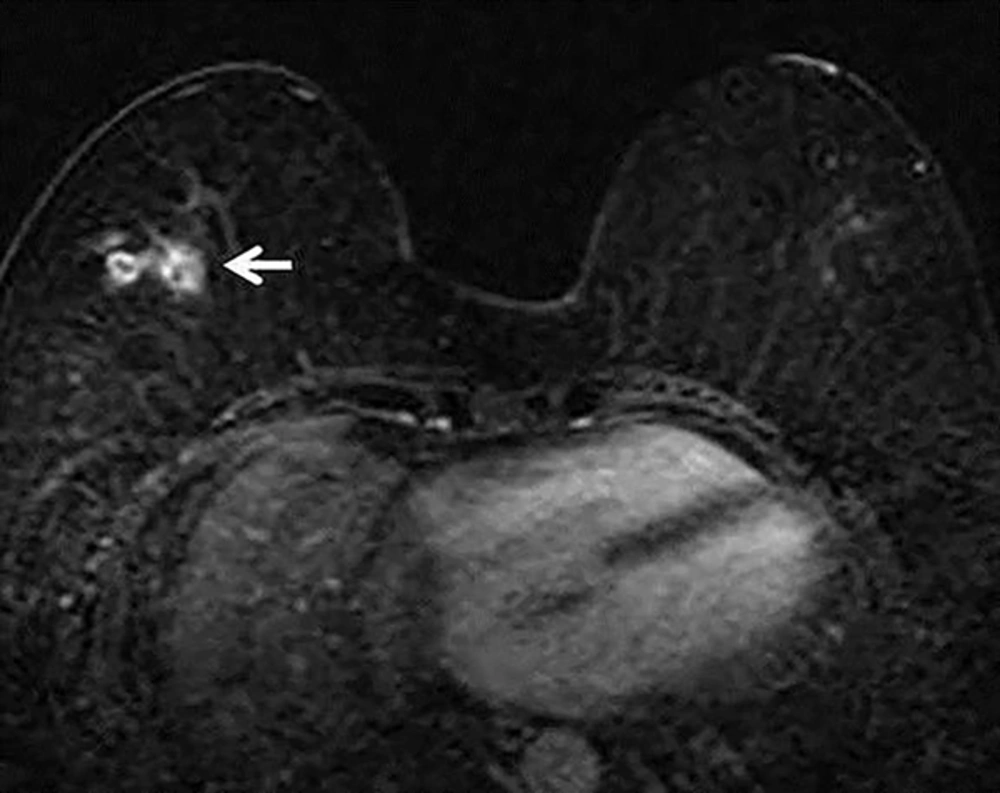

We retrospectively reviewed previous serial follow-up breast MRIs. The postoperative follow-up MRI two years prior to the excision showed focal clustered ring enhancement with similar features to the current lesion, but was more deeply located within the breast parenchyma (Figure 2). At that time, this lesion was misinterpreted as postoperative fat necrosis developed after breast surgery, and the larva was identified after migrating toward the surface of the breast over a two-year period. Our patient denied eating either raw frogs or snakes; therefore, ingestion of contaminated spring water may be the possible route of sparganosis infection in this patient.

Sparganosis is a rare parasite infection which is usually found in East Asia (1). To the best of our knowledge, 41 cases of breast sparganosis have been reported based on the Korean Medical (KM) database and the Korean association of medical journal editors (KAMJE) database, which were searched to include information from Korean journals that are not included in international citation indexes (3, 4, 6, 8-12). It is transmitted by drinking larvae-containing water or consuming raw secondary intermediate hosts such as frogs or snakes (2). Spargana can move to any site of the body such as the abdomen, scrotum, chest wall, lower extremities, brain, and rarely involve the breast (3, 4). Sparganosis most commonly manifests as a migrating palpable soft tissue nodule without evidence of inflammatory reaction such as warm sensation or painful swelling (4). Thus, it may be confused with malignancy and accurate preoperative diagnosis can be difficult in many cases.

Although breast sparganosis is extremely rare, previously reported cases have described its characteristic radiological findings (1, 3, 4, 6, 8-10). The mammographic findings of the breast sparganosis are irregular, lobular or tubular structures or amorphous solid masses (3, 4, 6, 9, 10). The ultrasonographic findings of breast sparganosis are elongated, folded, tubular hypoechoic structures and serpiginous echogenic lesions, which correlate with pathologic findings (1, 3, 4, 6, 8-10). Hypoechoic tubular structures on ultrasonography correlate with the empty tract left by migration of the larvae; whereas, echogenic lesions correspond to living worms or debris (8). Thus, the diagnosis of breast sparganosis is not difficult if radiologists are familiar with these unique ultrasonographic features. Our case did not represent these typical mammographic and ultrasonographic features of breast sparganosis and mimicked breast malignancy, except for subcutaneous location and thickening of overlying skin that can be helpful for distinguishing breast spargnosis from breast malignancy.

To the best of our knowledge, only two case reports describing DCE-MRI findings of the breast sparganosis have been reported (11, 12). In these previous reports, the MRI appearance of breast sparganosis includes multiple round and elongated tubular-shaped lesions showing rim enhancement with persistent kinetic patterns in the subcutaneous fat on post-contrast T1 weighted images. We also observed similar MRI findings of breast sparganosis in our case. Although the internal characteristic of rim enhancement on DCE-MRI has a 79% - 92% positive predictive value for breast cancer (13), benign conditions such as an inflamed cyst, fat necrosis or abscess can also cause rim enhancement. In this case, inflammation of the surrounding subcutaneous fat tissue induced by migrating worms generated various enhancing patterns on DCE-MRI. Only two case reports have described PET/CT findings of breast sparganosis. Ha et al. (11) reported a case of breast sparganosis incidentally detected by PET/CT with a focal FDG uptake and a standardized uptake values (SUV) max of 1.2, which was not as high as malignancy or active inflammation. However, a case of axillary sparganosis reported by Lee et al. (7) showed a hypermetabolic mass with a SUVmax of 7.2. Our case showed mildly increased FDG uptake with a SUVmax of 2.1. Ha et al. (11), Lee et al. (7), and our case showed different degrees of FDG uptake on PET/CT. The degree of 18FDG uptake on PET/CT seems to have a broad spectrum according to parasite type, infection site, host immune status, and inflammatory response.

Although the radiological findings of breast sparganosis have been established, diagnosis can be confusing, particularly in cases of newly diagnosed breast cancer or patients who have undergone treatment for breast cancer (7, 12). Lee et al. (12) reported a case of breast sparganosis in a patient with coexisting ipsilateral breast cancer, which mimicked a multicentric malignancy. Recently, Lee et al. (7) also reported a case of multiple axillary lymph node sparganosis that presented as a newly developed axillary mass on follow-up MRI and PET/CT during neoadjuvant chemotherapy. In this case, the main breast cancer lesion exhibited a partial response to chemotherapy, but newly detected axillary lymph node sparganosis on MRI and PET/CT was mistaken for a new, axillary lymph node metastasis of the breast cancer, resulting in a treatment change from chemotherapy to surgery. Correlation with clinical history, the presence of inflammatory symptoms, lesion location, and US and MRI features can be helpful for differential diagnosis. In particular, we think that a subcutaneous location and migration of the lesion on follow-up imaging studies are key distinguishing features of sparganosis in the treated breast.

When sparganosis is suspected, complete surgical removal is the treatment of choice rather than percutaneous biopsy procedures, including core needle biopsy or vacuum-assisted biopsy (4). Percutaneous biopsy procedures may result in worm fragmentation, preventing complete surgical removal and possibly promoting recurrence.

In conclusion, breast sparganosis is a rare parasite infection that may mimic malignancy both clinically and radiologically. Therefore, diagnosis can be difficult, particularly in breast cancer patients. It should be included in the differential diagnosis for incidental breast masses in patients with a history of BCS. A subcutaneous, migrating breast mass with characteristic US and MRI features is distinctive in differentiating breast sparganosis from breast malignancy.
