1. Background
Induction of anesthesia is a critical period in cardiac patients. Anesthetic induction techniques for cardiovascular surgery are usually based on considerations such as hemodynamic stability, maintenance of the balance between myocardial oxygen demand and supply and minimal intubation stress response (1, 2), that may cause an increased risk of morbidity and mortality in patients with cardiovascular or cerebral disease (3). Among the cardiac surgical cases, patients with Coronary Artery Disease (CAD) and low Ejection Fraction (EF) that are required to undergo Coronary Artery Bypass Grafting (CABG) surgery are a high-risk group. There are several literature reports regarding induction of anesthesia with agents such as thiopentone, propofol, etomidate, midazolam and ketamine (4-10). The search for the ideal balanced intravenous general anesthetic over the past few decades has led many investigators to look into anesthetic drug combinations. Of the many anesthetic combinations that have been investigated, the propofol-ketamine combination has been a popular choice because of the specific properties intrinsic in each drug. Propofol is a sedative-hypnotic intravenous anesthetic that has a known cardiodepressant effect that produces hypotension, (11, 12) whereas ketamine is a dissociative intravenous anesthetic that has known cardiostimulant properties. The combination of propofol and ketamine has been studied in outpatients and in patients undergoing minor non-cardiac surgery, by numerous authors (13-17). In most of these studies the addition of low-dose ketamine has been shown to attenuate the cardiovascular depressing effects of propofol. However, we did not find any investigation about the use of Propofol-Ketamine (PK) combination in low EF patients undergoing CABG surgery. On the other hand, etomidate is the most appropriate drug in patients with compromised cardiopulmonary function because of its minimal cardiovascular and respiratory depressant effects, (18) however, etomidate has some side effects such as injection pain, adrenal suppression and myoclonus. Pretreatment with low dose of a hypnotic agent such as midazolam (19-21), reduces myoclonus. The incidence of myoclonus due to etomidate depends on the dosage and speed of injection (22). It seems that induction of anesthesia with combination of drugs such as Propofol with Ketamine (PK) and Etomidate with Midazolam (EM) will eliminate or at least reduce these complications. The current study was performed as to the best of our knowledge there are no previous investigations comparing PK and EM combination in low EF patients undergoing CABG.
2. Objectives
The aim of this study was to evaluate hemodynamic responses to two different anesthesia regimens including etomidate-midazolam and propofol-ketamine in compromised ventricular function patients undergoing coronary artery bypass graft surgery.
3. Patients and Methods
In this prospective, randomized study the participants included one hundred patients (68 males and 32 females; age range: 40 - 65 years old) of American Society of Anesthesiologists (ASA) class II and III with coronary artery disease and left ventricular dysfunction (ejection fraction < 45%) scheduled for elective coronary artery bypass surgery at Rajaie Cardiovascular Medical and Research Center. The study protocol was approved by the Division Ethics Committee of our institute as a prospective, randomized clinical study. The patients’ records regarding age, gender, weight, ejection fraction, time required for laryngoscopy and intubation were stored in our database. Patients with congenital or valvular disease, suppressed immune function, known adrenal insufficiency, chronic inflammatory diseases, history of early steroid use (about six months), allergy to the study drugs, history of stroke, convulsion, seizure, or other neurologic diseases, patients with opium addiction, severe hepatic and renal insufficiency, prolonged laryngoscopy or difficult intubation, severe systemic non-cardiac disease, as well as those who were undergoing a re-operation or combined cardiac valve surgery with CABG, were excluded. All patients continued their medications up to the day of surgery and were premedicated with intramuscular morphine at 0.1 mg/kg and lorazepam 1 mg one hour before entering the operation room. Basic hemodynamic monitoring, consisting of a five-lead electrocardiogram, pulse oximetry and invasive arterial blood pressure, and specific hemodynamic monitoring, consisting of cardiac index and systemic vascular resistance by use of Non-Invasive Cardiac Output system (NICO; NOVAMETRIX, made in America) were initiated before the induction of anesthesia. A large bore intravenous catheter, (G16 or G14) at forearm (if possible), for reduction or prevention of pain on propofol or etomidate injection, and arterial line catheter were inserted after local anesthetic infiltration of the insertion site. During the induction, any pain on injection and any involuntary movements were noted.
3.1. Intervention
The patients were randomly divided to two groups of 50 each, by computer generated random numbers. Group PK (n = 50) received admixture of propofol 1 mg/kg and ketamine 1 mg/kg in one syringe intravenously over 30 - 60 seconds and Group EM (n = 50) received 0.06 mg/kg midazolam into a freely running infusion of saline solution over 90 seconds before and during injection of 0.2 mg/kg etomidate intravenously for induction. Analgesia was obtained with sufentanil 2.5 µg/kg. For prevention or at least reduction of pain on injection in both groups, sufentanil was injected before anesthetic drugs. Intravenous injection of cisatracurium 0.2 mg/kg was performed to facilitate endotracheal intubation with an appropriate-sized endotracheal tube; this was done 90 seconds after the injection. Time period until loss of eyelash reflex was taken as the induction time. After checking and securing the endotracheal tube, and insertion of central venous line, mechanical ventilation was instituted to maintain eucapnia. Anesthesia was maintained with continuous infusion of midazolam, sufentanil and atracurium in both groups. Our program for treatment of any hemodynamic instability, including hypertension (MAP > 20% from baseline), was starting of intravenous nitroglycerine infusion and for treatment of hypotension (reduction in Systolic Blood Pressure to less than 90 mmHg) was placing of patient in the trendelenburg position (up to 30° angle), and infusion of lactated Ringer’s solution (5 - 7 mg/kg) and if these interventions were insufficient, injection of ephedrine. If bradycardia occurred (HR < 40), 0.5 mg of atropine was injected. Hemodynamic parameters, including Heart Rate (HR), Systolic Blood Pressure (SBP), Diastolic Blood Pressure (DBP), Mean Arterial blood Pressure (MAP) and Cardiac Index (CI), were measured and recorded before induction of anesthesia as a baseline (T0), one minute after induction (T1), one minute after intubation (T2), and three and five minutes after intubation (T3 and T4), and Systemic Vascular Resistance (SVR) was measured before induction of anesthesia as a baseline (T0), one minute after induction (T1) and five minutes after intubation (T4). Basic hemodynamic monitoring (HR, SBP, MAP, DBP) was done for all patients and specific hemodynamic monitoring including Cardiac Index (CI) and Systemic Vascular Resistance (SVR) was done for 17 patients from each groups. The observer who recorded all measurements was blinded to the induction agents.
3.2. Statistical Analysis
The collected data were entered into the SPSS software for windows v. 21.0 (SPSS Inc., Chicago, IL, USA). The categorical parameters in the two study groups were analyzed by using Chi-square test or Fisher’s exact test as appropriate. Differences among the hemodynamic variables recorded over time in each study group (within group) were analyzed using the repeated measures Analysis of Variance (ANOVA). Differences in mean values of hemodynamic parameters were analyzed using Student’s t test. The hypothesis of this study was that there would be a clinically meaningful difference in hemodynamic responses to the two different anesthetic regimens. Quantitative data were expressed as Mean ± Standard Deviation (SD). A P value of ≤ 0.05 was considered statistically significant.
4. Results
In the present study, the patients’ characteristics including gender, age, weight, ASA class, ejection fraction and time required for intubation distribution in the two groups were found to be statistically similar (P > 0.05) (Table 1). All patients had moderate left ventricular dysfunction with ejection fraction ranging between 30% and 45%. During the induction, pain on injection occurred in two (4%) patients of Group EM and in one (2%) patient of Group PK yet the difference was not statistically significant (P = 1.000). Five (10%) patients had involuntary movements after receiving the etomidate injection as compared to propofol injection (0%) (P = 0.056). The heart rate and arterial blood pressure (systole, mean and diastole) measured at various time intervals were comparable between the two groups (P > 0.05) as shown in Table 2 (Figure 1).
| Patient Characteristics | EM Group c | PK Group c | P Value |
|---|---|---|---|
| Gender (F/M), n (%) | 17/33 (34/66) | 15/35 (30/70) | 0.668 |
| Age, y | 57.16 ± 5.6 | 57.36 ± 5.5 | 0.858 |
| ASA class, n (%) | 0.534 | ||
| II | 33 (66) | 30 (60) | |
| III | 17 (34) | 20 (40) | |
| EF, % | 35.8 ± 4.6 | 35.3 ± 4.8 | 0.602 |
| Weight, kg | 71.28 ± 11.2 | 72.06 ± 8.7 | 0.700 |
| Time required for intubation, s | 22.50 ± 4.3 | 23.40 ± 5.6 | 0.370 |
a Abbreviations: ASA, American Society of Anesthesiologists; EF, ejection fraction; F, female; M, male; Group EM, Etomidate-Midazolam group; and Group PK, Propofol-Ketamine group.
b Values are presented as Mean ± SD or No. (%).
c n = 50.
| Parameters | EM Group c | PK Group c | P Value |
|---|---|---|---|
| Heart Rate, beat/min | |||
| Baseline (HR-T0) | 73.9 ± 12.5 | 72.8 ± 11.4 | 0.647 |
| 1 min after induction (HR-T1) | 64.0 ± 10.9 | 63.0 ± 10.0 | 0.615 |
| 1 min after intubation (HR-T2) | 83.9 ± 11.1 | 83.0 ± 10.4 | 0.665 |
| 3 min after intubation (HR-T3) | 75.3 ± 10.9 | 75.10 ± 10 | 0.897 |
| 5 min after intubation (HR-T4) | 71.0 ± 11.0 | 71.0 ± 9.0 | 0.937 |
| Systolic arterial BP, mmHg | |||
| Baseline (SBP-T0) | 147.6 ± 7.0 | 148.4 ± 7.5 | 0.557 |
| 1 min after induction (SBP-T1) | 110.3 ± 6.4 | 111.1 ± 7.0 | 0.581 |
| 1 min after intubation (SBP-T2) | 143.8 ± 7.4 | 146.0 ± 7.3 | 0.133 |
| 3 min after intubation (SBP-T3) | 131.0 ± 6.4 | 131.0 ± 6.8 | 0.952 |
| 5 min after intubation (SBP- T4) | 128 ± 6.8 | 129.6 ± 7.1 | 0.245 |
| Mean arterial BP, mmHg | |||
| Baseline (MAP-T0) | 100.5 ± 7.0 | 100.5 ± 6.0 | 1 |
| 1 min after induction (MAP-T1) | 82.4 ± 6.5 | 82.0 ± 6.3 | 0.734 |
| 1 min after intubation (MAP-T2) | 99.2 ± 8.4 | 99.6 ± 9.3 | 0.857 |
| 3 min after intubation (MAP-T3) | 88.7 ± 9.7 | 89.4 ± 9.1 | 0.711 |
| 5 min after intubation (MAP-T4) | 95.9 ± 6.4 | 95.9 ± 8.2 | 0.968 |
| Diastolic arterial BP, mmHg | |||
| Baseline (DBP-T0) | 77.1 ± 8.8 | 77.0 ± 7.1 | 0.96 |
| 1 min after induction (DAP- T1) | 68.6 ± 7.7 | 68.7 ± 6.7 | 0.956 |
| 1 min after intubation (DAP-T2) | 73.6 ± 9.7 | 74.2 ± 8.9 | 0.739 |
| 3 min after intubation (DAP-T3) | 72.3 ± 7.5 | 72.7 ± 6.5 | 0.777 |
| 5 min after intubation (DAP-T4) | 78.9 ± 6.0 | 78.3 ± 7.8 | 0.666 |
a Abbreviations: DBP, diastolic blood pressure; Group EM, Etomidate-Midazolam group; Group PK, Propofol-Ketamine group; HR, heart rate; MAP, mean arterial pressure; SBP, systolic blood pressure; min, minutes; T0, before induction of anesthesia (baseline); T1, one minute after induction; T2, one minute after intubation; T3, three minutes after intubation; and T4: five minutes after intubation.
b Values are presented as Mean ± SD.
c n = 50.

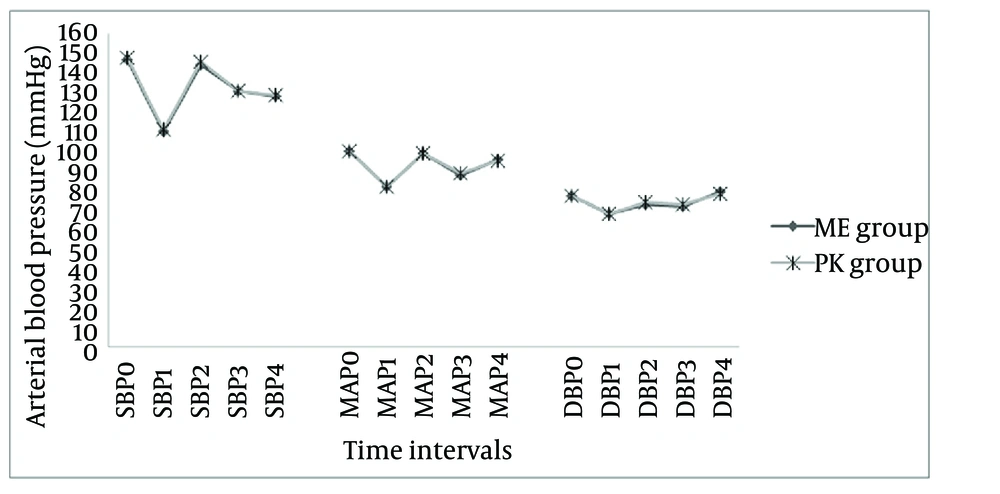

Figure 1.
Abbreviations: DBP, diastolic blood pressure; Group EM, Etomidate-Midazolam group; Group PK, Propofol-Ketamine group; SBP, systolic blood pressure; T0, before induction of anesthesia (baseline); T1, one minute after induction; T2, 1 minutes after intubation; T3, three minutes after intubation; and T4, five minutes after intubation.
Changes in HR, SBP, MAP and DBP were not statistically significant at different time intervals between the two groups. There was a significant decrease from the baseline in heart rate (P = 0.001 in each group), systolic, diastolic and mean arterial pressure (P = 0.001 in each group), after induction in the two groups. All of these variables increased near baseline one minute after intubation, while heart rate increased above baseline one minute after intubation. However, intergroup comparison revealed no changes in these variables during this period (Table 2, Figure 1). We were able to measure CI and SVR in 17 patients from each group. There was a significant decrease in CI from baseline (P = 0.001 in each group) after induction and then a significant increase after intubation (P = 0.001 in each group) to above baseline, which was more prominent in the PK group (Table 3) (Figure 2). Increases in CI were significantly different at one and three minutes after intubation (T2, T3) between the two groups (P = 0.024 for T2 and P = 0.048 for T3). There was a significant decrease from baseline in SVR at different time intervals in both groups (P = 0.001 in each group). Intragroup comparison revealed that there was no significant change in SVR during induction and one and three minutes after intubation, however there was a significant decrease in SVR five minutes after intubation (P = 0.009) (Table 3, Figure 3).
| Parameters | EM Group c | PK Group c | P Value |
|---|---|---|---|
| Cardiac Index, L/min/m2 | |||
| Baseline (CI-T0) | 2.68 ± 0.3 | 2.82 ± 0.2 | 0.099 |
| 1 min after induction (CI-T1) | 2.17 ± 0.3 | 2.31 ± 0.2 | 0.068 |
| 1 min after intubation (CI-T2) | 2.69 ± 0.3 | 2.88 ± 0.2 | 0.024 d |
| 3 min after intubation (CI-T3) | 2.48 ± 0.3 | 2.65 ± 0.2 | 0.048 d |
| 5 min after intubation (CI-T4) | 2.38 ± 0.3 | 2.53 ± 0.2 | 0.068 |
| Systemic vascular resistance, dynes/cm5 | |||
| Baseline (SVR-T0) | 1837.67 ± 208.6 | 1852.4 ± 179.3 | 0.824 |
| 1 min after induction (SVR-T1) | 1342.3 ± 163.5 | 1298.1 ± 118.1 | 0.366 |
| 5 min after intubation (SVR-T4) | 1249.1 ± 160.1 | 1116.4 ± 120.6 | 0.009 d |
a Abbreviations: CI, cardiac index; Group EM, Etomidate-Midazolam group; Group PK, Propofol-Ketamine group; SVR, systemic vascular resistance; min, minutes; T0, before induction of anesthesia (baseline); T1, one minute after induction; T2, one minute after intubation; T3, three minutes after intubation; and T4, five minutes after intubation.
b Values are presented as Mean ± SD.
c n = 17.
d Statistical significance of parameters.

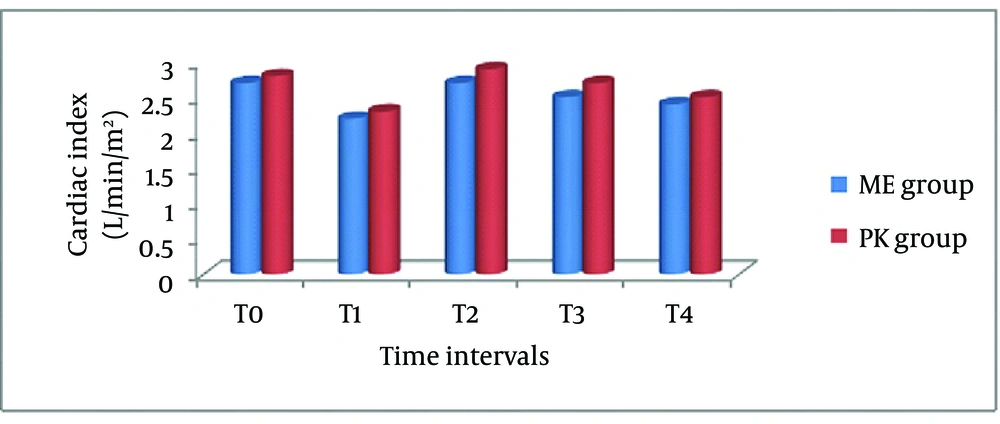

Figure 2.
Abbreviations: CI, cardiac index; Group EM, etomidate-midazolam group; Group PK, Propofol-Ketamine group; T0, before induction of anesthesia (baseline); T1, one minute after induction; T2, one minute after intubation; T3, three minutes after intubation; and T4, five minutes after intubation.

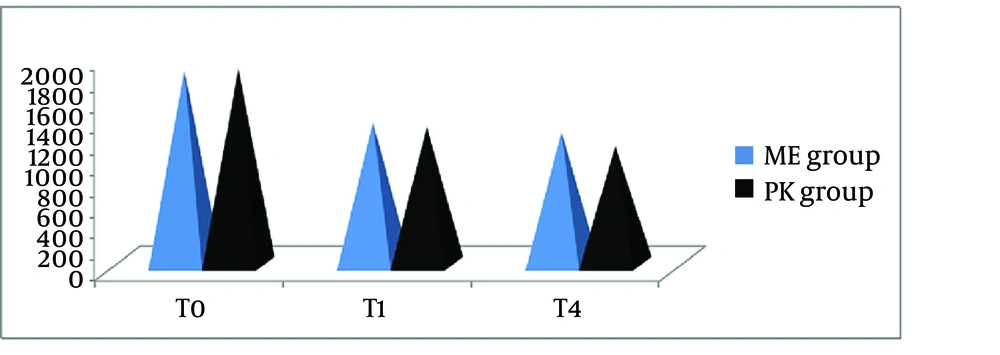

Figure 3.
Abbreviations: Group EM, Etomidate-Midazolam group; Group PK, Propofol-Ketamine group; SVR, systemic vascular resistance; T0, before induction of anesthesia (baseline); T1, one minute after induction; T2, one minute after intubation; T3, three minutes after intubation; and T4, five minutes after intubation.
5. Discussion
There are no certain techniques or drugs in anesthetic methods to be used for compromised ventricular function patients undergoing coronary artery bypass graft surgery. There are some concerns about frequently used drugs and methods. The present study demonstrated that a combination of intravenous induction drugs (etomidate-midazolam versus propofol-ketamine) can be safely used for anesthetizing high-risk patients undergoing CABG. The use of etomidate and propofol has been considered preferable over other intravenous anesthetic agents in these groups of patients. However, etomidate has some side effects such as injection pain, adrenal suppression and myoclonus. The study of Pandey et al. (23) reported that etomidate provides more stable hemodynamic parameters presumably due to prevention of cortisol flow on induction by temporary suppression of cortisol synthesis, and concluded that maintenance of near-normal stress hormone levels under anesthesia is associated with better outcomes (11). Thus, we did not worry about adrenal suppression of etomidate in our patients. Induction of anesthesia with etomidate also results in dose-dependent myoclonus in 50 - 80% of patients without premedication (22). In our study, because of pretreatment with midazolam and reduced induction dose of etomidate, only 10% of patients had myoclonus. These results were similar to other studies that demonstrated incidence of myoclonus due to etomidate depends on the dosage and speed of injection and pretreatment with drugs such as midazolam, magnesium and ketamine (19-22). The findings of the present study showed that pain on injection was higher with the use of etomidate as compared to propofol (4% vs. 2%). This result was in contrary with the results of studies done by Kosarek et al. (24), Ayuso et al. (25) and Nyman et al. (26). We believe that the main causes of pain on injection were site of injection (dorsum of hand), (27) size of catheter (gauge 18 or 20) and use of ketamine in combination with propofol in these cases (13).
The findings of the present study regarding basic hemodynamic parameters, showed a comparable decrease in heart rate, systolic, mean and diastolic blood pressure in both groups after induction, which was due to the loss of sympathetic stimulation on induction (28). These results were similar to the results of other studies for the EM group, (2, 13, 16, 17) and was in contrary with the result of a study by Singh Bajwa et al. (29) for the propofol-ketamine group that reported minimal increase in SBP and DBP after induction, which slowly reduced to normal values due to antagonistic properties of propofol (decrease in blood pressure) and ketamine (increase in blood pressure). We also observed that all of these variables increased near baseline or above baseline in both groups one minute after intubation, which was probably due to hemodynamic response to laryngoscopy and intubation. These results were similar to the results of other studies (2, 13).
The main findings of the present study regarding hemodynamic effects of induction drugs, showed a decrease in Cardiac Index (CI) in both groups after induction that may have been caused by decrease in stroke volume, accompanied by a decrease in arterial pressure. We also observed that cardiac index increased above baseline in both groups one and three minutes after intubation. This increase in cardiac index in the PK group at one and 3 minutes after intubation was more prominent than in the Etomidate-Midazolam (EM) group, which was probably due to hemodynamic response to laryngoscopy, intubation and the cardiovascular stimulatory effect of ketamine in the PK group. These results were similar to the results of the Singh et al. (2) and were in contrary with results of the Pandey et al. (23) that compared hemodynamic effects of etomidate and propofol induction. They reported the reduction of all variables including cardiac index over the time interval in both groups that were more prominent in the propofol group. In our study because of admixture of ketamine with propofol, the cardiac index increased after intubation, and this increase was more than the etomidate group.
In the present study, we observed a significant decrease in Systemic Vascular Resistance (SVR) at different time intervals in both groups. Results were consistent with the results of the study done by Pandey et al. (23) and Singh et al. (2). The severity of SVR reduction was similar in both groups at one minute after induction, which may be due to the hemodynamic properties of midazolam and ketamine added to etomidate and propofol, respectively. However, at five minutes after intubation there was a significant reduction in SVR of the PK group in comparison with the EM group. We think these findings were because of the antagonistic properties of propofol and ketamine and dominancy of propofol properties after five minutes. The combination of propofol and ketamine has been studied in outpatients or in patients undergoing minor non-cardiac surgery, by numerous authors (13-17, 29, 30). In most of these studies the addition of a low-dose of ketamine has been shown to attenuate the cardiovascular depressing effects of propofol (31). However, we did not find any investigation that compared EM and PK combination in low EF patients undergoing CABG.
In conclusion, the results of this study suggest that both etomidate-midazolam and propofol-ketamine combinations produce stable hemodynamics and satisfactory induction conditions in patients with left ventricular dysfunction undergoing coronary artery bypass graft surgery. These combinations provide rapid, pleasant and safe anesthesia with only a few side effects and minor hemodynamic fluctuations. There were no adverse hemodynamic changes from induction until the end of our investigation.
5.1. Study Limitations
In the present study, the sample size (n = 17) for the investigation of cardiac index and systemic vascular resistance of patients may have not been enough.
