1. Background
Modern day cricket demands a high level of consistent performance from the fast bowler, who carries the highest injury risk (1). Bowling technique has been identified as a crucial factor for an effective and injury free fast bowling career (2). Implementation of technology such as video analysis and 3 - Dimensional motion analysis have enabled bowlers to enhance their fast bowling technique to improve performance and prevent injuries, by early identification of faulty techniques. 3D Motion analysis is now the gold - standard tool to assess the kinematics of fast bowling action. Many researchers have identified key biomechanical variables that can predict injury risk and have even established cut - off values for risk of injury. However, most of these studies have been done in the African, Caucasian and Australian populations. Despite the large popularity of the sport in India, there is a paucity of literature on the biomechanical analysis of fast bowling action, mostly due to non - availability of resources.
2. Objectives
This study aimed to perform 3D motion analysis of the bowling action of Indian cricket fast bowlers and identify the injury risks with respect to key biomechanical variables.
3. Methods
This cross sectional study was conducted in the Centre for Sports Science (CSS) at Sri Ramachandra University, Chennai, between September 2015 and May 2016. Approval from the host institution’s Ethics Committee was obtained. 22 male fast bowlers from state & top division level cricket teams under the Tamil Nadu Cricket Association (TNCA) who came to CSS for training camps were included in the study.
3.1. Selection Criteria
Inclusion criteria were: State or 1st/2nd division level male cricket fast bowlers between the ages 18 - 30 years.
Exclusion criteria were: Current injuries at the time of the study or within the past 6 months which required rest from playing or training for more than one week.
3.2. Bowling Testing Procedure
The subjects were asked to bowl wearing suitable running shoes without spikes in the indoor facility, which has an artificial turf (Uni - Turf, Sports Surfaces Ltd., UK). Testing was scheduled at a fixed time of the day under ambient natural light. Written informed consent was obtained. A set of 32 Retro - reflective markers were affixed to the participant’s skin over anatomical landmarks using a pre - adhesive spray and double sided tape, based on Plug - In Gait model (Plug - In Gait Marker Set, Vicon Peak, Oxford, UK) (Figure 1). Anthropometric measurements were taken as per the Plug - in gait recommendations using a joint Anthropometer. 12 Vicon MX T20 - S cameras (@250 fps) (Vicon, Oxford Metrics, Oxford, UK) were used to collect the kinematic data. Two Bonita 2D video cameras (@125 fps) placed behind the bowler at a height of 3 meters and to the side of the bowling crease 2 meters away from the pitch were used to record the bowling motion. Ground reaction forces were recorded simultaneously using two force foot plates (AMTI BP600900-1000 Advanced Mechanical Technology Inc., USA) which were embedded beneath the surface at the bowling crease and covered with the same artificial turf for seamless camouflage. Ball speed was recorded using a hand held radar speed gun (Pocket Radar Ball Coach, Pro - Level Speed Training Tool and Radar Gun) from the batsman’s end. Static & Dynamic (Wand) calibration of the setup as per Vicon’s guidelines was done (Figure 2). Subjects carried out a self - directed warm - up and bowled one over (consisting of six deliveries). They were instructed to bowl a good line and length (measured using a standard method (3)) at match pace.
Figure 1.
Bowler with Plug - in Gait Marker Setup

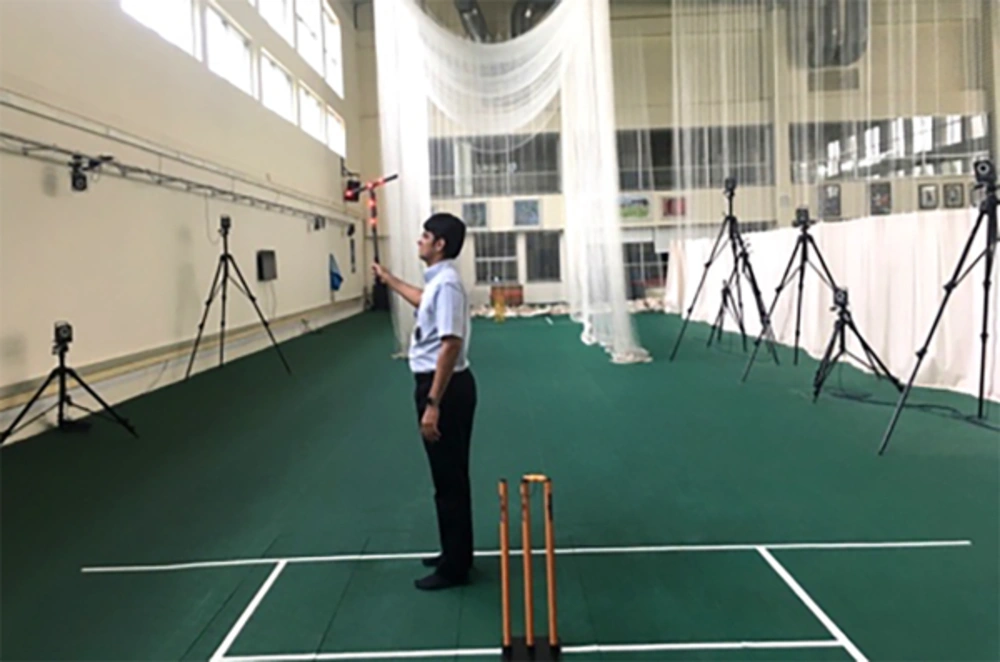

Figure 2.
Biomechanics Laboratory - Dynamic Calibration
3.3. Data Processing
Data processing and reconstruction was done by the same biomechanist for all the bowlers using the Plug - in - Gait pipeline on Vicon Nexus (Version 1.8.5) software. Data was filtered using a Woltring filter. The best delivery based on completeness of data capture (both markers and force plates) from each bowler was selected for analysis (Figure 3).

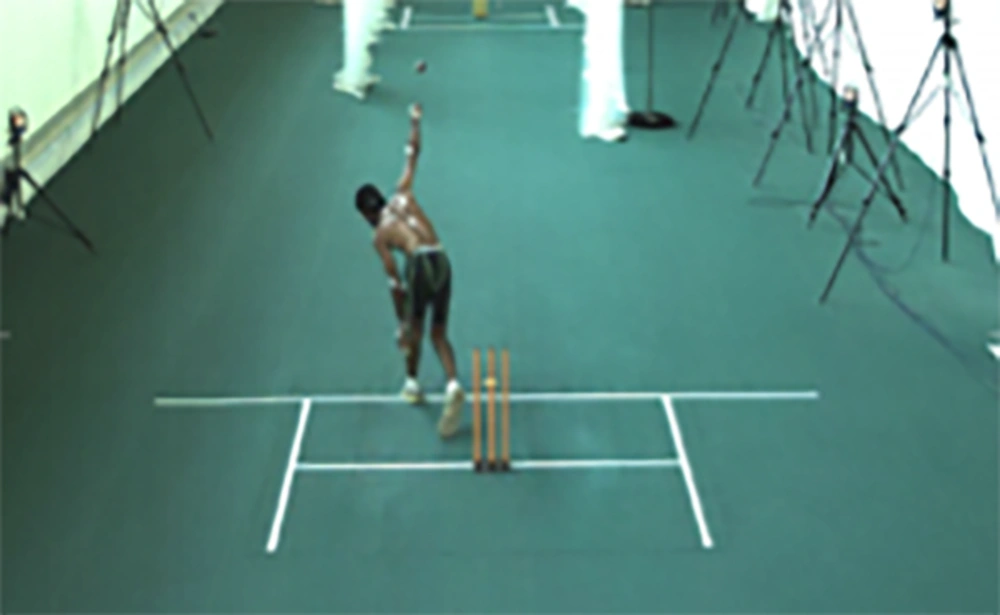

Figure 3.
2D Video Analysis
LTF at BR was measured as peak sideward flexion of the trunk segment relative to the pelvis segment in the frontal plane at two frames ahead of visual separation of ball from hand. Front knee angle was measured at FFC and at maximum knee flexion as the angle between the femur segment and the tibia segment. Front knee action was calculated based on the classification by Portus (3). The distance between the two malleoli markers at FFC was measured as SL and expressed as a percentile ratio of body height. pVGRF was measured as the peak force in the Z axis from the force plate data at the frame of FFC (Figure 4). Bowling action typing was done according to traditional classification (2, 3).

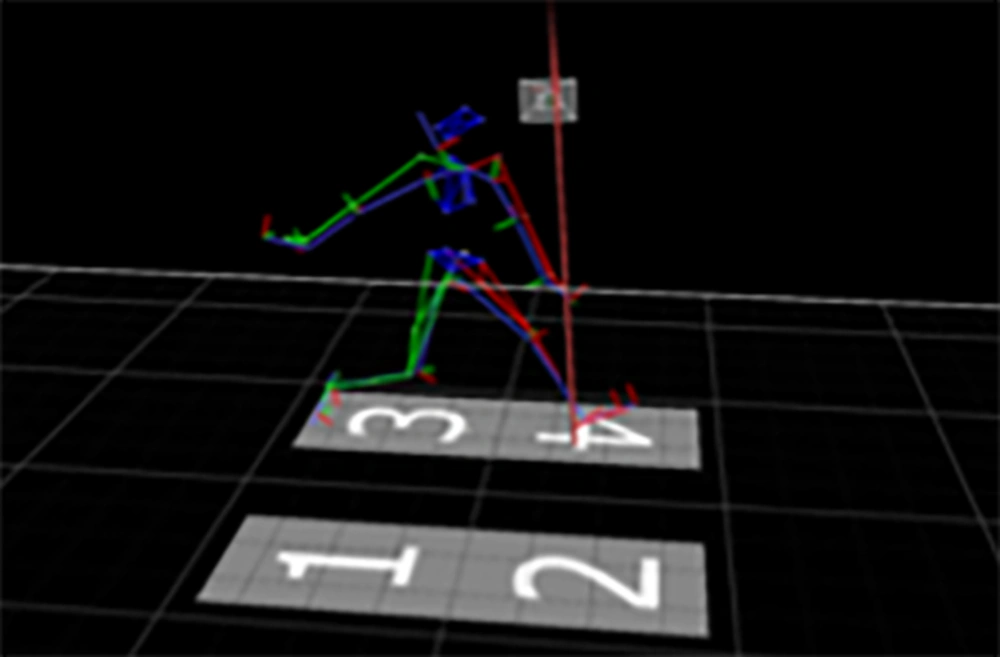

Figure 4.
3D Reconstructed Image for Motion Analysis
3.4. Statistical Analysis
Descriptive Statistical Analysis of the data was done using IBM SPSS® (Version 23.0). The means of the variables were compared to the mean values from previous literature and injury risk was determined based on established cut - off values from previous literature.
4. Results
Demographics of the study population is shown in Table 1. Descriptive statistical analysis of the kinetic & kinematic parameters is shown in Table 2. Mean values of the kinetic & kinematic parameters were compared to reference values from previous literature. Mean pVGRF, LTF at BR, Maximum FK Flexion were similar to reference values from previous studies (2-6). However, mean KF at FFC was lower than reference values (6). Mean SL was greatly lower than reference values and all bowlers had less than optimum SL (2, 5). Further analysis was done by comparing the kinematic data with cut - off values for injury risk from previous literature (Figure 5). 40.9% had high LTF at BR, 45.4% had high pVGRF & low KF at FFC. Bowling action type was found to be ideal to acceptable in 77%. 23% of bowlers had “Mixed” type of bowling action (Figure 6). Only 32% of bowlers used the Flexor - Extender type of Front Knee Action (Figure 7).
Table 1.Demographic Data of the Population
| Min. | Max. | Mean | Std. Dev. | |
|---|---|---|---|---|
| Age | 18.00 | 30.00 | 21.45 | 3.65 |
| Height (Cm) | 170.50 | 191.00 | 179.60 | 4.99 |
| Weight (Kg) | 61.30 | 130.00 | 77.56 | 13.93 |
Table 2.Kinetic and Kinematic Data
| Parameter | Mean | Std. Dev. |
|---|---|---|
| pVGRF (x BW) | 6.50 | 1.61 |
| Max KF (°) | 40.19 | 20.16 |
| KF at FFC (°) | 13.57 | 7.89 |
| LTF at BR (°) | 39.65 | 7.21 |
| SL (% BH) | 64.49 | 4.93 |
| Top Speed at Good Length (km/hr) | 120.20 | 6.49 |

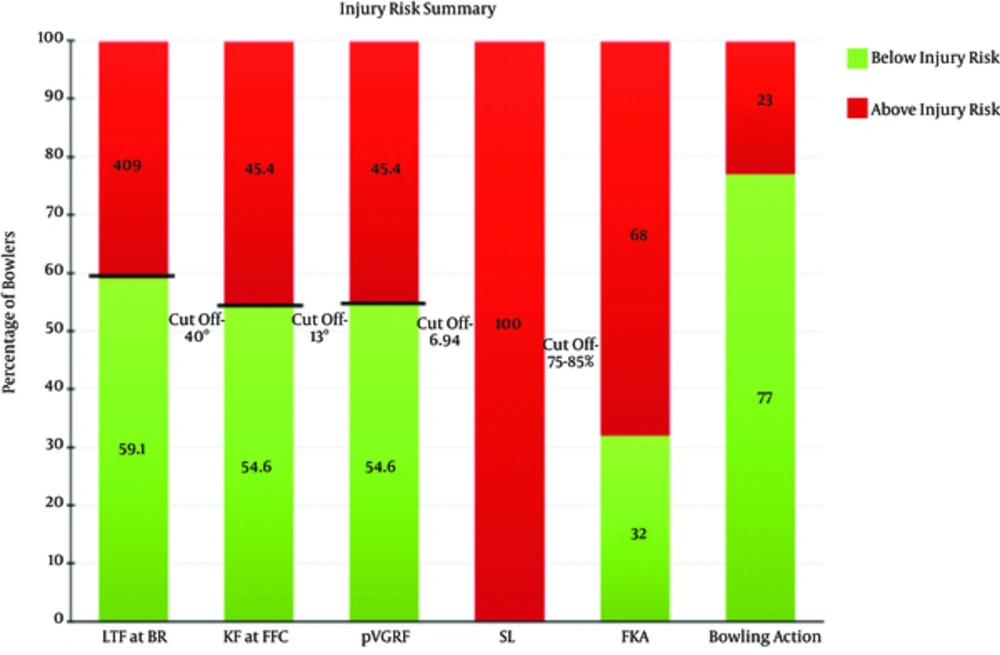

Figure 5.
Injury Risk Summary

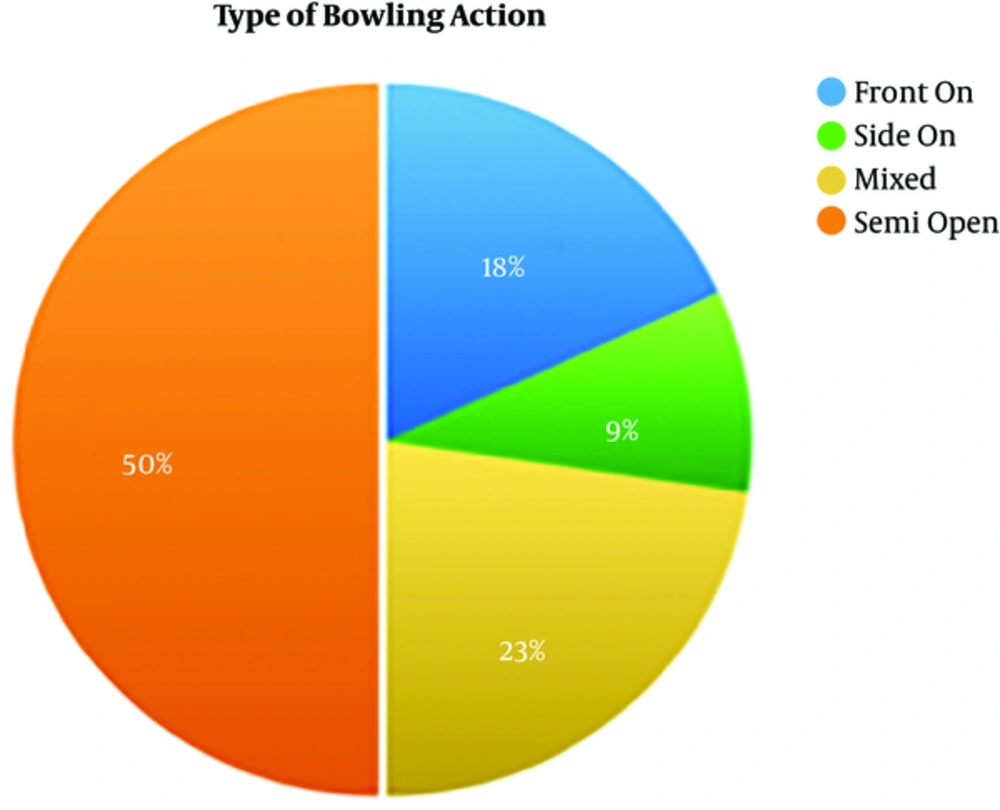

Figure 6.
Bowling Action Classification

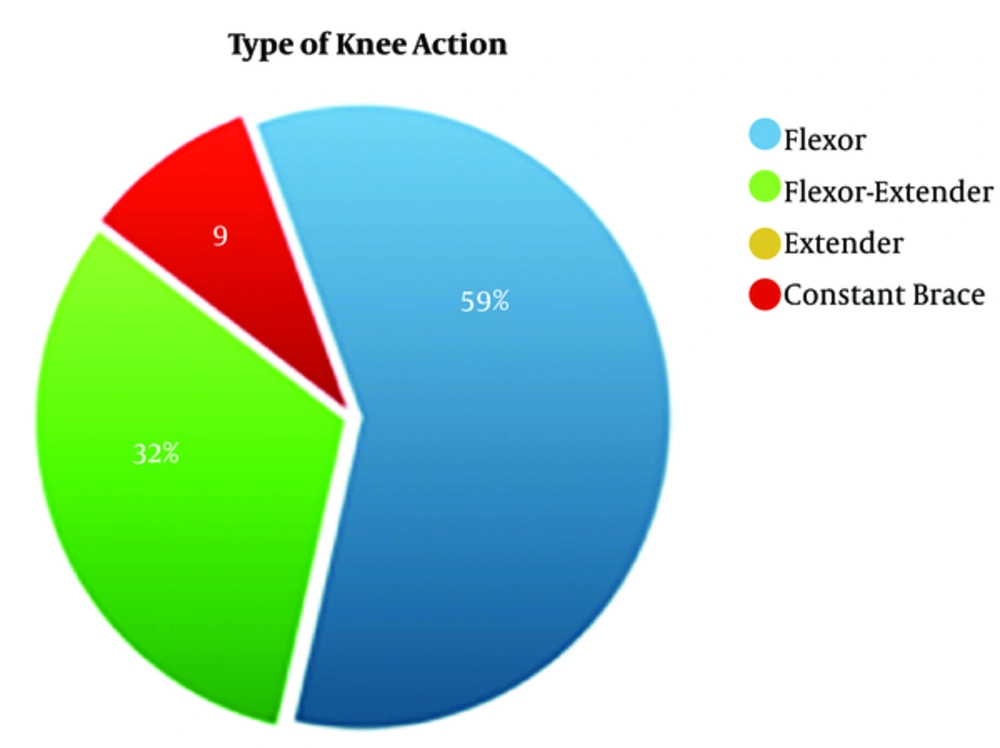

Figure 7.
Front Knee Action Classification
5. Discussion
This is the first study which describes 3D biomechanical analysis of Indian cricket fast bowlers from an injury risk perspective. The results of this study demonstrate several key areas of injury risk which can be corrected by targeted interventions such as technique modifications and corrective exercises & thus reduce the injury risk.
High pVGRF when not adequately dissipated, is a known direct stressor of the contralateral pars inter - articularis leading to lumbar spine injury (5, 7). Fast bowlers generate large forces at both feet during the delivery and up to 9 times the body weight at FFC (2, 8). It was previously thought the bowlers could utilise a higher pVGRF to generate faster bowling speeds. However, a recent study by King and colleagues found no correlation between pVGRF & bowling speed thus proving that a high pVGRF is unnecessary for fast bowling (9). 45% of bowlers in our study had a pVGRF higher than the mean pVGRF of injured bowlers in Portus’ study indicating injury risk.
Increased lateral trunk flexion also acts as a stressor on the contralateral lumbar spine (4, 10, 11). In our study, bowlers had a mean lateral trunk flexion of 39.65° ± 7.21 which is very near the injury risk cut off value. 41% of bowlers had LTF higher than 40° placing them at risk of lumbar spine injury.
The mixed - action bowler tends to have more hyperextension, lateral flexion and greater rotation which greatly loads the lumbar spine. In our study, we found that only 23% of bowlers had a “Mixed” type of action and 50% of bowlers had the “Semi Open” type of action. “Side On” action incidence was low which was in agreement with other studies. Thus it can be presumed that a good number of Indian fast bowlers are using a less injurious type of action, though this has to be confirmed by a larger scale cross sectional study.
The front leg acts as a shock absorber to attenuate the ground reaction forces upon front foot impact. The front knee flexion angle has strong correlations with both the lumbar spine rotation and lateral flexion and therefore has an important effect on lumbar spine loading (11). A more extended front knee during the front foot contact phase has been associated with spondylolysis development (3, 5). This implies that more knee flexion on FFC leads to better GRF absorption. However, this reduces the ball release height leading to slower ball speeds. Thus, the ‘optimum’ front leg action is considered to be one that lands extended or slightly flexed, followed by a period of flexion to absorb ground reaction forces, before vigorously extending up to the point of ball i.e. Flexor - Extender type (3, 12).
In our study, bowlers had a mean knee flexion at FFC of 13.5° ± 8°. In a prospective study by Crewe et al., bowlers without lumbar spine stress injury, had a mean KF at FFC of 14.2 ± 6.3° (4). 55% of our bowlers had a knee angle at FFC higher than 14.2°. This suggests that Indian fast bowlers land with the knee in more extension compared to the other fast bowlers and hence, are at a higher risk of injury. Only 32% of bowlers used the ideal Flexor - Extender type of front knee action, which is efficient and injury free.
Authors have suggested an optimal delivery stride length of 75% - 85% of standing height (5). A shorter stride length inhibits the ability of the bowler to master a side on position, thus increasing the potential for shoulder counter rotation causing lumbar spine injuries (5, 13). As stride length increases, there is a greater amount of plantar flexion increasing the risk of posterior ankle impingement (14). In our study, the mean stride length of 64.5% BH ± 4.93 was much lower than the Western population. All bowlers in this study had a shorter than optimal stride length. Thus Indian fast bowlers are possibly at a comparatively higher risk of posterior ankle impingement as well as lumbar spine injuries. However, we acknowledge the fact that stride length could have been influenced by the nature of indoor lab testing due to factors such as run up length, approach speed, bowling effort, inability to use spiked bowling shoes, artificial turf etc.
In summary, a comparatively higher risk of lumbar spine, knee and ankle injuries was found in this study. Coaching interventions which are aimed at optimising the type of bowling action and technique corrections that help bowlers utilise the Flexor - Extender type of front knee action would help in significantly reducing the potential risk of these injuries.
5.1. Conclusions
Despite possessing an acceptable type of bowling action, a high proportion of Indian fast bowlers are vulnerable to injury with respect to key biomechanical variables. This emphasises role of 3D motion analysis for early identification of injurious techniques and could thus have implications on coaching of fast bowlers in India.
