Reliability and Validity of Observational Methods for Postural Load Assessment: An Updated Systematic Review

Posture, by definition, is the angular relationship between body segments in the three-dimensional space (1). It indicates the alignment and shape that the body adopts in static and dynamic physical conditions (2). Posture is not a fixed arrangement of body parts but is a greatly automated motion process that reflects the body’s response to gravitational and other external loads (3). Defined by several physiological and anatomical contributors, body position is an accurate indicator of health, most frequently highlighted by affecting the configuration and operations of internal systems and organs (4). Consequently, deviations and irregular body posture are linked to various adverse health conditions, such as discomfort syndromes and overall or localized musculoskeletal diseases (5).

Correct posture is generally perceived as a straight and proportionally aligned posture. However, it is more accurately defined as preserving balance with optimal steadiness, least energy usage, and minimal strain on the physical structures (6). Correct posture is maintained through synchronized contraction of various postural muscles and continuous adjustment of the neuromuscular system.

The importance of quantifying posture has always been highlighted in clinical, academic, and industrial contexts (3, 7), and essentially, a variety of approaches to posture analysis have developed throughout the years. These methods are generally classified into two major groups based on data gathering procedures: direct measurement and observational. Direct measurement methods are considered more accurate and reliable than observational approaches (8). These methods can generally be organized into groups, such as X-ray examination, electro goniometry, photogrammetry and 3D body scanning, motion capture system, machine learning, and smartphone apps. Apart from being costly and sometimes invasive, and not always portable to be employed outside laboratory settings, the abovementioned approaches can analyze the posture quantitatively. In addition, with the advancement of artificial intelligence and machine learning and their integration into medical applications, several advanced approaches to posture analysis have recently been developed (9). These techniques mostly aim to modify the structure of well-known traditional methods and increase the sensitivity of the inputs. Nonetheless, due to the contemporary nature of such methodologies, further studies are required to evaluate the quality of the outcomes.

Observation techniques, on the other hand, rely on the information collected by examining the person and the associated duties, including the well-known REBA (10), RULA (11), and PERA (12). There has been a debate about the precision and accuracy of the outcomes acquired through observational techniques relying on the obtained data. (13, 14). In particular, information gathering is commonly done through personal observation or basic calculation of anticipated angles in photographs or videos. This could result in reduced precision and increased inconsistency among observers (7). Besides, many of these approaches are not standardized concerning the categories used to quantify individual postures or how postures are recorded. Nonetheless, such methods are still commonly used by practitioners as they are feasible, economical, and flexible, especially when gathering the required data in the field (3).

The current review aimed to establish the reliability and validity of various observational approaches to postural load assessment and provide an overall view of related trends (Appendix 1).

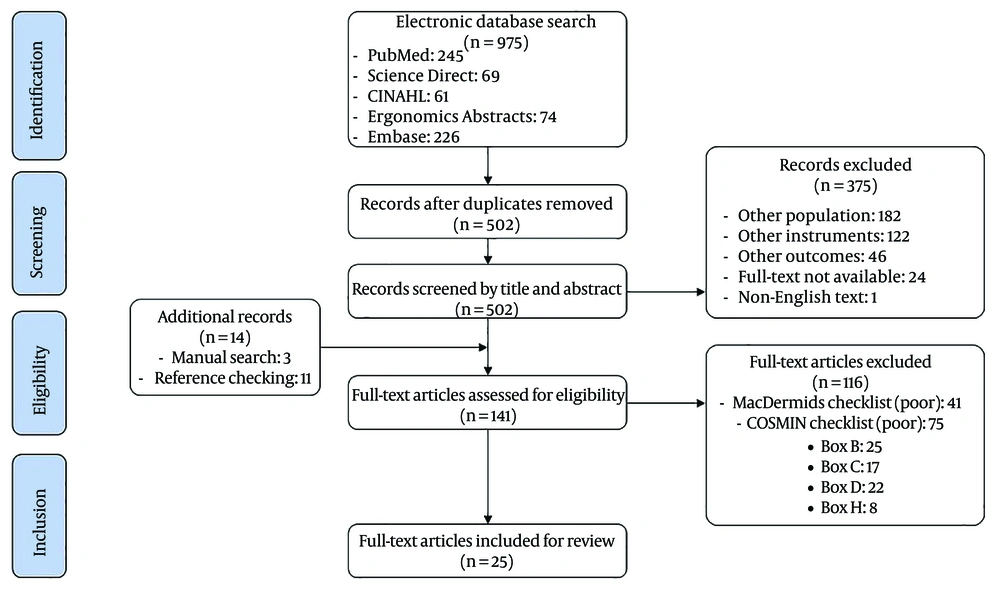

The current review was planned and conducted in compliance with the PRISMA protocols (15) and was mainly focused on observational techniques for postural load assessment.

The study searched five databases, namely PubMed, Science Direct, CINAHL, Ergonomic Abstracts, and EMBASE, by arranging general keywords and specified terminologies for each database to identify relevant publications. The general keywords used were: (“psychometric property” OR “clinimetric property” OR “validity” OR “reliability”) AND (“posture” OR “postural load” OR “static physical workload” OR “sedentary physical workload”) AND (abbreviations of observational postural assessment tools’ titles). The researchers also explored the bibliographical references of the chosen studies to obtain further related publications. The search strategy is presented in Appendix 2 in Supplementary File.

The articles were eligible if they fulfilled the following criteria: (1) reported findings from human participants; (2) involved individuals aged six years or older; (3) presented an innovative technique for observing postures; (4) examined the credibility and accuracy of the new method; and (5) adopted any of the following research designs: Methodological, cross-sectional, case-control, experimental, or controlled trial. Excluded were book chapters, conference abstracts or proceedings, unpublished and non-English papers, and all forms of reviews. Articles that relied exclusively on subjective methods were not considered (Appendix 3).

Titles and abstracts of the categorized studies were assessed separately by two reviewers (R.O. and N.R.) to categorize eligible papers. Preliminary database checking was carried out in June 2022, and an update was performed in November 2022. Finally, both reviewers carried out a complete evaluation of the papers independently. Any inconsistency was solved through a directed meeting, and a third reviewer (M.A.M.B.) was consulted if required.

The current systematic review of 25 papers evaluated accessible, high-quality publications on the reliability and validity of the observational postural load assessment tools as an update to past reviews by Takala et al. (41) and Sukadarin et al. (42). The research also complements recent reviews by Graben et al. (43) that focused on the assessment tools for the upper extremities and from Kee (44) that precisely compared three of the main observational postural load assessment tools, and also the review by Joshi and Deshpande (45), in which comparative studies of such approaches were thoroughly evaluated. The methodological properties of the articles were evaluated using the MacDermid checklist (16). Similarly, reliability, measurement error, content validity, and criterion validity were appraised via COSMIN boxes B, C, D, and H, respectively (17).

The review by Takala et al. indicated that different examiners would report fairly similar results when measuring wide-ranging body alignments and work activities if they had obtained comparable approaches and skills through enough preparation (41). Similarly, direct examination of smaller body segments and movements appeared more difficult and less reliable. Particularly if the movements were fast, they believed no single tool seemed to have a noticeable advantage compared to the others. More specifically, they reported that when selecting the most appropriate method in a particular setting, the examiners must comprehensively outline their requirements and predict how output would influence the final result. This aligns with the results reported in our study since various high- and medium-quality methods proved to perform differently based on tool metrics and sampling strategy. Most occupations and duties appear to have routine inconsistencies in biomechanical exposures. Consequently, the sampling approach (i.e., the number of participants and examinations per individual) is a key parameter for the accuracy and reliability of the output. Certain methods are developed based on sampling at fixed-time periods (34, 40), while some other approaches utilize constant examination for extended time intervals (19, 37). In both occasions, inconsistencies within and between measurement times and individuals must be considered when devising a high-quality measurement approach.

In addition to the posture that appeared as the dominant contributing factor to the computations, external forces, and the duration and frequency of the task, it was proved to be significant. It is essential to note that posture assessment is theoretically simple since the relative position of body segments in 3D space can be quantified by measuring joint angles (42). Therefore, studying a person’s work-related movements can evidently define the angular deviation of a body part from normal posture. Nonetheless, the challenge is to employ a valid and accurate approach, particularly reliable on how measurements for body segments are obtained to verify the risk levels. In other words, miscalculation of the related load is predictable if the body segment’s orientation is not properly assessed. Moreover, the influence of the right on the left side of the body while completing work tasks must be considered. Considering the decision on which limb is actively measured, the calculated postural load is not equally distributed between the two sides. Thus, it is essential to utilize an approach that can deal with the left and right sides independently (7, 41). Results from the current review confirm this, as most medium and high-quality tools are designed to measure the postural load separately for each body side. Nonetheless, to the best of the authors’ knowledge, no clear-cut solution to combine the results of the sides and estimate the overall postural load for the whole body has been developed hitherto.

Context of use was another important item of interest in the present review. The variety of approaches to developing observational postural assessment tools partly explains the wide range of application contexts for these tools. Some are more applicable in industrial settings (12, 23, 25-27), while some are specifically designed for clinical use (10-12, 23, 37), and the majority of the tools with high quality are of interest to academia. It was not feasible in the current review to conclude the most appropriate available method for each context. Because metrics and application purposes differ among researchers, clinicians, and occupational health and safety specialists, all the domains mentioned above could benefit from general postural load assessment methods and observational approaches. These methods rapidly and efficiently provide valid and reliable data on the risk factors associated with various musculoskeletal disorders. The current systematic review focused on the existing research on healthy adult individuals to minimize possible inconsistencies in the reported data. Nonetheless, observational postural load assessment methods must benefit all other vulnerable groups, such as the sick, children, and aging populations.

There were important limitations to this research that should be noted. Although a sufficient number of articles were evaluated in this review (25 studies), only seventeen scored high for psychometric and methodological designs, resulting in defective conclusions (refer to Table 1). Most studies with other quality levels had comparatively similar limitations, such as being directed at certain reliability or validity parameters, limited sample sizes without justification, and the need to explain inclusion and exclusion criteria. In some measures, the issues mentioned above interfered with study quality but did not affect the accuracy of the generated data. Another important concern was the heterogeneity of metrics for postural load assessment across articles which hindered the research team in further quantitative analyses. Although posture itself was a prominent factor, external forces, duration, as well as task duration and frequency, were the metrics that were not consistently taken into calculation in all studies. The above points underline the importance of developing detailed guidelines and standardization for the risk factors analyzed in postural load assessment methods.

Observational methods commonly used for assessing postural load are performed differently based on tool metrics and sampling strategies. Similarly, in addition to the posture that obviously appeared as the dominant contributing factor to the computations, the task’s external forces and duration, and frequency appeared to be influential.

Moreover, various approaches to the development of observational postural assessment tools partly explain the extensive range of application settings for these tools. To put it into context, metrics, and functional purposes differ significantly among researchers, clinicians, and occupational health and safety specialists.

In conclusion, although it might be challenging to make direct comparisons and draw general conclusions about observational postural assessment techniques due to their strengths and limitations, being specific on the context of use and the main contributing factors can facilitate appropriate tool selection for each study.
