1. Backgrounds
Liver cirrhosis is a leading cause of death in patients with chronic hepatitis B (CHB) and can lead to portal hypertension, which causes end-stage liver diseases such as oesophageal variceal bleeding (1) and hepatic encephalopathy (2). The 5-year survival rate was 80% - 85% in patients with compensated cirrhosis, while 14% - 35% in patients with decompensated cirrhosis (3, 4). Since antiviral therapy can reduce progression of cirrhosis and prevent hepatic decompensation in patients with compensated cirrhosis (5-7), an early diagnosis of compensated cirrhosis is critical for improving patient prognosis.
The specificity of ultrasonography, computed tomography (CT) and magnetic resonance imaging (MRI) to detect cirrhosis is high. Imaging reveals an inhomogeneous hepatic texture or surface, a rarefied hepatic central vein, an enlarged caudate lobe and splenomegaly or collateral veins. However, these imaging modalities are not sensitive enough to detect cirrhosis (8) and liver biopsy is still the gold standard for diagnosis.
Given the invasive nature of liver biopsy, several noninvasive indices have been developed for prediction of cirrhosis in CHB (9-11). Transient electrograph (FibroScan) is a method for assessing liver cirrhosis, but is limited due to its expensive cost (12). Thus, WHO suggested to use aminotransferase/platelet ratio index (APRI) for the assessment of liver cirrhosis in developing countries (13). Nonetheless, APRI has only a moderate diagnostic accuracy (14-16). Therefore, it is reasonable to explore other serum-based noninvasive tests to predict compensated cirrhosis.
Recent studies revealed that serum hepatitis B surface antigen (HBsAg) levels are inversely correlated with fibrosis scores (17, 18) and high serum HBsAg levels can identify insignificant fibrosis in treatment-naive hepatitis B e antigen (HBeAg)-positive hepatitis B virus (HBV) carriers (19-22). Due to the above reasons, serum HBsAg levels may be correlated with liver cirrhosis caused by CHB.
2. Objectives
In this study, we aimed to determine the performance of serum HBsAg level as a biomarker for compensated cirrhosis in HBeAg-positive CHB patients.
3. Patients and Methods
3.1. Patients
Patients with HBeAg-positive CHB and treatment-naive were included in this retrospective study. Patients were recruited from Huashan Hospital, Fudan University and Xixi Hospital of Hangzhou, Zhejiang Province during June 2007 to May 2014. All patients were HBsAg and HBeAg positive for at least six months before enrollment in the study. All patients underwent liver biopsy. Exclusion criteria were concomitant liver diseases including chronic hepatitis C or D infection, Wilson’s disease, autoimmune hepatitis and primary biliary cirrhosis. Patients with decompensated cirrhosis or those consuming a significant amount of alcohol were excluded (30 g/day for men, 20 g/day for women) as well. In addition, patients with inadequate serum for analysis or different opinions on liver biopsy were excluded. According to the inclusion and exclusion criteria, 201 patients were included and 123 patients excluded in our research. Our sample size achieved the expected power. Flowchart of study participants is shown in Figure 1.
The study was approved by the ethical committee of Huashan Hospital (200705) and Xixi Hospital of Hangzhou (201309). All subjects gave informed consent for their participation in the study.
3.2. Clinical and Laboratory Assessment
Serum samples were taken at baseline and stored at -20°C. All samples were tested in the Huashan Hospital laboratory. Relevant clinical variables included age, sex, serum alanine aminotransferase (ALT), aspartate aminotransferase (AST), albumin (A), and globulin (G) levels, platelet (PLT) counts. ALT, AST, A and total protein levels were measured in UniCel Dxc 800 using Synchron system Kits (Beckman Coulter), and G levels were determined by subtracting the amount of albumin levels from the total protein levels. In addition, PLT counts were measured in Sysmex XT-1800i using its corresponding commercially available kit (Sysmex Corporation). Serum HBV DNA levels were measured in Lightcycle using the COBAS TaqMan assay (Roche Diagnostics), with a linear range of 20 - 1.98 × 108 IU/mL. Samples with HBV DNA levels higher than 1.98 × 108 IU/mL were diluted at 1:100 for retesting.
Serum HBsAg, HBeAg and antibody to hepatitis B e antigen (anti-HBe) were measured using commercially available immunoassays (Abbott Laboratories, Chicago, IL). Serum HBsAg level detection value ranged from 0.05 to 250 IU/mL and samples with an HBsAg level > 250 IU/mL required a 1:500 or greater dilution. All the tests above are subject to strict quality control. Furthermore, our laboratory passed the certificate from the College of American Pathologists (CAP).
AST to platelet ratio index (APRI) was evaluated for grading the extent of liver fibrosis.
3.3. Liver Histology
Liver biopsy was performed using a 16-gauge Menghini needle and specimens were fixed in formalin and embedded in paraffin. Hematoxylin-eosin and reticular fibre staining or Masson staining were performed on each section. Two experienced pathologists examined the sections independently. Grading of inflammation (G) and staging of fibrosis (S) were determined using the modified Scheuer scoring system (24) and scored as G0 - G4 and S0 - S4, respectively. A stage of S4 represented liver cirrhosis. If there were different opinions on the stage of liver biopsy, the patient was excluded.
3.4. Statistical Analyses
All data were processed using Stata 10.0 software (Stata Corporation, College Station, TX, USA). Shapiro-wilk test was used to verify the normal assumption. Parametric variables were expressed as mean ± standard deviation (SD) and nonparametric were expressed as median (P25, P75), assessed by Student t-test (parameter) or Mann-Whitney (non-parameter) test as appropriate. Categorical variables were analyzed using the chi-square test. Spearman’s correlation coefficient (r) was used for correlation analysis. Additionally, independent factors associated with compensated cirrhosis were identified using multivariate logistic regression analysis. Furthermore, area under receiver-operator curve (AUC) was used to calculate the diagnostic accuracy of serum HBsAg and APRI and detailed information including sensitivity, specificity, positive predictive values (PPVs) and negative predictive values (NPVs) for relevant cut-offs were also displayed. The Youden index, defined as sensitivity plus specificity minus one, was used to identify the optimal level of prediction. A two-sided P value of 0.05 was considered statistically significant.
4. Results
4.1. Patients’ Characteristics
Baseline demographics of patients are shown in Table 1. Only three patients with compensated cirrhosis were classified in Child-Pugh class B and the remainder were in class A. Patients with compensated cirrhosis were categorized as CC group (n = 62) and those without cirrhosis were categorized as non-cirrhotic group (n = 139). All of the variables were nonparametric. Nevertheless, when we changed HBV DNA and HBsAg to Log10 HBV DNA and Log10 HBsAg, they both accorded with normal distribution. Comparison of patients with CC group and non-cirrhotic group showed that patients in the CC group were older, had lower ALT, albumin and PLT levels, higher AST levels and lower HBsAg and HBV DNA levels (P < 0.05). In our research, 24 patients had fibrosis stage S0, and 38, 43, 34, 62 patients had stages S1, S2, S3, S4, respectively. In addition, nine patients had inflammation grading G0 and 31, 39, 66, 56 patients had G1, G2, G3, G4, respectively. There was a strong inverse correlation between serum HBsAg and fibrosis (r = -0.668, P < 0.001), while no correlation between serum HBsAg and inflammation (r = -0.129, P = 0.201) (Figure 2).
Table 1. Baseline Characteristics of 201 Patients a
| Variables | CC Group b | Non-Cirrhotic Group | P Value |
|---|---|---|---|
| Number of patients | 62 | 139 | - |
| Age, y b | 37.0 (28.0, 42.0) | 30.5 (25.3, 39.0) | < 0.001 |
| Male patients c | 47 (77) | 114 (82) | 0.078 |
| ALT, U/L b | 85 (37.0, 240.8) | 94 (48.8, 189.5) | 0.014 |
| AST, U/L b | 51.5 (39.7, 64.9) | 46（36.4, 56.2） | 0.005 |
| PLT, × T9/L b | 112.8 ± 55.6 | 168.8 ± 50.7 | 0.017 |
| A, g/L b | 42.4 (36.0, 43.0) | 46.4 (44.0, 48.0) | < 0.001 |
| G, g/L b | 31.4 ± 5.8 | 32.4 ± 5.3 | 0.311 |
| HBV DNA, log10 IU/mL d | 6.77 ± 1.70 | 7.49 ± 1.33 | 0.032 |
| HBsAg, log10 IU/mL d | 3.27 ± 0.71 | 4.17 ± 0.57 | < 0.001 |
a Abbreviations: A, serum albumin; ALT, alanine aminotransferase; AST, aspartate aminotransferase; CC group, patients with compensated cirrhosis; G, serum globulin; HBsAg, hepatitis B surface antigen; and PLT, platelet count.
b Nonparametric variables are expressed as median (P25, P75).
c Categorical variables are expressed as No. (%).
d Parametric variables are expressed as median mean ± standard deviation.

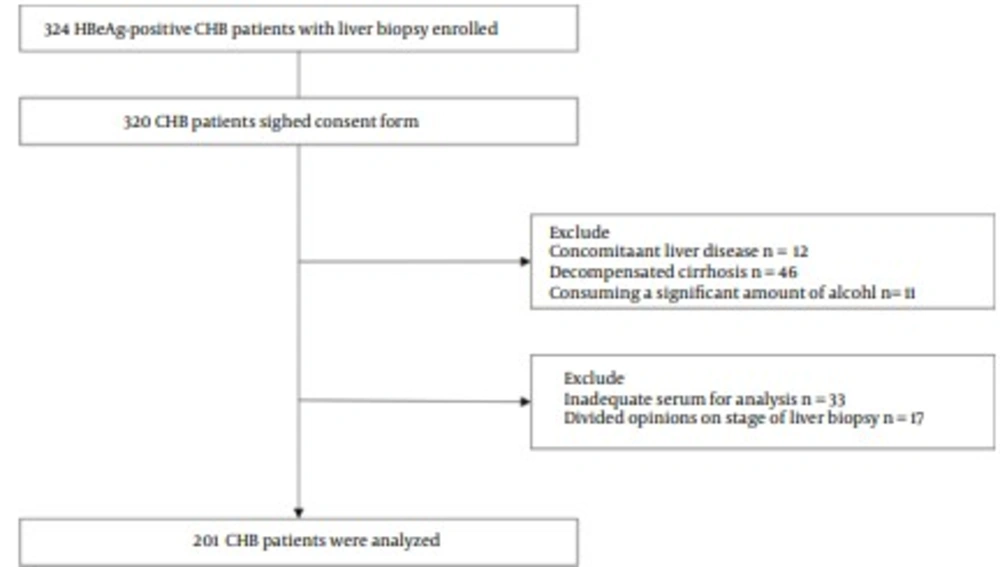

Figure 1.
Abbreviations: CHB, chronic hepatitis B, HBsAg hepatitis B surface antigen.

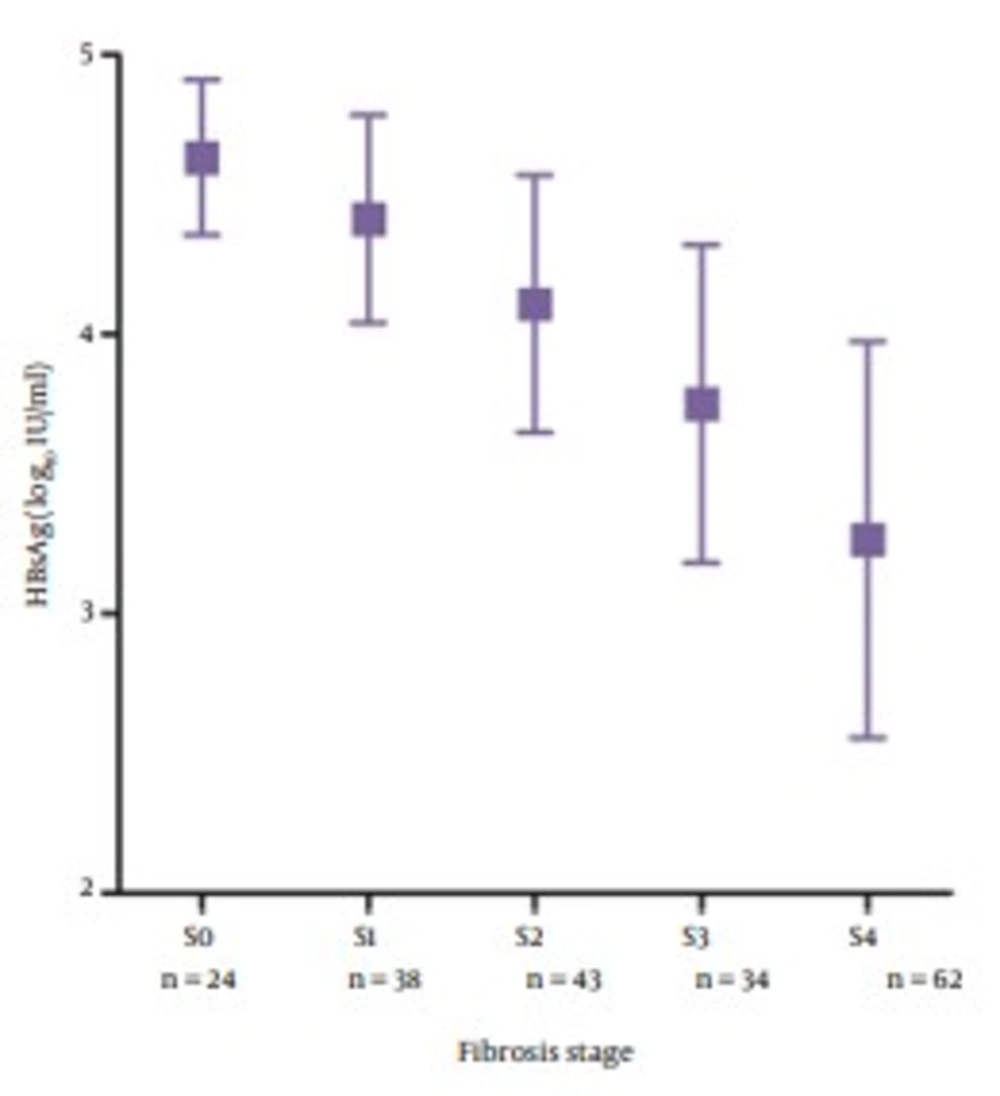

Figure 2.
Serum HBsAg were expressed as mean ± standard deviation, the results showed that serum HBsAg decreased with the process of fibrosis. There was a strong inverse correlation between serum HBsAg and fibrosis (r = -0.668, P < 0.001). Abbreviations: HBsAg, hepatitis B surface antigen.
4.2. Serum HBsAg Levels for CC Group Were Significantly Lower Than Those for Non-Cirrhotic Group

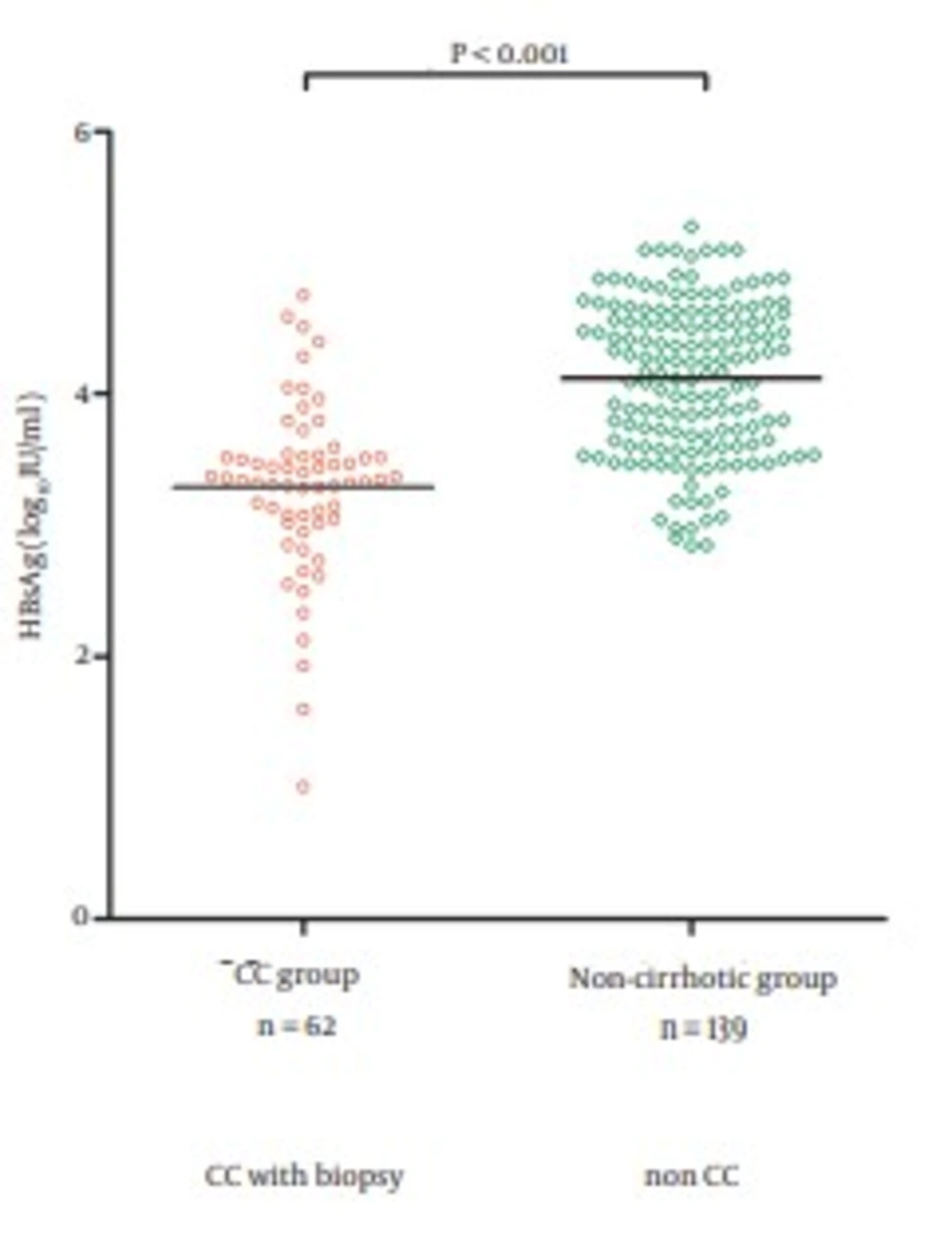

Serum HBsAg level (log10 IU/mL) for the CC group and non-cirrhotic group were 3.27 ± 0.71 and 4.17 ± 0.57 (P < 0.001), respectively (Figure 3). Serum HBsAg levels were significantly lower for CC group compared to non-cirrhotic group.
Figure 3.
CC group: patients with compensated cirrhosis; non-cirrhotic group: patients without cirrhosis.
4.3. Univariate and Multivariate Analysis for Predicting Compensated Cirrhosis
The univariate and multivariate analyses of factors predictive of cirrhosis in HBeAg positive CHB patients are shown in Table 2. Older age, lower platelet count, lower albumin level, higher AST level, lower HBsAg and HBV DNA level were all associated with compensated cirrhosis in the univariate analysis.
Table 2. Multivariate and Univariate Analyses of Factors Independently Associated With Compensated Cirrhosis With Liver Biopsy a
| Variables | Univariate Analysis | Multivariate Analysis | ||||
|---|---|---|---|---|---|---|
| Coefficient | OR, 95% CI | P Value | Coefficient | OR, 95% CI | P Value | |
| Gender (male) | 0.138 | 1.148 (0.534 - 2.468) | 0.723 | 0.123 | 1.131 (0.296 - 4.328) | 0.857 |
| Age, y | 0.029 | 1.029 (1.001 - 1.057) | 0.039 | 0.004 | 1.003 (0.960 - 1.050) | 0.868 |
| HBsAg, log 10 IU/mL | -2.358 | 0.095 (0.045 - 0.200) | < 0.001 | -2.300 | 0.100 (0.037 - 0.272) | < 0.001 |
| ALT, U/L | -0.001 | 0.998 (0.996 - 1.001) | 0.140 | -0.001 | 0.999 (0.996 - 1.002) | 0.481 |
| AST, U/L | 0.330 | 1.391 (1.083 - 1.788) | 0.010 | 0.003 | 1.012 (1.001 - 1.061) | 0.414 |
| HBV DNA, log 10 IU/mL | -0.237 | 0.789 (0.633 - 0.983) | 0.035 | -0.043 | 0.897 (0.609 - 1.127) | 0.862 |
| PLT, × T9/L a | -0.008 | 0.992 (0.984 - 0.999) | < 0.001 | -0.028 | 0.973 (0.959 - 0.986) | < 0.001 |
| Albumin, g/L | -0.187 | 0.861 (0.800 - 0.921) | < 0.001 | -0.012 | 0.938 (0.894 - 0.990) | 0.011 |
a Abbreviations: 95% CI, 95% confidence interval; ALT, alanine aminotransferase; AST, aspartate aminotransferase; HBsAg, hepatitis B surface antigen; HBV, hepatitis B virus; OR, odds ratio; and PLT, platelet.
After adjusting for different clinical parameters, independent factors associated with compensated cirrhosis included lower albumin level (OR 0.938; 95% CI 0.894 to 0.990; P = 0.011), lower serum HBsAg level (OR 0.100; 95% CI 0.037 to 0.272; P < 0.001) and lower PLT count (OR 0.973; 95% CI 0.959 - 0.986; P < 0.001) (Table 2).
4.4. Predictive Value of Serum HBsAg for Differentiating CHB Patients With Compensated Cirrhosis From Those Without Cirrhosis

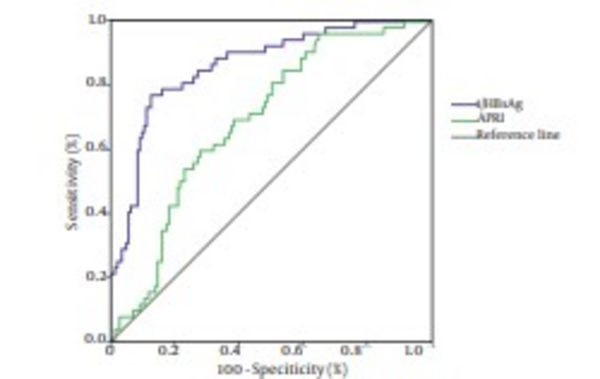

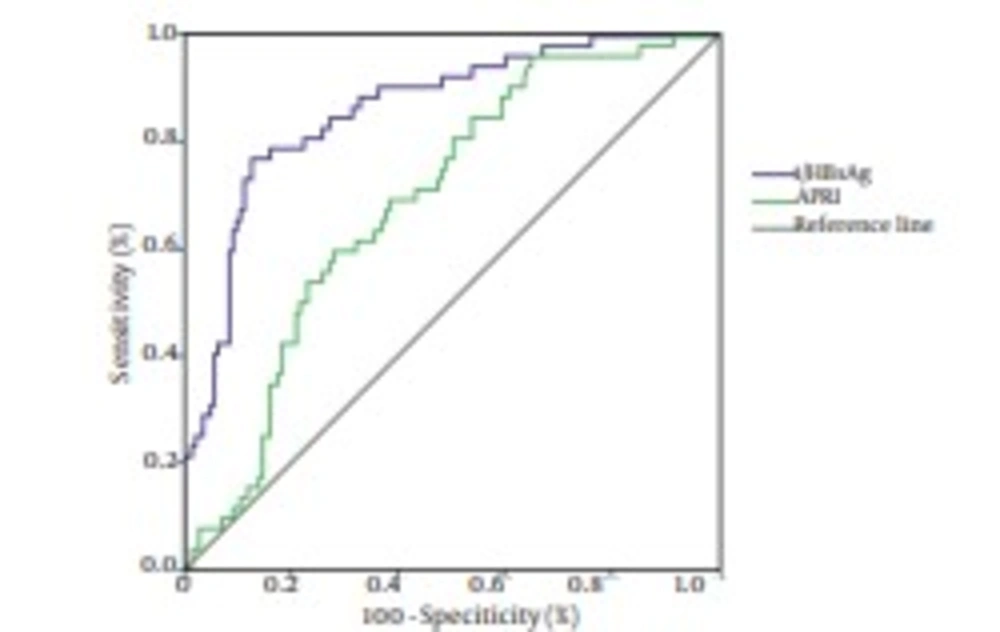

As an independent factor associated with compensated cirrhosis, the ROC curves of serum HBsAg levels in predicting compensated cirrhosis are depicted in Figure 4 (ROC, 0.856; Standard Error, 0.028, P < 0.001; 95% confidence interval, 0.799 - 0.914). Based on the Youden Index, the optimal cutoff level of serum HBsAg to predict CC was 3.60 Log10 IU/mL (4000 IU/mL), which was able to predict compensated cirrhosis with a sensitivity of 80.3%, specificity of 82.4%, positive predictive value of 66.2% and negative predictive value of 90.7%. Serum HBsAg < 500 IU/mL (2.70 Log10 IU/mL) was 100% predictive of compensated cirrhosis. For the purpose identifying but not excluding cirrhosis, thereby reciprocal of the serum HBsAg (1/HBsAg) was made in ROC curves.
Figure 4.
Abbreviations: HBsAg, hepatitis B surface antigen; and APRI, aspartate aminotransferase to platelet ratio index.
4.5. Combining HBsAg With APRI Could Better Predict Compensated Cirrhosis
Previous studies had identified APRI as a predictor of cirrhosis. In the current study, the ROC curves of APRI in predicting compensated cirrhosis are depicted in Figure 4 (ROC, 0.699; Standard Error, 0.038, P < 0.001; 95% confidence interval 0.625 - 0.772). 43.2% of patients with APRI more than 2 had compensated cirrhosis (Figure 5). Moreover, we examined the rates of compensated cirrhosis among patients with HBsAg below 3.6 log10 IU/mL and APRI more than 2 and taking into account their proportion of compensated cirrhosis. The results showed that among the above subgroups, 75.0% (15/20) achieved compensated cirrhosis (Figure 5).
Figure 5.
Abbreviations: APRI, aspartate aminotransferase to platelet ratio index; and HBsAg, hepatitis B surface antigen.
5. Discussion
Although liver biopsy is a gold standard for the diagnosis of liver cirrhosis, it is an expensive and invasive procedure associated with patient discomfort, a small risk of serious bleeding and requires specialist histological examination for accurate staging (13). Therefore, many noninvasive methods have been applied to substitute this invasive procedure. We performed this study in a treatment-naive Chinese cohort of HBeAg-positive CHB patients. Serum HBsAg was analyzed in patients with or without cirrhosis and was evaluated as a predictive marker of compensated cirrhosis.
We found a significantly lower level of HBsAg in cirrhotic group. To compare HBsAg with other predictors, we conducted a multivariate regression analysis. The results indicated that HBsAg level could predict compensated cirrhosis independently (OR 0.100; P < 0.001). In addition, PLT count and albumin level were independently related to compensated cirrhosis as expected, which were similar with previous studies (25, 26).
In our study, the optimal cut-off level of serum HBsAg to predict cirrhosis was 3.60 Log10 IU/mL (4000 IU/mL), which may be used to distinguish compensated cirrhotic patients from non-cirrhotic patients. Our results suggest that HBeAg-positive patients with HBsAg below 3.60 Log10 IU/mL (4000 IU/mL) were at high risk of developing compensated cirrhosis. Moreover, serum HBsAg below 2.70 Log10 IU/mL (500 IU/mL) was 100% predictive of compensated cirrhosis in our research group. Thus, HBeAg-positive patients with HBsAg below 2.70 Log10 IU/mL (500 IU/mL) are more likely to have compensated cirrhosis even with no evidence in imaging scan.
In previous studies, several indices have been proposed as potential noninvasive predictors of cirrhosis in CHB patients, including FIB-4, APRI and FibroScan. FIB-4 index, first characterized in an HIV-HCV co-infected population and subsequently evaluated in HCV-infected subjects, may perform favorably to determine the extent of fibrosis in patients with CHB (27). Nonetheless, it has been developed and validated for detection of fibrosis stages ≥ S3 but not cirrhosis (13, 28). APRI is based on two indirect markers of fibrosis, a single high cut-off more than 2 is used for identifying patients with cirrhosis. However, an APRI score more than 2 could detect only one third of patients with cirrhosis (29). FibroScan had a relatively high AUROC in predicting cirrhosis compared to APRI while is limited by its high cost (30). In addition, the expenses for preventive, corrective maintenance and trained operators are high. Thus, the use of FibroScan is limited in developing countries. Therefore, the new WHO treatment guideline for HBV recommended that APRI could be used to predict cirrhosis (13) in developing countries.

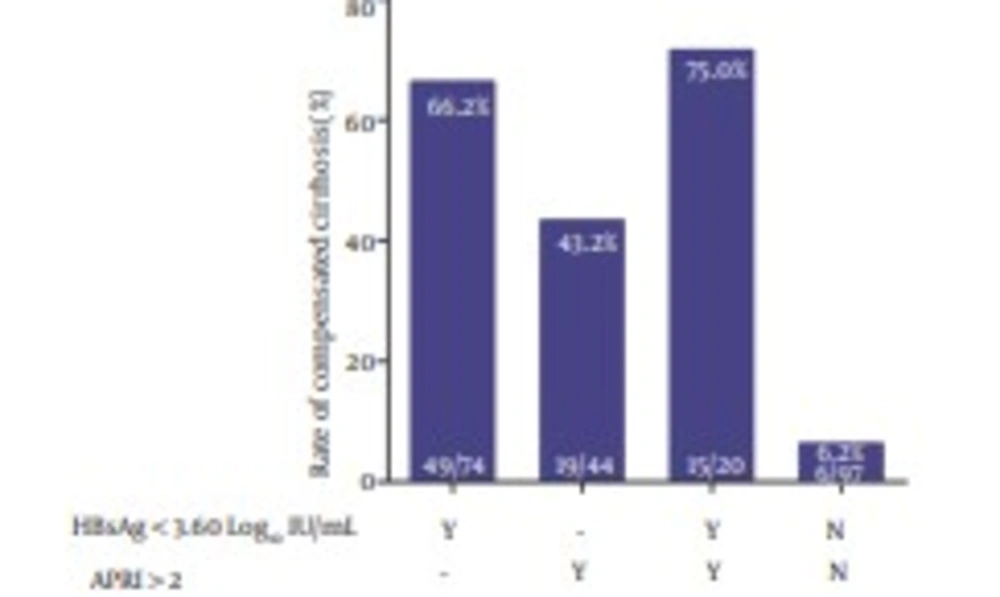

In our research, we evaluated the predictive value among subgroups of patients stratified by APRI and serum HBsAg. The results showed that the rate of compensated cirrhosis increased from 66.2% to 75.0% after combining the APRI > 2 and HBsAg < 3.6 Log10 IU/mL. The above results indicated that APRI combined with HBsAg could further improve the predictive value to some extent.
The mechanism underlying the predictive value of HBsAg is still unknown. Many studies have shown that serum HBsAg level decreased with fibrosis progress (20-22, 31), which were similar with our finding (CC group 3.27 Log10 IU/mL VS. non-cirrhotic group 4.17 Log10 IU/mL, P < 0.001). The mechanism of the association between HBsAg and cirrhosis may be related to the fact that patients with cirrhosis have a diminished ability to support viral replication (18). Moreover, Cheng et al. (17) concluded that during disease escalation, active host immunity would be triggered against HBV replication and possibly results in chronic liver injury, which leads to decrease of HBsAg and develop of liver fibrosis. In addition, Pollicino et al. (32) demonstrated that preS/S HBV mutants were positively correlated with cirrhosis, which decreased the level of serum HBsAg.
It is advised that CHB patients with compensated cirrhosis should be treated to prevent further clinical events, even if the HBV DNA level is low or undetectable (13). Serum HBsAg measuring is less expensive, largely automatic and requires only phlebotomy. According to our results, HBsAg combined with APRI could further improve the predictive value for detecting compensated cirrhosis. Nonetheless, our study still has some limitations. Firstly, information on HBV genotypes was not available. Whereas, the major HBV genotypes in China are B and C, which are virtually indistinguishable for HBsAg expression pattern (33) and have similar prediction of fibrosis severity (21, 34). Secondly, our research was a retrospective study, which was prone to bias. Therefore, randomized prospective studies with larger sample size are needed to validate our results.
In conclusion, patients with compensated cirrhosis caused by CHB have significantly lower HBsAg levels compared to those without cirrhosis. Serum HBsAg level less than 3.60 Log10 IU/mL (4000 IU/mL) may serve as a noninvasive candidate biomarker for compensated cirrhosis. Thus, this special population should be closely monitored to receive proper treatment timely.
Table 3. Sensitivity, Specificity and Predictive Values of Different HBsAg Levels for Predicting Compensated Cirrhosis a
a Abbreviations: HBsAg, hepatitis B surface antigen; LR+, positive likelihood rate; LR-, negative likelihood rate; NPV, negative predictive value; and PPV, positive predictive value.
b Values’ unit is %.
