1. Background
Methotrexate (MTX) is an effective therapeutic modality for treatment of a variety of inflammation-based disorders, such as rheumatoid arthritis, juvenile arthritis, lupus, psoriatic arthritis, myositis, vasculitis, and even some inflammatory gastrointestinal disorders, such as inflammatory bowel disease (1, 2). Regardless of its high efficacy, organic and metabolic toxicity of MTX is also considerable in the clinical setting. In this regard, the effects of MTX is dose-dependent so that long-term use of this drug with high dosages may lead to serious complications, such as bone marrow suppression, mucocutaneous reactions, pneumonitis, and hepatotoxicity (3, 4). Due to increased risk of hepatotoxicity following long-term use of MTX, serial monitoring of liver functional parameters is undeniable; however, liver tests function alone cannot reflect the depth of damage and therefore simultaneously applying other techniques, such as biopsy, may substantially increase diagnostic accuracy (5). Biopsy has remained as the gold standard for assessment of liver damage despite its uncomfortable side effects (6), yet it is recommended as the preferred method of use in most cases. Thus, the necessity of a rapid and non-invasive method, which has sufficient accuracy and repeatability, has become clear.
FibroScan is a relatively new medical imaging technique, which can assess liver stiffness through collagen quantification (7, 8). This method is an accurate non-invasive technique that can be used for assessing the rate of liver fibrosis progression and thus can be widely used for following drug-induced side effects, such as MTX-induced side effects (9-11).
2. Objectives
However, a few studies have been published on the beneficial effects of this technique for assessing liver fibrosis induced by MTX. Hence, the present study aimed to evaluate the progression of liver fibrosis using the FibroScan technique in patients, who are treated with MTX.
3. Methods
3.1. Study Setting and Periods
One hundred and one patients, who were treated with MTX because of different rheumatologic disorder and/or dermatologic diseases, such as rheumatoid arthritis, psoriasis, or psoriatic arthritis, referred to private clinics or Razi hospital in Rasht in a time period of 18 months, were included in the study.
3.2. Study Population and Sampling Technique
The inclusion criteria were the use of MTX in the range of at least 2 years for any condition or the use of MTX for any reason and with a minimum cumulative dose of 2 g regardless of the duration of use. On admission, baseline characteristics, including demographics, type, history of the disease, dose of MTX, and duration of disease, were assessed by interviewing or physical examination.
3.3. Data Collection
After completing the patients’ checklists, biochemical parameters, including liver enzymes, serum albumin, Apolipoprotein A1 (Apo-A1), coagulation markers, α2-macro, platelet count, and ferritin were all measured.
Liver stiffness measurement using transient elastography (FibroScan; Echosens, Paris, France), which measures liver stiffness (LS) contingent upon the computation of liver recurrence versatile wave inside the liver (12), was performed on the right lobe of the liver, in intercostal space with the patient lying in dorsal decubitus with the right arm in maximal abduction, as previously described. The tip of the transducer probe was covered with coupling gel and placed on the skin, between the rib bones at the level of the right lobe of the liver. The operator, assisted by a time-motion ultrasound image, located a liver portion at least 6-cm thick and free of large vascular structures. When the target area was located, the operator pressed the probe button to start the measurements. The measurement depth was between 25 and 65 mm. Then, validated measurements were performed on each patient. The results were expressed in kilopascals (kPa). The median value was considered representative of the elastic modulus of the liver. Hepatic fibrosis was staged to convert Fibro scan results measured in (kPa) to the Metavir scoring system as follows: F0 (no fibrosis), F1 (mild fibrosis without septa), F2 (moderate fibrosis with few septa), F3 (severe fibrosis with numerous septa without cirrhosis), and F4 (cirrhosis or advanced scarring of the liver) (10, 11). The steatosis was also graded as no steatosis (< 11%, S0), mild steatosis (11% to 34%, S1), moderate steatosis (34% to 67%, S2), and marked to severe steatosis (> 67%, S3) [12].
3.4. Data Analysis
For statistical analysis, Kolmogorov-Smirnov test was used to check the normality of data. Results were presented as mean ± standard deviation (SD) for quantitative variables and summarized by absolute frequencies and percentages for categorical variables. Continuous variables were compared using one-way analysis of t test and/or non-parametric Mann-Whitney test whenever the data did not appear to have a normal distribution. Categorical variables were compared using Chi-square test or Fisher’s exact test. For the statistical analysis, the SPSS statistical software version 16.0 for windows (SPSS Inc., Chicago, IL) was used. P values of 0.05 or less were considered statistically significant.
3.5. Ethical Considerations
The Medical Ethics Committee of Guilan University of Medical Sciences (GUMS) approved the study design, protocols, and informed consent procedure. All measurements were performed based on ethical guidelines of the 1975 declaration of Helsinki. Patients were enrolled after written informed consent was obtained. All patients consented to the study. This study was funded by gastrointestinal and liver diseases research center (GLDRC) of GUMS.
4. Results
One hundred and one consecutive patients, who were treated with MTX, between January 2013 and September 2015, were included. The mean age of the subjects was 53.5 years, ranging between 20 and 77 years and 22.7% were male. Most of the patients (87.1%) were treated because of rheumatoid arthritis alone, 5.9% because of psoriasis alone, and 5.9% because of the presence of both diseases. The weight of the subjects ranged from 60 to 80 kg with the mean weight being 74.2 ± 4.1 kg. The mean body mass index (BMI) was 28.2 ± 5.4 kg/m2; 44.6% were overweight and 32.7% were obese. History of alcohol use was also revealed in only 3% of the cases. At the time of diagnosis, 6.9% were younger than 20 years and 51.5% were older than 40 years. According to the results of liver function test in patients treated with MTX, abnormal alanine aminotransferase (ALT), aspartate aminotransferase (AST) and alkaline phosphates (ALP) was found in 11.9%, 19.8%, and 5.0% of patients, respectively. Also, an abnormal range of bilirubin, albumin, haptoglobin, and ApoA1 was also revealed in 3.0%, 5.0%, 52.5%, and 22.8% respectively. Regarding abnormality of coagulation factors, abnormal partial thromboplastin time (PTT), prothrombin time (PT), and international normalized ratio (INR) was shown in 4.0%, 3.0%, and 2.0% of patients. Moreover, reduced platelet count, serum hemoglobin, white blood cell count, and ferritin were found in 2.0%, 45.5%, 0.9%, and 5.0%, respectively. The cumulative dose of MTX ranged between lower than 2,000 mg in 23.8%, 2,000 to 5,000 mg in 40.6%, and higher than 5,000 mg in 35.6%. Also, the duration of drug use was lower than 2 years in 5.0%, 2 to 5 years in 19.8%, and higher than 5 years in 75.2%. About two-thirds of physicians (61.8%) preferred to prescribe the drug with a weekly dosage of 7.5 to 10.0 mg. The assessment using FibroScan showed mild, moderate, and severe steatosis in 15.8%, 13.9%, and 26.7% of patients, respectively. With regards to grading of hepatic fibrosis, 67.0% were graded as F0 to F1, 7.0% as F2, 7.0% as F2 to F3, 2.0% as F3, 11.0% as F3 to F4, and 6.0% as F4. With respect to the association between hepatic fibrosis and demographic characteristics (Table 1), there was no relationship between the presence of fibrosis and patients’ age, age at diagnosis, the presence of underlying disease, height, and BMI, while the presence of fibrosis was more commonly found in patients with a body mass index higher than 30 kg/m2 (P = 0.01) and also in those with waist circumference > 120 cm (P = 0.05). Also, as shown in Table 1, the type of rheumatologic disease was not associated with the presence or absence of hepatic fibrosis.
Table 1.The Association Between Hepatic Fibrosis and Demographic Characteristicsa
| Subgroup | Characteristics | Group without Fibrosis (n = 68) | Group with Fibrosis (n = 33) | P Value |
|---|---|---|---|---|
| Age, y | < 20 | 3 (9.1) | 7 (10.3) | NS |
| 20 - 40 | 21 (63.6) | 46 (67.6) | ||
| > 40 | 9 (27.3) | 15 (22.1) | ||
| Height group, cm | < 155 | 8 (24.2) | 17 (25.0) | NS |
| 155 - 170 | 23 (69.7) | 43 (63.2) | ||
| > 170 | 2 (6.1) | 8 (11.8) | ||
| Body weight, kg | < 60 | 3 (9.1) | 12 (17.6) | 0.01 |
| 60 - 80 | 16 (48.5) | 43 (63.2) | ||
| 80 - 100 | 11 (33.3) | 13 (19.2) | ||
| > 100 | 3 (9.1) | 0 (0.0) | ||
| BMI, kg/m2 | < 25 | 6 (12.5) | 15 (21.9) | NS |
| 25 - 29 | 16 (46.9) | 30 (46.9) | ||
| ≥ 30 | 14 (40.6) | 20 (31.2) | ||
| Waist circumference, cm | < 80 | 3 (9.1) | 5 (7.4) | 0.05 |
| 80 - 99 | 14 (42.4) | 39 (57.4) | ||
| 100 - 120 | 10 (30.3) | 22 (32.4) | ||
| > 120 | 6 (18.2) | 2 (2.8) | ||
| Type of disease | Rheumatoid arthritis | 31 (94.0) | 57 (83.7) | NS |
| Psoriasis | 1 (3.0) | 5 (7.4) | ||
| Psoriatic arthritis | 1 (3.0) | 5 (7.4) | ||
| Systemic lupus erythematosus | 0 (0.0) | 1 (1.5) | ||
| Age at diagnosis, y | < 20 | 3 (9.1) | 4 (5.8) | NS |
| 20 - 40 | 13 (39.4) | 29 (42.6) | ||
| > 40 | 17 (51.5) | 35 (51.6) |
aValues are expressed as No. (%).
Regarding the association between hepatic fibrosis and chemical biomarkers, abnormal levels of ALT, gamma-glutamyl transpeptidase (GGT), and serum albumin was more frequent in those with hepatic fibrosis. However, no relationship was revealed between the groups with and without hepatic fibrosis, in terms of cumulative dosage of MTX and duration of drug use, as well as initial and weekly dosages of the drug (Table 2). More interestingly, no association was found between the presence and absence of hepatic fibrosis and grade of steatosis, where mild, moderate, and severe steatosis was found in 18.2%, 18.2%, and 33.3% of cases in the group with fibrosis and 14.7%, 11.8%, and 23.5% of cases in the group without fibrosis. Regarding the association between the grade of steatosis and baseline variables, there was no association between the grade of steatosis and patients age and height, whereas severe steatosis was significantly more prevalent in patients with body weight higher than 100 kg (P = 0.001), in patients with BMI > 30 kg/m2 (P = 0.007), and also in those with waist circumference > 120 cm (Table 3). There was no relationship between grade of steatosis and type of rheumatologic disease. Among laboratory indices, only the prevalence of abnormal albumin level was associated with the grade of steatosis. As indicated in Table 4, administrating higher cumulative dosages of MTX (> 5,000 mg) was associated with higher grades of steatosis (P = 0.03). As shown in Figure 1, no association was found between the grade of steatosis and severity of hepatic fibrosis.
Table 2.The Association Between Hepatic Fibrosis and How to Use Druga
| Characteristics | Group without Fibrosis (n = 68) | Group with Fibrosis (n = 33) | P Value | |
|---|---|---|---|---|
| Cumulative dosage, mg | < 2000 | 16 (23.5) | 8 (24.3) | NS |
| 2000 - 5000 | 27 (39.7) | 14 (42.4) | ||
| > 5000 | 25 (36.8) | 11 (33.3) | ||
| Duration of use, y | < 2 | 5 (7.4) | 0 (0.0) | NS |
| 2 - 5 | 14 (20.5) | 6 (18.2) | ||
| > 5 | 49 (72.1) | 27 (81.8) | ||
| Used dosage, mg | 2.5 | 4 (5.9) | 3 (9.1) | NS |
| 5 | 3 (4.4) | 2 (6.1) | ||
| 7.5 | 19 (27.9) | 5 (15.1) | ||
| 10 | 26 (38.3) | 12 (36.3) | ||
| 12.5 | 1 (1.5) | 3 (9.1) | ||
| 15 | 12 (17.6) | 6 (18.2) | ||
| 17.5 | 1 (1.5) | 0 (0.0) | ||
| 20 | 2 (2.9) | 2 (6.1) | ||
| Initial dosage, mg | 0.65 | 0 (0.0) | 1 (3.0) | NS |
| 2.5 | 5 (7.4) | 3 (9.1) | ||
| 5 | 6 (8.8) | 2 (6.1) | ||
| 7.5 | 26 (38.3) | 7 (21.2) | ||
| 10 | 17 (25.0) | 11 (33.3) | ||
| 12.5 | 1 (1.5) | 0 (0.0) | ||
| 15 | 9 (13.2) | 7 (21.2) | ||
| 20 | 2 (2.9) | 2 (6.1) | ||
| 22.5 | 2 (2.9) | 0 (0.0) |
aValues are expressed as No. (%).
Table 3.The Association Between Grading of Steatosis and Demographic Characteristicsa
| Subgroup | Characteristics | S0 (n = 44) | S1 (n = 16) | S2 (n = 14) | S3 (n = 27) | P Value |
|---|---|---|---|---|---|---|
| Age, y | < 20 | 6 (13.6) | 1 (6.2) | 0 (0.0) | 3 (11.1) | NS |
| 20 - 40 | 27 (61.4) | 8 (50.0) | 11 (78.6) | 21 (77.8) | ||
| > 40 | 11 (25.0) | 7 (43.8) | 3 (21.4) | 3 (11.1) | ||
| Height, cm | < 155 | 11 (25.0) | 6 (37.5) | 4 (28.6) | 4 (14.8) | NS |
| 155 - 170 | 29 (65.9) | 8 (50.0) | 9 (64.3) | 20 (74.1) | ||
| > 170 | 4 (9.1) | 2 (12.5) | 1 (7.1) | 3 (11.1) | ||
| Body weight, kg | < 60 | 13 (29.5) | 0 (0.0) | 0 (0.0) | 2 (7.4) | 0.001 |
| 60 - 80 | 28 (63.6) | 13 (81.2) | 7 (50.0) | 11 (40.7) | ||
| 80 - 100 | 3 (6.9) | 3 (18.8) | 7 (50.0) | 11 (40.7) | ||
| > 100 | 0 (0.0) | 0 (0.0) | 0 (0.0) | 33 (11.2) | ||
| BMI, kg/m2 | < 25 | 14 (30.9) | 2 (12.5) | 0 (0.0) | 5 (18.5) | 0.007 |
| 25 - 29 | 23 (52.3) | 8 (50.0) | 8 (57.1) | 7 (25.9) | ||
| ≥ 30 | 7 (15.8) | 6 (37.5) | 6 (42.9) | 15 (55.6) | ||
| Waist circumference, cm | < 80 | 8 (18.1) | 0 (0.0) | 0 (0.0) | 0 (0.0) | 0.001 |
| 80 - 100 | 31 (70.5) | 8 (50.0) | 4 (28.6) | 10 (37.0) | ||
| 101 - 120 | 5 (11.4) | 8 (50.0) | 9 (64.3) | 10 (37.0) | ||
| > 120 | 0 (0.0) | 0 (0.0) | 1 (7.1) | 7 (26.0) | ||
| Type of disease | Rheumatoid arthritis | 40 (90.9) | 15 (93.8) | 11 (78.6) | 22 (81.5) | NS |
| Psoriasis | 3 (6.8) | 0 (0.0) | 1 (7.1) | 2 (7.4) | ||
| Psoriatic arthritis | 0 (0.0) | 1 (6.2) | 2 (14.3) | 3 (11.1) | ||
| Systemic lupus erythematosus | 1 (2.3) | 0 (0.0) | 0 (0.0) | 0 (0.0) | ||
| Age at diagnosis, y | < 20 | 5 (11.4) | 1 (6.2) | 0 (0.0) | 1 (3.7) | NS |
| 20 - 40 | 22 (50.0) | 2 (12.5) | 7 (50.0) | 11 (40.7) | ||
| > 40 | 17 (38.6) | 13 (81.3) | 7 (50.0) | 15 (55.6) |
aValues are expressed as No. (%).
Table 4.The Association Between Grading of Steatosis and How to Use the Druga
| Subgroups | Characteristics | S0 (n = 44) | S1 (n = 16) | S2 (n = 14) | S3 (n = 27) | P Value |
|---|---|---|---|---|---|---|
| Cumulative dosage, mg | < 2000 | 9 (20.5) | 6 (37.5) | 1 (7.1) | 8 (29.6) | 0.03 |
| 2000 - 5000 | 19 (43.2) | 9 (56.2) | 6 (42.9) | 7 (25.9) | ||
| > 5000 | 16 (36.3) | 1 (6.3) | 7 (50.0) | 12 (44.5) | ||
| Duration of use, y | < 2 | 2 (4.5) | 1 (6.3) | 0 (0.0) | 2 (7.4) | NS |
| 2 - 5 | 8 (18.2) | 5 (31.2) | 2 (14.3) | 5 (18.5) | ||
| > 5 | 34 (77.3) | 10 (62.5) | 12 (85.7) | 20 (74.1) | ||
| Used dosage, mg | 2.5 | 4 (9.1) | 2 (12.5) | 0 (0.0) | 1 (3.7) | NS |
| 5 | 0 (0.0) | 2 (12.5) | 1 (7.1) | 2 (7.4) | ||
| 7.5 | 12 (27.3) | 3 (18.8) | 4 (28.6) | 5 (18.5) | ||
| 10 | 19 (43.2) | 5 (31.2) | 4 (28.6) | 10 (37.1) | ||
| 12.5 | 2 (4.5) | 0 (0.0) | 1 (7.1) | 1 (3.7) | ||
| 15 | 6 (13.5) | 4 (25.0) | 3 (21.5) | 5 (18.5) | ||
| 17.5 | 0 (0.0) | 0 (0.0) | 0 (0.0) | 1 (3.7) | ||
| 20 | 1 (2.3) | 0 (0.0) | 1 (7.1) | 2 (7.4) | ||
| Initial dosage, mg | 0.65 | 1 (2.3) | 0 (0.0) | 0 (0.0) | 0 (0.0) | NS |
| 2.5 | 3 (6.8) | 2 (12.5) | 0 (0.0) | 3 (11.1) | ||
| 5 | 1 (2.3) | 5 (31.2) | 1 (7.1) | 1 (3.7) | ||
| 7.5 | 22 (50.1) | 3 (18.8) | 2 (14.4) | 6 (22.3) | ||
| 10 | 10 (22.6) | 5 (31.2) | 3 (21.4) | 10 (37.0) | ||
| 12.5 | 0 (0.0) | 0 (0.0) | 0 (0.0) | 1 (3.7) | ||
| 15 | 5 (11.3) | (3/6) 1 | (9/42) 6 | 4 (14.8) | ||
| 20 | 1 (2.3) | 0 (0.0) | 1 (7.1) | 2 (7.4) | ||
| 22.5 | 1 (2.3) | 0 (0.0) | 1 (7.1) | 0 (0.0) |
aValues are expressed as No. (%).

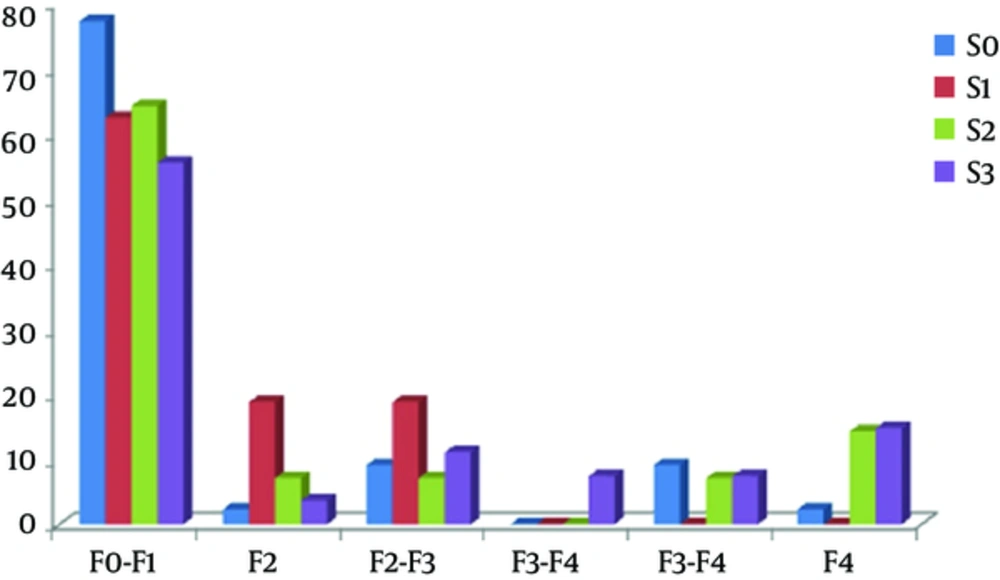

Figure 1.
Association Between Severity of Fibrosis and Steatosis Grading
The results of the biopsy in patients were graded based on the Roenigk scoring system, so 3 were graded as I, 1 was graded as II, and 3 were graded as III. Among those biopsied patients, steatosis was found in all patients with grade II or III, while only in one patient with grade I. Also, hepatic fibrosis was revealed in all patients with grade II or III, while it was not found in any of the patients with grade I (Table 5).
Table 5.Finding of Fibrosis and Steatosis in Biopsy and Scan According to the Roenigk Grading System
| Patient | Roenigk Grading | Steatosis in Biopsy | Steatosis in Scan | Fibrosis in Biopsy | Fibrosis Grade in Scan |
|---|---|---|---|---|---|
| 1 | Grade III | + | S3 | + | F2-F3 |
| 2 | Grade III | + | S0 | + | F3-F4 |
| 3 | Grade III | + | S1 | + | F2 |
| 4 | Grade II | + | S3 | + | F3-F4 |
| 5 | Grade I | + | S2 | - | F4 |
| 6 | Grade I | - | S0 | - | F2-F3 |
| 7 | Grade I | - | S0 | - | F2-F3 |
5. Discussion
In the present study and by applying FibroScan, the presence and severity of hepatic fibrosis were assessed in patients, who were treated with MTX, and no significant association was shown between the grade of steatosis and severity of hepatic fibrosis. For the first time and in a prospective study in 2006, the effectiveness of FibroScan as a noninvasive diagnostic method for assessing hepatic fibrosis was assessed in patients with hepatitis C or HIV infection (13). They showed that compared with other noninvasive methods, FibroScan had reliable and acceptable results (14-16). Following an initial assessment, a study in 2006 showed rare hepatic fibrotic involvement in patients with Crohn’s disease that were treated with high-dose MTX and it was finally concluded that Fibro Scan technique can be used for ruling out hepatic fibrosis in these patients (17). In this regard, it has been recommended that Fibro Scan should be used only in patients with positive Fibro Scan, especially in the presence of abnormal liver function test. As another finding, among baseline variables, only body weight and waist circumference were associated with hepatic fibrosis. In parallel with the current study, in a study by Laharie et al. (7) in 2006, it was shown that among patients with hepatic fibrosis, who were treated with methotrexate because of different inflammatory disorders, only 8.5% had severe hepatic fibrosis. Among baseline characteristics in their study, obesity and alcohol use affected the appearance of hepatic fibrosis, which was consistent with the current findings. It seems that among patients’ characteristics, the use of MTX in combination with obesity could increase the risk of hepatic fibrosis and steatosis. The researchers also showed no association between the presence of hepatic fibrosis and steatosis and other variables, including gender, age, age at diagnosis, as well as the type of disease that was similar to a recent study on patients with IBD treated with MTX. Also, the current study could not demonstrate the effect of drug cumulative dosages and also the duration of drug use on severity of hepatic fibrosis, which was similar to the study of Laharie et al. (7). This finding was also confirmed by other similar studies, however, contrary to the current study, Menter et al. (18) and Curtis et al. (19) showed a direct association between cumulative dose of MTX and severity of hepatotoxicity.
For determining the association between the level of hepatic fibrosis and abnormality of laboratory biomarkers, the authors also measured the serum biomarkers, simultaneously. According to the current findings, among all study biomarkers, abnormality in ALT, GGT, and serum albumin was related to fibrosis severity. In other similar studies, low serum albumin level was associated with fibrosis severity and thus it was recommended to use liver biopsy in patients that received MTX with serum albumin less than 3 mg/dL (20). In conclusion, it seems that the occurrence of liver fibrosis following the use of MTX could significantly alter liver functional indices, including liver enzymes. In a similar study on cancer patients, the use of MTX led to an increase in ALT in 14% and AST in 8% of patients, although by discontinuing drug use within 1 month, the level of liver enzymes could return to the normal range (21). In the present study, no association was revealed between the grade of steatosis and severity of hepatic fibrosis that was also previously indicated in some studies (22-26). Overall, it could be concluded that FibroScan is a useful technique for assessing hepatic fibrosis in patients, who receive MTX. According to the current observation, the severity of both hepatic fibrosis and steatosis could be influenced by obesity, yet may not be affected by other demographic characteristics as well as by the dose and duration of MTX use. In contrary to the initial expectation, the severity of hepatic fibrosis was not related to the grade of steatosis assessed by FibroScan. In this study, the duration of MTX use was < 2- > 5. As, continuing the drug for more than 5 years may cause more liver damage, it is recommended to study this group separately in the future.
Implication for health policy makers/practice/research/medical education:
Transient elastography in combination with liver function tests could be useful tools for assessment of MTX hepatotoxicity.
The MTX may cause more significant steatosis and fibrosis among the most obese patients (BMI > 30 and waist circumference > 120 cm).
MTX-induced fibrosis may be unrelated to steatosis.
The severity of MTX-induced hepatic fibrosis is not necessarily related to the duration of treatment and drug cumulative dose.
