Abstract
Background:
Quantitative shear wave elastography (SWE) has been developed and utilized to aid in the differentiation between benign and malignant breast lesions based on their stiffness.Objectives:
The purpose of this study was to evaluate the clinical effects of the additional use of SWE to conventional ultrasound (US) according to the maximum (Emax) and mean (Emean) elasticitiy values.Patients and Methods:
A total 115 patients with 133 lesions were assessed using conventional US and SWE. All patients underwent US-guided core needle biopsy or surgery, and the pathological results were used as reference standards. We compared the diagnostic values including sensitivities, specificities, positive predictive values (PPVs) and negative predictive values (NPVs) and accuracies of conventional US and SWE according to the Emax and Emean values. Next, we obtained the optimal Emax and Emean cutoff values for SWE. Using these cutoff values, we analyzed the clinical effects of the additional use of SWE to conventional US based on the corrected results.Results:
Of the 133 breast lesions, 32 were malignant and 101 were benign. In the differentiation of benign and malignant lesions, conventional US resulted in sensitivity of 100 %, specificity of 43.0 %, PPV of 57.1 %, NPV of 36.7 %, and accuracy of 100 %. Regarding SWE, the sensitivity, specificity, PPV, NPV, and accuracy values based on Emax were 84.4 %, 89.1 %, 71.1 %, 94.7 %, and 88.0 %, respectively, and the corresponding values based on Emean were 84.8 %, 93.0 %, 91.0 %, 80.0 %, and 94.9 %, respectively. The optimal Emax and Emean cutoff values were 81.3 and 60.7 kPa, respectively. However, there was no significant difference between Emax and Emean. The corrected results related to the additional use of SWE to conventional US indicated 97.0 % sensitivity, 93.0 % specificity, 82.1 % PPV, 98.9 % NPV, and 94.0 % accuracy (P < 0.0001).Conclusion:
The additional use of SWE to conventional US resulted in marked improvements in specificity, PPV, and accuracy and slight diminutions in sensitivity and NPV for the differentiation benign and malignant breast lesions. Both Emax and Emean were effective diagnostic parameters, and there was no significant difference between these two parameters.Keywords
1. Background
Elastography has developed rapidly and has been used to help differentiate between benign and malignant lesions based on their stiffness (1, 2). Malignant lesions of the breast tend to be stiffer than benign lesions, thus elastography imaging promises to be a highly specific method for distinguishing benign and malignant breast lesions and it also has the potential to reduce the number of benign breast biopsies performed (3-5). However, strain elastography with the color map has several limitations because the acquired information is operator dependent and non-quantitative (6, 7).
Shear wave elastography (SWE) has emerged as a promising technique for overcoming these limitations. SWE induces mechanical vibration of the tissue components using an acoustic radiation force that is generated by a focused ultrasound (US) beam. The displacement at the focus of the beam generates a shear wave that relays information associated with the local viscoelastic properties of the tissue and thereby facilitates a quantitative approach to determining elasticity values (8). An ultrafast US acquisition sequence is subsequently used to capture the propagation of the shear wave (9, 10). By setting the focus points at the regions of interest (ROIs), various quantitative elasticity values may be acquired.
Several studies have assessed SWE for the diagnosis of breast lesions and have demonstrated the potential of this technique as a diagnostic imaging modality that could provide more objective information (8, 9, 11). However, accurate clinical effects of the additional use of SWE to conventional US have not been fully reported.
2. Objectives
The purpose of this study was to assess the clinical effects of the additional use of SWE according to maximum elasticity (Emax) and mean elasticity (Emean) values which are the most commonly used (8, 12, 13).
3. Patients and Methods
3.1. Patient Selection and Data Collection
The present study was approved by the institutional review board of Hallym university Sacred Heart hospital (Anyang-si, Korea). All of the patients included in the present study provided written informed consent.
Breast US and US-guided biopsies were performed on 134 consecutive patients who were admitted to Hallym university Sacred Heart hospital between November 2014 and March 2015. Of these patients, 19 refused to undergo the SWE procedure; therefore, the final analysis was based on data acquired from 115 patients (mean age: 51.4 years; age range, 33 - 80 years) who exhibited 133 lesions as detected by US. Histopathology results were obtained for all patients based on US-guided core needle biopsy (14-gauge auto- or semi-automated gun, Stericut, TSK, Laboratory) or surgical excision samples. Histopathology results from the biopsies and surgeries served as the reference standards.
3.2. Image Acquisition, US and Elastography
Conventional US examinations were conducted using a 5 - 12 MHz linear transducer on an HDI 5000 sonography unit or an IU-22 (Phillips Healthcare, Andover, MA, USA) by two experienced radiologists with 4 - 6 years of experience in breast imaging.
The US features of each lesion were evaluated according to the fourth edition of the breast imaging reporting and data system (BI-RADS) prior to biopsy or surgery, and the lesions were graded as follows: category 0, assessment incomplete; category 1, negative; category 2, benign finding; category 3, probably benign; category 4A, low suspicion of malignancy; category 4B, intermediate suspicion of malignancy; category 4C, moderate suspicion of malignancy; category 5, highly suspicious of malignancy, appropriate action should be taken; and category 6, known biopsy-proven malignancy, treatment pending (14).
Following conventional US, SWE was performed on the targeted lesions by the same radiologists who performed the initial conventional US. The Aixplorer® system (Super Sonic Imagine, Aix en Provence, France) was used and the SWE images were obtained by applying a 15- to 4- MHz linear transducer lightly to the skin above the targeted lesion with a generous quantity of gel. The probe was kept still without compression for a few seconds to capture elastography images of adequate quality. The conventional US and SWE images were displayed in split-screen mode, and the SWE image was superimposed onto the corresponding B-mode grey-scale US image. The tissue elasticity of each pixel in the SWE image was acquired using a color-coded map that represented Young’s moduli (kPa), over a range (range, 0 - 180 kPa) from dark blue (soft) to red (stiff). The elasticity image was refreshed in real time.
The quantitative elasticity values were determined by locating lesions to the centers of an ROI box with default areas of 2.5 × 1.5 cm and maximal areas of 3.0 × 2.5 cm (8). The radiologists placed a 2 mm sized, round quantification ROI onto the previously generated color maps. The ROI was positioned on the stiffest portion of each lesion, including the immediately adjacent stiff tissue or halo (12). During this process, several values related to SWE evaluation were automatically calculated and displayed on a screen. Among the several values, Emax and Emean values of all analyzed lesions were recorded for subsequent analyses. Emax and Emean were automatically calculated by software and each lesion was assessed at least twice and the average value was recorded. The acquisition of the SWE images required approximately 2 - 3 min/case.
As an important factor influencing image quality of SWE (7, 15, 16), we recorded lesion depth (vertical diameter from the skin to the center of the breast mass) and distance from the nipple (measured from the nipple to the margin closest to the nipple) and divided them into three groups as superficial, mid, and deep. And we compared the difference of Emax and Emean according to lesion depth.
3.3. Statistical Analysis
The McNemar test was used to calculate the sensitivities, specificities, positive predictive values (PPVs), negative predictive values (NPVs), and accuracies of conventional US and SWE based on the applications of Emax and Emean values for subsequent comparison of the diagnostic accuracies. The optimal Emax and Emean cutoff values that yielded the maximal sums of the sensitivities and specificities were calculated. Additionally, the area under the receiver operating characteristic (ROC) curve (Az value) was calculated using each cutoff value to evaluate the diagnostic performances of Emax and Emean values. Statistically significant differences between Az values are reported with 95% confidence intervals. Following the individual ROC analysis of each examination, the optimal cutoff values determined in the present study were used to analyze and compare the diagnostic performances of conventional US in addition to SWE and conventional US alone. The two sample t-test was used to compare the difference of average Emax and Emean according to lesion depth in SWE. The Stata software (release version 9.0; Stata corporation, college station, TX, USA) was used for all statistical analyses. The values of P < 0.05 were considered to indicate a statistically significant difference. Intra-observer variability was calculated using Kappa statistics. Agreement was defined based on the Fleiss classification as follows: 0.40, poor; 0.40 - 0.59, moderate; 0.60 - 0.75, good; and 0.75, excellent (17, 18).
4. Results
Of the 133 lesions identified in the 115 patients who were evaluated in the present study, 32 lesions were classified as malignant and 101 were diagnosed as benign. The mean size of the 133 lesions was 14.2 mm with a range of 4 to 28 mm. The subtypes of the malignant and benign lesions are listed in Figure 1.

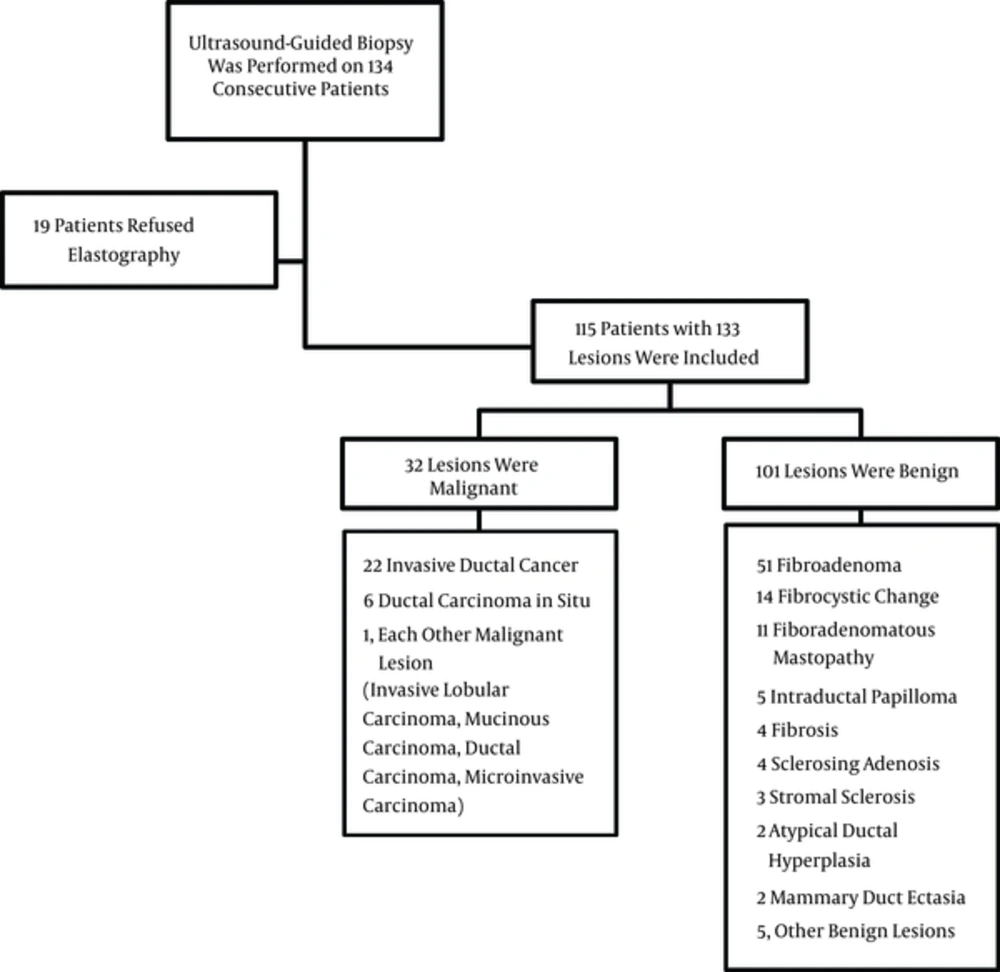

Flowchart of participants and the number of benign and malignant lesions and their subtypes
On conventional US, the sensitivity, specificity, PPV, NPV, and accuracy were 100.0%, 43.0%, 57.1%, 36.7% and 100%, respectively. On SWE, using either Emax or Emean, there were substantial differences compared with conventional US. The sensitivity, specificity, PPV, NPV, and accuracy were 84.4%, 89.1%, 71.1%, 94.7%, and 88.0%, respectively, based on Emax and the corresponding values on Emean were 84.8%, 93.0%, 91.0%, 80.0%, and 94.9%, respectively (Table 1). Using either Emax or Emean, SWE exhibited lower sensitivity but higher specificity, accuracy and PPV relative to conventional US (P < 0.0001).
Statistical Analysis of Conventional US and SWE
| Imaging Modality | Performance Measure | P Value | ||||
|---|---|---|---|---|---|---|
| Sensitivity, % (95% CI) | Specificity, % (95% CI) | PPV, % (95% CI) | NPV, % (95% CI) | Accuracy, % (95% CI) | ||
| Conventional US | 100 (1.0000 - 1.0000) | 43.0 (0.3330 - 0.5270) | 57.1 (0.4873 - 0.6555) | 36.7 (0.2671 - 0.4662) | 100.0 (1.0000 - 1.0000) | < 0.0001 |
| SWE | ||||||
| Emax | 84.4 (0.7179 - 0.9696) | 89.1 (0.8303 - 0.9518) | 71.1 (0.5663 - 0.8547) | 94.7 (0.9025 - 0.9923) | 88.0 (0.8244 - 0.9350) | < 0.0001 |
| Emean | 84.8 (0.7262 - 0.9708) | 93.0 (0.8800 - 0.9800) | 91.0 (0.8611 - 0.9585) | 80.0 (0.6675 - 0.9325) | 94.9 (0.9054 - 0.9925) | < 0.0001 |
Optimal Emax and Emean cutoff values obtained during SWE, i.e., those that yielded the maximal sums of the sensitivities and specificities, were 81.3 (sensitivity, 84.8%; specificity, 89.1%) and 60.7 kPa (sensitivity, 84.4%; specificity, 93.0%), respectively. There was no significant difference between the use of optimal Emax and Emean cutoff values to differentiate between the benign and malignant lesions (P = 0.1797).

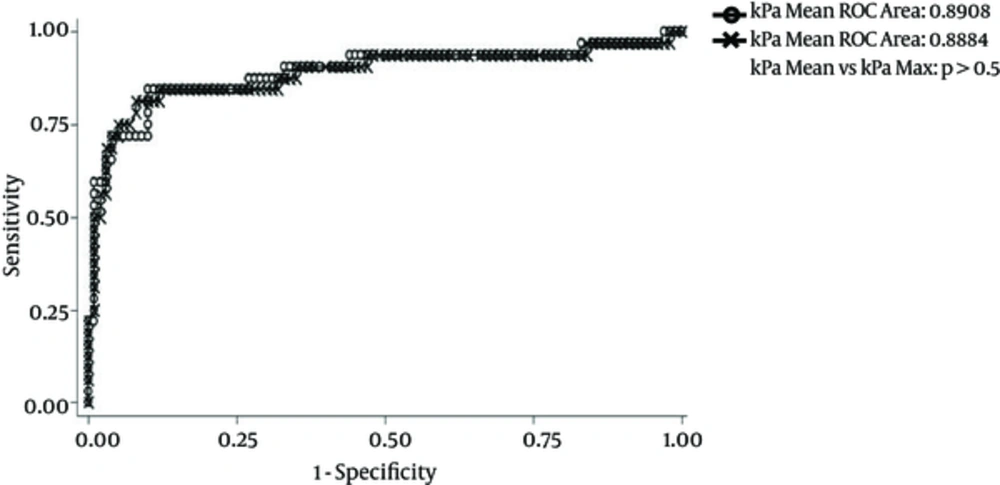

The ROC curves for Emax and Emean are displayed in Figure 2. Az values were 0.8884 (standard error, 0.0434; 95% confidence interval, 0.80293 - 0.97306) for Emax and 0.8908 (standard error, 0.0423; 95% confidence interval, 0.80805 - 0397382) for Emean. These results indicated that Emax and Emean elasticity values were equivalently beneficial for differentiating between benign and malignant lesions (P = 0.5028).
Receiver operating characteristic (ROC) curves for mean and maximum elasticity values. The area under the ROC curve is 0.8908 [standard error (SE), 0.0423; 95% confidence interval (CI), 0.80805 - 0.97382] for mean elasticity and 0.8884 (SE, 0.0434; 95% CI, 0.80293 - 0.97306) for max elasticity. These results indicated that the mean and maximum elasticity values were of equivalent benefit for differentiating benign and malignant lesions (P = 0.5028).
![Receiver operating characteristic (ROC) curves for mean and maximum elasticity values. The area under the ROC curve is 0.8908 [standard error (SE), 0.0423; 95% confidence interval (CI), 0.80805 - 0.97382] for mean elasticity and 0.8884 (SE, 0.0434; 95% CI, 0.80293 - 0.97306) for max elasticity. These results indicated that the mean and maximum elasticity values were of equivalent benefit for differentiating benign and malignant lesions (P = 0.5028).](http://services.brieflands.com/cdn/serve/313e9/673cdc60e35c581a014869eee580823723bcc9ea/iranjradiol-14-1-13486-i002-preview.png "Receiver operating characteristic (ROC) curves for mean and maximum elasticity values. The area under the ROC curve is 0.8908 [standard error (SE), 0.0423; 95% confidence interval (CI), 0.80805 - 0.97382] for mean elasticity and 0.8884 (SE, 0.0434; 95% CI, 0.80293 - 0.97306) for max elasticity. These results indicated that the mean and maximum elasticity values were of equivalent benefit for differentiating benign and malignant lesions (P = 0.5028).")
The diagnostic performances related to the additional use of SWE to conventional US compared to that of conventional US alone were investigated using the optimal cutoff values determined in the present study. Table 2 provides the corrected results when Emax and Emean cutoff values were applied to lesions categorized as 3 or 4A. Correcting the data resulted in significant improvements in the specificity, accuracy and PPV (P < 0.0001) and slight diminutions of the sensitivity and NPV.
Statistical Analysis of Conventional US and Additional Use of SWE with Conventional US Using the Optical Cutoff Values
| Imaging Modality | Performance Measure | P Value | ||||
|---|---|---|---|---|---|---|
| Sensitivity, % (95% CI) | Specificity (%) (95% CI) | PPV, % (95% CI) | NPV, % (95% CI) | Accuracy, % (95% CI) | ||
| Conventional US | 100 (1.0000 - 1.0000) | 43.6 (0.3330 - 0.5270) | 52.1 (0.4873 - 0.6555) | 36.0 (0.2671 - 0.4662) | 100 (1.0000 - 1.0000) | < 0.0001 |
| SWE + Conventional US | 97.0 (0.8798 - 0.9994) | 93.0 (0.8395 - 0.9876) | 82.1 (0.7251 - 0.8994) | 98.9 (0.9119 - 0.9968) | 94.0 (0.8353 - 0.9844) | |
Of 32 malignant lesions, eight were superficial, 18 were mid and six were deep location and of 101 benign lesions, 25 were superficial, 62 were mid and 14 were deep location. Mean of Emax showed statistically significant difference between malignant and benign lesions only in deep located lesions (P = 0.019). The intraobserver agreements of two radiologists were excellent with regard to elastography (K = 0.8689).
5. Discussion
Several reports have demonstrated the diagnostic accuracy of SWE (2, 8, 12, 19, 20). However, radiologists usually use this technique in addition to conventional US. Thus, we investigated the corrected results of the additional use of SWE to conventional US compared with those of conventional US alone. Moreover, we analyzed the differences between Emax and Emean, which are the most commonly used parameters.
The current study revealed that the additional use of SWE to conventional US was clinically useful and markedly improved the specificity, PPV and accuracy. However, this approach also resulted in slight diminutions of sensitivity and NPV.
Sensitivity and NPV of conventional US in this study were both 100%. A large number of studies have demonstrated that breast US is already highly sensitive (21-24). However, the specificity of US is relatively low, and a high rate of benign biopsies based on US has also been reported (20, 25-27). In the present study, the additional use of SWE to conventional US reduced the rate of benign lesion biopsy by 46.0% to 85.7%. This result is similar to those others have reported (8, 28, 29). In BI-RADS category 3 cases, biopsies are frequently performed at the request of the clinician or patient. Additionally, certain category 3 or 4A breast lesions exhibit overlapping benign and malignant features that may induce false-negative results. Histopathology indicated that 100% of category 3 lesions and 97% of category 4A lesions were benign. This high negative biopsy rate indicated that the decision to perform a biopsy is most often required for category 3 and 4A breast lesions. It has been hypothesized that use of Emax and Emean cutoff values to reassess lesions that are incorrectly assessed as category 3 or 4A based on conventional US would reduce the numbers of false-negative and false-positive cases. In the present study, application of Emax and Emean cutoff values to category 3 and 4A lesions resulted in improvements in specificity and accuracy (Table 1). Therefore, the current results indicate that the use of quantitative SWE with cutoff values, in combination with conventional US, may facilitate the differentiation of breast lesions, particularly those categorized as 3 or 4A based on conventional US alone. Both Emax and Emean values were effective diagnostic parameters.
Regarding the assessment of elasticity, SWE provides several parameters. Maximum (Emax), mean (Emean) and minimum (Emin) stiffness represent the general stiffness of the mass. Moreover, elasticity ratio (Eratio) indicates the relative stiffness of the mass to that of fat tissue and standard deviation (SD) indicates the internal heterogeneity of the mass. All of these parameters can help to improve the diagnostic accuracy of US. However, results regarding the identities of the most useful parameters vary across individual studies. Evans et al. reported that Emean is more useful than Emax and SD (13). Berg et al. reported optimal diagnostic performance with Emax (12) and some studies have reported that SD alone exhibits excellent performance (11). In SWE, the parameters are obtained from a fixed ROI, which is generally the stiffest area, and SD does not reflect the heterogeneity of the entire lesion (19). Therefore, based on the combination of these studies, we focused on Emax and Emean.
The present study determined an optimal Emean cutoff value of 60.7 kPa. This value was lower than that reported by Chang et al. (8) (80.17 kPa) but similar to the values reported in other studies (9, 13). Similarly, the optimal cutoff value for Emax determined in the present study (81.3 kPa) was consistent with the findings of previous studies (9, 12).

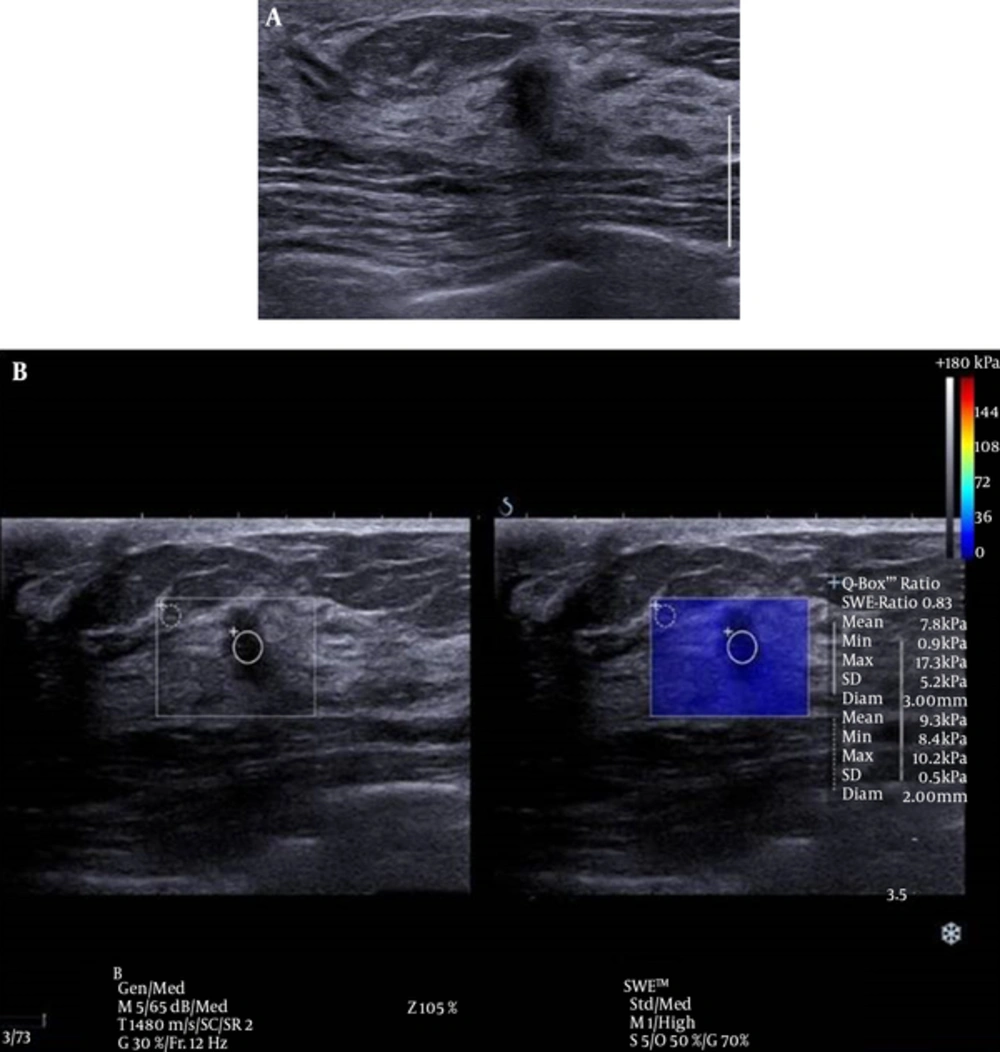

There was one false negative case in this study (Figure 3). This case involved a 5 mm sized invasive ductal carcinoma (IDC). Although it has been reported that the size of a breast mass does not influence the diagnostic performance of elastography (30), smaller malignant masses tend to be early stage breast cancers that are composed of softer tissues than larger invasive masses, and this pattern may lead to false negative SWE resulted based on Emax (15). Additional studies of the application of elastography to small sized, early stage breast cancer on elastography are anticipated in the future.
Conventional ultrasound (US) and shear wave elastography (SWE) of the breast of a 46-year-old female patient. A, conventional US imaging determined a true-positive result. An irregular, taller-than-wide orientated, hypoechoic lesion was identified and classified as category 4C on ultrasound, according to the breast imaging reporting and data system. B, SWE determined a false-negative result. The lesion exhibited a mean elasticity of 7.8 kPa and a maximum of 17.3 kPa. This lesion was diagnosed as invasive ductal carcinoma.
The present study showed statistical difference of average Emax only in deep location. Several investigators indicated that the elasticity of deep located lesions could be affected by the chest wall (15, 16). However, Emean showed no statistical significant difference according to lesion depth. This is probably due to the small sized study group in deep location. Further evaluation might be necessary with a large study group about lesion depth.
There are several limitations to the present study. Notably, this study was a small, single-center study with a relatively low number of observers and patients with cancer. Therefore, a larger sample of patients with cancer is required to adequately assess the use of SWE for the diagnoses of soft tumors. Additionally, the present study was performed by radiologists who had only recently been introduced to the center and were thus, relatively inexperienced. This issue may have influenced the performance of the diagnostic imaging techniques. Therefore, with increased experience in elastography, an improved understanding of its value in the assessment of breast lesions may be obtained.
In conclusion, application of SWE appears to increase the diagnostic accuracy of conventional US in the diagnosis of breast lesions. Furthermore, for category 3 or 4A lesions as assessed based on conventional US, use of SWE may reduce the rate of benign biopsies. Additionally, both Emax and Emean values were effective diagnostic parameters and there was no significant difference between these two parameters.
