Added Value of Diffusion-Weighted MR Imaging to Non-Enhanced CT in the Evaluation of Acute Appendicitis

1. Background

Acute abdominal pain is a common presentation in patients who are admitted to an emergency department. Differential diagnosis of acute abdominal pain ranges from mild to life-threatening conditions. The most common causes are acute appendicitis (AA), diverticulitis, cholecystitis and bowel obstruction. Less common causes include perforated viscus and bowel ischemia.

AA is a common surgical emergency, with an estimated lifetime risk of 7% - 8%. Diagnostic imaging is generally performed following a detailed patient history, physical examination and laboratory tests (1). An accurate and quick diagnosis is essential for appropriate management in emergency department settings. Imaging can change the preliminary diagnosis and decision making about management, or it can increase the level of diagnostic certainty (2, 3). Ultrasonography (US) and computed tomography (CT) are the imaging modalities typically used for the primary evaluation of these patients, and CT is used more often than US (4-8). Among these two modalities, CT has been reported to be more sensitive than US, not only for primary diagnosis but also for identifying potential complications (9, 10). Despite these advantages, CT use is limited in the pediatric age group and pregnant patients for whom US is more often employed (11, 12). In most patients, the CT features of AA include enlargement of the appendix, wall thickening with enhancement, periappendiceal fat stranding, the presence of an appendicolith and in some cases, focal thickening of the terminal ileum or cecum. On CT, traditionally a cut-off value > 6 mm for the outer diameter of the appendix has been used for the diagnosis of AA. However, several studies have demonstrated that 6 mm is too low of a cut-off value on cross-sectional imaging, and they have suggested an 8 - 9 mm cut-off value (13). A pericecal phlegmon or abscess strongly suggests perforated appendicitis. However, these findings are nonspecific, and they can also be seen with other disease processes involving the cecum and terminal ileum (14). Many clinicians, as in the case of our emergency department practice, avoid contrast-enhanced CT (CECT) due to concerns about contrast media-associated nephrotoxicity or allergic reactions. Although non-enhanced CT (NECT) can be applied for acute abdominal pain in obligatory conditions, such as impaired renal function, it is not as effective as CECT. In some of these cases, repeated examination with contrast administration might be required, which results in an increased radiation dose and a delay in diagnosis.

Several studies have reported the benefits of using magnetic resonance imaging (MRI) techniques that are particularly applicable in an emergency department setting (15, 16). Diffusion-weighted magnetic resonance imaging (DWI) of the abdomen and pelvis has been increasingly used since the 1990s with the introduction of stronger diffusion gradients, faster imaging sequences and improvements in MRI hardware. DWI can be performed in a very short time without the use of intravenous (IV) contrast media, allowing for fast, qualitative assessment (17-20) Many previous studies have reported on the use of rapid MRI techniques that are particularly applicable for emergency department settings (15, 16, 21-24). DWI is an active field of research for this purpose. It provides information related to the cellularity of tissues. Many articles have been published on the contribution of DWI in evaluating the inflammatory and neoplastic diseases of the abdomen (25, 26). Recent studies have also proven the effectiveness of DWI in acute abdominal situations (15, 16, 21-24, 27). DWI is reported to have a sensitivity of 99% and specificity of 97% in the diagnosis of AA in adults (27).

2. Objectives

In the present study, the primary reason for adding DWI was the high number NECT scans performed for acute abdominal pain in emergency situations by emergency department physicians. Because CECT is the gold standard imaging method for AA, when NECT is used, the demand for an additional contrast-enhanced scan (mostly CECT) sometimes seems inevitable. As far as we know, there are no published studies investigating the contribution of DWI to NECT in the diagnosis of AA in emergency department settings. Considering the fact that DWI is a fast and non-invasive technique that is efficient in the diagnosis of acute abdominal pathologies, we added it to the NECT protocol for suitable patients (those with no known contraindications for MRI). Thus, the goal of this prospective study was to assess whether DWI with its ability performing both qualitative and quantitative analysis, by combining to NECT, can improve the diagnostic efficacy to detect an acute infectious-inflammatory process in the appendix, without a demand of CECT, the gold standard imaging method.

3. Patients and Methods

3.1. Study Population

This prospective study was conducted between June 2014 and January 2017. DWI was used for patients with acute abdominopelvic pain who had to be scanned with NECT. An NECT scan was performed after an initial US examination was inconclusive. During the study period, a total of 362 patients that were scanned with NECT also underwent DWI within a few hours. Among those, we prospectively reviewed the results of a total of 122 consecutive patients (59 males, 63 females; mean age, 36.3 ± 13.9 years; age range, 18 - 76 years) based on symptoms and physical examination findings that suggested a clinical diagnosis of AA. Eight of the 122 patients had excessive motion artifacts, five had appendices that were not visible on DWI and 15 had other diagnoses (all with acute right adnexal pathologies confirmed by MRI causing right lower quadrant (RLQ) pain); thus, 28 patients were excluded from the study. Consequently, the study group consisted of 94 patients (48 males, 46 females; mean age, 38.1 ± 13.6 years; age range, 18 - 76 years). Surgery was the gold standard test for definitive diagnosis. Those who did not undergo surgery by the decision of our surgical team, were decided a three-month close follow-up. The patients were warned about the possibility of overlooking AA with imaging; they were called for a clinical visit at the end of each month. Pregnant women, children under the age of 16, clinically unstable patients, patients with poor cooperation and those with claustrophobia were excluded from the study. The study was approved by the institutional ethics committee and written consent was obtained from each patient before imaging.

3.2. Imaging Protocols

DWI was performed using a 1.5-T MRI unit (Magnetom Aera; Siemens AG, Erlangen, Germany) in supine position with an eight-channel phased-array coil. Axial diffusion-weighted single-shot echoplanar imaging (EPI) sequence with fat suppression without breath holding was performed. At the beginning of the examination, a three-plane gradient echo was used as the localizer sequence. The imaging parameters were repetition time (TR)/echo time (TE): 7500/80 ms; section thickness: 5 mm; intersection gap: 30%; matrix size: 192 × 192; number of excitations (NEX): 2; parallel imaging with reduction factor: 2; field of view (FOV): 400 × 400 mm; acquisition time: approximately 4 min and water excitations with b values of 0 s/mm², 500 s/mm² and 1000 s/mm². With the exception of DWI, no other MRI sequence was obtained for participants in the present study.

Computed tomography was performed with a 16-slice multidetector-row scanner (Toshiba Alexion™/Advance; Toshiba Medical Systems Corporation Nashu). The following CT protocol was used: 120 kVp, a tube current of 150 - 165 mAs, maximum 2.5 mm collimation, a slice thickness of 3 mm and a 0.5 s rotation time. Neither an IV contrast agent nor an oral contrast agent was used. The decision about the patients’ imaging management at presentation (use of NECT or CECT) was made by the emergency department physicians.

3.3. Image Analysis

All the CT and DWI images were evaluated at a dedicated workstation (Syngo.via; Siemens AG, Erlangen, Germany). One radiologist reviewed the NECT-only group. A second radiologist, who was blinded to the NECT results, evaluated the DWI-only group. Both radiologists assessed the NECT and DWI images to reach consensus regarding final diagnosis. The radiologists had at least five years of experience assessing body CT, MRI and emergency radiology. The radiologists were aware of the clinical and laboratory findings as well as the initial imaging methods (e.g. plain radiography and US).

On the NECT images, AA was considered when the appendiceal diameter exceeded 8 mm and at least one of the following was present: abnormal periappendiceal fat stranding, fluid or abscess.

On the DWI sequences, the appendices were assessed visually and quantitatively as follows:

a. Visual analysis

Visual analysis of the signal intensity was performed on b 1000 images. AA was considered when the appendiceal diameter exceeded 8 mm, and a strong hyperintense signal on DWI and concomitant hypointensity on the apparent diffusion coefficient (ADC) map were observed with or without the following: periappendiceal fat stranding, surrounding fluid or abscess. The signal intensity was evaluated in comparison to the cecum or neighbouring ileum as follows: hyperintense, hypointense or isointense. A strong hyperintense signal was accepted as abnormal. As in the b 1000 images, visual assessment was also performed on the ADC maps in comparison to the cecum or neighboring ileum as follows: hyperintense, hypointense or isointense. A hypointense signal was interpreted as abnormal.

b. Quantitative Analysis

The ADC values were measured using 3 b factors (0 s/mm², 500 s/mm² and 1000 s/mm²). For quantitative analysis of the ADC map, the region of interest (ROI) was placed in the most hypointense part covering the wall and lumen. ROI was inserted three times for each patient, and the mean of these was used as the ADC value. For all patients, the DWI datasets were evaluated at an independent workstation (Syngo.via, Siemens) for post-processing and ADC map analysis.

Finally, both reviewers reassessed the NECT images taking the features on the DWI into account, and consensus on the diagnosis was reached. With the combined NECT-DWI imaging protocol, AA was considered when the appendiceal diameter on either modality exceeded 8 mm with a concomitant strong hyperintense signal on the DWI plus hypointensity on the ADC map with at least one of the following: periappendiceal fat stranding, surrounding fluid or abscess on either modality.

3.4. Statistical Analysis

All the data were analyzed using Statistical Package for the social sciences software (SPSS 13.0 Statistical Software, SPSS Inc., Chicago, IL, USA). The median age and age ranges, the NECT versus DWI appendix diameters and the ADC values of the study and control groups were calculated. The Kolmogorov-Smirnov test was used to determine the deviation from normal distribution. The parametric Student’s t-test was used to compare the ADC values of the patients in the study and control groups. Furthermore, the Wilcoxon test was used to assess the differences between the diameter of the appendices on NECT and DWI. Sensitivity, specificity, positive predictive value (PPV), negative predictive value (NPV), with their 95% CI, and the accuracy of NECT and DWI and the combined imaging (NECT-DWI) were calculated. The McNemar test was used to compare the diagnostic performance of NECT and the combined NECT-DWI protocol. A P value of less than 0.05 was considered to indicate a statistically significant difference.

4. Results

The demographic features of the study patients are shown in Table 1. NECT scanning was used for the following reason: 19 patients (5.5%) had renal failure, 35 patients (10.2%) had previous allergic reactions to contrast agents, 75 patients (21.9%) did not give consent for the use of contrast agent and the remaining 213 patients (62.2%) were imaged with NECT based on the decision of emergency department physicians without any contraindication to contrast agent.

The mean and appendiceal diameter ranges for NECT and DWI were 9.1 ± 1.6 (range: 5.8 - 13) and 9.1 ± 1.6 (range: 5.9 - 12.8), respectively. No significant difference in the appendiceal diameter was observed in the NECT and DWI images (P = 0.67).

Visual analysis of DWI (n = 94) revealed a hyperintense signal on b 1000 images with varying degrees of hypointensity on the ADC map in 70 patients (74.4%) and an izo-hypointense signal on b 1000 images with varying degrees of hyperintensity on the ADC map in 24 patients (25.5%). In 71 surgically-proven appendicitis patients, four (5.6%) had either a hypointense or an isointense signal on b 1000 images with concomitant hyperintensity on the ADC map, reported negative for AA; 67 (94.3%) patients with AA had a strong hyperintense signal with hypointensity on the ADC map when reviewed with DWI only (Figure 1). However, three patients with a hyperintense signal on b 1000 images with concomitant hypointensity on the ADC map were found to be normal (one surgically-proven and two according to combined NECT-DWI imaging with clinical and laboratory results and follow-up data), as shown in Figure 2.

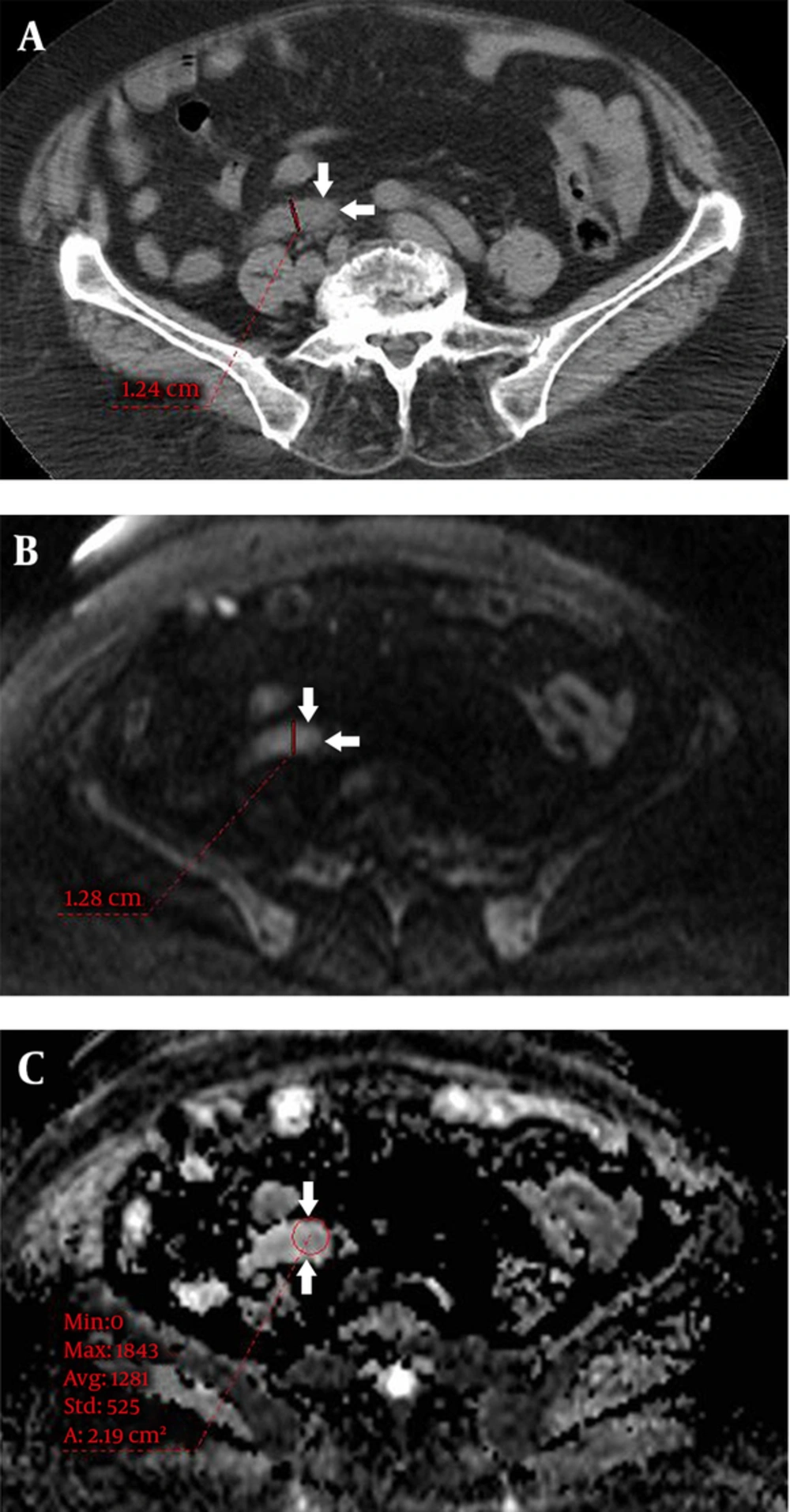

A 34-year-old man with acute right lower quadrant pain for a day had acute appendicitis at surgery. A, Non-enhanced computed tomography (NECT) shows enlargement of the appendix with some stranding of surrounding fatty tissue (arrows). B, Diffusion weighted imaging (DWI) clearly depicts an enlarged hyperintense tubular structure (arrows) and C, Apparent diffusion coefficient (ADC) map shows diffusion restriction (arrows).

Figure 1.

A 34-year-old man with acute right lower quadrant pain for a day had acute appendicitis at surgery. A, Non-enhanced computed tomography (NECT) shows enlargement of the appendix with some stranding of surrounding fatty tissue (arrows). B, Diffusion weighted imaging (DWI) clearly depicts an enlarged hyperintense tubular structure (arrows) and C, Apparent diffusion coefficient (ADC) map shows diffusion restriction (arrows).

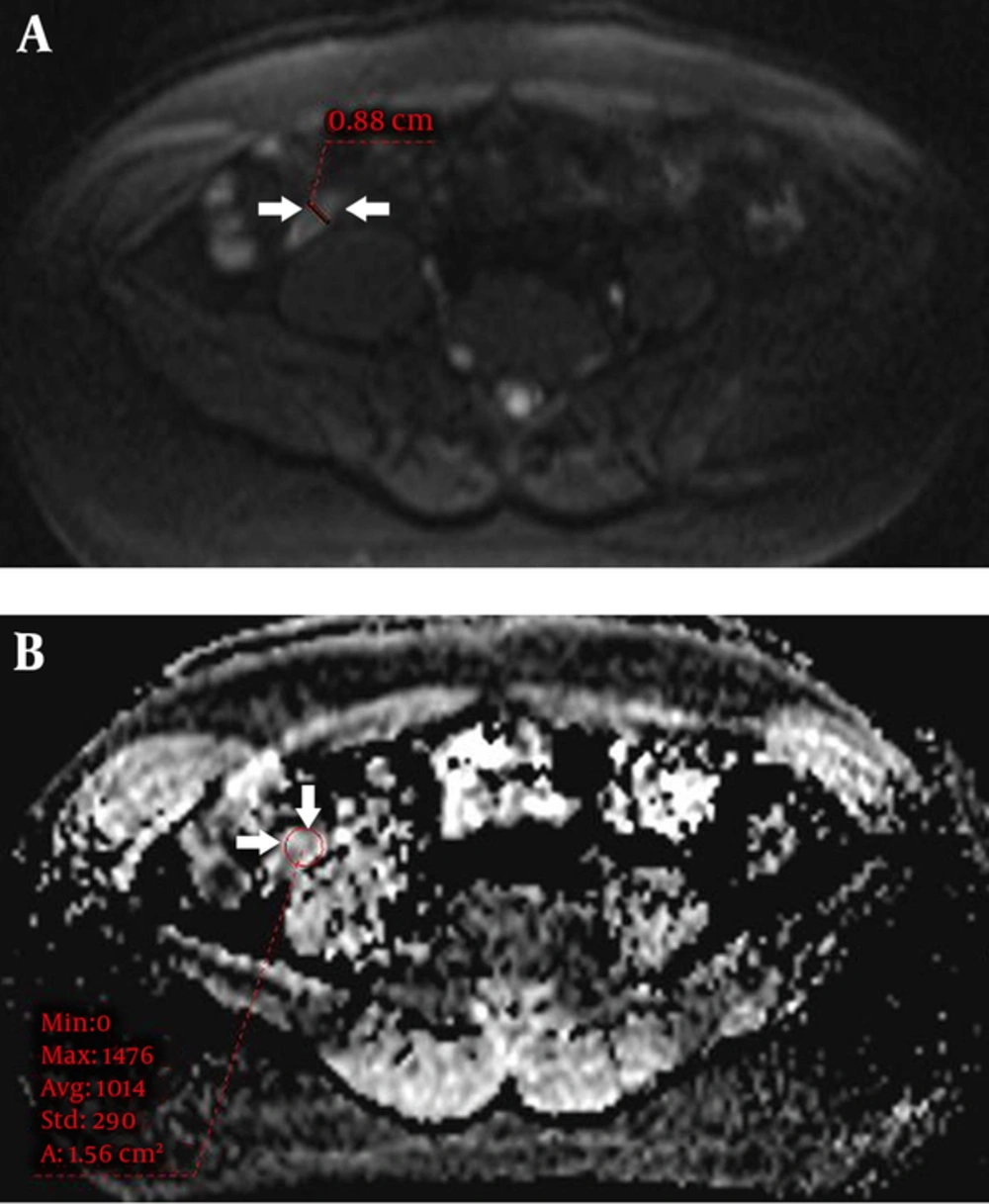

A 18-year-old man with right lower quadrant pain for the last two days. Following surgery, microscopy revealed lymphoid hyperplasia without findings of acute appendicitis. Non-enhanced computed tomography (NECT) (not shown here) shows only slight enlargement of the appendix with fine periappendiceal fatty tissue. Combined imaging report was positive for acute appendicitis. A, Diffusion weighted imaging (DWI) shows enlargement of the appendix with hyperintense signal (arrows) and B, Apparent diffusion coefficient (ADC) map shows restricted diffusion of the appendix (arrows).

Figure 2.

A 18-year-old man with right lower quadrant pain for the last two days. Following surgery, microscopy revealed lymphoid hyperplasia without findings of acute appendicitis. Non-enhanced computed tomography (NECT) (not shown here) shows only slight enlargement of the appendix with fine periappendiceal fatty tissue. Combined imaging report was positive for acute appendicitis. A, Diffusion weighted imaging (DWI) shows enlargement of the appendix with hyperintense signal (arrows) and B, Apparent diffusion coefficient (ADC) map shows restricted diffusion of the appendix (arrows).

A definitive diagnosis could be made in 74 patients (78.7%) with surgical confirmation and 71 (95.9%) were proven to have AA. Follow-up of the remaining 20 (21.2%) non-operated patients was uneventful, without a need of CECT or any surgical intervention. The ADC values of the 71 surgically-proven appendicitis patients (n = 71) and the 23 patients with normal appendices (n = 23, three surgically-proven and 20 with normal NECT and DWI results) were: 1.28 ± 0.31 (×10 ^{- 3} mm²/s), range: 0.46 - 1.74 (×10 ^{- 3} mm²/s); 1.93 ± 0.19 (×10 ^{- 3} mm²/s), range: 1.49 - 2.24 (×10 ^{- 3} mm²/s), respectively. The ADC values were found to be significantly lower in the surgically-proven patients with AA than those with normal appendices (P < 0.001).

The results and diagnostic performance of the imaging modalities are shown in Tables 2 and 3, respectively. The following values were obtained for the NECT-only and the DWI-only protocols: 91.5% - 94.3% sensitivity, 82.6% - 86.9% specificity and 89.3% - 92.5% accuracy, respectively. The values for the combined protocol (NECT-DWI) were: 98.5% sensitivity, 95.8% specificity, and 97.8% accuracy. The addition of DWI provided a 7%, 13.2% and 8.5% increase in the sensitivity, specificity and accuracy of NECT, respectively (Figure 3). This increase was statistically significant (P < 0.05).

A 37 -year-old female patient with right lower quadrant pain for the last two days. Surgery revealed acute appendicitis. A, Non-enhanced computed tomography (NECT) shows a slightly enlarged appendix (8.6 mm) with fine surrounding fatty tissue planes that was reported as normal by NECT only review (arrows). B, Diffusion weighted imaging (DWI) depicts a strong hyperintense signal of the enlarged appendix (arrows) with some periappendiceal fat blurring, and C, Apparent diffusion coefficient (ADC) map reveals diffusion restriction (arrows).

Figure 3.

A 37 -year-old female patient with right lower quadrant pain for the last two days. Surgery revealed acute appendicitis. A, Non-enhanced computed tomography (NECT) shows a slightly enlarged appendix (8.6 mm) with fine surrounding fatty tissue planes that was reported as normal by NECT only review (arrows). B, Diffusion weighted imaging (DWI) depicts a strong hyperintense signal of the enlarged appendix (arrows) with some periappendiceal fat blurring, and C, Apparent diffusion coefficient (ADC) map reveals diffusion restriction (arrows).

5. Discussion

CT is the most commonly used imaging modality for evaluating acute abdominal pain with a high sensitivity and specificity over 90%. The use of multidetector CT scanners has increased the accuracy rates in the diagnosis of specific disease processes, such as appendicitis and diverticulitis, with acute abdominal pain. In cases with acute abdominal pain, scanning of the entire abdomen using IV administration of an iodinated contrast agent is recommended. Although abdominal CT can be performed without a contrast agent, it is reported that CECT has better accuracy rates; for example, a positive predictive value of 95% has been reported for the diagnosis of AA (18). Today, with the development of fast imaging techniques, MRI has become an important imaging method for evaluating acute abdominal pain. DWI is an active field of research for this purpose.

In some clinical practices, NECT is frequently used to image acute abdominal pain despite the absence of any contraindication to contrast use. In our clinical practice, this is mainly due to the preferences of emergency department physicians, particularly when acute abdominal pain is observed after regular working hours when no, or a limited number of, radiologists and/or other radiology staff are on active duty.

Initial US as a diagnostic strategy in acute abdominal pain before examination with CT can reduce unnecessary CT scans and radiation exposure (8, 28, 29). In our study, all the patients underwent US examination before NECT or DWI. A CT scan was performed when the US findings were inconclusive.

Visual assessment of DWI revealed a hyperintense signal in 67 (94.3%) of 71 surgically-proven appendicitis patients. This result demonstrates that DWI may help differentiate the hyperintense tubular signal from the hypointense background. In addition to visual evaluation of DWI, simultaneous quantitative analysis using an ADC map may show diffusion restriction in the inflammatory-infectious process, as in the case of AA (30, 31). The results of the present study showed that the mean ADC values were significantly higher in the surgically-proven appendicitis patients than the normal patients (P < 0.001). With the advantage of previously-performed NECT, combined NECT-DWI imaging may significantly increase the diagnostic efficacy, as shown in our study.

In this present study, a review of NECT-only, DWI-only and combined NECT-DWI imaging for the diagnosis of AA had sensitivity, specificity and accuracy rates of 91.5%, 82.6% and 89.3%, 94.3%, 86.9% and 92.5% and 98.5%, 95.8% and 97.8%, respectively. Hence, the combination of DWI and NECT significantly increased the diagnostic efficacies of these protocols (P < 0.05).

The sensitivity and specificity of NECT for appendicitis is reported to be 90% - 95%, while it is closer to 99% with CECT (29). Our results are compatible with the findings reported in the literature. In the present study, the addition of DWI increased the diagnostic efficacy of NECT to the efficacy of CECT reported in the literature (29). In all the patients (n = 94), there was no need for a CECT scan for final diagnosis, based on the decision of both radiologists that reviewed the scans and the emergency department physicians. Only 74 patients (78.7%) were surgically confirmed (definitive diagnosis), while the diagnoses of 20 patients (21.2%) were not confirmed by a gold standard imaging method that is CECT in this case. However, in addition to the normal imaging findings, and without a CECT scan, physical examination and laboratory based findings and three-month follow-up data did not favor AA in these patients. It seems that DWI not only has the potential to improve the diagnostic performance of NECT so that it is similar to CECT, it may also help avoid the use of repeated CECT scans for final diagnosis.

At low b-values, DWI is more similar to a T2-weighted image. Hence, the absence of T2 images was not a problem in our study. We did encounter problems caused by low spatial resolution of the diffusion images, low signal-to-noise ratio (SNR) and artifacts related to motion (e.g. respiration, arterial beating and bowel movements). Since DWI does not require any contrast agent and the images can be obtained in a short amount of time with ultrafast sequences, we tried to minimize these problems with repeated scans. These ultrafast EPI sequences can collect data within 30 - 60 msec. Thus, most of the problems related to movement artifacts were eliminated. Problems with low spatial resolution of DWI restricted the appearance of anatomical details in most of the images, especially at high b-values (e.g. 1000 s/mm²) in which SNR decreases. Therefore, we used low b-value (e.g. 0 s/mm² or 500 s/mm²) images in which the DWI images resembled T2 images. This helped in the visualization of anatomical details. Furthermore, it is important to note that we used NECT images as basic images, which also helped us obtain anatomical details.

The present study has a number of limitations. First, it is a non-randomized study in which unstable patients and patients with poor cooperation were excluded. Moreover, we only reviewed the results of patients with a clinical suspicion of AA among patients with acute abdominopelvic pain who underwent NECT followed shortly by DWI. Second, since the final diagnosis was made only after two radiologists reached consensus (reviewing the NECT and DWI images), inter-observer variability was not evaluated. Third, even though DWI is helpful in evaluating acute abdominal pathologies, and when added to NECT without contrast administration it provides as much diagnostic accuracy as CECT, patients have to be imaged using two different imaging techniques. In the non-surgical patient group (n = 20), no definitive diagnostic test was used, unlike the surgical group in which a surgical confirmation of the final diagnosis was achieved. Instead, management of the patients in the non-surgical group relied on the combined NECT-DWI scanning, clinical and laboratory results and three months of close follow-up data. Furthermore, we did not perform quantitative analysis of the signal intensities at different b values, which might increase the diagnostic efficacy. Fourth, an extra DWI would not be cost-effective and MRI is not available at all institutions; it might be impractical to perform DWI in all causes of acute abdominal pain. Last, we did not include other MRI sequences that provide morphological information, which could have better identified the lesion borders, especially with the use of IV contrast. However, the inclusion of other MRI sequences would not address the aim of this study because we tried to implement the fastest MRI method without the use of IV contrast media in emergency department conditions. Further studies on the use of different imaging protocols, such as fast MRI sequences combined with DWI, are also required.

In conclusion, CECT is a well-known gold standard imaging modality used to evaluate AA. In some patients or physician-related conditions, non-enhanced imaging might be preferred. At that point, combining DWI with NECT might aid in the detection of the inflammation or infection, and it could increase the diagnostic accuracy to a level that is comparable to CECT. Consequently, it might be possible to reduce the number of additional CECT scans that could be necessary for an eventual diagnosis. Therefore, in clinical suspicion of AA, if NECT is used, we propose the addition of DWI. Furthermore, we also propose that DWI, as well as new, faster MRI sequences without the need of contrast agents, could be used to diagnosis acute abdominal pain, such as occurs in acute cerebrovascular disease, in emergency department settings. This study’s design is preliminary; further studies with larger patient groups with different b-values are needed to clearly document the effectiveness of DWI.
