1. Background
The last choice for the end-stage kidney disease patients is catheter hemodialysis. In these cases, when the patient needs an immediate hemodialysis, a double lumen catheter should be placed through internal or external jugular veins. Unfortunately, long-term catheterization can lead to venous thrombosis, obstruction, and infection (1). As a result of these difficulties following catheterization, the catheter should be replaced, which gradually causes difficult accessibility to an appropriate place (2). In these cases, there is no standard method to choose the second most proper vein for catheterization. The available options are the subclavian vein, femoral vein, hepatic vein, trans-lumbar inferior vena cava, and collateral neck and chest veins (3).
When the blood flow rate through the catheter is more than 300 ml/min, it has good functionality (4). Using this criterion, 87% of catheters lose their functionality at least once during their lives (5). Severe poor functionality that leads to catheter replacement occurs in 16% of catheters depending on the type of catheter (6).
Sometimes the physician has to try catheterization through several veins and stays close to the patient during the procedure which can take a lot of time in comparison to normal or other procedures. It is rational that more radiation doses are delivered to the radiologist during these complicated procedures. Previous dosimetric studies on radiation dose to physicians during interventional radiology had demonstrated that if radiologists do not use suitable radiation protective devices, their radiation dose could exceed the annual dose limit (7). There are also some reports of the occurrence of deterministic effects in interventionists (8-10).
According to the aforementioned issues, some radiologists may refuse to accept such patients for intervention. Among the community of radiologists, considering that this is the last choice for the patient to live, the dutiful ones agree to perform the procedure in order to give a chance to the patient for living.
2. Objectives
Consequently, the objective of this study was an assessment of the radiation dose to radiologists during the placement of double lumen catheter in challenging cases, in order to estimate their annual radiation dose. Accordingly, it could be proved whether these kinds of catheterization deliver an unacceptable dose to the interventionist. In case the radiation dose to the physician does not exceed the annual dose, their point of view may change, and they could admit more patients in this situation. Therefore, more patients have the chance to live longer, which is very valuable for patients and their family. In addition, some other information such as dose area product (DAP) (cGy.cm2), dose (mGy), time (minute) of irradiation was recorded to calculate the dose to patients as well. Finally, the radiation dose to physicians and patients could be compared.
3. Patients and Methods
3.1. Occupational Dose Measurement and Calculation
The thermoluminescent dosimeter (TLD-100), which is a routine dosimeter for dose measurement in clinic, was used to measure the delivered radiation dose to physicians. The TLD dosimeters were packed in a triplex. During the double lumen procedure in complicated cases, a triplex package was placed on the thyroid shield and another on the chest under the apron (Figure 1). Since the radiologists’ hands could had been exposed to primary radiation, the dose to the hands was measured by a ring dosimeter containing two TLDs. The TLD packs were worn by radiologists only for the challenging double lumen cases. The TLD dosimeters were used for a month by two radiologists who admitted these patients in the department of general angiography, Shiraz Nemazee hospital.

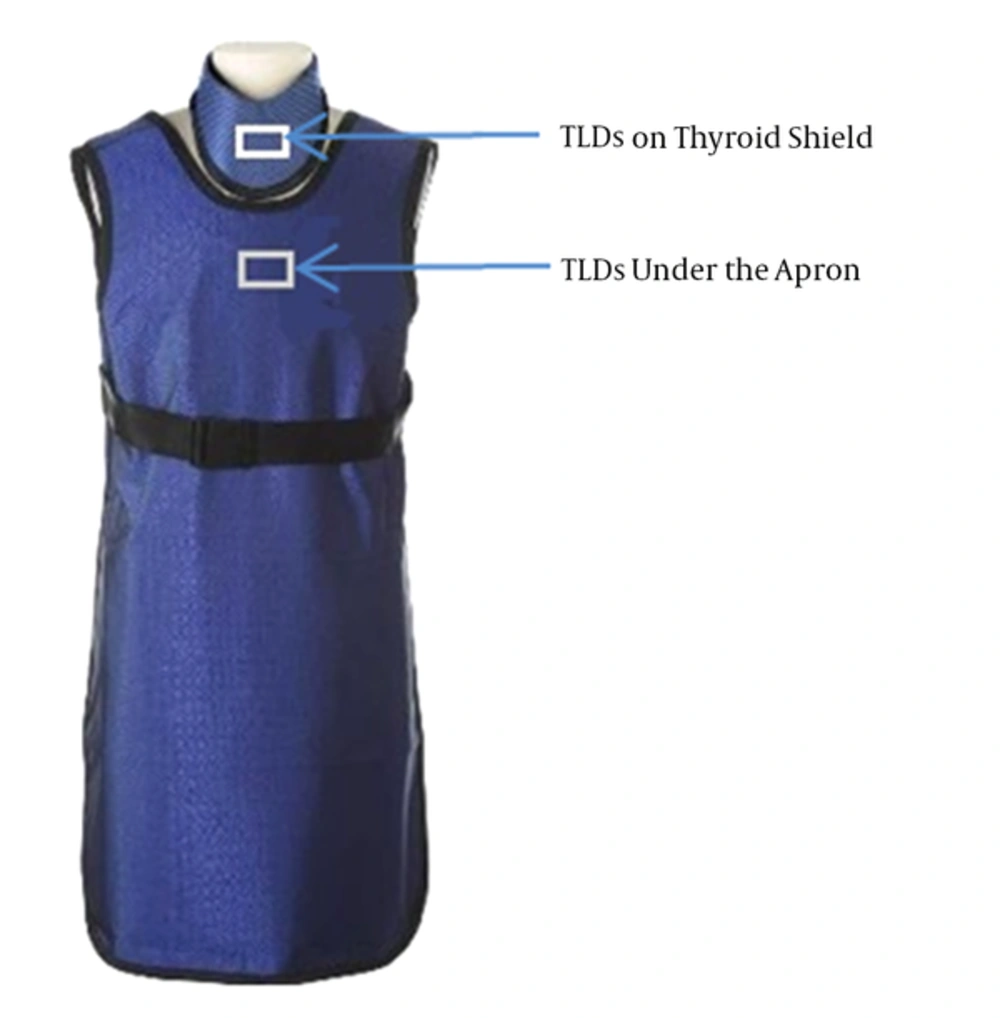

Figure 1.
Locations of thermoluminescent dosimeters (TLD) that were used during the procedure
The results of TLDs were corrected for operational quantity HP (0.07) and HP (10) (1). Using the Nilklason algorithm, the effective dose was calculated as below.
Equation 1.
H0 and HU are the results of TLDs (air kerma) on the thyroid shield and under the apron, respectively. Some studies declared that the effective doses which were estimated by this algorithm are more accurate and more agree with the international commission of radiation protection (ICRP 75). Moreover, this algorithm can provide a good estimation just by using two data points (under the apron and on the thyroid shield), while the others need more data points, which mean more TLDs, more cost, more time to prepare them and also more difficulties for the physicians who want to use the dosimeters (2-5).
3.2. Patient Dose Measurement and Calculation
During the procedures, patient information including age, height and weight and also parameters of the procedure including DAP, cumulative dose and irradiation time, which could be provided by the angiography machine (Siemens, Model No: 3800351), were recorded in order to provide a good estimation of patient dose during the procedure. According to a guideline for patient radiation dose management, the peak skin dose (PSD) could be calculated using DAP (6).
Equation 2.
4. Results
During a month, 14 patients who had previous experience of this procedure for two or more times were referred for double lumen catheter placement. The detail of patient information is demonstrated in Table 1.
Table 1.Characteristics of Patients Who Were Referred for Double Lumen Replacement
| Patient | Age | Height | Weight |
|---|---|---|---|
| 1 | 25 | 168 | 70 |
| 2 | 35 | 171 | 75 |
| 3 | 32 | 152 | 58 |
| 4 | 55 | 161 | 65 |
| 5 | 62 | 150 | 78 |
| 6 | 40 | 168 | 63 |
| 7 | 35 | 174 | 62 |
| 8 | 29 | 170 | 65 |
| 9 | 50 | 185 | 96 |
| 10 | 41 | 165 | 52 |
| 11 | 40 | 165 | 70 |
| 12 | 37 | 163 | 63 |
| 13 | 42 | 160 | 65 |
| 14 | 44 | 160 | 58 |
| Average | 40.5 | 165.14 | 67.14 |
| SD | 9.62 | 8.55 | 10.35 |
The procedure information, including DAP (cGy.cm2), dose (mGy), and irradiation time (minute) were recorded for each patient and the mean values were calculated. The PSD (mGy) was also estimated using Equation 2 (Table 2).
Table 2.Mean Value of DAP, Dose, Irradiation Time and PSD Compared to a Similar Study
| Procedure Information | Value | Storm et al. Study (7) |
|---|---|---|
| Mean (Min - Max) Geometric Mean | Mean (Min - Max) Geometric Mean | |
| Mean DAP, cGy.cm2 | 151.44 ( 10 - 556) 66.22 | 485 (32 - 10660) 512 |
| Mean Dose, mGy | 851.71 (182 - 1800.20) 851.71 | 43 (2 - 815) 44 |
| Mean Time, minute | 8.60 (1.32 - 30) 5 | 2.7 (0.3 - 24.6) 2.7 |
| Mean PSD, mGy | 384.97 (25.42 - 1413.25) 728.27 | 20 (2 - 489) 22 |
Abbreviations: DAP, dose area product; PSD, peak skin dose.
The mean effective dose provided by TLD readings and estimated using Nilklason algorithm, dose/procedure, and the annual dose to physicians resulted from this procedure were 30.38 μSv, 0.02 μSv/procedure, and 350.20 μSv/y, respectively. The mean cumulative dose of hands and its annual dose were also 1.34 mSv, and 16.08 mSv/y, respectively.
5. Discussion
Since there was a belief that during double lumen placement, radiation dose to physicians could be so high and hazardous, radiologists may refuse to admit these kind of patients. This belief comes from the fact that in most cases they should try different veins to find the best way for catheterization, and most of the veins have endoluminal chronic thrombosis. Therefore, this procedure may be time-consuming, and the physician should stay with the patients and near the x-ray tube during the procedure. Accordingly, effective doses to physicians were measured using TLD dosimeters and Nilklason algorithm. The radiation dose to patients was also assessed by recording the DAP and dose values provided by the x-ray machine. Finally, PSD was calculated using DAP value provided by the x-ray machine.
According to Table 1, most of the patients referred for hemodialysis catheter placement were middle-aged people of medium height and weight. The exposure time in this procedure can be so varied from a minute to half an hour. In our center, during the period of study, the mean exposure time was 8.6 minutes and the maximum exposure time was 30 minutes. Although the extreme time was only half an hour, it led to delivering a high DAP and dose to the patients. The mean DAP (151.44 cGy.cm2), dose (851.71 mGy), and calculated PSD (384.97 mGy) obtained in this study (Table 2) were comparable to the values of a study conducted by Storm et al. (7), in which the obtained maximum dose and PSD values were 815 mGy, and 489 mGy, respectively. The maximum values of dose and PSD were taken into account since our study was performed for cases who had difficult accessibility and needed more irradiation time. The mean and max DAP values that were recorded in this study were less than the study performed by Storm et al. It could be attributed to the lower tube loading and beam output, collimation as well as the focus to skin distance, that is so variable during the procedure (8).
For a single procedure, the peak skin dose to the patient in the worst situation is about 1.5 Gy, in which no observable effect happens. It should be noted that this procedure may be repeated for the patient so that the cumulative dose would be several times higher than the mean dose in some cases. The threshold radiation dose for skin deterministic effect is 2 Gy (9). Therefore, by just performing the test for the second time in sophisticated cases that need more time, it may result in skin erythema or even epilation. If the PSD reaches 15 Gy as a result of repetition, it should be reported to the radiation safety officer (RSO) and medical director (10). For more clarification, it could be said that the mean effective dose to the patients was 851.71 mSv, which is almost equal to 42 abdominal-pelvic computed tomographies (CT) with and without contrast (20 mSv) (11).
The mean effective dose to physicians per case is about 0.02 µSv/procedure (0.002 - 0.04 µSv/procedure) which is much less than the radiation dose per other procedures such as percutaneous nephrolithotomy (1.7 - 56 μSv), vertebroplasty (0.1 - 101 μSv), orthopedic extremity nailing (2.5 - 88 μSv), biliary tract procedure (2.0 - 46 μSv), transjugular intrahepatic portosystemic shunt creation (2.5 - 74 μSv), head/neck endovascular therapeutic procedures (1.8 - 53 μSv), and endoscopic retrograde cholangiopancreatography (0.2 - 49 μSv) (12).
The calculated effective dose to the physician was 30.38 µSv in one month for 14 cases, which is almost equal to 0.3 simple chest radiography (0.1 mSv/procedure) (11). The annual dose to radiologists was 350.20 μSv/y (0.35 mSv/y) which is much less than the occupational dose limit (20 mSv/y) (13).
According to dose guidance value provided by ICRP, the dose limit of hands and feet is 500 mSv, which means that radiation doses less than this value do not lead to deterministic radiation-induced effects (13). 500 mSv is much higher than the calculated annual radiation dose of hands (16.08 mSv) in this procedure. Therefore, because the delivered radiation dose to hands was less than the dose limit, it can be concluded that performing these challenging cases does not cause any damage to hands provided that the interventionist considers a rational radiation protection.
We live in a world that naturally we get 3 mSv/y from background radiation, in which 2 mSv/y of this radiation dose comes from radon gas that accumulates in our house, and we breathe it. Our natural radiation dose increases about 0.03 mSv during a long trip flight as a result of cosmic radiation (13). In this situation, 0.35 mSv/y which is approximately 10 times less than the background radiation dose, is not high enough to make physicians refuse to admit those patients who may die in a few days without dialysis. Performing this study may be more harmful in terms of radiation-induced side effects for the patients in comparison to the interventionist, but since it is the only life chance for these patients, it is completely justified to perform this procedure for the patient. Briefly, it can conclude that double lumen replacement does not deliver an unacceptable radiation dose to the physician and even the radiation dose resulted from these cases is much less than other procedures.
