Abstract
Background:
Diffusion-weighted imaging (DWI) is a form of magnetic resonance imaging (MRI) based on measuring the random Brownian motion of water molecules within the biological tissues and is particularly useful in tumor characterization.Objectives:
The purpose of this study was to evaluate the diagnostic value of DW MRI and the apparent diffusion coefficient (ADC) for preoperative grading of astrocytic supratentorial brain tumors.Patients and Methods:
Twenty-three patients (14 females, 9 males, mean age 43 years) with astrocytic supratentorial brain tumors underwent preoperative conventional MR imaging and DW MRI. The minimum, maximum and mean ADC values and the minimum, maximum and mean DWI signal intensities of each tumor were taken by placing several regions of interest in the tumor on DWI images and ADC maps. To assess the relationship between these values and the tumor grade, we used the Mann-Whitney U test and the Spearman correlation. Receiver operating characteristic (ROC) analysis was used to determine the cutoff value of the minimum, maximum and mean ADC values and the minimum, maximum and mean DWI signal intensities that had the best composition of sensitivity and specificity for differentiating low-grade and high-grade astrocytic brain tumors.Results:
According to the pathology reports, 10 patients had low-grade astrocytomas (grades I, II) and 13 patients had high-grade astrocytomas (grades III, IV). The minimum ADC value showed a significantly inverse correlation with astrocytic tumor grade (P = 0.006). The correlation between the maximum ADC value and the maximum DWI signal intensity with tumor grade was direct (P = 0.013, P = 0.035). According to the ROC analysis, the cutoff values of 0.843 × 10-3 mm2/s, 2.117 × 10-3 mm2/s and 165.2 for the minimum ADC, maximum ADC and maximum DWI respectively, obtained the best combination of sensitivity and specificity for distinguishing low-grade and high-grade astrocytomas.Conclusion:
Measuring minimum ADC, maximum ADC and maximum DWI signal intensity can provide valuable information for grading of astrocytic supratentorial brain tumors before surgery.Keywords
Diffusion Magnetic Resonance Imaging Diffusion Weighted MRI Cerebral Astrocytoma Neoplasm Grading Tumor Grading
1. Background
Astrocytic brain tumors are derived from a particular type of glial cells, which are star-shaped brain cells in the central nervous system, called astrocytes. Astrocytoma does not usually spread outside the brain and this type of tumor may occur in most parts of the brain. Astrocytomas are the most common primary brain tumors and accounting for approximately 50% of all brain tumors and also accounting for more than 70% of glial brain tumors. According to the WHO (world health organization) classification, based on the degree of malignancy, astrocytomas can be divided into four grades. Astrocytomas grade I and II are called “low-grade astrocytomas,” and astrocytomas grade III and IV are called “high-grade astrocytomas.” They can occur at any age. The low-grade astrocytomas are more common in children, while the high-grade astrocytomas are more common in adults. Despite advanced treatments, the diagnosis and prognosis of brain tumors, especially astrocytic brain tumors is still poor. For this reason, even today, brain tumors are a common cause of morbidity and mortality. Hence, early diagnosis and awareness of preoperative tumor grade is important in choosing the appropriate treatment strategy and in increasing the patient’s survival (1-5).
X-ray computed tomography (CT) and magnetic resonance imaging (MRI) are used for imaging of astrocytic brain tumors. Of these two methods, MRI has replaced CT as the modality of choice for evaluating these tumors. Nevertheless, only conventional magnetic resonance imaging techniques are not enough for awareness of the histopathologic grade of astrocytomas, because sometimes high-grade and low-grade astrocytic brain tumors have common features in conventional MR imaging (6). Recently, several techniques, in addition to conventional MR imaging, were examined for preoperative grading of brain tumors, such as diffusion-weighted magnetic resonance imaging (DWI) and apparent diffusion coefficient maps (7, 8). DWI is an MRI technique used to show the random Brownian motion of water molecules at the microscopic level within the biological tissues and the apparent diffusion coefficient (ADC) is a parameter that is calculated from the diffusion-weighted MR images (9-14). Also, recently, an inverse relationship was observed between the histopathologic grade of glial tumors and the minimum apparent diffusion coefficient (ADCmin) (1, 15).
2. Objectives
The purpose of this study was to obtain preoperative information about the grade of astrocytic supratentorial brain tumors with DWI and ADC maps with more detail and more accuracy than previous studies by measuring the minimum, maximum and mean ADC values and the minimum, maximum and mean DWI signal intensities.
3. Patients and Methods
3.1. Patients
Our prospective study included 23 patients (14 female, 9 male; mean age 43 years) with symptoms of brain tumors and in whom astrocytic supratentorial brain tumors were diagnosed after MR imaging and review by a neurosurgeon. All patients underwent conventional MR imaging techniques and diffusion-weighted MR imaging before treatment or surgery. In addition, all histopathologic diagnosis of tumor grade were determined on the basis of the WHO criteria. So that, among 23 patients, 10 patients had low-grade astrocytomas (I, II) and 13 patients had high-grade astrocytomas (III, IV). It should be noted that informed consent was obtained from all patients and all ethical considerations were considered in this study.
3.2. MR Imaging and Image Processing
All MR examinations were performed with a 1.5 T MR imaging system (Siemens medical systems, Avanto, Germany) with a standard eight-channel head coil. First, for determining the exact location of the lesion, conventional MR imaging protocols included fluid attenuated inversion recovery (FLAIR), T1 weighted spin-echo (T1W SE), T2 weighted fast spin-echo (T2W FSE) and post-contrast T1w SE images were taken. Then, the DWI protocol was performed by using a spin-echo echo-planar sequence with 0 and 1000 b-values and by applying the diffusion gradients encoding in three orthogonal directions (TR = 3700 ms/TE = 114 ms/number of signals acquired = 1/slice thickness = 5 mm/interslice gap = 0/matrix = 192 × 192/FOV = 240 × 240 mm). ADC maps were calculated as well. Next, the minimum, maximum and mean ADC values and the minimum, maximum and mean DWI signal intensities of each tumor were taken by placing several ROIs (Regions of Interest) in the tumor on DWI images and ADC maps (Figure 1). All continuous slices of ADC maps and DWI images that included astrocytic tumors were checked. The number of ROIs, according to the tumor size, was selected and their numbers were selected for covering the entire geographical area of tumor. In all patients, the area of each ROI was 33 mm2 and contained 21 pixels. On ADC maps and DWI images, among all regions of interest, ROIs with the lowest and highest values as the minimum and maximum amount of ADC values and the minimum and maximum amount of DWI signal intensities were chosen. Then, for obtaining the mean ADC values and the mean DWI signal intensities between the maximum and minimum values were averaged.

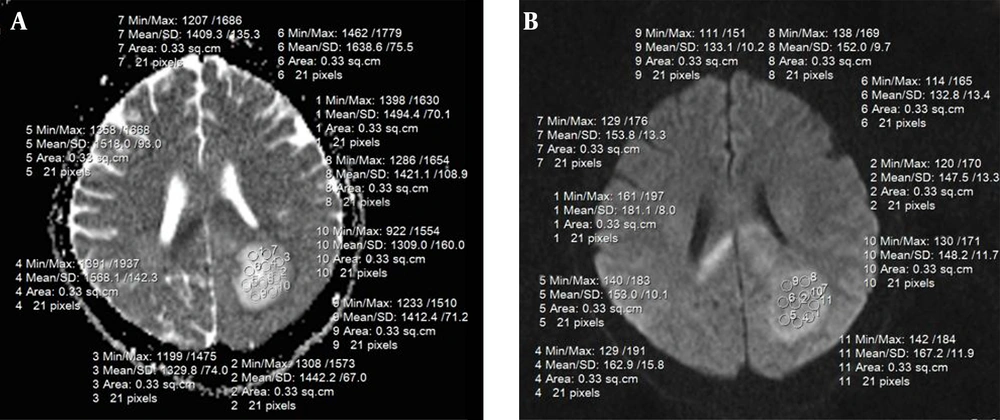

A 43-year-old woman with glioblastoma multiforme; A, ADC map; B, DWI image. ROIs drawn on the tumor, as well as, ADC values and DWI signal intensities obtained from each ROI can be seen in the image.
3.3. Statistical Analysis
To analyze the minimum, maximum and mean ADC values and the minimum, maximum and mean DWI signal intensities of various astrocytic brain tumors, we subdivided these tumors into two groups: low-grade astrocytomas (I, II) as group one and high-grade astrocytomas (III, IV) as group two.
To assess the relationship between these values and tumor grade, and also the relationship between the age of the patient and tumor grade, we used the Mann-Whitney U test and spearman correlation coefficient. ROC (receiver operating characteristic) analysis was used to define the cutoff value of the minimum, maximum and mean ADC values and the minimum, maximum and mean DWI signal intensities that had the best combination of sensitivity and specificity for distinguishing low-grade and high-grade astrocytic brain tumors.
4. Results
Among 23 patients who had histologically confirmed their astrocytomas, there were three patients with astrocytoma grade I, seven patients with astrocytoma grade II, five patients with astrocytoma grade III and eight patients with astrocytoma grade IV (Table 1).
Gender, Age and Tumor Grade of Patients
| Patient | Gender | Age, y | Grade |
|---|---|---|---|
| 1 | M | 8 | Grade I |
| 2 | F | 11 | Grade I |
| 3 | F | 9 | Grade I |
| 4 | M | 49 | Grade II |
| 5 | F | 45 | Grade II |
| 6 | M | 48 | Grade II |
| 7 | F | 33 | Grade II |
| 8 | M | 52 | Grade II |
| 9 | F | 29 | Grade II |
| 10 | F | 58 | Grade II |
| 11 | M | 51 | Grade III |
| 12 | F | 72 | Grade III |
| 13 | F | 20 | Grade III |
| 14 | M | 39 | Grade III |
| 15 | F | 39 | Grade III |
| 16 | F | 52 | Grade IV |
| 17 | F | 43 | Grade IV |
| 18 | M | 32 | Grade IV |
| 19 | M | 71 | Grade IV |
| 20 | F | 52 | Grade IV |
| 21 | M | 65 | Grade IV |
| 22 | F | 63 | Grade IV |
| 23 | F | 51 | Grade IV |
The relationship between the minimum ADC values and tumors grade were significantly reversed (P=0.006) and the correlation coefficient value between ADCmin and tumor grade was "-0.582" (Figure 2, Table 2). The maximum ADC values and maximum DWI signal intensities also were significantly direct correlation with grade of tumors (P = 0.013 and P = 0.035, respectively), and the correlation coefficient value between ADCmax and the tumor grade was 0.529. In addition, the correlation coefficient value between DWImax and the tumor grade was 0.450 (Figure 3, Table 2).

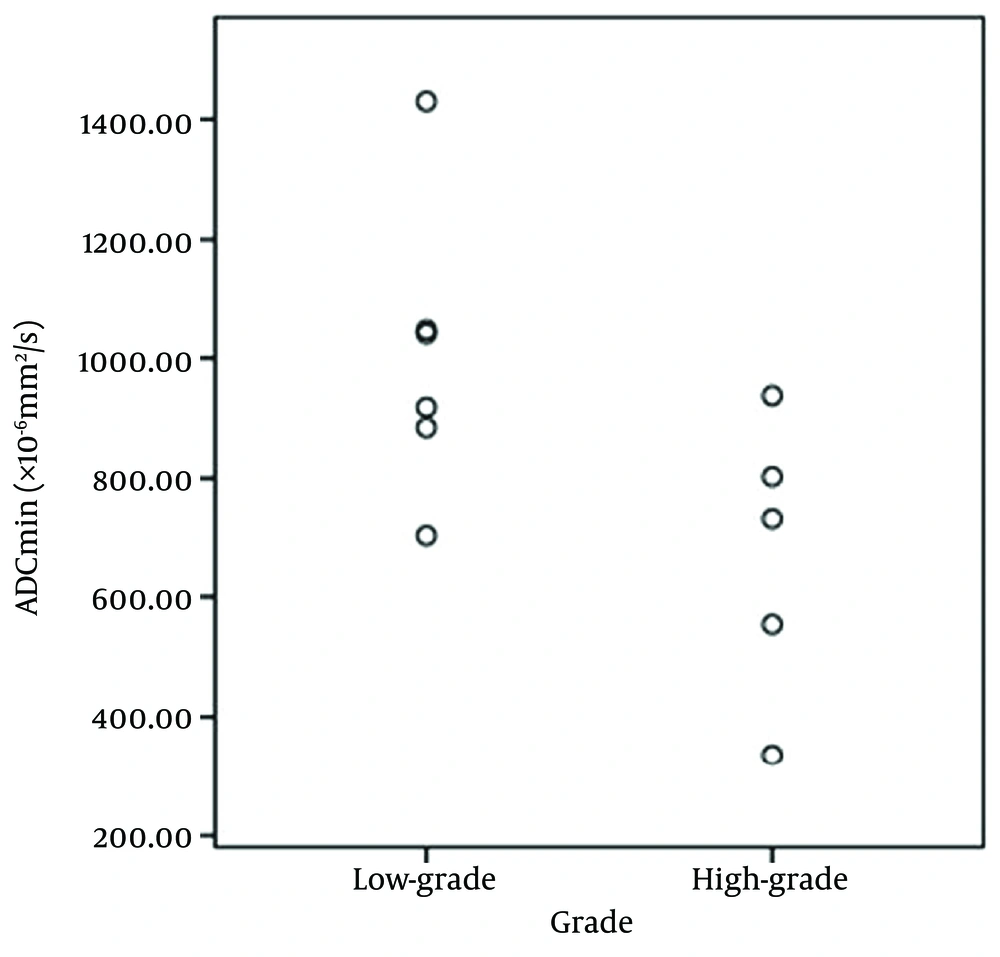

The correlation between ADCmin and grade of astrocytomas; minimum ADC values of high-grade astrocytomas are lower than ADC values of low-grade astrocytomas, however, some overlap is noticed between the two groups.

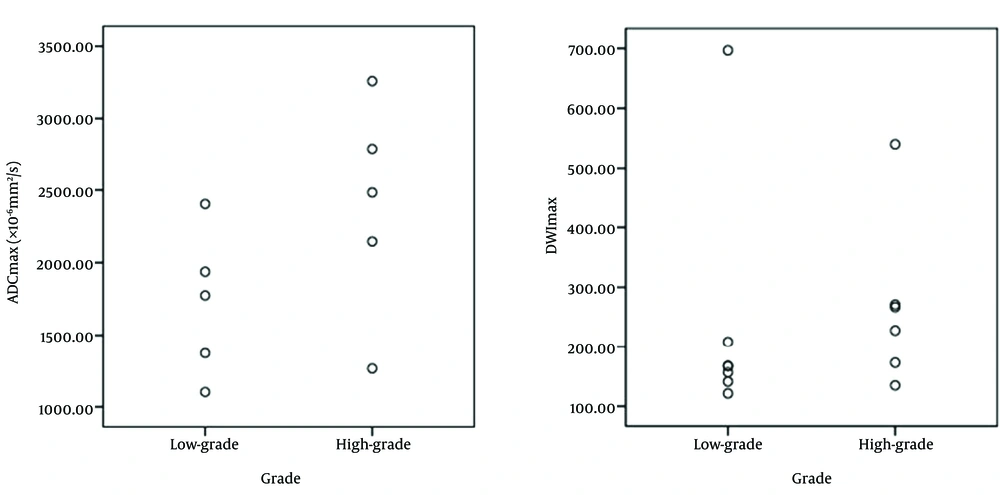

The correlation between ADCmax and DWImax with the grade of astrocytomas; maximum ADC values and maximum DWI signal intensities of high-grade astrocytomas are higher than those of low-grade astrocytomas, however, some overlap is noticed between the two groups.
Mean of ADC and DWI Values in Low and High-Grade Tumors and Their Correlation Coefficient with Tumor Grade
According to the ROC analysis, the cutoff value of 0.843 × 10-3 mm2/s for ADCmin with 80% sensitivity and 84.6% specificity (area under the curve [AUC] = 0.838, positive predictive value [PPV] = 84.6%, negative predictive value [NPV] = 80%), the cutoff value of 2.117 × 10-3 mm2/s for ADCmax with 76.9% sensitivity and 90% specificity (AUC = 0.808, PPV = 90%, NPV = 75%) and the cutoff value of 165.2 for DWImax with 84.6% sensitivity and 70% specificity (AUC = 0.762, PPV = 78.5%, NPV = 77.7%) were chosen for differentiating the low-grade and high-grade astrocytomas (Figure 4). Also, no statistically significant correlation between tumor grade with ADCmean, DWImin, DWImean and age of patient was observed (P = 0.137, P = 0.193, P = 0.094 and P = 0.062, respectively).
A, ROC curve of the ADCmin values; B, ROC curve of the ADCmax values; and C, ROC curve of the DWImax values.
5. Discussion
As stated, using only conventional MRI may not always be reliable for predicting the histopathologic grading of the astrocytic supratentorial brain tumors, because the different grades of these tumors can have common features in conventional MRI. In recent years, many researchers have studied the diagnostic value of DWI and the ADC for the diagnosis of brain lesions, and they have declared that the capability of MRI to measure and imaging of molecular diffusion, can produce more accurate information about the brain lesions than conventional MR imaging (16, 17). Knowing the grade of brain tumors is very important for choosing the appropriate treatment strategy. DWI over conventional MRI allows the evaluation of brain tumors by providing information about tumor cellularity, which can improve the prediction of tumor grade (13, 18). Some studies have reported a correlation between tumor cellularity and ADC values, so that lower ADC values show higher-tumor grades. These studies have stated that ADC can be useful in determining the grade of gliomas, because high-grade gliomas have high cellularity and lower ADC values compared to the low-grade gliomas. For example, in 2001, Kono et al. evaluated the role of DWI in patients with brain tumors. They examined 56 patients with histologically verified or clinically diagnosed brain tumors. Then, they measured ADC values and signal intensities on DWIs and evaluated the correlation between ADC values and tumor cellularity in gliomas. They found that ADC values of low-grade astrocytomas are significantly higher than those of other tumors and among astrocytic brain tumors; ADCs are higher in grade II astrocytomas than in gliobastomas. In addition, the ADC values correlated with tumor cellularity for astrocytic tumors. In their research, they concluded that ADC may predict the degree of malignancy of astrocytic tumors (19).
Also, in 2005 Yamasaki et al. performed a study to determine the role of ADC in differentiating brain tumors by MRI. In their retrospective study, 275 patients with brain tumors were examined after providing DWI images and calculating the mean ADC values and analyzing these values. They concluded that an inverse relationship existed between the mean ADC values and the grade of astrocytic brain tumors (grade II to IV) (13, 20). In 2006, Fan et al. conducted a study in order to evaluate the usefulness of diffusion and perfusion MR imaging in patients with non-enhancing supratentorial brain gliomas. They examined 22 patients; 14 had low-grade gliomas and 8 had anaplastic gliomas. They obtained the ADC values and relative cerebral blood volume (rCBV) ratios on the solid portion of the tumor, on the peritumoral area, as well as on the contralateral normal white matter. After data analysis, they declared that DWI should be used in the diagnostic workup of non-enhancing gliomas to predict grading (21). However, some older studies are inconsistent, for example, in 1999, Sugahara et al. performed a study to evaluate the utility of DWI with the echo-planar imaging (EPI) technique in depicting tumor cellularity and grading of gliomas. They examined 20 patients with histologically proven gliomas. They also measured the cellularity of tumors and the minimum ADC values. Their results showed a relationship between the tumor cellularity and the minimum ADC value of gliomas, so that the minimum ADC value of the high-grade gliomas was higher than that of the low-grade gliomas. Finally, they reported that diffusion-weighted MRI with EPI is a useful technique for assessing the tumor cellularity and grading of gliomas (22).
However, there are some studies that have not confirmed this and have stated that no significant relationship exists between the ADC values and the grade of the gliomas (18). For example, in 2001 Lam et al. evaluated the role of DWI for grading gliomas in 17 patients. After providing the DWI images and ADC maps, as well as measuring the ADC values, they concluded that there is no significant difference between the ADC values of high-grade gliomas and low-grade gliomas (23). Also in 2006, Rollin et al. studied the role of diffusion MR imaging for evaluation of grade and type of intra-axial brain tumors. They measured the ADC values in 28 patients and after analyzing these values they concluded that differentiating between low-grade and high-grade gliomas only by DWI images and ADC values is not possible (24). In other studies only minimum ADC values have been evaluated, which were obtained from tumors. For example, in 2005 Higano et al. evaluated the ADC for prediction of malignancy and prognosis of malignant astrocytic brain tumors. They examined 37 patients with malignant astrocytomas that included 22 glioblastomas and 15 anaplastic astrocytomas. Then, they calculated ADC maps and measured the minimum ADC values of each tumor, preferably with the avoidance of cystic or necrotic parts. Eventually, they announced that minimum ADC values, which were obtained from malignant astrocytomas, can provide valuable information about their malignancy (15). Also, in 2006 Murakami et al. examined the diagnostic value of pretreatment diffusion-weighted MR imaging in patients with malignant supratentorial astrocytic brain tumors. They evaluated the minimum ADC values as a factor analysis of survival in 79 patients. Of their patients, 29 had anaplastic astrocytoma and 50 had glioblastoma multiforme. After statistical analysis, they found that the minimum ADC values were significantly lower in patients with glioblastoma multiforme than in those with anaplastic astrocytoma. Therefore, they concluded that MR imaging is a useful prognostic factor for survival in patients with malignant supratentorial astrocytomas. Our study confirms this (25).
Also, in 2008 Lee et al. assessed the diagnostic value of minimum ADC value for preoperative grading of supratentorial astrocytomas. In that study, they evaluated 16 patients with astrocytoma and calculated the minimum ADC value of each tumor from several regions of interest in the tumor on ADC maps. After data analysis, they reported that measuring the ADCmin can provide valuable information for preoperative grading of low-grade supratentorial astrocytomas, which is compatible with our results (1).
In the current study, we examined only astrocytic supratentorial brain tumors among all brain tumors, and in addition to minimum ADC values we measured the maximum and mean ADC values and the minimum, maximum and mean DWI signal intensities. After statistical analysis we concluded that the minimum ADC values had an inverse correlation with the tumor grade, and that the correlation between the maximum ADC values and maximum DWI signal intensities with tumor grade was direct, however, there is a slight overlap between the values of the two groups. The cutoff values of 0.843 × 10-3 mm2/s, 2.117 × 10-3 mm2/s and 165.2 were selected, in order to achieve ADCmin, ADCmax and DWImax with the best combination of sensitivity and specificity for differentiating high-grade and low-grade astrocytomas. The results showed that our study was much more accurate than previous studies.
There were two limitations in our study. First, was the small sample size and the other was that the assessment of reliability was not performed.
In conclusion, conventional MRI findings of astrocytic brain tumors is not always reliable for grading tumors. In this study, we showed that an inverse correlation exists between the minimum ADC values and histopathologic grade of the astrocytic supratentorial brain tumors. In addition, we showed a direct correlation between the maximum ADC values and also the maximum DWI signal intensities with the grade of these tumors. Finally, we believe that measuring these values can provide valuable information for surgeons about the preoperative grading of astrocytic supratentorial brain tumors.
