Abstract
Background:
Fluoroscopy guided imaging, which is going to be more routine these days, requires a long time of fluoroscopic observing that could increase the radiation dose of the physician and other staff who have to stay near the patient during the procedure. In our department, one of the senior interventionists observed hair loss in his lower limb.Objectives:
The objective of this study was to measure the radiation dose of the physician’s leg during common procedures in order to find out that whether the radiation dose exceeds the threshold of deterministic effects of radiation.Patients and Methods:
Thermoluminescent-dosimeters (TLD-100) set on the leg part of the anthropomorphic whole body phantom PBU-50 was used in order to measure the radiation dose in two centers where our interventionist worked. Meanwhile, the duration of exposure in important procedures was observed and recorded in center 1 for 2 months. During this period, data including age, height, and weight of the patients, and radiation exposure time, dose (mGy) and dose area product (dap) (µGy.cm2) were recorded.Results:
The result of TLD dosimetry showed that the mean effective dose in center 1 and 2 was 0.20 and 0.86 mSv, and also the mean-dose (mSv)/min) in these centers was 0.02 ± 0.00 and 0.20 ± 0.015 mSv/min, respectively.Conclusion:
The effective annual dose of interventionists who work in center 1 and 2 was 143.08 and 1226.78 mSv, respectively. The high radiation dose delivered to the leg of physicians in center 2 could be an important cause of radiation dermatitis occurred on the leg of our interventionist. Patient dose during most of the procedures was less than the threshold dose for occurring erythema. However, unfortunately in transjugular intrahepatic portosystemic shunt (TIPS) procedure, which is a time-consuming procedure, the patient radiation dose exceeds the threshold. It would be useful if a plan was designed to reduce the dose of patients and even physicians.Keywords
Radiation Dose Leg Occupational Dose Interventional Radiology
1. Background
Recently, application of fluoroscopy-guided imaging is increasingly growing. This is the result of development in medical technology, which in turn improves powerful X-ray equipment for complicated procedures that need fluoroscopy guidance such as interventional procedures, which were rarely accomplished in the past (1, 2).
These procedures typically need a long time of fluoroscopic observing that could increase the radiation dose of patients and staff. During interventional radiology procedures, the physician and other staff have to stay near the patient; therefore, they are exposed to a large amount of scattered radiation as well. Interventionists can also achieve more radiation from primary or leakage radiation as well. For instance, their hands enter the primary X-ray beam and their lower extremities are close to the X-ray tube. This may lead to leakage radiation dose (3, 4).
While the vital parts of the body can be separately protected by lead or non-lead aprons (5, 6), the extremities especially the legs remain practically unprotected. Consequently, it is essential to confirm that the annual dose limits are not exceeded (7).
There are some reports that have revealed that radiation doses to the legs of interventionists were more than the radiation dose to the hands. Among interventionists, there are reports of leg hair loss due to prolonged occupational radiation exposure, which is called radio-dermatitis (7-10). Considering these events, studies have previously checked the radiation dose of the leg and reported that when the leg is unprotected and the equipment mounted protectors are absent, the radiation dose of the leg could exceed the threshold dose of radiation-induced skin damage (7, 8, 11-13).
Chronic occupational dermatitis primarily results in dry, shiny and hairless skin with atrophy of the epidermis. Other symptoms such as ulceration, fibrosis, and subsequent squamous cell carcinoma may also be observed. The accumulative radiation dose required to cause chronic alterations are beyond 10 - 12 Gy. In our department, one of the senior interventionists had observed hair loss in his lower limb. It means he received more than 10 Gy of radiation during his work in all these years (14-16).
2. Objectives
Considering that the mentioned interventionist worked in two centers, we were encouraged to check the radiation dose of the physician’s leg via thermo-luminescent dosimeter (TLD-100) in both centers. Thus, the objective of this study was to measure the radiation dose of the physician’s leg during common procedures in order to find out whether the radiation dose exceeded the threshold of deterministic effects of radiation. It should be noted that deterministic effects of radiation are the effects that definitely occur after receiving a certain amount of the radiation in people such as Erythema, Cataract, and permanent sterility which occur after 2 Sv, 2 - 10 Gy and 2.5 - 3.5 Gy respectively.
3. Patients and Methods
TLD-100 was used to measure the radiation dose since it is a routine dosimeter in the clinic and there are many studies that used this dosimeter (17-20). Since it was predicted that interventionists might forget to set the dosimeters on their leg before the procedure, a phantom study was performed. The leg part of the anthropomorphic whole body phantom (PBU-50), which is in life-size, was used. Three TLDs were packed in a packet and fixed on the leg phantom in the same location that the deterministic effects were observed in the senior interventionist. Then, the phantom was located near the place the interventionists usually stand during the procedure. Figure 1 shows the position of the phantom and the physician.

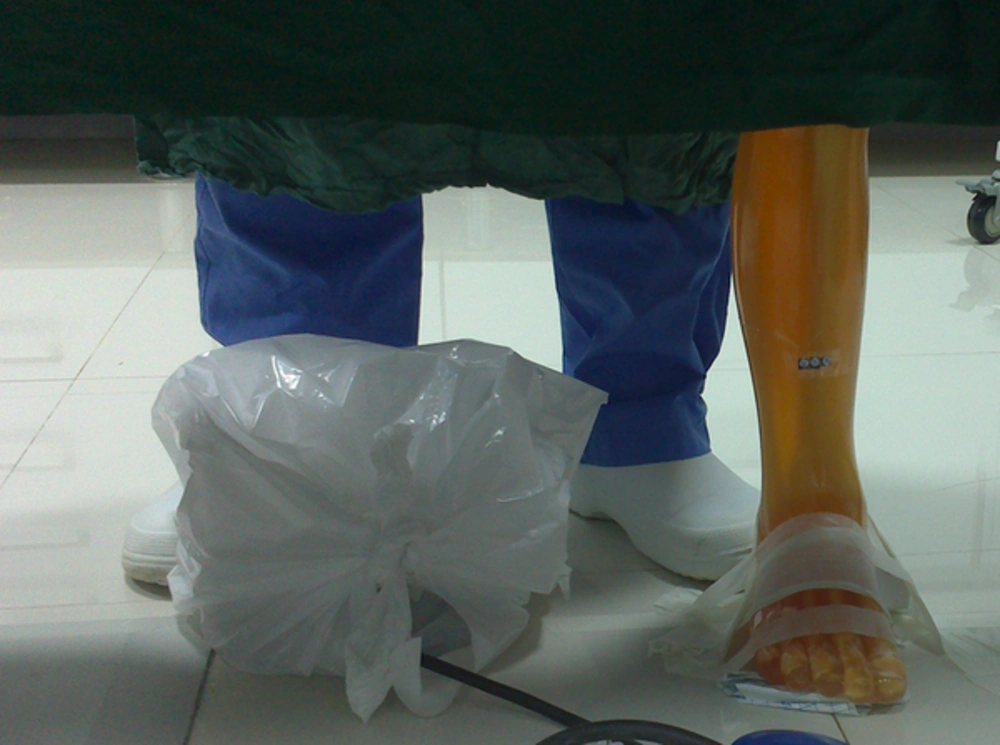

The position of the phantom and the physician
The phantom was irradiated simultaneously with the interventionist during his work with patients for a working day. Another set of TLD with the same characteristics was prepared and fixed on the phantom and irradiated in the same situation as center 1 in center 2. The measurements achieved with dosimeters were corrected for operational quantity HP (0.07) and the mean dose (msv/min) was calculated.
The duration of radiation exposure in specific procedures, which in turn determines the interventionist’s standing time bedside the patient during irradiation was observed and recorded in center 1 for 2 months. During this period of time, the characteristics of patients and procedures (86 patients) were gathered. The recorded information included age, height, and weight of the patients and radiation exposure time, dose (mGy) and dose area product (dap) (µGy.cm2). In order to assess the dose received by the patient in cerebral and hepatic angiographies, air kerma-area product (PKA) was obtained from the value provided by the equipment considering the geometry of irradiation and exposure parameters selected during the clinical procedure. Using these data, the average time of important procedures such as four vessels, six vessels cerebral angiography, extended percutaneous transhepatic biliary drainage (PTBD), trans-arterial chemoembolization (TACE), transjugular intrahepatic portosystemic shunt (TIPS) and portal vein embolization (PVE) were recorded and assessed. This information can be used to calculate leg dose/procedure, we could also provide an estimation of the patient dose.
4. Results
The result of TLD dosimetry showed that the mean effective dose in center 1 and 2 was 0.20 ± 0.33 and 0.86 ± 1.17 mSv, respectively, and also the mean dose in these centers was 0.02 ± 0.00 and 0.20 ± 0.015 (mSv/min), respectively. The details of 2 months monitoring of interventional procedures on 86 patients are demonstrated in Table 1.
Number of Brain and Hepatic Interventional Procedures and the Details of Patient Information in Each Group of Proceduresa
| Procedure | Number of Patients | Mean Age | Mean Height | Mean Weight |
|---|---|---|---|---|
| Brain | 56 | 54.69 ± 19.78 | 166.07 ± 8.65 | 73.36 ± 12.38 |
| Hepatic | 30 | 49.11 ± 18.86 | 166.64 ± 9.43 | 64.57 ± 7.32 |
The results of data gathering during 2 months and the calculated leg dose per procedure are summarized in Table 2.
Time, Dose and Dose Area Product (DAP) of Each Procedure in Conjunction with Leg Dose of Physicians During the Procedurea
| Procedure | Mean Time | SD Time | Mean Dose, mGy | Mean Dose, (mGy)/min | SD Dose | Mean DAP, (µGy. m2)/min | SD DAP | Leg dose, mSv/pro |
|---|---|---|---|---|---|---|---|---|
| Brain pro | ||||||||
| 4vessels | 11.47 | 7.17 | 600.39 | 74.18 | 50.11 | 949.58 | 632.57 | 0.15 |
| 6vessels | 12.21 | 5.86 | 789.56 | 73.60 | 20.91 | 991.52 | 277.98 | 0.28 |
| Hepatic pro | ||||||||
| PTBD | 6.78 | 5.72 | 301.99 | 40.15 | 12.62 | 252.24 | 82.81 | 0.16 |
| TACE | 11.66 | 8.41 | 956.83 | 68.58 | 24.65 | 582.50 | 422.65 | 0.27 |
| TIPS | 51.76 | 26.83 | 2032.0 | 46.56 | 14.08 | 304.94 | 49.03 | 1.19 |
| PVE | 13.16 | 1.48 | 506.50 | 40.25 | 15.65 | 200.53 | 8.91 | 0.30 |
5. Discussion
Having observed the radiation dermatitis on the leg of senior interventionist, a plan was designed to perform radiation dosimetry of the physician’s leg during interventional procedures in both centers where these specialists worked. A phantom and TLD dosimetry study was performed with the purpose of evaluating the radiation dose of physician’s leg as well as estimating the annual effective dose of interventionists. Meanwhile, it provided a proper opportunity to gather statistical information of patients and make an estimation of their received dose.
According to the results, radiation doses of leg were 0.02 mSv in center 1 and 0.20 mSv in center 2, which is 10 fold the amount of center 1. This difference between centers can be attributed to the equipment that these centers use for interventional radiology. The table of center 1 had a protective lead curtain. Despite the difficulties in its moving, it was effective in decreasing the radiation dose of the legs. The table in center 2 did not have any lead curtain.
According to Table 2, the radiation dose of leg in both centers agrees with previous studies. The effective dose of leg in center 1 (0.2 mSv) is in the range of the estimated values in previous studies, but the effective dose in center 2 that did not have the protective curtain was close to the results of the study conducted by Koukorava et al. (11) when they did not use equipment mounted protectors (Table 3).
Estimated Dose of Legs in Previous Studies
The radiation dose of leg in center 1 was a little high, but comparable to the other studies. For instance, in our study, the radiation dose of physician’s leg in TIPS and PTBD were 1.19 and 0.16 mSv/pro, respectively, which agree with the radiation dose of leg per TIPS and percutaneous transhepatic cholangiogram (PTC) in the study performed by Efstathopoulos et al., which was 1.96 and 0.22 mSv/pro, respectively (8).
The international commission of radiological protection (ICRP) suggests that the annual dose limit of extremities should be less than 500 mSv in order to restrict the risk of erythema and temporary epilation. The ionizing radiations regulations (IRR) also recommended identifying the radiation workers whose doses exceeding three-tenth of the dose limit suggested by ICRP, which is 150 mSv for the extremities.
The effective annual dose of interventionists who work in center 1 and 2 was calculated as 143.08 and 1226.78 mSv, respectively. According to the aforementioned regulation, the radiation dose of leg in center 1 does not require special monitoring, but in center 2 plans should be considered to reduce the leg radiation dose. The high radiation dose which is delivered to the leg of physicians in center 2 could be an important cause of radiation dermatitis occurred on the leg of our interventionist. According to the estimations, even if the interventionist just works 15 min with radiation, his effective dose is a little higher than 150 mSv.
Patient dose during most of the procedures was less than 2 Gy, which is the threshold dose for occurring erythema, but unfortunately, in TIPS, which is a time-consuming procedure, the patient radiation dose exceeds 2 Gy, which causes erythema. It would be useful if a plan was designed to reduce the dose of patients and even physicians.
