Comparison of Statistical Methods, Neural Network, and Fuzzy Neural for Particular Matter Prediction: A Case Study in Mashhad, Iran

authors:

avatar Elham Asrari ORCID 1 , * , avatar Maryam Paydar 1

Department of Civil Engineering, Payame Noor University, Tehran, Iran
Jundishapur Journal of Health Sciences: Vol.11, issue 3; e87978
published online: May 22, 2019
article type: Research Article
received: December 19, 2018
revised: April 30, 2019
accepted: May 5, 2019

How To Cite Asrari E, Paydar M. Comparison of Statistical Methods, Neural Network, and Fuzzy Neural for Particular Matter Prediction: A Case Study in Mashhad, Iran. Jundishapur J Health Sci. 2019;11(3):e87978. https://doi.org/10.5812/jjhs.87978.

Abstract

Background:

In the recent era, air pollution is a major global concern that affects human health. The emission proportion of air pollutants is increased in many cities of Iran such as Mashhad. Particular matters (i.e. PM2.5) are one of the five air pollutants known to be responsible for polluting the air in Mashhad. Nowadays, fuzzy neural intelligent systems, which are capable of solving nonlinear and complex problems, are widely used in the air pollution problem to determine the amount of the particles and dust in the air.

Methods:

In the current study, the air quality data consisting of daily average concentrations of air pollutants and the meteorological data including the minimum temperature, precipitation, humidity, wind direction, and daily wind speed recorded by city monitoring stations from 2011 to 2017. The daily average pollutants concentration was used to study the relationship between PM2.5 and the other air pollutants such SO2, O3, NO2, PM10, and CO. SPSS was used for data analysis. Linear regression, multilayer perceptron (MLP) neural network, and fuzzy neural network using MATLAB 2017 software were employed for modeling. Performance of the models was evaluated using root mean square error (RMSE) and coefficient of determination (R2).

Results:

Based on the obtained results, among the employed models, MLP neural network with R2 = 0.598, RMSE = 0.088, and MSE = 0.0079 was better than linear regression, and the ANFIS model combining particle swarm optimization (PSO) algorithm with R2 = 0.804, RMSE = 0.055, and MSE = 0.0031 had the best performance in the prediction of PM2.5.

Conclusions:

The ANFIS network correctly fitted more than 80% of total data; given that there were non-linear and complicated models in meteorological systems, this figure can indicate the high strength of ANFIS network through PSO-based combinational training methods for modeling nonlinear data.

1. Background

The industrialization activities, increasing the number of cities and their population density, and releasing different pollutants into the air make breathing the clean air an unattainable dream. A large portion of studies focus on air pollution in the big cities due to innumerable pollution sources caused by transportation, industrial, construction, and commercial activities. Air pollution problem can cause human mortality, and fauna and flora species extinction (1), along with numerous economic, social, cultural, and even political damages not only locally, but also nationally, regionally, and globally. According to the World Health Organization (WHO) research and the United Nations Environment Program (UNEP) in 50 countries, today, most of the world’s population live in areas where the air pollutants exceed the permissible limits approved by WHO (2). In Iran, the emission of the air pollutants in many cities including Tehran, Mashhad, Ahvaz, Sanandaj, and Isfahan increase to dangerous levels. Studies show that particular matters (i.e. PM2.5) have an association with various adverse human health effects such as premature mortality, exacerbation of asthma and other respiratory tract diseases, and cardiovascular diseases (3). Also, PM10 particles cause or intensify the cardiovascular or pulmonary diseases. It increases the risk of hospital referral, hospitalization, or even death in patients with congestive heart failure, asthma, or chronic pulmonary disease, especially the elderly (4).

The US Environmental Protection Agency (USEPA) classified air pollutants into two categories, primary (including carbon monoxide, nitrogen dioxide, sulfur dioxide, suspended particles, and lead) and secondary (including ozone peroxyacetyl nitrate). Pollutant particles known as PM include a mixture of solid and liquid droplets in the air. PM1, PM2.5, and PM10 are referred to suspended particles with an aerodynamic diameter of less than 1, 2.5, and 10 µm, respectively (5). All of them can remain in the atmosphere for several months. Particles larger than 2 µm have great importance; their sedimentation rate is low. Among different air pollutants, suspended particles are known as the most important air pollutants in the big cities, since for each 10 µg/m3 increase in PM10, daily mortality increases by 0.6% (6).

Regarding the adverse effects of air pollution on human health and environment, it is necessary to make correct decisions and plan to overcome this dilemma. In this regard, predicting significant concentration of pollutants and their correlation with meteorological parameters affect the decision making to deal with air pollution (7). This issue has more importance in metropolises. Mashhad is ranked among seven polluted cities of Iran and, after Tehran, it is the second most polluted city. There are many methods to predict the concentration of air pollutants. In recent years, significant advances are made to develop neural network models for air pollution prediction, which is more efficient than other methods. Neural and fuzzy networks are useful tools to identify and model the data (8) and predict unknown issues that there is no knowledge about their inputs and outputs (9-12). In the current study, three methods of multiple linear regression, artificial neural network multilayer perceptron (MLP), and fuzzy neural network were addressed based on the PSO (particle swarm optimization) algorithm to estimate PM2.5 suspended particle concentration in terms of air pollution data and meteorological parameters; after the evaluation of the prediction accuracy, each model was estimated.

2. Objectives

The present study aimed at comparing statistical methods, neural network, and fuzzy neural network in suspended particles prediction (PM2.5).

3. Methods

3.1. Study Area

Mashhad -the capital of Khorasan Razavi Province- with approximately 351 km2 area is the second most polluted city in Iran after Tehran. Its geographic location is the Northeast of Iran in 36º 16’ North latitude and 59º 37’ East longitude (Figure 1).

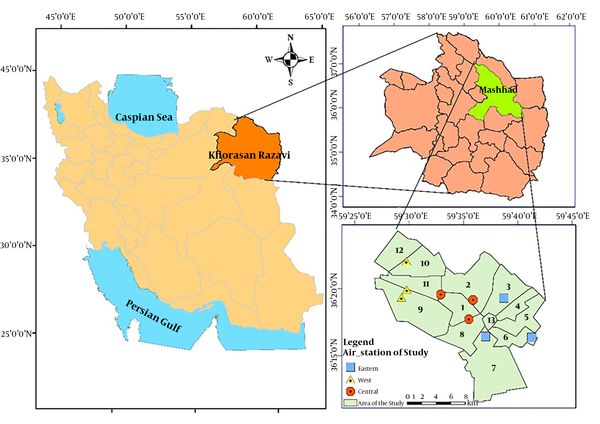

Study area and air quality measurement stations
Study area and air quality measurement stations
Figure 1.

Study area and air quality measurement stations

3.2. Study Data

The data used in the current study included the minimum and daily average temperature (ºC), minimum and maximum daily humidity (%), average wind speed (km/h), average daily precipitation (mm), wind angle (degree), average sunshine hours per day (h), average daily concentration of PM10 (μg/m3), SO2 (ppb), CO (ppm), NO2 (ppb), and O3 (ppb).

As shown in Figure 1, the hourly air pollutants concentration data were collected from three stations from 2011 to 2016. The metrological data were taken from Mashhad synoptic station from 2011 to 2017. After data attainment and validation and outliers’ elimination, the daily average was calculated for each pollutant. SPSS version 16 was used to simulate multiple regression, and in order to simulate neural network models and Anfis, the MATLAB 2017 software was used. Network input data were divided into three categories to improve network prediction strength:

● Train data that contained 70% of data (from 2011 to 2014) were related to network training; the network weight was determined by them. This section data included 1555 items.

● Validation data that contained 15% of data (the year 2015) were in charge of network training monitoring; the decision to stop calculations was made through error consideration during training. This section data included 430 items.

● Test data that contained 15% of data (the year 2016) related to validation and network capabilities examination. This section data included 121 items.

3.3. Multiple Regression

Multiple regressions are a method for collective and individual participation of two or more independent variables in a dependent variable changes. In this method, the variables are entered one by one. Some conditions should be met before using the regression model; first, linear relationship between independent and dependent variables; second, normal distribution of error values, and third, independence of error values.

In the current study, after accuracy verification of the above conditions, variables that had a significant correlation with PM2.5 (R2 = 0.95) were extracted as a model through multiple linear regression by a step-by-step approach and the coefficients of each were obtained.

3.4. MLP Neural Network

Multi-layer feedforward networks are the most important structures of artificial neural networks. Generally, these networks include a set of sensory units (basic neurons) that form input layer, one or more hidden layers, and an output layer. The input signal is spread layer-by-layer through the network in a forward direction. This kind of network is commonly referred to as MLP. The number of hidden layers should be as low as possible. Initially, the network is trained by a hidden layer; in case of inappropriate function, the number of hidden layers will increase (13). If possible, less hidden neurons are examined (14). The current study used an input and an output layer, a hidden layer consisting of 85 neurons, tansig conversion function, and trainbr training algorithm.

3.5. The PSO-Based ANFIS Network

In the current study, an adaptive type II neuro-fuzzy network was designed according to Sugeno algorithm using MATLAB 2017 fuzzy toolbox and genfis3 tool (using the FCM model for clustering). Network training was done by PSO algorithm to increase its efficiency. In order to optimize the particle swarm and find the most efficient state, the Kennedy and Eberhart algorithm was used due to its high efficiency. In the current study, 100 rounds for each network and 10 clusters were considered. These numbers were obtained by trial and error. In order to optimize membership function parameters in adaptive neuro-fuzzy inference system, ANFIS network and PSO algorithm parameters were presented; data are shown in Table 1.

Table 1.

ANFIS Network Parameters

ParameterValue
ANFIS network parameters
Minimum improvement1e-5
Number of clusters10
Maximum iteration100
Partition matrix exponent2
Particle swarm optimization algorithms
Iteration numbers1000
Population 500
Inertia weight damping ratio0.99
(C1)1
(C2)2
Inertia weight1

3.6. Network Performance Assessment

Network performance was validated. Following equations were used to evaluate network performance.

Mean squared error MSE=∑1n(obs-calc)2N
Root-mean-squared error RMSE=∑i=1n(calc-obs)2N
Coefficient of determination R2=∑1n(calc-avg.obs)2∑1n(obs-avg.obs)2

The data were normalized by the below algorithm:

Xnorm = (X - Xmin)/(Xmax - Xmin)

4. Results

Concentrations of the daily average pollutants showed that PM2.5 was the main pollutant in Mashhad. In about 40% of days, its concentration was upper than EPA (Environmental Protection Agency) limited standards. Annual average of five major air pollutants in different years is provided in Table 2.

Table 2.

Average Daily Concentration of Pollutants from 2011 to 2016

Year20112012201420152016
PM10, µg/m384.3878.4681.9875.5783.9
CO, ppm1.991.981.872.271.96
SO2, ppm0.010.010.010.020.01
NO2, ppb34.6229.7830.2922.7521.95
O3, ppb16.717.198.1911.3920.92
PM2.5, µg/m343.2934.5229.1123.3830.22

4.1. Multiple Regression Results

Tables 3 and 4 show the multiple regression results through step-by-step method. In these tables, ADJ.R2 indicates the PM2.5 variance percentage that model predicts. In the best case, which four variables of PM10, CO, NO2, and wind angles are used to predict PM2.5 suspended particles, 32% PM2.5 variance is predicted. According to P values, these four variables can significantly predict PM2.5 concentration. Beta values indicate that when a unit of PM10 increases, PM2.5 level increases 0.45; also, when a unit of NO2 increases PM2.5 level increases 0.12, and if a unit of CO increases PM2.5 level increases by 0.15. Ultimately, a one-degree increase in the wind angle reduces the PM2.5 concentration by 0.06.

Table 3.

The Results of Multiple Regressiona

Predictive VariableTBetaSEBP Value
Constant6.2141.5609.6950.000
PM1018.0950.4560.0120.2150.000
CO5.4210.1500.8745.2500.000
NO24.5310.1230.0330.1520.000
Wind direction -2.461-0.0610.005-0.0130.0014

aR = 0.568, R2 = 0.323, ADJ.R2 = 0.316

Table 4.

Result of Step-wise Coefficientsa

ModelUnstandardized Coefficient (B)Standardized Coefficient (Std. Error)BetaTP Value
(Constant)16.5961.11314.9050.000
PM100.2450.0120.51820.6470.000
(Constant)10.0111.3977.1650.000
PM100.2230.0120.47318.6950.000
CO5.3850.7170.1907.5110.000
(Constant)8.2081.4415.6940.000
PM100.2160.0120.45818.1490.000
CO3.9630.7770.1405.1000.000
NO20.1520.0340.1234.5360.000
(Constant)9.6951.5606.2140.000
PM100.2150.0120.45618.0950.000
CO4.2500.7840.1505.4210.000
NO20.1520.0330.1234.5310.000
Wind direct-0.0130.005-0.061-2.4610.014

aDependent variable: PM2.5

The regression model is:

PM2.5 = 9.695 + 0.215 PM10 + 5.250 CO + 0.152 NO2 - 0.013 windirect

This model shows positive relationships between PM10, CO, NO2, and negative impact of wind speed on PM2.5 concentration prediction.

4.2. Estimation and Prediction Results of PM2.5 Suspended Particles Using the MLP Neural Network

The MLP neural network has an input and output layer, a hidden layer consisting of 85 neurons, tansig conversion function and trainbr training algorithm, and presents the best model results. The estimated results through MLP neural network have less errors and better R2 compared to multiple linear regression method. However, it does not provide a good prediction of PM2.5 concentrations, especially in cases of maximum and minimum.

4.3. Estimation and Prediction Results of PM2.5 Suspended Particles Using ANFIS Network

In this simulation, an adaptive type II neuro-fuzzy network designed according to Sugeno algorithm. Network training is done using the PSO optimization algorithm. After a few tries by trial, the best number of ANFIS network repetitions was 100 and the number of clusters was determined 10. In order to improve the network prediction ability, the data from 2011 to 2014 for ANFIS neural network training were separated from the beginning of the data, and then, the data for 2016 were used for validation, and afterwards, the network was tested with the data of 2017. Since the networks starting point is chosen based on random numbers, the ANFIS network was run more than 10 times to obtain the best output. The numbers, tables, and charts were the best state among these repetitions.

According to the obtained results, more than 80% of total data were correctly fitted in the ANFIS network; given that there were non-linear and complicated models in meteorological systems, this figure can indicate the high strength of ANFIS network through PSO-based combinational training methods for modeling nonlinear data. Table 5 summarizes the modeling results with three methods.

Table 5.

Results of Modeling with Regression, MLP, and ANFIS

ModelData TypeR2RMSEMSE
RegressionStepwise0.23350.106530.01135
MLPTrain data0.66490.081700.0066
Test data0.42860.10720.0114
Validation data0.47640.100750.0101
Total0.59860.08880.0079
ANFISTrain data0.80120.055830.003109
Test data0.83070.056490.003192
Validation data0.7060.062870.003953
Total0.8040.055980.003134

5. Discussion

Since Mashhad is the second largest metropolis in Iran, and according to high volume of tourists, the pollutants concentration prediction has a great importance to make necessary decisions to implement traffic constraints in the city in order to prevent and reduce the harmful effects. Therefore, the current study aimed at predicting the concentration of suspended particles through artificial neural networks in accordance with climatic conditions and other pollutants. The correlation analysis of suspended particles with other pollutants by regression indicated that PM2.5 had a direct correlation with PM10, NO2, and CO; this result was consistent with those of Ehsanzadeh et al., study about factors affecting suspended particles in Tehran. The simulation results with the MLP neural network showed that in the best case, the training was done through Bayesian regularization (trainbr) and the correlation coefficient was R = 0.77 and the root mean square error (RMSE) was 0.088, which was better than that of step-by-step regression method with R = 0.56 and RMSE = 0.106. Taghavi in a part of her master's thesis modeled CO pollutant in Mashhad using MLP artificial neural network and compared it with linear regression method (15). The execution results of these two models showed that the artificial neural network model had more ability than linear regression to predict the CO concentration. The correlation coefficient (R) and the root mean square error (RMSE) in neural network based on the regression model were 0.61 and 0.069, and 0.61 and 0.1, respectively. Koorani developed models using the neural network and linear regression to predict the daily average concentrations of ozone and PM10 in Milan, Italy. The results of this study also indicated the superiority of the neural network to linear regression. Based on the neural network results, the correlation coefficient between the results of the model, and the actual data for ozone and suspended particles was 0.85 and 0.9, respectively (16). To predict the concentration of suspended particles of less than 2.5 µm using an adaptive PSO-based neuro-fuzzy algorithm, given RMSE and R statistics, the current study results showed that the PSO-based neuro-fuzzy network had a relatively high accuracy and efficiency. The best performance was related to the neural fuzzy network with R = 0.914 and RMSE = 0.05598 at the validation stage. Also, the designed network could predict data for the year 2017 with over 70% accuracy. The model presented by Yildirim and Bayramoglu in Zonguldak City using an adaptive neuro-fuzzy network to estimate the meteorological effect on sulfur dioxide and suspended particles showed the high efficiency of ANFIS model in air pollutants issue, which was consistent with the results of the current study (17). Aliari Shorehdel et al., suggested short-term air pollution prediction using multilayer perceptron neural networks delayed memory line, gamma, and ANFIS though PSO-based combinational training, and showed that the combined proposed method based on PSO and Kalman filter had a good capability to improve prediction performance for ANFIS network (18). In the current study, the PSO optimization results were more accurate. Saadabadi et al., suggested a model to predict PM2.5 concentration in the air of Mashhad using one-year data from a hybrid model including wavelet transform and MLP neural network, the values of R2 =0.778 and RMSE = 0.7059 represented that the proposed model in this study had a high accuracy in the suspended particles prediction, maybe due to the longer period of time. The ANFIS network correctly fitted more than 80% of total data; given that there were non-linear and complicated models in meteorological systems, this figure can indicate the high strength of ANFIS network through PSO-based combinational training methods for modeling nonlinear data.
