Effect of HEDTA, CDTA, and EGTA Chelates on Remediation of Pb- and Zn-Polluted Soil Using Sunflower and Canola Plants: A Case Study; Soil Around Bama Pb and Zn Mine

Amir Hossein Baghaie; Anahita Polous

doi:10.5812/jjhs.92000

https://doi.org/10.5812/jjhs.92000

Effect of HEDTA, CDTA, and EGTA Chelates on Remediation of Pb- and Zn-Polluted Soil Using Sunflower and Canola Plants: A Case Study; Soil Around Bama Pb and Zn Mine

authors:

Amir Hossein Baghaie ^{1
, *} , Anahita Polous ¹

1 Department of Soil Science, Arak Branch, Islamic Azad University, Arak, Iran

Jundishapur Journal of Health Sciences: Vol.11, issue 4; e92000

published online: September 1, 2019

article type: Research Article

received: April 6, 2019

revised: April 28, 2019

accepted: July 13, 2019

How To Cite Baghaie A H, Polous A. Effect of HEDTA, CDTA, and EGTA Chelates on Remediation of Pb- and Zn-Polluted Soil Using Sunflower and Canola Plants: A Case Study; Soil Around Bama Pb and Zn Mine. Jundishapur J Health Sci. 2019;11(4):e92000. https://doi.org/10.5812/jjhs.92000.

Abstract

Background:

The soil heavy metal pollution caused by human activities is one of the main environmental problems. Therefore, it is necessary to use appropriate methods to remediate such soils.

Objectives:

The current study aimed at investigating the effect of Hydroxyl Ethylene Diamine Tetra Acetic Acid (HEDTA), Trans-1,2-Cyclohexylene Dinitrilo Tetra Acetic Acid (CDTA), and Ethylene Glycol-bis (β-Aminoethyl Ether)-N,N,N’,N’-Tetra Acetic Acid (EGTA) chelates on Pb and Zn removal efficiency in a Pb and Zn contaminated soil.

Methods:

This research was performed as a factorial experiment in a randomized complete block design with four levels of chelate application rate (0, 1.5, 3, and 4.5 mM/kg soil), two levels of chelates application times (one or two weeks before harvesting), and plant types (sunflower or canola). At the end of the experiment, Pb and Zn concentrations in the soil and plant samples were measured and the least significant difference (LSD) test was employed to determine the differences between the means.

Results:

The effectiveness of studied chelates on the availability of Zn and Pb in soil was in the descending order as HEDTA > CDTA > EGTA. Application of 4.5 mM/kg soil of CDTA chelate under sunflower and canola cultivation caused a significant increase in the availability of Zn and Pb in soil compared to 1.5 mM/kg by 12.2% and 13.3%, respectively. Plant type also had a significant effect on increasing the availability of Pb and Zn in soil.

Conclusions:

Plant type, application rate, and chelates type are important factors on remediation of heavy metals in contaminated soil. However, the role of physicochemical properties of soil on its heavy metal availability cannot be ignored.

Keywords

Soil Lead Zinc Helianthus Brassica napus

1. Background

Soil contamination with heavy metals is a major environmental problem that can threaten human health and ecosystems (1). Soil contamination with heavy metals is controversial, since heavy metals cannot be decomposed. Conventional methods are used to reduce soil contamination with heavy metals such as physical separation, chelate application, and electrochemical processes (2). Extraction and phytoremediation of soil heavy metals are considered as useful strategies due to their low cost and high efficiency; although the role of soil physicochemical properties on soil remediation cannot be ignored. Lead (Pb) and zinc (Zn) are toxic heavy metals that their accumulation in environment can damage human health (3). Thus finding suitable methods to remediate soil contaminated with heavy metals seems necessary.

Phytoremediation is an approach for heavy metals remediation that can extract heavy metals from soil and transfer them to the plant biomass (4). In this regard, it is necessary to select the plants with high biomass that can accumulate high amounts of heavy metals in their areal parts (5, 6). On the other hand, chelate application can increase heavy metal availability by forming complex with heavy metals. Jian et al., suggested that application of EDTA chelates may be an effective strategy for phytoremediation with two Arundinaria bamboos in Pb-contaminated soil (7). However, the type and amount of chelates play an important role on increasing heavy metal concentration. Banaaraghi et al. also showed the role of EDTA (ethylene diamine tetra acetic acid) and EDDS (ethylene diamine-N, N’-disuccinic acid) chelate for enhanced corn phytoextraction of heavy metals from a contaminated soil (8). Thus, it is necessary to investigate the role of different chelates on increasing heavy metal concentration in different plants constantly.

2. Objectives

The current study aimed at investigating the effect of type, time, and application rate of chelates on Pb and Zn uptake by canola and sunflower in a heavy-metal-polluted soil near Bama Pb and Zn Mine in the Southwest of Isfahan, Iran.

3. Methods

3.1. Treatments

The current study was conducted to investigate the effect of HEDTA (hydroxyl ethylene diamine tetra acetic acid), CDTA (trans-1,2-cyclohexylene dinitrilo tetra acetic acid), and EGTA (ethylene glycol-bis (β-aminoethyl ether)-N,N,N’,N’-tetra acetic acid) chelate on Pb and Zn removal efficiency in a Pb and Zn contaminated soil near the Bama Pb and Zn Mine located in the Southwest of Isfahan. Treatments (48 treatments in three replication) included the application of 0 (M₀), 1.5 (M_1.5), 3 (M₃), and 4.5 (M_4.5) mM/kg soil of HEDTA, CDTA, and EGTA chelates (9) twice (one (T₁) or two (T₂) weeks before harvesting the plant) (10). The plants used in the current study were sunflower and canola.

3.2. Soil and Plant Analysis

Soil samples were taken from the fields around the Bama Mine (located in the 20 km of Southwest of Isfahan) and their physicochemical properties were analyzed (Table 1) (11). Then 5 kg pots were filled with soil, and canola (Brassica napus L.) and sunflower (Helianthus annuus L.) seeds were planted. Chelates were added to the soil at the mentioned rate 7 - 8 weeks after planting. At the end of the experiment, the available concentrations of Pb and Zn in soil were measured according to the method described by Lindsay and Norvell (12). The Pb and Zn concentrations in plants were measured using atomic absorption spectroscopy (AAS) model 3030 after extraction with 3 mL of hot 14.4 M nitric acid (13). Soil pH and EC were measured in a 1:5 (W/V) solution. The organic carbon (OC) was measured according to the Walkley and Black method (14). The particle size analysis was also performed (15).

Table 1.

Selected Some Physico-Chemical Properties of Studied Soil

Characteristic	Unit	Amount	USEPA 503
Soil texture	-	Loamy	-
Sand	%	40	-
Silt	%	40	-
Clay	%	20	-
pH		7.6	-
EC	dS/m	1.6	-
Soil porosity	%	39	-
OC	%	0.2	-
Total Pb	mg/kg	124	300
Total Zn	mg/kg	755	500

3.3. Translocation Factor

The translocation factor (TF) was calculated using the following formula (Equation 1) (16):

T F = \frac{C_{s h o o t}}{C_{r o o t}}

where, C_shoot and C_root are heavy metal concentrations in the shoot and root of the plant, respectively.

3.4. Statistical Analysis

The current study was conducted as a factorial experiment in the layout of randomized complete block design. The ANOVA was used for the statistical analysis of data. The least significant difference (LSD) test was also utilized to determine the differences between the means.

4. Results

Application of organic chelates had no significant effect on soil pH (Figure 1). The effectiveness of different chelates on the availability of Pb and Zn in soil was in the descending order as HEDTA > CDTA > EGTA. Application of 4.5 mM/kg of soil HEDTA relative to EGTA chelate under sunflower cultivation (two weeks before plant harvest) resulted in increased availability of Pb and Zn in soil by 8% and 12.2%, respectively (Table 2). It should also be noted that the role of plant type on changing the availability of Pb and Zn in soil should not be ignored, since the application of 4.5 mM/kg of soil HEDTA chelate (two weeks before planting) in soil under the cultivation of sunflower caused a significant increase in the availability of Pb and Zn in soil in comparison with those of canola by 8.3% and 11.1%, respectively.

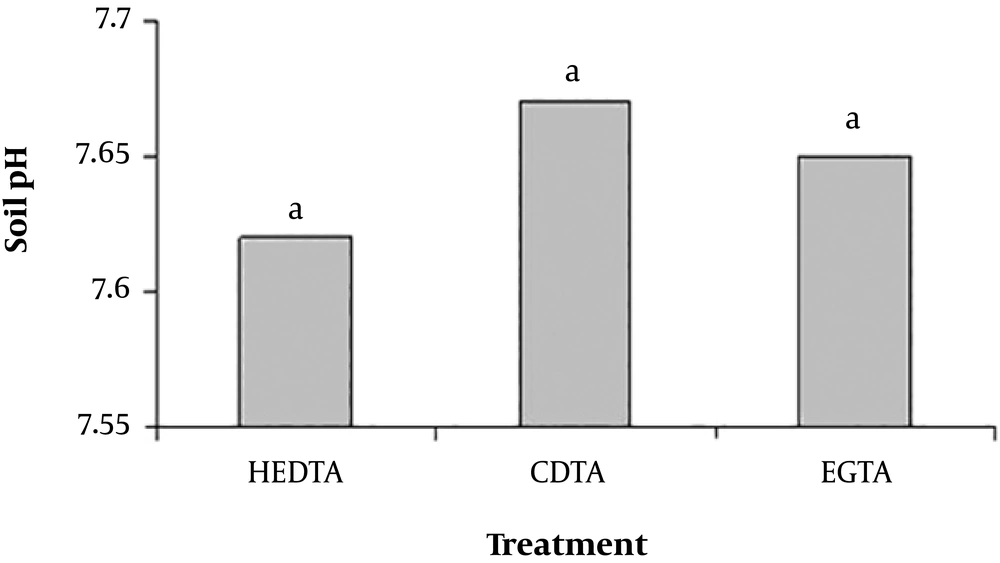

Figure 1.

Effect of chelate application on soil pH. Columns with the similar letters are not significant (P = 0.05)

Regardless of the chelate type, chelate application rate was also effective in changing the availability of Pb and Zn in soil; therefore, application of 4.5 mM/kg of soil CDTA chelate could significantly increase the availability of Pb and Zn in the soil under cultivation of sunflower and canola compared to those of 1.5 mM/kg by 12.2% and 13.4% per kg of soil, respectively. In addition, application of the same amount of CDTA chelate resulted in increasing the availability of Pb and Zn in soil by 8.4% and 10.8%, respectively. According to the results of the current study, chelate application time had no significant effect on the availability of Zn and Pb in soil.

Table 2.

Effect of Plant Type and Amount, Type, and Application Time of Chelate on the Availability of Pb and Zn in Soil

Plant Type	Type of Chelate	Element	M₀T₁	M₀T₂	M_1.5T₁	M_1.5T₂	M₃T₁	M₃T₂	M_4.5T₁	M_4.5T₂
Sunflower	HEDTA	Pb	47.6^u	49.4^u	90.5^o	91.2^no	112.6^c	114.7^bc	116.9^ab	118.4^a*
	HEDTA	Zn	76.1^q	75.3^q	132.8^gh	134.4^fg	142.9^bc	144.5^b	152.7^a	150.4^a
	CDTA	Pb	49.8^u	48.7^u	85.3^p	83.7^pq	109.5^ef	107.2^fgh	113.6^c	112.1^cde
	CDTA	Zn	76.8^q	76.2^q	127.9^ij	126.7^j	139.3^d	137.8^de	142.9^bc	145.1^b
	EGTA	Pb	49.6^u	50.1^u	72.8^r	74.5^r	99.5^kl	102.1^jk	104.9^hi	107.4^fgh
	EGTA	Zn	77.7^q	75.7^q	117.3^mn	119.3^lm	127.4^ij	130.2^hi	140.3^cd	138.2^de
Canola	HEDTA	Pb	45.1^v	44.2^v	83.2^pq	81.6^q	108.2^fg	106.6^gh	109.7^def	112.2^cd
	HEDTA	Zn	63.2^r	62.2^r	123.2^k	122.5^k	134.5^fg	132.5^gh	140.4^cd	142.4^bc
	CDTA	Pb	43.4^v	42.6^v	64.7^s	65.4^s	98.3^l	100.5^jkl	109.3^f	107.6^fg
	CDTA	Zn	62.9^r	61.7^r	113.8^o	115.3^no	128.6^ij	126.6^j	137.8^de	136.1^ef
	EGTA	Pb	42.4^v	44.9^v	56.3^t	58.9^t	95.4^m	93.4^mn	102.6^ij	100.3^jkl
	EGTA	Zn	64.2^r	61.4^r	109.8^p	107.8^p	121.2^kl	123.5^k	128.5^ij	130.3^hi

^*Data with the same letters in each parameter are not significant (P = 0.05).

According to Tables 3 and 4, the type and amount of applied chelates had a significant effect on root Pb and Zn concentration. The highest root Pb and Zn concentration belonged to the plants grown on the soil treated with 4.5 mM/kg of soil HEDTA chelate two weeks before harvesting, while the lowest was related to the plants cultivated in the soil without receiving chelate.

Table 3.

Effect of Plant Type and Amount, Type, and Application Time of Chelate on Plant Pb Concentration

Plant Type	Type of Chelate	Plant Part	M₀T₁	M₀T₂	M_1.5T₁	M_1.5T₂	M₃T₁	M₃T₂	M_4.5T₁	M_4.5T₂
Sunflower	HEDTA	Root	111.1^q	112.5^q	332.5^k	330.1^k	370.5^cde	372.1^bc	382.4^a	380.6^a*
	HEDTA	Shoot	35.5^s	33.7^s	242.7^hij	231.0^jk	296.4^c	297.6^bc	344.1^a	334.9^a
	CDTA	Root	113.1^q	110.6^q	320.5^l	322.4^l	364.1^gh	363.5^gh	373.8^b	374.2^b
	CDTA	Shoot	37.3^s	34.3^s	208.3^l	206.3^l	265.8^ef	261.7^fg	299.0^bc	303.1^bc
	EGTA	Root	111.6^q	112.4^q	301.3^m	300.9^m	353.7ⁱ	354.7ⁱ	370.9^cd	369.3^de
	EGTA	Shoot	33.4^s	38.2^s	156.6^no	159.4ⁿ	229.9^k	234.1^ijk	278.1^de	280.6^d
Canola	HEDTA	Root	93.9^r	95.2^r	229.6ⁿ	227.3ⁿ	363.4^gh	361.5^h	372.5^bc	370.2^cde
	HEDTA	Shoot	19.7^t	20.8^t	144.6^op	138.6^p	268.9^def	260.2^fg	309.1^b	303.5^bc
	CDTA	Root	93.1^r	94.3^r	209.3^o	210.4^o	355.8ⁱ	353.4ⁱ	367.8^ef	365.9^fg
	CDTA	Shoot	18.6^t	20.7^t	110.9^q	115.7^q	245.5^hi	240.3^hijk	272.1^def	278.0^de
	EGTA	Root	94.7^r	95.4^r	185.5^p	187.3^p	340.5^j	342.5^j	354.5ⁱ	355.6ⁱ
	EGTA	Shoot	21.7^t	20.0^t	79.7^r	84.2^r	190.6^m	184.9^m	244.6^hi	252.4^gh

^*Data with the same letters in each parameter are not significant (P = 0.05).

Table 4.

Effect of Plant Type and Amount, Type, and Application Time of Chelate on Plant Zn Concentration

Plant Type	Type of Chelate	Plant Part	M₀T₁	M₀T₂	M_1.5T₁	M_1.5T₂	M₃T₁	M₃T₂	M_4.5T₁	M_4.5T₂
Sunflower	HEDTA	Root	616.1^t	624.3^t	1016.5^d	1020.3^d	1104.5^c	1100.3^c	1197.4^a	1200.4^a*
	HEDTA	Shoot	394.3ⁿ	393.3ⁿ	1453.5^d	1438.6^de	1656.7^b	1650.4^b	1843.9^a	1872.6^a
	CDTA	Root	621.0^t	618.9^t	922.6^kl	921.3^l	967.4^g	970.4^g	1123.5^b	1120.3^b
	CDTA	Shoot	409.8ⁿ	402.2ⁿ	1208.6^hi	1188.4^ij	1315.6^g	1310.0^g	1572.9^c	1590.8^c
	EGTA	Root	622.5^t	625.4^t	890.1^pq	893.7^op	946.1^hi	945.8^hi	997.3^e	1000.4^e
	EGTA	Shoot	398.4ⁿ	381.4ⁿ	1085.9^kl	1072.4^l	1173.1^j	1191.7^hij	1316.4^g	1300.5^g
Canola	HEDTA	Root	320.4^u	329.4^u	908.2^mn	910.3^m	942.4ⁱ	945.3^hi	1004.1^e	1000.3^e
	HEDTA	Shoot	137.7^o	135.0^o	1207.9^hi	1192.4^hij	1366.4^f	1361.2^f	1415.7^e	1420.4^e
	CDTA	Root	324.1^u	327.1^u	884.6^qr	881.3^r	930.7^jk	932.3^j	984.2^f	982.3^f
	CDTA	Shoot	142.6^o	147.19^o	1105.7^k	1092.8^kl	1219.2^h	1211.9^hi	1328.6^g	1316.2^g
	EGTA	Root	323.9^u	321.5^u	841.3^s	838.1^s	898.5^o	900.1^no	950.4^hi	951.4^h
	EGTA	Shoot	145.7^o	135.0^o	992.7^m	980.5^m	1087.1^kl	1098.1^kl	1216.5^hi	1208.2^hi

^*Data with the same letters in each parameter are not significant (P=0.05).

The application rate of HEDTA chelate had a significant effect on root Pb and Zn concentration; therefore, the use of 3 mM/kg of soil HEDTA chelate two weeks before harvesting resulted in an increase in root Pb and Zn concentrations compared to those of 1.5 mM/kg by 9% and 4%, respectively. The effect of chelate type on root Pb and Zn concentration was also significant; therefore, the highest and the lowest root Pb and Zn concentrations were observed when HEDTA and EGTA applied, respectively. The effect of chelate application time on root Pb and Zn concentrations was also significant (Table 3).

Regardless of chelate type and its application time, plant type played a pivotal role in root and shoot Pb and Zn concentrations; so that the highest and lowest plant Pb and Zn concentrations belonged to sunflower and canola. The highest shoot Zn and Pb concentrations were observed in plants grown on the soil receiving 4.5 mg/kg of soil HEDTA chelate two weeks before plant harvesting (Tables 3 and 4), while the lowest values were in the soil without receiving chelate. The highest and lowest effects of the chelate type on shoot Pb and Zn concentrations were related to the use of HEDTA and EGTA chelate, respectively.

The highest Pb translocation factor (TF) value was observed in the soil treated with 4.5 mM/kg of soil HEDTA chelate two weeks before sunflower harvest (Table 5), while the lowest of that belonged to the soil without receiving any chelate. The Pb TF value was greater in the soil under cultivation of sunflower than canola. Based on the results of the current study, the time factor had no significant effect on Pb TF value. The same trend was observed for Zn TF value in the current study.

Table 5.

Effect of Plant Type and Amount, Type, and Application Time of Chelate on Pb and Zn TF Values

Plant Type	Type of Chelate	Element	M₀T₂	M₀T₁	M_1.5T₁	M_1.5T₂	M₃T₁	M₃T₂	M_4.5T₁	M_4.5T₂
Sunflower	HEDTA	Pb	0.32ⁿ	0.30ⁿ	0.73^def	0.71^efg	0.82^b	0.80^bc	0.90^a	0.88^a*
	HEDTA	Zn	0.64^v	0.63^v	1.43^cde	1.41^ef	1.50^b	1.50^b	1.54^a	1.56^a
	CDTA	Pb	0.33ⁿ	0.31ⁿ	0.65^hijk	0.64^hjk	0.73^def	0.72^defg	0.80^bc	0.81^b
	CDTA	Zn	0.66^v	0.65^v	1.31^jkl	1.29^lmn	1.36^g	1.35^gh	1.40^f	1.42^def
	EGTA	Pb	0.30ⁿ	0.34ⁿ	0.52^l	0.53^l	0.65^hijk	0.66^hij	0.75^de	0.76cd
	EGTA	Zn	0.64^v	0.61^v	1.22^rs	1.20^st	1.24^qr	1.26^opq	1.32^ijk	1.30^kml
Canola	HEDTA	Pb	0.21^o	0.23^o	0.63^jk	0.61^k	0.74^de	0.72^defg	0.83^b	0.82^b
	HEDTA	Zn	0.43^w	0.41^w	1.33^hij	1.31^jkl	1.45^c	1.44^cd	1.41^ef	1.42^def
	CDTA	Pb	0.20^o	0.22^o	0.53^l	0.55^l	0.69^fgh	0.68^ghi	0.74^de	0.76^cd
	CDTA	Zn	0.44^w	0.45^w	1.25^pq	1.24^qr	1.31^jkl	1.30^kml	1.35^gh	1.34^ghi
	EGTA	Pb	0.23^o	0.21^o	0.43^m	0.45^m	0.56^l	0.54^l	0.69^fgh	0.71^efg
	EGTA	Zn	0.45^w	0.42^w	1.18^tu	1.17^u	1.21^s	1.22^rs	1.28^mno	1.27^nop

^*Data with the same letters in each parameter are not significant (P = 0.05).

5. Discussion

Based on the results of the current study, chelate application can play an important role in increasing the availability of heavy metal in soil and, subsequently, uptake them by plant. However, the type and the amount of chelate application are important factors in changing the availability of heavy metal in soil; although, the role of soil physicochemical properties on the availability of soil heavy metals should not be ignored. The bond between organic compounds and heavy metals can prevent heavy metal precipitation and increase the solubility of that in the soil by the formation of organic complexes; although the increase of heavy metals absorption by the plant may reduce the plant biomass (17, 18). Thus, selecting plants that produce high biomass and are capable of heavy metal uptake is a useful method in phytoremediation processes (19, 20). Fatahi Kiasari et al., investigated the effect of sulfuric acid and EDTA chelate on shoot Pb concentration of sunflower and corn and concluded that using EDTA chelate had an important role in increasing plant Pb concentration and can remediate Pb-polluted soil that confirm the current study results clearly. They also reported that plant biomass significantly decreased with increasing shoot heavy metal concentration (21) that is similar to the current study results (data not shown). Mehmood et al. reported the similar results that were in agreement with those of the current study (22). Baghaie investigated the effect of EDDS chelate on increasing Cd phytoremediation efficiency by corn (Maxima Cv) in a soil treated with municipal waste compost and concluded that applying EDDS chelate had significant effect on remediation of Cd-polluted soil. However, the role of soil physicochemical properties in the available concentration of heavy metals was not investigated (17). The study by Abbas and Abdelhafez reported that using chelate had a significant relationship with increasing the concentration of heavy metals in the biomass of the aerial parts of corn plant (23).

It is noteworthy that adding chelate to the soil may increase the solubility of heavy metal and, thereby, transferring it to the groundwater (24, 25). Thereby, the role of chelate application on increasing heavy metal concentration in soil should be constantly investigated; although the concentration of heavy metals in soil is highly dependent on the soil physicochemical properties and the type and amount of contaminating element. As mentioned earlier, the highest and the lowest soil Pb and Zn availability and subsequent uptake by plant were related to the HEDTA and EGTA chelate, respectively, which is related to the strength of the bond between chelate and heavy metal. On the other hand, free chelate can enter the root and, subsequently, form metal complexes, which enhance metal transport to shoots (26, 27). Chelating agents are a group of components that accelerate the release of heavy metals bonded to the solid parts of the soil and are not in the form that can be absorbed by plants due to the disruption of the solid and liquid soil phases’ equilibrium and can increase the availability of heavy metals by forming bonds with heavy metals. Thereby, uptake of heavy metals by plants increases (28-30).

Although the type, the time, and the rate of chelate application to the soil may affect soil heavy metal availability, the results of the current study showed that the application time of chelate had no significant effect on the availability of heavy metal; perhaps it needs more time that requires further investigation.

In addition to the chelate chemical characteristics, plant physiological properties also played an important role in making changes in the TF value of heavy metals; therefore, the Pb and Zn TF values were greater in sunflower compared to canola. Plant root exudates are important sources of amino acids (AA) in soil solution. The concentration of AA in the soil solution is often much higher than those of heavy metals. Therefore, AA can also form stable complexes with metal cations via their carboxylic and amine groups, and increase the solubility of heavy metals in soil (31).

It should be noted that in the studied treatments, the Pb TF values were < 1, indicating that the Pb accumulation was higher in the root (32). Although using chelate can help to remediate contaminated soil by increasing the availability of soil heavy metals and TF value, the type and the amount of chelate play an important role in Zn TF value, since the highest and lowest Zn TF values were related to HEDTA chelate and EGTA chelate, respectively. Jahanbakhshi et al. reported that plant root exudate can increase availability of heavy metal in soil and, thereby, increase phytoremediation efficiency (33). Askari et al. also reported similar results (34).

Since using HEDTA chelate had the greatest role in increasing the availability of Zn in soil, it can be concluded that chelate application can establish a strong bond with Zn to form a soluble complex that helps remediation of Zn-polluted soil. According to Table 5, the TF value of Zn is > 1 suggesting that Zn was readily transported from roots to shoots. In this regard, Nikseresht et al. reported similar results that confirmed the current study findings clearly (35). Adesodun et al. assessed the phytoremediation potential of sunflowers for metal in Zn-contaminated soil and concluded that sunflower is a suitable plant to remediate Zn-polluted soil due to its high TF value (36). Choram and Alizadeh investigated the effect of EDTA chelate on increasing the phytoremediation efficiency and concluded that high application of chelate can increase the TF value of heavy metal (37) that was similar to the current study results.

5.1. Conclusions

Based on the current study results, using HEDTA, CDTA, and EGTA chelate in the soil significantly increased the availability of Pb and Zn in soil. The greatest soil and plant Pb concentration was found with applying 4.5 mM/kg of soil HEDTA chelate. In addition, the chelate application caused a significant increase in Pb and Zn value. However, the TF value of Pb was < 1. According to the results of the current study, chelate application time had no significant effect on Pb and Zn TF values. It is necessary to consider the soil physicochemical properties due to their important roles in the concentration of heavy metal in soil in future studies. In addition, the effect of temperature and season on phytoremediation efficiency should be investigated in the field studies.
