1. Background
During the past decade, the patterns of diseases generated by Shiga toxin-producing Escherichia coli (STEC) strains have changed from a clinical novelty to a global public health problem. This group of E. coli strains can cause a spectrum of human diseases, ranging from symptom-free carriage to severe bloody diarrhea and even life-threatening disorders, such as hemolytic-uremic syndrome (HUS) and hemorrhagic colitis (HC) (1-4). The infections caused by the STEC strains have been reported from over 30 countries where E. coliO157:H7 strain has been the most common serogroup. Furthermore, the prevalence of foodborne diseases due to consumption of contaminated foods and/or water has increased worldwide (5, 6).
Among the contaminated foods, fresh fruits and vegetables have been increasingly recognized as a source of foodborne outbreaks in many regions of the world (6-8). Although, the outbreaks of the diseases attributable to STEC strains have been associated with consumption of raw vegetables; the epidemiological investigations implicated lettuce as the most likely source of the outbreak (9-11). As examples, large STEC-related outbreaks due to consumption of lettuce were observed in Sweden and Spain, where association was found between outbreaks caused by E. coliO157:H7 strain and the consumption of lettuce (10, 11).
Among the reservoirs of these pathogenic E. coli strains, cattle may be considered as a principal source, because the studies on the prevalence of E. coliO157:H7 in cattle feces have shown a wide variety of positive cases in different countries (12-14). The way by which these groups of pathogens can spread over the farm lands may be the ubiquitous employment of bovine manure in the agriculture (15). Fresh vegetables can be contaminated by these strains through bovine manure, irrigation with contaminated or waste water, and further contact with infected animals and/or humans (16, 17). We have previously shown the importance of STEC in diarrheal diseases of both Iranian children and adults (18).
2. Objectives
The main purpose of this study was to detect the presence of STEC in lettuce samples collected from Tehran, Iran and to evaluate the antibiotic resistance patterns of the isolates. The extensive use of lettuce as a raw vegetable in homemade meals and restaurants served as a prime motivator for inspection of the prevalence and the genotype distribution of STEC in the lettuce samples.
3. Materials and Methods
3.1. Sample Collection and Bacterial Culture
One hundred lettuce samples were collected weekly from various farm lands in Tehran between June and September 2011. Every sample was packed in a separate stomacher bag (Interscience, France) and transported (in ice) to the laboratory, where they were immediately processed by a stomacher instrument (Bag Mixer400 VW, Interscience, France). Enrichment and processing of the samples were carried out according to previously described protocols (7). Briefly, 25 g of each sample was homogenized by the stomacher in its bag containing 225 mL E. coli broth (EC) medium (Merck, Germany), supplemented with 0.05 mg/L cefixime (Daana Pharmaceutical co., Iran). This antibiotic enhances the enrichment of STEC strains.
After overnight incubation at 37°C, a portion of the mixture was spread over a MacConkey agar plate (Merck, Germany) and was further incubated at 37°C overnight. A sweep from the semi-confluent area of the plate was used for DNA extraction for polymerase chain reaction (PCR) detection of STEC. The STEC-positive samples were subjected to further isolation processes of STEC, further PCR and antibiotic susceptibility tests.
3.2. DNA Extraction and Polymerase Chain Reaction Assay
Prior to detection of the strains by PCR, the DNA was extracted from the bacteria on the culture plates according to the previously described protocol with some modification (18). Briefly, one heterogenic loopful of the grown bacteria from the first area of the MacConkey agar plate was taken and homogenized in 25 µL distilled water in a 1.5-mL microtube. The resulting suspension was placed in a boiling water bath at 100°C for 10 minutes and centrifuged at 15000 rpm for five minutes in a microcentrifuge (Peqlab, Germany). The supernatant containing bacterial DNA was transferred to a new tube and processed for PCR detection of the stx1, stx2 and eaeA genes.
The information related to the oligonucleotide primers (Faza Biotech, Iran) are shown in Table 1. The PCR was performed in a reaction volume containing 5 μL of the extracted DNA, 2.5 μL PCR buffer (10x), 0.5 μL deoxynucleoside 5-triphosphate, 0.5 μL of each primer, 0.25 μL Taq DNA polymerase 500 U (5 U/μL), and 1.5 μL MgCl2 (20 mM) (CinnaGen Co., Iran), adjusted to a total volume of 25 μL with sterile deionized water. The reaction was carried out by an amplification thermal cycler (Peqlab, Germany). The procedure consisted of initial denaturation at 96°C for minutes, followed by 32 cycles of template denaturation at 94°C for 20 seconds. The annealing and extension conditions were variable for each gene (Table 2). The final cycle was followed by incubation of the reaction mixture at 72°C for six minutes.
The PCR products were analyzed by electrophoresis on 1.5% agarose gel. The results were compared with those of ATCC standard strains of E. coli ATCC 43890 (stx1), E. coli ATCC 43889 (stx2) and E. coli ATCC 43887 (eaeA). E. coli ATCC 11775 was included as a negative control in all the assays.
| Target Gene | Forward Sequence (5' to 3') | Reverse Sequence (3' to 5') | PCR Product Size, bp | Reference |
|---|---|---|---|---|
| stx1 | GAAGAGTCCGTGGGATTACG | AATAATTATCGACGTAGCGA | 130 | (19) |
| stx2 | ACCGTTTTTCAGATTTTGACACATA | TGACAGACTTTGACGAGGACACAT | 294 | (20) |
| eaeA | GTGGCGAATACTGGCGAGACT | TAAATCCACGCCCAGTCGCAAAAA | 890 | (21) |
| rbfO157 | AAGATTGCGCTGAAGCCTTTG | GACAGGTGCTACGGTTAC | 497 | (22) |
| fliCh7 | GCGCTGTCGAGTTCTATCGAGC | CCTTACCGCTATTTCAGTGGCAAC | 645 | (21) |
The Sequences of the Oligonucleotide Primers Used in This Study a
| Target Gene | Temperature, °C | Extension Time, s |
|---|---|---|
| stx1 | 54 | 10 |
| stx2 | 59 | 18 |
| eaeA | 54 | 54 |
| fliCh7 | 68 | 22 |
| rbfO157 | 61 | 30 |
Temperatures and Primer Extension Times for the Target Genes
3.3. Isolation and Identification of Escherichia coli
After reculturing the PCR-positive samples, the single lactose positive colonies grown on the fourth area of the MacConkey agar plates, suspected to be E. coli, were subjected to another culture on MacConkey agar plates. The pure cultures were further processed for DNA preparation and screening by PCR; so, they were isolated as the final colonies containing stx1, stx2 and/or eaeA. All the PCR-positive strains were subjected to biochemical tests including triple sugar iron agar (TSI), sulfide indole motility (SIM), citrate agar, and methyl red and Voges-Proskauer (MRVP) to confirm the identification of E. coli strains. Finally, the possible presence of O157:H7 in the isolated strains was investigated through PCR for the presence of rbfO157 and fliCh7 genes.
3.4. Antibiotic Susceptibility Test
In addition to assessment of genotype diversity, a phenotypic analysis was implemented. For this purpose, the isolated strains were tested against seven groups of antibiotics (HiMedia Laboratories Co., India) including amino-penicillin (ampicillin), carbapenem (imipenem), the first through fourth generations of cephalosporins (cephalothin, ceftazidime, ceftriaxone, and cefepime), tetracycline, aminosides/aminoglycosides (gentamicin, amikacin, kanamycin, streptomycin), phenicol (chloramphenicol), and quinolones (ciprofloxacin, norfloxacin), using the standard disk diffusion method (24). The contents of the antibiotic disks are shown in Table 3.
4. Results
4.1. Polymerase Chain Reaction Assay
Among the 100 lettuce samples investigated, 8 (8%) were positive for presence of the stx1 and stx2 genes and were defined as STEC. Of the eight STEC strains, three specimens contained stx1 and five contained stx2, of which, one sample was positive for the presence of both rbfO157 and fliCh7. All the positive samples were isolated from the samples collected from the southern farm lands in the warmer (the second) half of summer. The PCR screening analyses for detection of the eaeA gene were negative for these STEC strains. The agarose gel images of the PCR products for stx1, stx2, rbfO157 and fliCh7 are shown in Figures 1, 2, 3 and 4.

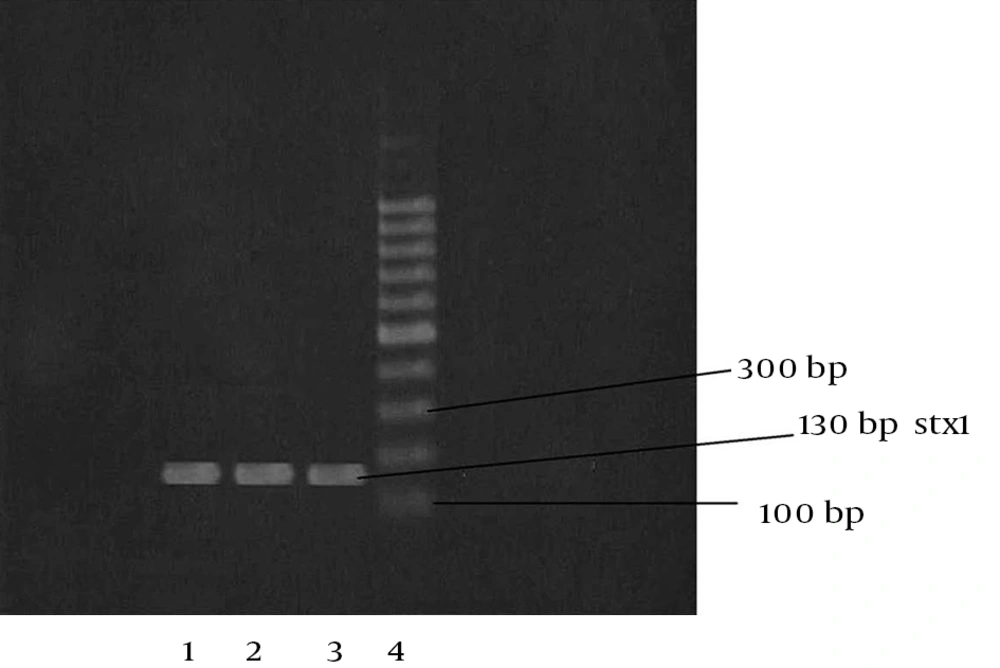

1, Standard; 2 and 3, positive samples for the stx1 gene (130 bp ); 4, DNA ladder (100 bp).

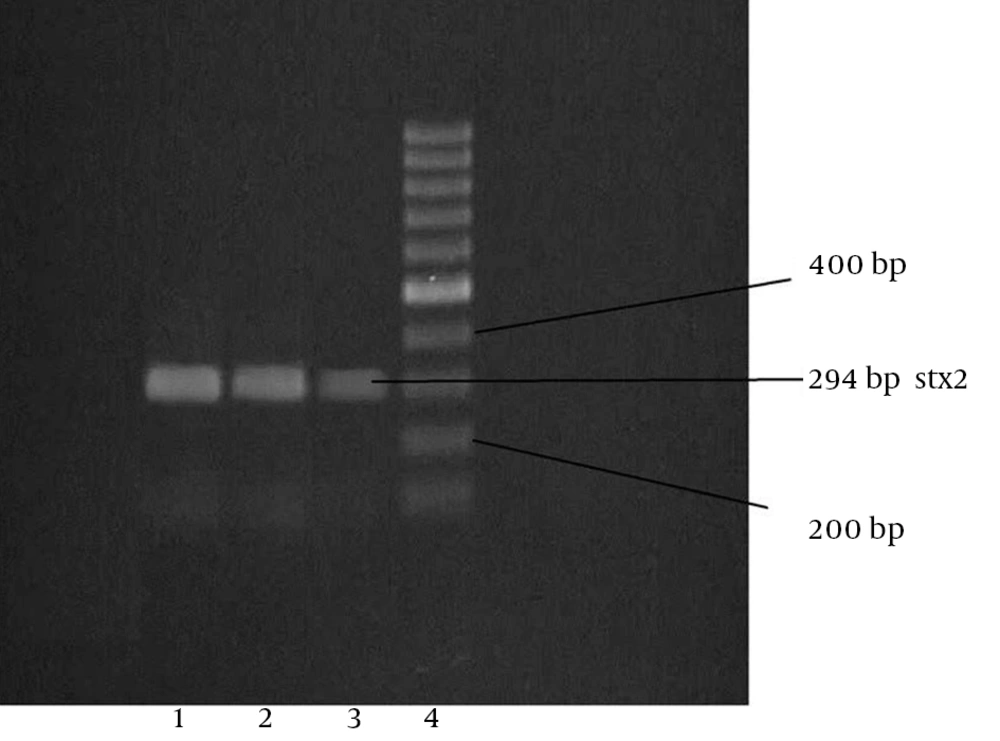

1, standard; 2 and 3, positive samples for the stx2 (294 bp) gene; 4, DNA leader (100 bp).

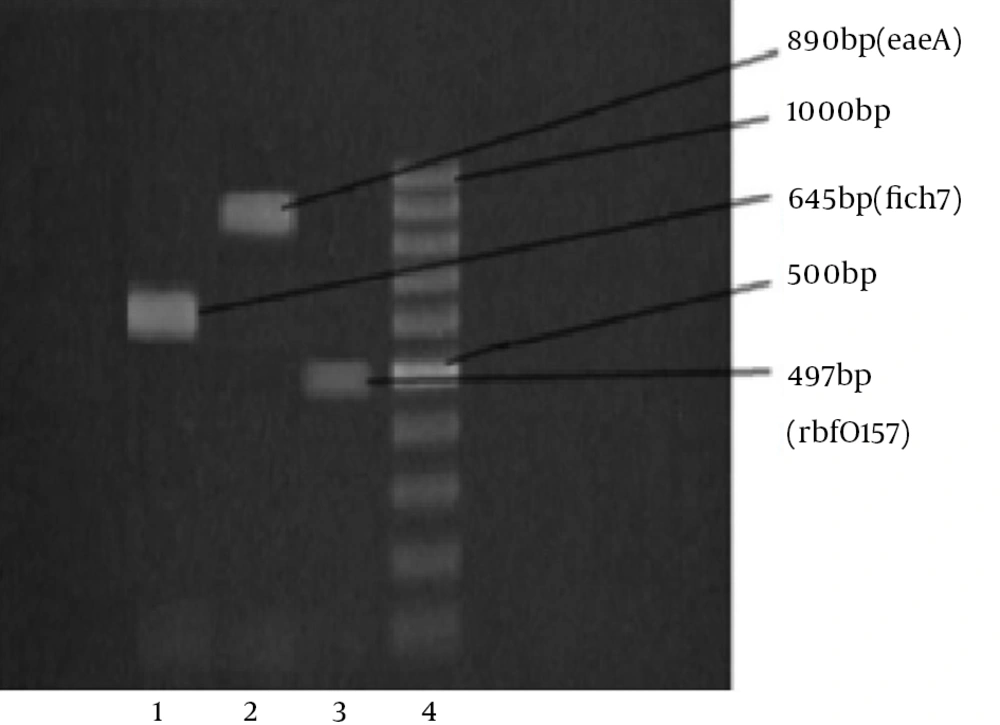

1, positive sample for the fliCh7 gene (654 bp); 2, positive sample for the rbfO157 gene (497 bp); 3, positive sample for the eaeA gene (890 bp); 4, DNA ladder (100 bp).

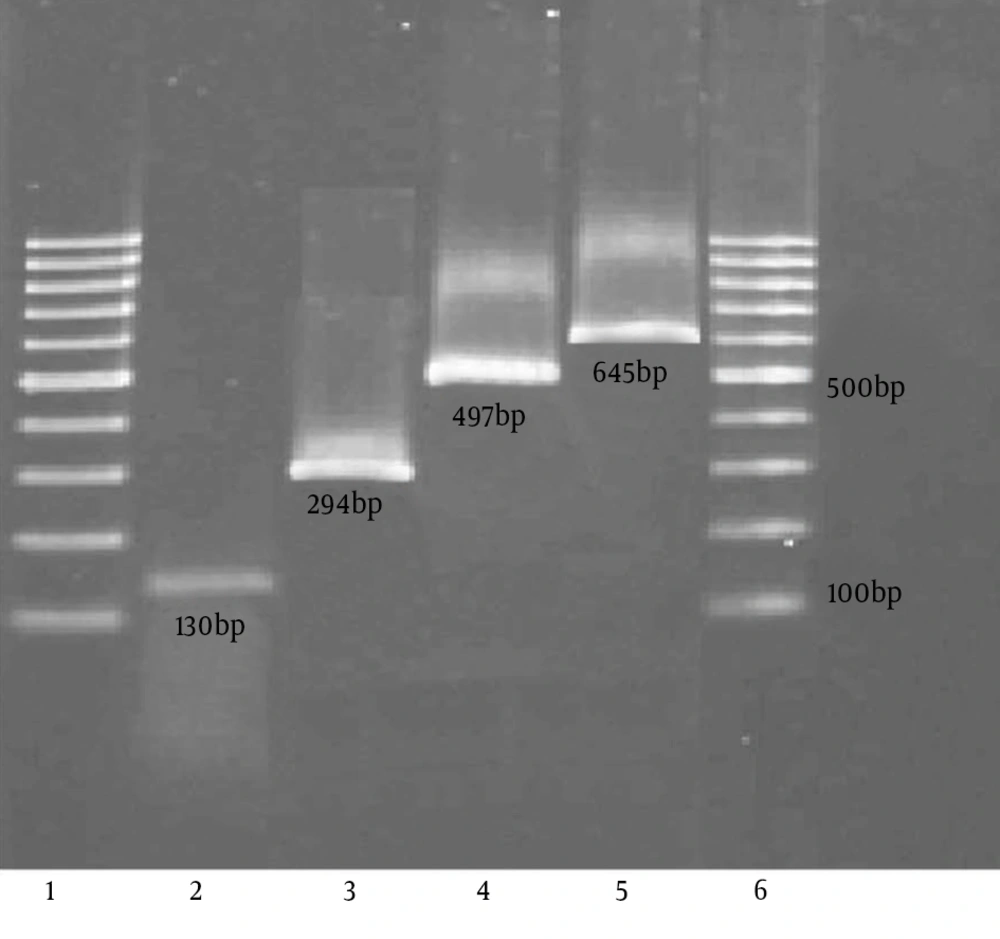

2, stx1 (130 bp); 3, stx2 (294 bp); 4, rbfO157 (497 bp); 5, fliCh7 (645 bp); 1 and 6, DNA ladder (100 bp).
4.2. Antibiotic Susceptibility Test
The two independent susceptibility tests implemented revealed that the isolates were susceptible to all the antibiotics except for tetracycline and ampicillin. Results of the antibiotic susceptibility test are shown in Table 4.
| No. | Antibiotic Strain | TET | CF | FEP | CAZ | K | C | AM | ST | IMP | CRO | GM | AN | CP | NOR |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | stx1+ | 11 R | 24 S | 16 S | 29 S | 24 S | 27 S | 6 R | 16 S | 18 S | 27 S | 18 S | 20 S | 23 S | 20 S |
| 2 | stx1+ | 12 R | 23 S | 17 S | 30 S | 22 S | 26 S | 7 R | 17 S | 23 S | 29 S | 20 S | 21 S | 25 S | 21 S |
| 3 | stx2+ | 14 R | 20 S | 36 S | 34 S | 24 S | 27 S | 9 R | 16 S | 20 S | 23 S | 20 S | 18 S | 24 S | 18 S |
| 4 | stx2+ | 11 R | 18 S | 34 S | 30 S | 22 S | 25 S | 6 R | 16 S | 21 S | 24 S | 17 S | 20 S | 24 S | 20 S |
| 5 | stx2+ | 12 R | 19 S | 35 S | 28 S | 24 S | 26 S | 8 R | 17 S | 20 S | 23 S | 18 S | 21 S | 25 S | 22 S |
| 6 | stx2+ | 11 R | 20 S | 32 S | 32 S | 20 S | 24 S | 8 R | 16 S | 18 S | 24 S | 18 S | 22 S | 22 S | 18 S |
| 7 | stx2+ | 13 R | 20 S | 36 S | 34 S | 24 S | 27 S | 9 R | 17 S | 22 S | 27 S | 20 S | 17 S | 23 S | 19 S |
| 8 | O157:H7 | 12 R | 24 S | 36 S | 30 S | 24 S | 25 S | 7 R | 15 S | 21 S | 26 S | 21 S | 21 S | 24 S | 20 S |
Results of Antibiotic Susceptibility Test a
5. Discussion
As the highest prevalence of E. coli bacteria can be observed in summer, all the samples were collected during this season. Assessment of the 100 lettuce samples purchased from the farm lands in Tehran indicated that 8% of the samples were contaminated with STEC strains. This was the first study providing an evidence for contamination of lettuce samples by STEC strains in Tehran, the capital of Iran. The samples were put in E. coli broth medium supplemented with cefixime and then incubated at 37°C for 24 hours for proliferation of the pertinent bacteria. This enrichment is critical as the bacteria are stressed under sampling and transformation conditions. Besides, the use of cefixime and the favored environment of the broth allow the growth of particular types of bacteria. Isolation of the strains of interest was made by PCR as a fast, convenient, and highly precise method. Moreover, it was a proper choice because several types of bacteria were present in these samples.
Detection of both stx1 and stx2 genes along with one O157:H7 strain confirmed the effectiveness of the PCR analysis protocol used in this study. The advantage of this PCR screening method was its remarkable potential for detection of STEC strains in a complex mixture before any purification and obtaining of the isolated colonies. The applied colony screening enabled a reliable assessment of antibiotic resistance and sensitivity because all the impurities and interactions caused by unwanted strains can be excluded by this procedure. Several investigators have assessed the epidemiology of STEC strains in both developed and developing countries (20, 21, 23-30). The results obtained in those studies have revealed that overall, consumption of some raw vegetables and food such as hamburger and apple juice could be the plausible sources of STEC strains. In most of the cases, however, the consumption of raw vegetables such as lettuce has been indicated as the principal source of STEC strains (24, 25).
We have previously studied the frequency of STEC strains in parsley and leek samples collected from Tehran, where we found that 25% of the samples contained STEC strains, of which 1% was O157:H7 (31). The isolation rate of STEC in the lettuce samples in the present study was lower than that of the parsley and leek. This low isolation rate may be ascribed to the presence of a higher number of other microbial species or E. coli strains in the lettuce samples in addition to STEC strains.
It may also be due to the sampling mode, as higher rates of STEC could be obtained if more than one geographical area was used for sampling. Indeed, the relatively low rates of STEC strains in these samples could be ascribed to the official health protection policies enforced in this area, regarding the prohibitive legislations and monitoring on the utilization of municipal or industrial waste waters as well as urging the use of chemical fertilizers instead of natural fertilizers. In addition, our positive samples were originated from the farm lands where a wider use of bovine manure was applied for soil nourishment and use of sewages was also applied for watering in some cases. The isolation of one O157:H7E. coli strain in the present study (1% of all the samples) suggested that this strain survived well in the unfavorable natural conditions of the lettuce samples along with a mixture of other microbial species. Similar studies, conducted in Ireland and Norway, have shown no positive results on detection of O157:H7 strain in local lettuce samples (15-17).
Using a PCR primer conceived for the eae gene detection (21), no positive result was obtained in this study. The presence of various eae genes among STEC strains encoding the intimin types and subtypes have been demonstrated earlier (26, 27). Hence, the negative result of this work upon analysis for this strain while testing only one pair of primers may also be related to the variability of the eae genes among E. coli strains. STEC strains isolated in this investigation were all resistant to tetracycline and ampicillin, a finding in accordance with earlier studies performed in Iran (28, 29). For example, Fazeli and Salehi reported that 85.6% of their isolates showed resistance to tetracycline (28).
Jafari et al. also noted a high rate of resistance to amoxicillin and tetracycline among STEC strains with an observed 5% multi-resistance to more than six antibiotics (29). In other areas such as Romania and India, resistance to ampicillin and both ampicillin and tetracycline has also been reported (30, 32). The presence of multi-resistance among the STEC strains isolated from lettuce may be important from the standpoint of transferring the resistant genes to the human microflora, because multidrug resistance may easily be transferred via the mobile genetic elements of E. coli strains (33). As a conclusion, the results of this investigation indicated the possible role of lettuce samples in transmission of STEC strains. It also suggested the presence and/or increase of antibiotic resistance genes among STEC strains isolated in Iran.
