1. Background
Influenza viruses are segmented, negative-strand RNA viruses belonging to the family of Orthomyxoviridae and they are divided in three major types, A, B, and C (1). All three types of influenza are found in humans, but only the Influenza type A viruses are found in birds and are called “avian influenza (AI) viruses”. Type A influenza viruses are divided into subtypes based on the antigenic properties of the major surface glycoproteins: the hemagglutinin (HA) and neuraminidase (NA) proteins. In total, 16 HA sub types (H1–H16) and nine neuraminidase subtypes (N1–N9) are described at present (1). H9N2 virus shares similar receptor binding epitopes with human influenza viruses, witha broader host range, and human infections have been reported. In addition, the latency of H9N2 AIV infection in chickens caused this infection to be easily overlooked and increases the chance of human infection.
Although AI vaccines have been effective in providing protection against clinical signs and death among poultry (2-4), they are not commonly used as part of control and eradication programmes of LPAI or HPAI virus infections (3). For a number of reasons, including the concerns over poultry and poultry products trade embargoes, quarantine and elimination of infected flocks (i.e. stamping out or controlled marketing) are often desirable measurements to control AI. An additional limitation is that traditional AI virus vaccines can interfere with serologic surveillance; hence, these vaccines induce antibodies that are indistinguishable from the antibodies produce in live virus infected birds, as determined by commercial enzyme-linked immunosorbent assays (ELISAs), and hemagglutination inhibition assays (HAI) (5, 6). Therefore, the efforts have been focused on developing new serologic tools to allow differentiation of infected from vaccinated animals, which is commonly known as the DIVA strategy.
For international commerce of vaccinated birds, the DIVA strategy needs to not only differentiate infected and vaccinated birds, but also to identify vaccinated AIV infected birds. Several different DIVA strategies have been proposed (7), some of which require appropriate vaccines and specific companion serologic discriminatory tests (8-12). This sort of strategy is important to provide a guarantee to trading partners to safely trade influenza free poultry products. The DIVA strategy has been accepted by some European countries in as an approach to monitor and provide assurance to the infection-free status of vaccinated poultry during an LPAI outbreak (7, 13). One potential target for the DIVA strategy for avian influenza virus is the nonstructural (NS1) protein. The NS1 protein is encoded by the smallest gene segment of influenza virus, segment 8, and which has a critical role in suppression of interferon induction in the host cells that increases the virus replication efficiency (14). The NS1 protein is a conserved protein amongst type A influenza viruses, but it compromises of two major subtypes, A and B, which differ by about 35% of nucleotides (15).
The NS1 protein is produced during influenza virus replication in infected cells (12, 16), but it is not packaged into the infectious viral particle, being a true nonstructural protein. Because most AIV vaccines are mostly chemically inactivated, vaccinated animals theoretically should not express humoral response to the NS1 protein, but infected poultries secret anti NS1 antibodies at high levels. This NS1 DIVA approach was first proposed for equine influenza viruses management, and purified NS1 protein was used to detect antibodies against NS1 in serum samples from ponies and horses experimentally infected with influenza virus (16, 17). Serologic studies on chickens and turkeys using an ELISA with AIV NS1 protein produced in Escherichia coli as antigen indicated that infected birds showed higher levels of NS1 antibody as compared to vaccinated birds (12, 18).
2. Materials and Methods
2.1. Chickens
A total of 300 day-old broiler chicks (Ross 308) were provided. All chickens were housed in 3 different places and breed under high standard condition.
2.2. Virus
The AI viruses used in this study (A/Chicken/Iran/AH-1/06), subtype H9N2 were isolated from a broiler chicken flock in Ahvaz, with respiratory signs and mortality. These viruses were initially isolated in 10-day-old embryonated chicken eggs (ECE). They were sub typed by standard hemagglutination-inhibition and neuraminidase-inhibition tests with polyclonal chicken antisera. The viruses were passaged in ECE and the allantoic fluids were harvested as stock viruses for further analysis.
2.3. Vaccines
AIV vaccine consisting of inactivated commercial AI vaccines, subtypes H9N2.
2.4. Experimental Design
The chickens divided into three equal groups (1 to 3) .The chicks in groups 1 were immunized subcutaneously with AIV H9N2inactivated virus in neck. The chicks in groups 2 were intra nasally infected with infectious 0.2ml allantoic fluid. The chicks in groups 3 were kept as control group and did not receive vaccine or live virus. Chicks sera were collected at day 42 used in ELISA test design.
2.5. Production and Purification of Recombinant NS1
Coding region of NS1 gene of avian influenza virus isolate (A/Chicken/Iran/AH-1/06), serotype H9N2 from a broiler chicken flock in Ahvaz, with respiratory symptomsand mortality, was amplified using RT-PCR and was expressed in BL strain of E.coli after cloning in pMAL-C2X vector. For this purpose, several nucleotide sequence of the NS1 coding region (from nucleotide 27 to 680) of avian influenza virus subtype H9N2 were extracted from the Gene bank and the required primers were designed. The NS1 gene was subsequently amplified by RT – PCR. The vector, pMAL-C2X and the amplified NS1 gene, both were digested by Eco RI and PstI and ligated by T4 ligase. The recombinant construct was transformed into BL strain of E.coli and finally the purified recombinant vector and used for expression of NS1 protein. Viral ribonucleic acid (RNA) was extracted. A pair of primers was designed according to the sequence of the influenza virus nonstructural protein (NS1) and a 654 base pair (bp) gene segment was amplified by reverse transcription-polymerase chain reaction (RT-PCR) with the template of influenza virus (H9N2) isolated.
NS1-specific primers forward: 5´-GCCGGAATTCATGGATTCCAACACTGTG-3´
NS1-specific primers reverse: 5´-GCCCCTGCAGCTACTTTGGAGAGAGTGT- 3´
The amplified DNA fragment sequences were searched in GenBank by using the basic local alignment search tool (Bioedit).to express the protein, E.coli clones of pMAL-C2X with the NS1 inserts were grown in LB broth, supplemented with glucose and 100 µg of ampicillin per mL at 37°C in a shaking incubator at 250 rpm. Isopropyl-D-thiogalactopyranoside (1mM) was added to the culture (LB broth, supplemented with glucose and 100 µg of ampicillin) with an absorbance of 0.5 aOD 600 nm and the tubes were incubated for an additional 3 h. The culture fluid was centrifuged at 6000g for 10 min at 4°C in an SLA-3000 rotor in a Sorvall RC 5B plus centrifuge. The supernatants were discarded, and the cells were re-suspended in buffer containing 20 mM Tris-HCl (pH 7.4), 200 mM NaCl, and 1 mM EDTA. The cell pellet was thawed and lysed by sonication on ice at 15 W in 20 s pulses. The lysate was centrifuged in a Sorvall SLA-1500 rotor at 18000g for 30 min at 4°C.
2.6. Chromatography
The lysate supernatant was loaded on to the amylose affinity resin in a Kontes column (10 by 1.75 cm). The column was washed with 2 volumes of column buffer, and the MSB-NS1 fusion protein was eluted with column buffer plus 10 mM maltose. The fractions containing purified protein were collected, aliquoted, and stored at -80 ºC.
2.7. SDS-PAGE and Western Blotting Assay
The purified protein was analyzed by 10% SDS-PAGE, identified either by dying directly with Coomassie brilliant R250 or transferred to nitrocellulose membrane for Western blot detection. The membrane was blocked over night at 4 ºC in PBS- Tween containing 5% skim milk Subsequently, the primary serum antibody of chickens infected with H9N2 AIVincubated for 1 h at room temperature.
2.8. ELISA for NS1 Detection
Serum samples were diluted in titer tubes 1 day before the test. The diluent serum consisted of 5% (wt/vol) nonfat skim milk containing 2% normal E.coli cell lysate in PBS-Tween. The E.coli cell lysate was removed from the serum diluent used onNS1 peptide-coated ELISA plates. E. coli cell lysate were added to the diluent serum to eliminate nonspecific reactions. The optimum dilution concentration of theNS1 protein for the ELISA test was obtained by checkerboard titration on a 96-well ELISA plate against known positive and negative samples. The highest antigen dilution that saturated the plate and gave maximum contrast in terms of optical density (OD) between known positive and negative sera considered as the optimum dilution concentration. The optimum considered dilution was the highest antigen dilution that saturated the plate and gave maximum contrast in terms of optical density (OD) between known positive and negative sera.
The experimental serum samples with the dilution of 1:400were determined to produce an optimal level of sensitivity for detection of positive serum samples with low background in negative samples. Indirect ELISA was performed using the following procedure. Ninety-six well ELISA plates were coated with 0.299µg/well purified NS1 protein diluted in 100µL of coating buffer (0.1M carbonate/bicarbonate buffer, pH 9.6) per well. After an overnight incubation, the plates were three times washed by PBS with 5% Tween, and the wells were blocked with 300µL blocking buffer (PBS with 5% skim milk) and incubated for 2 h at 37 ºC. The plates were washed four times by PBS with 5% Tween. Each test sample was 1:400 diluted in Sample Dilution Buffer (The serum diluent for the recombinant NS1 protein, ELISA consisted of 5% (wt/vol) nonfat skim milk containing 2% normal E.coli cell lysate in PBS-Tween) and 100 µL were added to the ELISA plate and incubated for 1 h at 37 ºC.
The plates were washed four times by PBS with 5% Tween .peroxidase–conjugated to the goat anti-chicken antibodies 1:10000 diluted in conjugate diluent Buffer (0.5% (wt/vol) nonfat skim milk containing 1% rabbit serum in PBS- Tween) and 100 µL were added to each well and incubated for 1 h at 37 ºC. The plates were washed four times by PBS with5% Tween. After extensive washing, 3,3,5,5-tetramethyl benzidine (TMB; Sigma)was added as substrate. the reaction was stopped with 1M HCl at room temperature, for 15min in a dark room.. Absorbency measurement was performed at 450 nm using a microplate reader (Milton Roy, England). The cut-off value was calculated from the result of 96 sera of control chickens using the optical density formula (OD) (2 X mean OD). A serum sample was considered positive when its OD was greater than the cut-off.
2.9. Commercial ELISA
We performed Commercial ELISA assay in u-bottomed 96-well microtiter plates with commercial ELISA kit(IDEXX comanufactured in United States.).
2.10. Hemagglutination Inhibition Assay (HAI)
Beta procedure of hemagglutination inhibition (HAI) assays was performed in U-bottomed 96-well microtiter plates with 5% chicken erythrocytes (19).
2.11. Sensitivity and Specificity of NS1-ELISA
The 180 serum samples of immunized chickens and infected chickens were all positive by HI assay. With rNS1-ELISA, 84 out of 90 samples from infected chickens were positive and six samples were negative, and all 90 immunized samples were negative .Using HI assay as the orientation method, the sensitivity of the rNS1-ELISA was 93.3% (84 from 90) and its specificity was 100 % (90 from 90).
3. Results
3.1. Preparation of Recombinant NS1
The NS1 gene was cloned into a prokaryotic vector pMAL-c2X and expressed in E. coli as the production of inclusion body. The expression product was about 66.4 kDa using SDS-PAGE (Figure 1). The protein was purified from inclusion bodies and was subjected to Western blotting analysis using chicken H9N2 AIV antiserum and goat-anti-chicken secondary antibody. A single 66.4 kDa band was detected in the lysate of E. coli containing pMAL-c2X-NS1 (Figure 2, lane 2), while there was no detectable band in the lysate of E. coli containing the vector plasmid (Figure 2, lane1). Fractions 1-10 harvested from chromatography used as antigen for ELISA-NS1 test (Figure 3, lane 1-10).

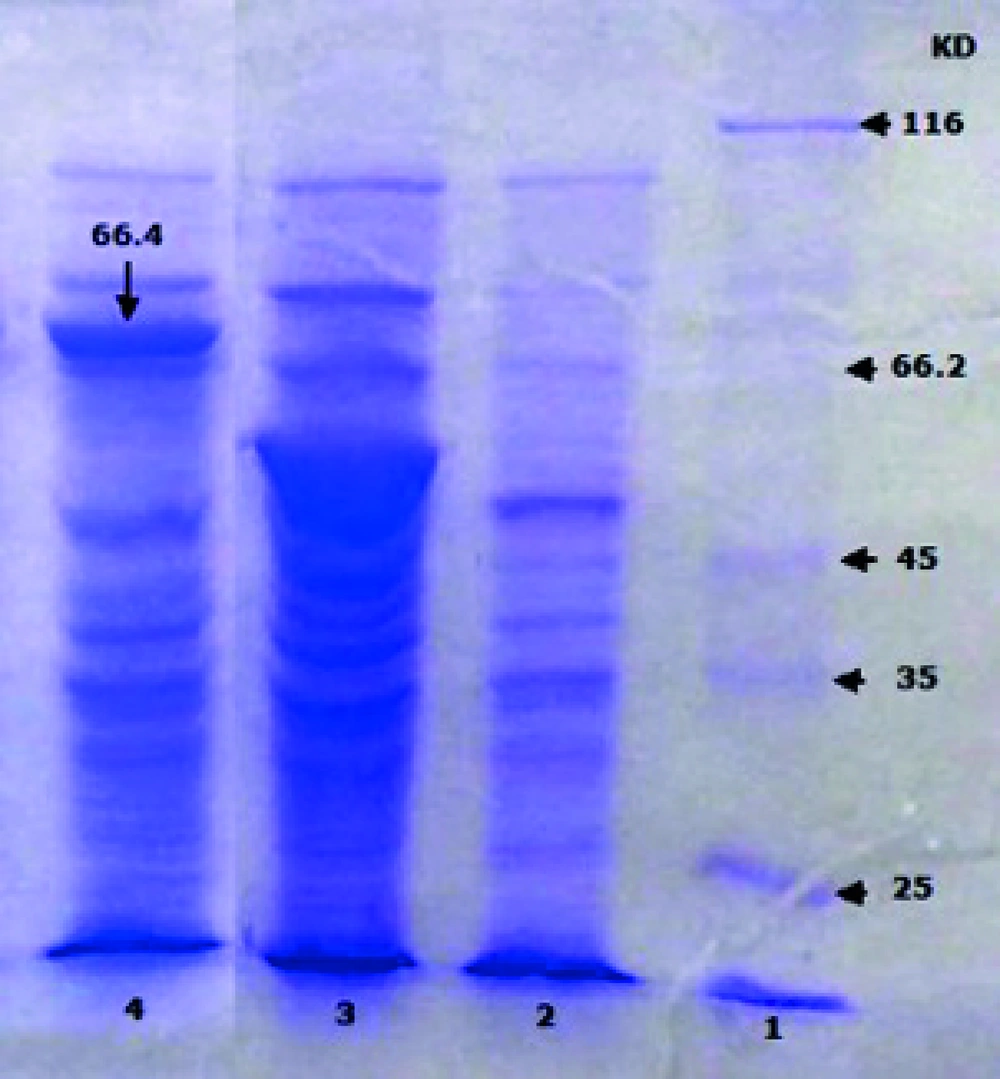

Figure 1.
Lane 1, protein molecular weight markers; lane 2, pMAL-c2X vector before inducedbyIPTG; lane 3, pMAL-c2X vector after induced by IPTG. lane 4, pMAL- c2X -NS1 expressed in E. coli.

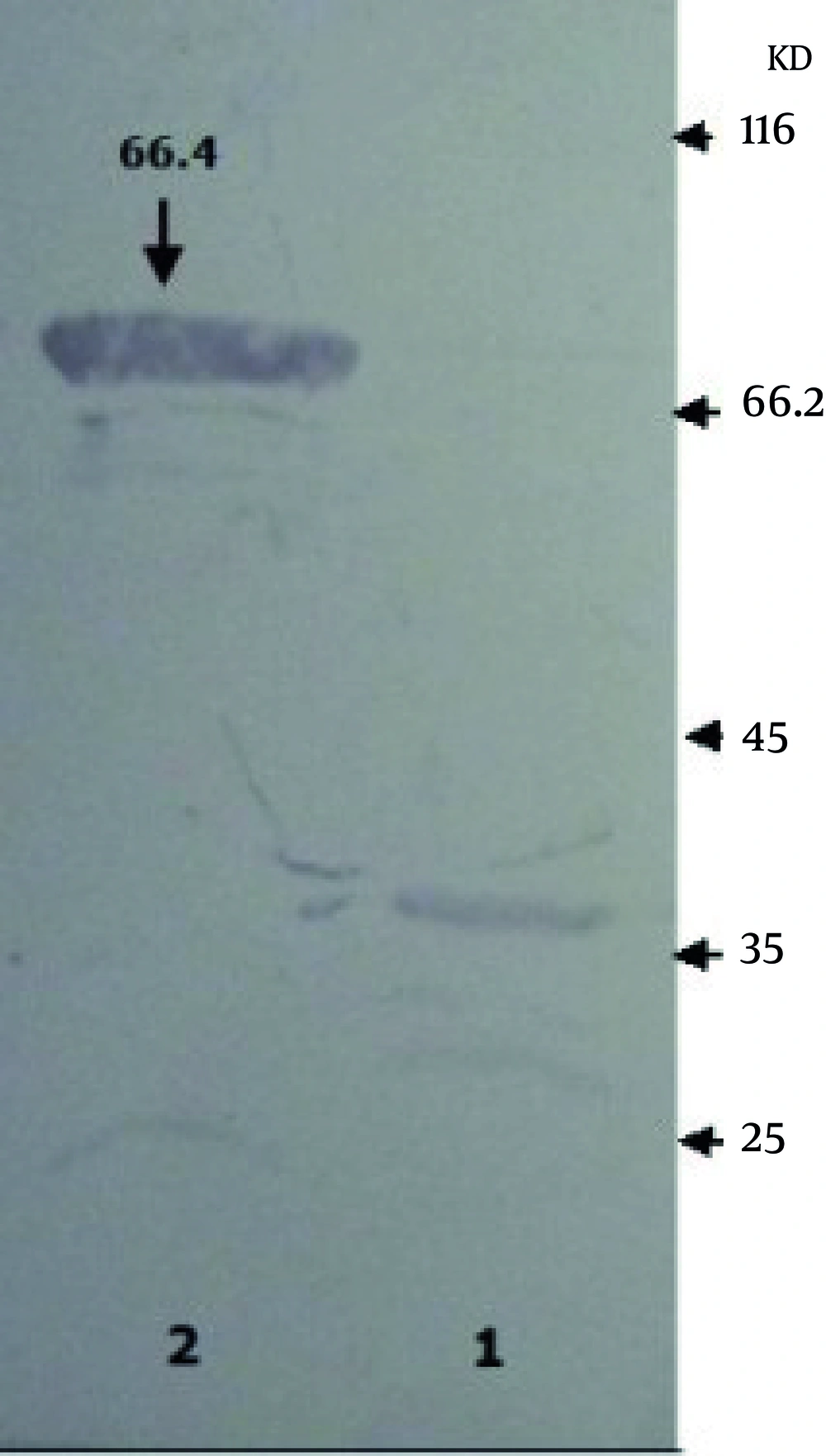

Figure 2.
Lane 1, control of pMAL-c2X vector; lane 2, amplified protein of pMAL-c2X-NS1 induced by IPTG.

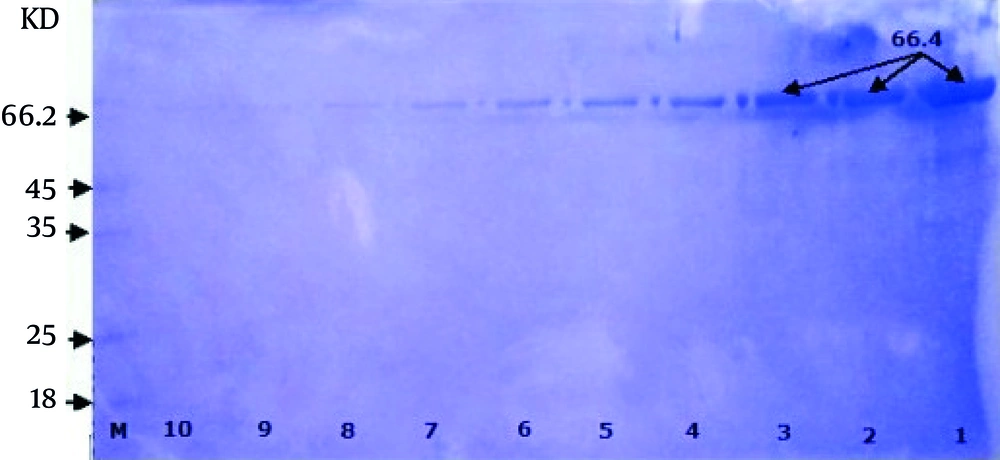

Figure 3.
Lane M, protein molecular weight marker; lane 1- 10, purified NS1 protein in fractions
3.2. Evaluation of NS1-Based Solid-Phase NS1-ELISA
The optimal conditions for the ELISA were first established by checker board matrix titration. The amount of NS1 protein for coating ELISA plates were determined to be 0.299 µg/well. The serum dilution was 1:400 that best classifies positive and negative sera with minimized false-positive or negative results. All serum samples with rNS1-ELISA were evaluated. In order to determine the best cut-off point, all sera of the control group was tested at day 42. Kolmogorov Smirnov test showed that the optical density distribution in rNS1-ELISA is normal (P> 0.05) (Figure 4). One of the sera with an OD similar to the mean OD of sera was as a negative serum in the experiments and each serum that have at least twice selective Negative sera. OD were considered as positive. The cut-off rate was 0.184 while examining 96 negative sera.
To increase specificity of the assay and reduce false positive results, which could be caused by antibodies to E. coli components, 2% E. coli lysate was added to the sample dilution buffer to absorb nonspecific antibodies against E. coli (Figure 4).

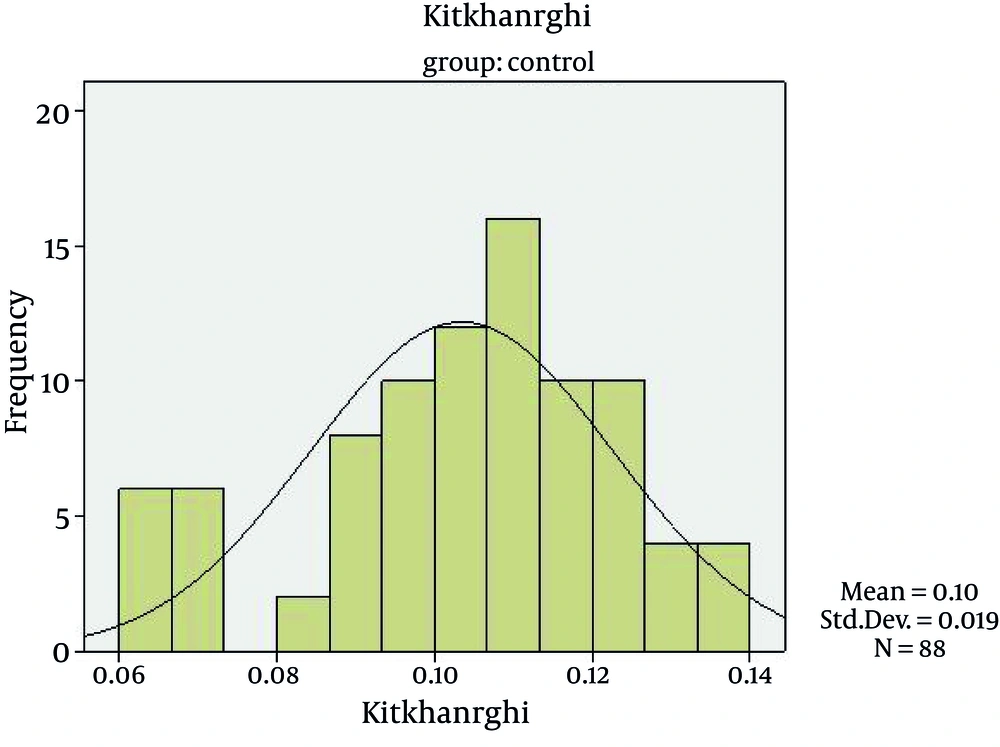

Figure 4.
Kolmogorov Smirnov Test Showed That the Optical Density Distribution in rNS1-ELISA Is Designed to Be Normal
The obtained results of commercial ELISA kit (IDEXX manufactured in United States) and NS1-ELISA detecting experimental chicken sera 100 broiler chicks (Ross 308) were intramuscularly immunized (day 21) with inactivated viruses.100 broiler chicks were infected (day 21) by intranasal inoculation with H9N2 virus. The chicks collected Sera were assayed with commercial ELISA kit (IDEXX) and rNS1-ELISA. 3 wk after infection or immunization, sera from all two treatment groups tested positive with commercial ELISA kit (IDEXX). In contrast, using NS1-ELISA, only sera from infected groups were positive, and all sera samples from the immunized group were NS1-antibody negative. Sera from all control chickens were negative in three assessment (Tables 1 - 4).
Table 1.rNS1-ELISA Results of the Control and Treated Group Serum a
| rNS1-ELISA | Status | Total | |
|---|---|---|---|
| Treated | Control | ||
| Positive | 84 | 0 | 84 |
| Negative | 6 | 88 | 94 |
| Total | 90 | 88 | 178 |
aRelative sensitivity=(84/90)×100 93.3%; Relative specificity=(88/88)×100= 100%; Accuracy=(84+88)/178×100=96.6%; Kappa statistic= 0.933; Positive predictive value=(84/84)×100=100%; Negative predictive value=(88/94) ×100= 93.6%;Mc Nemar test (P >0.05)
Table 2.rNS1-ELISA Method Results of the Serum of Control and Immunized Group
| rNS1-ELISA | Status | Total | |
|---|---|---|---|
| Immunized | Control | ||
| Positive | 0 | 0 | 0 |
| Negative | 90 | 88 | 178 |
| Total | 90 | 88 | 178 |
Table 3.Results of the Serum of Control and Treated Group in IDEXX a
| IDEXX | Status | Total | |
|---|---|---|---|
| Treated | Control | ||
| Positive | 90 | 0 | 90 |
| Negative | 0 | 88 | 88 |
| Total | 90 | 88 | 178 |
aRelative sensitivity=(90/90)×100=100%; Relative specificity=( 88/88)×100= 100%; Accuracy=(90+88)/178×100= 100%; Kappa statistic=1, Positive predictive value= (90/90)×100= 100%; Negative predictive value=(88/88) ×100= 100%; Mc Nemar test (P > 0.05)
Table 4.Results of the Serum of Control and Immunized Group in IDEXX
| IDEXX | Status | Total | |
|---|---|---|---|
| Immunized | Control | ||
| Positive | 90 | 0 | 90 |
| Negative | 0 | 88 | 88 |
| Total | 90 | 88 | 178 |
4. Discussion
Since low pathogenic avian influenza (LPAI) virus infections are often asymptomatic in chickens and turkeys, the diagnosis requires serological monitoring. Most poultry diagnostic laboratories prefer to use the serologic AGP test because of its simplicity and broad specificity to detect type A influenza virus infections among poultry. AGP antibodies recognize conserved nucleoprotein (NP) and matrix (M1) influenza virus proteins presented in the sera of poultry exposed to AI virus and therefore can detect multiple subtypes of influenza A virus (20).Other serological tests for AI including ELISA, which also measures the antibody responses to conserved internal proteins, and the subtype-specific HI assay (21). However, these standard serologic tests for AI virus exposure do not differentiate immunized and infected poultry when traditional vaccines are used (5).
An improved serological assay for AI virus infections allows the identification of infected poultry with AI virus, while it may correctly exclude animals that have been immunized with any subtype. In the mentioned diagnostic test, a conserved nonstructural protein that is not associated to virions and expressed in large amounts in influenza virus-infected cells, were used (22). Following dilution of immune sera, the NS1 ELISA was an effective tool to screen the poultry sera for detection of AI virus infection. Although the NS1 protein is a weak antigen in comparison to other influenza virus proteins, but is remarkably conserved in type A influenza viruses (15, 23-25). Previous studies demonstrated that the NS1 protein could be detected in the sera of horses experimentally infected with the H3 subtype of influenza virus but not in the immune sera of animals immunized with inactivated viruses (16, 17).
The inactivated whole-virus equine vaccine, used in the fore mentioned studies was partially purified, thus removing residual NS1 protein that would be presented in the infectious medium. This allows the clear distinction between H3-vaccinated and H3-infected horses by using the NS1 protein as a differential marker (16, 17). Birch-Machin et al. and Ozaki et al. described an ELISA application that is capable to differentiate vaccine-induced AIV antibodies from infected-induced antibodies. Antibodies against AIV NS1 protein are considered as the most useful marker of virus replication. The majority of collected sera from infected chickens, were positive, in contrast all the sera from vaccinated chickens were negative tested by NS1-ELISA and the sera from control chickens without previous exposure to AIV antigens by vaccination or infection were also negative.
The HI assay has been used as a conventional method of diagnosis to detect antibodies against influenza virus. However, the HI assay does not differentiate the antibodies induced by infection and the vaccinated ones. Theoretically, chickens immunized with inactivated virus have produced antibodies against primarily structural proteins of virus, while chickens infected with LPAI virus produced antibodies against nonstructural proteins of AIV. Thus, methods detecting antibodies against nonstructural proteins of AIV shall serve as a mean of differentiation. In the present study, we demonstrated that, by ELISA using prokaryotic (E.coli) recombinant NS1 as the antigen, anti-NS1 antibodies were only detectable in the sera of experimentally infected chickens but nothing were detected in the sera of vaccinated chickens. This observation was also reported by Tumpey et al. (12).
The reported results of Tumpey et al. indicated that the use of a simple and specific ELISA for the serodiagnosis of infection with multiple LPAI virus subtypes to distinguish between infected poultry and vaccinated poultry. In this study animals inoculated with inactivated gradient-purified vaccines had no seroconversion to positivity of antibodies against NS1 protein, and animals vaccinated with commercial vaccines had shown a low, but detectable, levels of NS1 antibodies (12). The use of a second ELISA with diluted sera identified as a diagnostic test that results in sero-positive for the antibodies against NS1 protein in infected birds (12). For the phase-field application of this study, serum samples were collected from vaccinated and infected poultry, diluted, and screened for anti-NS1 antibodies (12).
It has been observed that , the Field sera from poultry that received commercial AI killed viruses possesses antibodies against AI virus, as measured by the standard agar gel precipitin (AGP) test, but they were negative using the NS1 ELISA (12). Conversely, diluted field sera from AI-infected poultry were positive for both AGP and NS1 antibodies. These results demonstrated the potential benefit of a simple, specific ELISA for anti-NS1 antibodies with a diagnostic value in poultry industries (12).In a recent study, this observation was also reported by Zhao et al. (18). In study of Zhao et al. NS1-ELISA test was used to detect antibodies against NS1 in serum samples in comparison to HI assay. To evaluate the specificity and sensitivity of the NS1-ELISA, 99 serum samples were collected from experimentally manipulated chickens, including 72 samples from chickens vaccinated with inactivated vaccine and 27 samples from chickens experimentally infected with live H9N2 AIV via the subcutaneous or intramuscular injection (18).The 99 serum samples are all positive measured by HI assay. Using NS1-ELISA, all the 27 samples from infected chickens were positive, and among the 72 vaccinated samples, 68 tested negative and the rest, four samples, were weakly positive. Using HI assay as the reference method, the sensitivity of the NS1-ELISA was 100% (27 from 27) and its specificity was 94.4% (68 from 72) (18).
In study conducted by Avellaneda et al., an antibody response against NS1 was detected 3 weeks after infection, but the antibody levels were decreasing rapidly after 5 weeks. In vaccinated birds with inactivated oil-emulsion vaccines, antibodies against NS1 were not detected before virulent challenge, and only a small percentage of birds seroconverted after homologous LPAI virus challenge. due to the variability of seroconversion and the duration of the antibody response in chickens, the NS1 protein DIVA strategy did not perform as good as expected (26).
In a study performed by Soleimani et al.(27) the open reading frame of NS1 gene of a H9N2 subtype of AI virus was amplified by polymerase chain reaction. After extraction and agarose gel purification of NS1 gene, it inserted into two different pGEX-4T-1 and pMAL-c2X plasmids and transferred in DH5α strain of E. coli by using electroporation procedure. The E.coli colonies possessing recombinant NS1 gene were screened using PCR, restriction mapping and sequencing analysis. The expressed rNS1 protein was purified using affinity chromatography based on MBP (pMAL-c2X) and GST (pGEX-4T-1). The MBP-NS1 and GST- NS1 proteins on SDS-PAGE showed bands with molecular weight of 68 and 52 kDa respectively. Western blotting analysis with MBP-NS1 protein, showed positive reaction using antisera obtained from chickens infected with a H9N2 subtype strain. But, the western blot results of the sera collected from H9N2 immunized chickens were negative in western blotting. These findings indicated that the MBP-rNS1 protein with 26 kDa weight expressed by pMAL-c2X plasmid can be used in a DIVA to differentiate the AI infected and vaccinated chickens.
In present study the results of rNS1-ELISA showed specific antibody against NS1 only detected in the sera of chicks experimentally infected with AIV. Designed ELISA test for detection of antibody against influenza NS1 could distinguish the chicks experimentally infected with AIV and chicks vaccinated with killed influenza virus with 93.3% sensitivity and 100℅specificity. At third week after infection or vaccination, sera from all two treated groups were positive assayed with commercial ELISA kit (IDEXX). In contrast, by NS1-ELISA, only sera from infected groups tested positive, and all sera samples from the vaccinated group were NS1-antibody negative. Sera from all control chickens were negative in two assays.
This NS1-ELISA is useful for serological diagnosis in order to distinguish chickens infected with influenza viruses from those immunized with inactivated vaccine. These results demonstrate the potential benefit of a simple, specific ELISA for anti-NS1 antibodies that may have diagnostic value for the poultry industries. It is well suited for the large-scale serological surveys. In addition, the simplicity and specificity of the test make the NS1-ELISA a potentially valuable diagnostic tool for AI eradication and a proper candidate in AI controlling programs.
