Clinical Practices and Therapeutic Management of Mineral and Bone Disorders in Chronic Kidney Disease 4, 5 and 5D: The OCEANOS Study in Iran

authors:

avatar Mohsen Nafar 1 , 2 , avatar Farin Rashid Farokhi 2 , 3 , avatar Abbas Ali Zeraati 4 , avatar Shahrzad Ossareh 5 , avatar Abdolah Atapour 6 , avatar Eghlim Nemati 7 , avatar Fatemeh Poor Reza Gholi 8 , avatar Mohammad Mahdi Sagheb 9 , avatar Monir Sadat Hakemi 10 , avatar Hassan Argani 11 , avatar Seied Ahmad Tara 12 , avatar Reza Afshar 13 , avatar Javad Mohamd Reza Ahmadi 14 , avatar Nadia Karimi 14 , avatar Fereshteh Mamdouhi 15 , avatar Mitra Mahdavi-Mazdeh 16 , avatar Tahereh Sabaghian ORCID 2 , 17 , *

Department of Nephrology, Labbafinejad Medical Center, Shahid Beheshti University of Medical Sciences, Tehran, Iran
Chronic Kidney Disease Research Center, Shahid Beheshti University of Medical Sciences, Tehran, Iran
Department of Nephrology, Masih Daneshvari Hospital, Shahid Beheshti University of Medical Sciences, Tehran, Iran
Kidney Transplantation Complication Research Center, Mashhad University of Medical Sciences, Mashhad, Iran
Hasheminejad Kidney Center, Iran University of Medical Sciences, Tehran, Iran
Isfahan Kidney Disease Research Center (IKRC), Isfahan, Iran
Nephrology and Urology Research Center, Baqiyatollah University of Medical Sciences, Tehran, Iran
Department of Nephrology, Labbafinejad Medical Center, Shahid Beheshti University of Medical Sciences, Tehran, Iran
Nephro-Urology Research Center, Shiraz University of Medical Sciences, Shiraz, Iran
Depatment of Nephrology, Shariati Hospital, Tehran University of Medical Sciences, Tehran, Iran
Transplant Department, Modarres Hospital, Shahid Beheshti University of Medical Siences, Tehran, Iran
Department of Nephrology, Modarres Hospital, Shahid Beheshti University of Medical Sciences, Tehran, Iran
Shahed University, Tehran, Iran
Shahid Beheshti University of Medical Sciences, Tehran, Iran
Kidney Transplantation Complications Research Center, Mashhad University of Medical Sciences, Mashhad, Iran
Director of Iranian Tissue Bank and Research Center, Tehran University of Medical Sciences, Tehran, Iran
Department of Nephrology, Taleghani Hospital, Shahid Beheshti University of Medical Sciences, Tehran, Iran

how to cite: Nafar M, Rashid Farokhi F, Zeraati A A, Ossareh S, Atapour A, et al. Clinical Practices and Therapeutic Management of Mineral and Bone Disorders in Chronic Kidney Disease 4, 5 and 5D: The OCEANOS Study in Iran. Nephro-Urol Mon. 2018;10(1):e61632. https://doi.org/10.5812/numonthly.61632.

Abstract

Background:

The aim of this study was to evaluate the management of mineral and bone disorders (MBD) in patients with chronic kidney disease (CKD) in Iran and the extent to which KDIGO goals were met.

Methods:

This multi-centre observational study was conducted on patients with CKD stages 4, 5, and 5D. Data were collected from a total of 209 patients with no surgical or medical conditions that precluded their participation. This study assessed the frequency of measurements, serum levels of phosphorus (P), calcium (Ca), and parathyroid hormone (PTH), the achievement of the targets recommended by the 2009 KDIGO guidelines, and the presence of vascular/valvular calcification.

Results:

The KDIGO targets for P, Ca, and iPTH, were achieved in 47%, 51%, and 18% of the patients with stage 4 + 5 and in 63%, 50%, and 44% of the patients with stage 5D, respectively. The serum PTH level of 18% of the patients with CKD stage 4 + 5 was within the recommended range, while it was higher than the recommended level in other patients. Among patients with CKD stage 5D, the serum PTH level was within, below, and above the recommended range in 44%, 39%, and 17% of the patients, respectively. The frequency of the measurement of the blood levels of Ca, P, and PTH were based on the 2009 KDIGO guidelines in 88% of patients. Forty-six percent of cases were screened for vascular/valvular calcification, 30% of whom had calcification at least in one site.

Conclusions:

The current status is far from the targets recommended by the current guidelines in the management of CKD-MBD.

1. Background

Chronic kidney disease (CKD) is a complex disease with an annual incidence of 200 cases per million occurring in many countries (1). Nowadays, chronic kidney disease-mineral and bone disorder (CKD-MBD) is defined as a syndrome, which includes bone abnormalities, laboratory abnormalities, and vascular calcification, which are associated with cardiovascular diseases (CVD), bone deformity and fractures, and increased mortality (2). Cardiovascular diseases are the leading cause of mortality in CKD patients (3). Increased serum phosphorous level has been shown to be independently associated with an excessive risk of cardiovascular diseases in CKD patients (4, 5). Hyperphosphatemia also induces hyperparathyroidism, which can lead to bone loss, bone marrow fibrosis, and fractures (6). With the progression of chronic kidney disease, there is an increase in serum phosphate level, which can later become an important challenge for clinicians. Therefore, a key focus is correction of serum phosphorus through the restriction of dietary phosphate and administration of phosphate binders.

To improve the quality of care in patients with CKD, various international guidelines, including the KDIGO bone-mineral disease guidelines are published to be used in the management of CKD-MBD; the guidelines have suggested monitoring of phosphate (P), calcium (Ca), and serum PTH levels decrease cardiovascular diseases in patients with CKD stage 3 and higher (7-9). However, several studies have reported a gap between the content of international guidelines and actual practice (10-12). New studies have emphasized on the type of drug for management of CKD-MBD to reduce cardiovascular disease. A prospective cohort study showed an increased rate of survival in dialysis patients treated with phosphate binders, as compared with patients not receiving phosphate binders (13). In addition, a systematic review showed that, in comparison with patients, who used calcium phosphate binders, the risk of all-cause mortality decreased in patients with chronic kidney disease, who received non-calcium phosphate binders (14).

This observational study aimed at assessing the adherence to and achievement of the KDIGO bone-mineral targets and studying the factors that hinder the achievement of the KDIGO targets.

2. Methods

This multi-center observational study was part of a larger study called OCEANOS (Multi-national observational study on clinical practices and therapeutic management of mineral and bone disorders in chronic kidney disease 4, 5 and 5D). This study, which was conducted on Iranian patients, began in June 2013 and continued until March 2014. To detect and diagnose CKD patients, the KDIGO 2009 guidelines were used (8).

2.1. Physician and Patients Selections

Adult patients (age > 18 years) with CKD stages 4, 5, and 5D, who were followed at 13 medical centers in Iran were enrolled in this study. Exclusion criteria were as follows: having an estimated glomerular filtration rate (eGFR) of ≥ 30 mL/minute/1.73 m2, participation in an interventional trial, or presence of any medical or surgical condition, which might preclude patient’ participation in the study (as judged by the researcher). A total of 210 CKD patients were enrolled, of whom 209 patients met the inclusion criteria. All of the physician who participated in this study, were nephrologists and, taking into account their geographic distribution, they were randomly selected for participation in the study.

2.2. Ethical Issues

Written informed consent was obtained from all of the patients. Moreover, ethical approval was obtained from the ethics committee of the chronic kidney disease research center of Shahid Beheshti University of Medical Sciences.

2.3. Data Collection

A checklist was used to assess physicians’ knowledge of CKD-MBD guidelines, which included questions on physicians’ age, gender, specialty, years of practice, main workplace, type of institution, number of dialyses performed per year in the studied center, and knowledge of and adherence to international guidelines.

Case report forms (CRF) were used to record data on patients’ characteristics and medical history including age, blood pressure, body mass index (BMI), co-morbidities, history of smoking, cause and duration of CKD, history of parathyroidectomy, current use of medications, presence of vascular/valvular calcification, related methods of assessment, and CKD stage. Also, data was collected regarding time since the first dialysis, type of dialysis, and mean frequency of hemodialysis in CKD stage 5D.

Taking in consideration the CKD stage, the study evaluated different biochemical laboratory tests, such as serum Ca, P, PTH, 25 (OH) Vitamin D, albumin, creatinine, hemoglobin, LDL, cholesterol, presence of vascular and valvular calcifications, and methods of evaluation via CT scan, X-ray, and ultrasound. Serum Ca and P were measured using immunometric assays, and PTH was measured using an immunoradiometric assay.

The primary evaluation criterion was to assess the achievement of the KDIGO target ranges for serum PTH, Ca, and P alone and all together (Ca, P, PTH) and adherence to the KDIGO guideline was defined as meeting both criteria of the target range and frequency measurement. The secondary evaluation criteria were the followings: 1, assessment of current type and dose of medications for the management of CKD-MBD; 2, assessment of uncontrolled MBD, which is defined as patients not achieving at least one KDIGO-CKD-MBD target for Ca, P, and serum PTH levels (either in combination or individually); and 3, assessment of the methods used for screening valvular/vascular calcification and the type of calcium-based phosphate binders used for patients with one or more calcifications. Estimated glomerular filtration rate (eGFR) was calculated using the equation developed for the modification of diet in renal disease (MDRD-4) (15).

2.4. Statistical Analysis

The collected data was analyzed using the SPSS software, version 18 (SPSS Inc., Chicago, IL). Quantitative variables were reported as range, median, mean, and standard deviation; categorical variables were presented as frequencies and percentages.

3. Results

3.1. Physicians’ Characteristics

Sixteen nephrologists working at 13 medical centers participated in this study. The mean age of the physicians was 46 ± 3 (38 to 52) years and the median duration of their practice was 15 (8 to 25) years. All of the physicians were familiar with the international guidelines of KDIGO and kidney disease outcomes quality initiative (KDOQI). According to their own feedbacks, about 75% of the physicians were following the guidelines in their practices.

3.2. Patients’ Characteristics

Table 1 shows the general characteristics of the patients. Eighty-nine patients (43%) were females and 120 (57%) were males. The mean age of the patients was 56 ± 16 (18 to 95) years. There was no significant difference between the patients’ age among different stages of CKD. Overall, 45% of the patients were aged older than 60 years.

Table 1.

General Patients’ Characteristics by Chronic Kidney Disease Stagea

ParameterStage 4 + 5 + 5D (N = 209)Stage 4 + 5 (N = 67)Stage 5D (N = 142)
Age, y56 ± 1657 ± 1556 ± 16
Male120 (57)39 (58)81 (57)
BMI, Kg/m224.8 ± 4.625.3 ± 4.224.5 ± 4.8
< 25 115 (55)33 (49.3)82 (57.7)
≥ 25 94 (45)34 (50.7)60 (42.3)
Alkaline phosphatase, IU/L344 ± 318277 ± 118370 ± 365
Serum albumin, g/L40 ± 4.540 ± 4.240 ± 4.6
Hemoglobin, g/dL11.4 ± 1.711.6 ± 1.911.4 ± 1.6
LDL-Cholesterol, mmol/L2.4 ± 0.82.6 ± 0.82.2 ± 0.8
Serum creatinine, mg/dL5.2 ± 1.44.8 ± 1.15.3 ± 1.4
Creatinine clearance, mL/min13 ± 7.119.6 ± 7.49.9 ± 4.1
Serum Bicarbonate-HCO3, Meq/L20.6 ± 3.621.5 ± 5.820.2 ± 2.6

The number of the patients with CKD stages 4, 5, and 5D was 43, 24, and 142, respectively. Of all, 68% of the patients were classified as stage 5D, 97% of whom (138 patients) were receiving hemodialysis. The mean frequency of hemodialysis was three times a week. Peritoneal dialysis was performed only in 4 patients (3%). Diabetic nephropathy was the most common cause of CKD (Figure 1). Parathyroidectomy was performed on 15 patients (7%). Dialysate Ca concentration was 2.5 mEq/L in all the dialysis patients.

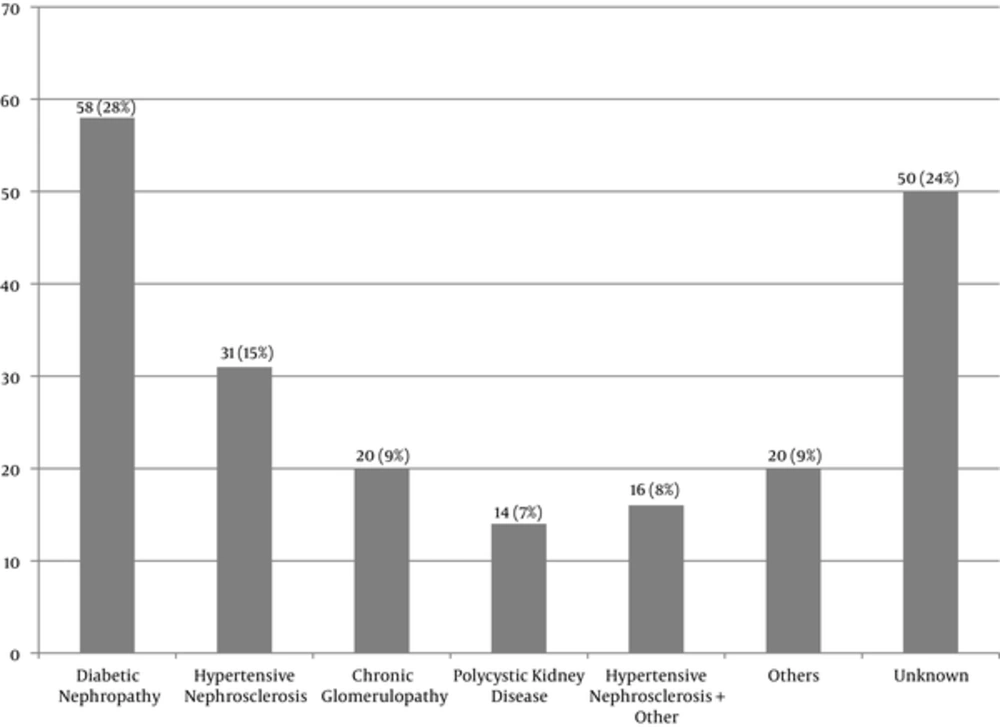

Causes of Chronic Kidney Disease in all Patients
CKD, Chronic kidney disease.

3.3. Primary Analysis

The mean (SD) serum P, Ca, and PTH level in patients with stage 4 + 5 were 4.8 ± 1.1 mg/dL, 8.9 ± 0.8 mg/dL, and 158.6 ± 151.4 pg/dL, respectively. The mean (SD) serum P, Ca, and PTH level in patients with stage 5D were 5.3 ± 1.4 mg/dl, 8.9 ± 1.0 mg/dL, and 352.6 ± 385.3 pg/dL, respectively.

The target range of serum P level recommended by the KDIGO guidelines for all of the patients with CKD stage 4, 5, and 5D was 2.5 - 4.5 mg/dL and 2.5 - 5.5 mg/dL, respectively. Overall, in 47% of the patients with CKD stages 4 + 5 (Table 2) and in 63.3% of the patients with CKD stage 5D (Table 3), the serum P level was within the recommended KDIGO range. In 58% of the patients, serum P level was within the KDIGO recommended range, while it was lower or higher than the recommended range, in 0.6% and 41.4% of the patients, respectively.

Table 2.

Serum Phosphorous Level Based on KDIGO Guidelines in Chronic Kidney Disease Stage 4 and 5a

Serum P level, KDIGO Target Range, mg/dLStage 4Stage 5Total (Stage 4 + 5)
< 2.50 (0)0 (0)0 (0)
2.5 to 4.529 (69)2 (8)31 (47)
> 4.513 (31)22 (92)35 (53)
Table 3.

Serum Phosphorous Level Based on KDIGO Guidelines in Chronic Kidney Disease Stage 5D

Serum P Level KDIGO Target Range (Stage 5D), mg/dL / N = 139No. (%)
< 2.5 (Less than KDIGO)1 (0.7)
2.5 to 5.5 (According to KDIGO)88 (63.3)
> 5.5 (Greater than KDIGO)50 (36)

It was found that nearly half of the patients (50%) had a serum Ca level within the target range recommended by the KDIGO guidelines (8.5 - 9.5 mg/dL) while in 28.6% it was lower than 8.5 mg/dL and in 21.4% was higher than 9.5 mg/dL (Table 4).

Table 4.

Serum Calcium Based on KDIGO Guidelines by Chronic Kidney Disease Stage (Eligible Patients’ Population)a

Serum Ca KDIGO Range, mg/dLStage 4Stage 5Stage (4 + 5)Stage 5DTotal
< 8.513 (30)5 (21)18 (27)41 (30)59 (28.6)
8.5 to 9.521 (49)13 (54)34 (51)69 (50)103 (50)
> 9.59 (21)6 (25)15 (22)29 (20)44 (21.4)

The data about serum PTH level was available only for 60% of the patients. The KDIGO target range of serum PTH level recommended for CKD stages 4 and 5 ranged from equal or more than the lower limit of normal (LLN) to equal or less than the upper limit of normal (ULN); in CKD stage 5D, it was 2 to 9 times higher than the ULN. The normal range of serum PTH level was 15 to 65 pg/mL. It was found that the serum PTH levels of 44% of the patients with CKD stage 5D and 18% of the patients with stages 4 + 5 were within the KDIGO recommended range (Table 5, Figures 2 and 3). Among patients outside the guideline range for PTH, a greater number of patients in stage 4 + 5 were in the higher than target range, while more patients in stage 5D were in the lower than the target range. The percentage of the patients, who met all the KDIGO target ranges for Ca, P, and PTH was relatively low: stage 4 + 5, 5%; stage 5D, 11%; all the patients, 9%.

Table 5.

Parathyroid Hormone Based on KDIGO Guidelines by Chronic Kidney Disease Stagea

Within KDIGO Target RangeStage 4Stage 5Stage 4 + 5Stage 5D
Yes4 (15)3 (23)7 (18)55 (44)
No22 (84)10 (77)32 (82)69 (56)

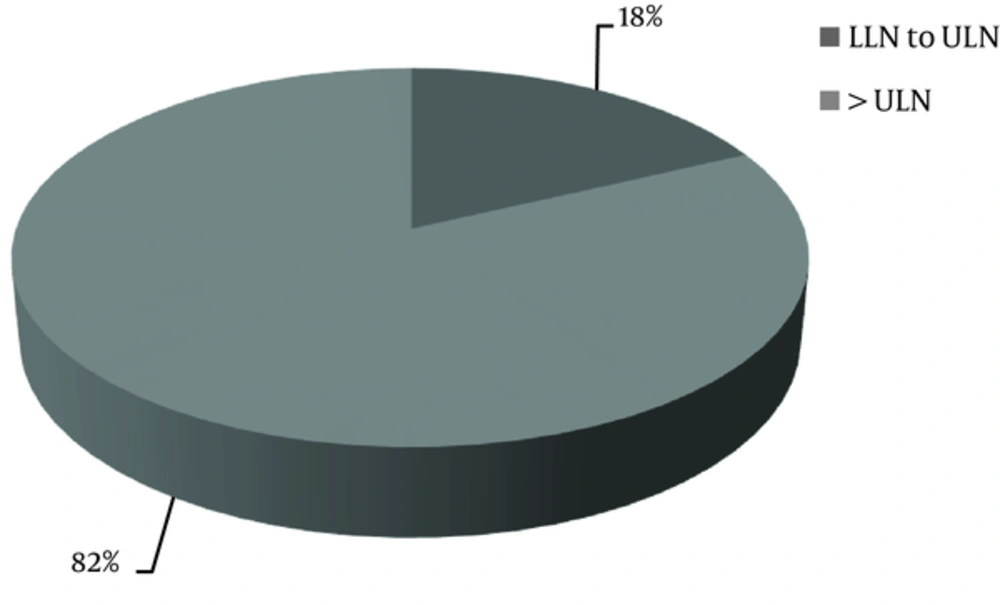

Parathyroid Hormone Based on KDIGO guidelines in Chronic Kidney Disease Stage 4 + 5
LLN, Lower limit of normal of PTH; ULN, Upper limit of normal of PTH.

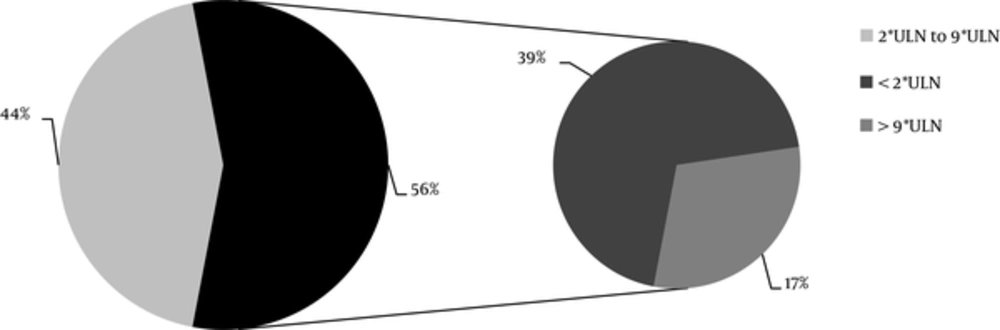

Parathyroid Hormone Based on KDIGO Guidelines in Chronic Kidney Disease Stage 5D
Purple color: outside of KDIGO target range for PTH. CKD, Chronic kidney disease; KDIGO guidelines, Kidney Disease; Improving Global Outcomes guidelines; PTH, Parathyroid hormone; ULN, Upper limit of normal of PTH.

In 94% of patients, the frequency of P and Ca measurements (regardless of the disease stage) was consistent with the KDIGO recommended frequency (Figure 4). In 83% of the patients, all the three laboratory tests were performed. Figure 5 shows the frequency of the 3 measurements (Ca, P, and PTH) in the patients, who had undergone all the 3 tests; in addition, it presents the comparison between the measured values and the KDIGO guideline values. Among all of the patients in whom all of the 3 tests had been performed, the frequency of measurements was consistent with the rates recommended by KDIGO guidelines in 88%.

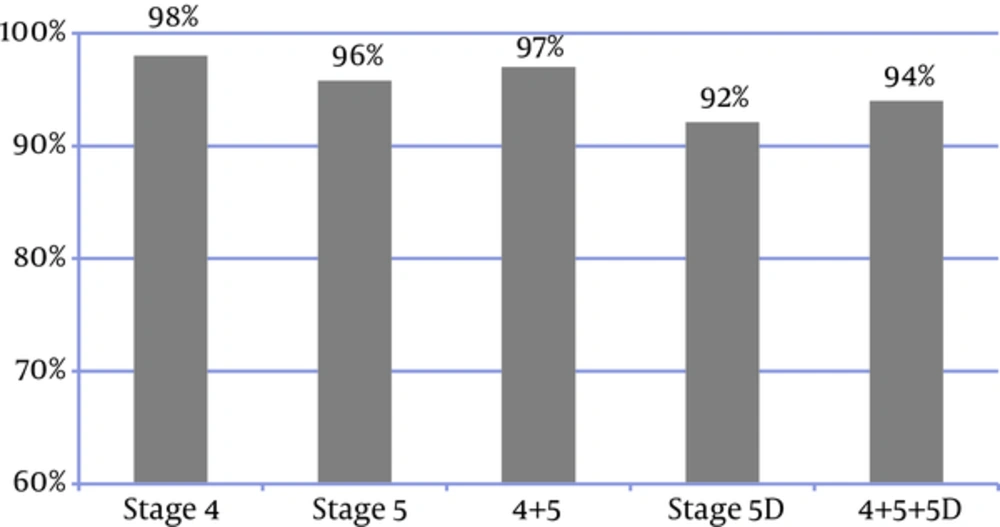

Frequency of Measurements of serum Ca and P levels Based on KDIGO
Ca, Calcium; P, Phosphorus; KDIGO guidelines, Kidney Disease; Improving Global Outcomes guidelines.

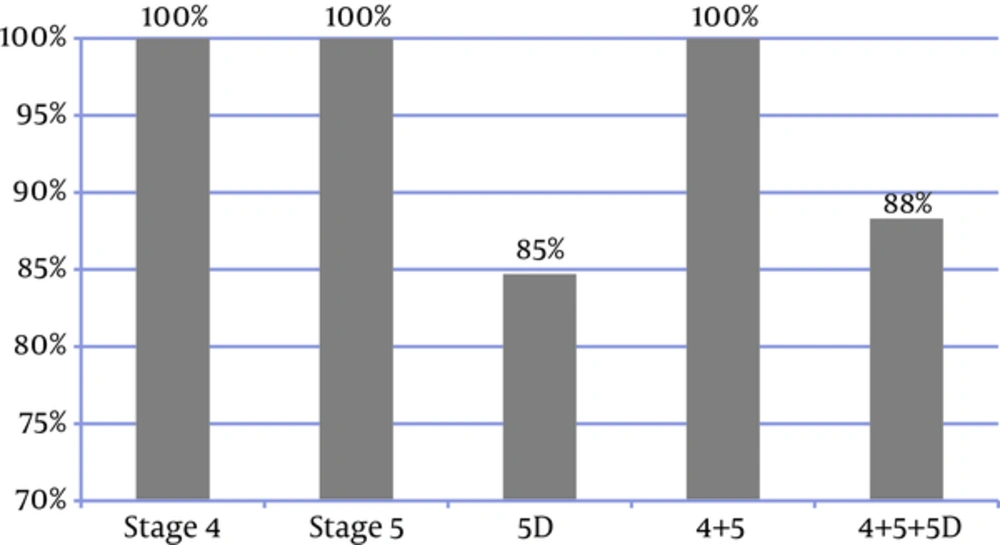

Frequency of Three Measurements (Ca, P, and PTH) Respecting KDIGO Guideline in Patients Were Done for all Three Lab Tests
Ca, Calcium; P, Phosphorus; PTH, Parathyroid hormone; KDIGO guidelines, Kidney Disease; Improving Global Outcomes guidelines.

Only 9% of the patients had performed all the 3 laboratory tests and met the KDIGO target ranges, thus 91% did not meet the KDIGO adherence criteria. So although 88% of the frequency of measurements were consistent with the KDIGO guideline, the adherence to KDIGO was very low (9%), with lower rate in CKD stage 4 + 5 (5%) than CKD stage 5D (10%) (Figure 6).

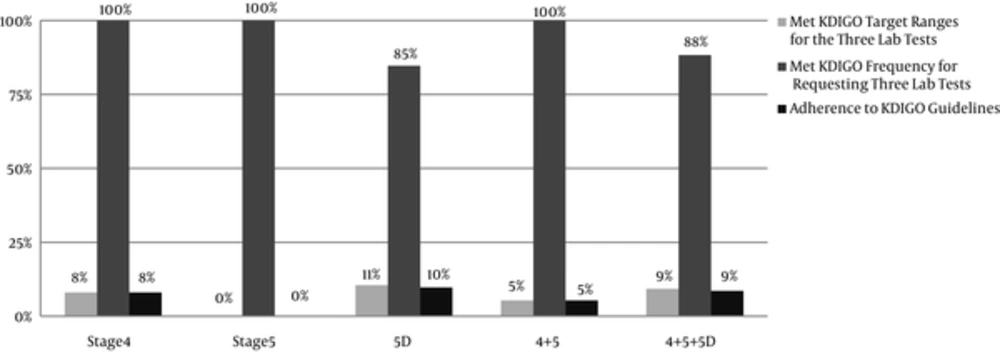

Adherence to KDIGO Guidelines-Sum Up (Patients Had Done Three of Laboratory Tests)
KDIGO guidelines, Kidney Disease: Improving Global Outcomes guidelines.

3.4. Secondary Analysis

This study assessed current and ongoing medications and found that 67% of all patients used anti-hypertensive agents, 47% received lipid-lowering drugs, 28% were on insulin, and 6% received oral anti-diabetic agents. Overall, 87% of the patients were taking a phosphate binder. The type of phosphate binder used at each CKD stage was also evaluated (Table 6). Of all the patients, who used phosphate binders, 91.8% received calcium-based phosphate binders, 8% used sevelamer, and only one patient received an oral calcimimetic agent (0.5%).

Table 6.

Type of Ongoing Phosphate Binder and Vitamin D Receptor Agonist by Chronic Kidney Disease Stagea

ParameterStage 4 (N = 43)Stage 5 (N = 24)Stage 5D (N = 142)Stage 4 + 5 (N = 67)Stage 4 + 5 + 5D (N = 209)
Phosphate binder
Yes31 (72)16 (67)135 (95)47 (70)182 (87)
No12 (28)8 (33)7 (5)20 (30)27 (13)
Type of phosphate binderb
Aluminum-based binder1 (3)0 (0)3 (2)1 (2)4 (2)
Lanthanum-based binder0 (0)0 (0)0 (0)0 (0)0 (0)
Calcium-based binder30 (97)16 (100)121 (90)46 (98)167 (92)
Calcium acetate0 (0)1 (6)7 (5)1 (2)8 (4)
Calcium carbonate30 (97)15 (94)115 (85)45 (96)160 (88)
Non-calcium, non-metal based1 (3)0 (0)32 (24)1(2)33 (8)
Oral calcimimetic agent
Yes0 (0)0 (0)1 (0.7)0 (0)1 (0.5)
No43 (100)24 (100)141 (99.3)67 (100)208 (99.5)
Vitamin D28 (65.1)12 (50)100 (70.4)40 (59.7)140 (67)
Native vitamin D4 (14.3)0 (0)21 (21)4 (10)25 (17.9)
25 (OH) vitamin D3 (10.7)0 (0)3 (3)3 (7.5)6 (4.3)
Active vitamin D (1, 25 (OH) vitamin D)23 (82.1)12 (100)84 (84)35 (87.5)119 (85)

Overall, 67% of the patients received vitamin D supplements. Most of them were taking active vitamin D with a dosage of 0.75 to 7 mcg/week (Table 6).

3.5. Vascular/Valvular Calcification Screening

Overall, 96 patients (46%) had undergone at least one X-ray or ultrasound or computed tomography (CT) scan to screen for vascular/valvular calcification. Of these, 30% (29/96) had at least one calcification. Ultrasound was the most frequently used screening test used for detecting calcification. Table 7 presents details on vascular/valvular calcification screening.

Table 7.

Screening Test Performed and Observation of Vascular/Valvular Calcificationa

ParameterStage 4, N = 43Stage 5, N = 24Stage 5D, N = 142Stage 4 + 5, N = 67Total, N = 209
Patients with at least one test performed17 (40)6 (25)73 (51)23 (34)96 (46)
Among patients with at least one test performed
at least 1 calcification observed3 (18)1 (17)25 (34)4 (17)29 (30)
Among patients with at least one calcification observed
1st screening test2 (67)1 (100)15 (60)3 (75)18 (62)
2nd screening test1 (33)0 (0)10 (40)1 (25)11 (38)
3rd screening test0 (0)0 (0)0 (0)0 (0)0 (0)
X-rayN = 14 (32.6)N = 2 (8.3)N = 42 (29.6)N = 16 (23.9)N = 58 (27.7)
at least 1 calcification observed1 (7.1)0 (0)9 (21.4)1 (6.3)10 (17.2)
UltrasoundN = 16 (37.2)N = 6 (25)N = 61 (43)N = 22 (3.3)N = 83 (39.8)
at least 1 calcification observed3 (18.8)1 (16.7)23 (37.7)4 (18.1)27 (32)
CT scanN = 0 (0)N = 0 (0)N = 7 (4.9)N = 0 (0)N = 7 (3.3)
at least 1 calcification observed0 (0)0 (0)6(85.8)0 (0)6 (85.8)

3.6. Physician’s Adherence to Kidney Disease and Current Chronic Kidney Disease Treatment

Overall, 9.2% of the patients achieved all the KDIGO target ranges and 8.6% adhered to the KDIGO guidelines, when all the 3 laboratory tests were done (Table 8). The number of years of physicians practice did not affect their adherence to the KDIGO guidelines.

Table 8.

Physicians’ Characteristic According to Patient’s Adherence to KDIGO Guidelinesa

Physician’sPatient Data
CharacteristicsAll KDIGO Targets Ranges MetFrequency of Measurements Follow KDIGO GuidelinesAdherence to KDIGO Guideline
Yes (N = 15)No (N = 147)Yes (N = 143)No (N= 19)Yes (N = 14)No (N = 148)
Specialty
Nephrologist15 (100)147 (100)143 (100)19 (100)14 (100)148 (100)
Main workplace
Hemodialysis center6 (40.0)17 (11.6)17 (11.9)6 (31.6)5 (35.7)18 (12.2)
Nephrology department7 (46.7)100 (68.0)101 (70.6)6 (31.6)7 (50.0)100 (67.6)
Institution type
Public4 (26.7)91 (61.9)84 (58.7)11 (57.9)3 (21.4)92 (62.2)
Private0 (0.0)0 (0.0)0 (0.0)0 (0.0)0 (0.0)0 (0.0)
Mixed (public and private)11 (73.3)56 (38.1)59 (41.3)8 (42.1)11 (78.6)56 (37.8)
Number of CKD patients followed-up
< 10006 (40.0)85 (57.8)82 (57.3)9 (47.4)5 (35.7)86 (58.1)
1000 - 50009 (60.0)62 (42.2)61 (42.7)10 (52.6)9 (64.3)62 (41.9)
Declared to follow
KDIGO guidelines11 (73.3)107 (72.8)105 (73.4)13 (68.4)10 (71.4)108 (73.0)
K/DOQI guidelines11 (73.3)120 (81.6)118 (82.5)13 (68.4)10 (71.4)121 (81.8)
Know any other guidelines11 (73.3)83 (56.5)92 (64.3)2 (10.5)11 (78.6)83 (56.1)

Table 9 presents data on current and ongoing CKD treatments in patients, who were followed up by a nephrologist. The number of patients receiving phosphate binder was higher than those receiving other types of drug such as vitamin D or calcimimetic drugs.

Table 9.

Physicians’ Characteristic According to Current or Ongoing Chronic Kidney Disease Treatmenta

Physician’s CharacteristicsPatient Treatment Data
Phosphate Binder (N = 182)Oral Calcimimetic (N = 1)Vitamin D (N = 140)
Specialty
Nephrologist182 (100)1 (100)140 (100)
Main workplace
Hemodialysis center24 (13.2)1 (100)15 (10.8)
Nephrology department122 (67)0 (0)95 (67.8)
Other36 (19.8)0 (0)30 (21.4)
Institution type
Public99 (54)0 (0)68 (49)
Private0 (0)0 (0)0 (0)
Mixed “public” and “private”83 (46)1(100)72 (51)
Number of CKD patients followed-up
< 1000100 (55)0 (0)71 (51)
1000 - 500082 (45)1 (100)69 (49)
Declared to follow
KDIGO guidelines135 (74)1 (100)97 (69)
K/DOQI guidelines146 (80)1 (100)105 (75)
Know any other guidelines101 (56)1 (100)85 (61)

3.7. Diabetes Status Sub-Group Analysis

Overall, 34% of the patients had diabetes, 93% of whom had diabetes type 2. Of all the patients with CKD stages 4, 5, and 5D, 26%, 13.7%, and 60.3%, respectively, were patients with diabetes. The percentage of patients whose serum Ca level was within the KDIGO target range was lower in patients with diabetes than in non-diabetic patients (44% versus 53%), yet the percentage of patients whose serum PTH level was within the KDIGO target range was higher in patients with diabetes than in non-diabetic patients (50% versus 32.1%). There was no significant difference between the 2 groups in terms of adherence to the KDIGO guideline for serum P level. In addition, there was no significant difference between the 2 groups in terms of the percentage of patients with diabetes that were taking a phosphate binder and the type of phosphate binder; however, non-calcium phosphate binders were used slightly more in patients without diabetes than in patients with diabetes. There was no statistically significant difference between the 2 groups of diabetic and non-diabetic patients in terms of adherence to the KDIGO guideline, meeting all KDIGO target ranges, and the frequency of measurement as recommended by KDIGO guidelines. As compared with non-diabetic patients, a higher number of patients with diabetes had at least one calcification (34.5% versus 28.4%).

4. Discussion

Hyperphosphatemia is recognized as a risk factor for CVD and is associated with 20% to 40% rise in the risk of all-cause mortality and deaths from coronary artery diseases in patients on dialysis (16-18). In addition, Ca and P disorders and dose of elemental Ca existing in calcium phosphate binder are known risk factors for vascular calcification in patients with CKD. Moreover, vascular calcification is a strong prognostic marker for all-cause mortality and cardiovascular mortality in patients on dialysis (19). Hyperphosphatemia and hypercalcemia are also considered risk factors for calciphylaxis (20). Thus, it is of great importance to maintain the target levels of Ca and P via modifying diet and using efficient dialysis and appropriate phosphate binders. Various types of calcium-based and non-calcium based phosphate binders are available. Apparently, there is a correlation between the dose of calcium-based phosphate binder and calcium load on aortic calcification (21, 22).

In this multicenter observational study, 209 patients with CKD stage 4 to 5D from different parts of Iran were investigated. In nearly 100% of the patients, serum Ca and P levels were measured, however PTH level was measured only in 77% of the patients. Overall, in 93% of cases, the frequency of monitoring serum Ca and P levels was consistent with KDIGO recommendations. In addition, in 88% of cases, the frequency of measuring all the 3 markers of Ca, P, and serum PTH levels was consistent with the KDIGO recommended frequency. Compared with a tertiary care center in India (with Ca and P monitoring frequency of 8%), the frequency of monitoring Ca, P, and PTH serum levels in Iran seems to be much more favorable (23).

Regarding the target levels, almost half of the patients were in the target range of serum Ca level and more than half of the patients were in the target range of serum P level recommended by the KDIGO. In a multi-center study in China, patients with CKD stage 5D showed better P and Ca serum level, as compared with patients on hemodialysis (P: 63% versus 38%; Ca: 50% versus 39%) (24). This is consistent with the results of dialysis outcomes and practice patterns study (DOPPS), 2011, which was conducted on hemodialysis patients in USA and Canada that reported rates of 52% and 55% for serum P target ranges and 53.7% and 63.1% for serum Ca target ranges, respectively (25).

Of all the patients with stage 4 + 5 CKD, 82% had hyperparathyroidism; hypoparathyroidism was not observed in any of the patients. Nevertheless, in the majority of patients with stage 5D disease, failure to achieve PTH targets could be mainly attributed to the high percentage of patients with low PTH and possibly adynamic bone disease, considering that 39% of patients received hemodialysis having PTH levels less than 150 pg/mL (as compared with hyperparathyroidism, which was observed in 17%). This result is almost consistent with the results of 2 studies in Korea and India, conducted on patients receiving hemodialysis; according to the results of the two studies, PTH > 300 was observed in 26.5% and 28% and PTH < 150 was observed in 42.7% and 46% of the patients, respectively (26, 27). On the other hand, patients in the present study had a better serum mineral profile, as compared with the results of another study on hemodialysis patients in Iran conducted during year 2005 (Ca: 53% versus 50%, P: 52% versus 63% respectively); in addition, the prevalence of PTH < 150 pg/mL was lower than that observed in a previous study (39% versus 48.1%) (28). In the DOPPS 2011 study, which was conducted on patients with CKD stage 5D in Canada and USA, the serum PTH level was between 150 and 600 pg/mL in 67.5% and 47.1%, respectively, lower than 150 pg/mL in 19.8% and 25.9%, respectively, and higher than 600 pg/mL in 12.7% and 26.9%, respectively (25). This result shows the higher prevalence of adynamic bone disease in Asian patients, as compared with Canadian and American patients. Overall, 67% of all patients and 70% of patients under hemodialysis were taking active vitamin D, which could explain the presence of hypercalcemia and adynamic bone disease.

In a large number of patients, the frequency of monitoring serum levels of these markers was consistent with the KDIGO recommended frequency. Of all the patients, 9.3% met the targets recommended for all the 3 markers of Ca, P, and PTH. However, only a very small percentage of the patients (9%) had total adherence to all KDIGO guidelines in terms of both the optimum frequency of monitoring of PTH, Ca and P, and achievement of the serum levels targets. Despite the higher percentage of monitoring serum levels of Ca, P, and PTH in stage 4 + 5 patients, they were less successful than stage 5D patients, meeting the targets recommended by KDIGO except for Ca (P: 47% versus 63%, Ca: 51 % versus 50%, and PTH: 18% versus 44%). Given that the patients at the dialysis centers were visited at regular intervals by nephrologists, the observed difference is justifiable.

The majority of patients with stage 5D (95%) and 70% of patients with stage 4 + 5 were taking phosphate binders. Of all, 94% used calcium carbonate, which was higher than the rates observed in US (73%) and Canada (43.1%) reported by DOPPS 2010 (25). In addition, there was no significant difference between the patients with different stages of the disease in terms of the type of phosphate binders, which they used. Non-calcium phosphate binders were used only in a small group of patients (8%), which could explain the observed rate of hypercalcemia (21%) in the studied patients. In a recent meta-analysis conducted by Jamal et al., a 22%-decrease in mortality was observed after using non-calcium phosphate binders (sevelamer and lanthanum) (14). In addition, according to the results of a study by Elder et al. the use of sevelamer, as compared with calcium carbonate, was associated with less mortality in the patients with stage 3-5D CKD (29). As the current results showed, the studied patients were at a high risk of calcification and a moderate risk of hypercalcemia (Tables 4, 7). In addition, because of the likely effect of calcium-based phosphate binders on vascular calcification and hypercalcemia and since the target levels of Ca and P were not achieved in this study, it seems necessary to pay special attention to the type and dose of phosphate binders and diet of patients.

Considering the frequency of monitoring, the observed value does not seem appropriate. These findings are not unique to the current study, as in many previous studies it has been difficult to reach the targets of KDIGO in mineral metabolism (10, 12, 30, 31). The key to success in managing Ca and P disorders in patients with CKD is to follow the international guidelines and maintain Ca, P, and serum PTH levels in the target range. The high percentage of non-adherence to KDIGO guidelines, which was observed in this study, may potentially be attributed to the high costs of access to non-calcium phosphate binders at the time of the study and possibly low adherence to diet.

As the guidelines have an important effect on the disease outcomes, it is necessary to study the factors hindering the accomplishment of the targets and eliminate the major obstacles hindering the achievements of the targets.

One of the limitations of the current study was the failure to investigate other factors affecting the management of CKD-MBD, including a phosphorus-rich diet and adequacy of dialysis. In addition, because of the observational nature of the study, it was not possible to find a causal-effect relationship for interpreting the values of the variables. In addition, it should be mentioned that this study was done on 2013 and the choice of phosphate binders has possibly changed since then, after Sevelamer has been covered by insurance companies in our country.

4.1. Conclusion

The findings of this study showed that CKD-MBD management in Iran is not currently optimal as meeting the targets recommended by the KDIGO guidelines has not been achieved. Given the importance of vascular calcification and the impact of mineral disorders in its development, it is of great importance to find the barriers to achieving these goals. Therefore, it is necessary to pay special attention to the patients’ diet, restrict the use of phosphate, ensure dialysis adequacy, provide insurance for the patients, and ensure the availability of medicines and new treatments to reach the targets and reduce the complications.

References

  • 1.

    Levey AS, Coresh J. Chronic kidney disease. Lancet. 2012;379(9811):165-80. [PubMed ID: 21840587]. https://doi.org/10.1016/S0140-6736(11)60178-5.

  • 2.

    Ketteler M, Elder GJ, Evenepoel P, Ix JH, Jamal SA, Lafage-Proust MH, et al. Revisiting KDIGO clinical practice guideline on chronic kidney disease-mineral and bone disorder: a commentary from a Kidney Disease: Improving Global Outcomes controversies conference. Kidney Int. 2015;87(3):502-28. [PubMed ID: 25651364]. https://doi.org/10.1038/ki.2014.425.

  • 3.

    Block GA, Hulbert-Shearon TE, Levin NW, Port FK. Association of serum phosphorus and calcium x phosphate product with mortality risk in chronic hemodialysis patients: a national study. Am J Kidney Dis. 1998;31(4):607-17. [PubMed ID: 9531176]. https://doi.org/10.1053/ajkd.1998.v31.pm9531176.

  • 4.

    Atsumi K, Kushida K, Yamazaki K, Shimizu S, Ohmura A, Inoue T. Risk factors for vertebral fractures in renal osteodystrophy. Am J Kidney Dis. 1999;33(2):287-93. [PubMed ID: 10023640]. https://doi.org/10.1016/S0272-6386(99)70302-1.

  • 5.

    Slatopolsky E, Brown A, Dusso A. Role of phosphorus in the pathogenesis of secondary hyperparathyroidism. Am J Kidney Dis. 2001;37(1 Suppl 2):S54-7. [PubMed ID: 11158862]. https://doi.org/10.1053/ajkd.2001.20740.

  • 6.

    Stein MS, Packham DK, Ebeling PR, Wark JD, Becker GJ. Prevalence and risk factors for osteopenia in dialysis patients. Am J Kidney Dis. 1996;28(4):515-22. [PubMed ID: 8840940]. https://doi.org/10.1016/S0272-6386(96)90461-8.

  • 7.

    Andrassy KM. Comments on 'KDIGO 2012 Clinical Practice Guideline for the Evaluation and Management of Chronic Kidney Disease'. Kidney Int. 2013;84(3):622-3. [PubMed ID: 23989362]. https://doi.org/10.1038/ki.2013.243.

  • 8.

    Kidney Disease: Improving Global Outcomes CG. KDIGO clinical practice guideline for the diagnosis, evaluation, prevention, and treatment of Chronic Kidney Disease-Mineral and Bone Disorder (CKD-MBD). Kidney Int Suppl. 2009;(113):S1-130. [PubMed ID: 19644521]. https://doi.org/10.1038/ki.2009.188.

  • 9.

    National Kidney F. K/DOQI clinical practice guidelines for bone metabolism and disease in chronic kidney disease. Am J Kidney Dis. 2003;42(4 Suppl 3):S1-201. [PubMed ID: 14520607]. https://doi.org/10.1016/S0272-6386(03)00905-3.

  • 10.

    Deger SM, Mutluay R, Derici U, Mandiralioglu F, Arinsoy T, Sindel S. Can calcium, phosphate, calcium phosphate product and intact parathyroid hormone levels be appropriately controlled in dialysis patients? Med Princ Pract. 2011;20(1):85-9. [PubMed ID: 21160221]. https://doi.org/10.1159/000319768.

  • 11.

    Kim GH. Gaps between Global Guidelines and Local Practices in CKD-MBD. Electrolyte Blood Press. 2014;12(2):35-40. [PubMed ID: 25606042]. https://doi.org/10.5049/EBP.2014.12.2.35.

  • 12.

    Young EW, Akiba T, Albert JM, McCarthy JT, Kerr PG, Mendelssohn DC, et al. Magnitude and impact of abnormal mineral metabolism in hemodialysis patients in the Dialysis Outcomes and Practice Patterns Study (DOPPS). Am J Kidney Dis. 2004;44(5 Suppl 2):34-8. [PubMed ID: 15486872]. https://doi.org/10.1016/S0272-6386(04)01103-5.

  • 13.

    Isakova T, Gutierrez OM, Chang Y, Shah A, Tamez H, Smith K, et al. Phosphorus binders and survival on hemodialysis. J Am Soc Nephrol. 2009;20(2):388-96. [PubMed ID: 19092121]. https://doi.org/10.1681/ASN.2008060609.

  • 14.

    Jamal SA, Vandermeer B, Raggi P, Mendelssohn DC, Chatterley T, Dorgan M, et al. Effect of calcium-based versus non-calcium-based phosphate binders on mortality in patients with chronic kidney disease: an updated systematic review and meta-analysis. Lancet. 2013;382(9900):1268-77. [PubMed ID: 23870817]. https://doi.org/10.1016/S0140-6736(13)60897-1.

  • 15.

    Levey AS, Bosch JP, Lewis JB, Greene T, Rogers N, Roth D. A more accurate method to estimate glomerular filtration rate from serum creatinine: a new prediction equation. Modification of Diet in Renal Disease Study Group. Ann Intern Med. 1999;130(6):461-70. [PubMed ID: 10075613]. https://doi.org/10.7326/0003-4819-130-6-199903160-00002.

  • 16.

    Block GA, Klassen PS, Lazarus JM, Ofsthun N, Lowrie EG, Chertow GM. Mineral metabolism, mortality, and morbidity in maintenance hemodialysis. J Am Soc Nephrol. 2004;15(8):2208-18. [PubMed ID: 15284307]. https://doi.org/10.1097/01.ASN.0000133041.27682.A2.

  • 17.

    Ganesh SK, Stack AG, Levin NW, Hulbert-Shearon T, Port FK. Association of elevated serum PO(4), Ca x PO(4) product, and parathyroid hormone with cardiac mortality risk in chronic hemodialysis patients. J Am Soc Nephrol. 2001;12(10):2131-8. [PubMed ID: 11562412].

  • 18.

    Rodriguez-Benot A, Martin-Malo A, Alvarez-Lara MA, Rodriguez M, Aljama P. Mild hyperphosphatemia and mortality in hemodialysis patients. Am J Kidney Dis. 2005;46(1):68-77. [PubMed ID: 15983959]. https://doi.org/10.1053/j.ajkd.2005.04.006.

  • 19.

    London GM, Guerin AP, Marchais SJ, Metivier F, Pannier B, Adda H. Arterial media calcification in end-stage renal disease: impact on all-cause and cardiovascular mortality. Nephrol Dial Transplant. 2003;18(9):1731-40. [PubMed ID: 12937218]. https://doi.org/10.1093/ndt/gfg414.

  • 20.

    Yang H, Curinga G, Giachelli CM. Elevated extracellular calcium levels induce smooth muscle cell matrix mineralization in vitro. Kidney Int. 2004;66(6):2293-9. [PubMed ID: 15569318]. https://doi.org/10.1111/j.1523-1755.2004.66015.x.

  • 21.

    Goldsmith D, Covic A. Oral phosphate binders in CKD - is calcium the (only) answer? Clin Nephrol. 2014;81(6):389-95. [PubMed ID: 25017668]. https://doi.org/10.5414/CN108209.

  • 22.

    London GM, Marchais SJ, Guerin AP, Boutouyrie P, Metivier F, de Vernejoul MC. Association of bone activity, calcium load, aortic stiffness, and calcifications in ESRD. J Am Soc Nephrol. 2008;19(9):1827-35. [PubMed ID: 18480316]. https://doi.org/10.1681/ASN.2007050622.

  • 23.

    Pavan M, Ranganath R, Chaudhari AP, Upadhayaya KL, Mehta HJ. Practice pattern of chronic kidney disease-mineral and bone disorder (CKD-MBD) in hemodialysis patients in a tertiary care centre in India. Dial Traspl. 2012;33(4):110-4. https://doi.org/10.1016/j.dialis.2011.12.001.

  • 24.

    Kong X, Zhang L, Zhang L, Chen N, Gu Y, Yu X, et al. Mineral and bone disorder in Chinese dialysis patients: a multicenter study. BMC Nephrol. 2012;13:116. [PubMed ID: 22994525]. https://doi.org/10.1186/1471-2369-13-116.

  • 25.

    Robinson B, Fuller D, Zinsser D. The Dialysis Outcomes and Practice Patterns Study (DOPPS) Practice Monitor: rationale and methods for an initiative to monitor the new US bundled dialysis payment system. Am J Kidney Dis. 2011.

  • 26.

    Jeloka T, Mali M, Jhamnani A, Konde S, Jadhav V. Are we overconcerned about secondary hyperparathyroidism and underestimating the more common secondary hypoparathyroidism in our dialysis patients? J Assoc Physicians India. 2012;60:102-5. [PubMed ID: 22715556].

  • 27.

    Kim GH, Choi BS, Cha DR, Chee DH, Hwang E, Kim HW, et al. Serum calcium and phosphorus levels in patients undergoing maintenance hemodialysis: A multicentre study in Korea. Kidney Res Clin Pract. 2014;33(1):52-7. [PubMed ID: 26877950]. https://doi.org/10.1016/j.krcp.2013.12.003.

  • 28.

    Mahdavi-Mazdeh M, Zamyadi M, Norouzi S, Heidary Rouchi A. Management of calcium and phosphorus metabolism in hemodialysis patients in Tehran Province, Iran. Iran J Kidney Dis. 2007;1(1):25-8. [PubMed ID: 19357440].

  • 29.

    Patel L, Bernard LM, Elder GJ. Sevelamer Versus Calcium-Based Binders for Treatment of Hyperphosphatemia in CKD: A Meta-Analysis of Randomized Controlled Trials. Clin J Am Soc Nephrol. 2016;11(2):232-44. [PubMed ID: 26668024]. https://doi.org/10.2215/CJN.06800615.

  • 30.

    Rivera F, Sanchez de la Nieta MD, Echarri R, Anaya S, Carreno A, Vozmediano MC, et al. [CA-P control in haemodialysis and K/DOQI guidelines]. Nefrologia. 2006;26(3):351-7. [PubMed ID: 16892824].

  • 31.

    Wei M, Taskapan H, Esbaei K, Jassal SV, Bargman JM, Oreopoulos DG. K/DOQI guideline requirements for calcium, phosphate, calcium phosphate product, and parathyroid hormone control in dialysis patients: can we achieve them? Int Urol Nephrol. 2006;38(3-4):739-43. [PubMed ID: 17160632]. https://doi.org/10.1007/s11255-005-0083-x.
