1. Background
Lead (Pb) is one of the most abundant toxic heavy metals which tends to accumulate in living organisms and causes a variety of adverse health effects for humans (1-4). In humans, exposure to lead can cause renal, skeletal, hepatic, pulmonary, neurologic and hematological, cardiovascular, reproductive, and cardiovascular dysfunction (5-8).
In recent years, due to the expansion of industrial activities, contamination in the environment and the food chain has increased (9); Therefore, the digestive system of the body is prone to lead contamination (10). Since pollution caused by heavy metal has severe health consequences, their removal is of crucial importance. Recent studies were mainly focused on discovering new and cheap methods of metal ions removal (11). Among the conventional treatment methods, ‘adsorption’ has attracted considerable attention in recent years, mainly because of its metal binding capacities and cost-benefits (4). Since the dynamic characteristics of the adsorption process are complex, having the optimum working condition is essential to achieve optimum pollution removal efficiency. Adsorbents may be of mineral, organic, or biological origin by using live or dead microbial organisms (2). According to the literature, lactic acid bacteria (LAB) have efficient removal ability among the microbial organisms (5, 12-14). Recently, several studies have reported that LAB, and more particularly lactobacilli, which are generally recognized as safe probiotics, could identify heavy metals in food and water and perhaps gastrointestinal tract as well, due to their heavy metals binding ability (15, 16). Therefore, the applications of LAB in the food industry and probiotics products have expanded recently (6, 12). The ability to bind lead is reported for several probiotic and food-grade Lactobacillus strains (12, 17, 18).
2. Objectives
Several studies showed that culture conditions substantially affect the removal ability of heavy metals by microorganisms (2, 5, 7, 18). However, the effects of culture conditions on lactobacilli removal efficiency against lead are less investigated (8). Several optimization techniques are developed to achieve this goal (7). Classical and conventional methods cannot depict all factor combinations which can affect the experiments. Meanwhile, determining the optimum level using these methods requires a lot of time. The current study has used the Response Surface Method (RSM), which is a mathematical and statistical technique to investigate the association between a group of controlled experimental factors and measures’ responses according to one or more criteria (10, 19-21). The RSM is one of the most widely used methods as it develops, improves, and optimizes the processes, particularly in the presence of complex interactions (22). The greatest advantage of the RSM with CCD or Box-Behnken design is decreasing the number of experimental trials required to interpret multiple parameters (23). Therefore, the current study aimed to investigate how the cultural and bacterial conditions can affect lead removal ability of examined lactobacillus strains and to select the optimum conditions for removal activity.
3. Methods
3.1. Heavy Metals
Lead (2 mg.mL-1) stock solutions were prepared from Pb (No3)2 (Sigma-Aldrich), respectively, in Milli-Q water. The stock solutions were sterilized by passing through a 0.22 μm syringe filter and then stored at 4°C until use.
3.2. Bacterial Strains
In the current study, the five Lactobacillus strains were used, that all of which were purchased from the Iranian Research Organization for Science and Technology (IROST): Lactobacillus acidophilus ATCC4356, Lactobacillus Plantarum ATCC8014, Lactobacillus fermentum ATCC9338, Lactobacillus casei ATCC39392, and Lactobacillus rhamnosus ATCC7469. All strains were cultured in deMan, Rogosa, Sharpe (MRS) broth (Merck, Germany), under microaerophilic conditions at 37°C.
3.3. Determining Lead Removal Activities of Each Strain
The lead removal activity of the five strains was analyzed according to the methodology proposed by Zhai and colleagues (5). Briefly, cultured biomass was centrifuged at 8000 × g (Centrifuge Sorvall. RC-5B) for 20 min after incubation of the strains. Then, cell pellets were washed two times, weighed and resuspended in ultrapure water containing 50 mg.L-1 lead to give a final bacterial concentration of 1 g.L-1 (wet weight). The pH of the suspension was adjusted to 6 by dilute HNO3 or NaOH. After 1 h incubation at 37°C, the suspension was centrifuged at 8000 × g for 20 min; a sample was taken from the supernatant for the analysis of residual lead concentration, which was measured by Inductively Coupled Plasma-optical emission spectrometry (ICP-MS). The lead removal activity (as a percentage) of the strains (bound by the bacteria) were expressed as follows:
where C0 (mg.L-1) and C1 (mg.L-1) are the initial and final metal ion concentrations in the solution, respectively (24). Strains with relatively high lead removal activity in the removal assay were selected for further optimization.
3.4. Optimization Experiment
The optimization experiment was performed in two steps. First, the important factors were selected, and then the optimum condition for lead removal by Lactobacillus strains was determined. The Plackett-Burman design (11) by the Minitab18 program was used for selecting the important factors. A 12 run Plackett-Burman design was applied to evaluate the important variables for six factors by two levels (the lower and higher levels of the factors were selected, respectively) (10). In the second step, the optimum condition for lead removal was done by RSM (9). The experiment was designed with 18 trials, according to the Central Composite Design (17). Each trial was performed in duplicates.
In the current study, different factors (live status, pH, temperature, bacterial and metal concentration) affecting the process of biosorption, were optimized and controlled by using boiling water (live/dead bacteria), acid/base addition (pH), cooling jackets (temperature), and baffles/agitators (same level of bacterial and metal concentration).
3.5. Statistical Analysis
Data were analyzed using Design-Expert 11.1.2.0 program. Analysis of variance (ANOVA), probability values (P value), and three-dimensional curves of the response surfaces were used to investigate the interaction between variables and the response.
4. Results
4.1. Lead Removal Activity of Lactobacillus strains
The percentage of lead removed (bound by the bacteria) by each of the five Lactobacillus strains is shown in Table 1. Metals removal efficiencies varied from 30.5 to 53.9%. Hence, L. acidophilus ATCC4356 was screened for further optimization, with the maximum percentage removal for lead (53.9 ± 0.01%).
| Lactobacillus Strains | % Pb Removed |
|---|---|
| L. acidophilus ATCC4356 | 53.9 ± 0.013 |
| L. plantarum ATCC8014 | 47.7 ± 0.025 |
| L. rhamnosus ATCC7469 | 30.5 ± 0.054 |
| L. fermentum ATCC9338 | 44.2 ± 0.04 |
| L. casei ATCC39392 | 33.3 ± 0.02 |
aThe bacteria were incubated 24 h in MRS broth supplemented with 5 mg.L-1 Pb.
bValues are mean ± SD of three replicates.
4.2. Plackett-Burman Design Analysis to Find Critical Factors for Response Values of Lead Removal
Investigated factors, Plackett-Burman design, and the corresponding response measurements, which were randomized according to the run number, are shown in Table 2.
Table 2.
Experimental Design and the Results Derived from Each Run in Plackett-Burman Designa
| Standard No. | Run | Factors | Removal of Lead (%) for L. acidophilus ATCC4356 | |||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | |||
| 7 | 1 | - | + | + | + | - | + | 68.9 |
| 5 | 2 | + | + | - | + | + | - | 55.6 |
| 1 | 3 | + | - | + | - | - | - | 55.7 |
| 4 | 4 | + | - | + | + | - | + | 71.1 |
| 3 | 5 | - | + | + | - | + | - | 54.0 |
| 2 | 6 | + | + | - | + | - | - | 53.6 |
| 12 | 7 | - | - | - | - | - | - | 52.9 |
| 10 | 8 | + | - | - | - | + | + | 53.9 |
| 8 | 9 | - | - | + | + | + | - | 62.4 |
| 11 | 10 | - | + | - | - | - | + | 54.3 |
| 9 | 11 | - | - | - | + | + | + | 57.1 |
| 6 | 12 | + | + | + | - | + | + | 59.7 |
Abbreviations: A, live status; B, time (hour); C, pH; D, bacterial concentration (g.L-1); E, temperature (°C); F, metal (lead) concentration (mg.L-1).
a - and + represent the low and high levels, respectively.
ANOVA and Pareto charts were used to analyze the significance of the effects. Pareto chart examines how the factors significantly affect the response and help in comparing the relative importance of the effects (4). The interpretation of this chart demonstrates that pH, biomass concentration (g.L-1), and concentration of metals (mg.L-1) were highly significant, and other factors were less significant (with a confidence interval of < 95% and P < 0.05)) (Figures 1A and 2A). Normal probability plot (Figures 1B and 2B), residual versus order plot (Figures 1C and 2C), and residual versus fitted plot (Figures 1D and 2D) showed the same insinuations; thus, the model fits the data well and follows a normal distribution in both strains.

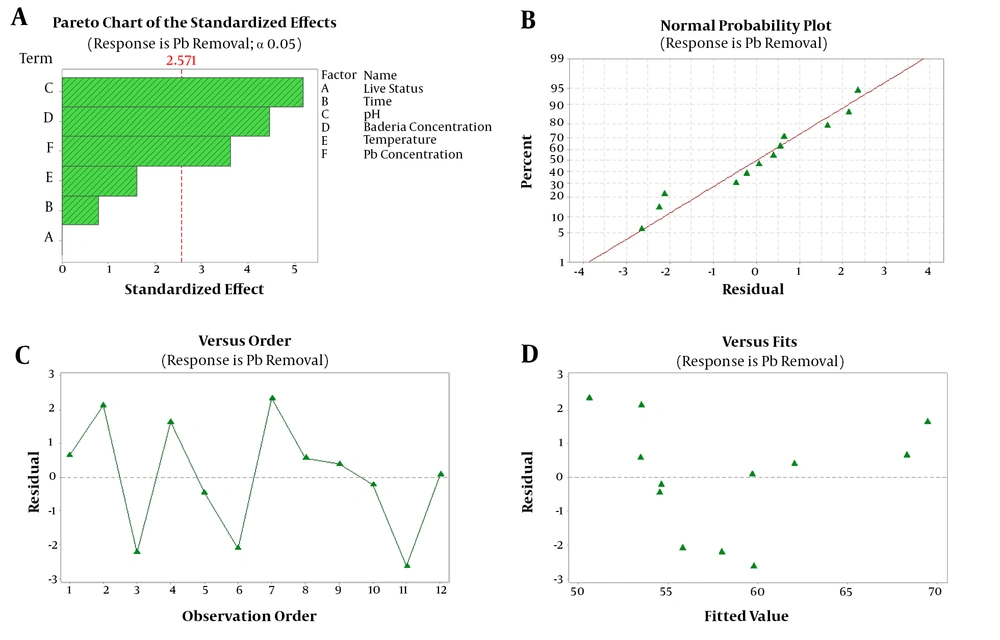

Figure 1.
A) Pareto chart, B) normal probability plot, C) residual versus order plot, and D) residual versus fitted plot for Plackett-Burman design (PBD) for lead removal of L. acidophilus ATCC4356.

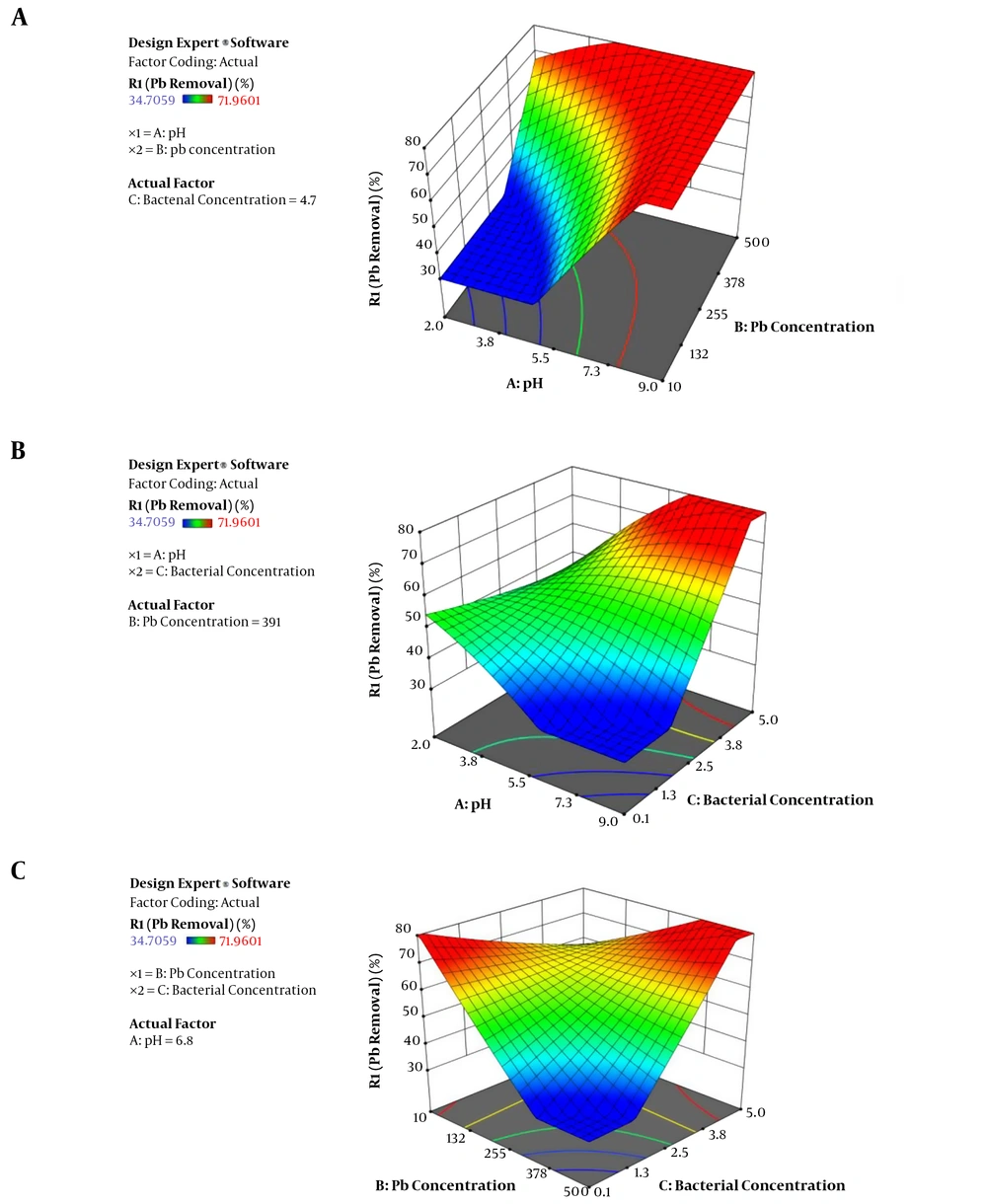

Figure 2.
Fitted surface for the lead removal as: A) pH(A) and Pb concentration(B) (Bacterial concentration = 4.7), B) pH(A) and bacterial concentration(B) (Pb concentration = 391), C) Pb concentration(B) and bacterial concentration(C) (pH = 6.8).
4.3. Optimum Factors for Response Values of Metal Removal and Analysis for the Central Composite Design
Biomass concentration, pH, and concentration of metals (lead) were left to be optimized after the Plackett-Burman design. The screening was planned according to the principle of the central composite design, such that the pH (A), metal concentration (B, mg.L-1), and bacterial concentration (C, g.L-1) were defined as independent values and lead removal (R, percentage) was defined as the response value in the mathematical modeling for L. acidophilus ATCC4356. The range of independent experimental variables, coded variables, and the results of the experiment are shown in Table 3.
Table 3.
Experimental Design for for Lead Removal of L. acidophilus ATCC4356 (Response) with the Results
| Run | No. of Factors (-1 Level, +1 Level) | Response | ||
|---|---|---|---|---|
| 1 | 2 | 3 | R | |
| A: pH (3.42, 7.58) | B: Lead Concentration (109.32, 400.68) | C: Bacterial Concentration (1.09, 4.01) | Lead Removal (%) | |
| 1 | 3.4 | 109 | 1.1 | 50.4 |
| 2 | 5.5 | 255 | 2.5 | 49.0 |
| 3 | 5.5 | 10 | 2.5 | 56.0 |
| 4 | 5.5 | 255 | 2.5 | 50.8 |
| 5 | 2.0 | 255 | 2.5 | 34.7 |
| 6 | 3.4 | 401 | 4.0 | 56.5 |
| 7 | 5.5 | 255 | 0.1 | 48.6 |
| 8 | 5.5 | 255 | 2.5 | 54.0 |
| 9 | 7.6 | 109 | 4.0 | 70.2 |
| 10 | 9.0 | 255 | 2.5 | 60.0 |
| 11 | 5.5 | 255 | 5.0 | 60.3 |
| 12 | 7.6 | 109 | 1.1 | 66.1 |
| 13 | 3.4 | 401 | 1.1 | 50.3 |
| 14 | 5.5 | 500 | 2.5 | 53.2 |
| 15 | 7.6 | 401 | 4.0 | 72.0 |
| 16 | 5.5 | 255 | 2.5 | 53.8 |
| 17 | 5.5 | 255 | 2.5 | 52.5 |
| 18 | 5.5 | 255 | 2.5 | 59.6 |
The results of the ANOVA are shown in Table 4. Statistical parameters such as F value, R2, adj. R2, predicted R2, and lack of fit were evaluated and compared with the experimental results for the reliability of the model. The analysis showed that the lack of fit was not significant (P > 0.05) and two models were significant (P < 0.05). The coefficient of determination (R2) for lead removal was 0.94 (that is, the fitted models were adequate). According to the analyses, a quadratic model equation was developed. The results of the ANOVA are shown in Table 4. The association between independent variables and response was drawn by second-order polynomial equations. Final equations were expressed as follows:
For coded factors:
For actual factors:
Table 4.
ANOVA for Response Surface Quadratic Model of R (Lead Removal of L. acidophilus ATCC4356)a
| Source | Sum of Squares | df | Mean Square | F Value | P Value |
|---|---|---|---|---|---|
| Model | 1206 | 9 | 134 | 15.2 | 0.0004b |
| A-pH | 594 | 1 | 594 | 67.4 | < 0.0001b |
| B-Pb concentration | 1.47 | 1 | 1.47 | 0.167 | 0.6935 |
| C-Bacterial Concentration | 110 | 1 | 111 | 12.6 | 0.0075b |
| AB | 173 | 1 | 174 | 19.7 | 0.0022b |
| AC | 171 | 1 | 171 | 19.4 | 0.0023b |
| BC | 193 | 1 | 193 | 21.9 | 0.0016b |
| A2 | 53.0 | 1 | 53.0 | 6.02 | 0.0397b |
| B2 | 2.50 | 1 | 2.50 | 0.283 | 0.6090 |
| C2 | 2.06 | 1 | 2.06 | 0.233 | 0.6421 |
| Residual | 70.5 | 8 | 8.81 | ||
| Lack of Fit | 4.57 | 3 | 1.52 | 0.115 | 0.9473 |
| Pure Error | 65.9 | 5 | 13.2 | ||
| Cor Total | 1276 | 17 |
aStd.Dev. = 2.97, R-Squared = 0.944, Mean = 55.4, Adjusted R2 = 0.882, C.V.% = 5.3, Predicted R2 = 0.869
bSignificant
4.4. Response Surface Modeling and Process Optimization
The 3D plots of the response surface for the highest removal efficiency in an optimized condition are presented in Figure 2A-C for R. Figure 2A represents the combined effect of pH (A) and lead concentration (B). Both parameters affect the lead removal synergistically. By increasing each of the two independent variables, the removal efficiency increases. The effect of pH (A) and bacterial concentration (C) on removal efficiency is shown in Figure 2B. The combined effect of pH (A) and bacterial concentration (C) affect the lead removal activity (Figure 2B) synergistically. The combined effect of lead concentration (B) and bacterial concentration (C) on metal removal efficiency is shown in Figure 2C. As shown, by moving toward the maximum bacterial concentration and lower lead concentration at a constant pH (6.8), the removal values decrease dramatically.
4.5. Verification
This step aimed to verify the optimization capability of the models generated according to the results of the CCD. The maximum metal removal efficiencies of Lactobacillus strains were investigated when the optimal process variable (A, B, and C) were equal to 6.76, 391 mg.L-1 and 4.65 g.L-1 for lead removal of L. acidophilus ATCC4356. The experimental and predicted removal efficiencies at the optimum condition were found as 73.960 and 75.710% for L. acidophilus ATCC4356, respectively (95% PI low = 63.4 and 95% PI high = 79.4)
5. Discussion
The results show that L. acidophilus ATCC4356 had the highest (53.9 ± 0.01%) lead removal efficiency. Therefore, this strain was selected for further investigation. Several studies showed that physical and cultural conditions affect removal capacity (19, 20). Optimization helps us to find the condition with the best output for a system (7, 8, 17, 21). Few studies are conducted on the application of bacteria, particularly LAB, using a methodological approach. For example, Kumar and colleagues (25) used the Box–Behnken design matrix with RSM for removing Cr (VI), Ni (II), and Zn (II) ions with immobilized bacterial strain Bacillus Brevis. They investigated the effect of parameters such as pH, temperature, and initial concentration of metal ions on adsorption, and the maximum removal of Cr (VI) was observed as 77.24% at pH 2.0, temperature 40ºC, and concentration 35 mg/L. Whereas, removal of Ni (II) ions was 75.2% at pH 6.0, temperature 40ºC, and concentration 35 mg/L and 71.6% of Zn (II) ions at pH 4.0, temperature 32.5ºC, and concentration 35 mg/L, respectively.
Zhai and colleagues (5) examined cadmium removal from rice using the Box-Behnken model with a combined RSM approach by L. plantarum. They investigated three effective factors for cadmium removal (i.e., temperatures, fermentation durations, and inoculation amounts of L. plantarum). In total, they performed 17 experiments using a quadratic model. Using this model, they calculated the regression equation coefficients, and the data were fitted to a second-order polynomial equation. Sahu and colleagues (26) evaluated and optimized Cr ions adsorption on activated carbon experimental conditions using RSM. They employed a full factorial CCD, and ANOVA was used to analyze the data. They estimated a high coefficient (R2 = 0.92) and according to optimized process parameters, Cr (VI) removal percentage was higher than 89%. Ince and colleagues examined the removal of Pb (II) using clay in a batch experimental system. The Box-Behnken experimental design methodology and RSM were used to investigate various effective parameters. Based on their results, a pH of 5, contact time of 31 minutes, 75 mg for adsorbent dosage, and 100 rpm for agitation speed were optimal conditions used for Pb (II) removal (27). In another study, Ince and Kaplan Ince examined the removal of Cr from industrial wastewater using RSM combined with CCD. They reported that the CCD method was identified to yield a maximum Cr ion removal of 99% at pH of 5.0, contact time 23.0 minutes, the adsorbent dosage of 69.4 mg, and agitation speed of 135 rpm (28).
In the present study, biomass concentration, pH, and concentration of metals were left to be optimized after the Plackett-Burman design. According to the results, the pH was the most effective variable for studied strains. In another study that is conducted in the same removal condition (pH, metal concentration, bacterial concentration, and contact time) similar results are obtained (6, 12, 29), but the effectiveness of the factors was not evaluated. A quadratic model obtained from the CCD matched the experimental data (P value < 0.05). The results show that increasing the bacterial concentration improves the removal efficiency. This could be attributed to the increase in the amount of the bacteria and, therefore, adsorbing surface, which prepares more active surfaces for adsorbing metal ions. The same result is reported by Sedighi and colleagues, which investigated the lead removal of Lactobacillus bulgaricus (86.2%) by biomass concentration of 6.58 g.L-1 and initial lead concentration of 36.2 ppm. They concluded that the pH and weight of dried biomass were the key factors influencing the lead ion removal activity (18). That is consistent with the results of the current study.
According to the results, metal ions concentration has little effect on removal activity so that after decreasing the metal and bacterial concentration at a constant pH, the removal efficiency was increased. Besides, in all concentrations of lead, a decrease in pH, and consequently releasation of H+ into the solution, was associated with lower removal efficiency. Based on the findings, the removal activity of metals to the bacteria begun at pH 2 in all cases and risen steeply to essentially a maximum percentage within the next 7 pH units up to pH 9. The results are consistent with the results reported by Sofu and colleagues (17), which reported that removal efficiency enhances with an increase in pH from 2 to 6.78. They also reported that the lead removal efficiency increased from 4.86 to 79.3% with an increase in adsorbent dosage from 2 to 8 g.L-1, which is in line with the findings of the current study.
5.1. Conclusions
To investigate the effects of three selected adsorption variables (namely pH, bacterial, and metal concentration) on the removal of lead the CCD was used. A quadratic model was developed to correlate the variables to the response. Through the analysis of response surfaces, pH and bacterial concentration were found to have significant effects on removal activity, whereas pH was the most significant factor (P value < 0.0001). The experimental removal efficiencies at the optimum condition for lead by L. acidophilus ATCC4356 (73.9 %) were compatible with predicted values. It is concluded that these two lactobacilli strains can be effectively used for heavy metal adsorption and have an important potential for lead adsorption. However, the potential applicability of these two strain-based bioadsorbent could be further examined on a large-scale.
