1. Background
Nowadays, the power of nations and countries is evaluated based on their scientific research and knowledge (1). Scientific research is conducted for development in all life aspects and is published mainly in scientific journals as the main knowledge exchange contexts (2). Scientific development is conceived as one of the main indicators of the socio-economic development of countries (3).
The quantity and quality of publications indexed in international databases is the main factor representing the share of each country in producing scientific knowledge (4, 5). In addition, the scientific output in various scientific fields represents the research activities and scientific development in different countries and fields (6). Scientific collaboration is usually used by low- and middle-income countries as an effective way to access the knowledge and technologies of developed countries. Some issues, such as size, political and economic problems, mobility, and migration, affect scientific collaboration (7, 8).
Considering the importance of developing research in forming knowledge-based communities, the regular identification and evaluation of the research is highly preferred among academics and policy-makers (9-11). The research evaluation in each field, country, and region is not easy due to the variety of indexing databases and approaches (12-16).
Bibliometrics, with its various indicators, is one of the credible tools of scientific evaluation and is used for identifying, explaining, and predicting the researcher’s and scientific institutions’ research states from different national and international perspectives. It is effective and helpful in monitoring and ranking researchers, scientific centers, journals, and collaborating countries and regions (17-19). It provides a comprehensive and deep consideration of the current status and future growth in the world’s scientific development and consequent logical assessment and evaluation of scientific performance and human and financial resources in research (20, 21). Bibliometrics has become one of the inseparable tools of research evaluation, resulting in awareness of the research situation and tracing back its optimal state (22), and is helpful in determining research lines and frontiers (23, 24). Bibliometrics is important as a tool for informing researchers and the scientific community of research findings and impact (25).
Coined by Pritchard, bibliometrics is the application of statistics and mathematics for communication media and evaluates publications by using quantitative approaches (26, 27). In recent years, this scientific field has expanded as scientometrics (1969), informetrics (1979), webometrics (1997), and so on (28). It includes some techniques such as co-word, co-authorship, and co-citation analyses (29) and scientific mapping and visualization (30).
Focusing on the bibliometric analyses of scientific production in medical fields indexed in prestigious databases is a credible tool for measuring the processes and progressions in the field (20, 31). One of these databases is the Web of Science (WoS), a dynamic indexing/abstracting database for making bibliometric analysis and visualization (32).
Multiple sclerosis (MS) is a chronic disease characterized by the inappropriate invasion of lymphocytes and monocytes into the CNS, where they orchestrate the demyelination of axons, leading to physical and cognitive disability (33) and resulting in serious problems in the patient’s family life, personal activity and socio-economic situations (34). Multiple sclerosis continues to be a challenging and disabling condition, predominantly affecting individuals in their early life, and has an impact functionally, financially, and on quality of life (35).
Many bibliometric studies and scientific visualization analyses related to medical fields have been conducted worldwide. Some of them, such as endocrinology and metabolism (36), adrenal gland diseases (18), hepatitis (37), obesity/overweight (38), diabetes (18), and cardiovascular disease (39) in the Middle East, have practical importance. They help identify dominant research areas and leading contributors, aiding resource allocation and collaborative opportunities for addressing health concerns effectively. For instance, research in endocrinology pinpointed Diabetes Mellitus as a focal point. Adrenal gland disease studies emphasize international collaboration and priority areas such as congenital hyperplasia. Hepatitis research highlights the need for enhanced efforts and quality journals. Obesity and overweight analyses show significant growth, informing health policies. Diabetes research quantifies contributions, particularly Iran’s, guiding resource allocation and regional collaboration. Cardiovascular disease studies reveal the region’s lag and the need for increased research and resource allocation, especially among the Gulf countries.
2. Objectives
As there is not any bibliometric visualization of MS publications in the Middle East, this study aimed to conduct a bibliometric study and visualization of the research made by the countries in the region on MS using WoS during 1900 - 2020. By this, a comprehensive depiction of trends and topics and top researchers, authors, and journals can be found, and better communication with those in the research on the field can be obtained.
3. Methods
3.1. Study Design and Data Source
This study was a cross-sectional bibliometric analysis based on the WoS, which is one of the most important databases for indexing scientific papers. As PubMed does not allow for citation review, WoS is favored over it. In the same way, WoS is favored over Scopus because it contains the most respected and prominent journals in all medical fields (14). The study population was selected using the indexed scientific results of MS in the WoS during 1900 - 2020. It was assumed that this 120-year period would project a better picture of the pattern of publications.
3.2. Time Span and Language
To analyze data, the time span was limited to the period 1 January 1900 to 31 December 2020. Our last search was performed on February 16, 2021, and no language and document type limitation was imposed on data.
3.3. Search Strategy
Initially, the keyword "Multiple Sclerosis" was searched in the controlled vocabulary database, Mesh (Medical Subject Headings), and all entry terms that were near the descriptor and referral keywords were selected for searching. Data collection was performed by searching the advanced search section of WoS. The keywords entered into WoS in order to accomplish the objectives of this study were "MS", "Multiple Sclerosis", "Sclerosis, Multiple", "Sclerosis, disseminated", "Disseminated Sclerosis," and "Multiple Sclerosis, Acute Fulminating” as article topics (TS). This field tag allowed searching for the topic within titles, abstracts, and keywords. Then, all 17 countries in the Middle East were entered as country/region (CU) (including Turkey, Egypt, Iran, Iraq, Saudi Arabia, Yemen, Syrian Arab Republic, Jordan, United Arab Emirates, Israel, Cyprus, Lebanon, Oman, Palestine, Kuwait, Qatar and Bahrain). The resulting search in WoS was as follows:
You searched for TS = (MS OR Multiple Sclerosis OR Sclerosis, Multiple OR Sclerosis, Disseminated OR Disseminated Sclerosis OR Multiple Sclerosis, Acute Fulminating) AND CU = (Turkey OR Egypt OR Iran OR Iraq OR Saudi Arabia OR Yemen OR Syrian Arab Republic OR Jordan OR United Arab Emirates OR Israel OR Cyprus OR Lebanon OR Oman OR Palestine OR Kuwait OR Qatar OR Bahrain). Timespan: 1900 - 2020. Indexes: SCI-EXPANDED, SSCI, A&HCI, CPCI-S, CPCI-SSH, BKCI-S, BKCI-SSH, ESCI, CCR-EXPANDED, IC.
3.4. Statistical and Visualization Analysis
Using the WoS tools, all collected data were analyzed on the basis of the following parameters: country, year, number of publications, and time trend of these publications, authors, journals, co-word and co-authorship analysis, and top active institutions. The data retrieved was downloaded as files containing 500 documents in plain text format, and all were merged for use in Excel and VOSviewer software. VOSviewer is a powerful software tool developed by van Eck, NJ, and Waltman, L, which simplifies the process of generating and visualizing bibliometric networks. These networks can involve various entities such as journals, researchers, or individual publications and can be constructed based on different types of relationships such as citation, bibliographic coupling, co-citation, or co-authorship. Additionally, the tool offers text mining capabilities that allow the creation and visualization of co-occurrence networks, which highlight significant terms extracted from a collection of scientific literature (40-44).
4. Results
Total publications on MS worldwide from 1900 - 2020 amounted to 669,842. The Middle Eastern countries contributed to publishing 37,101 (5.5%) documents in the field. The first published documents in the world and the Middle East belonged to the years 1921 and 1973, respectively.

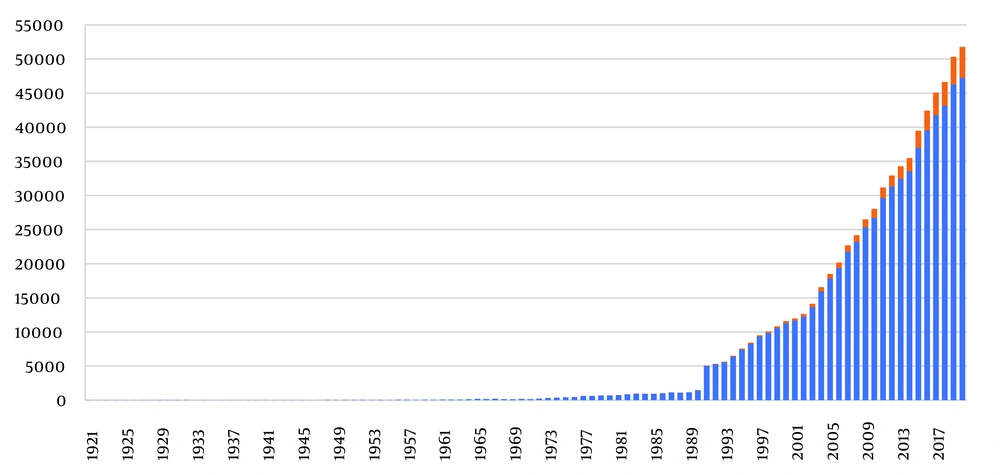

Figure 1 shows the number of publications in MS during the study time span. Blue and orange graphs depict the World and the Middle East, respectively. As can be seen, the growth in publication has had an ascending trend, with the highest growth rate in 2020.
Table 1 shows the yearly frequencies and percentages of publications on MS in the World and the Middle East. The highest frequency was 2020, with 7.09% and 12.2% of all publications in the World and Middle East, respectively. 5.5% of all world publications belonged to Middle Eastern countries.
Year | World Pub. No. | % of Total Contribution (1900 - 2020) | Year | Middle East Pub. No. | % of Total Publications (1900 - 2020) |
---|---|---|---|---|---|
2020 | 47249 | 7.09 | 2020 | 4512 | 12.2 |
2019 | 46259 | 6.94 | 2019 | 4068 | 11.0 |
2018 | 43155 | 6.48 | 2018 | 3487 | 9.4 |
2017 | 41787 | 6.27 | 2017 | 3271 | 8.8 |
2016 | 39517 | 5.93 | 2016 | 2910 | 7.8 |
2015 | 36988 | 5.55 | 2015 | 2488 | 6.7 |
2014 | 33528 | 5.03 | 2014 | 1962 | 5.3 |
2013 | 32456 | 4.87 | 2013 | 1812 | 4.9 |
2012 | 31305 | 4.70 | 2012 | 1616 | 4.4 |
2011 | 29628 | 4.45 | 2011 | 1549 | 4.2 |
2010 | 26730 | 4.01 | 2010 | 1312 | 3.5 |
2009 | 25366 | 3.81 | 2009 | 1139 | 3.1 |
2008 | 23182 | 3.48 | 2008 | 1005 | 2.7 |
2007 | 21761 | 3.27 | 2007 | 926 | 2.5 |
2006 | 19353 | 2.91 | 2006 | 817 | 2.2 |
2005 | 17829 | 2.68 | 2005 | 675 | 1.8 |
2004 | 15952 | 2.39 | 2004 | 615 | 1.7 |
2003 | 13657 | 2.05 | 2003 | 489 | 1.3 |
2002 | 12222 | 1.83 | 2002 | 409 | 1.1 |
2001 | 11646 | 1.75 | 2001 | 324 | 0.9 |
2000 | 11281 | 1.69 | 2000 | 309 | 0.8 |
1900 - 1999 | 85304 | 12.81 | 1900 - 1999 | 1406 | 3.8 |
Total | 666155 | 100.00 | Total | 37101 | 100.0 |
The Yearly Frequencies and Percentages of Publications on Multiple Sclerosis in the World and the Middle East
In total, 761 Middle Eastern researchers contributed to MS research during the study time span. Table 2 shows the top ten highly productive authors. Baser, Kemal Husnu Can from Turley, with 360 papers (0.97% of all publications in the region), ranked first. Most highly productive authors were from Turkey and Iran.
Author Name | Pub. No. | % of Total Pub. | Country |
---|---|---|---|
Baser, Kemal Husnu Can | 360 | 0.97 | Turkey |
Achiron, Anat | 326 | 0.87 | Israel |
Sahraian, Mohammad Ali | 293 | 0.78 | Iran |
Demirci, Betul | 256 | 0.69 | Turkey |
Alroughani, Raed | 219 | 0.59 | Kuwait |
Ozakbas, Serkan | 200 | 0.53 | Turkey |
Etemadifar, Masoud | 193 | 0.52 | Iran |
Shaygannejad, Vahid | 168 | 0.45 | Iran |
Miller, Ariel | 143 | 0.38 | Israel |
Top Ten Highly-Productive Middle Eastern Authors in Multiple Sclerosis Research

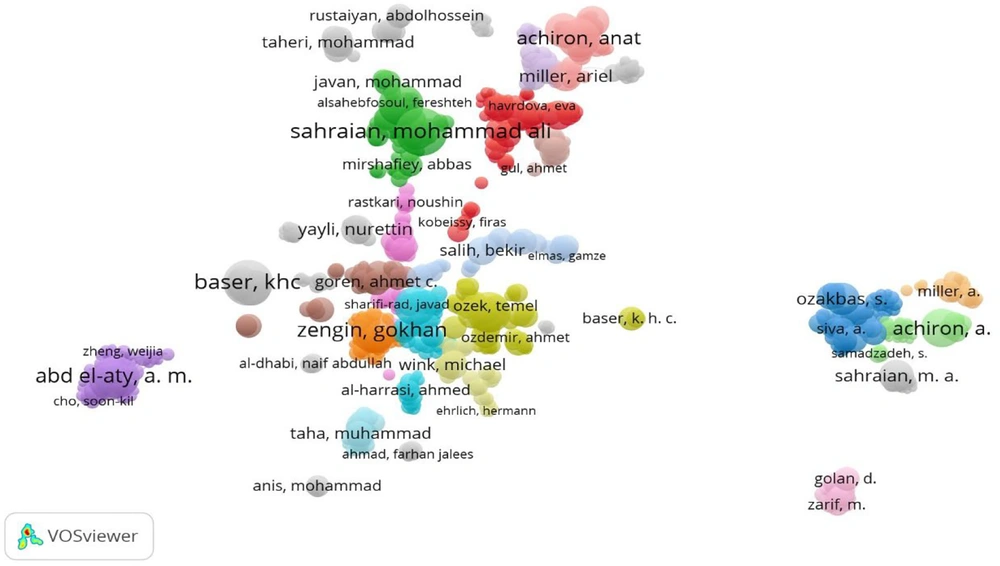

Figure 2 depicts the co-authorship map of researchers, including 31 clusters. Each cluster includes co-authors. Highly productive authors were highlighted with highlighted letters and greater circles. The most highly productive authors were Baser, Kemal Husnu Can from Turkey, Achiron, Anat from Israel, and Sahraian Mohammad Ali from Iran, respectively.
Of a total of 1000 publishing research institutes in the Middle East, 10 top ones are shown in Table 3. The first to third ranks belonged to King Saud University from Saudi Arabia, with 1582 publications; Islamic Azad University from Iran, with 1488 publications; and Tehran University of Medical Sciences from Iran, with 1379, respectively.
Research Center | Pub. No. | % of Total Pub. | Affiliated Country |
---|---|---|---|
King Saud University | 1582 | 4.26 | Saudi Arabia |
Islamic Azad University | 1488 | 4.010 | Iran |
University Tehran Medical Science | 1379 | 3.71 | Iran |
Tel Aviv University | 1302 | 3.50 | Israel |
Cairo University | 1127 | 3.03 | Egypt |
Hebrew University Jerusalem | 957 | 2.57 | Israel |
Istanbul University | 907 | 2.44 | Turkey |
Hacettepe University | 883 | 2.379 | Turkey |
National Research Center | 804 | 2.167 | Egypt |
University Tehran | 763 | 2.056 | Iran |
Top Ten Research Centers from the Middle Eastern Countries in Multiple Sclerosis Research
Researchers from the Middle East collaborated with authors from 104 countries worldwide. As Table 4 shows, with 11,657 documents, Turkey was at the top of the highly productive collaborating countries and produced 29.18% and 1.74% of MS documents in the region and the world, respectively. It mostly collaborated with the USA (611 documents), Italy (379 documents), and Germany (354 documents). The second rank belonged to Iran, with 9,404 documents, which contributed to 23.54% and 1.41% of publications in the region and the world, respectively. It mostly collaborated with the USA (411 documents), Canada (218 documents), and UK (182 documents). Egypt, with 5,219 documents, had the third rank in this regard, contributing to 13.066% and 0.78% of publications in the region and the World, respectively. This country mostly collaborated with Saudi Arabia (1,091 documents), the USA (486 documents), and Germany (441 documents). Syrian Arab Republic was the least productive, with only 13 published documents on MS.
Country | Pub No. | % Among ME Countries | % In the World | Top Collaborating Countries (Pub No.) |
---|---|---|---|---|
Turkey | 11657 | 29.18 | 1.74 | USA (611), Italy (379), Germany (354) |
Iran | 9404 | 23.54 | 1.41 | USA (411), Canada (218), UK (182) |
Egypt | 5219 | 13.066 | 0.78 | Saudi Arabia (1091), USA (486), Germany (441) |
Israel | 5197 | 13.011 | 0.78 | USA (1180), Germany (526), Italy (301) |
Saudi Arabia | 4347 | 10.88 | 0.65 | Egypt (961), India (440), USA (415) |
Lebanon | 643 | 1.60 | 0.09 | France (229), USA (105), Italy (91) |
Kuwait | 556 | 1.39 | 0.08 | Australia (114), Span (105), Italy (105) |
Jordan | 482 | 1.2 | 0.072 | Germany (94), Saudi Arabia (84), USA (67) |
Palestine | 479 | 1.199 | 0.071 | Morocco (19), Saudi Arabia (17), Jordan (10) |
Cyprus | 478 | 1.196 | 0.071 | Greece (130), Turkey (62), USA (58) |
Iraq | 467 | 1.169 | 0.07 | Malaysia (80), UK (41), USA (39) |
Qatar | 346 | 0.86 | 0.051 | USA (63), UK (52), Saudi Arabia (28) |
Oman | 282 | 0.70 | 0.042 | Pakistan (52), India (31), Saudi Arabia (30) |
Yemen | 140 | 0.35 | 0.021 | Saudi Arabia (37), Egypt (26), USA (25) |
United Arab Emirates | 140 | 0.35 | 0.021 | Saudi Arabia (44), Egypt (43), Jordan (33) |
Bahrain | 92 | 0.23 | 0.013 | Saudi Arabia (24), Kuwait (18), United Arab Emirates (16) |
Syrian Arab Republic | 13 | 0.032 | 0.001 | Saudi Arabia (7), Lebanon (6), Jordan (5) |
Top-Ranked Middle Eastern Countries Collaborating in Research on Multiple Sclerosis
Some highly productive journals publishing Middle Eastern researchers’ documents on MS during the study time span were Multiple Sclerosis Journal, with 1,172 papers on the field. The journal is in English, and its impact factor for the year 2020 is 5.412. Table 5 shows the status of the top 10 publishing journals. These are all relatively prestigious ones indexed in WoS.
Journal | Pub. No. | % | Country | IF |
---|---|---|---|---|
Multiple sclerosis journal | 1172 | 3.15 | UK | 5.412 |
Journal of Essential Oil-Bearing Plants | 623 | 1.67 | India | 0.824 |
Journal of Essential oil research | 420 | 1.13 | USA | 1.148 |
Natural product research | 335 | 0.90 | Uk | 2.158 |
Multiple sclerosis | 312 | 0.84 | UK | 4.230 |
Multiple sclerosis and related disorders | 259 | 0.69 | UK | 2.889 |
Food chemistry | 251 | 0.67 | UK | 6.306 |
European journal of neurology | 249 | 0.67 | UK | 4.516 |
Journal of the neurological sciences | 244 | 0.65 | Netherlands | 3.115 |
Molecules | 241 | 0.64 | Switzerland | 3.06 |
Top Ten Highly-Productive Journals Publishing Middle Eastern Researchers’ Papers on Multiple Sclerosis

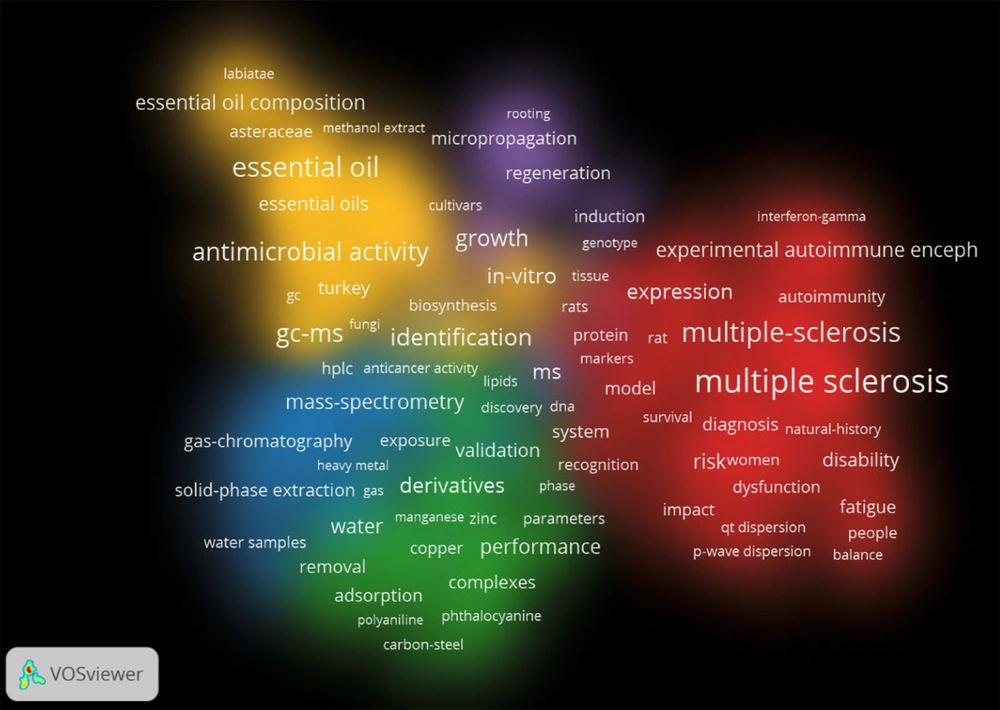

Figure 3 shows the word co-occurrence map of terms used by Middle Eastern authors in the research on MS during the study time span. The first and second ranks belonged to the phrases "multiple sclerosis," with 2,909 frequencies, and "essential oil," with 1,766 frequencies, respectively. The map consisted of 6 main subject clusters (Table 6).
The first cluster (in red) with 350 topical terms relates to MS, disease, expression, risk, and prevalence, directing to the mechanisms that damage the central nervous system, resulting in MS and its prevalence and risks. Consisting of 228 terms, the second cluster (in green) considers derivatives, acid, and degradation. The third cluster (in blue) with 182 terms orients toward mechanisms and techniques of mass spectrophotometry, liquid-chromatography, and solid-phase extraction, focusing on the identification of antioxidant and antimicrobial nature of some chemical components. The fourth cluster (in orange) consists of 166 terms focusing on essential oils. The fifth cluster (in purple) with 65 terms concentrates on biosynthesis and regeneration and laboratory culture and growth aspects. With its 9 terms, the six cluster (in indigo) considers bacteria, maldi-tof ms, genes, flight mass-spectrometry, desorption ionization-time, and strains.
Cluster | No. of Included Terms | Main Topics | Label | Color |
---|---|---|---|---|
1 | 350 | Multiple sclerosis, disease, expression, risk, prevalence | Multiple sclerosis, | Red |
2 | 228 | Derivatives, acid, performance, water, degradation, nanoparticles, optimization | Derivatives, | Green |
3 | 182 | Ms (mass spectrophotometry), extraction, validation, liquid-chromatography, solid-phase extraction | Mass spectrophotometry | Blue |
4 | 166 | Essential oil, antimicrobial activity, antioxidant, identification, chemical-composition | Essential oil | Orange |
5 | 65 | Growth, micropropagation, regeneration, induction, stress | Growth | Purple |
6 | 9 | Bacteria, maldi-tof ms, genes, flight mass-spectrometry, desorption ionization-time, strains | Bacteria | Indigo |
Main Subject Clusters and Terms Used by Middle Eastern Authors in the Research on Multiple Sclerosis
5. Discussion
Bibliometric indicators have gained significant importance as tools for analyzing scientific endeavors and their correlation with economic and social progress. These metrics allow for the evaluation of the performance and advancement of a country’s science and technology.
The research on MS in the Middle East had an increasing trend in the studied years. This finding accords with those on endocrinology, diabetes, and hepatitis (7, 18, 36, 37). A study related to research in the field of obesity in the MENA (Middle East/North Africa) region also mentioned an upward trend in scientific output (45). Furthermore, the participation of Middle Eastern countries in publications in the Journal of Arthroplasty as a Q1 journal in the field of Orthopedics and Sports Medicine has been reported to increase (46). Alongside the increase in publication share, which is not unaffected by advancements in technology and communications, facilitating international collaborations and providing researchers with easier access to journals and submission systems (47), the lack of collaboration among Middle Eastern countries is also an important issue that should not be overlooked.
The top ten highly productive researchers produced 5.5% of documents in this field in the Middle East. These authors were from highly productive countries in the region. Researchers in other countries can develop the field by collaborating with these countries and coauthoring their top authors.
Research institutes from Saudi Arabia and Iran were highly productive in this regard. The presence of Iranian research institutes was considerable in some other medical fields, too (7, 18, 36).
The top highly productive countries were Turkey, Iran, and Egypt, respectively. In some other medical fields, including, among others, endocrinology, diabetes, obesity, hepatitis, and oral and maxillofacial surgery, Turkey, Iran, and Israel were highly productive (7, 18, 36, 37, 45, 48). In terms of the number of scientific publications in the Khalifa et al.'s study (46), these four countries were also among the most prolific nations. Iran is consistently reported as one of the most productive countries in all related studies. In recent years, we have witnessed remarkable successes in the field of medical sciences in Iran. In 2015, this country ranked first among Middle Eastern countries and all Islamic countries in terms of the number of scientific publications and received citations (49). In general, the recent increase in research productivity can be attributed to the attention given to research by country policy-makers up to the highest level of leadership. This has led to a strong national commitment to research policies, facilities, and resources (50, 51).
In terms of the total number of scientific collaborations, Turkey, Iran, and Egypt ranked first to third, respectively. The USA had the highest statistics of cooperation with Middle Eastern countries, with 1180 documented collaborations between Israel and the USA in this domain. The highest level of cooperation among Middle Eastern countries was observed between Egypt and Saudi Arabia, with 1091 documented collaborations. These findings align with the research conducted by Valizadeh et al. (45). Palestine had the least number of scientific collaborations among the countries studied.
The researchers published their papers in various journals in the field. The first-ranked journal in this regard, the Multiple Sclerosis Journal, is indexed in the UK and has a high impact factor (5.412 in 2020). As the top highly-productive journals are non-Middle Eastern, it is necessary that related journals in this region should be highlighted and indexed in international indexing/abstracting databases.
The results of word co-occurrence showed that the highly frequent terms relatively cover the issues considered in MS. In other words, the Middle Eastern researchers involved in research on MS considered most issues of the disease.
Research production on MS in Middle Eastern countries has an acceptable growth rate. However, there is a significant gap between the leading countries in the region and those in the World. Insufficient research support, inadequate research infrastructures, limited communications, insufficient collaborations, flawed documentation systems, lack of registered data, and political and military conflicts are among the factors that have contributed to significant disparities in the number of publications between Middle Eastern countries and other nations. Furthermore, it is worth noting that the acceptance rate of submitted articles can be influenced by the nationality of the authors or the affiliations associated with them.
Accurate policy-making in research centers, prioritizing research topics, continuous assessment of research activity progress, promoting journals in the region, and making more international collaboration can decrease the distance and increase the quality and quantity of the research on MS. Additionally, establishing a scientific network within the region can be beneficial in achieving these goals.
5.1. Conclusions
In summary, the increase in multi-disciplinary faculties, research centers, specialists, students, research projects, and dissertations undoubtedly contributes to the growth in the number of papers and citations in this field. The study conducted by Keshtkar et al. (52), aiming to examine the role of Health Research Networks (HRN) in facilitating and expediting the achievement of health research objectives based on Iran’s vision until 2025, confirms our findings. It is suggested that more studies be conducted to investigate the possible reasons for the lack of participation and possible solutions for improvement and cooperation between the authors of the Middle Eastern countries.
