1. Context
Depression is a common illness worldwide, and about 350 million people are affected. Females are more susceptible to depression and anxiety in comparison to males. Especially in long-term case and moderate to severe situations, depression can become a serious health condition. Patients with depression experience great distress and function poorly at work, at school and in their family. At its worst, depression may lead to suicide. Every year, an estimated 800000 people die from suicide, globally, the majority being males (1, 2). Mental disorders also have serious economic consequences: depression was estimated to cost at least 800 billion USD during 2010 in loss economic output, a sum expected to more than double by 2030 (3). If the disease burden was measured using disability-adjusted life-years (DALYs), depression accounted for 10% of all DALYs in individuals aged 15 to 44 years in 1995. Furthermore, this figure is expected to rise to 15% by the year 2020, rendering depression second in terms of worldwide diseases burden, with only ischemic heart disease more widespread (4).
Due to the fact that depression increases not only the rate of vascular morbidity but also the mortality rate associated therein, we can view depression as one of the risk factors for vascular disease. Community-based studies have shown that there is an association between depression and heightened rates of cardiovascular disease mortality in adults and the elderly. Depression is also an independent risk factor for heart failure and death after myocardial infarction (5). An early treatment of depression may stop this pathological process. On the other hand, depression may be triggered by a vascular disease. The prevalence of depression-related symptoms during a post stroke time period of 3- to 6-months lies between 29% and 36%. After the initial stroke,20% of patients exhibit symptoms of depression more than 2 years (6).
Examination of the retinal vessels, in addition to brain imaging techniques, could indicate the vessel condition of the brain. The main vessel of the eye is the artery of the central retina, which is a branch of the ophthalmic artery, with the ophthalmic artery itself being a branch of the internal carotid artery. This artery of the central retina travels inferior to the optic nerve within its dural sheath directly to the eyeball and branches out along the retina’s internal surface. These terminal branches are the sole supply of blood to the larger part of the retina. As vertebrate embryos develop, the retina and optic nerve are outgrowths of the brain, thus making the retina part of the central nervous system (CNS). It is in fact brain tissue and the only non-surgically observable part of the CNS (7). In addition, the examination of retinal vessels is relatively easy, available, quick and cheap, and applicable in living subjects (8).
2. Objectives
The aim of this article was to review the literature relevant for microvascular abnormalities in depression in order to facilitate further research in this field of psychiatry.
3. Evidence Acquisition
Firstly, the PubMed computer database was searched on the 28th of October, 2015 using the following key words “microvascular and depression”. Next, the content of relevant articles was summarized. Regarding the inclusion criteria, we preferred publications related to humans compared to studies on research animals, and articles covering living subjects to postmortem studies. We used original research articles as well as reviews. Exclusion criteria included animal studies, postmortem studies unrelated to microvascular abnormalities and articles discovered only by accident, unrelated to the topic of our review. Because our manuscript is only a simple review including a broad spectrum of studies with different research methods, we did not apply statistical analysis of our results.
4. Results
4.1. Postmortem Studies
Santos et al. (2009) investigated 41 post-stroke patients, who underwent autopsy, after excluding patients with neurological disease such as Alzheimer’s disease or Parkinson’s disease. Among 20 post-stroke depression (PSD) cases, 7 were untreated and 8 were treated with Selective Serotonin Re-uptake Inhibitor (SSRI) or Tricyclic Antidepressants (TCA). In 5 PSD cases, data on antidepressant treatment were incomplete for the entire post-stroke survival period. Postmortem tissues were examined investigated for signs of macroscopic vascular lesions, for example cerebral infarction, lacunes, and cerebral hemorrhage. The results showed that small vascular lesions were associated with PSD's occurrence. This was the case for thalamic and basal ganglia lacunes bilaterally. It was also true for deep white matter lacunes located in the right hemisphere, which were found to occur significantly more often in PSD cases. The combined lacune score (thalamic plus basal ganglia plus deep white matter) accounted for 25% of the variability in terms of the occurrence of PSD (9).
Santos et al. (2010) undertook an in-depth post-mortem analysis of small macrovascular and microvascular pathology in the brains of 38 patients aged 65 to 89 (16 men and 22 women) with late-onset major depression(LOD) and 29 (age- and gender-matched) controls without depression. The analysis showed that the occurrence of LOD was not associated with the presence of microvascular ischemic lesions nor with the existence of lacunes (10).
Ballard et al. (2000) investigated 30 participants suffering from cerebrovascular disease and significant cognitive impairment (VaD), with special focus given to patients with small infarct volumes (less than 15 mL). The study included postmortem histological analysis. Thirty patients with VaD had a mean volume of infarction of 24.4 mL. The results showed that patients with VaD were significantly more likely to have major depression (27 vs 5%; OR 6.4; 95% CI 1.2 - 32.8) than control patients with Alzheimer’s disease. Within the VaD patients, depression was associated with an infarction volume of < 15 mL and areas of microinfarction (11).
Thomas et al. (2001) investigated postmortem tissues to ascertain whether depression developing late in life correlated with atheromatous changes in vessels (medium and large) and cerebral microvascular disease. Postmortem tissue was collected from 20 patients who had had a history of one or more episodes of major depression as based on the diagnostic and statistical manual of mental disorders, 4th Edition (DSM-IV) major depression and 20 control subjects. A significant increase in atheromatous disease was present in the group with depression (P = 0.023). However, there were no differences observed for microvascular disease, neither in the brain generally or in the frontal lobes specifically. The authors suggested that screening for atheromatous disease should be available for those with depression later in life, the reason being twofold: firstly, the disease functions as a factor adding to the depression itself; secondly, the condition predisposes depression sufferers to other vascular disorders (12).
Sinka et al. (2012) studied and analyzed the postmortem morphological parameters of capillaries in the area of the anterior cingulate cortex (ACC), which could affect brain perfusion in schizophrenia (N = 8), sporadic bipolar disorder (N = 10), sporadic major depression (N = 8), and age and gender matched control cases (N = 7). The results showed that the mean capillary diameter significantly decreased in bipolar and unipolar depression cases whereas schizophrenia patients showed similar results to the controls (13).
4.2. Neuroimaging
Hajjar et al. (2011) investigated the association between hypertension, white matter hyperintensities and concurrent impairments in mobility, cognition and mood of 4700 adults aged 65 years and older. The authors discovered that there were concurrent impairments present in 498 (11%) of the subjects, and in 3086 (66%) all three measures were found intact. Hypertensive individuals were more likely to be impaired at baseline (OR 1.23; 95% CI 1.04 - 1.42; P = 0.01) and become impaired during the follow-up (HR = 1.3; 95% CI 1.02 - 1.66; P = 0.037). There was an association between impairments in three domains (P = 0.007) and a greater degree of white matter hyperintensities, thus mediating the association with hypertension. The authors concluded that the risk of concurrent impaired mobility, cognition, and mood increase with the presence of hypertension, with microvascular brain injury partly mediating this association (14).
Wolfson et al. (2013) measured brain white matter hyperintensities (WMH), blood pressure, mobility, cognition and depression (center for epidemiologic studies depression scale) of 67 participants aged 75 to 89 during 4 years. The results showed that WMH increased from 0.99% of intracranial cavity volume at baseline to 1.74% on average, after 4 years. Regression analyses showed that three of five mobility measures, two of four cognitive measures, as well as depression itself, were associated with the baseline WMH and 4-year WMH (P = 0.005) (15).
Patankar et al. (2007) hypothesized that virchow-robin spaces (VRS) dilatation may be a predictor of antidepressant monotherapy resistance in elderly patients suffering from depression. Virchow-Robin Spaces are spaces in cerebrospinal fluid and are associated with microangiopathy of small cerebral vessels. Fifty sufferers of Late onset (age over 60 years) major depressive disorder (29 responders to monotherapy, 21 nonresponders to monotherapy) and 35 normal volunteers were recruited. The authors assessed deep white matter lesions (WML) and periventricular hyperintensities (PVH) using the Scheltens rating scale score. The results showed that in the monotherapy resistant group there was a trend for greater WML Scheltens scores compared to responders and control subjects. It was only when the basal ganglia VRS score was used that a statistically significant difference appear (P < 0.05). The basal ganglia VRS score accounted for 38% of the variance of non-response in the multiple regression model, and the Scheltens PVH score produced the additional 6% of the variance (16).
4.3. Myocardial Imaging
Vaccarino et al. (2009) used positron emission tomography to find the association between major depression and coronary flow reserve for 289 male middle-aged twins, including 106 twins (53 twin pairs) discordant for a lifetime history of major depressive disorder (MDD) (25 dizygotic and 28 monozygotic), and 183 control twins pairs free of MDD (76 dizygotic and 107 monozygotic). The results showed that no difference was found between twins with and without MDD in terms of myocardial ischemia. Among the dizygotic twin pairs who were discordant for MDD, the coronary flow reserve (CFR) was 14% lower in MDD twins than in their non-MDD brothers (2.36 vs 2.74; P = 0.03), and also significantly lower than in the control twins. Those pairs, who were monozygotic discordant, lacked this association. The results yield important new information which points at microvascular disease as one of the key component of the shared pathway between MDD and coronary heart disease (17).
4.4. Retinal Imaging
Cheung et al. (2009) investigated 10364 Caucasian and African Americans aged 48 to 73 years to establish a possible association between microvascular changes in the retina with vital exhaustion (including depressive symptoms). Vital exhaustion was modestly associated when retinopathy was present (OR 1.27; 95% CI 1.01 - 1.59), particularly retinal hemorrhages and generalized retinal venular widening (18).
Jensen et al. (2009) investigated retinal photographs with retinal microvascular signs and psychosocial risk factors of 6814 adults aged 45 to 84 years. The authors discovered that subjects who did not appear to have access to emotional support (enriched social support instrument score) had a 60% greater chance of retinopathy than subjects with this support (OR 1.6; 95% CI 1.3 - 2.0). Subjects exhibiting high scores on the Spielberger trait anxiety scale and subjects with high depressive symptoms (center for epidemiologic studies depression) were more likely to suffer from retinopathy (OR 1.4; 95% CI 1.1 - 1.9; and OR 1.5; 95% CI 1.2 - 1.9, respectively). In this cross-sectional study, the absence of emotional support, increased trait anxiety, and more depressive symptoms were associated with signs of retinopathy, independently of the other known risk factors (19).
Ikram et al. (2010) tested whether small retinal arteriolar or larger venular calibers were associated with incidental late-life depression. With a total number of 3605 participants, those with incidental depression symptoms, found during follow up visits and monitoring, were identified. After a mean follow up of 9 years, 555 patients (15.4%) developed late-life depression. There was no correlation between retinal vascular calibers and incidental late life depression, neither in small arteriolar or larger venular calibers (20).
Sun et al. (2007) performed a large population-based cohort study in order to examine the association between the manifestations of depression and microvascular abnormalities of retina like retinopathy, arteriovenous nicking, generalized arteriolar narrowing in the retina, focal arteriolar narrowing and generalized retinal venular dilatation in 2420 subjects. Data provided from digital retinal photographs, as well as the short-item centers for epidemiologic studies depression scale (CES-D), were analyzed. In conclusion, no association was found between retinal microvascular abnormalities and symptoms of depression (21).
Kim et al. (2011) performed an assessment of retinal microvascular signs and functional loss of 1744 participants (mean age 78) free of stroke. The results showed that retinal signs (generalized arteriolar narrowing) had correlations with depressive mood. The authors suggested that retinal signs might represent microvascular damage due to various vascular insults including hypertension, inflammation, smoking, and diabetes (22).
Li et al. (2013) measured symptoms of antenatal depression, anxiety, and sleep quality as well as retinal vascular caliber of 952 Asian pregnant females aged 18 to 46 years. They applied retinal photography and assessments of the edinburgh postnatal depression scale (EPDS), state-trait anxiety inventory (STAI), and pittsburg sleeping quality index (PSQI). In multiple linear regression models, each standard deviation (SD) increase in the Edinburgh postnatal depression scale and the pittsburgh sleep quality index was significantly linked to an 0.80 μm (P = 0.03) and 1.22 μm (P = 0.01) expansion of the retinal arteriolar caliber, respectively. The authors concluded that study reveals the link between antenatal depressive symptoms and poor sleep and the widening of the retinal arteriolar in pregnant females (23).
Meier et al. (2014) conducted a research on the link between retinal vessel damage, anxiety and depression in young adults and adolescents. The tests have been conducted on 865 participants during years 2000 to 2013. They included the somatic and psychological health report (SPHERE) questionnaire, which contains subscale scores related to depression, anxiety and overall mental health. For the measurement of retinal vessel caliber, stereoscopic optic disk-centered photographs were taken. The results were presented as central retinal arteriolar equivalent (CRAE) and central retinal venular equivalent (CRVE). The results showed that symptoms of depression and anxiety showed a positive association with a wider retinal arteriolar caliber (P = 0.016), even after adjusting for other cardiovascular risk factors (P = 0.025), but not with CRVE. This shows that pathological microvascular mechanisms associated with depression/anxiety may be operative from a young age (24).
Nguyen et al. (2010) conducted a clinical study to examine whether retinal vascular luminal size was an indicator of microvascular disease and depression in patients with type 2 diabetes. The study participants were people with type 2 diabetes as well as with major depression (n = 43), with type 2 diabetes without depression (n = 49), and subjects without diabetes or depression (n = 54). The participants with type 2 diabetes and depression had a bigger retinal vascular lumen compared with those without depression and healthy controls (P = 0.002 for arteriolar and P = 0.02 for venular caliber). This supports the suggestion that early microvascular disease in diabetes type 2 may contribute to depression (25).
Nguyen et al. (2008) evaluated the correlation between microvascular disease and depression through a cross-sectional study performed on patients with diabetes mellitus type 2. For this reason, a sample of 99 participants was recruited, of whom 38 healthy, neither diabetic nor mood-affected participants represented the control group, 27 were diabetic patients without mood disorders, and 34 were type 2 diabetes patients with major depression. Digital retinal photographs were used as a means to measure changes in retinal vessels’ caliber, which is considered to have a primary role, early in the process of microvascular compromise. The group of diabetic patients with depression was associated with the largest mean retinal caliber measurement; the value of retinal caliber of diabetics without depression stood in between that of the other two groups, while the healthy, control group demonstrated the smallest retinal caliber measurement, respectively (P = 0.008 for arteriolar and P = 0.03 for venular caliber). However, an opposite trend was evident when the measurements were further adjusted for additional vascular risk factors. According to the authors, the increasing size of retinal caliber is mainly attributable to poor management of diabetes, insufficient glycemic control, inferior physical functioning, and poor compliance to diet and physical exercise regimens (26).
4.5. Inflammatory Markers
Tchalla et al. (2015) measured Interleukin-6 (IL-6), soluble Intercellular Adhesion Molecule-1 (sICAM-1), circulating vascular cell adhesion molecule-1 (sVCAM-1) and C-reactive protein (CRP) levels in plasma of 680 community-dwelling individuals, aged 65 years and older. Cell adhesion molecules are important biomarkers in those inflammatory processes which involve activation or damage to the endothelium and cells such as platelets. The authors also assessed magnetic resonance imaging (MRI) volumes of cerebral white matter hyperintensities (WMH) in a subset of 25 participants. Depressive symptoms were evaluated using the revised center for epidemiological studies depression scale (CES-D scale) (CESD-R; scores of < 16 indicates no or minimal depressive symptoms and ≥ 16 indicates the presence of moderate or severe symptoms). The results showed that 179 (27%) subjects had a CESD-R score ≥ 16. The mean sVCAM-1 concentration of 1176 ng/mL was found in the group with CESD-R Scores <16 and 1239 ng/mL in those with CESD-R Scores ≥ 16 (P = 0.036). The CESD-R score indicated a positive association with sVCAM-1 (r = 0.11; P = 0.004). In a subset of subjects, sVCAM-1 concentration showed a positive correlation with cerebral WMH volume (P = 0.018). The mean IL-6 plasma level was significantly higher in those with depressive symptoms (P = 0.046). The authors concluded that increased plasma levels of pro-inflammatory mediators might function as a biomarker for the presence of cerebral microvascular disease in elderly individuals with symptoms of depression who live in a community (27).
Gorska-Ciebiada et al. (2015) studied the serum levels of C-reactive protein, Interleukin-6 (IL-6) and tumor necrosis factor (TNF-α) in 276 elderly diabetic patients. Among them were 57 patients with depressive syndrome only, 25 patients with depression and a mild cognitive impairment (MCI), 62 patients with MCI only, and 132 diabetic controls with no depression or MCI. To assess depressive mood, the long version of the geriatric depression scale (GDS-30) was applied. In order to evaluate cognitive impairment, the Montreal Cognitive Assessment (MoCA) was used. In all groups of patients (depression, MCI or both), CRP, IL-6 and TNF-α levels were significantly higher as compared to controls (P < 0.001). The group with depressive mood and coexisting MCI displayed the highest level of inflammatory markers. Correlations were found among all the inflammatory markers in the group with patients exhibiting depressive mood only and in the group of subjects displaying depressive symptoms and coexisting MCI. There was a positive correlation in the GDS-30 score with levels of all inflammatory markers in the group with depressive mood without MCI, and with levels of CRP and TNF-α in the group with depressive mood and coexisting MCI. The authors showed that the presence of depressive syndrome is linked to higher levels of inflammatory markers in elderly patients suffering from diabetes. The presence of MCI in these depressed subjects has an additive effect on inflammatory mediator levels (28).
5. Discussion
Most of the studies support the suggestion that microvascular abnormality is associated with depression, whilst other works contradict this idea. It seems plausible that microvascular abnormality is only relevant in some subtypes of depression, for example, depression due to a general medical condition like atherosclerosis, myocardial ischemia, hypertension, diabetes mellitus or inflammation, late-life depression, or pharmacoresistant depression. For details and references, see Table 1.
Table 1.A General Overview of the Applied Studies
| Type of Studies | Authors and Year |
|---|---|
| Studies supporting the idea that microvascular abnormality is associated with depression | Ballard et al., 2000; Sinka et al., 2012; Nguyen et al., 2010; Hajjar et al., 2011; Kim et al., 2011; Li et al., 2013; Wolfson et al., 2013; Meier et al., 2014; Tchalla et al., 2015 |
| Studies contradicting the idea that microvascular abnormality is associated with depression | Thomas et al., 2001; Santos et al., 2010; Sun et al., 2007; Nguyen et al., 2008 |
| Studies suggesting that microvascular abnormality is only relevant in some subtypes of depression, for example, depression due to a general medical condition like atherosclerosis, myocardial ischemia, hypertension, diabetes mellitus or inflammation | Thomas et al., 2001; Santos et al., 2009; Vaccarino et al., 2009; Nguyen et al., 2010; Hajjar et al., 2011; Kim et al., 2011; Santos et al., 2012; Wolfson et al., 2013; Tchalla et al., 2015; Gorska-Ciebiada et al., 2015 |
| Studies assuming that microvascular abnormality is only relevant in late-life depression | Ballard et al., 2000; Thomas et al., 2001; Patankar et al., 2007; Santos et al., 2009; Hajjar et al., 2011; Kim et al., 2011; Sinka et al., 2012; Wolfson et al., 2013; Tchalla et al., 2015; Gorska-Ciebiada et al., 2015 |
| Study presuming that microvascular abnormality is only significant in pharmacoresistant depression | Patankar et al., 2007 |
Authors of several review articles tried to depict biological mechanisms by which microvascular abnormality is interconnected with depression (Figure 1). Camus et al. (2004) overviewed 37 articles. Among other genetic findings, a preliminary study revealed that the serotonin transporterl-linked polymorphism (5-HTTLPR) could increase the risk of geriatric depression. Literary, data suggest that the dual implication for serotonin in both depression and thrombogenesis supports the view that serotoninmediated platelet activation serves as a plausible pathophysiological process linking depression and vascular diseases. Apart from this, the allelic combination of two genes linked with an increase in the risk of myocardial infarction (angiotensin I converting enzyme and G-protein beta 3 subunit) was shown to heighten the vulnerability to depressive disorder (5). Camus et al. suggested three general potential pathways of association of vascular diseases and depression: 1. Direct influence of arteriosclerosis on the incidence of depression; 2. Direct impact of depression on the cardiovascular system; 3. Either a shared common pathophysiological process or genetic background between depression and vascular disease.

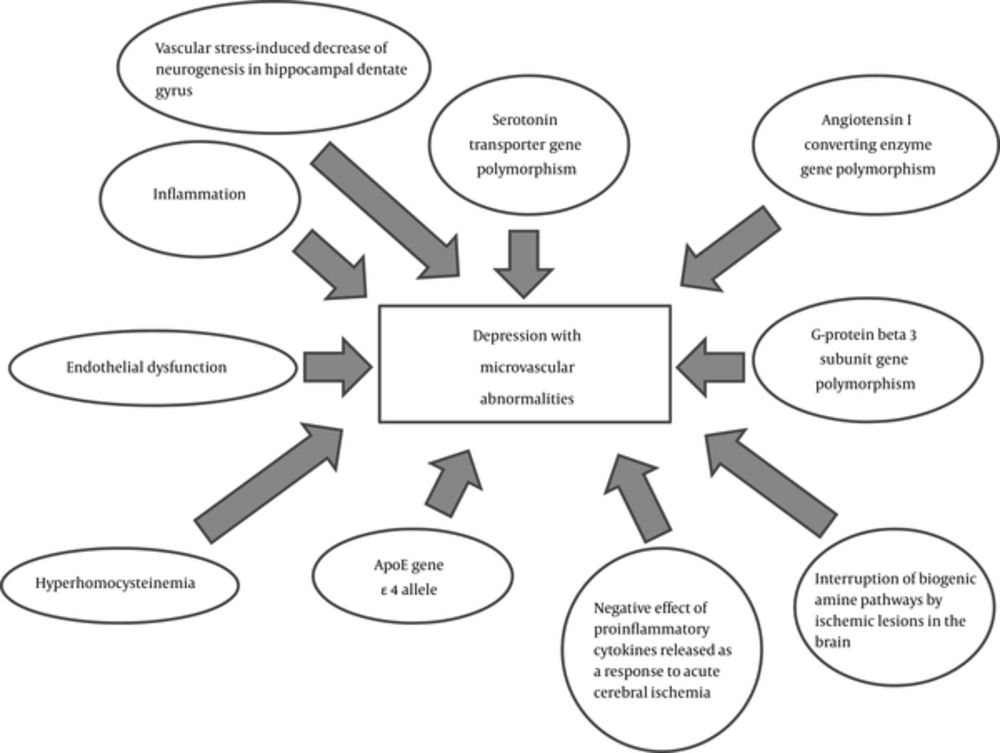

Figure 1.
Biological Mechanisms of Depression With Microvascular Abnormalities
According to Santos et al. (2009; 2012), depression may be induced either by the interrupting biogenic amine pathways through ischemic lesions in the brain, or the negative effect of proinflammatory cytokines released as a response to acute cerebral ischemia. There is also a positive relationship between the presence of the ApoE ε4 allele and an increase in the risk of late-life depression. There exist three main etiopathogenetic pathways which have been implicated in both cardiovascular pathologies and latelife depression: hyperhomocysteinemia, endothelial dysfunction and inflammation. The authors also state that a vascular stress-induced decrease in the neurogenesis of the hippocampal dentate gyrus may bring on depressive episodes(9, 29). Disturbed adult neurogenesis, possibly leading to a malfunctioning hippocampus, may add to the cognitive deficits and reduced hippocampal volumes seen in depressed patients.
Several avenues for further research into microvascular pathology in clinical depression, which may also include the assessment of retinal vessels, are possible:
- Whole-genome association studies identifying the genes responsible for microvascular changes, depression and their overlap, including their epigenetic status in various ethnic groups
- A more intense evaluation of the role of inflammation biomarkers in the development of depression
- More precise identification of depression subtypes in which microvascular abnormality is significant
- Exploration of unipolar, bipolar and adjustment depression separately as of a possible microvascular pathology
- Research aimed at finding specific brain loci in which microvascular disorders may trigger depression
- Looking for psychosocial variables important in the development of the microvascular subtype of depression
- Gene-Environment Wide Interaction Studies (GEWIS) in which multiple gene vs gene, gene vs environment and environment vs environment interactions are evaluated simultaneously, taking the statistical problem of multiple comparisons into account
- Longitudinal studies in depressed patients focused on their microvascular pathology and a possible relationship to the clinical state
- Psychiatric and ophthalmological examination of offspring of the patients with depression and microvascular pathology
- Psychopharmacological studies of antidepressants and other medications (e.g. anti-inflammatory drugs) efficient in the treatment of depression accompanied by microvascular abnormality
From the clinical point of view, it seems to be reasonable to actively search for physical illnesses, which contribute to depression associated with a microvascular pathology, (e.g. hypertension, diabetes, and inflammation) in depressed patients, and to treat them sufficiently.
6. Conclusion
Most studies support the idea that at least some subtypes of depression are associated with microvascular abnormality. Further research should be aimed at identifying the genetic background of depression accompanied by microvascular changes, searching for other biological mechanisms common in depression and microvascular pathology, longitudinal studies of this subcategory of depressed patients, and possible pharmacotherapy overcoming the usual non-responsiveness. Last but not least, an active detection and aggressive treatment of physical diseases like hypertension or diabetes associated with microvascular pathology and depression is warranted (Corriere et al., 2013; Khavandi et al., 2013) (30, 31).
