https://doi.org/10.22037/ijpr.2020.113827.14509

Synthesis of Novel Peptides Using Unusual Amino Acids

authors:

avatar Bahareh Talaei a , avatar Vaezeh Fathi Vavsari a , avatar Saeed Balalaie a , b , * , avatar Armin Arabanian a , avatar Hamid Reza Bijanzadeh c

Peptide Chemistry Research Institute, K. N. Toosi University of Technology, P.O. Box 15875-4416 Tehran, Iran.
Medical Biology Research Center, Kermanshah University of Medical Sciences, Kermanshah, Iran.
Department of Environmental Sciences, Faculty of Natural Resources and Marine Sciences, Tarbiat Modares University, Tehran, Iran.
Iranian Journal of Pharmaceutical Research : IJPR: Vol.19, issue 3; 370-382
article type: Original Article
received: June , 2020
accepted: August , 2020

How To Cite Talaei B, Fathi Vavsari V, Balalaie S, Arabanian A, Bijanzadeh H R. Synthesis of Novel Peptides Using Unusual Amino Acids. Iran J Pharm Res. 2020;19(3):e124403. https://doi.org/10.22037/ijpr.2020.113827.14509.

Abstract

Small peptides are valuable peptides due to their extended biological activities. Their activities could be categorized according to their low antigenicity, osmotic pressure, and also because of their astonishing bioactivities. For example, the aggression of Phe-Phe fibers via self-assembly and intermolecular hydrogen bonding is the main reason for the formation of Alzheimer’s β-amyloid fibrils. Hydrogen bonding is the main intramolecular interaction in peptides, while the presence of aromatic ring leads to the π-π stacking and affects the self-assembly and aggression. Thus, insertion of an unusual amino acid into peptide sequence facilitates the formation of intramolecular bonds, lipophilicity and its conformation. To design new small peptides with remarkable lipophilicity, it is an idea to employ γ-amino acid, such as gabapentin (H2N-Gpn-OMe) and baclofen (H2N-Baclofen-OMe), in the structure of small peptides to increase cell-penetrating properties and to prevent aggression of Phe-Phe fibrils in β-amyloids of Alzheimer’s disease. Some new tri- and tetrapeptides were synthesized through introducing biologically active gabapentin and baclofen to dipeptide of phenylalanine (Phe-Phe) through solution phase peptide synthesis strategy.

Introduction

During digestion or degeneration of proteins, small peptides are formed that are of vital sources of nutrition for human and animals (1). Particularly, di- and tri-peptides are the most valuable ones due to the low antigenicity, osmotic pressure, and also because of their astonishing bioactivities, e.g. antioxidative, antimicrobial, antihypertension, and immunomodulatory (2, 3).

Beside the special biological activities of dipeptides, another surprising feature of them was discovered by Reches and Gazit in 2003. They found that L-Phe-L-Phe makes nanotubes in hexafluoro-2-propanol and water as solvents (4). Currently, the focus on the aggression of Phe-Phe fibers is because of their potential characteristic in the aggression of Alzheimer’s β-amyloid fibrils. It has been found that the π-π stacking among phenyl rings of –F19-F20- is the main reason of amyloids aggression (5-7). Therefore, finding the properties of such fibers opens doors to discover new methods of treating various nervous diseases.

Hydrogen bonding is the main intramolecular interaction in peptides, while the presence of aromatic ring leads to the π-π stacking and affects the self-assembly and aggression. Thus, insertion of an unusual amino acid and sugars into peptide sequence increases the formation of intramolecular bonds, lipophilicity, and its conformation (8). Modification of the backbone of α-peptides can result in proteolytically stable sequences; one of the important properties in the design of analogues of biologically active sequences (9). Moreover, modification of peptides with glycosyl and other types of highly soluble amino acids moieties has gained prominence because of awesome functional characteristics of these biomolecules (10-12). For instance, glycoconjugation of lysine residues using sugar vinyl sulfoxide led to an antimicrobial compound that catalyzes digestion of Gram-negative E. coli cell wall (13). Recently, aspartic thioacid-containing peptides were synthesized and easily converted to N-glycopeptides through a chemoselective thioacid–glycosylamine ligation (14). Asparagine containing glycopeptides linked to various saccharides were also prepared to develop the synthetic method of such valuable compounds (15).

Gabapentin (Gpn) is an available antiepileptic drug which is also used as a medicine for neuropathic pains (16). Due to the presence of cyclohexyl group in Gpn structure, construction of peptides with Gpn residues could affect conformation and lipophilicity of the final peptide (17). Racemate baclofen is a lipophilic analogue of GABA which acts as a muscle relaxer and an antispastic agent (18). Existence of 4-chlorophenyl moiety in its structure increases its lipophilicity. Constructing peptides with highly lipophilicity may affect their permanently remaining into the central nervous system (19). In order to peptide design, Gpn may be employed as a stereochemically constrained equivalent of its parent unsubstituted γ-aminobutyric acid residue (20). Hence, designing new small peptides fibres with remarkable lipophilicity is a good idea to increase cell-penetrating properties and to prevent aggression of Phe-Phe fibrils in β-amyloids of Alzheimer’s disease. Alezra’s research team found that small peptides including γ-amino acids may act as turn inducer to either form stable structures or enhance bioactivity of the molecules (21-23). One of them is probably gelation that has been observed in active γ-peptides (24). Such properties have been found as new advantages of self-assembled peptides for medicine (25).

Due to increasing interest for the synthesis of low molecular weight peptides, primarily, we were encouraged to design and synthesis some novel small peptides; to value this desire, the target small peptides were designed to enrich with biologically active γ-amino acid (Gpn and baclofen) and Phe-Phe dipeptide in their backbones. Correspondingly, the following peptides were synthesized (Figure 1) H-Phe-Phe-Gpn-OH, H-Phe-Phe-Baclofen-OH, H-Baclofen-Phe-Phe-OH, H-Gpn-Phe-Phe-OH, and H-Baclofen-Baclofen-Phe-Phe-OH.

Experimental

General

All solvents were purchased as reagent grade, dried, using standard conditions and stored over molecular sieves. NMR spectra were carried out on a Bruker Avance (DRX-300 or DR-X 500 MHz) spectrometer. Chemical shifts (δ) are reported in parts per million (ppm) relative to residual solvent as an internal reference. The following abbreviations were used to explain the multiplicities: s, singlet; d, doublet; t, triplet; q, quartet; dd doublet of doublets; m, multiplet; br, broad. The structure of all products was characterized by 1H NMR (300 MHz) and thin layer chromatography (TLC) on silica gel and used without further purification. The purified final compounds were fully characterized by IR spectroscopy, 1H NMR spectroscopy, and HR-mass spectrometry. Melting points were obtained on an Electrothermal 9100 capillary melting point apparatus. High-resolution mass spectra (HRMS) were performed on an Apex Qe-FTICR mass spectrometer. The IR spectra were obtained on a FT-IR ABB (FTLA 2000) spectrometer in liquid film and KBr pellets.

General procedure for the synthesis of di-, tripeptide with protected C-Terminal and N-Terminal (Peptide Coupling):

Boc-AA-OH (1 mmol), TBTU (1.1 mmol), HOBt.H2O and ethyl acetate (7 mL) were stirred for 10 min. Then, H-AA-OMe (1.2 mmol) and diisopropylethylamine (DIPEA) (3 mmol) were added and the mixture was stirred for 12 h. The progress of reaction was monitored by TLC (H2O/Methanol/ethyl acetate 1:2:10). The product was taken in ethyl acetate (60 mL). The aqueous phase was extracted with ethyl acetate and this operation was done repeatedly. The organic layer was washed with Na2CO3 3% (3 × 50 mL), brine (2 × 50 mL), and acidified with a dilute solution of citric acid 20 % (3 × 50 mL), and brine (2 × 50 mL), then dried over anhydrous sodium sulfate and filtered and concentrated by rotary evaporator to get the product.

General procedure for deprotection of C-Terminus

To Boc-AA-AA-OMe (1 mmol), a mixture of MeOH (25 mL) and NaOH (4 mL, 2 M) was added and the progress of saponification was monitored by thin layer chromatography (TLC). The reaction mixture was stirred. After 10h, MeOH was evaporated under vacuum, the residue was taken in EtOAc (50 mL), washed with water (2 × 50 mL); acidity of the aqueous layer was adjusted at pH = 2 using citric acid 20% and it was extracted with EtOAc (3 × 50 mL). The extracts were pooled, dried over anhydrous Na2SO4 and evaporated in vacuum.

General procedure for final Deprotection

To N-protected compound (1 mmol), triethylsilan (3 mmol) and a mixture of anhydrous TFA and DCM (1:1 v/v) was gradually added and stirred well. The progress of reaction was monitored by TLC (H2O/MeOH/EtOAc 1:2:10). Then, excess solvent was evaporated under reduced pressure. The residue was purified by dissolving it in CH2Cl2 and recrystallized by adding Et2O. Then, the product was collected on a filter, washed with Et2O, and dried at 50 °C invacuum.

And since zwitterions have minimal solubility at their isoelectric point, final product was isolated by precipitating it from water by adjusting the pH to its particular isoelectric point. Then, product was collected on a filter, and dried at 50 ˚C in vacuum.

Boc-Phe-OH 1:

mp: 88-88.7 °C; IR ( KBr , cm-1 ) : 3435, 3372, 3034, 2983, 1689, 1653; 1H-NMR ( 300 MHz, CDCl3 ) mixture of two isomers ( 60 : 40 ): δ = 10.57 ( brs, 1H, -COOH ); 7.18-7.33 ( m, 5H, H-Ar ) mixture of two isomers; 6.56-6.58 ( d, 1H, J = 7.3 Hz, Phe NH ) minor; 5.13-5.16 ( d, 1H, J = 7.9 Hz, Phe NH ) major; 4.61-4.67 ( m, 1H, CαH of Phe ) major; 4.09-4.16 ( m, 1H, CαH of Phe) minor; 3.18-3.24 ( m, 2H, Phe diastereotopic CβH ) mixture of two isomers; 3.04-3.11 ( m, 1H, Phe diastereotopic CβH ) major; 2.91-2.94 ( m, 1H, Phe diastereotopic CβH ) minor; 1.42 ( s, 9H, Boc-CH3 ) major; 1.32 ( s, 9H, Boc-CH3) minor; ppm; 13C-NMR ( 75 MHz, CDCl3) mixture of two stereoisomers: δ = 177.0 ( C of COOH ) minor; 176.1 ( C of COOH ) major; 156.7 ( C of NCOO ) minor; 155.4 ( C of NCOO ) minor; 136.5 ( Cipso of phenyl ring attached to CH2 ) minor; 136.0 ( Cipso of phenyl ring attached to CH2 ) major; 129.4 ( m-C’s of phenyl ring ) mixture of two isomers; 128.5 ( o-C’s of phenyl ring ) mixture of two isomers; 127.0 ( p-C of phenyl ring ) mixture of two isomers; 81.6 ( C of Boc ) minor; 80.2 ( C of Boc ) major; 56.2 ( α-C of Phe ) minor; 54.3 ( α-C of Phe ) major; 38.9 ( β-C of Phe ) minor; 37.8 ( β-C of Phe ) major; 28.3 ( C of Boc-CH3 ) major; 28.0 ( C of Boc-CH3 ) minor; ppm.

Boc-Phe-Phe-OMe 2

mp: 122-124 °C; IR (KBr, cm-1) : 3332, 3029, 1745, 1680, 1658; 1H-NMR (500 MHz, DMSO-d6)δ = 8.31 (d, 1H, J = 7.6 Hz, Phe (2) NH); 7.16-7.29 (m, 10H, H-Ar); 6.84 (d, 1H, J = 8.8 Hz, Phe (1) NH); 4.49-4.51 (m, 1H, CαH of Phe (2)); 4.17-4.18 (m, 1H, CαH of Phe (1)); 3.57 (s, 3H, -OCH3); 3.02-3.03 (m, 1H, Phe (2) diastereotopic CβH); 2.95-2.98 (m, 1H, Phe (2) diastereotopic CβH); 2.86-2.88 (m, 1H, Phe (1) diastereotopic CβH); 2.66-2.68 (m, 1H, Phe (1) diastereotopic CβH); 1.27 (s, 9H, Boc-CH3) ppm; 13C-NMR (125 MHz, DMSO-d6)δ = 172.1 (C of -COOMe); 171.7 (C of -CON); 155.0 (C of NCOO); 137.2 (Cipso of phenyl ring attached to CH2); 136.9 (Cipso of phenyl ring attached to CH2); 129.1,129.0 (m-C’s of phenyl rings); 128.2, 127.9 (o-C’s of phenyl rings); 126.5, 126.1 (p-C of phenyl rings); 78.0 (C of Boc); 55.4 (-CH); 53.5 (-CH); 51.7 (-OMe); 37.4 (-CH2); 36.7 (-CH2); 28.0 (Boc-CH3) ppm.HRMS-ESI: Calcd. for C24H31N2O5 [M+H]+:427.2233; found: 427.2232. Calcd. for C24H30N2NaO5 [M+Na]+:449.2052; found: 449.2051. Calcd. for C24H30KN2O5 [M+K]+:465.1793; found: 465.1792. Calcd. for C48H60NaN4O10 [2M+Na]+: 875.4209; found: 875.4209.

Boc-Phe-Phe-OH 3

mp: 133-135 °C; IR (KBr, cm-1) : 3429, 3291, 1680, 1663; 1H-NMR (300 MHz, CDCl3)δ = 7.05-7.26 (m, 10H, H-Ar); 6.81 (brs, 1H, Phe (2) NH); 5.16 (brs, 1H, Phe (1) NH); 4.68(brs,1H, CαH of Phe (2); 4. 37 (brs, 1H, CαH of Phe (1); 3.13-3.16 (m, 1H, Phe diastereotopic CβH); 2.90-3.02 (m, 3H, Phe diastereotopic CβH); 1.33(s, 9H, Boc-CH3) ppm; 13C-NMR (75 MHz, CDCl3)δ = 175.1 (C of –COOH); 171.6 (C of –CON); 155.7 (C of NCOO); 136.4, 136.3 (Cipso of phenyl ring attached to CH2); 129.4 (m-C’s of phenyl rings); 128.6, 128.5 (o-C’s of phenyl rings); 127.1, 126.9 (p-C of phenyl rings); 80.5 (C of Boc); 55.6 (α-C of Phe); 53.9 (α-C of Phe); 38.0 (β-C of Phe); 37.4 (β-C of Phe); 28.19 (C of Boc-CH3) ppm. HRMS-ESI: Calcd. for C23H28N2NaO5 [M+Na]+:435.1895; found: 435.1894. Calcd. for C46H56N4NaO10 [2M+Na]+: 847.3893; found: 847.3893.

Boc-Phe-Phe-Gpn-OMe 4

mp: 107-108 °C; IR (KBr, cm-1) :3337, 2926, 1740, 1705, 1695, 1642; 1H-NMR (500 MHz, DMSO-d6)δ = 8.01 (d, 1H, J = 8.3 Hz, Phe (2) NH); 7.74-7.75 (brt, 1H, J = 5.8 Hz, Gpn NH); 7.05-7.24 (m, 10H, H-Ar); 6.87-6.89 (d, 1H, J =8.6 Hz, Phe(1) NH); 4.61-4.63 (m, 1H, CαH of Phe(2)); 4.1-4.11 (m, 1H, CαH of Phe(1)); 3.54 (s, 3H, -OCH3); 3.18-3.22 (dd, 1H, J = 13.3, 6.5 Hz, CγH of Gpn); 3.05-3.08 (m, 1H, CγH of Gpn); 2.92-2.96 (dd, 1H, J = 13.5, 5.8 Hz, Phe (2) diastereotopic CβH); 2.81-2.85 (2d, 2H, J = 13.5 Hz, Phe (2) diastereotopic CβH, and Phe (1) diastereotopic CβH); 2.63-2.65 (m, 1H, Phe (1) diastereotopic CβH); 2.18 (s, 2H, CαH of Gpn); 1.26 (s, 9H, Boc-CH3); 1.12-1.40 (m, 10H, cyclohexyl ring protons) ppm; 13C-NMR (125 MHz, DMSO-d6)δ = 171.7 (C of COOMe); 171.2 (C of NCO); 171.0 (C of NCO); 155.0 (C of NCOO); 138.0, 137.5 (Cipso of phenyl ring attached to CH2); 129.2, 129.0 (m-C’s of phenyl rings); 128.0 (o-C’s of phenyl rings); 126.2, 126.0 (p-C of phenyl rings); 78.0 (C of Boc); 55.8 (α-C of Phe); 53.7 (α-C of Phe); 50.9 (C of -OCH3); 44.3 (C of CH2NH2); 39.0 (β-C of Gpn); 38.0 (β-C of Phe); 37.5 (β-C of Phe);36.7 (C of CH2COO); 32.4 (γ-C’s of Gpn); 28.0 (C of Boc-CH3); 25.3 ω-C of Gpn); 20.9 (δ-C’s of Gpn) ppm. HRMS-ESI: Calcd. for C33H46N3O6 [M+H]+:580.3388; found: 580.3387. Calcd. for C33H45N3NaO6 [M+Na]+: 602.3209; found: 602.3208. Calcd. For C33H45KN3O6 [M+K]+:618.2950; found: 618.2948.

Boc-Phe-Phe-Gpn-OH 5

mp: 98-100 °C; IR (KBr, cm-1) : 3316, 2963, 2921, 1724, 1663. 1H-NMR (500 MHz, DMSO-d6)δ = 12.64 (br, 1H, COOH); 8.08 (d, 1H, J = 7.5 Hz, Phe (2) NH); 7.42 (brs, 1H, Gpn NH); 7.16-7.28 (m, 10H, H-Ar); 6.82 (d, 1H, J = 8.7 Hz, Phe (1) NH); 4.46-4.47 (m, 1H, CαH of Phe (2); 4.16 (m, 1H, CαH of Phe (1); 3.05-3.09 (m, 1H, CγH of Gpn); 2.64-2.96 (m, 5H, CγH of Gpn, Phe diastereotopic CβH); 1.96 (s, 2H, C𝜶H of Gpn); 1.27 (s, 9H, Boc-CH3); 1.12-1.40 (m, 10H, cyclohexyl ring protons) ppm. 13C-NMR (125 MHz, DMSO-d6)δ = 175.8 (C of COOH); 172.7 (C of NCO); 171.6 (C of NCO); 155.1 (C of NCOO); 138.1, 137.3 (Cipso of phenyl ring attached to CH2); 129.2, 129.1 (m-C’s of phenyl rings); 128.2, 127.9 (o-C’s of phenyl rings); 126.4, 126.1 (p-C of phenyl rings); 78.0 (C of Boc); 55.6 (α-C of Phe); 53.3 (α-C of Phe); 43.0 (C of CH2NH2); 39.8 (β-C of Gpn); 38.7 (C of CH2COO);37.4 (β-C of Phe); 36.8 (β-C of Phe); 36.2 (γ-C’s of Gpn); 28.1 (C of Boc-CH3); 25.4 (ω-C of Gpn); 22.4 (δ-C’s of Gpn) ppm. ESI-Neg-HRMS: Calcd. for C32H42N3O6 [M-H]+:564.3094; found: 564.3092.

H-Phe-Phe-Gpn-OH 6

mp: 285-286 °C (dec.); IR (KBr, cm-1): 3260, 3061, 2931, 1683, 1560. ESI-MS: Calcd. for C27H34N3O4 [M-1]+: 464.2563; found: 464.2562.

Boc-Phe-Phe-Baclofen-OMe 7:

mp: 178-180 °C; IR (KBr, cm-1): 3368, 3338, 2945, 1730, 1689, 1651. 1H-NMR (300 MHz, DMSO-d6)δ = 7.90-8.03 (m, 2H, Baclofen NH and Phe (2) NH); 7.17-7.31 (m, 14H, H-Ar); 6.84-6.87 (d, 1H, J = 8.1 Hz, Phe(1) NH); 4.43-4.45 (m, 1H, CαH of Phe (2); 4.02-4.09 (m, 1H, CαH of Phe(1)); 3.45 (s, 3H, -OCH3); 3.1-3.2 (m, 3H, CβH of Baclofen and CγH of Baclofen); 2.78-2.82 (m, 2H, Phe diastereotopic CβH); 2.53-2.72 (m, 4H, Phe diastereotopic CβH and Baclofen diastereotopic CαH); 1.27 (s, 9H, Boc-CH3) ppm. 13C-NMR (75 MHz, DMSO-d6)δ = 171.7 (C of COOMe); 171.2 (C of NCO); 170.7 (C of NCO); 156.0 (C of NCOO); 140.8 (Cipso-Cl); 138.0, 137.5 (Cipso of Phe phenyl ring attached to CH2); 131.1 (Cipso of Baclofen phenyl ring attached to CH2); 129.4, 129.1 (m-C’s of phenyl rings); 128.1,12127.9 (o-C’s of phenyl rings); 126.2, 126.0 (p-C of phenyl rings); 78.1 (C of Boc); 55.8 (α -C of Phe); 53.7 (α-C of Phe); 51.2 (C of -OCH3); 43.6 (β -C of Baclofen); 41.0 (β-C of Phe); 37.9 (β-C of Phe); 37.6 (γ -C of Baclofen); 37.5 (α -C of Baclofen); 28.1 (C of Boc-CH3) ppm. HRMS-ESI: Calcd. for C34H41ClN3O6 [M+H]+:622.2687; found: 622.2686. Calcd. for C34H40ClN3NaO6 [M+Na]+:644.2506; found: 644.2505. Calcd. For C34H40ClKN3O6 [M+K]+ :660.2246; found: 660.2245.

Boc-Phe-Phe-Baclofen-OH 8

mp: 135-136 °C; IR (KBr, cm-1): 3338, 2929, 1729, 1689, 1651. 1H-NMR (300 MHz, DMSO-d6)δ = 12.02 (brs, 1H, -COOH); 7.94-8.04 (m, 2H, Baclofen NH, Phe (2) NH); 7.17-7.32 (m, 14H, H-Ar); 6.86-6.88 (m, 1H, Phe(1) NH); 4.43 (m, 1H, CαH of Phe (2); 4.09 (m, 1H, CαH of Phe(1)); 3.45 (m, 1H, CβH of Baclofen); 3.16 (brs, 2H, CγH of Baclofen); 2.48-2.78 (m, 6H, Phe diastereotopic CβH, Baclofen diastereotopic CαH); 1.27 (s, 9H, Boc-CH3) ppm. 13C-NMR (75 MHz, DMSO-d6) δ = 172.8 (C of COOH); 171.7 (C of NCO); 171.2 (C of NCO); 155.1 (C of NCOO); 140.8 (Cipso- Cl); 138.0, 137.4 (Cipso of Phe phenyl ring attached to CH2); 131.2 (Cipso of Baclofen phenyl ring attached to CH2); 129.7, 129.6, 129.2 (m-C’s of phenyl rings); 128.1, 128.0, 127.9 (o-C’s of phenyl rings); 126.2, 126.1 (p-C of phenyl rings); 78.1 (C of Boc); 55.8 (α-C of Phe); 53.7 (α-C of Phe); 43.6 (β-C of Baclofen); 40.8 (β-C of Phe); 37.9 (β-C of Phe); 37.5 (γ-C of Baclofen); 37.0 (α-C of Baclofen); 28.1 (C of Boc-CH3) ppm. HRMS-ESI: Calcd. for C33H39ClN3O6 [M+H]+: 608.2528; found: 608.2527. Calcd. for C33H38ClN3NaO6[M+Na]+: 630.2347; found: 630.2346.

H-Phe-Phe-Baclofen-OH 9

mp: 85-86 °C; IR (KBr, cm-1): 3300, 3089, 2928, 1700, 1675, 1652. 1H-NMR (300 MHz, DMSO-d6)δ = 8.42 (d, 1H, J = 7.5 Hz Phe (2) NH); 8.07-8.17 (m, 1H, Baclofen NH); 7.07-7.36 (m, 14H, H-Ar); 4.42-4.46 (m, 1H, CαH of Phe (2); 3.60-3.70 (m, 1H, CαH of Phe (1); 3.24-3.28 (m, 1H, CβH of Baclofen); 3.16-3.24 (m, 2H, CγH of Baclofen); 2.64-2.95 (m, 4H, Phe diastereotopic CβH); 2.40-2.60 (m, 2H, Baclofen diastereotopic CαH) ppm. 13C-NMR (75 MHz, DMSO-d6)δ = 171.3, 173.0 (C of COOH); 170.8, 170.7, 170.6 (C of NCO); 141.3, 141.2,137.5, 136.7, 136.6, 131.1, 129.6, 129.4, 129.1, 128.3, 128.1, 126.6, 126.4 (C-Ar.); 54.6 (α-C of Phe); 53.9 (α-C of Phe); 44.6 (β-C of Baclofen); 44.0, 43.9 (β-C of Phe); 40.8 (γ-C of Baclofen); 37.8 (α-C of Baclofen) ppm. HRMS-ESI: Calcd. for C28H31ClN3O4 [M+H]+:508.2002; found: 508.2001. Calcd. for C28H30ClN3NaO4 [M+Na]+: 530.1824; found: 530.1823. Calcd. for C28H30ClKN3O4 [M+K]+: 546.1566; found: 546.1565.

Boc-Baclofen-OH 10a

mp: 156-157 °C; IR (KBr, cm-1): 3301, 1699, 1637. 1H-NMR ( 300 MHz, DMSO-d6 ) δ = 12.05 ( s, 1H, OH ); 7.32 ( d, 2H, J = 8.3 Hz, Baclofen m-H’s of phenyl ring ); 7.22 ( d, 2H, J = 8.47 Hz, Baclofen o-H’s of phenyl ring ); 6.83-6.87 ( t, 1H, J = 5.4 Hz, NH ); 3.10-3.20 ( m, 1H, CβH of Baclofen ); 3.06 ( t, 2H, J = 5.7 Hz, CγH of Baclofen ); 2.60-2.70 ( dd, 1H, J = 15.9, 4.9 Hz, CαH of Baclofen ); 2.41-2.49 ( dd, 1H, J = 15.9, 9.5 Hz, CαH of Baclofen ); 1.31 ( s, 9H, Boc-CH3 ) ppm. 13C-NMR ( 75 MHz, DMSO-d6 ) δ = 172.9 ( C of COOH ); 155.5 ( C of NCOO ); 141.2 ( Cipso-Cl ); 130.9 ( Cipso of phenyl ring attached to CH2 ); 129.7 ( m-C’s of phenyl ring ); 128.0 ( o-C’s of phenyl ring ); 77.5 ( C of Boc ); 45.1 ( β-C of Baclofen ); 41.3 ( C of CH2NH2 ); 37.6 ( C of CH2COO ); 28.1 ( C of Boc-CH3 ) ppm.

Boc-Gpn-OH 10b

mp: 127-128 °C; IR (KBr, cm-1) : 3413, 3085, 2931, 1714, 1668; 1H-NMR ( 300 MHz, CDCl3 ) δ = 10.10 ( brs, 1H, COOH ); 5.01-5.04 ( t, 1H, J = 6.8 Hz, NH ); 3.14-3.16 ( d, 2H, J = 6.8 Hz, CH2NH2 ); 2.31 ( s, 2H, CH2COO ); 1.42 ( s, 9H, Boc-CH3 ); 1.22-1.49 ( m, 10H, cyclohexyl ring prptons ) ppm; 13C-NMR ( 75 MHz, CDCl3 ) δ = 175.6 ( C of COOH ); 157.5 ( C of NCOO ); 80.2 ( C of Boc ); 47.3 ( C of CH2NH2 ); 40.9 ( β-C of Gpn ); 37.6 ( C of CH2COO ); 33.9 ( γ-C’s of Gpn ); 28.3 ( C of Boc-CH3 ); 25.8 ( ω-C of Gpn ); 21.3 ( δ-C’s of Gpn ) ppm.

Boc-Baclofen-Phe-OMe 11a

mp: 150-151 °C; IR (KBr, cm-1): 3370, 3361, 2973, 1738, 1700, 1685, 1646. 1H-NMR (300 MHz, CDCl3)δ = 6.87-7.31 (m, 9H, Phenyl rings protons); 6.52, 6.26 (m, 1H, Phe NH); 4.75-4.81 (m, 1H, CαH of Phe); 4.53-4.56 (m, 1H, Baclofen NH); 3.71, 3.67 (s, 3H, -OCH3); 3.22-3.46 (m, 3H, CβH of Baclofen, CγH of Baclofen); 3.04-3.10 (m, 1H, Phe diastereotopic CβH); 2.98-3.0 (m, 1H, Phe diastereotopic CβH); 2.53-2.63 (m, 1H, Baclofen diastereotopic CαH); 2.30-2.43 (m, 1H, Baclofen diastereotopic CαH); 1.41 (s, 9H, Boc-CH3) ppm. 13C-NMR (75 MHz, CDCl3)δ = 171.9, 171.8 (C of NCO); 170.7, 170.4 (C of COOMe); 156.3 (C of NCOO); 140.1, 139.9 (Cipso-Cl); 135.9, 135.8 (Cipso of Baclofen, phenyl ring attached to CH2); 132.8, 132.7 (Cipso of Phe, phenyl ring attached to CH2); 129.2, 129.1, 129.0, `128.9, 128.8, 128.5 (o-C’s &m-C’s of phenyl rings); 127.0 (p-C of phenyl ring); 79.6 (C of Boc); 53.3, 53.2 (α-C of Phe); 52.3, 52.2 (C of -OCH3); 45.1 (β-C of Baclofen); 42.4, 42.0 (γ-C of Baclofen), 39.9 (β-C of Phe); 37.7, 37.6 (α-C of Baclofen); 28.3 (C of Boc-CH3) ppm. HRMS-ESI: Calcd. for C25H31ClN2O5 [M+H]+: 475.1998; found: 475.1997. Calcd. for C25H31ClN2NaO5 [M+Na]+:497.1817; found: 497.1816. Calcd. For C25H31ClKN2O5[M+K]+: 513.1557; found: 513.1556.

Boc-Gpn-Phe-OMe 11b

mp: 135-136 °C; IR (KBr, cm-1): 3200-3400, 1740, 1689, 1658. 1H-NMR (300 MHz, CDCl3)δ = 7.72 (d, 1H, J = 7.4 Hz, Phe NH); 7.13-7.24 (m, 5H, H-Ar); 5.24 (brt, 1H, Gpn NH); 4.75-4.80 (m, 1H, CαH of Phe); 3.66 (s, 3H, -OCH3); 3.12-3.22 (m, 2H, CγH of Gpn); 2.87-2.98 (m, 2H, Phe diastereotopic CβH); 2.03 (s, 2H, CαH of Gpn); 1.4 (s, 9H, Boc-CH3); 0.8-1.37 (m, 10H, cyclohexyl ring protons) ppm. 13C-NMR (75 MHz, CDCl3)δ= 172.5 (C of COOMe); 171.4 (C of NCO); 157.2 (C of NCOO); 136.6 (Cipso of phenyl ring attached to CH2); 129.2, 129.1 (m-C’s of phenyl ring); 128.4, 128.3 (o-C’s of phenyl ring); 126.8 (p-C of phenyl ring); 79.2 (C of Boc); 53.7 (α-C of Phe); 52.3 (C of -OCH3); 46.8, 42.2, 38.0, 37.3, 34.3, 33.7; 28.3 (C of Boc-CH3); 27.8, 25.9, 21.4 ppm.

Boc-Baclofen-Phe-OH 12a

mp: 145-146 °C; IR (KBr, cm-1): 3419, 3358, 2981, 2931, 1717, 1686. 1H-NMR (300 MHz, DMSO-d6)δ = 12.65 (brs, 1H, -COOH); 8.12-8.17 (t, 1H, J = 7.5 Hz, Phe NH); 6.97-7.26 (m, 9H, H-Ar); 6.72-6.83 (2t, 1H, J = 5.5 Hz, Baclofen NH); 4.25-4.34 (m, 1H, CαH of Phe); 2.73-3.15 (m, 5H, CβH of Baclofen, CγH of Baclofen, Phe diastereotopic CβH); 2.28-2.44 (m, 2H, Baclofen diastereotopic CαH); 1.41 (s, 9H, Boc-CH3) ppm. 13C-NMR (75 MHz, DMSO-d6) Mixture of two diasteromers : δ = 172.9 (C of COOH); 170.5, 170.3 (C of NCOO); 155.5 (C of NCOO); 141.3, 141.1, 137.7, 137.3, 130.8, 130.7, 129.5, 129.0, 128.9, 128.1, 128.0, 127.9, 126.3, 126.2 (C-Ar); 77.5 (C of Boc); 53.3 (α-C of Phe); 44.8 (β -C of Baclofen); 41.5 (β-C of Phe); 41.2 (γ -C of Baclofen); 36.6, 36.7 (α-C of Baclofen); 28.1 (C of Boc-CH3) ppm. ESI-MS: Calcd. for C24H29ClN2NaO5[M+Na]+: 483.1662; found: 483.1661.

Boc-Gpn-Phe-OH 12b

mp: 80-81 °C; IR (KBr, cm-1) : 3364, 2929, 1716, 1652, 1541; 1H-NMR (300 MHz, CDCl3)δ = 7.42 (d, 1H, J = 8.7 Hz, Phe NH); 7.12-7.26 (m, 5H, H-Ar); 6.68 (d, 1H, J = 8.7 Hz, Gpn NH); 5.11-5.13 (m, 1H, CαH of Phe); 3.07-3.13 (m, 2H, CγH of Gpn); 2.48-2.55 (dd, 1H, J = 14.05, 7.9 Hz, Phe diastereotopic CβH); 1.94-2.20 (m, 3H, Phe diastereotopic CβH and CαH of Gpn); 1.52 (s, 9H, Boc-CH3); 1.24-1.58 (m, 10H, cyclohexyl ring protons) ppm. 13C-NMR (75 MHz, CDCl3)δ = 176.9 (C of COOH); 170.4 (C of NCO); 158.9 (C of NCOO); 136.4 (Cipso of phenyl ring attached to CH2); 129.5 (m-C’s of phenyl ring); 128.3 (o-C’s of phenyl ring); 126.9 (p-C of phenyl ring); 81.7 (C of Boc); 54.5 (α-C of Phe); 51.9, 46.7, 42.0, 38.8, 37.7, 37.4, 34.4 (C- Aliphatic); 28.3 (C of Boc-CH3); 26.1, 21.5 ppm. HRMS-ESI: Calcd. for C23H35N2O5 [M+1]+:419.2543; found: 419.2543. Calcd. for C23H34N2NaO5 [M+Na]+:441.2363; found: 441.2362. Calcd. for C23H34KN2O5 [M+K]+:457.2102; found: 457.2102.

Boc-Baclofen-Phe-Phe-OMe 13a

mp:181-182 °C; IR (KBr, cm-1) :3370, 3350, 2924, 2854, 1742, 1681, 1647. 1H-NMR (300 MHz, DMSO-d6) Mixture of two diasteromers δ = 8.33-8.43 (m, 1H, Phe (1) NH); 7.96-8.03 (m, 1H, Phe(2) NH); 6.98-7.29 (m, 14H, H-Ar); 6.68-6.80 (2t, 1H, Baclofen NH); 4.39-4.49 (m, 2H, CαH of Phe); 3.5 (s, 3H, -OCH3); 2 59-3.11 (m, 7H, CβH of Baclofen, CγH of Baclofen, Phe diastereotopic CβH); 2.22-2.39 (m, 2H, Baclofen diastereotopic CαH); 1.3 (s, 9H, Boc-CH3) ppm. 13C-NMR (75 MHz, DMSO-d6)δ = 171.7, 171.6 (C of COOMe); 171.3 (C of NCO); 170.2, 170.1(C of NCO); 155.5, 155.4 (C of NCOO); 141.4-141.2 (Cipso- Cl); 137.8, 137.5, 137.0, 136.9 (Cipso of Phe phenyl ring attached to CH2); 130.7 (Cipso of Baclofen phenyl ring attached to CH2); 129.5, 129.2, 129.0, 128.9, 128.0, 128.0, 127.9 (o & m-C’s of phenyl rings); 126.6, 126.2, 126.0 (p-C of phenyl rings); 77.5 (C of Boc); 53.6, 53.1 (α-C of Phe); 51.8 (C of -OCH3); 45.0 (β-C of Baclofen); 44.6, 41.4 (β-C of Phe); 38.5 (γ-C of Baclofen); 36.6 (α-C of Baclofen); 28.2 (C of Boc-CH3) ppm. HRMS-ESI: Calcd. for C34H41ClN3O6 [M+H]+:622.2642; found: 622.2644. Calcd. for C34H40ClN3NaO6 [M+Na]+:644.2501; found: 644.2500. Calcd. For C34H40ClKN3O6 [M+K]+:660.2242; found: 660.2241.

Boc-Gpn-Phe-Phe-OMe 13b

mp: 70-71 °C; IR (KBr, cm-1): 3297, 3065, 3012, 1745, 1645, 1690. 1H-NMR (300 MHz, CDCl3) δ = 7.74 (d, 1H, J = 7.3 Hz, Phe(1) NH); 7.02-7.26 (m, 10H, H-Ar); 6.95 (d,1H, J = 7.5 Hz, Phe(2) NH); 5.1 (brt, 1H, Gpn NH); 4.7-4.81 (m, 2H, CαH of Phe); 3.65(s, 3H, -OCH3); 2.89-3.2 (m, 4H, Phe diastereotopic CβH); 2.81-2.83 (m, 2H, CγH of Gpn); 2.0-2.02 (s, 2H, CαH of Gpn); 1.44 (s, 9H, Boc-CH3); 1.0-1.42 (m, 10H, cyclohexyl ring protons) ppm. 13C-NMR (75 MHz, CDCl3) δ = 171.8 (C of COOMe); 171.5 (C of NCO); 171.2 (C of NCO); 157.2 (C of NCOO); 137.1, 135.9 (Cipso of phenyl ring attached to CH2); 129.3 (m-C’s of phenyl rings); 128.4 (o-C’s of phenyl rings); 127.0, 126.7 (p-C of phenyl rings); 79.5 (C of Boc); 54.6 (α-C of Phe); 53.4 (α-C of Phe); 52.1, 52.3 (C of -OCH3); 46.6 (C of CH2NH2); 42.3 (β-C of Gpn); 37.9 (β-C of Phe); 37.2 (β-C of Phe); 37.1(C of CH2COO); 33.9 (γ-C’s of Gpn); 28.4 (C of Boc-CH3); 25.9 (ω-C of Gpn); 21.4 (δ-C’s of Gpn) ppm. HRMS-ESI: Calcd. for C33H46N3O6 [M+H]+: 580.3383; found: 580.3383. Calcd. for C33H45N3NaO6 [M+Na]+: 602.3203; found: 602.3202. Calcd. For C33H45KN3O6 [M+K]+ : 618.2945; found: 618.2944.

Boc-Gpn-Phe-Phe-OH

mp: 107-108 °C; IR (KBr, cm-1) :3380, 2937,1860, 1665, 1636. 1H-NMR (300 MHz, DMSO-d6)δ = 12.5 (brs, 1H, -COOH); 8.27 (d, 1H, J = 8.3 Hz, Phe(1) NH); 8.13 (d, 1H, J = 7.7 Hz, Phe (2) NH); 7.13-7.28 (m, 10H, H-Ar); 6.58 (brt, 1H, Gpn NH); 4.57-4.64 (m, 1H, CαH of Phe (1); 4.40-4.47 (m, 1H, CαH of Phe); 2.61-3.09 (m, 6H, Phe diastereotopic CβH, and CγH of Gpn); 1.86-1.97 (m, 2H, CαH of Gpn); 1.37 (s, 9H, Boc-CH3); 0.92-1.27 (m, 10H, cyclohexyl ring protons) ppm. 13C-NMR (75 MHz, DMSO-d6)δ = 172.7 (C of COOH); 171.5 (C of NCO); 170.4 (C of NCO); 156.1 (C of NCOO); 137.8, 137.3 (Cipso of phenyl ring attached to CH2); 129.1 (m-C’s of phenyl rings); 128.2, 127.9 (o-C’s of phenyl rings); 126.4,126.1 (p-C of phenyl rings); 77.5 (C of Boc); 53.4 (α-C of Phe); 46.6 (C of CH2NH2); 42.3 (β-C of Gpn); 37.4, 36.7 (β-C of Phe); 36.6 (C of CH2COO); 33.2, 32.7 (γ-C’s of Gpn); 28.2 (C of Boc-CH3); 25.6 (ω-C of Gpn); 21.0 (δ-C’s of Gpn) ppm. HRMS-ESI: Calcd. for C32H44N3O6 [M+H]+:566.3227; found: 566.3227. Calcd. for C32H43N3NaO6 [M+Na]+: 588.3047; found: 588.3047. Calcd. for C32H43KN3O6 [M+K]+:604.2795; found: 604.2794.

Boc-Baclofen-Phe-Phe-OH

mp: 260-262°C (dec.); IR (KBr, cm-1) :3350, 3305, 3029, 1714, 1683, 1648. 1H-NMR (300 MHz, DMSO-d6)δ = 12.64 (brs, 1H, -COOH); 8.22-8.25 (m, 1H, Phe (1) NH); 7.94-7.97 (m, 1H, Phe(2) NH); 6.99-7.28 (m, 14H, H-Ar); 6.67-6.79 (m, 1H, Baclofen NH); 4.38-4.45 (m, 2H, CαH of Phe); 3.02-3.13 (m, 1H, CβH of Baclofen); 2.93-3.01 (m, 2H, CγH of Baclofen); 2.49-2.93 (m, 4H, Phe diastereotopic CβH); 2.21-2.41 (m, 2H, Baclofen diastereotopic CαH); 1.30 (s, 9H, Boc-CH3) ppm. 13C-NMR (75 MHz, DMSO-d6)δ = 172.6 (C of COOH); 171.2 (C of NCO); 170.1 (C of NCO); 155.5 (C of NCOO); 141.4, 141.2 (Cipso-Cl); 137.9, 137.6, 137.4, 137.3 (Cipso of Phe phenyl ring attached to CH2); 130.7 (Cipso of Baclofen phenyl ring attached to CH2); 129.4, 129.2, 129.1, 129.0, 128.2, 128.0, 127.9, 127.8 (m & o-C’s of phenyl rings); 126.4, 126.1, 126.0 (p-C of phenyl rings); 77.5 (C of Boc); 53.4 (α-C of Phe); 45.1 (β-C of Baclofen); 41.4, 38.7 (β-C of Phe); 37.3 (γ-C of Baclofen); 36.7 (α-C of Baclofen); 28.2 (C of Boc-CH3) ppm. HRMS-ESI: Calcd. for C33H39ClN3O6 [M+H]+:608.2529; found: 608.2528. Calcd. for C33H38ClN3NaO6 [M+Na]+:630.2349; found: 630.2348.

H-Baclofen-Phe-Phe-OH 14a

mp: 255-257 °C (dec.); IR (KBr, cm-1) :3400, 3300, 3028, 1671, 1646. HRMS-ESI: Calcd. for C28H31ClN3O4 [M+H]+:508.1998; found: 508.1998. Calcd. for C28H30ClN3NaO4 [M+Na]+: 530.1820; found: 530.1819. Calcd. for C28H30ClKN3O4 [M+K]+: 546.1560; found: 546.1559.

H-Gpn-Phe-Phe-OH 14b

mp: 245-246 °C; IR (KBr, cm-1): 3000- 3500, 1590- 1670. 1H-NMR (300 MHz, DMSO-d6)δ = 8.91-8.93 (d, 1H, J = 7.56 Hz, Phe(1) NH); 7.68-7.7 (d, 1H, J = 6.9 Hz, Phe (2) NH); 7.0-7.25 (m, 10H, H-Ar); 4.36-4.43 (m, 1H, CαH of Phe(1)); 4.14-4.18 (m, 1H, CαH of Phe); 2.28-3.15 (m, 6H, Phe diastereotopic CβH and CγH of Gpn); 2.16-2.27 (m, 2H, CαH of Gpn); 1.21-1.39 (m, 10H, cyclohexyl ring protons) ppm. 13C-NMR (75 MHz, DMSO-d6)δ = 174.2 (C of COOH); 170.9 (C of NCO); 170.3 (C of NCO); 138.9, 138.2, 129.5, 128.9, 128.2, 128.0, 127.7, 126.1, 125.7(C-Ar) ; 55.4, 54.9 (α-C of Phe); 45.0, 37.7, 37.3, 36.1, 35.0, 32.5 (H-Aliphatic); 25.3 (ω-C of Gpn); 22.4 (δ-C’s of Gpn) ppm. HRMS-ESI: Calcd. for C27H36N3O6 [M+H]+:466.27005; found: 466.27014. Calcd. for C27H35N3NaO6 [M+Na]+: 488.2518; found: 488.2521.

Boc-Baclofen-Baclofen-OMe 15

mp: 133-135 °C; IR (KBr, cm-1): 3352, 3311, 2972, 1735, 1678, 1630. 1H-NMR (300 MHz, CDCl3) δ = 7.24-7.28 (m, 4H, m-H’s of Baclofen Phenyl rings protons); 7.02-7.07 (m, 4H, o-H’s of Baclofen Phenyl rings protons); 6.00-6.16 (brt, 1H, Baclofen (2) NH); 4.50-4.55 (m, 1H, Baclofen(1) NH); 3.57, 3.58 (s, 3H, -OCH3); 3.57-3.61 (m, 1H, CβH of Baclofen(1); 3.39-3.44 (m, 1H, CβH of Baclofen(2)); 3.2-3.28 (m, 4H, CγH of Baclofen); 2.46-2.52 (m, 3H, Baclofen diastereotopic CαH);2.23-2.30 (dd, 1H, J = 14.1, 6.7 Hz, Baclofen diastereotopic CαH); 1.39 (s, 9H, Boc-CH3) ppm. 13C-NMR (75 MHz, CDCl3)δ = 172.1, 172.0 (C of COOMe); 171.1, 171.0 (C of NCO); 156.3 (C of NCOO); 140.0, 139.5 (Cipso-Cl); 132.9, 132.8 (Cipso of phenyl ring attached to CH2); 128.9 (m-C’s of phenyl rings); 128.8 (o-C’s of phenyl rings); 79.7 (C of Boc); 51.8, 51.6 (C of -OCH3); 45.0, 44.9 (β-C of Baclofen (2); 44.2, 44.1 (β-C of Baclofen (1); 42.4, 42.3 (γ-C of Baclofen (1); 41.3, 41.1 (γ-C of Baclofen (2), 41.2; 40.0 (α-C of Baclofen (2); 38.2, 37.9 (α-C of Baclofen (1); 28.3 (C of Boc-CH3) ppm. HRMS-ESI: Calcd. for C26H33Cl2N2O5[M+H]+: 523.1763; found: 523.1763. Calcd. for C26H32Cl2N2NaO5[M+Na]+: 545.1583; found: 545.1582. Calcd. for C26H32Cl2KN2O5 [M+K]+: 561.1320; found: 561.1320.

Boc-Baclofen-Baclofen-OH

mp: 130-132 °C; IR (KBr, cm-1): 3345, 3334, 2981, 1706, 1680, 1645. 1H-NMR (300 MHz, DMSO-d6) Mixture of stereoisomers: δ = 12.18 (brs, 1H, -COOH); 7.76 (m, 1H, Baclofen (2) NH); 7.04-7.39 (m, 8H, H-Ar); 6.76-6.84 (m, 1H, Baclofen(1) NH); 3.54-3.63 (m, 1H, CβH of Baclofen(2)); 3.02-3.19 (m, 5H, CβH of Baclofen (1) and CγH of Baclofen); 2.62-2.78 (m, 2H, Baclofen diastereotopic CαH); 2.22-2.39 (m, 2H, Baclofen diastereotopic CαH); 1.31 (s, 9H, Boc-CH3) ppm. 13C-NMR (75 MHz, DMSO-d6)δ = 175.8,174.5 (C of COOH); 172.8, 172.7, 170.5, 170.4 (C of NCO); 155.5 (C of NCOO); 141.8, 141.3, 141.2, 141.1 131.1, 130.0, 130.9 129.7, 129.5, 128.9 128.4, 128.0 (C-Ar); 72.4 (C of Boc); 48.4 45.2 42.7 41.3, 41.7 40.7, 40.3 37.6 (C-Aliphatic); 28.2 (C of Boc-CH3) ppm. HRMS-ESI: Calcd. for C25H31Cl2N2O5 [M+H]+: 509.16096; found: 509.16088. Calcd. For C25H3035Cl2N2NaO5 [M+Na]+: 531.1429; found: 531.1428. Calcd. for C25H30 35Cl2KN2O5 [M+K]+ : 547.1170; found: 547.1169.

Boc-Baclofen-Baclofen-Phe-Phe-OMe 16

mp: 128-129 °C; IR (KBr, cm-1) :3306, 1700, 1689, 1642.

HRMS-ESI: Calcd. for C44H51Cl2N4O7 [M+H]+: 817.3143; found: 817.3141. Calcd. for C44H50Cl2N4NaO7 [M+Na]+: 839.2955; found: 839.2954. Calcd. for C44H50Cl2KN4O7 [M+K]+: 855.2704; found: 55.2702.

Boc-Baclofen-Baclofen-Phe-Phe-OH 17: mp: 121-123 °C, IR (KBr, cm-1): 3100-3300, 1714, 1658.

HRMS-ESI: Calcd. for C43H49Cl2N4O7 [M+H]+: 803.2985; found: 803.2984 ; Calcd. for C43H48Cl2N4NaO7 [M+Na]+: 825.2810; found: 825.2809.

H-Baclofen-Baclofen-Phe-Phe-OH 18:

mp: 110-112 °C; IR (KBr, cm-1): 3200-3400, 1678.

HRMS-ESI: Calcd. for C38H41Cl2N4O5 [M+H]+: 703.2449; found: 703.2449. Calcd. for C38H40Cl2N4NaO5 [M+Na]+: 725.2272; found: 25.2271.

Results and Discussion

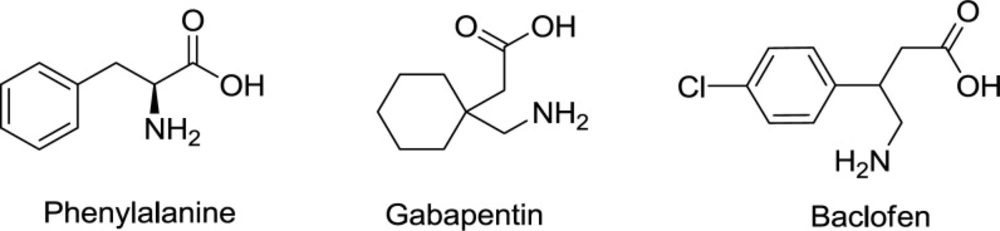

To improve the functionality of F-F dipeptide, two γ-aminobutyric acids, Gpn, and Baclofen (Scheme 1) were introduced to its structure to increase the π-π stacking, and thus lipophilicity properties. Gabapentin is an anticonvulsant medication and its properties is owing to the presence of lipophilic cyclohexyl in its structure penetrating into the blood-brain barrier and central nervous system (26). Besides, Baclofen includes 4-chlorophenyl ring which its presence in tri-peptide structure may increase the π-π stacking.

To synthesize tripeptides, two strategies were employed. The first one was relied on the core of Phe-Phe to introduce the third amino acid. The second one, Phenylalanine was bound to the C-terminus of γ-aminobutyric acids. In both strategies, solution phase peptide synthesis strategy was used (27).

To start the first strategy, protection reactions were essential for the preparation of amino acids, which include: carboxylic acid protection of Boc-Phe-OH through a methylation process using thionyl chloride in MeOH, and amine protection of Phe by di-tert-butyl dicarbonate (Boc2O). As shown in Scheme 2, the reaction steps involved: a) coupling reaction of protected amino acids which are Boc-Phe-OH and H-Phe-OMe using TBTU/HOBT as the coupling reagent, b) basic hydrolysis of methyl ester using NaOH in MeOH. c and d) Coupling of Boc-Phe-Phe-OH with methyl ester protected γ-aminobutyric acids (H2N-Gpn-OMe and H2N-Baclofen-OMe) and then, deprotection of ester and amine, respectively. The final products of this strategy were H-Phe-Phe-Gpn-OH and H-Phe-Phe-Baclofen-OH.

It is notable to mention that coupling of Boc-Phe-OH with phenylalanine methyl ester H-Phe-OMe was accomplished through the standard epimerization-free condensation reaction (HOBt) according to Ley’s protocol (28). Moreover, treatment of the protected tripeptide with a triethyl silane and a mixture of CH2Cl2/TFA (1:1 ratio) lead to the deprotection of its terminal amino group producing the unprotected tripeptide

Synthesis of tripeptides H-Gpn-Phe-Phe-OH and H-Baclofen-Phe-Phe-OH was started from their corresponding γ-aminobutyric acid (Scheme 3). In this regard, amino group of γ-aminobutyric acid was initially protected using Boc2O reagent and then treated with ester of Phe. After cleavage of the ester group of the formed dipeptide, previous reaction was repeated followed by deprotection of acid and amine groups to obtain tripeptides H-Baclofen-Phe-Phe-OH and H-Gpn-Phe-Phe-OH. The process of synthesizing tetrapeptide H-Gpn-phe-phe-OH involved the same processes with a difference that the first step included reaction of Boc-Baclofen-OH with H-Baclofen-OMe (Scheme 4).

In order to make sure the successfulness of each reaction steps, the products were analyzed by FT-IR and 1H and 13C NMR (see supplementary data). In 1H NMR spectra of H–Phe–OMe, the appearance of a sharp peak at 3.62 ppm, corresponding the methyl group, proved the formation of ester.

Due to the twofold peaks in both 1H and 13C NMR spectra of Boc-Phe-OH, it was found that this product constitutes two isomers with the ratio of 64:36, this is as a result of amide resonance by the partial shift of NH proton to the carbonyl group (Figure 2). Isomer A is the major one and in isomer B the chemical shift for the -NH group is 6.59 ppm that is related to the intramolecular hydrogen bonding between -NH and -C= O group (29).

Observing the peak of t-Bu group’s hydrogens in 1H NMR and the peaks of urethane carbonyl and carbon atoms of t-Bu group were the proof for the Boc-protection of Baclofen and Gpn. To confirm the formation of peptide bonds, H-H COSY 2D NMR was also considered in addition to the conventional analyses. This spectrum helped to find the H-Cα bonded to the NH. ESI Mass spectrometry detected the mass of each synthesized peptide.

Since self-assembled peptide-based hydrogels have brought better interaction, and the fact that γ-amino acid including peptide may form gel, the synthesized small peptides are under investigation for the formation of gel and self-assembled peptides.

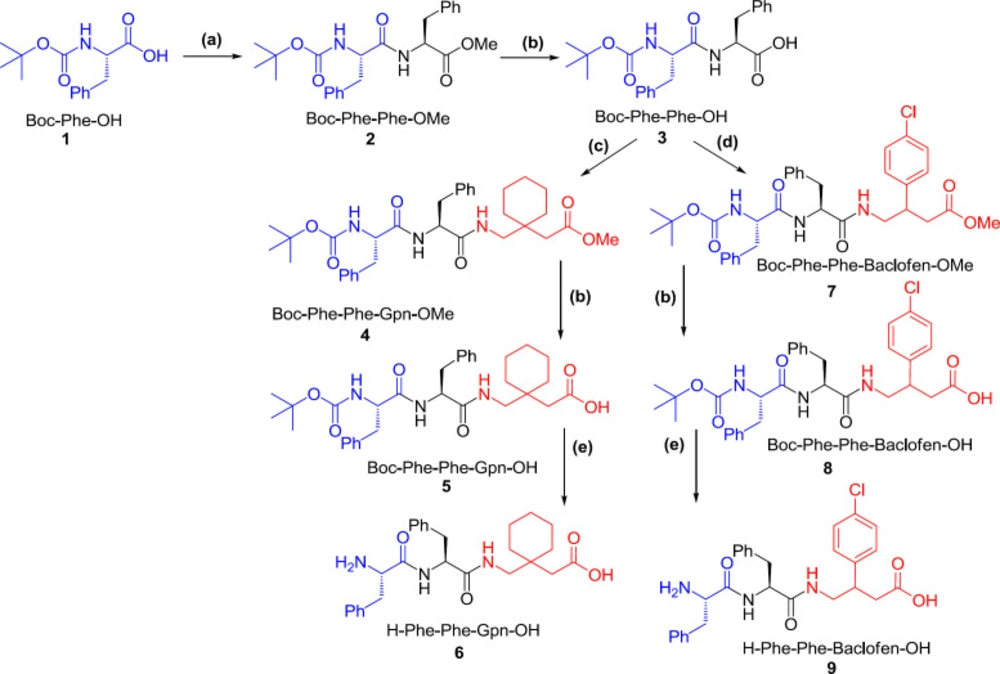

Synthesis of tri-peptide starting from Phenylalanine; Ar: 4-ClC6H4, Reagents and conditions: (a) EtOAc, H–Phe–OMe, TBTU, HOBt, DIEA, R. T.; (b) MeOH, 2 M NaOH, H2O; (c) EtOAc, H–Gpn–OMe, TBTU, HOBt, DIEA, R. T.; (d) EtOAc, H–Baclofen–OMe, TBTU, HOBt, DIEA, R. T.; (e) HSiEt3, TFA/CH2Cl2

Synthesis of tri-peptide starting from Phenylalanine; Ar: 4-ClC6H4, Reagents and conditions: (a) EtOAc, H–Phe–OMe, TBTU, HOBt, DIEA, R. T.; (b) MeOH, 2 M NaOH, H2O; (c) EtOAc, H–Gpn–OMe, TBTU, HOBt, DIEA, R. T.; (d) EtOAc, H–Baclofen–OMe, TBTU, HOBt, DIEA, R. T.; (e) HSiEt3, TFA/CH2Cl2

Scheme 2

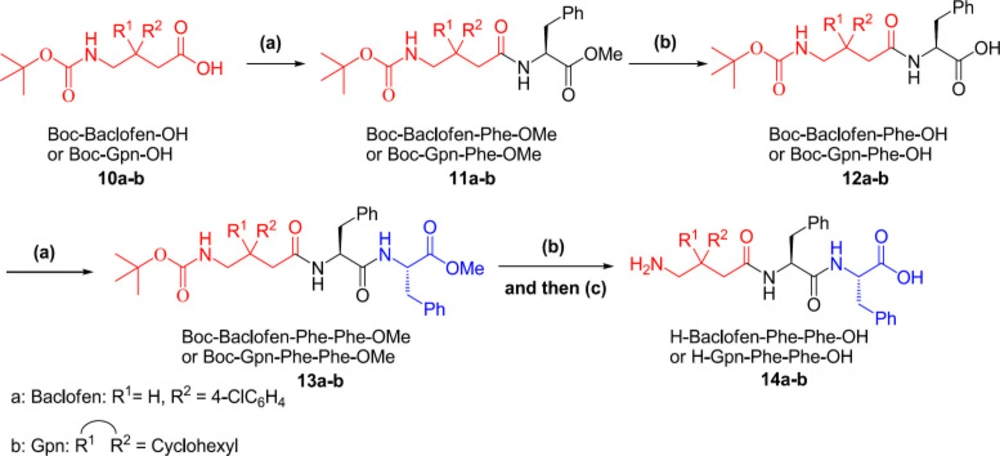

Synthesis of tri-peptide starting from γ-aminobutyric acids (a) EtOAc, H–Phe–OMe, TBTU, HOBt, DIEA, R. T.; (b) MeOH, 2 M NaOH, H2O; (c) HSiEt3, TFA/CH2Cl2

Synthesis of tri-peptide starting from γ-aminobutyric acids (a) EtOAc, H–Phe–OMe, TBTU, HOBt, DIEA, R. T.; (b) MeOH, 2 M NaOH, H2O; (c) HSiEt3, TFA/CH2Cl2

Scheme 3

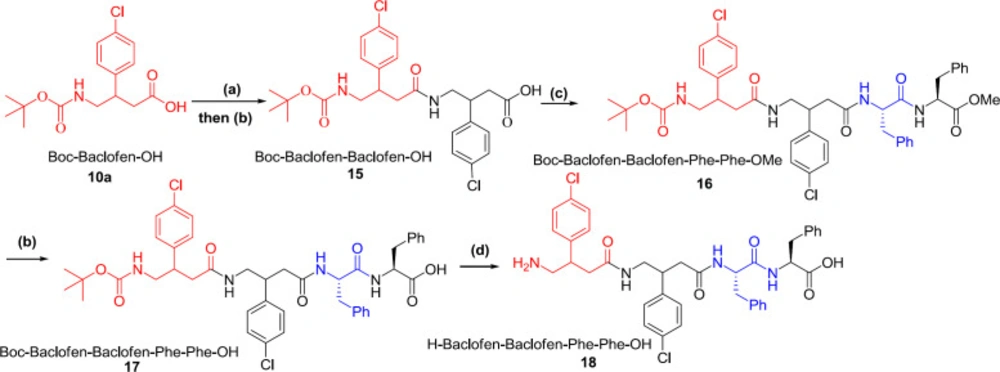

Synthesis of tetra-peptide starting from Baclofen (a) EtOAc, H–Baclofen–OMe, TBTU, HOBt, DIEA, R.T.; (b) MeOH, 2 M NaOH, H2O; (c) EtOAc, H–Phe–Phe-OMe, TBTU, HOBt, DIEA, R. T.; (d) HSiEt3, TFA/CH2Cl2

Synthesis of tetra-peptide starting from Baclofen (a) EtOAc, H–Baclofen–OMe, TBTU, HOBt, DIEA, R.T.; (b) MeOH, 2 M NaOH, H2O; (c) EtOAc, H–Phe–Phe-OMe, TBTU, HOBt, DIEA, R. T.; (d) HSiEt3, TFA/CH2Cl2

Scheme 4

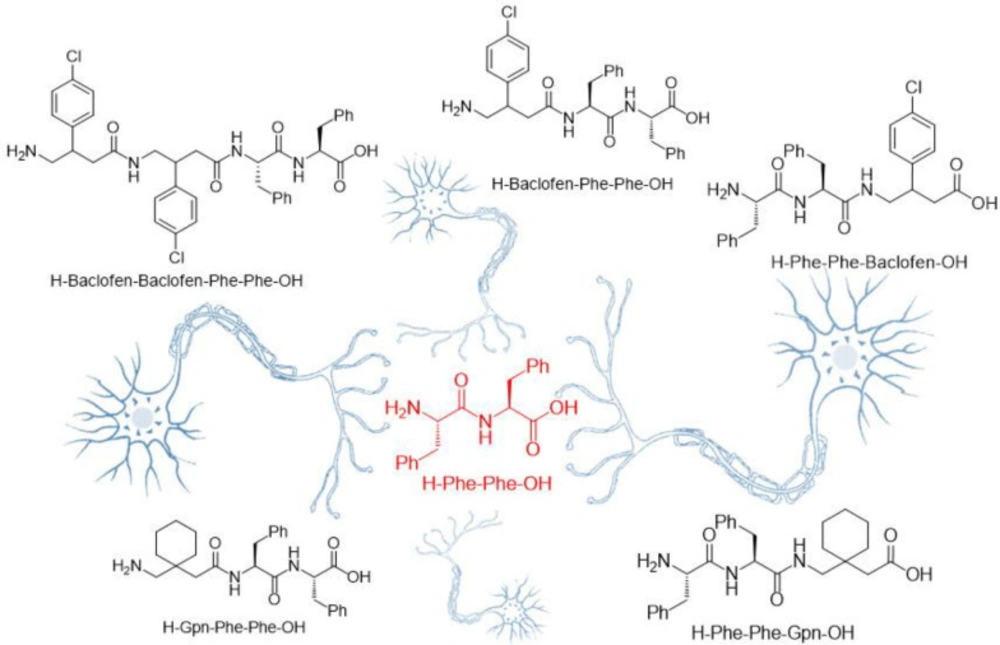

The structure of targeted small peptides

The structure of targeted small peptides

Figure 1

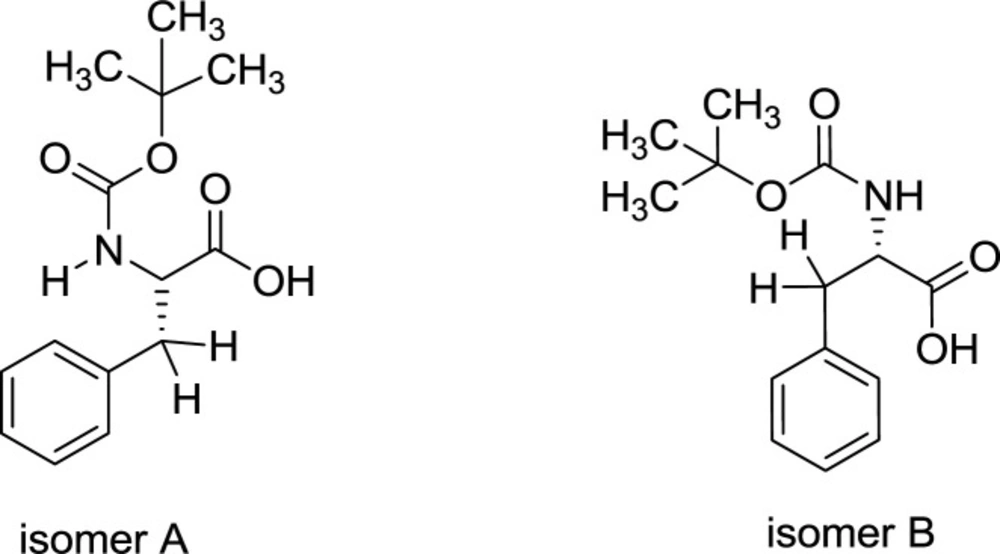

Isomerization of the amide bond in Boc-Phe-OH

Isomerization of the amide bond in Boc-Phe-OH

Figure 2

Conclusion

In conclusion, the synthesis of novel series of tri- and tetrapeptides were described and confirmed by inserting γ-amino acids of Gpn and Baclofen into the structure of Phe-Phe dipeptide. Adding the bioactive γ-amino acids to the Phe-Phe sequence could affect the lipophilicity and self-assembly of the peptides. The increased lipophilic properties of tri- and tetrapeptides leading to the nanostructural formation may affect their permeability onto the nervous system. The research to find the gel formation condition and also their activity is in progress in our lab.
