Introduction
Cysteine (2-amino-3-mercaptopropanoic acid, CySH) is an important amino acid widely used in the medicine and food additives. It plays a leading role in the production of collagen in the skin texture to provide its elasticity (1). CySH is also of pivotal importance in protein synthesis, detoxification, autooxidative properties, and diverse metabolic functions (2). Morover, it is important for the metabolism of essential biochemicals, including coenzymes, heparin, and biotin (3). Therefore, the precise measurement of CySH can be significant in pharmaceutical industry. Spectrophotometry (4-5), spectrofluorimetry (6), High-Performance Liquid Chromatography (HPLC) (7-8), chemiluminescence (9), and Gas Chromatography-Mass Spectrometry (GC–MS) (10-11) provide some different approaches to the determination of plasma CySH concentration, which has been recently developed for pharmaceuticals. However, these methods are mostly time-consuming for sample preparation and analysis and expensive in terms of solvent usage and maintenance of devices. Alternatively, electrochemical techniques have attracted more attention for determining pharmaceutical compounds as they are simple, rapid, and precise and can be used for a wide range of detections at relatively low costs. However, CySH is difficulty detected since conventional electrodes are highly sensitive, while being involved in very slow electron-transfer kinetics at high overpotentials despite the fact that it is an electroactive molecule. A possible solution to thsese challenges is that to modify electrodes with the high level of selectivity and analyses (12-21). In this regard, a broad spectrum of mediators were reported to analyze environmental, pharmaceutical, and electro-active materials, several of which are nanoparticles (22), carbon nanotubes (23), nanocomposites (24), and enzyme-based biosensors (25). As reported in the literature (26-28), many analytical approaches to the electrocatalytic oxidation of 4,4′-biphenol have been developed in recent years for determining such thiols as captopril, N-acetylcysteine, and glutathione. The present study dealt with the development and validation of a new sensitive electrocatalytic approach by using 4,4′-biphenol as a homogeneous mediator for promoting CySH oxidation and detection in the plasma samples and pharmaceuticals. To this goal, Cyclic Voltammetry (CV), Linear Sweep Voltammetry (LSV), and chronoamperometry were employed to provide a description of the electrochemical properties of 4,4′-biphenol and examination of its electrocatalytic impacts on CySH oxidation besides calculation of such kinetic parameters as the catalyst reaction constant.
Experimental
Apparatus and Chemicals
By means of NOVA1.11 software, a potentiostat/galvanostat Autolab model PGSTAT 204 (Eco Chemie, Utrecht, Netherlands) was used for electrochemical experiments. The reference electrode consisted of an Ag/AgCl electrode (KCl3M) for using the 3- electrode cell. A GCE and a Pt wire were used as the working electrode and the counter electrode, respectively. The glassy carbon electrode was obtained from the AZAR electrode, and the Ag/AgCl electrode and Pt wire were obtained from Metrohm. For pH measurements, moreover, the Metrohm model 827 pH/mV meter was used.
Cysteine and 4,4′-biphenol were obtained from Sigma-Aldrich. Other chemicals were of analytical reagent grade purchased from Merck Company. By dissolving an optimally precise amount of CySH, a 1.0 × 10−2 mol L −1 stock solution was freshly prepared. Other fresh solutions were prepared by diluting the optimal stock solution with distilled water. Every experiment was conducted through the application 0.1 M phosphate buffer solutions with various pH values at 25 ± 1 °C.
Analytical Procedure
The glassy carbon electrode CySH was measured according to the method reported in a previous work (26) by polishing with an alumina fine powder (0.05 μm) in water slurry and with a polishing cloth. Afterwards, it was ultrasonically washed in ethanol and water, respectively. The electrodes were dipped into a solution of 4,4′-biphenol and buffer in one of the experiments. The potential was swept from -0.2 to + 0.5 V versus Ag/AgCl at the scanning rate of 10 mVs−1. While CySH was present as the sample solution, the above procedure was repeated.
Real sample Preparation
CySH (1 mL, 0.01 mol L-1) spiked in the blood serum sample, and then was centrifuged. The supernatant was diluted 50 times with water. Finally, the standard addition method was used. Two milliliter of the solution and 8.0 mL of the buffer (pH 10.0) were used for the analysis. Obtained from relevant calibration equations, the calibration curve method was used in order to get the quantitations.
| Method | Electrode | Linear range (μmol L-1) | Detection limit (µmol L-1) | Reference |
|---|---|---|---|---|
| SWV | Lead ruthenate pyrochlore | Up to 560 | 1.91 | (30) |
| Amperometry | Nafion/PbNP modified carbon | 1-67.2 | 0.46 | (31) |
| Amperometry | OMC/GCE | 18-2500 | 2 | (20) |
| Amperometry | ZnOx-NP/GCE | 0.2-200.0 | 0.05 | (32) |
| Amperometry | Oxovanadium (IV) complex of salen modified electrode | 240-2300 | 170 | (33) |
| CV | Fullerene-C60-modified carbon | 20-300 | 0.04 | (34) |
| Chronomperometry | MWCNT/Gold nanorods | 5–200 | 0.008 | (35) |
| Amperometry | CPE/PB-AuNP-Pd | 0.3–400 | 0.18 | (36) |
| CV | GCE and mediator 4,4'-biphenol | 10-1000 | 0.99 | This work |
Comparison of the results of the proposed method with similar reports for detrminatin of CySH
| Concentration Sample | Added (μM) | Found (μM) | Recovery (%) |
|---|---|---|---|
| Tablet (500 mg) | 50 | 55 ± 0.3 | 110 |
| Plasma | 75 | 74 ± 0.2 | 98 |
| Plasma | 50 | 53.5 ± 0.4 | 107 |
Determination of CySH in human serum samples under the optimum conditions (n = 7)
| Foreign species | Tolerant limits (Wsubstance/WDP) |
|---|---|
| sucrose, glucose, fructose, L-methionine, L-serine, citric acid, L-histidine, oxalic acid, | 850 |
| Ascorbic acid, Uric acid, Acetaminophen | 100 |
Interference of some foreign species on the determination of 40.0 μM CySH under the optimized conditions
Results and Discussion
The electrochemical behaviors of the modified electrode

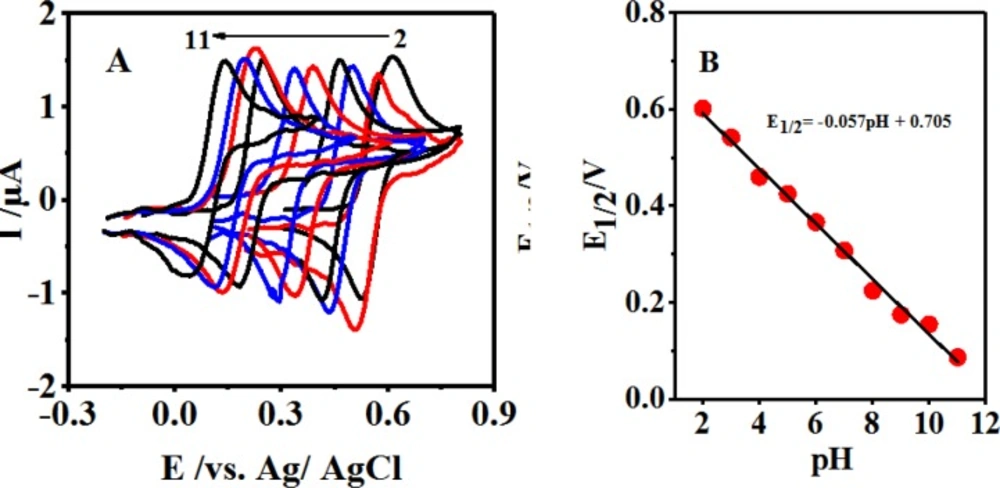

Figure 1A displays the cyclic voltammograms of 0.1 mM of 4,4′-biphenolat different pH values. As can be seen, 4,4′-biphenolat cyclic voltammogram (B) depicts an anodic (A1) and its corresponding cathodic peak (C1) in the positive- and negative-going scans at each pH value, respectively.
This can be attributed to 4,4′-biphenolat transformation into 4, 4′-diphenoquinone (Q) and vice versa under a quasi-reversible electron-transfer condition (27-28).
Upon increasing the pH, the activation overpotential was seen to reduce and a shift towards negative oxidation peak potentials was resulted due to the participation of protons in the B-to-Q oxidation reaction as follows:
B Q + ne- + mH+ (1)
where m represents the number of protons taking part in the reaction. The half-wave potential is calculated as follows:
E1/2 = Eº1/2 – (2.303 mRT/2F) pH (2)
where Eº1/2 stands for the half-wave potential at pH 0.0 and m, R, T, F are associated with their typical values. The cyclic voltammogram also demonstrated the average of anodic and cathodic peak potentials as calculated below (29):
E1/2 = (Epa + Epc)/2 (3)
This plotting E1/2 vs. pH can be illustrated through the following Equation 4:
E1/2 = -0.057 pH + 0.705 R² = 0.993 (4)
Being close to the theoretical value of 59 mV, a slope of 57 mV pH-1 within the pH range of 2.0-11.0 suggested the 2-electron and 2-proton processes of the electrode surface reaction as exhibited by Figure 1B, Scheme 1, and Equation 4.

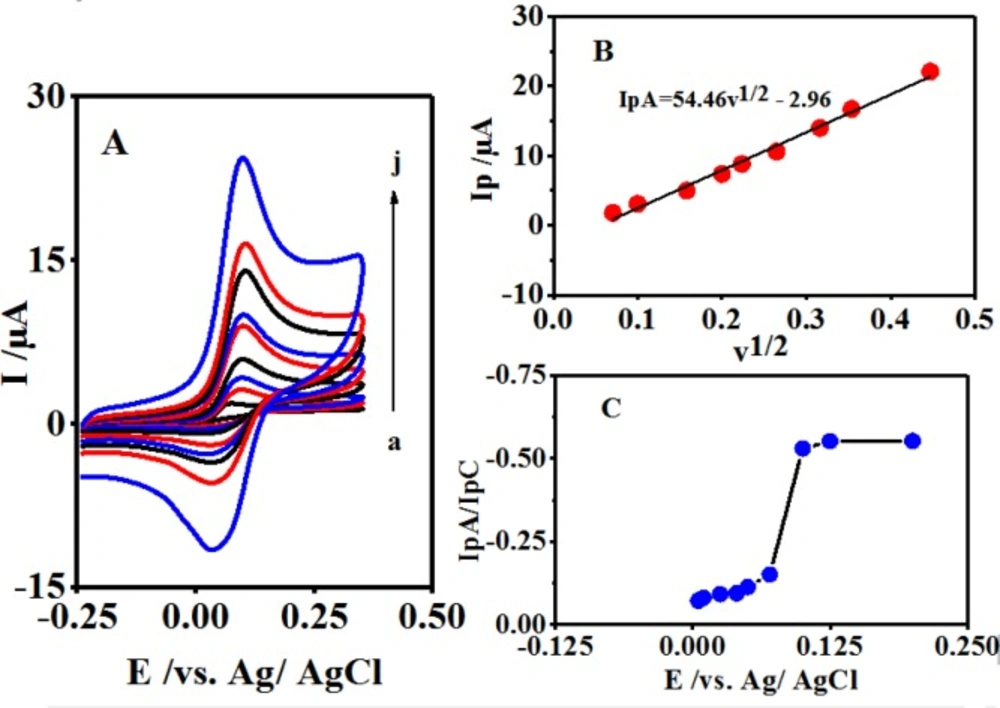

As shown in Figure 2A, the different scan rates of B cyclic voltammograms occur in the presence of CySH in a buffer solution at pH 10.0. According to Figure 2B, a linear relationship exists between the plot of IpA vs. v1/2 in the range of 5-200 mVsec-1.

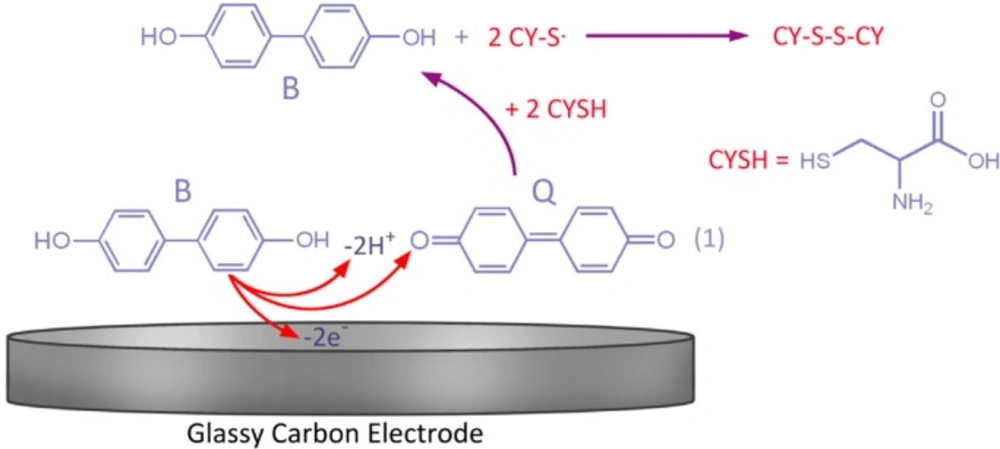

Moreover, by increasing the potential scan rate, the peak current ratio (IpC1/IpA1) is enhanced, which is due to the insufficient reaction time for CySH and B (Figure 2C) (27). Scheme 1 portrays how the process of electron transfer leads to a catalytic reaction.

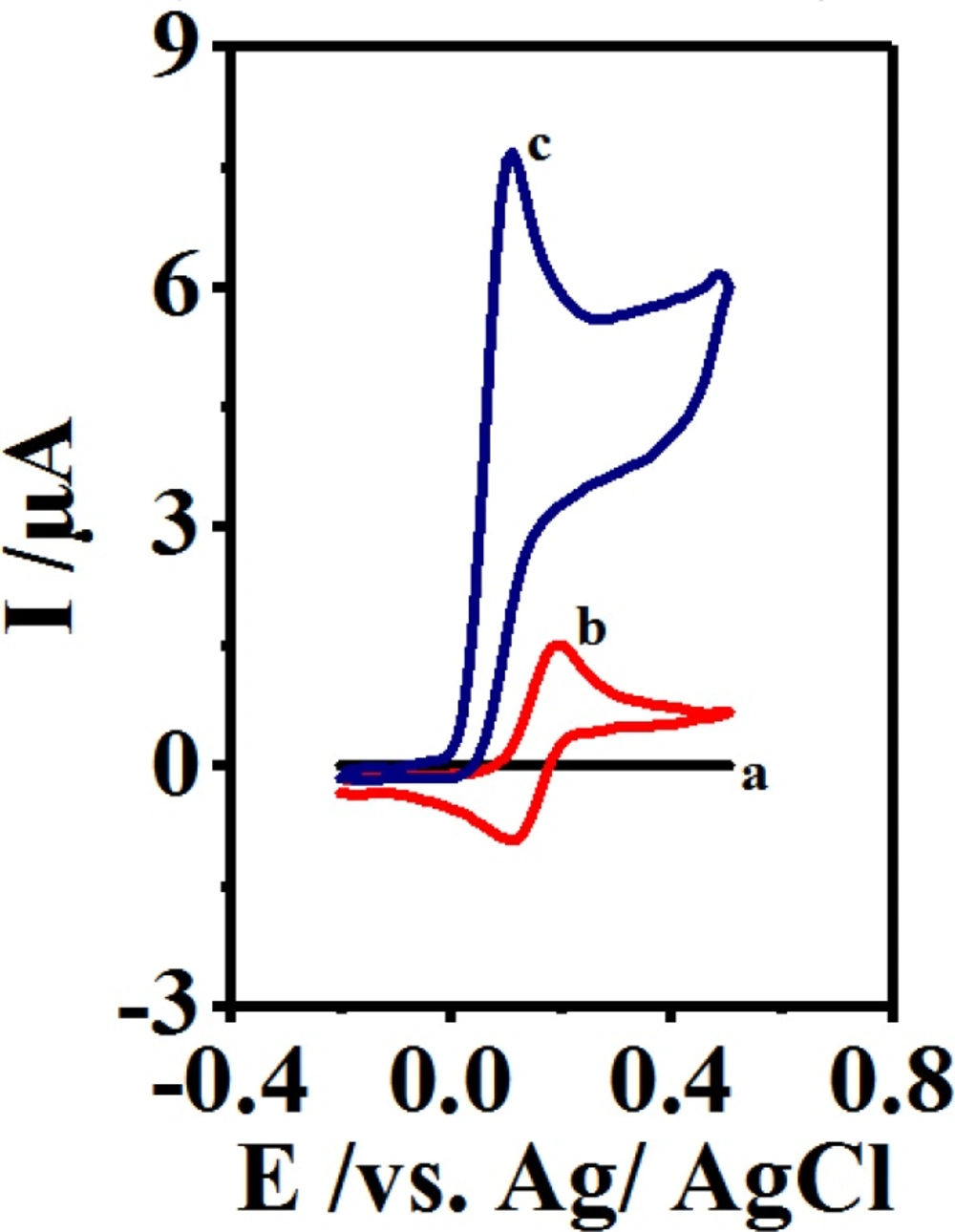

The current research aimed at examining the cyclic voltammograms of 2 mM of CySH on GCE at a scan rate of 10 mVs-1 and a pH value of 10 (Figure 3, Curve a). Figure 3 (Curve c) demonstrates the cyclic voltammogram of 0.1 mM of B at the presence of 2 mM of CySH. After comparing the cyclic voltammograms of B in the presence and absence of CySH (Curve b), a significantly greater anodic peak current (IpA1) was clearly observed in the latter case.

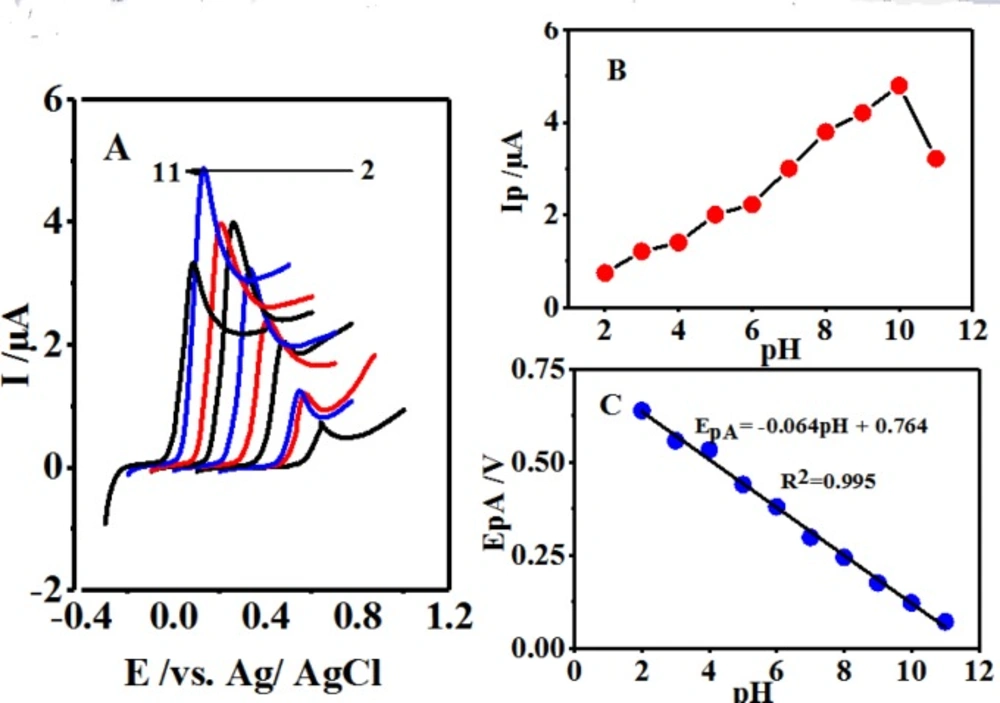

The electrochemical behaviors of 0.1 mM of B were investigated in the presence of 0.5 mM of CySH at the scan rate of 10 mVsec-1 at different pH values associated with various buffers (2-11) through LSV (Figure 4A). The gradual growth of the oxidation peak current (IpA1) induced by pH enhancement up to a value of 10.0 and its subsequent reduction are displayed in Figure 4B. It was expected that the raised pH level of the solution provoke the anodic peak potential (EpA1) shift towards negative potentials (Figure 4C) (29).
Analytical measurements

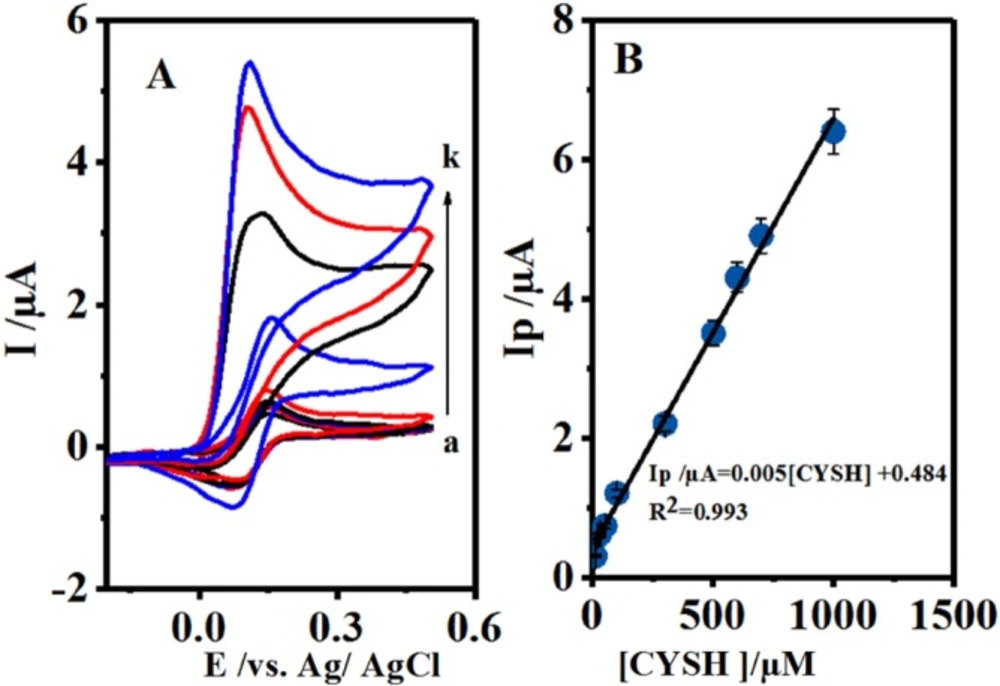

Figure 5A shows the cyclic voltammograms of B at various concentrations of CySH oxidation on GCE for the investigation of the electrocatalytic activity of B. Figure 5B shows the relevant calibration curve. As mentioned above, the anodic peak current (IpA1) was increased by CySH concentration enhancement, which further showed a linear calibration range of 10-1000 μM with R² = 0.993. This indicated the complete fitness of the regression line to the experimental data. Therefore, the regression equation (I/µА = 0.005[CySH] + 0.484) could be used for determining the unknown samples. Detrmination of CySH Limit of Detection (LOD) was based on LOD definition of 3 Sb/m, in which Sb is the blank Standard Deviation (SD) (n = 7) and m is the calibration graph slope. Consequently, CYSH LOD was found to be 0.99 μM. Furthermore, its reproducibility was measured to be 100 μM based on the cyclic voltammograms. The Relative Standard Deviation (RSD) was calculated to be 2.5% for 7 replicates.
The voltamvmetric determination of CySH is done by comparing this approach with the previously reported methods as shown in Table 1. Our analytical parameters of CySH determination clearly demonstrated comparable or better results than those of the previous reports.
Chronoamperometric studies

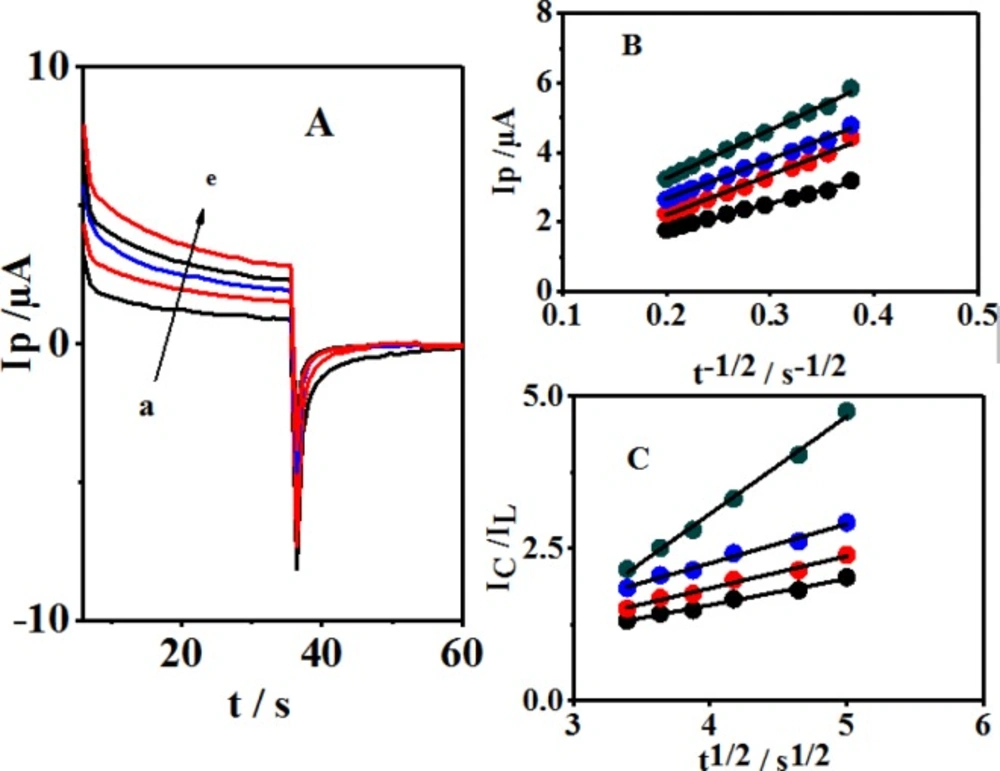

In addition to the above methods, the chronoamperometry method was utilized for studying the electrochemical behaviors of CySH in 4,4′-biphenol (B) solution at the GCE. Figure 6A shows double-step chronoamperograms both in the absence (a) and presence of CySH, representing the mediator (4,4′-biphenol (B) solution) at the GCE. The potential steps applied in this study included the values of 300 and -10 mV vs. Saturated Calomel Electrode (SCE). These selected potentials were more positive and negative than the anodic and cathodic peak potentials when completing the oxidation and reduction processes at the electrode surface, respectively, while both the anodic and cathodic reactions could be controlled in the diffusion process. The presence of CySH leads to a reduced cathodic current corresponding to the decrease in 4,4′-biphenol (B). Furthermore, a linear dependency was observed when plotting the net current vs. the negative square root of time.
Therefore, the main process of the diffusion control was established. The diffusion coefficient value (D) was obtained by using the slope of the following line based on Cottrell′s equation (Figure 6B) (29):
I = nFAD1/2Cπ−1/2t−1/2 (5)
where D and C denote the diffusion coefficient (cm2 sec-1) and bulk concentration (mol cm−3), respectively. The diffusion coefficient of CySH was calculated to be 8.79 × 10-6 cm2 sec–1. In addition, the catalytic rate constant (k) was measured for the chemical reaction of CySH with 4,4′-biphenol through the chronoamperometric analysis (27-28):
IC/IL = π1/2 γ1/2 = π1/2 (kC0t) 1/2 (6)
where IC and IL stand for 4,4′-biphenol (B) currents in the presence and absence of CySH, respectively; k represents the catalytic rate constant (mol–1 L sec–1); t shows the elapsed time (s); and C0 demonstrates bulk cysteine concentration (mol L–1). A linear dependency was shown by plotting the current ratio (IC/IL) in relation to the square root of time. kcat value was measured to be 6.17 × 103 M-1 sec-1 based on the slope of this line (Figure 6C).
Measurements of CySH concentrations in human plasma and commercial tablets were done to determine the applicability of CySH as an electrochemical sensor. CySH can be simply and rapidly assessed via the standard addition method.
The practical usefulness of the prepared CySH sensor was evaluated by analyzing it in various human plasma samples and commercial tablets. A specified amount of CySH was used in the spiking drugs to measure its recovery in the samples and tablets. As displayed in Table 2, the analysis results of CySH contents in the real samples revealed that 4,4′-biphenol (B) could serve as a relatively good redox mediator for the voltammetric determination of CySH in the different matrices of the real samples, indicating the reasonable rates of recovery and reproducibility.
Interference studies
The major challenge in interference studies is that the presence of ascorbic acid (AA) and uric acid (UA) makes it difficult to determine CySH. The selectivity of the prepared sensor was evaluated in the presence of 4,4′-biphenol considering its response to AA, UA, and the materials listed in Table 3, in which the tolerance limit was defoned as a range of relative errors in determining the maximum concentration of troublesome materials, which fall around 5 percent. The results indicated that 40 μM CySH was just the response detected to the prepared sensor, without any trace of the other species.
Conclusion
In this study, 4,4′-biphenol (B) as a redox mediator was utilized for CySH homogeneous electrocatalysis in an aqueous medium at the GCE surface. As exhibited by Scheme 1, different conditions of 4,4′-biphenol (B) mechanism were assessed for anodic oxidation in the presence of CySH. Cyclic Voltammetry could serve as a proper method in the determination of 4,4′-biphenol electrochemical properties. In the current research, a straightforward method was introduced for describing the second order of the homogeneous catalytic interaction of EC′ between 4,4′-biphenol (B) and CySH as well as identifying 4,4′-biphenol electrochemical properties and determining its effects on CySH oxidation. To achieve the research objectives, CV, LSV, and chronoamperometry techniques were employed. Our findings were indicative of the mediator success in sensitively and selectively determining CySH voltammetry in such real samples as the blood serum and pharmaceutical tablets at low concentrations of the relevant drugs.
