Abstract
Keywords
Dihydroosajaxanthone Garcinia schomburgkiana Clusiaceae Xanthone Phytochemical
Introduction
Garcinia schomburgkiana Pierre. is an edible plant in the Clusiaceae family, known in Thai as Ma-dan. It has been traditionally used as a cough treatment, a diabetes medication and a laxative (1). The Garcinia species has been widely studied on their chemical constituents and biological activities (2). The species has been reported as rich sources of xanthones (3), which are normally found in higher plants. The phytochemical investigation of the wood, the stem and the bark of G. schomburgkiana led to the isolation of xanthones, benzophenones, biphenyl compounds and biflavonoids (4-7). However, to the best of our knowledge, there is not yet any report on the constituents from the branches.
Experimental
General methods
The 1H and 13C nuclear magnetic resonance (NMR) spectra were recorded on Varian Unity Inova 500 MHz spectrometer in dimethyl sulfoxide-d6 and acetone-d6 as solvents. The FT-IR spectra were recorded on a Bruker Tensor 27 spectrophotometer. The HR-ESIMS were carried out on a Bruker microTOF-Q spectrometer. A column chromatography (CC) was run on silica gel (SiO2, Merck, 40-63 µm), and Sephadex LH-20 (GE Healthcare). The thin-layer chromatography (TLC) analysis was performed on silica gel (SiO2, Merck, 60 F254), visualized under the UV light at 254 or 366 nm and stained with the p-anisaldehyde solution in 2% H2SO4/EtOH. All solvents, used for extraction and isolation, were distilled at their boiling point ranges prior to use.
Plant material
In this study, G. schomburgkiana branches were collected from the Yan Ta Khao district, Trang Province, Thailand and the voucher specimen (GS-001WU) is deposited at the Research Unit of Natural Product Utilization, Walailak University.
Extraction and isolation

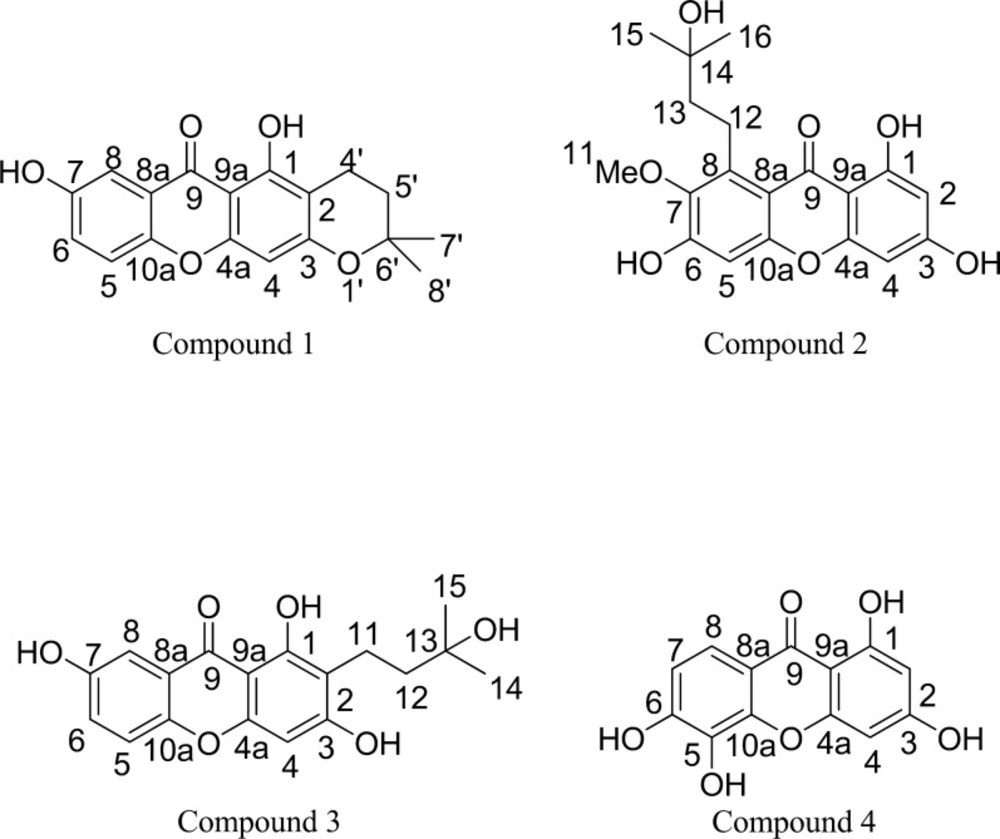

The phytochemicals (Figure 1) were isolated from the branches of G. schomburgkiana according to the following protocols. The air-dried materials (17.5 kg) were macerated two times with acetone (32 L) for 5 days at room temperature. The extracts were concentrated under vacuum to give crude extract (400 g). The acetone extract (100 g) was then chromatographed on a silica gel column, eluted with a gradient of CH2Cl2: MeOH, to yield 12 fractions (A-L). Fraction F (8.72 g) was separated by the column chromatography (silica gel, hexane: EtOAc, 90:10 to 0:100) to obtain 6 sub-fractions (F1-F6). Sub-fraction F3 (3.85 g) was isolated by the column chromatography (silica gel, hexane: EtOAc, 75:25 to 0:100) to provide 5 sub-fractions (F3A-F3E). Compound 1 (9.5 mg) was from the purification of sub-fraction F3B (851.8 mg) through the sephadex LH-20 column chromatography (MeOH: CH2Cl2, 50:50). For the isolation of compound 2 and 3, Fraction H (6.44 g) was partitioned by the column chromatography (silica gel, CH2Cl2: MeOH, 100:0 to 80:20) to afford 8 sub-fractions (H1-H8). Sub-fraction H5 (1.49 g) was separated by the sephadex LH-20 column chromatography, eluted with 50% MeOH in CH2Cl2, to give 12 sub-fractions (H5A-H5L). Sub-fractions H5E (103.1 mg) was further isolated by the column chromatography (silica gel, CH2Cl2: MeOH, 95:5 to 80:20) to afford 5 sub-fractions (H5E1-H5E9). Compound 2 (5.0 mg) and compound 3 (2.8 mg) were obtained by the silica gel column chromatography (CH2Cl2: MeOH 95:5) of sub-fractions H5E (37.6 mg) and sub-fractions H5F (35.7 mg), respectively. To isolate compound 4, Fraction J (26.65 g) was separated by the column chromatography (silica gel, CH2Cl2: MeOH, 80:20 to 50:50) to afford 6 sub-fractions (J1-J6). Sub-fractions J2 (1.95 g) was isolated by the sephadex LH-20 column chromatography, eluted with 100% MeOH, to give 10 sub-fractions (J2A-J2J). Sub-fractions J2D (154.9 mg) was further purified by the column chromatography (silica gel, CH2Cl2: MeOH, 90:10) to afford compound 4 (5.1 mg).
Compound 1: Needle yellow crystal; IR (neat) υmax cm-1: 3384 (OH, hydroxyl), 1640 (C=O, carbonyl), 1582 (C=C, aromatic); C18H16O5, HR-ESIMS [M+Na]+ 335.0894 m/z: (calcd. for C18H16O5Na 335.0895); NMR: see Table 1.
Compound 2: Yellow powder; IR (neat) υmax cm-1: 3389 (OH, hydroxyl), 1647 (C=O, carbonyl), 1589 (C=C, aromatic); C19H20O7, HR-ESIMS [M+K]+ 399.0850 m/z: (calcd. for C19H20O7K 399.0846); NMR: see Table 2.
Compound 3: Yellow powder; IR (neat) υmax cm-1: 3419 (OH, hydroxyl), 1647 (C=O, carbonyl), 1580 (C=C, aromatic); C18H18O6, HR-ESIMS [M+K]+ 369.0741 m/z: (calcd. for C18H18O6K 369.0740); NMR: see Table 3.
Compound 4: Yellow powder; IR (neat) υmax cm-1: 3190 (OH, hydroxyl), 1636 (C=O, carbonyl), 1513 (C=C, aromatic); C13H8O6, HR-ESIMS [M+H]+ 261.0394 m/z: (calcd. for C13H9O6 261.0399); NMR: see Table 4.
1H NMR (500 MHz) and 13C NMR (125 MHz) data of compound 1 in dimethyl sulfoxide-d6
| 6 | δH (m, J = Hz) | δC (m)a | HMBC |
|---|---|---|---|
| 1 | - | 159.8 (s) | - |
1H NMR (500 MHz) and 13C NMR (125 MHz) data of compound 2 in acetone-d6.
| Position | δH (m, J = Hz) | δC (m)a | HMBC |
|---|---|---|---|
| 1 | - | 164.8 (s) | - |
1H NMR (500 MHz) and 13C NMR (125 MHz) data of compound 3 in acetone-d6.
| Position | δH (m, J = Hz) | δC (m)a | HMBC |
|---|---|---|---|
| 1 | - | 161.3 (s) | - |
1H NMR (500 MHz) and 13C NMR (125 MHz) data of compound 4 in acetone-d6
| Position | δH (m, J = Hz) | δC (m)a | HMBC |
|---|---|---|---|
| 1 | - | 164.7 (s) | - |
Results and Discussion
The phytochemical study led to the first isolation of four known xanthones from the Ma-dan branch acetone extract. Compound 1, with a molecular formula C18H16O5 (HR-ESIMS: 335.0894 m/z), showed the IR absorption band for the hydroxyl, carbonyl, and aromatic groups. The 1H-NMR data exhibited the characteristic of xanthone with signals of chelated hydroxyl proton at δ 13.25 (s, 1-OH) and δ 9.94 (s, 7-OH), a tri-substituted aromatic proton with ABX system at δ 7.44 (d, J = 3.0, H-8), δ 7.27 (dd, J = 3.0 and 9.0, H-5) and δ 7.41 (d, J = 9.0, H-6) and one singlet aromatic proton at δ 6.35. The characteristic of dihydropyran ring displayed signals at δ 2.62 (t, H-4’), δ 1.82 (t, H-5’), and δ 1.32 (s, H-7’ and H-8’). The 13C-NMR data presented eighteen carbons including one quaternary of carbonyl carbon (δ 180.1, C-9), nine quaternary (δ 159.8, C-1; δ 103.7, C-2; δ 161.3, C-3; δ 155.1, C-4a; δ 153.9, C-7; δ 120.4, C-8a; δ 101.9, C-9a; δ 149.2, C-10a and δ 76.7, C-6’), four methine (δ 94.4, C-4; δ 119.0, C-5; δ 124.7, C-6 and δ 108.1, C-8), two methylene (δ 15.7, C-4’ and δ 31.0, C-5’) and two methyl (δ 26.5, C-7’ and C-8’). The HMBC correlation of aromatic protons and carbons suggested that the structure of compound 1 was the 1, 3, 7- trioxygenated xanthone fused with a dihydropyran ring at C-2 and C-4. A comparison of the spectra data with those of synthetic compound in literature (8-11) showed that compound 1 was deduced as dihydrosajaxanthone, which is, for the first time, reported as a natural product. Along with dihydrosajaxanthone (1), xanthochymone A (2) (12), 1,3,7-trihydroxy-2-(3-hydroxy-3-methylbutyl) xanyhone (3) (13) and 1,3,5,6-tetrahydroxyxanthone (4) (14) (Figure 1) were identified by the analysis of spectroscopic data and comparisons with literatures. Although compound 2-4 were known as naturally occurring xanthones, they were firstly reported herein from this plant. These compounds, especially dihydroosajaxanthone (1), might be considered as significant chemotaxonomic makers.
Acknowledgements
References
-
1.
Lim TK. Edible Medicinal And Non-Medicinal Plants. Volume 2. Dordrecht: Springer Netherlands; 2012. p. 123-4.
-
2.
Ritthiwigrom T, Laphookhieo S, Pyne SG. Chemical constituents and biological activities of Garcinia cowa Roxb. Maejo Int. J. Sci. Technol. 2013;7:212-31.
-
3.
Bennett GJ, Lee HH. Xanthones from guttiferae. Phytochemistry. 1989;28:967-98.
-
4.
Fun HK, Koysomboon S, Chantrapromma K, Chantrapromma S. fluorinated clusiacitran A and fluorinatedclusiacitran B (0.45:0.45:0.05:0.05). Acta Crystallogr. Sect. E Struct. Rep. Online. 2006;62:o3228-o3230.
-
5.
Häfner A, Frahm AW. Biflavanoids from the heartwood of Garcinia schomburgkiana and their structural elucidation as atropisomers. Planta Med. 1993;59:A604.
-
6.
Mungmee C, Sitthigool S, Buakeaw A, Suttisri R. A new biphenyl and other constituents from the wood of Garcinia schomburgkiana. Nat. Prod. Res. 2013;27:1949-55. [PubMed ID: 23672215].
-
7.
Vo HT, Nguyen NTT, Nguyen HT, Do KQ, Connolly JD, Maas G, Heilmann J, Werz UR, Pham HD, Nguyen LHD. Cytotoxic tetraoxygenated xanthones from the bark of Garcinia schomburgkiana. Phytochem. Lett. 2012;5:553-7.
-
8.
Castanheiro RA, Pinto MM, Silva AM, Cravo SM, Gales L, Damas AM, Nazareth N, Nascimento MS, Eaton G. Dihydroxyxanthones prenylated derivatives: Synthesis, structure elucidation, and growth inhibitory activity on human tumor cell lines with improvement of selectivity for MCF-7. Bioorg. Med. Chem. 2007;15:6080-8. [PubMed ID: 17614292].
-
9.
Ahluwalia VK, Jolly RS, Tehim AK. A convenient synthesis of dihydropyranoxanthones. J. Chem. Soc. Perkin Trans. 1983;1:1229-33.
-
10.
Wolfrom ML, Komitsky F, Looker JH. Osage orange pigments. XV. Structure of osajaxanthone. Synthesis of dihydroosajaxanthone monomethyl ether. J. Org. Chem. 1965;30:144-9.
-
11.
Wolfrom ML, Koos EW, Bhat HB. Osage orange pigments XVIII Synthesis of osajaxanthone. J. Org. Chem. 1967;32:1058-60.
-
12.
Trisuwan K, Boonyketgoson S, Rukachaisirikul V, Phongpaichit S. Oxygenated xanthones and biflavanoids from the twigs of Garcinia xanthochymus. Tetrahedron Lett. 2014;55:3600-2.
-
13.
Garcia Cortez DA, Young MCM, Marston A, Wolfender JL, Hostettmann K. Xanthones, triterpenes and a biphenyl from Kielmeyera coriacea. Phytochem. 1998;47:1367-74.
-
14.
Li W, Ding Y, Quang TH, Ngan NTT, Sun YN, Yan XT, Yang SY, Choi CW, Lee EJ, Peak KY, Kim YH. NF-κB inhibition and PPAR activation by phenolic compounds from Hypericum perforatum L adventitious root. Bull. Korean Chem. Soc. 2013;34:1407-13.
