Synthesis, Characterization and Antibacterial Activity of some Novel Thiosemicarbazides, 1,2,4-Triazol-3-thiols and their S-substituted Derivatives

authors:

avatar Mehdi Kalhor a , * , avatar Mahboobeh Shabani a , avatar Iraj Nikokar b , avatar Seyedeh Reyhaneh Banisaeed b

Department of Chemistry, Payame Noor University, Tehran
Guilan University
Iranian Journal of Pharmaceutical Research : IJPR: Vol.14, issue 1; 67-75
article type: Original Article
received: July , 2013
accepted: November , 2013
DOI: https://doi.org/10.22037/ijpr.2015.1625

how to cite: Kalhor M, Shabani M, Nikokar I, Reyhaneh Banisaeed S. Synthesis, Characterization and Antibacterial Activity of some Novel Thiosemicarbazides, 1,2,4-Triazol-3-thiols and their S-substituted Derivatives. Iran J Pharm Res. 2015;14(1):e125266. https://doi.org/10.22037/ijpr.2015.1625.

Abstract

The thiosemicarbazides 3a-c were appeared by reaction of the corresponding substituted hydrazides 1a-c with allylisothiocyanate 2. Synthesis of some novel 1,2,4-triazole-thiols 4a-c bearing a pyridyl unit using 1-(x-picolinoyl)-4-allyl-thiosemicarbazides (x = 2,3,4) in an alkaline solution, is reported. Also, the S-alkylation of triazole derivatives 5-7a-c is described. The structure of the synthesized compounds resulted from the IR, 1H and -13C NMR spectroscopy and elemental analysis data. The antibacterial studies to all of the synthesized compounds against B. cereus, E. coli, P. aeroginosa, S. aureus and E. faecalis as MIC values are reported. Some of these compounds such as 7a, 4a and 3a exhibited a good to significant antibacterial activity.

Introduction

It is well known that thiosemicarbazide derivatives exhibit interesting biological properties such as antitubercular (1), antiviral (2), antimalarial and antibacterial activity (3). These compounds are not only used as a segment in biologically and chemically buildings (4-6), but also as a versatile intermediate for the synthesis of importance heterocycles such as triazoles, thiadiazoles, oxadiazoles and thiazolidinones (7-9).

The fused and pendent 1,2,4-triazoles are a ubiquitous feature of many pharmaceutical products and can be found in marketed drugs such as fluconazole (10), terconazole (11), rizatriptan, alperazolame and triazolame (12). In addition, 1,2,4-triazoles and pyridines (13-15) have attracted the attention of chemists due to attractive biological activities such as antidepressant (16) anti-inflammatory (17), antiviral (18) anticancer (19), anticonvulsant (20,21), antimicrobial (22) and herbicidal (23) properties. On the other hand, incorporating the pyridine ring into active compounds may improve their biological or physiological activities (24). Therefore, the synthesis of novel thiosemicarbazide and triazole derivatives is still interesting for both organic and medicinal chemistry.

In view of these reports and as part of ongoing studies on the synthesis and biological consideration of heterocycles (22,23,25,26), we wish to describe the synthesis of new series of 5-membered heterocyclic titled compounds, bearing the 5-isomeric pyridyl, 4-N-allyl and their antibacterial activities.

Experimental

All chemicals used were purchased from Merck or Fluka. Melting points were determined using an electrothermal digital apparatus and are uncorrected. FT-IR spectra were obtained with a SHIMADZU -IR Presting-21 spectrometer using KBr discs. NMR spectra were recorded on a Bruker (400 or 500 MHz) spectrometer. Chemical shifts (ppm) are referenced to tetramethylsilane (TMS) as internal standard. Elemental analyses were performed with as Elemental Analyzer (Elemental, Vario EL III) at Arak University. Reactions were monitored by thin layer chromatography (TLC). The 2-pyridyl hydrazide 1a was prepared with low improvement following the previously reported procedure (27).

Biological screening

The antibacterial activity of synthesized compounds were screened at a concentration of 5 mg/mL against five reference strains of bacteria (Three gram positive as Bacillus cereus ATCC 11778, Staphylococcus aureus ATCC 25923, Enterococcus faecalis ATCC 29212, and two gram negative as Escherichia coli ATCC 25922, pseudomonas aeruginosa ATCC 27853). Tested compounds were dissolved in dimethyl sulfoxide (DMSO) for the preparation of stock solution. The solvent control was included, although no antibacterial activity has been noted. All samples were tested in triplicate and the average results were recorded. Microbial susceptibility testing of all compounds was carried out by diffusion agar and minimal inhibitory concentration (MIC) methods according to Clinical and Laboratory Standards Institute (CLSI) guideline (28). The suspension of bacteria was adjusted to 0.5 MacFarland Standard (106 c.f.u/mL) and spread over Muller-Hinton Agar. The tested compounds are placed in random well position on the plate, after overnight incubation at 37 °C the zone of inhibition determinate. The antibacterial effects of the compounds that produced ≥ 8mm zone of inhibition were tested quantitatively by Micro broth dilution method for determination of MIC value that were defined as lowest concentration of compound for inhibition growth of tested bacteria. In this method concentration of 512, 256, 128, 64, 32, 16, 8 μg/mL were used for all bacteria in per disc and incubated the same conditions.

General procedure for the synthesis of thiosemicarbazides (3a-c)

A solution of allyl isothiocyanate, 2, (0.01 mol, 0.99 g) in ethanol (10 mL) was added to a solution of pyridyl acid hydrazide 1(a-c), (0.01 mol, 1.37 g) in absolute ethanol (15 mL) with stirring. The reaction mixture was refluxed for 4-5 h. The solution was cooled to ambient temperature, and the precipitate was filtered to give the crude product, which was then recrystallized from appropriate solvent to give pure compounds 3a–c.

4-Allyl-1-picolinoyl thiosemicarbazide (3a)

Reaction time: 4h, m.p. 182-183 ºC, 86% yield, recrystallization solvent: EtOH; FT-IR (KBr, νmax): 3195 (N-H), 3088, 2964 (C-H), 1666 (C=O), 1587, 1542, 1512, 1457, 1284 (C=N, C=C), 1222 (C=S), 1159, 1002, 920, 746, 685 cm-1; 1H-NMR (acetone-d6, 400MHz): δ = 4.24- 4.28 (m, 2H, N-CH2), 5.02 (d, 1H, J = 10.1 Hz, Hcis-CH=CH-), 5.16 (d, 1H, J = 16.8 Hz, Htrans-CH=CH-), 5.84-5.94 (m, 1H, C=CH-C), 7.63-7.66 (m, 1H, Hpyr), 7.95 (br, 1H, NH), 8.01-8.06 (m, 1H, Hpyr), 8.1 (d, 1H, J = 7.6 Hz, Hpyr), 8.65-8.67 (m, 1H, Hpyr), 8.70 (br, 1H, NH), 10.20 (s, 1H, NH) ;13C-NMR (aceton-d6, 100MHz): δ = 46.4 (C aliphatic), 115.0, 122.3, 126.9, 134.5, 137.6, 148.5, 152.2 (C-Allyl and Aryl), 166.1 (C=S), 184.2 (C=O) ppm; Anal. Calcd. for C10H12N4OS: C, 50.83; H, 5.12; N, 23.71; S, 13.57; found: C, 51.01; H, 5.13; N, 23.76; S, 13.63%.

4-Allyl-1-nicotinoyl thiosemicarbazide (3b)

Reaction time: 5h, m.p. 182-183 ºC, 62% yield, recrystallization solvent: EtOH; FT-IR (KBr, νmax): 3226, 3170 (N-H), 2980 (C-H), 1693 (C=O), 1676, 1540, 1514, 1273 (C=N, C=C), 1234 (C=S), 1022, 894, 700, 567 cm-1; 1H-NMR (acetone-d6, 400MHz): δ = 4.24-4.28 (m, 2H, N-CH2), 5.02 (d, 1H, J = 10.4 Hz, Hcis-CH=CH), 5.14 (d, 1H, J = 17.2 Hz, Htrans-CH=CH-), 5.83- 5.93 (m, 1H, C=CH-C), 7.51-7.55 (m, 1H, Hpyr), 8.09 (br, 1H, NH), 8.28 (d, 1H, J = 8.0 Hz, Hpyr), 8.64 (br, 1H, NH), 8.76 (d, 1H, J = 5.6 Hz, Hpyr), 9.13 (s, 1H, Hpyr), 9.93 (br, 1H, NH) ppm; 13C-NMR (acetone-d6, 100MHz): δ = 46.4 (C-aliphatic), 115.0, 123.4, 128.2, 134.5, 135.2, 148.8, 152.6 (C-Allyl and Aryl), 165.1 (C=S), 183.7 (C=O) ppm; Anal. Calcd. for C10H12N4OS: C, 50.83; H, 5.12; N, 23.71; S, 13.57; found: C, 50.47; H, 5.14; N, 23.65; S, 13.52%.

General procedure for the synthesis of 1,2,4-triazole-3-thiols 4(a-c)

A solution of thiosemicarbazide, 3(a-c), (5 mmol, 1.180 g) in 2N NaOH (10 mL) was refluxed for 2-3 h. The resulting solution was cooled to room temperature and acidified (pH = 3) with 2N HCl. The precipitate was filtered and washed with water and ethanol. The obtained compound was dried and crystallized from suitable solvent to give compound 4(a-c).

4-Allyl-5-(pyridin-2-yl)-4H-[1,2,4]triazole-3-thiol (4a). Reaction time: 2 h, m.p. 182-183 ºC, 84% yield, recrystallization solvent: DMF:EtOH (1:2); FT-IR (KBr, νmax): 2927 (C-H), 2773 (SH), 1585, 1546, 1500, 1463, 1396, 1336 (C=N, C=C), 1290, 1268, 995, 771, 698, 569 cm-1; 1H-NMR (CDCl3, 400MHz): δ = 5.14-5.20 (m, 2H, N-CH2), 5.39 (d, 2H, J = 5.6 Hz, CH2=C-C), 5.92-6.02 (m 1H,C=CH-C), 7.39-7.43 (m, 1H, Hpyr), 7.82-7.86 (t, J = 7.6 Hz, 1H, Hpyr), 8.04 (d, 1H, J = 7.2 Hz, Hpyr), 8.68-8.69 (m, 1H, Hpyr), 12.70 (s, 1H, SH or NH) ppm; the SH or NH proton disappeared on D2O addition; 13C-NMR (CDCl3, 100 MHz): δ = 47.5 (C aliphatic), 118.5, 123.3, 124.9, 131.4, 137.2, 146.1, 149.0, 149.2 (C-Allyl and Aryl), 168.5 (C=S) ppm; Anal. Calcd. for C10H10N4S: C, 55.02; H, 4.62; N, 25.67; S, 14.69; found: C, 55.31; H, 4.60; N, 25.57; S, 14.66%.

4-Allyl-5-(pyridin-3-yl)-4H-[1,2,4]triazole-3-thiol (4b)

Reaction time: 3 h, m.p. 177-180 ºC, 78% yield, recrystallization solvent: DMF: EtOH (1:2); FT-IR (KBr, νmax): 2715 (SH), 1558, 1483, 1436, 1420, 1350, 1307 (C=N, C=C), 1262, 1188, 945, 810, 704, 615 cm-1; 1H-NMR (acetone-d6, 400 MHz): δ = 4.81- 4.83 (m, 2H, N-CH2), 5.00 (d, 1H, J = 17.6 Hz, Htrans-C=C-), 5.18 (d, 1H, J =10.4 Hz, Hcis-C=C-) 5.90-6.00 (m, 1H,C=CH-C), 7.58-7.62 (m, 1H, Hpyr), 8.15 (d, J = 8.4, 1H, Hpyr), 8.78 (d, J = 3.2, 1H, Hpyr), 8.93 (s, 1H, Hpyr), 12.95 (s, 1H, SH or NH) ppm; 13C-NMR (aceton-d6, 100 MH): δ = 46.3 (C aliphatic), 117.1, 122.9, 123.6, 131.8, 135.8, 149.1, 151.6, 153.2 (C-Allyl and Aryl), 168.5 (C=S) ppm; Anal. Calcd. for C10H10N4S: C, 55.02; H, 4.62; N, 25.67; S, 14.69; found: C, 55.31; H, 4.65; N, 25.77; S, 14.71%.

General procedure for the synthesis of S-substituted-1,2,4-triazoles 5-7(a-c)

To a solution of triazole 4 (a-c) (3 mmol, 0.65 g) in absolute ethanol (20 mL), ethyl chloroacetate, iodoacetamide or chloroacetic acid (6 mmol) was added. The mixture was refluxed (for 6,7a-c in room temperature) under stirring for 1-5 h in the presence of KOH (6 mmol, 0.336 g). Then, the solvent was removed under reduced pressure to give the solid product. The crude product was recrystallized from suitable solvent to give compound 5-7 (a-c).

Ethyl 2-((4-allyl-5-(pyridin-2-yl)-4H-1,2,4-triazol-3-yl)thio)acetate (5a)

Reaction time: 2 h, m.p. 56-58 ºC, 66% yield, recrystallization solvent: H2O:EtOH (1:1); FT-IR (KBr, νmax): 3047, 2981 (CH), 1725 (C=O), 1589, 1489, 1446, 1425, 1411, 1311(C=N, C=C), 1201, 1176 (C-O), 796, 704 (S-C) cm-1; 1H-NMR (CDCl3, 400 MHz): δ = 1.26 (t, J = 7.2 Hz, 3H, CH3), 4.19 (q, 2H , J = 6.8 Hz, O-CH2), 4.13 (s, 2H, S-CH2), 5.07 (d, J = 17.2 Hz, 1H, Htrans-CH=CH-), 5.18 (d, J = 10.4 Hz, 1H, Hcis-CH=CH-), 5.28 (m, 2H, N-CH2), 5.94-6.01 (m,1H, C=CH-C), 7.34 (m,1H, Hpyr), 7.79 (t, J = 8.0 Hz, 1H, Hpyr), 8.27 (d, J = 8.0 Hz, 1H, Hpyr), 8.61-8.63 (m, 1H, Hpyr) ppm; 13C-NMR (CDCl3, 100 MHz): δ= 14.1, 35.3, 47.9, 62.0 (C aliphatic), 118.1, 123.2, 124.0, 132.1, 136.9, 147.7, 148.7, 151.9, 153.0 (C-Allyl and Aryl), 168.3 (C=O) ppm; Anal. Calcd. for C14H16N4O2S: C, 55.25; H, 5.30; N, 18.41; S, 10.53; found: C, 55.55; H, 5.29; N, 18.43; S, 10.53%.

Ethyl 2-((4-allyl-5-(pyridin-3-yl)-4H-1,2,4-triazol-3-yl)thio)acetate (5b)

Reaction time: 1.5 h, m.p. 82-84 ºC, 57% yield, recrystallization solvent: H2O:EtOH (1:1); FT-IR (KBr, νmax): 3046, 2937 (C-H), 1739 (C=O), 1600, 1462, 1572, 1423, 1373, 1301 (C=N, C=C), 1186 (C-O), 1163, 711 (C-S) cm-1; 1H-NMR (DMSO-d6, 400 MHz): δ= 1.16 (t, 3H, J = 6.8 Hz, 3H, CH3), 4.09 (m, 4H, O-CH2 and S-CH2), 4.68 (d, J = 4.4 Hz, 2H, N-CH2), 4.81 (d, 1H, J = 16.4, Htrans-CH=CH-), 5.22 (d, J = 9.6 Hz, 1H, Hcis-CH=CH-), 5.92-6.02 (m, 1H, C=CH-C), 7.57 (m,1H, Hpyr), 8.03 (m, 1H, Hpyr), 8.73 (d, J = 6.4 Hz, 1H, Hpyr), 8.82 (s, 1H, Hpyr) ppm; 13C-NMR (DMSO-d6, 100 MHz): δ = 14.4, 35.0, 47.0, 61.7 (C aliphatic), 117.7, 123.6, 124.4, 132.7, 136.1, 148.9, 151.3, 151.4, 153.4 (C-Allyl and Aryl), 168.6 (C=O) ppm; Anal. Calcd. for C14H16N4O2S: C, 55.25; H, 5.30; N, 18.41; S, 10.53; found: C, 55.62; H, 5.31; N, 18.39; S, 10.49%.

2-((4-Allyl-5-(pyridin-2-yl)-4H-1,2,4-triazol-3-yl)thio)acetamide (6a)

Reaction time: 5 h, m.p. 182-184 ºC, 65% yield, recrystallization solvent: H2O:EtOH (1:1); FT-IR (KBr, νmax): 3300, 3142 (NH2), 3072, 2976 (C-H), 1705 (C=O), 1639, 1587, 1470, 1446, 1417 (C=N, C=C), 923, 781 (S-C), 698 (C-S) cm-1 ;1H-NMR (DMSO-d6, 500MHz): δ = 3.90 (s, 2H, S-CH2), 4.83 (d, 1H, J = 17.29 Hz, Htrans-CH=CH- ), 5.08 (d, 1H, J = 10.5 Hz, Hcis-CH=CH), 5.14 (d, J = 5.5 Hz, 2H, N-CH2), 5.89-5.96 (m, 1H, C=CH-C), 7.20 (br, 1H, NH), 7.45-7.47 (m, 1H, Hpyr), 7.63 (br, 1H, NH), 7.92 (m, 1H, Hpyr), 8.07 (d, 1H, J = 7.9 Hz, Hpyr), 8.64 (d, J = 4.8 Hz, 1H, Hpyr) ppm; 13C-NMR (DMSO-d6, 125MHz): δ = 36.1, 47.6 (C aliphatic), 117.04, 122.7, 124.2, 128.7, 132.8, 137.2, 148.9, 152.7, 153.4 (C-Allyl and Aryl), 168.5 (C=O) ppm; Anal. Calcd. for C12H13N5OS: C, 52.35; H, 4.76; N, 25.44; S, 11.65; found: C, 52.21; H, 4.76; N, 25.28; S, 11.62%.

2-((4-Allyl-5-(pyridin-2-yl)-4H-1,2,4-triazol-3-yl)thio)acetamide (6b)

Reaction time: 5h, m.p. 161-163 ºC, 50% yield, recrystallization solvent: H2O:EtOH (1:1); FT-IR (KBr, νmax): 3346, 3188 (NH2), 1690 (C=O), 1450, 1394, 1222 (C=N, C=C), 979, 815 (S-C), 621 cm-1; 1H-NMR (DMSO-d6, 500MHz): δ = 3.91 (s, 2H, S-CH2), 4.64 (d, 2H, J = 4.3 Hz, N-CH2), 4.78 (d, 1H, J = 17.3 Hz, Htrans-CH=CH-), 5.17 (d, J = 10.5 Hz, 1H, Hcis-CH=CH-), 5.89-5.96 (m, 1H, C=CH-C), 7.20 (br, 1H, NH), 7.52-7.55 (m, 1H, Hpyr), 7.6 (br, 1H, NH), 7.99 (d, 1H, J = 7.9 Hz, Hpyr), 8.68 (d, 1H, J = 4.3 Hz, Hpyr), 8.78 (s, 1H, Hpyr) ppm; 13C-NMR (DMSO-d6, 125MHz): δ = 37.1, 47.0 (C aliphatic), 117.7, 123.7, 124.3, 132.8, 136.1, 148.9, 151.4, 152.0, 153.2 (C-Allyl and Aryl), 169.0 (C=O) ppm; Anal. Calcd. for C12H13N5OS: C, 52.35; H, 4.76; N, 25.44; S, 11.65; found: C, 52.15; H, 4.74; N, 25.49; S, 11.67%.

2-((4-Allyl-5-(pyridin-2-yl)-4H-1,2,4-triazol-3-yl)thio)acetamide (6c)

Reaction time: 5 h, m.p. 174-176 ºC, 83% yield, recrystallization solvent: H2O:EtOH (1:1); FT-IR (KBr, νmax): 3338, 3186 (NH2), 1690 (C=O), 1604, 1454, 1427, 1404, 1226 (C=N, C=C), 981, 835, 769 (S-C), 698 cm-1 ; 1H-NMR (DMSO-d6, 500MHz): δ = 3.93 (s, 2H, S-CH2), 4.70 (d, J = 4.4 Hz, 2H, N-CH2), 4.80 (d, 1H, J = 17.2 Hz, Htrans-CH=CH-), 5.19 (d, 1H, J = 10.5 Hz, Hcis-CH=CH-), 5.92-5.99 (m, 1H, C=CH-C), 7.20 (br, 1H, NH), 7.61 (m, 2H, Hpyr), 7.66 (br, 1H, NH), 8.70 (q, J = 1.6 Hz, J = 2.9 Hz, 2H, Hpyr) ppm ; 13C-NMR (DMSO-d6, 125MHz): δ = 37.1, 47.1 (C aliphatic), 117.7, 122.4, 124.3, 132.7, 134.6, 148.9, 150.9, 152.7, 153.4 (9 C Allyl and Aryl), 169.0 (C=O) ppm; Anal. Calcd. for C12H13N5OS: C, 52.35; H, 4.76; N, 25.44; S, 11.65; found: C, 52.20; H, 4.76; N, 25.40; S, 11.69%.

2-((4-Allyl-5-(pyridin-2-yl)-4H-1,2,4-triazol-3-yl)thio)acetic acid (7a)

Reaction time: 4 h, m.p. 109-111 ºC, 75% yield, recrystallization solvent: DMF:EtOH (8:2); FT-IR (KBr, νmax): 3380 (OH), 3077, 2984 (C-H), 1682 (C=O), 1615, 1586, 1471, 1422, 1388 (C=N, C=C), 1215, 999, 924, 790 (S-C) cm-1; 1H-NMR (DMSO-d6, 500MHz): δ = 3.80 (s, 2H, S-CH2), 4.78 (d, J = 16.5 Hz, 1H, Htrans-CH=CH-), 5.16 (br s, 3H, Hcis-CH=CH- and N-CH2), 5.95 (m, 1H, C=CH-C), 7.48 (br s,1H, Hpyr), 7.96-8.10 (br d, 2H, Hpyr), 8.66 (br s, 1H, Hpyr), ppm; 13C-NMR (DMSO-d6, 125MHz): δ = 40.7, 47.4 (C aliphatic), 117.4, 123.1, 124.7, 133.3, 138.0, 147.7, 149.4, 152.2, 154.6, 169.7 (C=O) ppm; Anal. Calcd. for C12H12N4O2S: C, 52.16; H, 4.38; N, 20.28; S, 11.60; found: C, 52.35; H, 4.39; N, 20.30; S, 11.62%.

2-((4-Allyl-5-(pyridin-3-yl)-4H-1,2,4-triazol-3-yl)thio)acetic acid (7b)

Reaction time: 5 h, m.p. 90 ºC, 60% yield, recrystallization solvent: DMF:EtOH (8:2); FT-IR (KBr, νmax): 3384 (OH), 1682 (C=O), 1586, 1482, 1453, 1439 (C=N, C=C), 1229 (C-O), 1022, 943, 778 (S-C) cm-1; 1H-NMR (DMSO-d6, 500MHz): δ = 3.75 (s, 2H, S-CH2), 4.66 (s, 2H, N-CH2), 4.78 (d, J = 17.5 Hz, 1H, Htrans-CH=CH-), 5.20 (d, J = 10.5 Hz, 1H, Hcis-CH=CH-), 5.93-5.99 (m, 1H, C=CH-C), 7.56 (q, J = 5.0 Hz, 1H, Hpyr), 8.03 (t, J = 7.8 Hz, 1H, Hpyr), 8.71 (q, J = 4.8 Hz, 1H, Hpyr), 8.82 (s, 1H, Hpyr) ppm; 13C-NMR (DMSO-d6, 125MHz): δ = 41.1, 46.8 (C aliphatic), 117.3, 124.0, 124.3, 133.0, 135.9, 148.8, 151.1, 152.5, 154.0, 169.0 (C=O) ppm; Anal. Calcd. for C12H12N4O2S: C, 52.16; H, 4.38; N, 20.28; S, 11.60; found: C, 52.41; H, 4.36; N, 20.24; S, 11.64%.

2-((4-Allyl-5-(pyridin-4-yl)-4H-1,2,4-triazol-3-yl)thio)acetic acid (7c)

Reaction time: 4 h, m.p. 240-242 ºC, 85% yield, recrystallization solvent: DMF:EtOH (8:2); FT-IR (KBr, νmax): 3382 (OH), 1684 (C=O), 1614, 1457, 1387, 1331 (C=N, C=C), 1263, 1227 (C-O), 985, 831 (S-C) cm-1; 1H-NMR (DMSO-d6, 500MHz): δ = 3.79 (s, 2H, S-CH2), 4.72 (s, 2H, N-CH2), 4.78 (d, J = 17.5 Hz, 1H, Htrans-CH=CH-), 5.22 (d, J = 10.5 Hz, 1H, Hcis-CH=CH-), 5.96-6.03 (m, 1H, C=CH-C), 7.64 (d, J = 6.0 Hz, 2H, Hpyr), 8.72 (d, J = 6.0 Hz, 2H, Hpyr) ppm; 13C-NMR (DMSO-d6, 125MHz): δ = 40.8, 46.9 (C aliphatic), 117.4, 122.3, 132.8, 134.9, 150.8, 152.8, 154.6, 169.6 (C=O) ppm; Anal. Calcd. for C12H12N4O2S: C, 52.16; H, 4.38; N, 20.28; S, 11.60; found: C, 51,97; H, 4.39; N, 20.30; S, 11.60%.

Results and Discussion

Synthesis

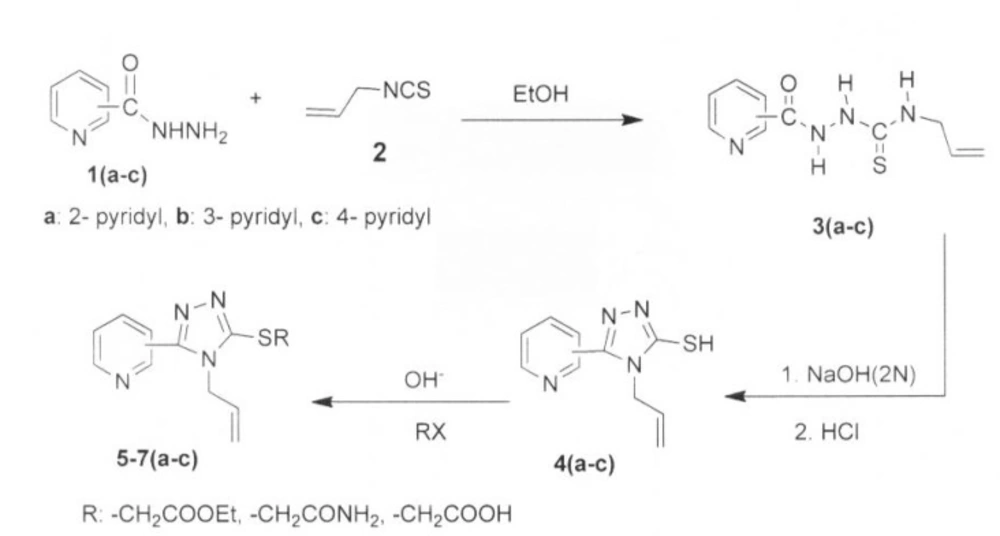

The synthesis of the titled compounds is illustrated in Figure 1. The preparation of thiosemicarbazides 3a-c was achieved by reaction of the isomeric pyridine carboxylic acid hydrazides 1a-c with allylisothiocyanate 2. Thiosemicarbazide derivatives 3a-c underwent an intramolecular cyclization under basic conditions to produce 1,2,4-triazoles 4a-c in high yields. The reaction yields for 4c (94%) is higher than other respective isomers, which may attributed to the stereo-electronic effects of the nitrogen atom of the pyridine ring and also due to the more symmetrical structure of these products. The S-alkylated 1,2,4-triazoles, esters 5a–c, acetamides 6a-c and acetic acids 7a-c were also prepared by reaction of 1,2,4-triazole-3-thioles 4a-c and corresponding reagents, as previously reported (6,21).

The IR spectra of thiosemicarbazides 3a-c showed characteristic absorption bonds at 1222-1234, 1666-1693, and 3170-3226 cm-1 for the -C=S, C=O and –NH stretching vibration respectively. The trans and cis protons in allyl group for compounds 3a,b appeared as doublet signals at the region between 5.02-5.16 ppm with J = 16.8-17.5 and 10.1-10.4 Hz. The 1H NMR spectra of 3a,b showed singlet signals at 7.95-10.20 ppm due to the resonance of -NH-CS-NH and -CO-NH protons, which disappeared upon D2O addition. The 13C NMR spectra of 3a,b showed ten signals including signals at 165.1-166.1 ppm for the -C=S and signals at 187.7-184.2 ppm for the –C=O group.

The 1H NMR spectra of triazole-3-thiols 4a-c showed singlets at 12.70-12.95 ppm attributed to the resonance of the SH or NH protons, which disappeared upon D2O addition. In the 13C NMR spectra of 4a-c, the appearance of signals at the region 168.5 ppm attributed to the carbon resonance of the C=N or C=S group in triazole rings which is in support of the expected structures.

In the 1H NMR spectra of 5-7a-c, the absence of the -SH resonance and the appearance of a singlet in the aliphatic region, related to the resonance of the –SCH2- group, supports the formation of the alkylated products. All other required peaks in target new compounds appeared in exhibited region of the spectrums. However, the acidic proton (COOH) of compounds 7a-c was not observed in the spectrum, probably due to the effect of exchange of this acidic proton with deuterium of small amounts of D2O, which is present in DMSO-d6, as a solvent (29).

Antibacterial activities

Applying the agar plate diffusion technique (30), all of newly synthesized compounds were screened in-vitro for antimicrobial activities against five pathogenic bacteria. The results of the bioassay are given in Table 1. A cursory view of the data indicates that some of the compounds 4,6,7a and specially 3a exhibit a moderate to good activity against four bacteria with gram positive (Bacillus cereus, Staphylococcus aureus) and negative (Escherichia coli , pseudomonas aeruginosa ) strain. It is considerable that thiosemicarbazide 3a was found to be more active against three microorganisms than Gentamicin, which is a known antimicrobial drug. Therefore, this compound can have the potential to be good antibacterial candidate that the research is ongoing in this regard. Although compounds 7a and 7c has shown the good activity against E. faecalis, the other compounds do not show any antibacterial activity.

Table 1

Antibacterial activities of chemical compounds 1-7(a-c) (zone of inhibition in mm).

In addition, investigation of the minimum inhibitory concentration (MIC) values of the potent derivatives against five microorganisms was performed and the results are presented in Table 2. Just as was predicated, compound 3a indicates the highest bactericidal activity (16-64 µg/mL) against all organism tests (except for E. faecalis).

Table 2

Minimum inhibitory concentration (MIC) of the selected compounds against microbial strains (µg/mL)

CompoundB. cereusE. coliP. aeroginosa S. aureusE. faecalis
1b>512NTNTNTNT
1c>512NTNT>512NT
3a64326416NT
4a64128>512NTNT
6a256NTNT128NT
6b512NTNTNTNT
6c512NTNT>512NT
7a128NT128>512128
7cNTNTNTNT128
Gentamicina21218

Reference compound

Acknowledgements

References

  • 1.

    Sriram D, Yogeeswari P, Thirumurugan R, Pavana RK. Discovery of new antitubercular oxazolyl thiosemicarbazones. J. Med. Chem. 2006;49:3448-3450. [PubMed ID: 16759086].

  • 2.

    Garcia CC, Brousse BN, Carlucci MJ, Moglioni AG, Martins AM, Moltrasio GY, Daccorso NB, Damonte EB. Inhibitory effect of thiosemicarbazone derivatives on Junin virus replication in-vitro. Antivir. Chem. Chemother. 2003;14:99-105. [PubMed ID: 12856921].

  • 3.

    Klayman DL, Scovill JP, Bruce J, Bartosevich JF. 2-Acethylpyridine thiosemicarbazones derivatives of acethylisoquinoline as potential antimalarial agents. J. Med. Chem. 1984;27:84-87. [PubMed ID: 6361257].

  • 4.

    Jalilian AR, Yousefnia H, Shafaii K, Novinrouz A, Rajamand AA. Preparation and biodistribution studies of a radiogallium-acetylacetonate bis (thiosemicarbazone) complex in tumor-bearing rodents. Iran. J. Pharm. Res. 2012;11:523-531. [PubMed ID: 24250475].

  • 5.

    Maia PIS, Nguyen HH, Ponader D, Hagenbach A, Bergemann S, Gust R, Deflon VM, Abram U. Neutral gold complexes with tridentate SNS thiosemicarbazide ligands. Inorg. Chem. 2012;51:1604-1613. [PubMed ID: 22233323].

  • 6.

    Novaković SB, Bogdanović GA, Fraisse B, Ghermani NE, Bouhmaida N, Spasojević-de Biré A. Topological features of both electron density and electrostatic potential in the bis(thiosemicarbazide)zinc(II) dinitrate complex. J. Phys. Chem. A. 2007;111:13492-13505. [PubMed ID: 18052044].

  • 7.

    Mobinikhaledi A, Foroughifar N, Kalhor M, Ebrahimi S, Bodaghi Fard MA. Synthesis of some symmetrical novel bis-thiosemicarbazides, 1,2,4-triazoles, 1,3,4-thiadiazoles and their derivatives. Phosphorus, Sulfur Silicon Relat. Elem. 2011;186:67-73.

  • 8.

    Dolman SJ, Gosselin F, O'Shea PD, Davies IW. Superior reactivity of thiosemicarbazides in the synthesis of 2-amino-1,3,4-oxadiazoles. J. Org. Chem. 2006;71:9548-9551. [PubMed ID: 17137395].

  • 9.

    Singh SP, Parmar SS, Raman K, Stenberg VI. Chemistry and biological activity of thiazolidinones. Chem. Rev. 1981;81:175-203.

  • 10.

    Richardson K, Barmmer KW, Marriott MS, Troke PF. Activity of UK-49,858, a bis-triazole derivative, against experimental infections with Candida albicans and Trichophyton mentagrophytes. Antimicrob. Agents Chemother. 1985;27:832-835. [PubMed ID: 2990328].

  • 11.

    Heeres J, Hendrickx R, Cutsem JV. Antimycotic azoles. 6. Synthesis and antifungal properties of terconazole, a novel triazole ketal. J. Med. Chem. 1983;26:611-613. [PubMed ID: 6834396].

  • 12.

    Street LJ, Baker R, Davey WB, Guiblin AR, Jelley RA. Synthesis and serotonergic activity of N,N-dimethyl-2-[5-(1,2,4-triazol-1-ylmethyl)-1H-indol-3-yl]ethylamine and analogs: Potent agonists for 5-HT1D receptors. J. Med. Chem. 1995;38:1799-1810. [PubMed ID: 7752204].

  • 13.

    Davis L, Olsen GE, Klein JT, Kapples KJ, Huger FP, Smith CP, Petko WW, Cornfeldt M, Efflandv RC. Substituted (Pyrroloamino) pyridines: potential agents for the treatment of Alzheimer’s disease. J. Med. Chem. 1996;39:582-587. [PubMed ID: 8558530].

  • 14.

    Allen RD, Johnston GAR. Synthetic analogs for the study of GABA as a neurotransmitter. Med. Res. Rev. 1983;3:91-118. [PubMed ID: 6134883].

  • 15.

    Bassyouni FA, Tawfik HA, Soliman AM, Rehim MA. Synthesis and anticancer activity of some new pyridine derivatives. Res. Chem. Intermed. 2012;38:1291-1310.

  • 16.

    Kane JM, Dubley MW, Sorensen SM, Miller FP. 2,4-Dihydro-3H–1,2,4-triazole-3-thiones as potential antidepressant agents. J. Med. Chem. 1988;31:1253-1258. [PubMed ID: 3373495].

  • 17.

    Mullican MD, Wilson MW, Cornor DT, Kostlan CR, Schrier DJ, Dyer RD. Design of 5-(3,5-di-tert-butyl-4-hydroxyphenyl)-1,3,4-thiadiazoles,-1,3,4-oxadiazoles and -1,2,4-triazoles as orally active, nonulcerogenic anti-inflammatory agents. J. Med. Chem. 1993;36:1090-1099. [PubMed ID: 8478906].

  • 18.

    El-Essawy A, El-Sayed WA, El-Kafrawy SA, Morshedy AS, Abdel-Rahman AH. Anti-hepatitis B virus activity of new 1,2,4-triazol-2-yl- and 1,3,4-oxadiazol-2-yl-2 pyridinone derivatives. Z Naturforsch. 2008;63:667-674.

  • 19.

    Demirba N, Uurluolu R, Demirba A. Synthesis of 3-alkyl(aryl)-4-alkylidenamino-4,5-dihydro-1H–1,2,4-triazol-5-ones and 3-alkyl-4-alkylamino-4,5-dihydro-1H–1,2,4-triazol-5-ones as antitumor agents. Bioorg. Med. Chem. 2002;10:3717-3723. [PubMed ID: 12413828].

  • 20.

    Deng XQ, Song MX, Gong GH, Wang SB, Quan ZS. Synthesis and Anticonvulsant Evaluation of some New 6-(Substituted phenyl) thiazolo[3,2-b][1,2,4]triazole Derivatives in Mice. Iran. J. Pharm. Res. 2014;13:459-469. [PubMed ID: 25237341].

  • 21.

    Mahdavi M, Akbarzadeh T, Sheibani V, Abbasi M, Firoozpour L, Tabatabai SA, Shafiee A, Foroumadi A. Synthesis of two novel 3-amino-5-[4-chloro-2-phenoxyphenyl]-4H-1,2,4-triazoles with anticonvulsant activity. Iran. J. Pharm. Res. 2010;9:265-269. [PubMed ID: 24363736].

  • 22.

    Kalhor M, Mobinikhaledi A, Dadras A, Tohidpour M. Synthesis and antimicrobial activity of some novel substituted 1,2,4-triazoles bearing 1,3,4-oxadiazoles or pyrazoles. J. Hetrocycl. Chem. 2011;48:1366-1370.

  • 23.

    Kalhor M, Dadras A. Synthesis, characterization, and herbicidal activities of new 1,3,4-oxadiazoles, 1,3,4-thiadiazoles and 1,2,4-triazoles derivatives bearing (R)-5-chloro-3-fluoro-2-phenoxypyridine. J. Hetrocycl. Chem. 2013;50:220-224.

  • 24.

    Mavel S, Renou JL, Galtier C, Allouchi H, Snoeck R, Andrei G, Clercq ED, Gueiffier J. Influence of 2-substituent on the activity of imidazo[1,2-a] pyridine derivatives against human cytomegalovirus. Bioorg. Med. Chem. 2002;10:941-946. [PubMed ID: 11836102].

  • 25.

    Mobinikhaledi A, Hamtab A, Kalhor M, Shariatzadehd M. Simple synthesis and biological evaluation of some benzimidazoles using sodium hexafluroaluminate, Na3Alf6, as an efficient catalyst. Iran. J. Pharm. Res. 2014;13:95-101. [PubMed ID: 24734060].

  • 26.

    Sharifzadeh B, Mahmoodi NO, Mamaghani M, Tabatabaeian K, Salimi-Chirani A, Nikokar I. Facile regioselective synthesis of novel bioactive thiazolyl-pyrazoline derivatives via a three-component reaction and their antimicrobial activity. Bioorg. Med. Chem. Lett. 2013;23:548-551. [PubMed ID: 23228471].

  • 27.

    Iqubal R, Malik F. Oxidation of pyridine carboxylic acid hydrazides with active and ordinary Manganese dioxide. J. Chem. Soc. Pak. 1984;6:43-47.

  • 28.

    Wayne PA. National Committee for Clinical Laboratory Standards. Performance standards for antimicrobial susceptibility testing. Clinical and Laboratory Standards Institute (CLSI). 2011.

  • 29.

    Wu EC, Vaughan JD. Kinetics of deuteration of pyrazole. J. Org. Chem. 1970;35:1146-1149.

  • 30.

    Chand S, Lusunzi I, Veal DA, Williams LR. Rapid screening of the antimicrobial activity of extracts and natural products. J. Antibiot. 1994;47:1295-1304. [PubMed ID: 8002394].
