A Novel High Performance Liquid Chromatographic Method for Determination of Nystatin in Pharmaceutical Formulations by Box–Behnken Statistical Experiment Design

Introduction

Nystatin as a polyene antifungal medication is naturally derived from Streptomyces noursei. Many molds and yeast are sensitive to nystatin and it has been used for treatment of infections caused by Candida, Cryptococcus, Histoplasma, Blastomyces and Aspergillus spp (1, 2). It is now widely prescribed for fungal infections (3). Nystatin could be safely adminstrated orally as well as topically (4).

According to current Pharmacopeia, including European and United States Pharmacopeia, nystatin as well as many other antibiotics is assayed by bioassay method based on agar diffusion (5, 6).

The existence of several systems to express the potency of antibiotics leads to confusion and more over the use of potency to express the content of bulk products can lead to difficulties in the interpretation of the content of pharmaceutical preparations. Several HPLC and Spectrophotometric methods have been proposed and investigated to measure nystatin in biological samples (e.g. plasma and saliva); however the extraction for various concentrations is time consuming, tedious with limited detection with UV monitoring and the LC-MS method (7-11).

In this study a simple and robust HPLC procedure for the measurement of nystatin in bulk, oral and vaginal tablets is developed and validated. The HPLC method was developed and optimized using Box-Behnken design in order to obtain the amounts of the parameters and also to investigate the interaction between the parameters.

Experimental

Reagents and chemicals

Methanol, Ammonium Acetate and Acetic Acid were purchased from Merck (Germany). Solutions were prepared by deionized water, produced by a MilliQ water purification system from Milipore (Bedford, MA, US). Nystatin was purchased from CIPLA (Bombay, India). Amphotericin B an internal standard was purchased from Sigma–Aldrich, Germany.

Instrument

The analyses were performed on HPLC instrument consisted of a computer-controlled system with ChromGate software and Knauer solvent organizer K-1500, Knauer low pressure HPLC pump K-1001 and PDA detector K-2800 operated at 304 nm for analysis. Chromatographic separations were run on a Teknokroma 250 mm × 4.6 mm Symmetry 5 μm, C18 analytical column. The chromatographic experiments were performed under isocratic elution. Methanol and 0.05 M ammonium acetate buffer with in proportion of 70:30 v/v were used as the mobile phase consisted of. The mixture pH was adjusted to 5.0 with glacial acetic acid. The mobile phase was degassed by sonication under low vacuum before use. The injection volume was 20 µL using a RHEODYNE (Rohnert Park, CA, USA) model 7725i manual injector with the flow rate of 1.0 mL/min. The retention time of nystatin was approximately 16 min. Samples and spiked standards were analyzed after preparation. Concentrations were calculated from calibration curves constructed by plotting peak heights (AUC) against concentrations of standards containing graded amount of nystatin.

Stock and working standard solutions

Nystatin stock solution (600 µg/mL) was prepared in mobile phase. This solution was then diluted with the mobile phase in order to obtain the working standard solutions at concentrations of 5, 10, 25, 50, 100, 200, 300, 400 and 500 µg/mL. Twenty five µg/mL of amphotericin B (as an internal standard) was added into all of the working standard solutions and the mixture was gently shaken.

Preparation of sample solutions

For the preparation of sample solution, 10 tablets were taken and weighed individually. Average weight was calculated and finely powdered. Appropriate portion of this fine powder equivalent to 5 mg of nystatin was weighed and transferred to a 25 mL volumetric flask. This was dissolved and made up to the 25 mL with mobile phase. The solution was sonicated for 10 minutes before filtration by a 0.45 μm membrane filter.

Results and Discussion

Method development and optimization

For initial study, various types of mobile phases (solvents) (acetonitrile, ethanol, water with ammonium acetate buffer) were studied to optimize the method. The flow rate and column oven temperature were selected with regards to the back pressure and analysis time as well. When studied was performed with acetonitrile and ethanol, poor resolution and unsuitable peak shape between nystatin and amphotericin B and higher peak tailing were observed.

In order to optimization of the method and also to study the possible interaction between the parameters, Box-Behnken design was used (12). Levels and the parameters were based on results from the initial study. A Box-Behnken statistical design with 5 factors, 3 levels and 46 runs was selected for the optimization study and the observed responses are given in Table 1. The experimental design consists of a set of points lying at the midpoint of each edge and the replicated center point of multidimensional cube. pH (A), Concentration of ammonium acetate buffer (B), flow rate (C), ratio of mobile phase (D) and column oven temperature (E) were selected as independent variables in Box-Behnken design. Resolution was taken as response for further analysis. Based on the experimental design, the combinations of factors yielded different mean responses. Table 1 summarizes the experimental runs, the levels of experimental units and their factor combinations in the study as well as response. Using Box-Behnken design, the model was fitted to the data. Regression analysis of the data was carried out in Stat Graphics Plus 5.1 by a special cubic model.

The Standard Pareto chart was used to assess the impact of each parameter in response to the chromatographic method. The normalized results of the experimental design, evaluated at a 5% of significance, were analyzed by a standardized Pareto chart, which showing a frequency histogram where, the length of each bar on the chart is proportional to the absolute value of its associated estimated effect or the standardized effect (Figure 1A). The standardized effect is the estimated effect divided by its standard error, which is equivalent to computing a t-statistic for each effect. The plot vertical line judges the effects that are statistically significant. Based on the Box-Behnken design results, mobile phase ratio has maximum effect on the optimization methods (Figure 1A). The interaction plot mentioned that there is an interaction between pH and flow rate (Figure 1B). As one can see from the estimated responses surface (Figure 1C). The optimum conditions were in the position of maximum levels of the surface and the lines of the estimated responses surface confirmed the model and optimum conditions (Figure 1D). The optimum conditions obtained by Box-Behnken design are as follows: The mobile phase, methanol -0.05 M ammonium acetate buffer (70:30 v/v); pH 5.0; temperature of 30 °C; flow rate, 1.0 mL min^-1.

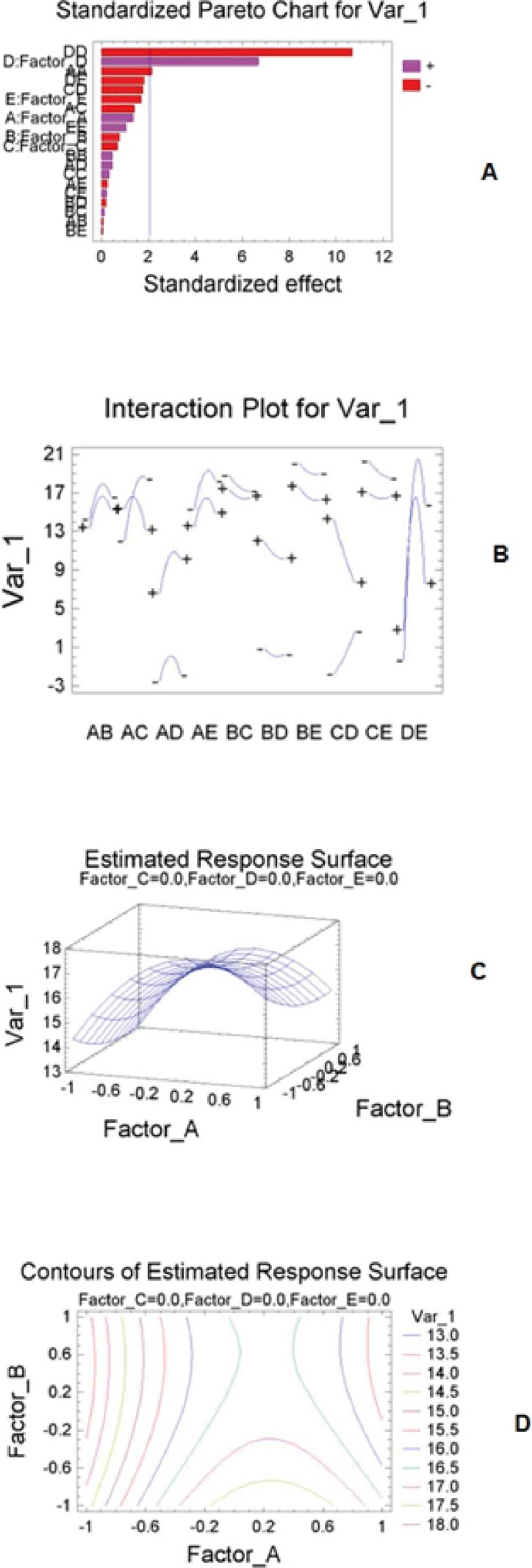

(A) Pareto chart of the main effects for chromatography method; (B) interaction plot; (C) estimated response surface; and (D) contours plot obtained

Figure 1

Method validation

According to the ICH-Guidelines on the validation of analytical methods Q2A and Q2B the method validation demonstrated the specificity, linearity, limit of detection, limit of quantification, precision, and accuracy (13, 14).

Specificity

The ability of these methods to set apart the peaks indicates the methods specificity. UV detector and retention times of the internal standard and nystatin were used to recognize the peaks in the chromatograms with the current separation conditions: amphotericin B at 5 min, nystatin at 15 min (Figure 2).

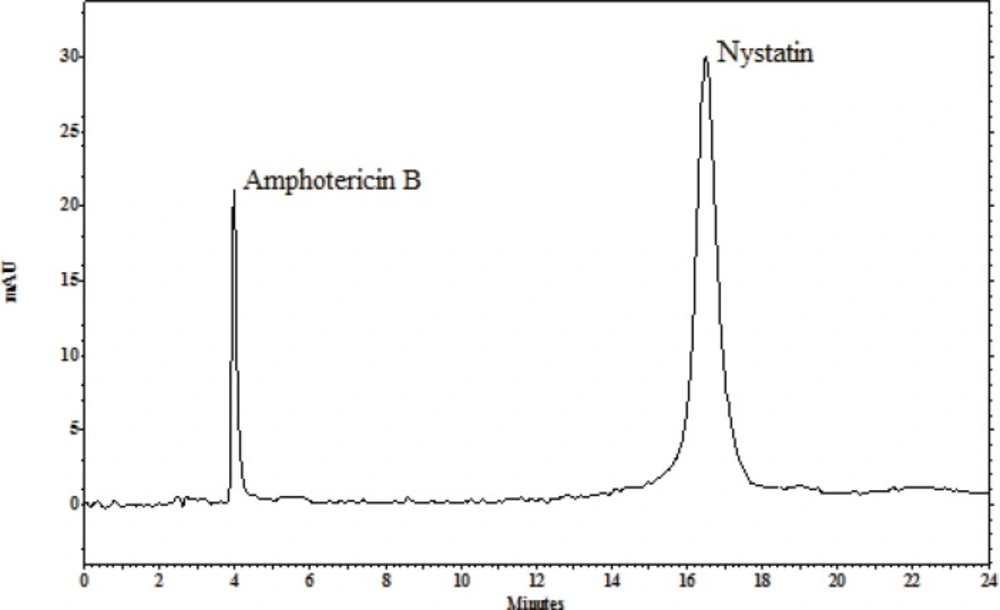

Typical chromatograms for separation conditions: amphotericin B at 4 min and nystatin at 16 min.

Figure 2

Linearity

Injection of standard solution in nine concentration levels over a wide concentration range (5, 10, 25, 50, 100, 200, 300, 400, 500 µg/mL) was utilized to recognize the linearity of the method. The coefficients of correlation (r>0.999) exhibited the significant relationship between peak area and the concentration of nystatin. (Table 2) gives information on the calibration range, regression equation, the coefficient of correlation, and the LOD and LOQ of nystatin.

Precision of the chromatographic method

Two different ways including repeatability as an intra assay and intermediate precision as inter assay were used to confirm the precision of the HPLC. The repeatability was settled by analyzing six repeated injections of the standard solution. For the intermediate precision, six tests were repeated on a different day by a different analyst. The relative standard deviation values (RSD) of the repeatability and intermediate precision must be less than 1% and demonstrated that the HPLC method is precise (Table 3).

Accuracy

The accuracy of the procedure was assessed by comparing the analyte amount determined versus the known amount spiked at three different concentration levels (50%, 100%, and 150%) with 3 replicates (n=3) for each concentration level investigated. Each sample was injected three times and analyzed according to the method that was previously described (Table 3). These results confirm that the method is accurate for nystatin with recovery rates of 92-100%.

The proposed chromatographic method was applied to assay of nystatin in pharmaceutical samples are summarized in Table 4.

Conclusions

In this study we have demonstrated a sensitive and selective HPLC method for the determination of nystatin in pharmaceutical formulations. The proposed method is specific and there is no interference from any of the sample components. The method is robust, accurate, precise and linear over a wide range of concentrations and is suitable for routine quality control.
