Synthesis and Antimicrobial Activity of some Tetrahydro Quinolone Diones and Pyrano[2,3-d]pyrimidine Derivatives

authors:

avatar Masoume Shahi a , avatar Naser Foroughifar a , * , avatar Akbar Mobinikhaledi b

Department of Chemistry, Tehran North Branch, Islamic Azad University, Tehran, Iran.
Department of Chemistry, Faculty of Science, Arak University, , 38156-8-8349, Arak, Iran.
Iranian Journal of Pharmaceutical Research : IJPR: Vol.14, issue 3; 757-763
article type: Original Article
received: January , 2014
accepted: November , 2014
DOI: https://doi.org/10.22037/ijpr.2015.1694

how to cite: Shahi M, Foroughifar N, Mobinikhaledi A. Synthesis and Antimicrobial Activity of some Tetrahydro Quinolone Diones and Pyrano[2,3-d]pyrimidine Derivatives. Iran J Pharm Res. 2015;14(3):e125325. https://doi.org/10.22037/ijpr.2015.1694.

Abstract

There has been special interest in the chemistry of quinolone and pyrimidine derivatives due to their diverse biological activities such as anticonvulsant, anti-malarial agents, antibacterial, antiviral, cytostatic, antithelemintic, antigenotoxic, anti-cancer agents. These compounds are also used as targeting delayed-type hypersensivity and anti-convulsant agents. As a part of our research works in the synthesis of pyrimidine derivatives containing biological activities, a series of novel pyrano[2,3-d]pyrimidine derivatives 2 and tetrahydro quinolone dione derivatives 3 were synthesized via reaction of tetrahydrobenzo[b]pyrano derivatives 1 with different reagents in suitable yields. The characterization of these synthesized compounds was established by IR, 1H NMR and 13C NMR spectroscopic data. Furthermore, all compounds were subsequently evaluated for their in-vitro antibacterial activity against three bacteria: Staphylococcus aureus (ATTC-25923), Escherichia Coli (ATTC-25922) and Bacillus anthracic (ATTC-25924).

Introduction

Pyran derivatives are known as prevalent structural subunits in a variety of important natural products including alkaloids, carbohydrates, polyether antibiotics, pheromones, and iridoids (1). Also, compounds containing these ring systems possess a wide range of pharmacological properties such as antibacterial (2), antigenotoxic (3), antioxidant (4) and cytotoxic activity (5). On the other hand, heterocyclic compounds containing a pyrimidine or quinoline nucleus are of special interests due to their applications in medicinal chemistry as they are the basic skeleton of a number of several bioactive compounds such as antifungal (6), antibacterial (7, 8), antitumor (9), antitubercular (10, 11), anticonvulsant (12) and ureas inhibitor (13). A combination of these two ring systems may have a variety of structural and biological activities. Therefore, preparation of heterocyclic compounds containing a pyran and quinoline moieties is still a significant synthetic challenge.

In view of these reports and also due to continuation of our works on synthesis of pyrimidines (14-17), we have developed synthesis of some novel pyrano[2,3-d]pyrimidine derivatives and tetrahydro quinolone dione derivatives with the hope to improve their biological activities against some gram-positive and gram-negative microorganisms.

Experimental

All melting points were uncorrected and measured using capillary tubes on an Electrothermal digital apparatus. IR spectra were recorded on a Shimadzo(FT)-IR 300 spectrophotometer in KBr. NMR spectra were recorded on a Brucker 500 and 300 MHz spectrometer in CDCl3 with TMS as an internal standard. The progress of the reaction was monitored by thin-layer chromatography TLC (Thin-Layer Chromatography) using CH2Cl2/EtOAc (3:1) as an eluent. The starting material tetrahydrobenzo[b]pyrano drivatives 1(a-h) are easily obtained via one pot reaction of malonitrile, dimedone and aromatic aldehyde in presence of Alum (18).

General procedure for synthesis of pyrano[2,3-d]pyrimidine derivatives2(a-h)

A solution of compound 1 (1 mmol) in Ac2O (1.5 mL) with catalytic amount of concentrated sulfuric acid (3-4 drops) was heated under reflux for 1 h. The reaction mixture was cooled at room temperature and kept for one day. The mixture was poured into water and the formed solid was filtrated, washed with water, and recrystallized from 2-propanol.

2,8,8-Trimethyl-5-phenyl-5,7,8,9-tetrahydro-4H-chromno-[2,3-d]pyrimidine-4,6(3H)-dione (2a)

White solid; m.p. 256-258 oC; Yield 60%; IR (KBr) νmax (cm-1): 3400 (NH), 2962 (CH), 1674, 1610 (C=O) and1452 (C=N). 1H NMR (CDCl3) δ ppm: 1.05, 1.12 (both s, 3H each, C(8) (CH3)2); 2.35 (s , 3H, C(2)-CH3); 2.26 (m, 2H, CH2); 2.58 (m. 2H, CH2); 4.92 (s, 1H, H-5)); 7.12-7.32 (m, 5H, C6H5) and 13.10 (s, 1H, NH). 13C NMR (CDCl3) δ ppm: 21.30, 27.74, 29.29, 32.51, 33.28, 41.12, 50.89, 103.02, 114.50, 127.02, 128.29, 128.66, 128.29, 143.32, 148.31, 158.56, 161.15, 165.44 and 196.62.

2,8,8-Trimethyl-5-(4-methylphenyl)-5,7,8,9-tetrahydro-4H-chromno-[2,3-d]pyrimidine-4,6(3H)-dione (2b)

White solid; m.p. 238-239 oC; Yield 50%; IR (KBr) νmax (cm-1): 3430 (NH), 2961 (CH), 1670, 1610 (C=O) and 1512 (C=N). 1H NMR (CDCl3) δ ppm: 1.05, 1.11 (both s, 3H each, C(8) (CH3)2); 2.24, 2.37 (both s, 3H each, C(5)-p-CH3-Phenyl, C(2)-CH3);; 2.28 (m, 2H, CH2); 2.57 (m, 2H, CH2); 4.88 (s, 1H, H(5)); 7.00-7.11 (m, 4H, Ar-H) and 13.10 (br, 1H, NH). 13C NMR (CDCl3) δ ppm: 21.40, 27.77, 29.30, 32.51, 32.83, 41.12, 50.92, 103.17, 114.98, 128.49, 129.021, 136.57 140.45, 158.45, 161.05, 163.40, 165.29 and 196.66.

2,8,8-Trimethyl-5-(3-nitrophenyl)-5,7,8,9-tetrahydro-4H-chromno-[2,3-d]pyrimidine-4,6(3H)-dione (2c)

Pale Yellow solid; m.p>285oC; Yield 81%; IR (KBr) νmax (cm-1): 3439(NH), 2961 (CH), 1674, 1632 (C=O) and 1526 (C=N). 1H NMR (CDCl3) δ ppm: 1.10, 1.16 (both s, 3H each, C(8) (CH3)2); 2.26 (s, 3H, C(2)-CH3); 2.40 (m, 2H, CH2); 2.65 (m, 2H, CH2); 5.04 (s, 1H, H(5)); 7.40-8.21 (m, 4H, Ar-H) and 13.35 (br, 1H, NH).13C NMR (CDCl3) δ ppm: 21.46, 27.76, 29.23, 32.56, 33.52, 41.10, 50.77, 101.74, 113.72, 122.16, 123.81, 129.07, 134.80, 145.33, 148.29, 159.36, 161.27 165.27 and 195.53.

2,8,8-Trimethyl-5-(2-chlorophenyl)-5,7,8,9-tetrahydro-4H-chromno-[2,3-d]pyrimidine-4,6(3H)-dione (2d)

White solid; m.p. 224-225 oC; Yield 50%; IR (KBr) νmax (cm-1): 3430 (NH), 2961 (CH), 1663, 1620 (C=O) and 1512 (C=N). 1H NMR (CDCl3) δ ppm: 1.07, 1.15 (both s, 3H each, C(8) (CH3)2); 2.21(m, 2H, CH2); 2.50(s, 3H, C(2)-CH3); 2.57 (m, 2H, CH2); 5.05 (s, 1H, H(5)); 7.01-7.50 (m, 4H, Ar-H) and 13.10 (br, 1H, NH). 13C NMR (CDCl3) δ ppm: 27.40, 29.52, 32.05, 32.25, 41.70, 40.09, 50.87, 113.87, 115.43, 126.56, 126.90, 127.91, 130.00, 130.37, 131.83, 133.12, 133.63, 140.06, 161.27 163.27 and 196.84.

2,8,8-Trimethyl-5-(4-nitrophenyl)-5,7,8,9-tetrahydro-4H-chromno-[2,3-d]pyrimidine-4,6(3H)-dione (2e)

White solid; m.p. 250-251 oC; Yield 70%; IR (KBr) νmax (cm-1): 3438 (NH), 2926 (CH), 1655, 1610 (C=O) and 1510 (C=N). 1H NMR (CDCl3) δ ppm: 1.05, 1.14 (both s, 3H each, C(8) (CH3)2); 2.31(m, 2H, CH2); 2.40 (s, 3H, C(2)-CH3); 2.61 (m, 2H, CH2); 5.02 (s, 1H, H(5)); 8.11-7.51 (m, 4H, Ar-H) and 13.10 (br, 1H, NH).

2,8,8-Trimethyl-5-(4-bromophenyl)-5,7,8,9-tetrahydro-4H-chromno-[2,3-d]pyrimidine-4,6(3H)-dione (2f)

Pale yellow solid; m.p. >310 oC; Yield 51%; IR (KBr) νmax (cm-1): 3431 (NH), 2959 (CH), 1667, 1611 (C=O) and 1485 (C=N). 1H NMR (CDCl3) δ ppm: 1.05, 1.13 (both s, 3H each, C(8) (CH3)2); 2.23 (m, 2H, CH2); 2.36 (s, 3H, C(2)-CH3); 2.58 (m, 2H, CH2); 4.88 (s, 1H, H(5)); 7.18-7.33 (m, 4H, Ar-H) and 13.10 (br, 1H, NH).

2,8,8-Trimethyl-5-(4-methoxyphenyl)-5,7,8,9-tetrahydro-4H-chromno-[2,3-d]pyrimidine-4,6(3H)-dione (2g)

Cream solid; m.p. 220-221 oC; Yield 60%; IR (KBr) νmax (cm-1): 3457 (NH), 2930 (CH), 1659, 1640 (C=O) and 1504 (C=N). 1H NMR (CDCl3) δ ppm: 1.11, 1.18 (both s, 3H each, C(8) (CH3)2); 2.25 (m, 2H, CH2); 2.33 (s, 3H, C(2)-CH3); 2.59 (m, 2H, CH2); 3.68 (s, 3H, O-CH3); 4.68 (s, 1H, H(5)); 7.07-7.11 (m, 4H, Ar-H) and 13.03 (br, 1H, NH).

2,8,8-Trimethyl-5-(3-hydroxyphenyl)-5,7,8,9-tetrahydro-4H-chromno-[2,3-d]pyrimidine-4,6(3H)-dione(2h)

White solid; m.p. 201-203 oC; Yield 67%; IR (KBr) νmax (cm-1): 3450 (NH), 2961 (CH), 1678, 1636 (C=O) and 1488 (C=N). 1H NMR (CDCl3) δ ppm: 1.06, 1.12 (both s, 3H each, C(8) (CH3)2); 2.24 (m, 2H, CH2); 2.36 (s, 3H, C(2)-CH3); 2.59 (m, 2H, CH2); 4.94 (s, 1H, H(5)); 6.68-7.27 (m, 4H, Ar-H); 7.02 (s, 1H, OH) and 13.30 (br, 1H, NH).

General procedure for synthesis of tetrahydro quinolone dione derivatives 3(a-g)

Compound 1 (1 mmol) was refluxed in a mixture of hydrochloric acid (1 mL) and acetic acid (3mL) for 3-5 h (monitored by TLC). After completion of the reaction, the reaction mixture was cooled, poured into water and the formed solid was filtrated. The obtained solid product was washed with water (3×15 mL) and recrystallized from ethanol.

3,4,7,8-Tetrahydro-7-7-dimethyl-4-phenyl-quinoline-2,5(1H,6H)-dione (3a)

White solid; m.p. 169-171 oC; Yield 48%; IR (KBr) νmax (cm-1): 3235 (NH), 2946 (CH), 1716, 1612 (C=O). 1H NMR (CDCl3) δ ppm: 1.07, 1.18 (both s, 3H each, C (7) (CH3)2); 2.33 (m, 2H, CH2); 2.49 (m, 2H, CH2); 2.81 (m. 2H, CH2); 4.38 (d, 1H, H (4)); 7.29 (m, 5H, C6H5) and 8.42 (s, 1H, NH). 13C NMR (CDCl3) δ ppm: 27.88, 29.25, 33.02, 33.94, 38.10, 41.07, 46.67, 50.79, 114.84, 126.83, 127.17, 129.01, 130.06, 142.22, 150.97, 172.87 and 196.10.

3,4,7,8-Tetrahydro-7-7-dimethyl-4-(4-methylphenyl)-quinoline-2,5(1H,6H)-dione (3b)

White solid; m.p. 201-203 oC; Yield 67%; IR (KBr) νmax (cm-1): 3219 (NH), 2960 (CH), 1695, 1645 (C=O). 1H NMR (CDCl3) δ ppm: 0.92, 1.03 (both s, 3H each, C (7) (CH3)2); 2.21 (s, 3H, C(4)-p-CH3-Phenyl); 2.27 (m, 2H, CH2); 2.39 (m, 2H, CH2); 2.87(m. 2H, CH2); 4.31(d, 1H, H(4)); 7.03-7.25 (m, 4H, C6H5) and 8.80 (s, 1H, NH). 13C NMR (CDCl3) δ ppm: 27.79, 29.04, 33.42, 32.83, 37.97, 41.12, 50.71, 115.03, 126.05, 129.47, 136.48, 139.12, 150.13, 172.23 and 195.49.

3,4,7,8-Tetrahydro-7-7-dimethyl-4-(3-Nitrophenyl)-quinoline-2,5(1H,6H)-dione (3c)

Pale Yellow solid; m.p. 194-195 oC; Yield 90%; IR (KBr) νmax (cm-1): 3105 (NH), 2960 (CH), 1707, 1620 (C=O). 1H NMR (CDCl3) δ ppm: 1.12, 1.80 (both s, 3H each, C(7) (CH3)2); 2.36 (m, 2H, CH2); 2.47 (m, 2H, CH2); 2.68 (m, 2H, CH2); 4.38 (d, 1H, H(4)); 7.60-8.09 (m, 4H, Ar-H) and 8.36 (s, 1H, NH). 13C NMR (CDCl3) δ ppm: 27.80, 29.30, 33.08, 33.97, 37.80, 41.29, 50.69, 113.68, 121.64, 122.41, 130.09, 133.61, 151.39, 171.31and 195.52.

3,4,7,8-Tetrahydro-7-7-dimethyl-4-(2-chlorophenyl)-quinoline-2,5(1H,6H)-dione (3d)

White solid; m.p. 240-241 oC; Yield 63%; IR (KBr) νmax (cm-1): 3247 (NH), 2961 (CH), 1715, 1645 (C=O). 1H NMR (CDCl3) δ ppm: 1.08, 1.18 (both s, 3H each, C (7) (CH3)2); 2.39 (m, 2H, CH2); 2.53 (m, 2H, CH2); 2.81 (m, 2H, CH2); 4.38 (d, 1H, H(4)); 7.47-8.11 (m, 4H, Ar-H) and 8.42 (s, 1H, NH).

3,4,7,8-Tetrahydro-7-7-dimethyl-4-(4-Nitrophenyl)-quinoline-2,5(1H,6H)-dione (3e)

White solid; m.p. 214-215 oC; Yield 55%; IR (KBr) νmax (cm-1): 3250 (NH), 2964 (CH), 1710, 1610 (C=O). 1H NMR (CDCl3) δ ppm: 1.06, 1.14 (both s, 3H each, C (7) (CH3)2); 2.32 (m, 2H, CH2); 2.45 (m, 2H, CH2); 2.90 (m, 2H, CH2); 4.31 (d, 1H, H (4)); 6.70-6.82 (m, 4H, Ar-H) and 8.32 (s, 1H, NH).

3,4,7,8-Tetrahydro-7-7-dimethyl-4-(4-bromophenyl)-quinoline-2,5(1H,6H)-dione (3f)

White solid; m.p. 173-174 oC; Yield 86%; IR (KBr) νmax (cm-1): 3208 (NH), 2945 (CH), 1667, 1636 (C=O). 1H NMR (CDCl3) (CDCl3) δ ppm: 1.11, 1.14 (both s, 3H each, C (7) (CH3)2); 2.31 (m, 2H, CH2); 2.47 (m, 2H, CH2); 2.92 (m, 2H, CH2); 4.32 (d, 1H, H (4)) and 7.10-7.40 (m, 4H, Ar-H).

3,4,7,8-Tetrahydro-7-7-dimethyl-4-(4-methoxyphenyl)-quinoline-2,5(1H,6H) dione (3g)

Pale yellow solid; m.p. 246-247 oC; Yield 67%; IR (KBr) νmax (cm-1): 3315 (NH), 2953 (CH), 1663, 1624 (C=O). 1H NMR (CDCl3) (CDCl3) δ ppm: 1.04, 1.13 (both s, 3H each, C(7) (CH3)2); 2.15 (m, 2H, CH2); 2.46 (m, 2H, CH2); 2.90 (m, 2H, CH2); 3.73 (s, 3H, O-CH3); 4.70 (d, 1H, H(4)); 6.75-7.22 (m, 4H, Ar-H) and 8.32 (s, 1H, NH).

Antibacterial activity

Antibacterial activity of synthesized compounds was assessed by the disc diffusion method (19) using Mueller–Hinton Agar against Escherichia Coli (ATTC-25922) as a gram negative bacteria as well as Bacillus anthracic (ATTC-25924) and Staphylococcus aureus (ATTC-25923) as gram positive bacteria. Cefazolin was used as a standard. Normal saline was used for preparation of inoculants having turbidity equal to 0.5 McFarland standards. The compounds were dissolved in dimethylformamide (DMF) for bioassay. The solvent control was included, although no inhibition zone was found. The plates were incubated at 37 C for 24 h. All samples were tested in triplicate and the average results of inhibitory effects are illustrated in Table 1.

Table 1

Antibacterial activity of newly synthesized compounds (inhibition zones, mm).

Comp. NoE. ColiBa. anthracicSt. aureus
2a-1510
2b111517
2c-1420
2d13103
2e18145
2f15184
2g161510
2h121010
3a181723
3b10157
3c101117
3d101510
3e14153
3f131017
3g12107
Cefazolin1386

Determination of the minimum inhibitory concentration (MIC) values for synthesized compounds against three microorganisms was carried out using disc diffusion method (20). In this method, concentrations of 1800, 900, 450, 225, 112.5, 56.2, 28.1, 14, 7, 3.5, 1.7 and 0.87 μg mL-1 were used per disc and incubated at 37 ºC for 24 h.

Values of minimum inhibitor concentration (MIC) were recorded as the lowest concentration of substance, which gives no growth of inoculated bacteria. The Results are presented in Table 2.

Table 2

MIC values of compounds 2(a-h) and 3(a-g).

Comp. NoMIC (μg.mL-1)
E. ColiBa. anthracicSt. aureus
2a225450112
2bNP18001800
2c900900112
2d225450112
2e4501800900
2f4501800900
2g225900112
2h1800NP1800
3a900NP112
3b450112450
3c900NP1800
3d900NP1800
3e450900450
3f4501800900
3gNPNPNP
Cefazolin450900NP

Results and Discussion

Compounds 1(a-h) were used as precursors for the synthesizes of pyrano[2,3-d]pyrimidine derivatives 2(a-h) and tetrahydro quinolone dione derivatives 3(a-g), scheme 1. The reaction of compounds 1(a-h) with a mixture of acetic anhydride in the presence of sulfuric acid under reflux, produced pyrano[2,3-d]pyrimidine derivatives 2(a-h), which is similar to reaction reported in the literature (21). However, different transformations occurred when refluxing of compounds 1(a-g) in concentration hydrochloric acid and acetic acid was carried out to give tetrahydro quinolone dione derivatives 3(a-g). The possible mechanism is shown in scheme 2. Compound 1 under acidic condition gives intermediate A, which can undergo a ring opening to produce an amide. The hydrolysis of amide makes an acid, followed by the loss of CO2, hydrolysis of CN group, and ring closure to give the more stable compound 3.

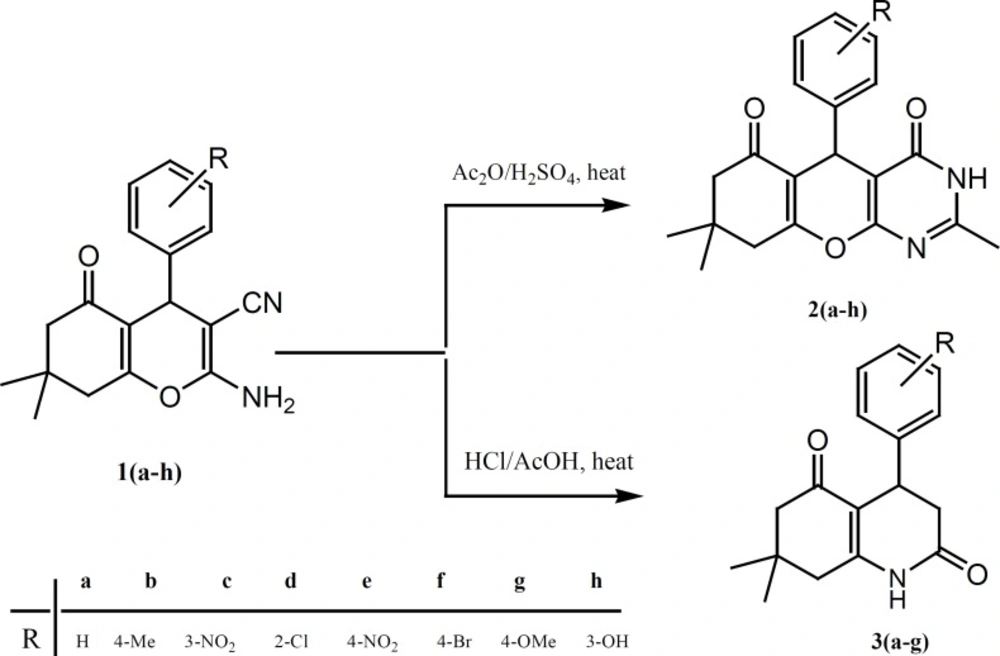

The synthetic pathway for preparation of pyrano[2,3-d]pyrimidine derivatives 2(a-h) and tetrahydro quinolone dione derivatives 3(a-g).

The synthetic pathway for preparation of pyrano[2,3-d]pyrimidine derivatives 2(a-h) and tetrahydro quinolone dione derivatives 3(a-g).

Scheme 1

The possible mechanism for formation of compounds 3(a-g).

The possible mechanism for formation of compounds 3(a-g).

Scheme 2

In the IR spectra of compound 1 the nitrile and amine groups were observed in the region of 2190 and 3400 cm-1 (17), whereas these bands are absent in the IR spectra of compounds 2 and 3. The broad absorption band for stretching vibration of NH group was detected in the region of 3200-3450 cm-1, which corresponds to the pyrimidine fragment with strong hydrogen bonds. The appearance of absorption bands at 1663-1710 cm-1 and 1610-1645 cm-1 are the characteristics of the ketone and amide carbonyl groups, respectively. In 1H NMR spectra of these compounds the resonance of NH proton with one integration for pyrimidine ring (compounds 2) and amid group (compound 3) was observed in the region of 13.0 and 8.3 ppm, which is in support of these transformations. The resonance of all other protons appeared in the expected region of spectra. In 13C NMR spectra of compound 3, the appearance of two signals at about 172 and 195 ppm are due to carbon resonance of two carbonyl groups.

All synthesized compounds were tested for their antimicrobial activity by minimum inhibitory concentration (MIC) in-vitro by agar micro dilution method. The results were summarized in Tables 1 and 2. As depicted in Table 1, the most of the synthesized compounds proved to be effective antibacterial against three tested microorganisms, except for 2a and 2c, which were inactive against E. Coli. Compound 3a, showed the highest antimicrobial activity against all bacteria in general, while compounds 2d, 2e, 2f, and 3e showed the lowest activity against St. aureus. The other compounds exerted moderate to good activity against all stains in comparison with Cefazolin.

References

  • 1.

    Tietze LF, Kettschau G. Hetero-diels-alder reactions in organic chemistry. Top. Curr. Chem. 1997;189:1-120.

  • 2.

    Karnik AV, Ulkarin AM, Malviya NJ, Mourya BR, Jadhav BL. Synthesis and in vitro anti-bacterial evaluation of tetracyclic-ortho-fused 4H-naphtho[1′,2′-5,6]pyrano[3,4 d](1,2,3)selenadiazole and its derivatives. Eur. J. Med. Chem. 2008;43:2615-2617. [PubMed ID: 18339454].

  • 3.

    Fakher C, Mehdi M, Hedi BM, Leila C, Mansour S. Synthesis and antigenotoxic activity of some naphtho[2,1-b]pyrano[3,2-e][1,2,4]triazolo[1,5-c]pyrimidine derivatives. Eur. J. Med. Chem. 2007;42:715-718. [PubMed ID: 17224204].

  • 4.

    Kwak JK, Kang HE, Jung JK, Kim H, Ho J, Lee H. Synthesis of 7-hydroxy-4-Oxo-4H-chromene- and 7-hydroxychroman-2-carboxylic acidN-alkyl amides and their antioxidant activities. Arch. Pharm. Res. 2006;29:728-734. [PubMed ID: 17024844].

  • 5.

    Su CR, Yeh SF, Liu CM, Damu AG, Kuo TH, Chiang PC, Bastow KF, Lee KH, Wu TS. Anti-HBV and cytotoxic activities of pyranocoumarin derivatives. Bioorg. Med. Chem. 2009;17:6137-6143. [PubMed ID: 19635670].

  • 6.

    Chen Q, Zhu X, Jiang L, Yang ML, FU G. Synthesis, antifungal activity and CoMFA analysis of novel 1,2,4-triazolo[1,5-a]pyrimidine derivatives. Eur. J. Med. Chem. 2008;43:595-603. [PubMed ID: 17618711].

  • 7.

    Shamsa F, Foroumadi A, Shamsa H, Samadi N, Faramarzi MA, Shafiee A. Synthesis and In-vitro antibacterial activities of acetylanthracene and acetylphenanthrene derivatives of some fluoroquinolones. Iran. J. Pharm. Res. 2011;10:225-231. [PubMed ID: 24250347].

  • 8.

    Magesh CJ, Makesh SV, Perumal PT. Highly diastereoselective inverse electron demand (IED) Diels-Alder reaction mediated by chiral salen–AlCl complex: the first, target-oriented synthesis of pyranoquinolines as potential antibacterial agents. Bioorg. Med. Chem. Lett. 2004;14:2035-2040. [PubMed ID: 15080974].

  • 9.

    Lin R, Sigmond G, Johnson PJ, Connolly SK, Wetter E, Binnun TV, Hughes WV, Murray NB, Pandey SJ, Mazza MM, Adams AR, Pesquera F, Steven AM. Synthesis and evaluation of 2,7-diamino-thiazolo[4,5-d] pyrimidine analogues as anti-tumor epidermal growth factor receptor (EGFR) tyrosine kinase inhibitors. Bioorg. Med. Chem. Lett. 2009;19:2333-2337. [PubMed ID: 19286381].

  • 10.

    Deshmukh MB, Salunkhe SM, Patil DR, Anbhule PV. A novel and efficient one step synthesis of 2-amino-5-cyano-6-hydroxy-4-aryl pyrimidines and their anti-bacterial activity. Eur. J. Med. Chem. 2009;44:2651-2654. [PubMed ID: 19036478].

  • 11.

    Balamurugan K, Jeyachandran V, Perumal S, Manjashetty TH, Yogeeswari P, Sriram D. A microwave-assisted, facile, regioselective Friedländer synthesis and antitubercular evaluation of 2,9-diaryl-2,3-dihydrothieno-[3,2-b]quinolines. Eur. J. Med. Chem. 2010;45:682-688. [PubMed ID: 19944499].

  • 12.

    Jianga N, Deng X, Li F, Quan Z. Synthesis of novel 7-substituted-5-phenyl-[1,2,4]triazolo[1,5-a]pyrimidines with anticonvulsant activity. Iran. J. Pharm. Res. 2012;11:799-806. [PubMed ID: 24250507].

  • 13.

    Mohammadi Ziarani G, Faramarzi S, Asadi S, Badiei A, Baz R, Amanlou M. Three-component synthesis of pyrano[2,3-d]-pyrimidine dione derivatives facilitated by sulfonic acid nanoporous silica (SBA-Pr-SO3H) and their docking and urease inhibitory activity. Daru J. Pharm. Sci. 2013;21. doi:10.1186/2008-2231-21-3.

  • 14.

    Foroughifar N, Mobinikhaledi A, Fathinejad H. Microwave assisted synthesis of some pyrimidine derivatives using polyphosphate ester (PPE) in ceramic bath. Phosphorus Sulfur Silicon Relat. Elem. 2003;178:1241-1246.

  • 15.

    Mobinikhaledi A, Mosleh T, Hamta A. Synthesis of some novel chromenopyrimidine derivatives and evaluation of their biological activities. Iran. J. Pharm. Res. 2014;13:873-879. [PubMed ID: 25276187].

  • 16.

    Mobinikhaledi A, Foroughifar N. Microwave assisted synthesis of some fused thiazolopyrimidines. Phosphorus, Sulfur Silicon Relat. Elem. 2004;179:1175-1180.

  • 17.

    Mobinikhaledi A, Foroughifar N, Bodaghi Fard MA. Eco-friendly and efficient synthesis of pyrano[2,3-d] pyrimidinone and tetrahydrobenzo[b]pyran derivatives in water. Syn. Res. Met-Org. Nano Met. Chem. 2010;40:179-185.

  • 18.

    Balalaie S, Bararjanian M, Sheikh-Ahmadi M, Hekmat S, Salehi P. Diammonium hydrogen phos-phate: An efficient and versatile catalyst for the one-pot synthesis of tetrahydrobenzo[b]pyran derivatives in aqueous media. Synth. Commun. 2010;37:1097-1108.

  • 19.

    Cruickshank R, Duguid JP, Marmion BP, Swain RH. Medicinal Microbiology. 2. 12th ed. London; 1975. p. 196-199.

  • 20.

    Barry AL. Illus Lea, Febiger, editors. The Antimicrobial Susceptibility Test: Principle and Practices. Philadelphia; 1976. 180 p.

  • 21.

    Martinez AG, Marco J. Friedländer reaction on 2-amino-3-cyano-4H-pyrans: Synthesis of derivatives of 4H-pyran [2,3-b] quinoline, new tacrine analogues. Biooorg. Med. Chem. Lett. 1997;7:3165-3170.
