Abstract
Keywords
Achillea wilhelmsii Hydroalcholc extract Possible mechanism Relaxant effects Guinea pig Trachea
Introduction
The herb Achillea, which belongs to the family Compositae (Asteraceae), is a genus with more than 100 species all around the world (1). These plants are medicinal perennial rhizomous herbs that are native to Europe and Western Asia, although they are also found in Australia, New Zealand and North America (2, 3). Achillea millefolium C. Koch is the best known species, commonly named yarrow, and was used as traditional medicine in Europe and by native Americans for treating swollen tissues and wounds (4-6).
The aerial parts of different species of the genus are widely used in folk medicine due to numerous medicinal properties, such as anti-inflammatory, antispasmodic, antihemorrhoidal, stomachic and antiseptic (7–9).
The main components of the oil of A. wilhelmsii are carvacrol (25.1%), linalool (11.0%), 1,8-cineol (10.3%), E-nerolidol (9.0%) and borneol (6.4%) (10). The main components of the monoterpene fraction of the oil are camphor, borneol, linalool, 1,8-cineole, chrysanthenol acetate and carvacrol (9).
The analgesic (11) and anticonvulsant (12) effects of the plant have been demonstrated. Several investigators (13, 14) reported significant effects from the extracts of A. wilhelmsii or A. talagonica grown in Iran as being antilipidemic, antihypertensive or immunosuppressive for humans or laboratory animals respectively. The relative radical scavenging activity of the plant is also documented (15).
The antispasmodic activity of total extract of A. nobilis subsp. sipylea on rat duodenum was observed (16). Some flavonoids can act as spasmolytic agents by relaxing various smooth muscles (17, 18). They have also reduced the tone of guinea-pig isolated trachea, main pulmonary artery, rat uterus and rat vas deferens (19-21). It has been also suggested that the inhibitory effects of cirsiliol on smooth muscle are attributed to inhibition of transmembrane Ca2+ influx (22). In addition, the relaxant effect of carvacrol on tracheal smooth muscle was observed in our previous study (23).
Therefore in the present study, the possible mechanism(s) of relaxant effects of hydro alcholic extract from A. wilhelmsii on tracheal chains of guinea pigs were examined.
Experimental
Plant and extraction
Achillea wilhelmsii was collected form north east region of Iran and identified by MR Joharghi. A voucher specimen was preserved in the Herbarium of the School of Agriculture, Ferdowsi University (Herbarium No: 40377, FUMH). The plant was dried in the absence of sun light. The hydro-alcoholic extract of the plant was prepared as follows: fifty grams of Achillea millefollium were grinded, added to 700 mL of ethanol 50% (350 mL of pure ethanol was diluted with water to final volume of 700 mL) using the Soxhlet apparatus. The solvent was then removed under reduced pressure. The plant ingredient concentration in the final extract was adjusted to 0.1 g/mL by adding distilled water to the dried extract. Three and half (3.5) grams of extract was collected from 50 grams of the grinded plant.
Tissue preparation
Guinea pigs (400-700 g, both sexes) were killed by a blow on the neck and tracheas were removed. Each trachea was cut into 10 rings (each containing 2-3 cartilaginous rings). The study was approved by Ethical Committee of Mashhad University of Medical Sciences. Before experiments, animals were housed in individual cages with access to food and water ad libitum and were maintained at 22º ± 2ºC on a 12 h light/dark cycle (light period 0700 and 1900 h). All the rings were then cut open opposite the trachealis muscle, and sutured together to form a tracheal chain (24, 25). Tissue was then suspended in a 10 mL organ bath (organ bath 61300, Bio Science Palmer-Washington, Sheerness, Kent U.K.) containing Krebs-Henseliet solution of the following composition (mM): NaCl 120, NaHCO3 25, MgSO4 0.5, KH2PO4 1.2, KCl 4.72, CaCl2 2.5 and dextrose 11.
The Krebs solution was maintained at 37°C and gassed with 95% O2 and 5% CO2. Tissue was suspended under an isotonic tension of 1 g and allowed to equilibrate for at least 1 h while it was washed with Krebs solution every 15 min.
Protocols
The relaxant effects of four cumulative concentrations of the extract of A. wilhelmsii (2, 4, 6 and 8 mg/mL) and theophylline anhydrous (Sigma Chemical Ltd UK) (0.2, 0.4, 0.6 and 0.8 mM) as positive control, and saline (1 mL) as negative control were examined. To produce the first concentration of the extract, 0.2 mL of 10 g% was added to a 10 mL organ bath and for other three concentrations; 0.2 mL of 10 g% was added to organ bath three times respectively. For theophylline, 0.2 mL of 0.01 M concentrated solution was added to organ bath 4 times. The consecutive volumes were added to organ bath at five minutes intervals.
In each experiment, the effect of saline, four cumulative concentrations from the extract and theophylline on contracted tracheal smooth muscle was measured after exposing tissue to each concentration of the solution for 5 min. A decrease in tone was considered to be a relaxant (bronchodilatory) effect and expressed as positive percentage change in proportion to the maximum contraction. An increase in tone was considered as a contractile (bronchoconstrictory) effect which was expressed as negative percentage change (24, 25).
The relaxant effect of different solutions was tested with four different experimental designs, as follows:
I: On tracheal chains contracted by 60 mM KCl (group 1 experiment, n= 7).
II: On tracheal chains contracted by 10 μM methacholine hydrochloride (Sigma Chemical Ltd UK), (group 2 experiment, n= 9).
III: On tracheal chains incubated with 1 μM atropine, propranolol and chlorpheniramine and contracted by 60 mM KCl (group 3 experiment, n= 7).
IV: On tracheal chains incubated with 1 μM propranolol and chlorpheniramine and contracted by 10 μM methacholine (group 4 experiment, n= 8).
The relaxant effects in four groups of experiments were examined in four different series of tracheal chains. All of the experiments were performed randomly with a 1 h resting period of tracheal chains between each two experiments while washing the tissues every 15 min with Krebs solution. In all experiments contractions were measured using an isotonic transducer (Harvard APP LTD, 50-6360 SINO. 0210) and measured by using a software by a computer )Acer model NO.: G781) recording.
Statistical analysis
All data were expressed as mean±SEM. The data of relaxant effects obtained in four groups of experiments were compared using one way analysis of variance (ANOVA) and Tukey-Kramer post test. The relaxant effect of the extract and theophylline were related to the concentrations using least square regression. Significance was accepted at p < 0.05.
Results

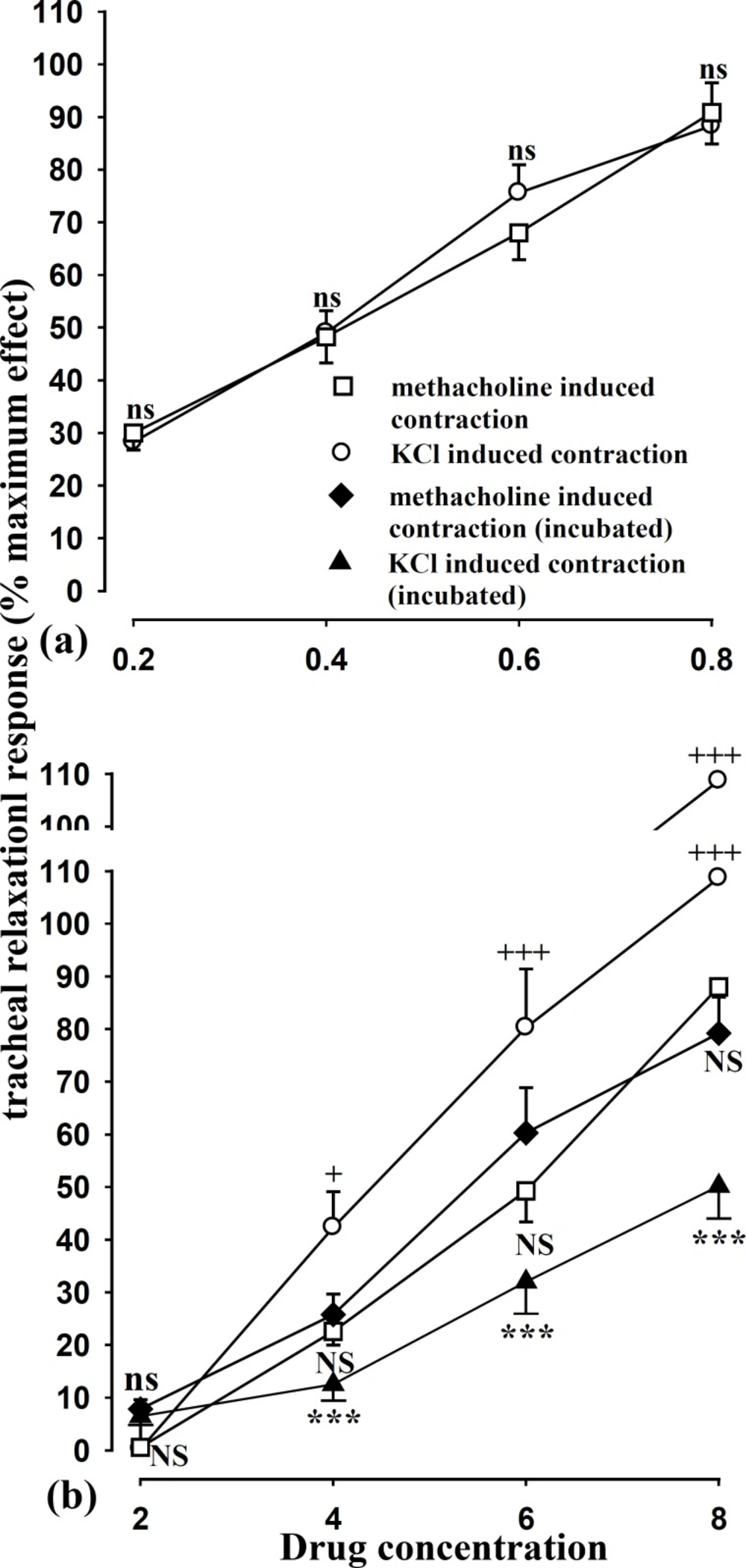

Relaxant effect
In group 1 (non-incubated tissues contracted by KCl) and 2 (non-incubated tissues contracted by methacholine), all concentrations of theophylline and three higher concentrations (4, 6 and 8 mg/mL) of the extract showed relaxant effects compared to that of saline (p < 0.001 for all cases) (Tables 1 and 2).
In groups 3 and 4 experiments also all concentrations of the extract showed relaxant effects compared to that of saline (p < 0.01 to p < 0.001; Table 3).
Comparison of the relaxant effect of theophylline with that of the extract
In groups 1, the relaxant effect of only lowest concentration (2 mg/mL) and in group 2 the relaxant effect of three lower concentrations (2, 4 and 6 mg/mL) of the extract were significantly less than those of theophylline (p < 0.05 to p < 0.001; Tables 1 and 2).
Relaxant effect of the extract of Achillea millefollium (percentage change in proportion to the maximum contraction) in comparison with negative control (saline) and positive control (theophylline) in group 1 experiments (contracted tracheal chains with 60 mM KCl, n = 7).
Different Concentration | Saline | Theo. | St. Dif. vs Saline | Extract | St. Dif. vs Saline | St. Dif. vs Theo. |
---|---|---|---|---|---|---|
1 | - | 28.25 ± 3.24 | p < 0.001 | 0.24 ± 7.29 | NS | p < 0.001 |
2 | - | 49.04 ± 4.19 | p < 0.001 | 42.32 ± 6.84 | p < 0.001 | NS |
3 | - | 75.62 ± 5.31 | p < 0.001 | 80.3 ± 11.13 | p < 0.001 | NS |
4 | 0.43 ± 0.2 | 88.33 ± 8.16 | p < 0.001 | 108.71 ± 13.71 | p < 0.001 | NS |
Relaxant effect of the extract of Achillea millefollium (percentage change in proportion to the maximum contraction) in comparison with negative control (saline) and positive control (theophylline) in group 2 experiments (contracted tracheal chains by 10 μM methacholie, n = 9)
Different Concentration | Saline | Theo. | St. Dif. vs Saline | Extract | St. Dif. vs Saline | St. Dif. vs Theo. |
---|---|---|---|---|---|---|
1 | - | 30.33 ± 3.26 | p < 0.001 | 0.58 ± 3.28 | NS | p < 0.001 |
2 | - | 48.24 ± 4.93 | p < 0.001 | 22.6 ± 2.55 | p < 0.001 | p < 0.001 |
3 | - | 68.02 ± 5.08 | p < 0.001 | 49.27 ± 5.94 | p < 0.001 | p < 0.05 |
4 | 0.6 ± 0.23 | 90.86 ± 6.01 | p < 0.001 | 87.98 ± 8.60 | p < 0.001 | NS |
Comparison of the relaxant effect between group 1 and 2
The relaxant effect of three higher concentrations (4, 6 and 8 mg/mL) of the extract in group 1 (contracted tracheal muscle with KCl) were greater than those of group 2 (contracted tracheal muscle with methacholine), (p < 0.01 to p < 0.001). However, the relaxant effect of theophylline between two groups was not statistically sugnificant (Figure 1).
Comparison of the relaxant effect between incubated and non-incubated tissues
The relaxant effect of three higher concentrations (4, 6 and 8 mg/mL) of the extract in group 3 (tracheal muscle incubated with atropine, propranolol and chlorpheniramine and contracted with KCl) were significantly lower than those of non incubated tissues contracted by KCl (p < 0.05 to p < 0.001). However there was no significant difference in relaxant effect between non incubated (group 2) and incubated (incubated tissues with propranolol and chlorpheniramine, group 4) tissues contracted by methacholine (Figure 2b).
Comparison of the relaxant effect between incubated tissues contracted by KCl and methacholine
The relaxant effect of three higher concentrations (4, 6 and 8 mg/mL) of the extract in group 3 (tracheal muscle incubated with atropine, propranolol and chlorpheniramine) contracted with KCl were lower than group 4 (incubated tissues with propranolol and chlorpheniramine) contracted by methacholine; (p < 0.05 to p < 0.01; Table 3).
Relaxant effect of the extract of Achillea millefollium (percentage change in proportion to the maximum contraction) in comparison with negative control (saline) and positive control (theophylline) in group 3 experiments (contracted tracheal chains by 60 mM KCl-Inc, n = 7) and group 4 experiments (contracted tracheal chains by 10 μM methacholie-Inc, n = 8)
Different Concentration | Saline | KCl-Inc | St. Dif. vs Saline | M-Inc | St. Dif. vs Saline | St. Dif. KCl-Inc vs M-Inc |
1 | - | 6.47 ± 1.64 | p < 0.01 | 7.84 ± 1.81 | p < 0.01 | NS |
2 | - | 12.54 ± 3.12 | p < 0.01 | 25.75 ± 3.92 | p < 0.001 | p < 0.05 |
3 | - | 32.00 ± 6.04 | p < 0.005 | 60.27 ± 8.62 | p < 0.001 | p < 0.05 |
4 | 0.72 ± 0.18 | 50.17 ± 6.11 | p < 0.001 | 79.18 ± 6.91 | p < 0.001 | p < 0.01 |
Correlation between concentrations of solutions and their relaxant effect
There were significant positive correlations between the relaxant effects and concentrations for theophylline in groups 1 and 2 and the extract in all four groups of experiments (p < 0.001 for all cases; Table 4).
Correlation (r) between the relaxant effect s of the extract of Achillea millefollium and theophylline with their concentrations in four groups of experiments.
Different Solutions | KCl | Metha | KCl-Inc | Meth-Inc | ||||
---|---|---|---|---|---|---|---|---|
R | p-value | R | p-value | R | p-value | r | p--value | |
Extract | 0.8507 | p< 0.001 | 0.891 | p< 0.001 | 0.664 | P = 0.001 | 0.735 | p< 0.001 |
Theo. | 0.8396 | p< 0.001 | 0.850 | p< 0.001 |
Discussion
In this study, the relaxant effect of the extract from A. wilhelmsii in comparison with saline as negative control and theophylline as positive control was studied. In group 1 (contracted tracheal chains with KCl), the extract and theophylline showed relaxant effect on tracheal smooth muscle. The relaxant effect of only lower concentration of the extract was significantly less than that of theophylline.
The results of this study confirmed those of the study of Asgari et al. (14) indicating the antihypertensive effect of the plant which is perhaps due to its relaxant effect on vascular smooth muscle.
In group 2 (contracted tracheal chains with methacholine), the extract and theophylline showed relaxant effect on tracheal smooth muscle. The relaxant effects of three lower concentrations of the extract were significantly less than that of theophylline. In addition, the relaxant effects of three higher concentrations of the extract in this group were significantly lower than those of group 1.
The greater relaxant effect of the extract on KCl induced contraction of tracheal muscle (group 1), indicates that the extract may have inhibitory effect on calcium channels and/or opening effect on potassium channels. In fact, the relaxant effect of potassium channels openers (26) and calcium channel blockers (27) has been shown. In addition, it is well known that KCl can affect calcium channels. However, the greater relaxant effect on KCl induced contraction (group 1) compared to methacholine induced contraction (group 2) is in favour of inhibitory effect of the extract on calcium channels. In fact, these results supported by those of previous studies suggesting that the inhibitory effects of cirsiliol, a flavone isolated from Achillea fragrantissima, on smooth muscle are attributed to inhibition of transmembrane Ca2+ influx (22).
It is known that the agonists of β-adrenergic receptors are the most potent relaxant agents of tracheal smooth muscle (28). However, no difference in the relaxant effect of the extract between non incubated (group 2) and incubated tracheal smooth muscle with propranolol and chlorpheniramine (group 4) and contracted with methacoline indicates that the extract has no stimulatory effect on β-adrenergic receptors. These results also suggest that the relaxant effect is not mediated by the inhibitory effect of the extract on histamine (H1) receptors.
However, the significant lower relaxant effect on incubated tracheal smooth musele with propranolol, chlorpheniramine and atropine and contracted with KCl (group 3) compared to non incubated tissues (group 1) indicated a muscarinic inhibitory effect for the extract. In addition, the relaxant effects of muscarinic receptors inhibitory agents have been documented previously (29). However, more studies are required to examine the exact mechanism(s) of the relaxant effect seen for the extract of the plant.
The extract contained several substances, which could be lead to relaxation response by several mechanisms. Therefore, in group 3, tracheal smooth muscle were incubated by atropine, chlorpheniramine and propranolol to inhibit muscarinic, histamine (H1) and adrenergic receptors and evaluate the possible contribution of these three sets of receptors in observed relaxation response. In this group a significant reduction in relaxation response was observed. In group 4, tracheal smooth muscle was incubated with chlorpheniramine and propranolol to inhibit histamine (H1) and adrenergic receptors and leave muscrinic receptor intact. In this group the relaxation response did not changed significantly which suggest that main mechanism of the relaxant effect of the extract is its blocking effect on muscarinic receptors. However, the exact mechanism(s) of the relaxant effect of the plant should be investigated in further studies.
One of the constituent of Achillea wilhelmsii is carvacrol which its relaxant effect was shown previously (23, 30). Therefore, the relaxant effect of the plant could be due to its main constituent, carvacrol. However, the relaxant effect of carvacrol was higher on methacholine induced contraction of tracheal smooth muscle compared to KCl induced contraction but the effect of the extract of Achillea wilhelmsii was more potent on KCl induced contraction. These results indicate that the mechanism(s) of the relaxant effect of the extract is not exactly the same as that of carvacrol. Therefore, the relaxant of the extract of Achillea wilhelmsii is not just due to its constituent carvacrol.
There were positive correlations between concentrations and the relaxant effects of both theophylline and the extract indicating a concentration dependent relaxant effect for the extract as well as for theophylline. Although the relaxation effect of the extract of other species of this plants family was shown in different types of smooth muscle (19-21), the relaxant effect of A. wilhelmsii on tracheal smooth muscle which is in some way different from other smooth muscle had been studied and this is the first report in this regard. The relaxant effects of the extract observed in the present study can be translated to bronchodilation and might have potential benefits in asthmatic patients.
In conclusion the results of this study indicated a potent relaxant effect for the extract from A. wilhelmsii on tracheal chains of guinea pigs. The results also suggest that the H1 histamine receptors and Beta-adrenergic receptors are not involved in the relaxant effect of the extract.
Acknowledgements
References
-
1.
Gaji M. Josifovi M Ed, editor. Flore de la Republique Socialiste de Serbie. 7. Belgrade: Academie serbe des sciences et des arts; 1975. p. 95-96.
-
2.
Chevallier A. The Encyclopedia of Medicinal Plants. London: Dorling Kindersley Publishing Inc; 1996. 54 p.
-
3.
Könemann. Botanica: The Illustrated A-Z of over 10,000 Garden Plants and How to Cultivate Them. Hong Kong: Gordon Cheers Publication; 1999. p. 51-53.
-
4.
Chandler RF, Hooper SN, Harvey MJ. Ethnobotany and phytochemistry of yarrow, Achillea millefolium, Compositae. Econ. Bot. 1982;36:203-223.
-
5.
Small E, Catling PM. Canadian Medicinal Crops. (6)NRC Research Press; 1999. p. 7-12.
-
6.
Saeidnia S, Gohari AR, Kiuchi F, Honda G. A.millefolium on the epimastigotes of Trypanosoma cruzi. Iranian J. Pharm. Res. 2004:78-79.
-
7.
Goldberg AS, Evangelynne C, Eigen E. Isolation of the anti inflammatory principles from Achillea millefolium (compositae). J. Pharm. Sci. 2006;58:938-941. [PubMed ID: 4310133].
-
8.
Falk AJ, Smolenski SJ, Bauer L, Bell CL. Isolation and identification of three new flavones from Achillea millefolium L. J. Pharm. Sci. 1975;64:1838-1842. [PubMed ID: 1195115].
-
9.
Afsharypuor S, Asgary S, Lockwood GB. Constituents of the essential oil of Achillea wilhelmsii from Iran. Planta Med. 1996;62:77-78. [PubMed ID: 17252416].
-
10.
Javidnia K, Miri R, Sadeghpour H. Composition of the volatile oil of Achillea wilhelmsii C. Koch from Iran. Daru. 2004;12:63-66.
-
11.
Arzi A, Akhavan M. The analgesic effect of hydroalcholic extract of Achillea wilhelmsii on mice. Med. J. Babol Univers. Med. Sc. 2001;4:11-14.
-
12.
Hydari MR, Ebrahimi S, Mehrabani M, Pardakhti A, Vafazadeh J. The anticonvulsant effect of methanolic extract of Achillea wilhelmsii C. Koch on mice. ed. J. Babol Univers. Med. Sc. 2005;7:7-13.
-
13.
Rezaeipoor R, Saeidnia S, Kamalinejad M. Immunosuppressive activity of Achillea talagonica on humoral immune responses in experimental animals. J. Enthopharmacol. 1999;65:273-276.
-
14.
Asgari S, Naderi GH, Sarrafzadegan N, Mohammadifard N, Mostafavi S, Vakili R. Antihypertensive and antihyperlipidemic effects of Achillea wilhelmsii. Drugs. Exp. Clin. Res. 2000;26:89-93. [PubMed ID: 10941601].
-
15.
Nickavar B, Kamalinejad M, Haj-yahya M, Shafaghi B. Comparison of the free radical scavenging activity of six iranian Achillea species. Pharmac. Boil. 2006;44:208-212.
-
16.
Canan K, Sebnem A. Antispasmodic effect of Achillea nobilis L. subsp. Sipylea (O. Schwarz) Ba¨ssler on the rat isolated duodenum. J. Ethnopharmacol. 2003;84:175-179. [PubMed ID: 12648812].
-
17.
Harborne JB, Williams CA. Advances in flavonoid research since 1992. Phytochem. 2000;55:481-504.
-
18.
Hammad HM, Abdalla SS. Pharmacological effects of selected flavonoids on rat isolated ileum: structure-activity relationship. Gen. Pharmacol. 1997;28:767-771. [PubMed ID: 9184817].
-
19.
Van Den Broucke CO, Lemli JA. Spasmolytic activity of the flavonoids from Thymus vulgaris. Pharmac. Weekblad. 1983;5:9-14.
-
20.
Abdalla S, Zarga MA, Afifi F, al-Khalil S, Mahasneh A, Sabri S. Effects of 3'-di-O-methylquercetin on guinea-pig isolated smooth muscle. J. Pharm. Pharmacol. 1989;41:138-141. [PubMed ID: 2568427].
-
21.
Rojas A, Cruz S, Ponce-Monter H, Mata R. Smooth muscle relaxing compounds from Dodonaea viscosa. Planta Med. 1996;62:154-159. [PubMed ID: 8657750].
-
22.
Mustafa EH, Abu Zarga M, Abdalla S. Effects of cirsiliol, a flavone isolated from Achillea fragrantissima, on rat isolated ileum. Gen. Pharmacol. 1992;23:555-560. [PubMed ID: 1511863].
-
23.
Boskabady MH, Jandaghi P. Relaxant effects of carvacrol on guinea pig tracheal chains and its possible mechanisms. Pharmazie. 2003;58:661-663. [PubMed ID: 14531466].
-
24.
Boskabady MH, Khatami A, Nazari A. Possible mechanism(s) for relaxant effects of Foeniculum vulgare on guinea pig tracheal chains. Pharmazie. 2004;59:561-564. [PubMed ID: 15296096].
-
25.
Holroyde MC. The influence of epithelium on the responsiveness of guinea pig isolated trachea. Br. J. Pharmacol. 1986;87:501-507. [PubMed ID: 3801763].
-
26.
Buckle DR, Arch JRS, Boering NE, Foster KA, Taylor JF, Taylor SG, Shaw DJ. Relaxation effect of potassium channel activators BRL 38227 and Pinacidil on guinea pig and human airway smooth muscle, and blockade of their effects by Glibenclamide and BRL 31660. Pulmon. Pharmacol. 1993;6:77-86.
-
27.
Miyahara Y, Kizawa Y, Sano M, Murakami H. Effect of organic and inorganic Ca2+ antagonists on acetylcholine induced contraction in molluscan (Mytilus edulis) smooth muscle. Gen. Pharmacol. 1993;24:1419-1423. [PubMed ID: 8112515].
-
28.
Linden A, Bergendal A, Ullman A, Skoogh BE, Lofdahl CG. Salmetrol, formetrol, and salbutamol in the isolated guinea-pig trachea: differences in maximum relaxant effect and potency but not in functional antagonism. Thorax. 1993;48:547-553. [PubMed ID: 8100652].
-
29.
Lronards B, Rampart M, Herman AG. Selective M3 muscarinic receptor inhibit smooth muscle contraction in rabit trachea without increasing the release of acetylcholine. J. Pharmacol. Exp. Ther. 1992;263:773-770. [PubMed ID: 1359117].
-
30.
Boskabady MH, Ramezani M, Tabei T. Relaxant Effects of Different Fractions of Essential Oil from Carum copticum on Guinea Pig Tracheal Chains. Phytother. Res. 2003;17:1145-1149. [PubMed ID: 14669246].
