Abstract
Keywords
Achillea tenuifolia Iron overload 5-hydroxy-flavone Quercetin Chelation assay
Introduction
Asteraceae, the largest family of angiosperms, comprises about 1500 genera and 23000 species, distributed in three subfamilies and seventeen tribes. The genus Achillea is composed of 115 species of perennial herbs, all native to temperate regions of the northern hemisphere (1). Aerial parts of different species of this genus are widely used in folk medicine for preparation of herbal teas with antiphlogistic and spasmolytic activity (2). One document published about two centuries ago as Makhzan-ol-Advieh, recommended it for bladder stone and urinary obstruction (3). Recent studies show that plant extracts exhibit pharmacological activities like anti-inflammatory and antiallergic (2), antihelmintic, cholagogue, antibacterial and antioxidant properties (4). Achillea tenuifolia Lam. is a perennial herb, distributed in some regions of Iran (5). In previous studies, the preliminary chemical examination has demonstrated that phenolics compounds were responsible for the antioxidant and lipid peroxidation inhibitory effects of this plant (6-8). Therefore, considering the recently pharmacological studies and introduction of some flavonoids in iron-chelating therapy for diseases like thalassemia (9), the in-vitro iron-chelating effect of flavonoid isolated from Achillea tenuifolia was studied to provide further support for flavonoids to be candidate for iron overload disorders.
Experimental
General
The NMR spectra were recorded on a Bruker Avance AV 400 and AV 500 NMR instrument. Infrared spectra were recorded on a FTIR-8900 Shimadzu spectrophotometer with KBr discs; Ultraviolet (UV) spectra were recorded on Hitachi U-3200 spectrophotometer; EI-MS spectra were measured in an electron impact mode on Varian MAT 112 or MAT 312 spectrometers. Chromatographic materials were silica gel (25-40 μm; LiChroprep® Si 60) and Sephadex LH-20 (Pharmacia, Inc., Piscataway, NJ, USA). TLC detection was achieved by spraying the silica gel plates with ferric chloride and cerium sulphate in 10% aq.H2SO4, followed by heating.
Plant material
Aerial flowering parts of Achillea tenuifolia Lam. (Asteraceae) was collected from Zanjan province (Iran). Plant material was identified by M.Kamalinezhad, plant taxonomist and a voucher specimen deposited in the herbarium of the Faculty of Pharmacy, and Pharmaceutical Sciences in Shahid Beheshti University of Medical Sciences (Iran).
Extraction and isolation
The powder of the air-dried plant material (4 kg) was soaked in methanol (15 L × 3) at room temperature for 3 days, (By three times), and the resulting extract was concentrated to a gum (300 g). Methanolic extract was dissolved in distilled water and defatted with petroleum ether. The defatted aqueous extract was further fractionated with dichloromethane and n-butanol. The dichloromethane fraction (50 g) was chromatographed on normal column using gradient mixtures of Hexane: EtOAc (0 → 100%) followed by methanol to afford ten fractions: Fr.1-Fr.10. Fr. 1 contained oils and fatty acids (inferred from 1H-NMR spectra). Fr. 2 eluted with Hexane/EtOAc (95: 5) was purified by two times preparative TLC with the eluent system of Hexane/ Me2CO (8: 2) to give compound 1. Rich chlorophyl fracrions (Fr. 3-5), were put aside and Fr. 6 eluted with Hex / EtOAc (8: 2) was rechromatographed on silica gel (Hexane/ Me2CO, 6: 4) to render several fractions: Fr. 6a-h. Then, Fr. 6a, contained mixtures of flavonoids and pigments, was further separated on PLC to yield Fr. 6a8 as compound 2. Finally, fraction eluted with EtOAc / MeOH (9: 1) was loaded on normal columns using Me2CO / MeOH (9: 1) to obtain pure compound 3.
β-sitosterol (1). White crystals, m.p. 138-142˚ C, 1H-NMR (400 MHz, CDCl3): 0.66 (3H, s, H-18), 0.79 (3H, br d, H-26), 0.81 (3H, d, J=7.6 Hz, H-27), 0.83 (3H, bd, H-24), 0.90 (3H, d, J= 6.4 Hz, H-21), 0.99 (3H, s, H-19), 3.50 (1H, m, H-3), 5.33 (1H, m, H-6). 13C-NMR (100 MHz, CDCl3): 140.8(C-5), 121.7 (C-6), 71.8 (C-3), 56.8 (C-17), 56.1 (C-14), 50.2 (C-9), 45.9 (C-24), 42.3 (C-13, C-4), 39.8 (C-12), 37.3 (C-1), 36.5 (C-10), 36.1 (C-20), 34.0 (C-22), 31.9 (C-8, C-7), 31.7 (C-2), 29.2 (C-25), 28.2 (C-16), 26.1 (C-23), 24.3 (C-15), 23.1 (C-28), 21.1 (C-11), 19.8 (C-26), 19.4 (C-19), 19.1 (C-27), 18.8 (C-21). EIMS m/z (rel. int.): 414 [M]+ (22), 329 [M-C5H7-H2O]+ (7), 303 [M-C7H9-H2O]+ (9), 273 (5), 255 (7), 231(7), 213 (11), 161 (16), 119 (25), 107 (44), 105 (43), 95(49), 79(30), 71(36), 69(63), 67(40), 57 (99), 55 (100).
5-Hydroxy, 4’, 6, 7–trimethoxyflavone (2). Pale yellow powder. m.p.: 185°C, UV max (MeOH): 276, 328 nm; 1H-NMR (500 MHz, CD3OD) δ 3.83,3.89,3.98 (each 3H, S, OMe), 6.70 (1H, S, H-8) , 6.83 (1H, S, H-3 ), 7.08 (2H, d, J=9 HZ , H-3’ ,5’ ), 7.97 (2H ,d, J=9 HZ , H-2’,6’). 13C-NMR (125 MHz, CD3OD) δ 55.5 (4’-OMe),56.2 (7- OMe), 60.8 (6-OMe), 90.5(C-8),104 (C-3), 106.4 (C-10 ), 114.4 (C-3’,5’), 123.4 (C-1’ ), 127.9 (C-2’,6’ ), 132.5 (C-6 ), 153.0 (C-5 ), 153.2 (C-9 ) ,158.7 (C-7) ,162.6 (C-4’ ), 163.9 (C-2 ), 182.6 (C-4 ). HREI-MS m/z 328.0931 (calcd. for C18H16O6, 328.0946); EI-MS m/z (%): 328 (100), 313 (99), 285 (25), 282 (22), 181 (26), 153 (73), 135 (21), 133 (37), 85 (20), 83 (44), 71 (29), 69 (90), 57 (49), 55 (36).
Methyl-galate (3). White crystals, Mp: 197-199 °C. IR (KBr) γ max: 3500, 3300, 1690, 1610, 1530, 1460, 1435, 1310, 1250, 1190, 1040 cm-1. 1H-NMR (400 MHz, CD3OD): 3.80 (3H, s), 7.04 (2H, s). HREI-MS m/z: 184.0362 (calc. for C8H8O5, 184.0372, Δ -5.2 ppm), EIMS m/z (rel. int.): 184 [M]+ (81), 154 [M-MeOH]+ (10), 153 [M-MeO]+ (100), 125 [M-COOMe]+ (23), 107 (5), 79 (8), 44 (9).
Determination of stoichiometry of metal-ligand complexes
The mole-ratio method has allowed us to determine the composition of the complexes in solution from spectrophotometric spectra. In this method, the flavonoid stock solution (1.0 × 10-3 M) was prepared successively in methanol. Iron(III), Cupper(II) and Zinc (II) solutions as metal cation solution were prepared in concentration of 1.0 × 10-3 M from reagent grade Fe (NO3)3, CuCl2 and ZnSO4 from Merck company. A concentration of 1.0 × 10-4 M of flavonoid was diluted from stock solution and kept constant. Typical titration experiments were performed by sequential additions of 33 μL of metal ion solution (1.0 × 10-3 M) to the same 3 mL flavonoid solution (1.0 × 10-4 M) in a quartz cuvette. UV/Vis spectra were recorded on a Perkin Elmer Lambda 25 spectrometer at 25 °C and absorbance of each solution was then measured at absorbance maxima and plotted vs. metal ion/ ligand (M/L) molar ratios. The break point in the plot is corresponded to the mole-ratio of the metal ion in the ligand-metal complex (10, 11).
Computational molecular modeling
All calculations were run on a TOSHIBA laptop computer with Genuine Intel(R) CPU running Windows XP operating system. The Chem-Draw Ultra version 9.0 (Chem-Office 2005, Cambridge-Soft Corporation; Cambridge, MA) software was employed for drawing the initial 2D complexes structures. The generated 2D structures were transferred to MOE and Gaussian 98 software for further geometry optimization. Applying PM3 semi-empirical calculations, the 3D geometry optimization process was run many times with different starting points and finally the theoretical heat of formation of each complex were calculated separately (10).
Results and Discussion
Compound 2 was isolated from dichloromethane soluble part of the methanolic extract of Achillea tenuifolia. The HREI-MS exhibited the molecular ion peak at 328.0931 [M]+ , corresponding to the molecular formula C18H16O6 consistent with eleven degrees of unsaturation. The UV spectrum showed absorption maxima at 276 and 330 nm, characteristic of flavone derivatives (12). The bathochromic shifts of Band I (in MeOH) to Band Ia (in AlCl3/HCl) was 30 nm in agreement with those recorded for 5-hydroxy flavones (35-55 nm) and in contrast with 3-hydroxy-flavones (and 5-hydroxy-3-hydroxy-substituted flavonols), which is around 50-60 nm (12). EIMS spectrum showed m/z 328 as a base ion together with fragment ions of m/z 181 and 133, characteristic retro-Diels-Alder (RDA) fragments for a flavone-skeleton with two methoxyl and one hydroxyl groups on ring A and one methoxyl group on ring B (13, 14). 13C NMR showed 18 carbon signals including three methoxyl carbons δ 55.5 (4’-OMe), 56.2 (7- OMe), 60.8 (6-OMe), 14 olefinic carbones, and a carbonyl (182.6 ppm) carbon. The 1H-NMR showed two doublets, each of two proton integration at δ 7.08 and 7.97 ppm with coupling constant 9 Hz. These were assigned to H-3’, 5’ and H-2', 6’ respectively, which were ortho to each other in ring B. The same spectrum showed two singlets, each integrated for one proton at δH 6.70 (H-8) and 6.83 (H-3), and one proton at δH 8.54 ppm, which could be assigned as a hydroxyl group on C-5 position of flavone structure. Therefore, based on similar NMR data, published before, compound 2 was deduced to have a structure as 5-hydroxy, 4',6,7 -trimethoxy flavone (14, 15).

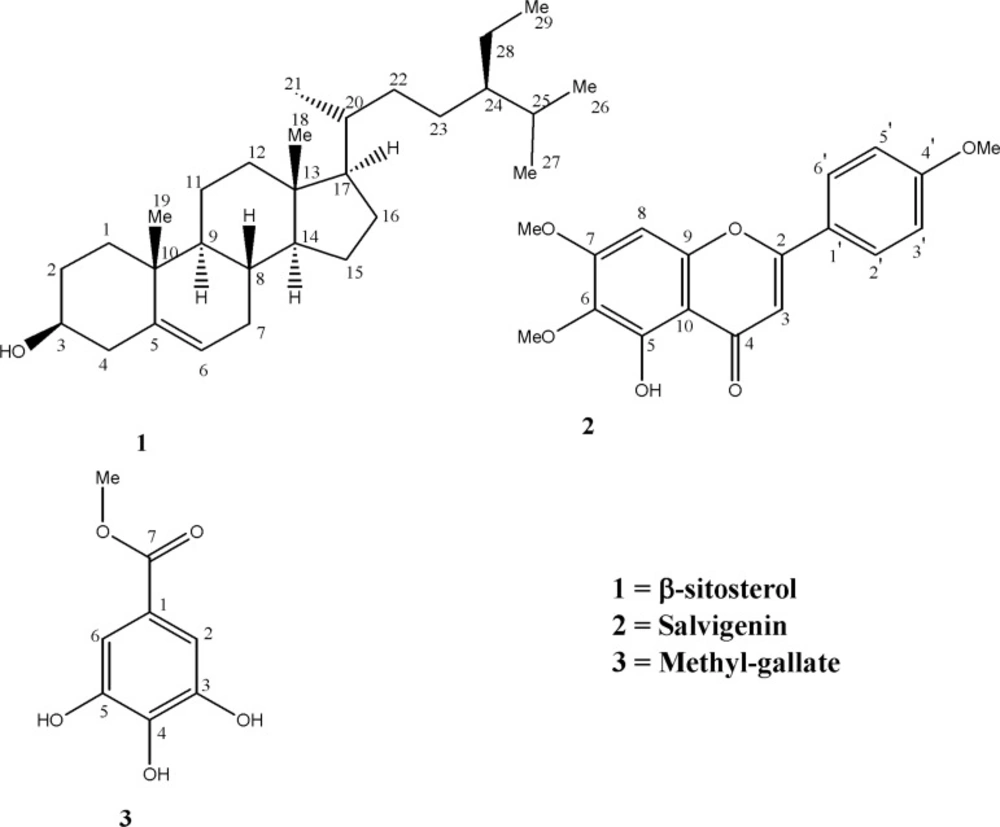

In the same manner, comparison of the NMR and Mass spectral data of compound 1 and 3 with those published before in literature allowed us to establish the structures of these two other known compounds as β-sitosterol (1) and methyl-galate (3) which was confirmed by co-TLC with their authentic samples (4,15-18).
Chemotaxonomic significance
The isolation of 5-hydroxy, 4',6,7 – trimethoxy flavone (salvigenin) was in agreement of a survey of detailed favonoid distribution within Achillea species which revealed a strong tendency towards formation of (polymethoxy) favonoids and specially 6-methoxylation as a basic chemical trend within the genus Achillea. It was also in accordance with the reported examination of exudate flavonoids have already been found in A. ptarmica, A. millefolium , A. nobilis, A. ageratum, A. ochroleuca, A. babounya, A. clavennae and A. talagonica which would merit taxonomic recognition (4, 18-19).
Detemination of stoichiometry of metal-ligand complexes

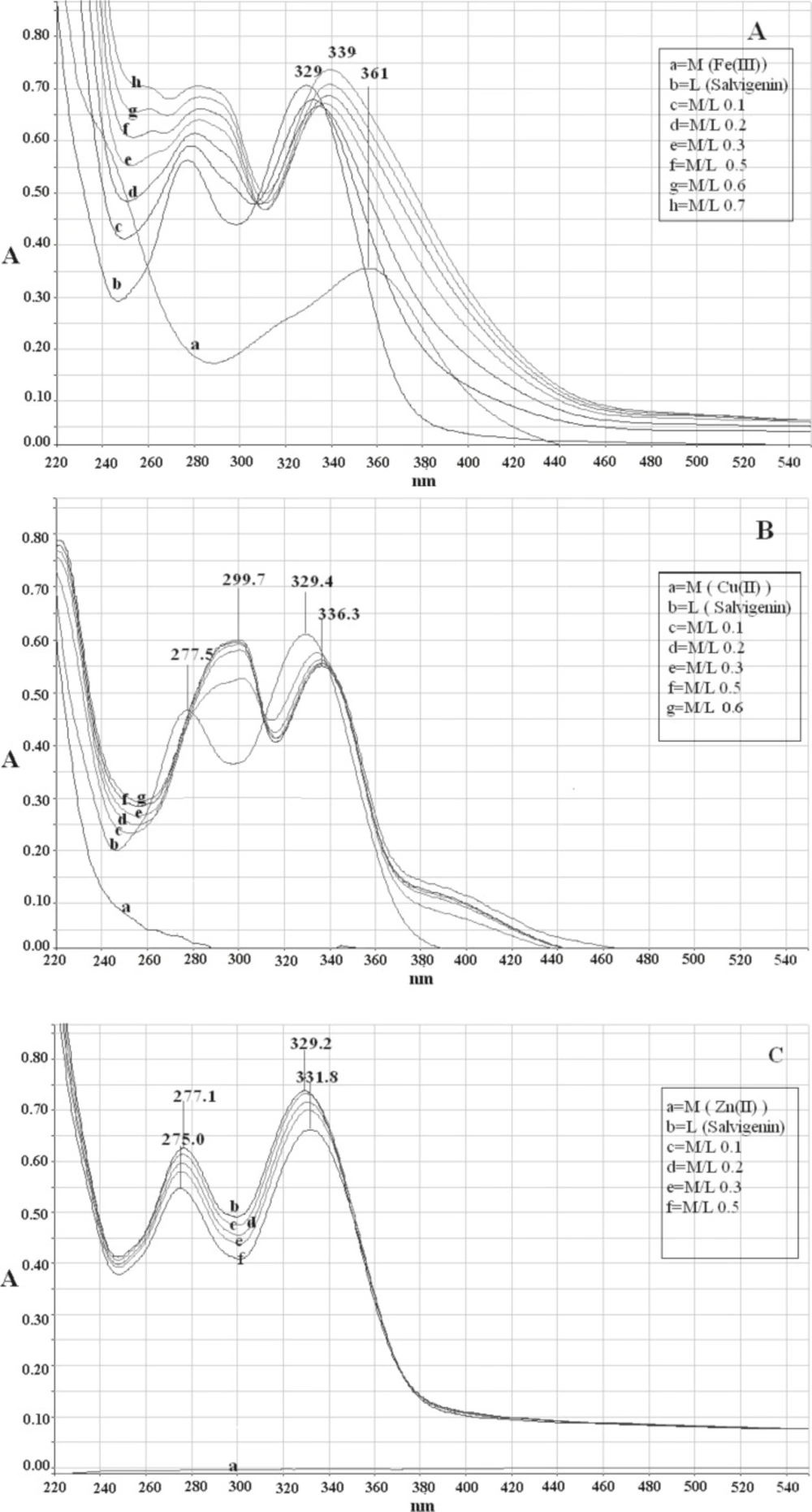

Two major absorption bands with maxima at 329 nm (band I) and 277 nm (band II) characterized the UV-Vis spectrum of salvigenin in methanolic solution without pH control (Figure 2(a)). Before studying the interaction of metal ions with compound 2 (salvigenin), the control studies were done on quercetin and the results were compared to literature to ensure that the obtained results are true. The addition of Fe(III) to quercetin (Sigma-Aldrich Corp., St. Louis, MO, USA), as positive control resulted in significant change of the absorbance spectrum with the appearance of a new band centered on 428 nm with bathochromic shift of about 58 nm from the original band in the absence of Fe(III). Similarly, the absorbance of band I of salvigenin decreased at 329 nm and a new band, which increased with the amount of added Fe+3 ions, appeared at 339 nm. The higher Fe (III) concentration, resulted in higher amount of the salvigenin and quercetin complexes in solution and the intensity of the absorption band at the long wavelength was increased. The stoichiometry ratio of Fe(III) with salvigenin and quercetin without pH control were 1:2 and 1:1, respectively. In the same manner complexation of Cu (II) with flavonoids produced a bathochromic shift in band II of 18 nm and 22 nm together with red shift at the position of band I of 54 nm and 7 nm for quercetin and salvigenin (Figure 2 b), subsequently with stoichiometry ratio of 1:2. Under similar conditions, in the Zn(II) complexation of quercetin, the experimental results showed 12 nm and 52 nm red shift in band II and band I with mole-ratio of 1:1, while surprisingly, no changes were observed in the positions of both the bands in the 5-hydroxy-6,7,3′-trimethoxyflavone spectrum even in higher concentrations (Figure 2c).
Computational molecular modeling

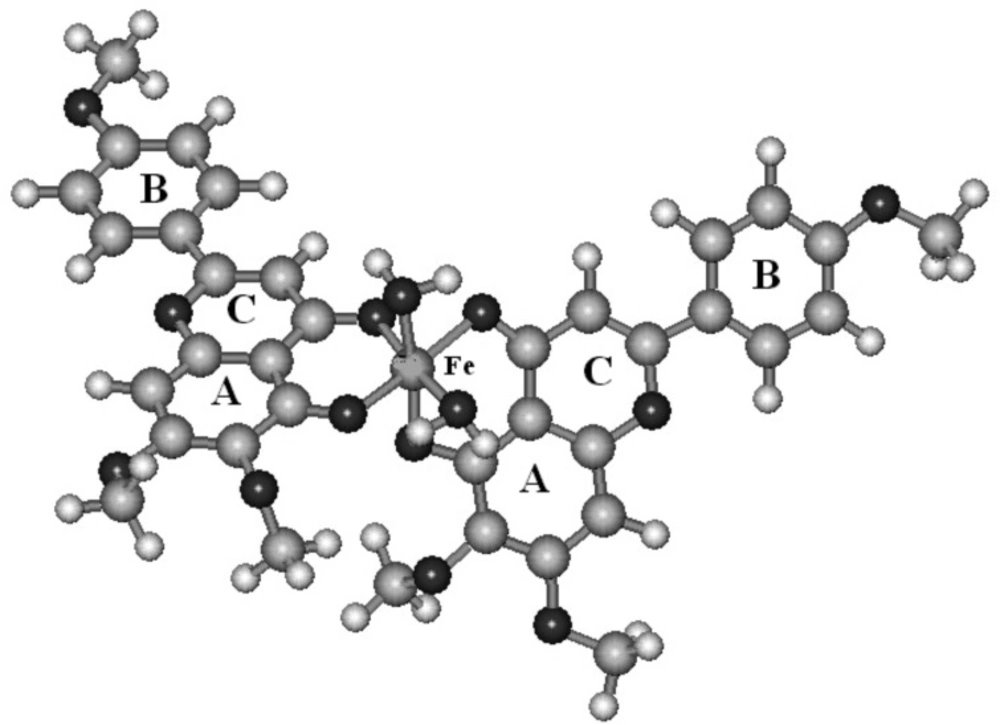

The derivation of theoretical heat of formation proceeds from the optimized chemical structure of the investigated complexes (Figure 3). The calculated heat of formation for each studied complexes are summarized in table 1. The water molecules have been added to achieve octahedral structures for complexes which have two bounded ligands. It can be seen that calculated heat of formation have negative values for the studied complexes.
Heat of formation of proposed salvigenin-complexes by using semi-empirical PM3 calculations
Complex | Heat of formation |
---|---|
Fe (lig)2(H2)2 | 689.732- |
Cu (lig)2(H2)2 | 573.543- |
Conclusion
We investigated the complexation of salvigenin with Fe(III), Cu(II) Zn(II), the most abundant type of metal ions in the body. Applying molar-ratio method, it was determined that stoichiometric ratio of salvigenin with Fe(III) and Cu(II) were as Fe (Salvigenin)2 (H2O)2 and Cu (Salvigenin)2 (H2O)2 in methanolic solution without pH control, while zinc ions didn`t show significant complexes with salvigenin. These results were confirmed more, by computational molecular modeling of the structure of proposed ligand-complexes by semi-imperical PM3 calculations, which determined negative heat of formation for the complexes Fe(III) and Cu(II) ions as -689.7 and -573.5, showing the affinity of salvigeninthe in the following order: Fe(III)> Cu(II) >> Zn(II).
In comparision with quercetin, the Fe-binding properties with more affinity than Cu(II) ions without chelating Zn(II) proposed salvigenine as an iron-chlating candidate in dietary supplementary medicine especially for patients with high iron levels like thalassemia, and wilson`s disease with toxic levels of copper in the body.
Acknowledgements
References
-
1.
Heywood VH. Flowering Plants of the World. BT Batsford Ltd, England. 1998:263-268.
-
2.
Ahmed AA, Gati T, Hussein TH, Ali AT, Tzakou OA, Couladis MA, Mabry TJ, Toth G. Liqustolide A and B, two novel sesquiterpenes with rare skeletons and three, 1,10-seco-guaianolide derivatives from Achillea ligustica. Tetrahedron. 2003;59:3729-3735.
-
3.
Khorasani A. Makhzan al-adviyah, Qarabadin el- Kabir. Mahmoudi Press, Tehran. 1970:110-111.
-
4.
Trifunovic S, Vajs V, Juranic Z, Zizak Z, Tesevic V, Macura S, Milosavljevic S. Cytotoxic constituents of Achillea clavennaefrom Montenegro. Phytochemistry. 2006;67:887-893. [PubMed ID: 16616262].
-
5.
Ghahreman A. Flora of Iran. 15. Tehran: Research Institute of Forests and Rangelands Publications; 2003. No. 1753.
-
6.
Souri E, Amin G, Farsam H, Jalalizadeh H, Barezi S. Screening of thirteen medicinal plant extracts for antioxidant activity. Iranian J. Pharm. Res. 2008;7:149-154.
-
7.
Asgarirad H, Pourmorad F, Hosseinimehr SG, Saeidnia S, Ebrahimzadeh MA, Lotfi F. In-vitro analysis of Achillea tenuifolia. Afr. J. Biotechnol. 2010;9:3536-3541.
-
8.
Moradi F, Lotfi Maldar F, Saeidnia S, Gohari AR. Investigation of cytotoxic activity for Achillea talagonicaand A. tenuifolia. Iranian J. Pharm. Res. 2004;Supple 2:76-76.
-
9.
Zhao Y, Li H, Gao Z, Xu H. Effects of dietary baicalin supplementation on iron overload induced mouse liver oxidative injury. Eur. J. Pharmacol. 2005;509:195–200.
-
10.
Septhum C, Rattanaphani V, Rattana-phani S. UV-Vis spectroscopic study of natural dyes with alum as a mordant. Suranaree J. Sci. Technol. 2007:91-97.
-
11.
Macáková K, Filipský T, Zatloukalová L, Jahodář L, Bovicelli P. Etc. In-vitro analysis of iron chelating activity of flavonoids. J. Inorg. Biochem. 2011;105:693.
-
12.
Mabry T, Markham KR, Thomas MB. The Systematic Identification of Flavonoids. New York: Springer; 1970. p. 33-60.
-
13.
Budzikiewicz H, Djerassi C, Williams DH. Structure Elucidation of Natural Products by Mass Spectrometry. San Francisco: Holden day INC; 1964. p. 150-250.
-
14.
Hanawa F, Towers G. Flavones from Alnus rubraBong seed coat. 2003 Bull. Forestry and Forest Products Res. Institute;2:85-91.
-
15.
Ayatollahi SAM, Shojaii A, Kobarfard F, Mohammadzadeh M, Choudhary MI. Two flavones from Salvia leriaefolia. Iranian. J. Pharm. Res. 2009;8:179.
-
16.
Moghaddam FM, Farimani MM, Salahvarzi S, Amin G. Chemical constituents of dichloromethane extract of cultivated Satureja khuzistanica. J. Evid. Based Complementary Altern. Med. 2007;4:95.
-
17.
Ma X, Wu L, Ito Y, Tian W. Application of preparative high-speed counter-current chromatography for separation of methyl gallate from Acer truncatum Bunge. J. Chromatogr. A. 2005;1076:212-5. [PubMed ID: 15974092].
-
18.
Saeidnia S, Moradi-Afrapoli F, Gohari AR, Malmir M. Flavonoid from Achillea talagonica. J. Med. Plants. 2009;8:51.
-
19.
Valant-Vetschera KM, Wollenweber E. Exudate favonoid aglycones in the alpine species of Achillea. Ptarmica: Chemosystematics of A. moschata related species (Compositae/Anthemideae). Biochem. Syst. Ecol. 2001;29:149-159.
