Evaluation of Phytochemical, Antioxidant and Antibacterial Activity on Astragalus Chrysostachys Boiss. Roots

Introduction

Since ancient times, natural medicines especially herbal medicines, has been widely used to treat or alleviate various disorders. Over the last century, development in chemistry and discovery of synthetic compounds, stem from complex synthesis methods, led to discovery of more effective medicines and replacement of ancient natural treatments with new drugs and modern pharmaceuticals.

Even though modern medicines were able to treat many incurable and fatal diseases but herbal treatments have never been ignored. Plants, as huge natural resources of phytochemicals, have been found to exert beneficial activity in variety of diseases.

In addition, number of herbal products and their medicinal purposes has been increased nowadays. Our country, among Asian countries, has various and fascinating medicinal plants due to its climate diversity in different regions. Astragalus L. is a large genus among vascular plants from Legominales tribe and Fabaceae family. The plants from this genus are generally called as Milkvetch (1). It has vast distribution in the world which mostly grows in cold, dry, and semi dry areas (2). More than 2500 species of Astragalus have been identified throughout the world so far. In Iran numerous species of Astragalus genus have been recognized which is around 800 species (3). This plant usually grows in mountainous area of Iran and is thorny. Due to its strong roots it also plays a significant role in prevention of soil erosion. Many people in Iran are familiar with Astragalus because of the reputation of Persian tragacant; a valuable polysaccharide in cosmetic industry obtained from A. gummifera (4).

Since ancient time, members of Astragalus genus, especially A. membranaceus, A. mongholicus, A. trigonius, and A. gummifera have been used as an important drug in traditional medicine in China, Russia, and Bulgaria to improve immunity system (5,6). Antibacterial and antifungal effects of Astragalus plants have been proved in many researches (7-10). These studies revealed the contribution of saponins in these effects. Some species of this genus showed anti-protozoal effect (11). The protective effect of Astragalus L. in cardiovascular system (12-14), liver (15), diabetes (16), and neurodegenerative diseases (17) suggest the presence of antioxidant components in their tissues (18).

Down the ages, development of drug resistance pathogens has evoked interests to screen natural resources in order to introduce novel antimicrobial substances. Moreover, the adverse effect of oxidative stress, due to an excessive formation of free radicals, is another serious issue which causes important destructive effects on human health. Nowadays, medicinal plants as a natural source of antimicrobial and antioxidant constituents with limited side effects are attained special interest.

Hence (19,20), the present research was designed to analyze the phytochemical compositions of Astragalus chrysostachys Boiss. roots and also to evaluate the antioxidant and antibacterial properties of total hydroalcoholic (TE), ethyl acetate (EE) and n-butane (BE) extracts of Astragalus chrysostachys Boiss. roots.

Experimental

Chemicals

1D and 2D NMR spectra were acquired on a Bruker Avance spectrometer (1H, 400 MHz and 13C, 100 MHz) at ambient temperature using a Topspin software pakage. CD₃OD, 2,2-diphenyl-1-picrylhydrazyl (DPPH), quercetin, rutin, ethylenediaminetetraacetic acid (EDTA), gallic acid, Folin-Ciocalteu reagent, sodium nitroprusside, potassium hexacyanoferrate, Griess regent, and aluminum chloride all from Sigma Aldrich chemical company (USA) were used. Moler Hinton broth and Kieselgel 60 GF₂₅₄ were from (Merck, Germany). All other chemicals also were of analytical grade.

Micro-organisms

Five microorganisms were used in this study, including four bacteria and one fungi. The bacteria that were used in this study consisted of two gram-positive, Staphylococcus aureus (ATCC 25923) and Listeria monocytogenes (ATCC 1163) and two gram-negative, Escherichia coli (ATCC 25922), and Pseudomonas aeruginosa (ATCC 27853). All bacteria have been obtained from Posture Institute of Iran and were MRSA clinical isolated.

Plant material

Astragalus chrysostachys Boiss. was collected in July 2012 from Arasbaran area in East Azerbaijan and authenticated at the herbarium of Agriculture and Natural Resources Research and Education Center, Tabriz, Iran, where a voucher specimen was deposited in the herbarium (Register No: 8303).

Preparation of extracts and phytochemical analysis

To prepare various extracts, 500 g air-dried roots powder were defatted with petroleum benzene and exhaustively extracted by maceration with 70% methanol (1L×4) at room temperature. Part of the total hydromethanolic (TE) extract was subjected to dryness in vacuo at 50 °C to give 4g dry TE and kept in refrigerator for further study. Afterwards, the methanol of the remaining TE from previous step was removed by rotary evaporator under vacuum at 50 °C. The aqueous residue was successively fractionated with ethyl acetate and finally n-butanol. The resultant extracts were dried under reduced pressure in evaporator which yielded 11.5g ethyl acetate extract (EE) and 14.3g n-butanol extract (BE). The EE was positive to Mg/HCl reagent (deep purple color was appeared), suggesting the presence of flavonoids. To detect the flavonoids, EE was subjected to vacuum liquid chromatography (VLC) on silica gel using step-wise gradient of CHCl₃- EtOAc (10:90 to 0:100) followed by EtOAc-MeOH (95:5 to 0:100, 200 mL for each step) to obtain 22 fractions. Among those the fraction 14 eluted with EtOAc-MeOH (40:60) was further subjected to preparative TLC on silica gel glass plates (Kieselgel 60 GF₂₅₄, 0.9mm thickness) using EtOAc:CH₃COOH:HCOOH:H₂O (100:11:11:26) as mobile phase to give one flavonoid (Rf=0.70, 8 mg). Detection was performed under UV-Visible light.

Meanwhile, the essential oil of the fresh roots was prepared by hydrodistillation using Clevenger-type apparatus.

GC-MS analysis

The essential oil was obtained by hydrodistillation. After 1 hr of distillation, the distillate was extracted with n-hexane and analyzed by GC-MS using a Shimadzu GC-MS-QP 5050A gas chromatograph equipped with a DB1 (methyl phenyl sylonane, 60 m x 0.25 mm i.d., 0.25 μm film thickness) capillary column. Helium was used as the carrier gas. The GC analysis was performed at the flow rate of 1.3 mL/min; linear velocity: 29.6 cm/s; Split ratio, 1:29; column temperature 2 min in 60 °C, 50-270 °C at 3 °C/min; injector temperature 250 °C, and 1 µL of volume injection of the essential oil. The MS detector parameters were set as follows: ionization potential, 70 eV; ion source temperature; 270 °C; quadrupole 100 °C, Solvent delay time 2 min, scan speed 2000 amu/s, scan range 30-600 amu, and EV voltage 3000 volts.

The identification of compounds was performed on the basis of direct comparison of the retention indices and fragmentation patterns of the mass spectra with those reported in the literature as well as by computer matching with the Wiley 229, Nist 107, Nist 21 Library. The relative area percentages were obtained by FID without the use of correction factors, where the FID detector condition was set on a duplicate of the same column applying the same operational conditions.

Evaluation of antibacterial activity

Quantitative evaluation of antimicrobial activity of EE, BE, and TE was performed according to micro dilution broth method and recommendation of CLSI (Clinical and Laboratory Standard Institute) in which MIC and MBC were determined.

A two-fold dilution series of extracts from 128 to 1 mg/mL were prepared in DMSO and 100 µL of each concentration dispensed in 96 well microtitration plate. Then, each well was inoculated with 100 µL of suspension of bacterial inoculum in Moler Hinton broth, which was adjusted to 0.5 McFarland scale and incubated for 24 h at 35 °C. After incubation time, the lowest concentration of the extracts that inhibited growth of microorganism in wells was considered as MIC.

To determine MBCs, the wells that showed no visible microbial growth were separately streaked on agar plates. Afterwards, the plates were incubated for 24h at 35 °C. The concentration which showed 99.9 percent with no formation of solid colony wasconsidered as MBC. Positive and negative controls were used. All the experiments were repeated 3 times.

Assay for antioxidant activity

The free radical scavenging capacity of the TE, EE, and BE extracts of A. chrysostachys roots were evaluated from the bleaching of the purple-colored methanolic solution of DPPH. Concisely, DPPH solution with concentration of 0.08 mg/100mL in methanol was prepared. The stock concentration of 1mg/mL of each extract was prepared in methanol followed by two-fold dilution series (i.e. 5×10^-1, 2.5×10^-1, 1.25×10^-1, 6.25×10^-2, 3.13×10^-2 and 1.56×10^-2 mg/mL).

Subsequently, 2 mL of DPPH solution was added to 2 mL of each sample and after a incubation time of 30 min at room temperature, absorbance of the mixtures were read at 517 nm (21). The mixture of equal volume of methanol and DPPH solution was served as control group. Furthermore, the quercetin was used as positive control. The experiments were performed in duplicate and the average absorption was noted for each concentration.

The free radical scavenging percentages (I%) were calculated as per the following formula:

I (%) = [(A_Control- A_Sample)/A_Control] × 100

Where A_Control is the absorbance value of the control and A_Sample is the absorbance value of the sample. The curves of I% against each extract concentration were plotted and IC₅₀ values were calculated. IC₅₀ is the concentration of each extract inhibiting 50% of free DPPH radicals.

Nitric oxide radical inhibition assay

Nitric oxide generated from aqueous sodium nitroprusside solution at physiological pH interacts with oxygen to produce nitrite ions, which could be assigned by the Griess reagent (22). Generally, scavengers of nitric oxide compete with oxygen resulting in reduced amounts of nitrite ions and extracts containing antioxidant ingredients inhibit nitrite production via entrapment of nitrite ions. For the experiment, 2.5 mL of sodium nitroprusside (10 mM) in phosphate buffered saline (pH 7.4) was mixed with 0.5 mL of different concentrations of TE, EE, and BE extracts. After incubation for 150 min at room temperature, 0.5 mL of the solutions was mixed with 1mL sulfanilic acid (0.33% in 20% glacial acetic acid). Later than 5 min, 1 mL of 0.1% naphthyl ethylene diaminedihydrochloric acid was added and allowed to stand for 30 minutes at room temperature to form chromophoricdiazo dye. The changes in color of the solutions from colorless to pink and up to deep purple were measured spectrophotometrically at 548 nm against a blank sample. Rutin was used as a positive control for comparing inhibition rate of nitric oxide radicals. Eventually, the percentages of inhibition were calculated and the results were reported as IC₅₀ values, the concentration of the extract required to inhibit 50% of nitric oxide radicals.

The % inhibition was calculated as follow:

% Inhibition of nitric oxide radical = [A₀-As]/A₀×100

Where A₀ is the absorbance before reaction with Griess reagent and As is the absorbance after reaction with Griess reagent.

Reducing power assay

The Fe³⁺ reducing power of TE, EE, and BE were assessed according to the method of Yen and Chen (23). Different concentrations of the extracts and rutinas the standard were mixed with 2.5 mL of phosphate buffer (pH 6.6) and 2.5 mL of 1% potassium ferricyanide [K₃Fe (CN) ₆] solution. The mixture was incubated at 50 °C for 20 min and then 2.5 mL of trichloroacetic acid (10%, W/V) was added to stop reaction. The upper layer of the solution (2.5 mL) after centrifugation was mixed with 2.5 mL distilled water and 0.5 mL FeCl₃ 0.1% w/v. Finally, the absorbance of the reaction mixture was measured at 700 nm spectrophotometrically.

Metal chelating activity assay

Chelating reaction of Ferrozine with Fe²⁺ results in formation of a red color complex. Presence of other chelating substances decreases the production of red color Ferrozine-Fe²⁺

chelate and subsequently decreases in intensity of red color. Hence, measurement of the color indicates the chelating activity of a sample to compete with ferrozine for Fe²⁺. Herein, the ability of tested extracts (TE, EE and BE) to chelate ferrous iron, were measured by little modification to Dinis method (24). Briefly, 5mL of each extract in different concentrations were mixed with 0.1 mL of 2mM of FeCl₂ (2 mM) and 1.6 mL of deionized water was added. Later, 1mL of ferrozine (5 mM) was added and incubated for 10 min at room temperature reaching the equilibrium. After all, absorbances of the mixtures were measured at 562 nm. The percentage of inhibition of ferrozine-Fe²⁺ complex was calculated from [(A_Control/A_Sample)/A_Control] × 100, where A _Control was the absorbance of the control (blank, without extract) and A _Sample was the absorbance in the presence of the extract. EDTA was used as a positive control which chelates to Fe²⁺ in a fairly large amount. Besides, the IC₅₀ value, the concentration of each extract required to inhibit the formation of Fe²⁺–Ferrozine complex in 50% was calculated.

Results

Phytochemical analysis of EE

Phytochemical analysis of EE led to isolation of the predominant component of this extract. The structure elucidation was conducted with the UV, ¹³C NMR, ¹H NMR, HMBC, and DEPT experiments. The isolated compound, yellow amorphous powder, and UV spectrum (MeOH) showed absorption maxima at 272nm and 334nm suggestingthe compound to be a flavonoid which was further confirmed with NMR spectra. In H NMR (CD₃OD, 400MHz) spectrum two ortho-coupled doublets with integration of two protons at δ_H6.94 (J=7.2 Hz, H-3´, 5´) and δ_H8.02 (J=7.2Hz, H=2´,6´) indicatingthe 4´substituted B ring. The lack of signals corresponding to A ring revealed the presence of tetrasubstituted A ring moiety (Table 1). Additionally, a singlet 1H at δ_H6.77 attributed to H-3 C ring. ¹³C NMR (CD₃OD, 100MHz) revealed 27 carbons from which 15 carbons were assigned for a flavonoid aglycone and 12 carbons were assigned for two hexose sugar moieties. The DEPT spectrum exhibited nine quaternary carbons, five methine carbons, and one carbonyl carbon. The 1H and 13C NMR values for all the carbons were further assigned on the basis of HMBC correlations as shown in Figure 1. Based on the spectral evidences the structure of this compound was identified as Apigenin-6,8-di-C-glucoside and confirmed the comparison with literature data.

GC-MS analysis

The GC–MS analysis of the essential oil from the roots of A. chrysostachys Boiss. led to the identification of 8 compounds, representing 76.1% of the essential oil. The identified compounds are given in Table 2 in the order of their elution from the DB1-MS column and the retention indices.

Antibacterial activity A. chrysostachys Boiss

The results of antimicrobial screening of TE, EE, and BE on gram-positive and gram-negative bacteria were shown in Table 3. All the extracts had antibacterial activity against S. aureus and L. monocytogenesis with MIC values between 2-4 mg/mL. None of the extracts showed antibacterial activity on the E. colimicroorganism. EE and TE were also inactive towards P. aeroginosa.Table 3 shows inhibitory and bactericidal concentration of various extracts.

In-vitro antioxidant activity

Various in-vitro antioxidant assays on the TE, EE, and BE were accomplished and the established data for DPPH and Nitric oxide radical scavenging activities along with metal chelating activity were shown in table 4. Additionally, data for reducing power activity had been exhibited in Figure 2.

Among the three tested extracts for in-vitro antioxidant activity, EE exhibited potent antioxidant activity in DPPH and moderate activity in nitric oxide radical scavenging assays with the IC₅₀ values 14.6 and 730.7µg/mL, respectively (Table 4). Nonetheless, EE were inactive in metal chelating assay. TE exhibited a relatively higher IC₅₀ value than for the standard of EDTA for metal chelating activity with an IC₅₀ value of 268.9 µg/mL. In the case of TE, an IC₅₀ of 54.1µg/mL was established for DPPH radical scavenging and 268.9µg/mL for metal chelating assay (Table 4). BE showed almost presentable antioxidant activities in DPPH and metal chelating assays with the IC₅₀ values 51.7 and 213.7 µg/mL, correspondingly.

The reducing capacity of a compound might be a pointer of its potential antioxidant activity.For this purpose we investigated the Fe³⁺–Fe²⁺ transformation in the presence of different sample extracts. As shown in Figure 2, Fe³⁺ was transformed to Fe²⁺ in the presence of TE, EE, and BE and the reference compound rutin to measure the reductive capability. Although, the absorbances of the extracts and rutin were almost the same at lower concentrations (50 µg/mL), it was shown that at higher concentrations of 600 µg/mL, TE, EE, and BE the absorbances were around 0.5 and 0.7, compared to the absorbance of 1.3 for control of rutin, exhibiting lower reducing activity than the control rutin. The results indicated that maximum activity was shown at higher doses by rutin.

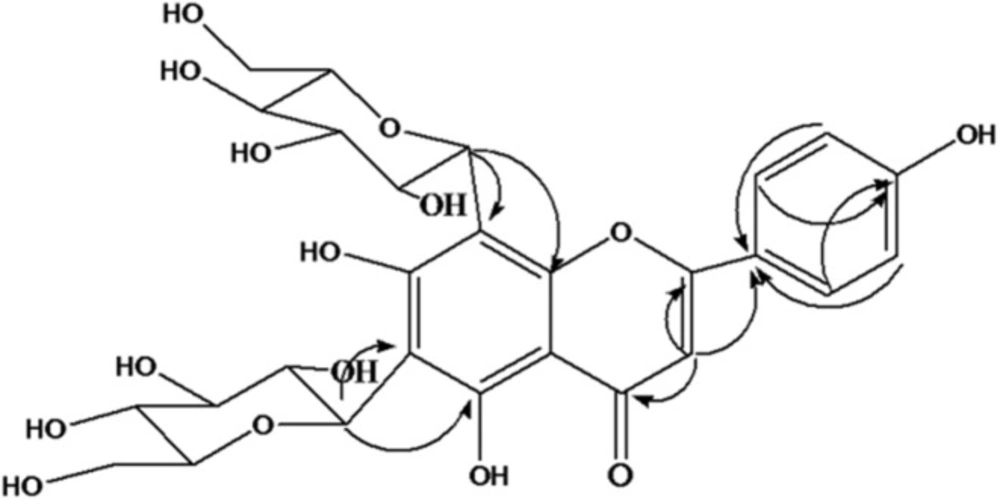

key HMBC correlation of Apigenin-6,8-di-C-glucoside

Figure 1

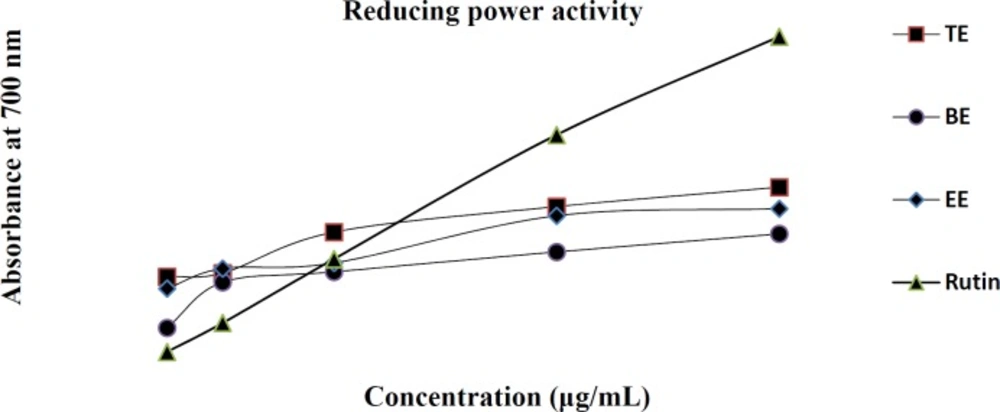

Reducing power of TE, EE and BE compared to the positive control of rutin at different concentrations

Figure 2

Discussion

In recent decades, phytochemical investigation on Astragalus genus has been extensively conducted in depth. To the best of our knowledge, substantial evidences indicated triterpenesaponins, flavonoids and polysaccharides are the most important metabolites in this genus. Moreover, numerous studies on pharmacological activity on these plants uncovered the exclusive capacity of Astragalus plants in protection human health against fatal diseases, like; immunodeficiency, cardiovascular disorders, hepatic injury, cancer, diabetes and neurodegenerative, and inflammatory diseases (25-27). In this regard, there is ample evidence indicating that the mentioned metabolites are the main contributors in pharmacological effects of Astragalus plants (27-31). Therefore, it is of great importance to investigate on various Astragalus species either from phytochemical or bioactivity point of view. In the present study, phytochemical analysis of A. chrysostachys roots led to isolation of Apigenin-di-C-glucoside as a major flavonoid in ethyl acetate extract. In previous studies, Apigenin and Apigenin-O- glycosides were reported in A.propinquum, A. bombycinus, and A. verrucosus. Apigenin-8-C-glucoside (Vitexin) was also found in A. corniculatus (1). It is worth mentioning that this is the first report on isolation of Apigenin-di-C-glucoside from genus Astragalus.

Results from analysis of GC-MS revealed that the A. chrysostachys essential oil was characterized mainly by the presence of m-tolualdehyde (29.7%), acetophenone (16.2%), croweacin (12.3%) and dodecene (9.9%). While the chemistry of Astragalus species have been studied extensively, studies on the volatile components of Astragalus plants have not been numerous. Platikanov et al. investigated on volatile components of the aerial parts of four Astragalus species. The authors reported complex composition of volatile compounds including alcohols, aldehydes, ketones, acids, esters, ethers, hydrocarbons, terpenes, and chlorinated compounds (32). It was also reported by Movafeghi et al. that the essential oil of the leaves and roots of A. microcephalus and A. compactus contained pentanal 3-methyl, octadecane, caryophyllene, and toxic chlorinated compounds (33,34). Our results were generally similar, except the toxic chlorinated compound which was absent among volatile constituents of A. chrysostachys roots.

The antibacterial assay for TE, EE, and BE exhibited that S. aureus and L. monocytogenesis were susceptible to the extracts to some extent; however the antibacterial potency were negligible in comparison to the standards of penicillin and ciprofloxacin.

Oxidation process is an essential and vital metabolic reaction in the cells and body. The production of free radicals through these reactions plays a major role in various normal regulatory systems in the body. Despite the dependence of the body to oxidative metabolism, an excess formation of free radicals cause oxidative stress leading to destructive effects on cells and multiple degrees of the cell damage. There is ample evidence indicatingthat free radicals are involved in the large number of diseases including cancer, alzheimer, cardiovascular problems, diabetes, atherosclerosis, aging process, rheumatoid arthritis and Parkinson’s disease. Therefore, naturally occurring antioxidants has drawn the great attention of researchers for their potential in prevention of such diseases.

According to the results of antioxidant activity for A. chrysostachys, it was observed that all the tested extracts revealed admissible DPPH scavenging activity with increasing extract concentrations. Nonetheless, it was perceptible that TE, EE and BE did not show convenient reductive potential in reducing power assay, hence, it could not serve as electron donor. In the case of nitric oxide scavenging only EE showed slight activity where percentage of inhibition increased via increasing EE concentration. Into the bargain, plant material counteracting the effect of nitric oxide formation in human body might also be beneficial in prohibition of the excessive generation of nitric oxide implicated in inflammatory conditions, cancer, etc (35).

Likewise, metal chelating activity is of use in reducing oxyradicals and lipid peroxidation bringing about diminished oxidative damages like cardiovascular diseases (36). In the presence of other chelating agents TE and BE fairly disrupted ferrozine complex formation, suggesting their moderate antioxidant activity in relation to the iron binding capacity.

Taken as a whole, TE, EE and BE exhibited different degrees of antioxidant activity in the entire studied models. Further evaluation of particular compounds both in-vitro and in-vivo antioxidant assays is essential to determine their mechanism of action.

Even though more detailed phytochemical examination is mandatory, our findings as a first report dealing with phytochemical analysis of A. chrysostachys, confirmed that flavonoids were the prevailing group of compounds in EE. Justifying the striking antioxidant activity of this plant, we might suggest A. chrysostachys as a natural resource for phytotherapeutic purposes
