The Design, Synthesis and Evaluation of Rho-kinase Inhibitory Activity of 4-aryl-thiazole-2-amines

authors:

avatar Linan Wang , avatar Ben Ouyang , avatar Meixia Fan , avatar Junhui Qi , avatar Lei Yao , *

School of Pharmacy, Key Laboratory of Molecular Pharmacology and Drug Evaluation (Yantai University), Ministry of Education, Collaborative Innovation Center of Advanced Drug Delivery System and Biotech Drugs in Universities of Shandong, Yantai University, Yantai 264003, China.
Iranian Journal of Pharmaceutical Research : IJPR: Vol.20, issue 3; 121-131
article type: Original Article
received: October , 2020
accepted: December , 2020
DOI: https://doi.org/10.22037/ijpr.2020.114468.14866

how to cite: Wang L, Ouyang B, Fan M, Qi J, Yao L. The Design, Synthesis and Evaluation of Rho-kinase Inhibitory Activity of 4-aryl-thiazole-2-amines. Iran J Pharm Res. 2021;20(3):e126550. https://doi.org/10.22037/ijpr.2020.114468.14866.

Abstract

Rho-associated kinases (ROCK) are a class of serine/threonine kinases that play important roles in various biological processes. ROCK are becoming attractive targets for drug designing. A novel scaffold was designed according to molecular hybridization strategy, then a series of 4-aryl-5-aminomethyl-thiazole-2-amines were synthesized, and their inhibitory activities on ROCK were screened by enzyme-linked immunosorbent assay (ELISA). The results showed that 4-aryl-5-aminomethyl-thiazole-2-amines derivatives displayed certain ROCK II inhibitory activities. The IC50 value of the most potent compound 4v was found to be 20 nM. The preliminary structure-activity-relationship investigation showed that compounds with 4-pyridine substitution were generally found to be more potent than compounds with 3-pyridine substitution. The molecular docking studies indicated that more optimization work needs to conduct to obtain more potent ROCK inhibitors.

Introduction

Rho-associated kinases (ROCK) are a class of serine/threonine kinases that play important roles in various biological processes such as smooth muscle contraction, cell apoptosis, cell migration, and proliferation (1-3). ROCK is becoming an attractive target for drug designing, and ROCK inhibitors are believed to have potential in the treatment of diseases such as hypertension (4, 5), glaucoma (6-9), cancer (10-12), and spinal cord injury (13). Currently, Fasudil and Ripasudil have been approved for clinical use in the treatment of cardiovascular and ophthalmic diseases (14). Meanwhile, as shown in Figure 1, several ROCK inhibitors are under pre-clinical investigational studies and clinical trials (15-17).

ROCK contains two isoforms, ROCK I and ROCK II identified that share approximately 92% sequence identity within the kinase domain (18, 19). Due to the difference in distribution, ROCK I and ROCK II are responsible for different physiological functions. ROCK II is widely distributed in the brain and heart, so selective ROCK II inhibitors have been attracting more attention in recent years (1, 20 and 21). Previously, we identified that tetrahydroisoquinoline derivatives, such as compound I in Figure 2, as potent and selective ROCK II inhibitors (22, 23). The structure-activity-relationship and molecular docking studies showed that introducing the side aminoalkyl chain could enhance the ROCK isomer selectivity. However, undesired pharmacokinetic properties, such as high clearance and low bioavailability, were not suitable for non-topical administration of compound I. Compound II (Figure 2), a pyridine-thiazole-based amide, showed potent in-vitro enzyme-based ROCK II inhibitory activity (24). However, it was much less potent in a cell-based assay (25). In order to find novel ROCK inhibitors suitable for systematic administration from these leads, 4-aryl-5-aminoalkyl-thiazole-2-amines (Figure 2) were designed according to the molecular hybridization strategy. These structures incorporated both the aminomethyl side chain and thiazolamine moieties of compounds I and II.

Experimental

Chemistry

General

Reagents of the highest commercial quality were purchased and used without further purification unless otherwise specified.

Synthesis of 4-(Pyridin-4-yl) thiazol-2-amine (2)

Step 1. To a solution of 4-acetylpyridine (4.90 g, 41.30 mmol) and 48% HBr (7.0 mL) in acetic acid (46.0 mL), a solution of bromine (2.30 mL, 45.00 mmol) in acetic acid (8.0 mL) at 0 °C was added dropwise. After addition, the reaction mixture was allowed to stir at 70 °C for 1 h. The mixture was cooled to 0 °C and treated with diethyl ether. The resultant white solid was isolated by vacuum filtration to give 9.90 g (87%) of bromoketone as the HBr salt, which was used in the next step as obtained.

Step 2. A mixture of the above intermediate (10.00 g, 35.59 mmol), thiourea (2.71 g, 35.59 mmol), and absolute EtOH (100 mL) was refluxed overnight. After cooling to room temperature, the reaction mixture was diluted with water (400 mL), and the pH was adjusted to 11 with concentrated ammonium hydroxide solution and was further stirred for 2 h. The resulting precipitate was filtered, washed, and dried to provide the title compound as a yellowish solid (5.85 g, 93% yield). (m.p. 270-272 ºC) (26).

Synthesis of 4-Methyl-N-(4-(pyridine-4-yl) thiazol-2-yl) benzamide (3)

To a solution of p-toluic acid (1.10 g, 5.64 mmol) in 10 mL DCM, EDCI (1.60 g, 8.46 mmol) and HOBt (0.76 g, 5.64 mmol) were added at room temperature. The mixture was stirred at room temperature for 30 min, then a solution of compound 2 (1.00 g, 5.64 mmol) in 10 mL DCM was added slowly. The resulting reaction mixture was stirred at room temperature for 8 h until TLC indicated that all the starting material was consumed. The reaction mixture was diluted with water and extracted with DCM. The organic phase was washed with water and brine, dried, filtered, and concentrated. The residue was purified by chromatography to afford the title compound 3 (1.62 g, 83% yield) as a yellow solid and used in the next step.

Synthesis of 5-aryl-4-aminomethyl-thiazole -2-amines (4)

To a mixture of compound 3 (1.9 g, 10.7 mmol, 1.0 equiv.), appropriate amine (1.2 equiv.) in acetic acid was paraformaldehyde (3 equiv.) at room temperature. The reaction mixture was allowed to stir at 70 °C for 1 h. After removing the extra acetic acid under reduced pressure, the residue was diluted with ethyl acetate. The solution was neutralized with saturated sodium bicarbonate. The organic layer was separated, washed with water and brine, dried, filtered, and concentrated. The residue was purified by flash chromatography to afford the title compound.

4-Methyl-N-(5-(morpholinomethyl)-4-(pyridin-3-yl) thiazol-2-yl) benzamide (4a)

White solid. m.p.198-199 °C; 1H NMR (400 MHz, CD3OD) δ: 9.29-9.30 (m, 1H, ArH), 8.94-8.98 (m, 2H, ArH), 8.21-8.25 (m, 1H, ArH), 7.91-7.93 (m, 2H, ArH), 7.37-7.39 (m, 2H, ArH), 4.86-4.92 (m, 2H, ArCH2), 3.87-3.99 (m, 4H, 2XOCH2) 3.50 (s, 2H, CH2), 3.23 (s, 2H, CH2), 2.43 (s, 3H, CH3); 13C NMR (125 MHz, DMSO-d6) δ: 164.8, 159.3, 145.6, 143.1, 142.9, 142.8, 142.3, 131.8, 128.7, 128.0, 127.7, 125.9, 116.1, 65.7, 62.5, 49.8, 49.5, 30.1, 20.5; HRMS calcd. for C21H23N4O2S [M++1] 395.1536, found 395.1533.

4-Methyl-N-(5-((4-methylpiperazin-1-yl) methyl)-4-(pyridin-3-yl) thiazol-2-yl) benz-amide (4b)

White solid. m.p. 180-182 ℃; 1H NMR (400 MHz, CD3OD) δ: 9.37 (s, 1H, ArH), 9.06 (s, 1H, ArH), 8.88 (s, 1H, ArH), 8.22 (s, 1H, ArH), 7.93 (s, 2H, ArH), 7.38 (s, 2H, ArH), 4.36 (s, 2H, ArCH2), 3.30-3.65 (m, 4H, 2XNCH2), 2.95 (s, 3H, CH3), 2.44 (s, 3H, CH3); 13C NMR (125 MHz, DMSO-d6) δ: 165.8, 158.9, 144.5, 143.8, 142.5, 141.8, 133.5, 129.7, 129.2, 128.8, 127.5, 66.8, 50.9, 48.4, 42.3, 21.6; HRMS calcd. for C22H26N5OS [M++1] 408.1853, found 408.1847.

N-(5-((i-Propyl(methyl)amino) methyl)-4-(pyridin-3-yl) thiazol-2-yl)-4-methylbenzamide (4c)

White solid. m.p. 184-185 ℃; 1H NMR (400 MHz, MeOD) δ: 8.90-8.91(m, 1H, ArH), 8.84-8.85 (m, 1H, ArH), 8.16-8.19 (m, 1H, ArH), 7.91-7.93 (m, 2H, ArH), 7.50-7.53 (m, 1H, ArH), 7.35-7.37 (m, 2H, ArH), 3.84 (s, 2H, CH2), 2.94-3.01 (m, 1H, CH), 2.43 (s, 3H, CH3), 2,23 (s, 3H, CH3), 1.05 (t, J = 6.8 Hz, 6H, 2CH3); 13C NMR (125 MHz, DMSO-d6) δ: 165.4, 157.7, 149.5, 148.8, 143.3, 142.3, 136.0, 131.3, 130.3, 129.7, 129.6, 128.7, 123.9, 53.0, 49.8, 36.9, 21.6, 18.0; HRMS calcd. for C21H25N4OS [M++1] 381.1744, found 381.1749.

3,4-Dichloro-N-(5-(morpholinomethyl)-4-(pyridin-3-yl) thiazol-2-yl) benzamide (4d)

White solid. m.p. 208-210 ℃; 1H NMR (400 MHz, DMSO-d6) δ: 8.84-8.85 (m, 1H, ArH), 8.53-8.55 (m, 1H, ArH), 8.33-8.34 (m, 1H, ArH), 8.00-8.04 (m, 2H, ArH), 7.78-7.80 (m, 1H, ArH), 7.45-7.47 (m, 1H, ArH), 3.73 (s, 2H, CH2), 3.54-3.56 (m, 4H, 2XOCH2), 2.42 (m, 4H, 2XNCH2); 13C NMR (100 MHz, DMSO-d6) δ: 167.5, 151.7, 149.6, 149.1, 136.2, 136.0, 133.1, 132.3, 132.1, 131.5, 130.7, 129.3, 129.0, 124.8, 124.1, 66.8, 54.4, 53.7; HRMS calcd. for C20H19Cl2N4O2S [M++1] 449.0600, found 449.0604.

3,4-Dichloro-N-(5-((4-methylpiperazin-1-yl) methyl)-4-(pyridin-3-yl) thiazol-2-yl) benzamide (4e)

White solid. m.p. 179-181 ℃; 1H NMR (400 MHz, DMSO-d6) δ: 8.84-8.85 (m, 1H, ArH), 8.53-8.55(m, 1H, ArH), 8.34-8.35 (m, 1H, ArH), 8.02-8.03 (m, 2H, ArH), 8.00-8.01(m, 1H, ArH), 7.79-7.81(m, 1H, ArH), 3.74 (s, 2H, CH2), 2.46-2.47 (m, 8H, 4XNCH2), 2.24 (s, 3H, CH3); 13C NMR (100 MHz, DMSO-d6) δ: 163.7,149.6, 149.1, 144.4, 143.3, 136.2, 136.0, 133.0, 132.1, 131.5, 131.0, 130.7, 128.9,127.7,124.1, 54.7, 53.8, 52.3, 45.3; HRMS calcd. for C 21H22Cl2N5OS [M++1] 462.0917, found 462.0911.

3,4-Dichloro-N-(5-((i-propyl(methyl)amino) methyl)-4-(pyridin-3-yl) thiazol-2-yl) benzamide (4f)

Yellow solid. m.p. 171-172 ℃; 1H NMR (400 MHz, DMSO-d6) δ: 12.82 (br s, 1H, NH), 8.87-8.88 (m, 1H, ArH), 8.56-8.57 (m, 1H, ArH), 8.37-8.38 (m, 1H, ArH), 8.05-8.06 (m, 2H, ArH), 7.83-7.85 (m, 1H, ArH), 7.49-7.51(m, 1H, ArH), 3.80 (s, 2H, ArCH2), 2.91-2.92 (m, 1H, CH), 2.16 (s, 3H, CH3), 1.10 (s, 6H, 2CH3); 13C NMR (100 MHz, DMSO-d6) δ: 163.6, 151.3, 149.5, 149.0, 136.0, 135.9, 133.2, 132.0, 131.5, 131.2, 130.9, 130.7,128.9, 124.0, 123.0, 53.2, 49.9, 37.0, 18.1; HRMS calcd. for C20H21Cl2N4OS [M++1] 435.0808, found 435.0811.

N-(5-((4-Methylpiperazin-1-yl) methyl)-4-(pyridin-3-yl) thiazol-2-yl) benzamide (4g)

White solid. m.p. 198-199 ℃; 1H NMR (400 MHz, DMSO-d6) δ: 8.83-8.84 (m, 1H, ArH), 8.53-8.54 (m, 1H, ArH), 8.05-8.08 (m, 2H, ArH), 8.00-8.03 (m, 1H, ArH), 7.58-7.60 (m, 1H, ArH), 7.45-7.53 (m, 3H, ArH), 3.73 (s, 2H, CH2), 2.49 (m, 8H, 4XNCH2), 2.25 (s, 3H, CH3); 13C NMR (100 MHz, DMSO-d6) δ: 172.6, 165.8, 157.9, 149.6, 149.1, 143.5, 136.3, 133.20, 132.5, 131.1, 129.2, 128.7, 124.1, 54.0, 53.6, 53.1, 51.3; HRMS calcd. for C21H24N5OS [M++1] 394.1696, found 394.1699.

N-(5-((dimethylamino)methyl)-4-(pyridin-3-yl) thiazol-2-yl) isonicotinamid (4h)

white solid. m. p.201-202 ℃; 1H NMR (400 MHz, DMSO-d6) δ: 8.84-8.85 (m, 1H, ArH), 8.76-8.77 (m, 2H, ArH), 8.53-8.55 (m, 1H, ArH), 8.01-8.04 (m, 1H, ArH), 7.95-7.96 (m, 2H, ArH), 7.49-7.50 (m, 1H, ArH), 3.65 (s, 2H, ArCH2), 2.19 (s, 6H, CH3); 13C NMR (100 MHz, DMSO) δ: 164.4, 157.4, 150.9, 149.1, 143.1, 139.7, 136.2, 131.0, 128.6, 124.0, 122.3, 55.3, 45.5; HRMS calcd. for C17H18N5OS [M++1] 340.1154, found 340.1158.

N-(5-(morpholinomethyl)-4-(pyridin-3-yl) thiazol-2-yl) isonicotinamide (4i)

Yellow solid. m. p.185-187 ℃; 1H NMR (400 MHz, DMSO-d6) δ: 8.86-8.87 (m, 1H, ArH), 8.79-8.80 (m, 2H, ArH), 8.65-8.66 (m, 1H, ArH), 8.09-8.12(m, 1H, ArH), 7.96-7.98 (m, 2H, ArH), 7.56-7.59 (m, 1H, ArH), 4.34 (s, 2H, ArCH2), 3.65-3.67 (m, 4H, 2XOCH2), 2.93-2.94 (m, 4H, 2XOCH2); 13C NMR (100 MHz, DMSO-d6) δ: 190.0, 164.8, 158.9, 150.9, 149.1, 148.9, 139.5, 137.8, 130.6, 127.2, 124.6, 122.3, 64.6, 51.8, 26.8; HRMS calcd. forC20H19N5O2S [M++1] 382.4540, found 382.4544.

N-(5-((dimethylamino)methyl)-4-(pyridin-3-yl) thiazol-2-yl)-2,3-dihydrobenzo[b] [1,4] dioxine-2-carboxamide (4j)

white solid. m. p.192-196 ℃; 1H NMR (400 MHz, DMSO-d6) δ: 8.80-8.81 (m, 1H, ArH), 8.52-8.53 (m, 1H, ArH), 7.97-8.00 (m, 1H, ArH), 7.43-7.47 (m, 1H, ArH), 6.96-6.99 (m, 1H, ArH), 6.81-6.87 (m, 3H, ArH), 5.11-5.13 (m, 1H, XOCH), 4.40-4.41 (m, 2H, XOCH2), 3.62 (s, 2H, ArCH2), 2.16 (s, 6H, CH3); 13C NMR (100 MHz, DMSO-d6) δ: 166.6, 156.4, 149.5, 149.0, 143.3, 143.0, 136.1, 130.9, 124.0, 122.3, 121.9, 117.7, 117.5, 72.4, 65.0, 55.4, 45.4; HRMS calcd. for C20H21N4O3S[M++1] 397.4650, found 397.4652.

N-(4-(pyridin-3-yl)-5-(pyrrolidin-1-ylmethyl) thiazol-2-yl)-2,3-dihydrobenzo[b] [1,4] dioxine-2-carboxamide (4k)

Yellow solid. m.p.181-182 ℃; 1H NMR (400 MHz, DMSO-d6) δ: 8.79-8.80 (m, 1H, ArH), 8.52-8.53 (m, 1H, ArH),7.96-7.99 (m, 1H, ArH), 7.44-7.47 (m, 1H, ArH), 6.95-6.97 (m, 1H, ArH), 6.80-6.88 (m, 3H, ArH), 5.16-5.17 (m,1H, XOCH), 4.36-4.45 (m, 2H, XOCH2), 3.69 (s, 2H, ArCH2), 3.50-3.52 (m, 4H, CH2), 2.36-2.38 (m, 4H, CH2); 13C NMR (100MHz, DMSO-d6) δ: 166.8, 149.5, 149.1, 143.4, 143.0, 136.1, 130.9, 127.5, 124.1, 122.3, 121.9, 117.6, 117.5, 72.3, 66.7, 55.4, 54.3, 53.6; HRMS calcd. forC22H23N4O3S[M++1] 423.5030, found 423.5034.

N-(5-(morpholinomethyl)-4-(pyridin-3-yl) thiazol-2-yl)-2,3-dihydrobenzo[b] [1,4] dioxine-2-carboxamide (4l)

Yellow solid. m. p. 177-179 ℃; 1H NMR (400 MHz, DMSO-d6) δ: 8.81-8.82 (m, 1H, ArH), 8.51-8.53 (m, 1H, ArH), 7.97-8.00 (m, 1H, ArH), 7.43-7.47 (m, 1H, ArH), 6.96-6.98 (m, 1H, ArH), 6.81-6.88 (m, 3H, ArH), 5.11-5.13 (m,1H, XOCH), 4.40-4.42 (m, 2H, XOCH2), 3.83 (s, 2H, ArCH2), 2.46-2.48 (m, 4H, CH2), 1.66-1.67 (m, 4H, CH2); 13C NMR (100MHz, DMSO-d6) δ:166.9, 156.3, 149.5, 149.0, 143.4, 143.0, 136.0, 131.0, 124.0, 122.3, 121.9, 117.7, 117.5, 72.3, 65.0, 55.4, 54.1, 23.7; HRMS calcd. forC22H23N4O4S[M++1] 439.1362, found 439.1366.

4-Methyl-N-(5-(morpholinomethyl)-4-(pyridin-4-yl) thiazol-2-yl) benzamide (4m)

White solid. m.p. 148-149℃; 1H NMR (600 MHz, DMSO-d6) δ: 12.67 (br s, 1H, NH), 8.65-8.67 (m, 2H, ArH), 8.01-8.03 (m, 2H, ArH), 7.68-7.69 (m, 2H, ArH), 7.34-7.37 (m, 2H, ArH), 3.81 (s, 2H, ArCH2), 3.59-3.61 (m, 4H, 2XOCH2), 2.49-2.50 (m, 4H, 2XNCH2), 2.33 (s, 3H, CH3); 13C NMR (125 MHz, DMSO-d6) δ: 165.6, 157.9, 150.4, 143.6, 143.5, 142.3, 129.7, 129.6, 129.1, 128.8, 123.3, 66.8, 54.4, 53.7, 21.6; HRMS calcd. for C 21H23N4O2S [M++1] 395.1536, found 395.1533.

4-Methyl-N-(5-((4-methylpiperazin-1-yl) methyl)-4-(pyridin-4-yl) thiazol-2-yl) benzamide (4n)

White solid. m. p. 148-150 ℃; 1H NMR (400 MHz, DMSO-d6) δ: 12.62 (br s, 1H, NH), 8.65-8.66 (m, 2H, ArH), 8.01-8.03 (m, 2H, ArH), 7.67-7.69 (m, 2H, ArH), 7.34-7.36 (m, 2H, ArH), 3.80 (s, 2H, ArCH2), 2.33-2.39 (m, 8H, 4XNCH2), 2.23 (s, 3H, CH3); 13C NMR (100 MHz, DMSO-d6) δ: 165.6, 161.4, 157.8, 150.4, 143.4, 143.3, 142.4, 129.8, 129.7, 128.7, 123.3, 55.2, 54.1, 53.2, 46.1, 21.6; HRMS calcd. for C22H26N5OS [M++1] 408.1853, found 408.1849.

3,4-Dichloro-N-(5-((4-methylpiperazin-1-yl) methyl)-4-(pyridin-4-yl) thiazol-2-yl) benzamide (4o)

Yellow solid. m.p. 201-203 ℃; 1H NMR (400 MHz, DMSO-d6) δ: 8.66-8.67 (m, 2H, ArH), 8.38-8.39 (m, 1H, ArH), 8.06-8.07 (m, 1H, ArH), 7.84-7.85 (m,1H, ArH), 7.67-7.68 (m, 2H, ArH), 3.83 (s, 2H, ArCH2), 2.49 (s, 8H, 2XNCH2), 2.27 (s, 3H, CH3); 13C NMR (100 MHz, DMSO-d6) δ: 163.8, 157.5, 150.5, 147.2, 142.2, 136.0, 132.9, 132.5, 132.1, 131.5, 130.7, 129.0, 123.3, 66.8, 60.3, 54.4, 53.7; HRMS calcd. for C21H22Cl2N5OS [M++1] 462.0917, found 462.0911.

3,4-Dichloro-N-(5-(morpholinomethyl)-4-(pyridin-4-yl) thiazol-2-yl) benzamide (4p)

White solid. m.p.163-164 ℃; 1H NMR (400 MHz, DMSO-d6) δ: 8.67-8.68 (m, 2H, ArH), 8.38-8.39 (m, 1H, ArH), 8.06-8.07 (m, 1H, ArH), 7.84-7.85 (m,1H, ArH), 7.67-7.68 (m, 2H, ArH), 3.83 (s, 2H, ArCH2), 3.60 (s, 4H, 2XOCH2), 2.49 (s, 4H, 2XNCH2); 13C NMR (100 MHz, DMSO-d6) δ: 163.7, 157.6, 150.4, 143.4, 142.2, 136.0, 133.0, 132.1, 131.5, 130.7, 130.3, 129.0, 123.3, 54.8, 53.9, 52.5; HRMS calcd. for C20H19Cl2N4O2S [M++1] 449.0600, found 449.0597.

N-(5-((4-Methylpiperazin-1-yl) methyl)-4- (pyridin-4-yl) thiazol-2-yl) isonicotinamide (4q)

White solid. m.p. 203-205 ℃; 1H NMR (400 MHz, DMSO-d6) δ: 12.93 (br s, 1H, NH), 8.76-8.77 (m, 2H, ArH), 8.61-8.62 (m, 2H, ArH), 7.94-7.96 (m, 2H, ArH), 7.62-7.63 (m, 2H, ArH), 3.72 (s, 2H, ArCH2), 2.39 (m, 4H, CH2), 1.46-1.47 (m, 4H, CH2), 1.33-1.34 (m, 2H, CH2); 13C NMR (100 MHz, DMSO-d6) δ: 164.4, 157.3, 150.9, 150.4, 143.1, 142.2, 139.6, 131.3, 123.3, 122.3, 54.9, 54.6, 26.1, 24.3; HRMS calcd. for C20H22N6OS [M++1] 380.1467, found 380.1465.

N-(4-(Pyridin-4-yl)-5-(pyrrolidin-1-ylmethyl) thiazol-2-yl) isonicotinamide (4r)

White solid; m.p. 192-195℃; 1H NMR (400 MHz, DMSO-d6) δ: 8.76-8.77 (m, 2H, ArH), 8.61-8.63 (m, 2H, ArH), 7.94-7.96 (m, 2H, ArH), 7.64-7.65 (m,1H, ArH), 3.90 (s, 2H, ArCH2), 2.53 (s, 4H, CH2), 1.69 (s, 2H, CH2); 13C NMR (100 MHz, DMSO-d6) δ: 164.5, 160.8, 151.0, 150.9, 150.5, 143.3, 142.2, 139.7, 123.2, 122.3, 54.2, 51.9, 23.8; HRMS calcd. for C19H20N5OS [M++1] 366.1383, found 366.1391.

N-(5-(morpholinomethyl)-4-(pyridin-4-yl) thiazol-2-yl) isonicotinamide (4s)

White solid. m.p.175-178℃; 1H NMR (400 MHz, DMSO-d6) δ: 8.77-8.78(m, 2H, ArH), 8.62-8.64 (m, 2H, ArH), 7.95-7.96 (m, 2H, ArH), 7.64-7.65 (m, 2H, ArH),3.80 (s, 2H, ArCH2), 3.55-3.58 (m, 4H, 2XOCH2), 2.45-2.46 (m, 4H, 2XOCH2); 13C NMR (100MHz, DMSO-d6) δ: 164.50, 157.38, 150.99, 150.98, 150.46, 142.14, 139.59, 129.91, 123.31, 122.30, 66.76, 54.45, 53.75; HRMS calcd. forC19H20N5O2S[M++1] 382.1259, found 382.1263.

N-(5-(Morpholinomethyl)-4-(pyridine-4-yl) thiazol-2-yl) nicotinamide (4t)

White solid. m.p.178-180 ℃; 1H NMR (400 MHz, DMSO-d6) δ: 9.17-9.18 (m, 1H, ArH), 8.74-8.75 (m, 1H, ArH), 8.62-8.63 (m, 2H, ArH), 7.37-7.39 (m,1H, ArH), 7.55-7.56 (m, 2H, ArH), 7.52-7.53 (m, 1H, ArH), 3.78 (s, 2H, ArCH2), 3.56 (s, 4H, 2XOCH2), 2.44 (s, 4H, 2XNCH2); 13C NMR (100 MHz, DMSO-d6) δ: 164.5, 157.5, 153.5, 150.4, 149.7, 143.5, 142.2, 136.4, 129.6, 128.4, 124.1, 123.3, 66.7, 54.4, 53.7; HRMS calcd. for C19H20N5O2S [M++1] 382.1332, found 382.1329.

N-(5-(Piperidin-1-ylmethyl)-4-(pyridin-4-yl) thiazol-2-yl) nicotinamide (4u)

White solid. m.p.169-171 ℃. 1H NMR (400 MHz, DMSO-d6) δ: 9.18-9.20 (m, 1H, ArH), 8.75-8.77 (m, 1H, ArH), 8.62-8.63 (m, 2H, ArH), 7.38-7.40 (m, 1H, ArH), 7.65-7.66 (m, 2H, ArH), 7.54-7.56 (m, 1H, ArH), 3.76 (s, 2H, ArCH2), 2.42 (s, 4H, 2XNCH2), 1.48-1.50 (m, 4H, 2CH2), 1.33-1.34 (m, 2H, CH2); 13C NMR (100MHz, DMSO-d6) δ: 164.5, 153.5, 150.4 (2C), 149.7(2C), 142.5, 136.4 (2C), 128.5, 124.1, 123.4, 54.9, 54.6, 26.0, 24.3; HRMS calcd. for C20H22N5OS [M++1] 380.1540, found 380.1538.

N-(5-(morpholinomethyl)-4-(pyridin-4-yl) thiazol-2-yl)-2,3-dihydrobenzo[b] [1,4] dioxine-2-carboxamide (4v)

yellow solid; m. p.178-180℃; 1H NMR (400 MHz, CD3OD) δ: 8.55-8.57 (m, 2H, ArH), 7.74-7.76 (m, 2H, ArH), 7.05-7.07 (m, 1H, ArH), 6.85-6.89 (m, 3H, ArH), 5.01-5.04 (m,1H, XOCH), 4.40-4.43 (m, 2H, XOCH2), 3.78 (s, 2H, ArCH2), 3.66-3.68 (m, 4H, CH2), 2.49-2.50 (m, 4H, CH2); 13C NMR (100MHz, CD3OD) δ: 166.8, 156.3, 148.8, 143.3, 141.9, 130.0, 123.4, 121.9, 121.7, 117.3, 117.0, 72.8, 66.6, 64.4, 54.0, 53.3; HRMS calcd. For C22H23N4O4S [M++1] 439.1362, found 439.1364.

Enzyme-based ROCK II inhibitory activity studies

The enzyme-based ROCK II inhibitory activity assay was performed using the Rho kinase assay kit (CY-1160, Cycle, Nagoya, Japan). All operation was guided by the manufacturer’s instructions. Briefly, the compounds at 10 µM were pre-incubated in a system wherein ROCK II (0.02 ng/µL) phosphorylates the myosin-binding subunit (MBS) of kinase substrate pre-absorbed onto the microplate in the presence of Mg2+ and ATP. Then, the system was washed after incubation at 30 ◦C for 30 min. 100 µL of antibody was added to the wells and then incubated for 30 min at room temperature. 100 µL of substrate reagent and 100 µL stop solution were successively added to each well. The plates were read on the Viewlux in HTRF mode within 30 min.

Molecular docking

Molecular docking was performed using the Surflex-Dock module in Sybyl 2.0 software package. The crystal structure of human ROCK II (PDB code: 4L6Q) was download from RCSB Protein Data Bank. Before the docking process, the natural co-crystallized ligand was extracted, and water molecules were removed from the crystal structure, H atoms were added, and side chains were fixed during protein preparation. Subsequently, the protein was prepared using the Biopolymer module implemented in Sybyl. Protein structure minimization was performed by applying the Tripos force field, and partial atomic charges were calculated by the Gasteiger-Huckel method. All parameters were set to default values.

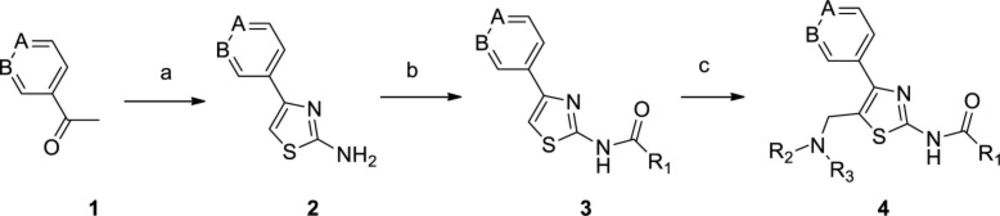

Synthesis of 4-aryl-5-aminomethyl-thiazole-2-amines. Reagents and conditions: (a) 1) Br2, AcOH, 48% HBr, 2) thiourea, EtOH, reflux; (b) EDCI, HOBt, R1C6H5COOH, DIPEA, DMF, r.t.; (c) HNR2R3, (CH2O) n, AcOH, 70 ºC

Synthesis of 4-aryl-5-aminomethyl-thiazole-2-amines. Reagents and conditions: (a) 1) Br2, AcOH, 48% HBr, 2) thiourea, EtOH, reflux; (b) EDCI, HOBt, R1C6H5COOH, DIPEA, DMF, r.t.; (c) HNR2R3, (CH2O) n, AcOH, 70 ºC

Scheme 1

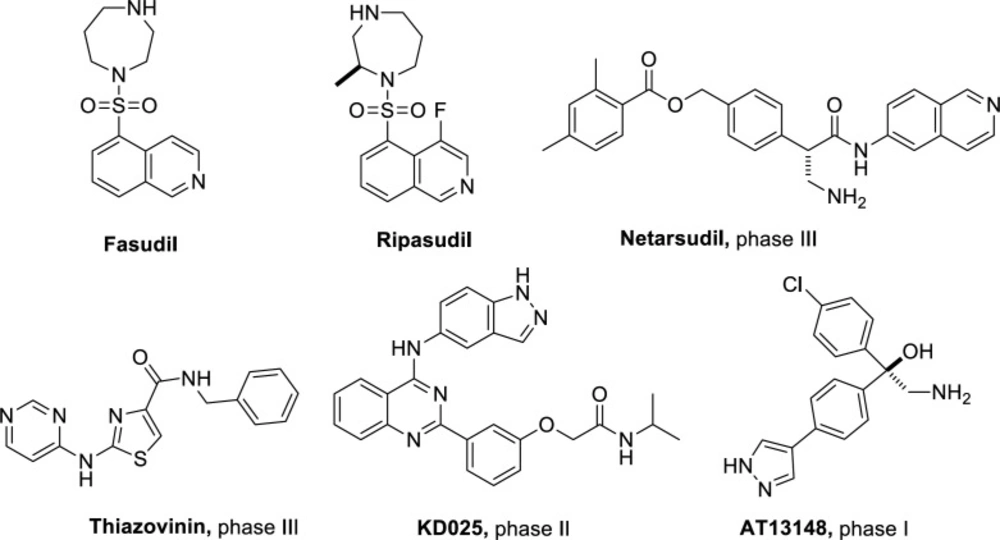

Structures of Fasudil and ROCK inhibitors under clinical trials

Structures of Fasudil and ROCK inhibitors under clinical trials

Figure 1

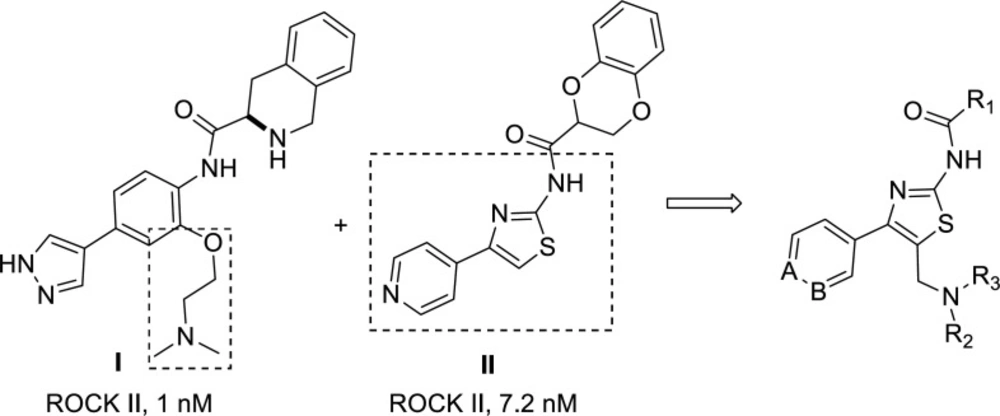

The design of 4-aryl-5-aminoalkyl-thiazole-2-amines

The design of 4-aryl-5-aminoalkyl-thiazole-2-amines

Figure 2

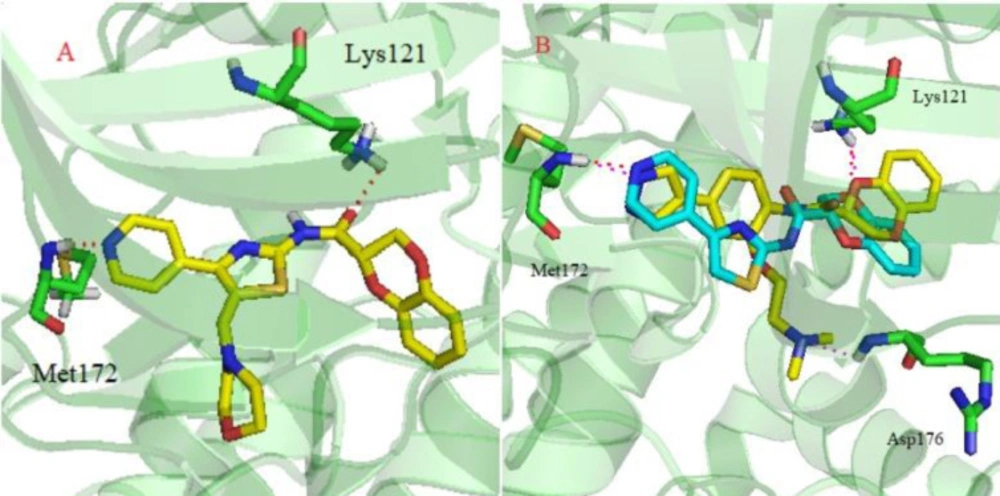

(A) Predicted binding mode of compound 4v (yellow) with ROCK II (PDB ID:4L6Q); (B) Predicted binding mode of compound I (yellow) and II (blue) with ROCK II (PDB ID:4L6Q). The residues in ROCK II are shown in green sticks. Hydrogen bonds are shown as red dashed lines

(A) Predicted binding mode of compound 4v (yellow) with ROCK II (PDB ID:4L6Q); (B) Predicted binding mode of compound I (yellow) and II (blue) with ROCK II (PDB ID:4L6Q). The residues in ROCK II are shown in green sticks. Hydrogen bonds are shown as red dashed lines

Figure 3

Table 1

ROCK II inhibition of 4-aryl-5-aminomethyl-thiazol-2-amines

Table 2

The IC50 values of compounds against ROCK II

Compd.ROCK II (µM)Compd.ROCK II (µM)
4k1.56 ± 0.234t9.12 ± 2.46
4i9.83 ± 1.454l1.02 ± 0.07
4v0.02 ± 0.014j0.96 ± 0.12
4s8.56 ± 067II0.01 ± 0.003

Results and Discussion

Chemistry

The synthesis of 4-aryl-5-aminoalkyl-thiazole-2-amine 4 was achieved in three steps, as shown in Scheme 1. Firstly, 4-aryl-thiazol-2-amine 2 was prepared by a modified procedure reported by Green and co-workers (27). This synthesis involved α-bromination of commercially available 3/4-acetylpyridine 1 with bromine and then cyclization reaction of bromoketone with thiourea. Secondly, amine 2 reacted with appropriate aromatic acids to afford the corresponding amide 3 in moderate yield. There were six (hetero)aromatic acids at this stage, including nicotinic acid, isonicotinic acid, and 1,4-benzodioxan-2-carboxylic acid, which were chosen in this step. Finally, the aminomethyl group was installed by treating compound 3 with paraformaldehyde and appropriate amines through a Mannich reaction.

Enzyme-based ROCK II inhibitory activity studies

The inhibitory activities of compounds 4a-4v on ROCK II were screened by enzyme-linked immunosorbent assay (ELISA), and compound II (Figure 1) was chosen as the control (28). All compounds were initially evaluated for their percentage inhibition against ROCK II with a ROCK II assay kit (CY-1160, Cycle, Japan). Most of the compounds showed a certain ROCK II inhibitory effect at the concentration of 10 µM, with the percentage inhibition range from 27% to 84% (Table 1). Then, compounds 4k, 4j, 4l, 4s, 4t, 4v were further evaluated in full concentration-response plots, and the IC50 values were shown in Table 2. Compared with the control compound II, these compounds were a little less potent, with the IC50 value range from 0.02 to 9.83 µM. The most potent compound 4v exhibited ROCK II inhibition with the IC50 value of 20 nM. These preliminary biological assays partially justified our design, and further optimization will lead to more potent candidates.

Based on the given data, the preliminary structure-activity relationship (SAR) could be summarized as follows. Firstly, the aromatic acids (R1 group), compounds with 1,4-benzodioxan-2-carboxylic acid, showed better activities than those with other acids. For example, compound 4v (IC50 = 0.02 µM) was more potent than compound 4t (IC50 = 9.12 µM) and 4p. Compound 4l (IC50 = 1.02 µM) was more potent than compound 4i (IC50 = 9.83 µM), and 4a. Secondly, due to the alkyl group on the aminomethyl side chain (R2, R3 group), compounds with the morpholine group generally were more potent than compounds with other groups (dimethylamine, isopropylamine, N-methyl piperazine, piperidine, pyrrolidine). For example, compound 4s (IC50 = 8.56 µM) was more potent than compound 4q and 4r. Compound 4i (IC50 = 9.83 µM) was more potent than compound 4h. However, compounds 4j (IC50 = 0.96 µM), 4k (IC50 = 1.56 µM), and 4l (IC50 = 1.02 µM) were exception, and they almost exhibited the same potency. It might suggest that 1,4-benzodioxan-2-carboxylic acid plays a critical role in maintaining the ROCK II inhibitory activity. Thirdly, for the position N in pyridine, compounds with 4-position substitution were generally more potent than compounds with 3-position substitution. For example, compound 4o was more potent than compound 4e, and compound 4s was more potent than compound 4i. In summary, the most potent compound 4v showed inhibitory activity with an IC50 value of 20 nM.

Molecular Docking Studies

To further identify the possible binding modes of our synthesized ROCK II inhibitors, molecular docking was performed according to the general protocol. The crystal structure of ROCK II was taken from the RSCB Protein Data Bank (PDB code: 4L6Q) (29). Two lead compounds, I and II, and the most potent compound, 4v, were chosen for this docking study using Sybyl-X2.0 software. As shown in Figure 3, compound 4v displayed a similar bonding mode with compounds I and II. There was a key H-bonding interaction between Met172 and the position N in the pyridine or pyrazole ring. The amide groups were predicted to form another H-bonding interaction with Lys121. Both H-bonds play a pivotal role in stabilizing the orientation and conformation of ROCK inhibitors. The aminoethoxyl side chain of compound I was predicted to have an H-bonding interaction with Asp176. However, this H-bonding interaction was absent in compound 4v. This might partially explain why compound 4v was less potent than the lead compounds. Based on the above observations, further optimization would provide potent ROCK II inhibitor candidates.

Conclusion

In a word, a series of 4-aryl-5-aminomethyl-thiazoleamines were designed and synthesized as a new class of ROCK II inhibitors. Then, in vitro ROCK II inhibitory activity assay showed that 4v was the most potent compound, with the IC50 value of 20 nM. It might represent a promising lead compound for the further development of novel ROCK II inhibitors. Further optimizations of this scaffold, including the in vivo studies and biological evaluation in cell-based assays, will be reported in due course.

Acknowledgements

References

  • 1.

    Feng Y, LoGrasso PV, Defert O, Li R. Rho kinase (ROCK) inhibitors and their therapeutic potential. J. Med. Chem. 2016;59:2269-300. [PubMed ID: 26486225].

  • 2.

    Tatsumi S, Mabuchi T, Katano T, Matsumura S, Abe T, Hidaka H, Suzuki M, Sasaki Y, Minami T, Ito S. Involvement of Rho-kinase in inflammatory and neuropathic pain through phosphorylation of myristoylated alanine-rich C-kinase substrate (MARCKS). Neuroscience. 2005;131:491-8. [PubMed ID: 15708490].

  • 3.

    Nakajima M, Katayama K, Tamechika I, Hayashi K, Amano Y, Uehata M, Goto N, Kondo T. WF-536 inhibits metastatic invasion by enhancing the host cell barrier and inhibiting tumour cell motility. Clin. Exp. Pharmacol. Physiol. 2003;30:457-63. [PubMed ID: 12823259].

  • 4.

    Wirth A. Rho kinase and hypertension. Biochim. Biophys. Acta. 2010;1802:1276-84. [PubMed ID: 20460153].

  • 5.

    Abdel-Magid AF. Potential of ROCK inhibitors as treatment for cardiovascular diseases, cancer, and more. ACS Med. Chem. Lett. 2019;10:841-2. [PubMed ID: 31223434].

  • 6.

    Tanna AP, Johnson M. Rho Kinase Inhibitors as a novel treatment for glaucoma and ocular hypertension. Ophthalmology. 2018;125:1741-56. [PubMed ID: 30007591].

  • 7.

    Waki M, Yoshida Y, Oka T, Azuma M. Reduction of intraocular pressure by topical administration of an inhibitor of the Rho-associated protein kinase. Curr. Eye Res. 2001;22:470-4. [PubMed ID: 11584347].

  • 8.

    Navak GD. Emerging drug for ophthalmic diseases. Exp. Opin. Emerg. Drugs. 2003;8:251-66.

  • 9.

    Tanihara H, Inatani M, Honjo M, Tokushige H, Azuma J, Araie M. Intraocular pressure-lowering effects and safety of topical administration of a selective ROCK inhibitor, SNJ-1656, in healthy volunteers. Arch Ophthalmol. 2008;126:309-15. [PubMed ID: 18332309].

  • 10.

    Matsubara M, Bissell MJ. Inhibitors of Rho kinase (ROCK) signaling revert the malignant phenotype of breast cancer cells in 3D context. Oncotarget. 2016;7:31602-22. [PubMed ID: 27203208].

  • 11.

    Ying H, Biroc SL, Li WW, Alicke B, Xuan JA, Pagila R, Ohashi Y, Okada T, Kamata Y, Dinter H. The Rho kinase inhibitor fasudil inhibits tumor progression in human and rat tumor models. Mol. Cancer Ther. 2006;5:2158-64. [PubMed ID: 16985048].

  • 12.

    Somlyo AV, Phelps C, Dipiperro C, Eto M, Read P, Barrett M, Gibson JJ, Burnitz MC, Myers C, Somlyo AP. Rho kinase and matrix metalloproteinase inhibitors cooperate to inhibit angiogenesis and growth of human prostate cancer xenotransplants. FASEB J. 2003;17:223-4. [PubMed ID: 12554701].

  • 13.

    Hahmann C, Schroeter T. Rho-kinase inhibitors as therapeutics: from pan inhibition to isoform selectivity. Cell. Mol. Life Sci. 2010;67:171-7. [PubMed ID: 19907920].

  • 14.

    Inoue T, Tanihara H. Ripasudil hydrochloride hydrate: targeting Rho kinase in the treatment of glaucoma. Expert Opin. Pharmacol. 2017;18:1669-73.

  • 15.

    Mehran NA, Sinha S, Razeghinejad R. New glaucoma medications: latanoprostene bunod, netarsudil, and fixed combination netarsudil-latanoprost. Eye (Lond). 2020;34:72-88. [PubMed ID: 31695162].

  • 16.

    Park S, Kim D, Jung YG, Roh S. Thiazovivin, a Rho kinase inhibitor, improves stemness maintenance of embryo-derived stem-like cells under chemically defined culture conditions in cattle. Anim. Reprod. Sci. 2015;161:47-57. [PubMed ID: 26307658].

  • 17.

    Knipe RS, Tager AM, Liao JK. The Rho kinases: critical mediators of multiple profibrotic processes and rational targets for new therapies for pulmonary fibrosis. Pharmacol. Rev. 2015;67:103-17. [PubMed ID: 25395505].

  • 18.

    Riento K, Ridley AJ. Rocks:multifunctional kinases in cell behaviour. Nat. Rev. Mol. Cell Biol. 2003;4:446-56. [PubMed ID: 12778124].

  • 19.

    Nakagawa O, Fujisawa K, Ishizaki T, Saito Y, Nakao K, Narumiya S. ROCK‐I and ROCK‐II, two isoforms of Rho‐associated coiled‐coil forming protein serine/threonine kinase in mice. FEBS Lett. 1996;392:189-93. [PubMed ID: 8772201].

  • 20.

    Shah S, Savjani J. A review on ROCK-II inhibitors: From molecular modelling to synthesis. Bioorg. Med. Chem. Lett. 2016;26:2383-91. [PubMed ID: 27080184].

  • 21.

    Defert O, Boland S. Rho kinase inhibitors: a patent review (2014–2016). Expert Opin. Ther. Pat. 2017;27:507-15. [PubMed ID: 28048944].

  • 22.

    Fang X, Yin Y, Wang B, Yao L, Chen YT, Schröter T, Weiser A, Pocas J, Wayne G, Cameron MD, Lin L, Ruiz C, Khan S, Schürer SC, Pachori A, LoGrasso PV, Feng Y. Tetrahydroisoquinoline derivatives as highly selective and potent Rho kinase inhibitors. J. Med. Chem. 2010;53:5727-37. [PubMed ID: 20684608].

  • 23.

    Feng Y, Yin Y, Weiser A, Griffin E, Cameron MD, Lin L, Ruiz C, Schurer SC, Inoue T, Rao PV, Schroter T, LoGrasso PV. Discovery of substituted 4-(Pyrazol-4-yl)-phenylbenzodioxane-2-carboxamides as potent and highly selective rho kinase (ROCK-II) inhibitors. J. Med. Chem. 2008;51:6642-5. [PubMed ID: 18834107].

  • 24.

    Schroter T, Minond D, Weiser A, Dao C, Habel J, Spicer T, Chase P, Baillargeon P, Scampavia L, Schurer S, Chung C, Mader C, Southern M, Tsinoremas N, LoGrasso PV, Hodder P. Comparison of miniaturized time-resolved fluorescence resonance energy transfer and enzyme-coupled luciferase high-throughput screening assays to discover inhibitors of Rho-kinase II (ROCK-II). J. Biomol. Screen. 2008;13:17-28. [PubMed ID: 18227223].

  • 25.

    Schroter T, Griffin E, Weiser A, Feng Y, LoGrasso PV. Detection of myosin light chain phosphorylation—A cell-based assay for screening Rho-kinase inhibitors. Biochem. Biophys. Res. Commun. 2008;374:356-60. [PubMed ID: 18638453].

  • 26.

    Cao T, Chen JT, Yang CL, Ma ZY. Design, synthesis and evaluation of 4-pyridinylthiazole-2-amines as acetylcholinesterase inhibitors. Acta Pharmacol. Sin. 2016;51:1436-40.

  • 27.

    Green J, Cao J, Bandarage UK, Gao H, Court J, Marhefka C, Jacobs M, Taslimi P, Newsome D, Nakayama T, Shah S, Rodems S. Design, synthesis, and structure–activity relationships of pyridine-based rho kinase (ROCK) inhibitors. J. Med. Chem. 2015;58:5028-37. [PubMed ID: 26039570].

  • 28.

    Akama T, Dong C, Virtucio C. Linking phenotype to kinase: identification of a novel benzoxaborole hinge-binding motif for kinase inhibition and development of high-potency rho kinase inhibitors. J. Pharmacol. Exp. Ther. 2013;347:615-25. [PubMed ID: 24049062].

  • 29.

    Lee JH, Zheng Y, von Bornstadt D, Wei Y, Balcioglu A, Daneshmand A, Yalcin N, Yu E, Herisson F, Atalay YB, Kim MH, Ahn YJ, Balkaya M, Sweetnam P, Schsueller O, Poyurovsky MV, Kim HH, Lo EH, Furie KL, Ayata C. Selective ROCK2 inhibition in focal cerebral ischemia. Ann. Clin. Transl. Neurol. 2014;1:2-14. [PubMed ID: 24466563].
