The Immediate Effect of Taping and Counterforce Brace on Pain and Grip Strength in Patients with Tennis Elbow

authors:

avatar Alireza Shamsoddini ORCID 1 , *

Exercise Physiology Research Center, Life Style Institute, Baqiyatallah University of Medical Sciences, Tehran, Iran

how to cite: Shamsoddini A. The Immediate Effect of Taping and Counterforce Brace on Pain and Grip Strength in Patients with Tennis Elbow. J Arch Mil Med. 2019;7(1-2):e86314. https://doi.org/10.5812/jamm.86314.

Abstract

Background:

Tennis elbow (TE) is a common strain injury or microtrauma that causes sore and tender around the outside of the elbow. Using orthotic devices is one way for rehabilitating this condition.

Objectives:

The aim of this study was to investigate the immediate effects of taping technique (TT) and counterforce brace (CB) on hand grip strength and pain in the patients with tennis elbow.

Methods:

In an experimental study with pre-test and post-test stages, 29 subjects with TT on their dominant arm were recruited and randomly divided into two groups: TT group (15 subjects) and CB group (14 subjects). The outcomes of the measurement consisted of pain in the lateral aspect of the elbow, as well as grip strength of hand before and 30 minutes after application of TT in one group and CB in another group. The visual analog scale (VAS) was used to assess pain and dynamometer was also utilized to evaluate grip strength.

Results:

Following elbow taping, the pain was significantly lower than CB group (P = 0.004). However, grip strength with P = 0.06 showed no significant difference between the two groups. The results revealed a significant difference between after and before interventions, with increases in hand grip strength and wrist extension muscle force in TT and CB groups.

Conclusions:

According to these findings, the improvement of grip strength was not different between the two methods. However, it seems that TT was more effective than CB in the reduction of pain of lateral aspect related to the elbow in these patients.

1. Background

Tennis elbow (TE) is a condition caused by inflammation of the tendons on the outer bony prominence (lateral epicondyle) of the elbow. This painful condition causes soreness and muscle fatigue in the elbow (1, 2). TE is a classic repetitive strain injury (RSI) with prevalence 1.3% among those between 30 and 64 years of age but is equally distributed between men and women (3, 4). Excessive constant gripping or squeezing on dominant upper extremity can cause TE (5, 6). TE is believed to be a degenerative process, which stems from repetitive microtrauma. Typically, samples from the affected tissue demonstrate hyperplasia at the extensor carpi radialis brevis (ECRB) region (7). Initially, the majority of subjects diagnosed with TE can be effectively managed with conservative treatment, oral medication, and rehabilitation (8). It is usually a self-limited process in which up to 90% of the subjects will recover by one year without surgical intervention (5, 7). The most effective of the interventions that occupational and physical therapists reported were comprised of resting from activities, graded-home exercise program (9), use of orthotics devices, and rehabilitation programs, including stretching (10), friction massage (11), thermal modalities, and muscles strength (8, 12). One of the new methods in the rehabilitation of lateral epicondylitis is the use of taping (10, 13, 14). Taping technique (TT) is used as an alternative to musculoskeletal injuries to support the fascia, muscles, and joints; however, TT used for lateral epicondylitis facilitates unrestricted range of motion (ROM) and is also hypothesized to reduce the time for recovery from injury by decreasing pain and inflammation (15). Counterforce brace (CB) is one of the other methods in the rehabilitation of lateral epicondylitis (14, 16). The CB used for tennis elbow reduces tension on the tendons at their insertion point to the bone by transferring force farther down the arm. Thereby, CB reduces painful inhibition and allows the patient to contract more forcefully (17). Patients with lateral epicondylitis frequently receive TT and CB from physical and occupational therapists to reduce the pain and improve grip performance (18, 19). However, the comparison between these two methods has not yet been done.

2. Objectives

For this purpose, the present study was conducted to compare the effect of the TT and CB on pain and grip strength in patients with lateral epicondylitis. In addition, we evaluated the immediate effect of TT and CB on pain and grip strength in patients with TE.

3. Methods

3.1. Subjects

Twenty-nine subjects with tennis elbow on their dominant arm were selected from a population of subjects with lateral epicondylitis who had been followed-up at physical medicine and rehabilitation clinic in Baqiyatallah Hospital. Written informed consent was obtained from all patients, including agreement of the patients to participate as volunteers. Inclusion criteria were as follow: (1) present of pain on the outer edge of the elbow with gripping activities, (2) limited wrist or finger extension or passive stretch of wrist extensor muscles, (3) one hand involved, (4) Three weeks passed from the onset of the symptoms, and (5) the subjects who had not been previously treated. Exclusion criteria included: (1) history of surgery on the forearm of dominant upper extremity within the last year, (2) limitation of range of motion in the forearm, (3) history of rheumatoid disease or neurologic impairment, (4) allergy to adhesive tapes, and (5) subjects with radiculopathy. All subjects were treated by occupational therapists with at least 8 years of experience. The treatment was conducted in one clinic for all participants in the two groups.

3.2. Study Protocol

In this study, participants were randomly divided into two experimental groups. The first group contained 14 subjects who were treated by CB, and another one contained 15 subjects who had received TT. In our research, the measured parameters consisted of elbow pain against resisted wrist or finger extension, grip strength of hand and wrist extension muscle force that evaluated affected arms before application of TT and CB in two groups. The parameters were assessed again 30 minutes after the interventions in two groups. In this study, grip strength was defined as the amount of grip force generated with an isometric contraction prior to the onset of pain. It was measured using a hydraulic hand dynamometer (Jamar) in pounds of force with the patient was in sitting position on the chair and the upper limb was in a standardized position across all trials as recommended in a study of the relationship of elbow position and grip strength (20, 21). Visual analog scale (VAS) was used to measure the level of pain experienced on the dominant elbow before and following the intervention. The subjects were shown a card depicting the scale from zero to one hundred millimeters. In this scale, zero meant experiencing no pain at all and 100 meant the maximum level of the pain (22, 23). In the present study, we used validated hand-held dynamometer for measurement of wrist extension muscles force (2). Ethical approval was received to this study and informed written consents were signed by all subjects, including agreement of the patients to participate as volunteers; so they could refuse to participate or withdraw from the study at any time.

3.3. Taping Technique

For taping of the lateral aspect of the elbow, we used non-elastic and adhesive taping. Tapes that used for the present study included four pieces of approximately 8 cm to 10 cm length and3.8 cm width. In this study, the patients were in the sitting position; meanwhile, taping was applied in the lateral side of the elbow and the elbow was in a slightly flexed position. Tapes will be applied on the skin distally to proximally in a diamond shape. The strips overlapped at their ends and were reinforced with an additional four non-elastic tape strips (Figure 1) (13, 14).

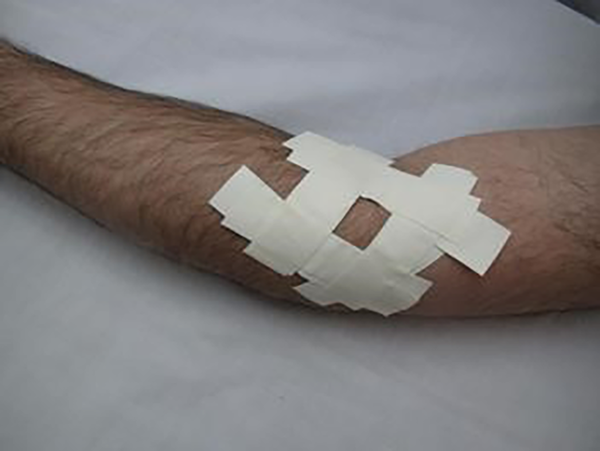

Non-elastic taping technique (TT) used in this study
Non-elastic taping technique (TT) used in this study

3.4. Counterforce Brace

In our study, the counterforce brace was made of non-elastic materials with hard pad over and was applied 2 cm distal to the lateral epicondyle of dominant upper extremity over the extensor carpi radialis longus and brevis (Figure 2) (24).

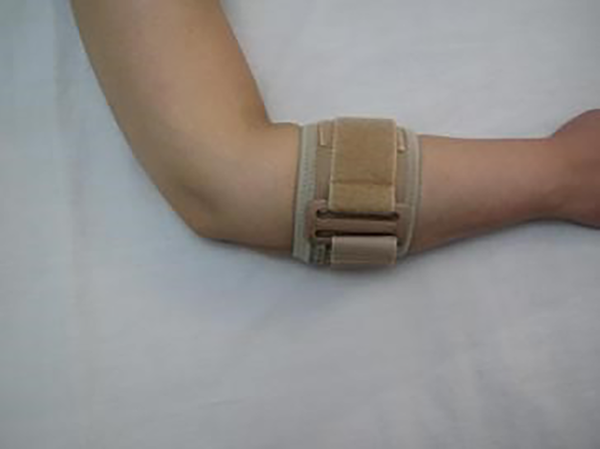

Non-elastic counterforce brace (CB) that used in this study
Non-elastic counterforce brace (CB) that used in this study

3.5. Statistical Analysis

Statistical analysis was performed with SPSS software (version 18.0). The normal distribution of variables was assessed with the Kolmogorov-Smirnov test. For comparison of scores between TT and CB groups, we used independent sample t test. In addition, a paired-sample t test was used to compare pre- and post-intervention mean scores for each group to determine whether there was any significant difference. P-values less than 0.05 were considered statistically significant.

4. Results

Twenty-nine patients with lateral epicondylitis were included in the study and decided into two groups. No significant differences were observed among the groups regarding variable. Therefore, the groups seemed to be homogenous at baseline. Data on demographic characteristics, including sex, dominant hand, and age are listed in Table 1. Mean ± SD duration of their lateral epicondylalgia condition in TT group was 6.4 ± 1.3 weeks and in CB group was 8.1 ± 1.1 weeks. Pre- and post-treatment mean, standard deviation, as well as minimum and maximum scores for variables are given in Table 2. The independent sample t test showed statistically significant improvements in pain following taping compared with counterforce brace (P = 0.004). However, there was no significant difference in grip strength (P = 0.06) and wrist extension force between two groups at post-intervention (P = 0.88) (Table 3).

Table 1.

Characteristics of the Samples

GroupNSexDominant HandMean Age
Taping Technique (TT)1510512342.53
Counterforce Brace (CB)146811347.53
Table 2.

Pain, Grip Strength, and Wrist Extension Force at Baseline and After Intervention

VariableBefore InterventionAfter Intervention
Mean ± SDMinMaxMean ± SDMinMax
Taping Technique (TT)
Pain4.20 ± 1.20262 ± 0.7113
Grip strength (N)26.66 ± 8.64174632.33 ± 8.652249
Wrist extension force (N)8.93 ± 3.2841611.60 ± 3.56622
Counterforce Brace (CB)
Pain3.36 ± 1.26162.36 ± 1.3415.5
Grip strength (N)25.53 ± 13.3044628.60 ± 12.97646
Wrist extension force (N)7.46 ± 3.2441610 ± 3.77416
Table 3.

Mean of Changes for All Dependent Variablesa

VariableTaping TechniqueCounterforce BraceP
Pain2 ± 0.712.36 ± 1.340.004
Grip strength (N)32.33 ± 8.6528.60 ± 12.970.06
Wrist extension force (N)11.60 ± 3.5610 ± 3.770.88

The paired t test used to compare the values pre- and post-intervention in the taping technique group, revealed statistically significant changes in scores of pain, grip strength, and wrist extension force (P > 0.05). Also, the comparison between the values before- and after intervention in counterforce brace group showed that there were significant changes in scores of the pain (P = 0.006), grip strength (P = 0.000) and wrist extension force (P = 0.001) (Table 4).

Table 4.

Pre- and Post-Scores of the Variables Between the TT and CB Groupsa

PainGrip Strength, NWrist Extension Force, N
Scores of variables in TT
Before4.20 ± 1.2026.66 ± 8.648.93 ± 3.28
After2 ± 0.7132.33 ± 8.6511.60 ± 3.56
P < 0.001 < 0.0010.001
Scores of variables in CB
Before3.36 ± 1.2625.53 ± 13.307.64 ± 3.24
After2.36 ± 1.3428.60 ± 12.9710 ± 3.77
P0.006 < 0.0010.001

5. Discussion

Reduction of the pain in the lateral aspect of the elbow and improvements of grip strength are the two main aims of treating patients with tennis elbow. Mainly, the aim of TT and CB are also to promote the reduction process of the pain and grip strength for patients with tennis elbow. According to these results, after comparing the two groups of patients with tennis elbow, elbow pain was significantly less following taping compared with counterforce brace. However, to date, no studies have compared these two methods and this study is the first study that has compared taping technique and counterforce brace on pain and grip strength of the patients with tennis elbow. In this regard, in a study conducted by Vicenzino et al. a significant difference was observed in elbow pain after TT (13). These results were consistent with our study showed significant changes in pain after taping compared with counterforce brace. Indeed, taping technique showed the greatest improvements in elbow pain. This might be due to that mechanism of action for taping in tennis elbow related to its neurophysiologic and mechanical effects on the nervous system, particularly the proprioceptive and nociceptive system (13). However, brace has only mechanical effects on the forearm muscles (16, 25). Therefore, in this study, their pain was significantly improved in the lateral aspect of the elbow as measured with VAS. In this study, the comparison of the two methods didn’t show a statistically significant improvement in grip strength and wrist extension muscle force. However, results revealed a significant difference between pre- and post-test results, with increases in scores of grip strength and wrist extension muscles- force after application of TT and CB. So, according to our results, it can be concluded that there was no difference between TT and CB in the improvement of wrist extension muscle force and hand grip strength in patients with lateral epicondylitis. Although to date, no comparison was made between TT and CB in the patients with tennis elbow; however, in the study conducted by Anderson et al. the patients with lateral epicondylitis indicated a statistically increase in hand grip strength and wrist extension muscle force after use of CB. Also, in the study conducted by Vicenzino et al. a significant difference was observed in grip strength and wrist extension muscle force after taping technique (13). The findings of the present study were in agreement with these studies (13, 26). So, we conclude that the CB and TT had a significant effect on hand grip strength and wrist extension muscle force in subjects with lateral epicondylitis. However, there is no difference between the two methods in the improvement of grip strength and wrist extension muscle force. Nevertheless, it seems that TT was more effective than CB in the reduction of the pain related to the lateral aspect of the elbow in these patients. According to the results of the present study, it may be useful to prescribe TT and CB for management of this condition. The findings of this study suggest that TT and CB may be a useful adjunct in the treatment of lateral epicondylitis where it would serve to optimize the imposed loads on the forearm and wrist muscles during job tasks and hand activities (27). So, it is suggested that TT and CB can be considered rehabilitation and therapeutic methods for the management of lateral epicondylitis.
