Abstract
Background:
Ultraviolet exposure is an extrinsic factor to initiate melanogenesis, the process of melanin formation in the skin. Nowadays, natural ingredients tend to be more prevalent in cosmetic formulations due to consumers’ concern about synthetic ingredients and the risks they may represent for human health. Rice bran, the outer layer of a rice grain, can be utilized as a skin-lightening agent.Objectives:
This study aimed to determine the efficacy of a lotion containing black rice bran (Oryza sativa L. indica) ethanolic extract as a skin lightening agent.Methods:
The black rice bran ethanolic extract was formulated into oil in water (o/w) lotion. In this study, 34 women applied the lotion at one side of the forearm and base placebo lotion as control at the other side of forearm. The results were tested with a paired t-test by GraphPad Prism 8.3.0 software.Results:
There was a significant decrease in the melanin index and erythema index in the forearm with a lotion containing black rice bran extract (P-value < 0.0001).Conclusions:
The lotion containing 10% black rice bran extract was effective as a skin lightener because it effectively reduced skin melanin production when applied topically.Keywords
Black Rice Bran Skin Lightening Agent Natural Product Clinical Trials Oryza sativa L. indica
1. Background
Ultraviolet irradiation, through several pathways, could modulate melanogenesis, which is the process of melanin formation in the skin. It is a complex process involving the activities of tyrosinase and other tyrosinase-related proteins (1-3). Tyrosinase inhibition is one of the most common mechanisms used to achieve skin lightening (4). The search for non-cytotoxic natural whitening is based on the fact that natural ingredients tend to be more prevalent nowadays in cosmetic formulations due to consumers’ concern about synthetic ingredients and the risks they may represent for human health (5). Natural products and their derivate are known to be a potential source as biologically active ingredients used in phyto-cosmetics (6).
Rice bran, an abundant rice mill by-product containing gamma oryzanol, could be used as a skin brightening agent (3). Miyazawa et al. (7) reported that 0.4 mg/ml black rice bran extract inhibited tyrosinase activity by 80.5%. The dry black rice bran (Oryza sativa L. indica) contained 118.572 mg/g of gamma oryzanol, and the extract inhibited tyrosinase activity at an IC50 of 74.8 µg/mL (8). Gamma oryzanol in bran is a ferulic acid belonging to the phenolic compound (9, 10). Ferulic acid is the dominant phenolic acid in bran, containing 56 - 77% of the total phenol (11, 12).
Tyrosinase is an enzyme that plays a role in the formation of melanin in the epidermis. Its mechanism of action is catalyzing L-tyrosine’s hydroxylation reaction to L-DOPA and the oxidation of L-DOPA to dopaquinone, the two main reactions in melanin biosynthesis. Dopaquinone is a compound with a very high reactivity that can polymerize to form a dopachrome, which then forms melanin (13).
2. Objectives
The present study aimed to evaluate the effects of lotion containing 10% black rice bran extract on skin melanin and erythema index. The effects produced by this lotion were compared with placebo, which is a base lotion without black rice bran (Oryza sativa L. indica) extract.
3. Methods
3.1. Materials
3.1.1. Plant Material
Black rice bran was obtained from Ciletuh Geopark in Sukabumi, West Java, and authenticated (No.1672/II.CO2.2/PL/2020) at School of Life Science and Technology, Institut Teknologi Bandung, Indonesia.
3.1.2. Chemicals
In this study, we used ethanol 96% (Merck, Germany), demineralized aqua (Brataco, Indonesia), olive oil (Brataco, Indonesia), vaseline album (Brataco, Indonesia), dimethicone (Brataco, Indonesia), cetyl alcohol (Brataco, Indonesia), isopropyl myristate (Brataco, Indonesia), span 80 (Brataco, Indonesia), propylparaben (Brataco, Indonesia), BHT (butylated hydroxytoluene) (Brataco, Indonesia), tween 80 (Brataco, Indonesia), methylparaben (Brataco, Indonesia), and glycerin (Brataco, Indonesia).
3.2. Method
3.2.1. Preparation of Plant Extract
The black rice bran was extracted using maceration for three days using 96% ethanol in a 1:4 (w/v) ratio. The mixture was evaporated in a water bath at 80°C for 24 h to obtain a slimy mixture after the maceration process.
3.2.2. Preparation of Lotion
The oil-phase materials consist of olive oil, vaseline album, dimethicone, cetyl alcohol, isopropyl myristate, span 80, and melted at 70°C. Furthermore, BHT was melted into the oil phase. Materials in the water phase consisted of propylparaben, tween 80, methylparaben, and glycerin. They were dissolved in demineralized aqua at 70°C.
We mixed the oil phase and the water phase at 70°C and used a homogenizer for 15 minutes at a speed of 3000 rpm. Then, 10% black rice bran extract was added gradually after the emulsion began to form. Homogenization process was carried out again for the next 15 minutes at 3000 rpm until a homogeneous lotion was developed, then cooled until it reached room temperature.
3.2.3. Product Evaluation on Skin
This clinical trial was approved by the Ethics Committee of University of Indonesia (protocol number 19 - 10 - 1170, version: 00, September 2019). The samples in this study included 34 healthy women aged 18 - 25 years.
3.2.3.1. Inclusion Criteria
The participants of this study included 34 females aged 18 - 25 years, who were students of the Faculty of Pharmacy, University of Indonesia, with an Asian race. The participants were requested to discontinue applying other cosmetic products to the forearm’s skin within a week before and during the study. An informed consent was obtained from all participants.
3.2.3.2. Exclusion Criteria
The exclusion criteria were women with skin disorders such as psoriasis, acne, allergies, wounds, scars, and other skin diseases; pregnant, menopausal, lactating, and smoker women; women suffering from illness, taking oral or topical medications that affect skin conditions; and unwillingness to follow the research.
3.2.3.3. Irritation Test
In this study, the lotion containing 10% black rice bran extract and placebo were tested using Finn chamber patches attached to the skin on the back. The patches were then removed after 24 hours. Skin reactions were observed and evaluated after 1 hour, 24 hours, and 72 hours from the removal of patches. The reactions observed were in the form of allergies and irritation objectively and subjectively (14, 15).
3.2.3.4. Lotion Application
Lotion was applied on volar forearm, which represents the facial skin anatomy because its skin surface is smooth, hairless, and has few sebaceous glands. Therefore, testing the benefits of facial care products such as brightening, moisturizing, and anti-aging products on the volar section is very relevant (16). The application of the lotion containing 10% black rice bran extract and the lotion containing the placebo as much as 0.5 g (area 40 - 50 mm2) was carried out two times daily. We labeled the lotions as 'Right' and 'Left' to help participants apply them correctly. Researchers and volunteers did not know the content of each lotion (double-blind). This clinical study was conducted from February to March 2020.
3.2.3.5. Measurement of Skin Brightness and Erythema Level
Measurement of the skin brightness and erythema level using Mexameter MX-18 (Courage + Khazaka Electronic, Köln, Germany) was carried out at first when the lotion was not applied (day 0), then measured again after day 14 to assess the lotion's benefits. Mexameter is a spectrophotometer measurement technique based on the reflection and absorption of light. The results are displayed in 1 second as a melanin and erythema index number between 0 and 999. The melanin index is an indicator that measures the level of pigmentation in the skin. The erythema index is an indicator that measures the level of erythema on the skin.
Mexameter reads the melanin index at 660 nm and 880 nm. In comparison, the erythema index (hemoglobin) on the device is read at 568 nm and 660 nm to eliminate skin discoloration bias caused by other factors such as bilirubin.
Measurements using this tool were carried out vertically perpendicular to the volar. Mexameter worked when contacted with the skin. Measurements were taken for 3 seconds until a 'beep' sound was heard. Then, the screen showed the measured skin brightness level. The Mexameter was not moved during measurement.
4. Result and Discussion
The results were tested with a paired t-test by GraphPad Prism 8.3.0 software. The lotion test containing 10% black rice bran extract and placebo results mean melanin index measurement before applying the lotions (day 0) and then re-measured at the end of the test (day 14) are shown in Table 1.
Melanin Index Measurement Before and After the Test in the Intervention and Control Groups
| Treatment | Melanin Index | ||||
|---|---|---|---|---|---|
| Day 0 (Mean) | Day 14 (Mean) | Deviation | Standard Deviation | P-Value | |
| Lotion test | 240.21 | 214.38 | 25.82 | 21.37 | < 0.0001 |
| Placebo | 232.77 | 229.74 | 3.03 | 17.96 | 0.3311 |
From the measurement data obtained, a paired t-test was performed to determine statistical significance. The results of the paired t-test showed a significant decrease in the melanin index (P-value < 0.0001) in the forearm applied with lotion test (containing 10% black rice bran extract) and a slight insignificant decrease in the melanin index (P-value = 0.3311) in the forearm applied with placebo. The data tested statistically passed the Kolmogorov-Smirnov normality test and the F-Fisher homogeneity test. Mexameter can also show the erythema index. Erythema index measurement was done at first before using the lotion (day 0), then re-measured after day 14 to assess the lotion’s benefits. The results are displayed in Table 2.
Erythema Index Measurement Before and After the Test in the Intervention and Control Groups
| Treatment | Erythema Index | ||||
|---|---|---|---|---|---|
| Day 0 (Mean) | Day 14 (Mean) | Deviation | Standard Deviation | P-Value | |
| Lotion test | 196.09 | 173.91 | 22.18 | 26.41 | < 0.0001 |
| Placebo | 196.69 | 186.35 | 10.34 | 25.13 | 0.0223 |
The results of the paired t-test showed a significant decrease in erythema index in both intervention (P-value < 0.0001) and placebo (P = 0.0223) groups. The data tested statistically passed the Kolmogorov-Smirnov normality test and the F-Fisher homogeneity test.
In this study, a significant decrease in the melanin index and the skin's erythema index was recorded when the skin was applied with a lotion containing 10% black rice bran extract. The erythema index of the skin in the placebo group also decreased significantly. In this study, both lotions reduced the erythema index. A decrease in the erythema index indicates that the lotion did not irritate the skin (17). Water content above 60% in the preparation causes a cold feeling after applying both lotions to the skin (18).
The skin lightening mechanism is a complex process that can be obtained through the tyrosinase inhibition pathway, inhibition of pigment production, inhibition of melanosome transfer activated by PAR-2 (protease-activated receptor), and reactive oxygen species reduction (19).
The extract of black rice bran could inhibit the activity of the tyrosinase enzyme. Black rice bran extract contains gamma oryzanol, which belongs to a phenol group (8) with a strong potential as an inhibitor of the tyrosinase enzyme.
Phenolic compounds have a good affinity for the tyrosinase enzyme, thereby preventing the formation of dopachrome. Competitive inhibitors, such as phenol, generally have a substrate-like structure. Glucosides, protonic acid, vanillic acid, and anthocyanins in black rice bran are tyrosinase inhibitors (20, 21).
In a study conducted by Jun et al. (3), gamma oryzanol inhibited pigment production in B16 melanoma cells by inhibiting transcription of microphthalmia-associated transcription factor (MITF), which can stimulate melanin formation. In general, antioxidants reduced Melanocyte-stimulating hormone (MSH) activity to inhibit the expression of MITF (22).
Jung et al. showed a strong correlation between phenol and Oxygen radical absorbance capacity (ORAC) values (r = 0.6770) in 21 types of Korean rice bran, including black rice bran (22). The ORAC value obtained reached 1101.31 μM per Trolox Equivalent/g. Gamma oryzanol in black rice bran is a strong antioxidant. The potential is stronger than vitamin E, namely alpha-tocopherol, alpha tocotrienol, gamma-tocopherol, and gamma-tocotrienol (23). Anthocyanins, flavonoids responsible for the color pigment in black rice bran, are also powerful antioxidants. This component accounts for 20% of the total flavonoids in black rice bran (24). Antioxidants demonstrate some efficacy in downregulating UV induced hyperpigmentation in the skin (20).
Antioxidants in anthocyanins are inhibitors of inflammatory mediators, namely by inhibiting the production of TNF-α, IL-6, and NO in macrophages that are activated by lipopolysaccharides (24).
In this study, there was a significant decrease in both melanin and erythema indices after applying a lotion containing 10% black rice bran extract. Mexameter read the melanin index at 660 nm and 880 nm. In comparison, the erythema index (hemoglobin) on the device was read at 568 nm and 660 nm to eliminate skin discoloration bias caused by other factors such as bilirubin. Hemoglobin also played a role in skin color (25) because deoxyhemoglobin could be read at a wavelength of 630 - 700 nm (26). A correlation test was also conducted in this study to measure the relationship between melanin and erythema index.

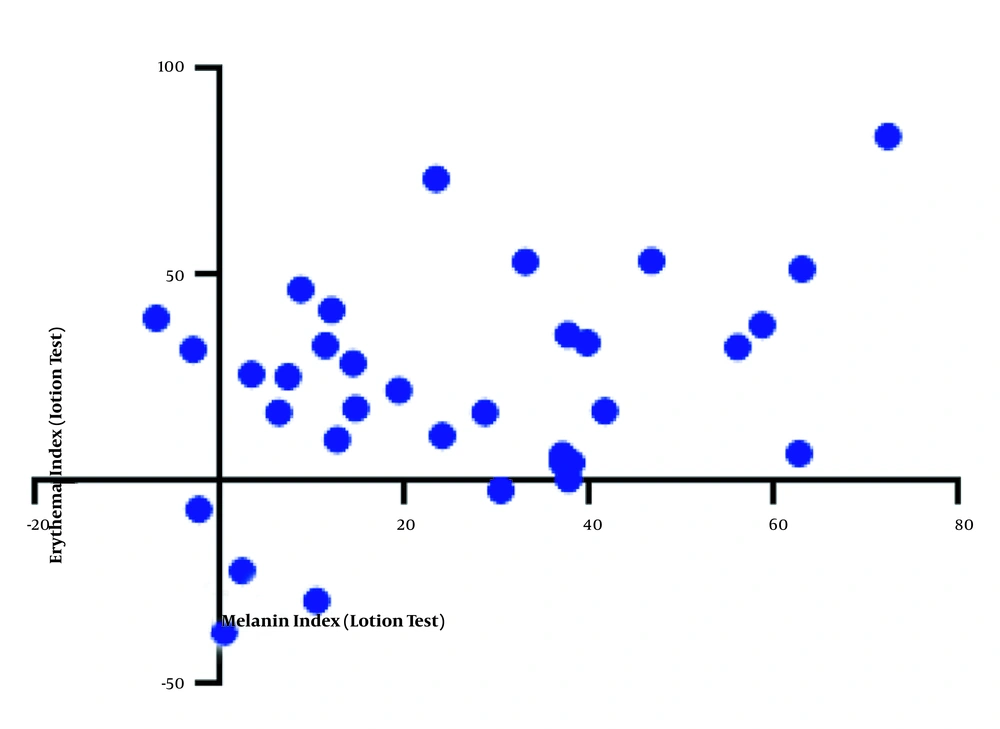

The results of Pearson’s correlation test (Figure 1) showed that the decrease in the melanin and erythema index in the right arm (lotion test) had a weak correlation with a correlation coefficient of 0.366.
Pearson’s Correlation Test Results
Melanin formation occurs in the epidermis, while hemoglobin is found in blood vessels located in the dermis layer (25). In clinical studies on UV-induced skin, there was an increase in the melanin index (tanning) and deoxyhemoglobin, causing the skin to become darker. The tanning process takes place from the seventh day after induction and lasts for three weeks. Meanwhile, the increase in deoxyhemoglobin lasts since exposure on the first day and could persist for up to two weeks (26). Melanin index is a better parameter in determining skin color than the erythema index because it is less affected by blood flow (27). A decrease in the erythema index indicates that the lotion formulation has a soft texture and does not irritate the skin (17).
5. Conclusions
According to the results of this study, the lotion containing 10% black rice bran extract was effective as a skin lightener because it effectively reduced skin melanin production when applied topically. The formulation had no harmful effects on the skin and could be used as natural skin-lightening product. However, the long-term safety study of lotion containing 10% black rice bran extract is recommended.
