1. Context
Biological medicines produced from human plasma are the crucial health service to patients (1-7). The technique that can be implemented to produce human plasma-derived biological drugs should guarantee the reproducible separation of the biological components without any denaturation of the protein or in a form of native state as possible (8-13).
The technology of separating plasma-derived products is still changing to achieve higher safety and efficacy (14-17). Among the new techniques to separate human plasma-derived components, still the human plasma fractionation by cold ethanol is the most popular technique to prepare plasma-derived biological drugs (18-21).
The quality of the source material, the level of control during manufacturing and the final control play important role in the safety and efficacy of the products (22-24). Although variation in the quality of human plasma source material is caused, to some extent, by variation in donors, it can be much more influenced by the way of processing from the donation to preparation of fresh frozen plasma. Composition of the anti-coagulant, pH of the coagulant, and the change of pH during collection and storage, speed of freezing, and storage conditions of the fresh frozen plasma are the variables that may affect the quality of fresh frozen plasma (25-27).
A range of proteins, with clinical efficacy, such as albumin, immunoglobulin, coagulation factors, and fibrinogen can be formulated as pharmaceutical compounds. Apart from different techniques in the production of plasma-derived biological drugs, a very crucial step is the removal or inactivation of highly pathogenic plasma viruses; applying only the purification steps is inadequate to prepare plasma-derived products in terms of viral safety (28).
As viral inactivation or virus removing procedures are introduced in the technique of plasma-derived medicine production, the risk of transfusion-transmitted infections is very small nowadays (29). But, the emergence of new pathogens causes a serious challenge in terms of blood safety. There are 2 major methods of viral processing. One is virus removal and the other is virus inactivation.
2. Evidence Acquisition
In the current study, a wide range of physical, chemical, and physicochemical methods of virus inactivation and virus removal were studied to minimize the virus contamination risk in plasma-derived medicines (30).
3. Results
3.1. Virus Removal
In virus removing method, all viruses are removed from the sample (31, 32). The main technique of virus removing during the production of blood-derived medicines is the virus removal by filtration basically named nanofiltration (33).
3.1.1. Nanofiltration
The nanofiltration technology removes viruses by size exclusion. Basically, there are 2 pore sizes as 15 nm to 35 nm membrane filters used by this method (22, 34-36).
When the filters were used, it was shown that more than 4 to 6 logs of wide range of lipid-enveloped viruses and non-enveloped viruses such as hepatitis A virus (HAV) and parvo virus B19 were removed. It was also shown that nanofiltration by 35 nm (or less) filter removed Creutzfeldt-Jakob disease (CJD). When the protein solution was filtered through a 15-nm membrane filter, the virus removal was almost complete by the reduction of 6-log; and by 35 nm filtration, only the removal of viruses by 4.5-log was possible (37).
Always harsh conditions may affect the nature of protein, but one of the advantages of this method of virus removal is that it can be performed under mild conditions and the biological activity of the protein remains intact (38). Another advantage of this method is adding no chemicals to the solution (39). Therefore, there is no need to segregate chemicals after nanofiltration and the most important point is the commercial availability of the filters and no need for royalty payment.
Typically, the size of parvovirus can vary from 15 to 24 nm and it is resistant to virus inactivation and a suitable method to remove it is nanofiltration. Also, nanofiltration method can be implemented in the procedure of most of the plasma-derived biological medicines, but it is mostly used in coagulation factor IX, and in less extent in coagulation factor VIII, and immunoglobulin production (40).
3.2. Virus Inactivation
Although blood screening should be conducted for each donation, due to the possibility of viral infection, tests should be carried out for each donation to detect the viral markers including antibodies against human immunodeficiency virus 1 (anti-HIV-1), antibodies against human immunodeficiency virus 2 (anti-HIV-2), hepatitis B surface antigen (HBs Ag), antibodies against hepatitis C virus (anti-HCV), and based on domestic regulations, the test for alanine aminotransferase (ALT) should also be done.
All these tests and validated freezing storage conditions for plasma to ensure the homogenous quality of plasma is maintained to recover proteins labile in plasma (41) plus virus inactivation methods, which should be implemented in plasma fractionation, make the plasma an expensive raw material that its costs account for around 45% in the human plasma industry, compared with 5% in the pharmaceutical industry. The costs for high-quality plasma have risen about 40% and nucleic acid testing alone adds US$ 5 to 15 per liter of plasma.
Virus inactivation methods can be carried out in 3 ways: chemical methods, physical methods, and physicochemical methods.
3.2.1. Physical Methods
Physical virus inactivation methods are based on heat treatment, which include pasteurization, dry heat treatment, and steam heat treatment.
3.2.1.1. Pasteurization
Virus inactivation by the pasteurization procedure is very effective. It should be noticed that the protein in the solution should be more thermally resistant than viruses. The advantages of this procedure are that it needs simple equipment and is effective both for lipid-enveloped and non-enveloped viruses. Table 1 shows the potency of pasteurization in virus inactivation of plasma.
Table 1.Human Plasma Virus Inactivation by Pasteurization
| Virus | Inactivation (log10) |
|---|---|
| Human immunodeficiency virus-1 | ≥ 5.0 |
| Vaccinia | ≥ 4.3 |
| Pseudorabies | ≥ 4.1 |
| Parainfluenza type 3 | ≥ 6.3 |
| Sindbis | ≥ 5.7 |
| Poliovirus Sabin 1 | ≥ 6.2 |
| Reovirus | 3.2 |
By pasteurization, the temperature of protein solution is increased to a value that sufficiently denatures the virus; therefore, it is effective both for lipid-enveloped and non-enveloped viruses, because the temperature is high enough not to let the envelope protect the virus. By pasteurization, the liquid protein undergoes heat treatment for 10 hours at 60°C (42). If the purified protein is not heat resistant, pasteurization for this kind of protein is performed in the presence of stabilizers added to skip protein denaturation (43, 44).
Salts such as NaCl and CaCl2 were effective to inhibit heat-induced aggregation in human albumin. Sodium octanoate and sodium-N-acetyl-DL-tryptophanate are the stabilizers that minimize changes in the protein during pasteurization of albumin solution (44). The mechanisms of their stabilization on albumin are not fully elucidated; however, it is shown that the stability of proteins against heat stress can be increased by the stabilizers that increase the melting temperature of the proteins.
As a viral reduction treatment, pasteurization is currently applied for therapeutic concentrate including albumin, IM and IV IgG, fibrinogen, thrombin, factor VII, factor VIII, factor IX, factor XI, prothrombin complex concentrate (PCC), von Willebrand factor (vWF), antithrombin III, C1-inhibitor, and protein C (45-47).
Pasteurization is quite effective for viral reduction of both lipid-enveloped and non-enveloped viruses including hepatitis B virus (HBV), hepatitis C virus (HCV), HIV, and HAV. Good record of safety of albumin is a good example of the confidence in the efficacy of pasteurization.
3.2.1.2. Dry Heat Treatment
One of the physical methods of virus inactivation, which can be applied to biopharmaceutical products, is dry heat treatment. Duration of dry heat treatment can be varied from several minutes to several days. The temperature varies from 60°C to 100°C. Table 2 shows the sever heat treatment of coagulation factor VIII at 80°C for 72 hours (48, 49).
Table 2.Sever Heat Treatment of Coagulation Factor VIII at 80°C for 72 Hours
| Virus | Inactivation (log10) | Duration, hr |
|---|---|---|
| Sindbis virus | 8 | 72 |
| HIV | ≥ 6.4 | 72 |
| Vaccinia virus | 2.6 - 3.3 | 72 |
| Herpes simplex virus | 2.2 | 48 |
| Semliki forest virus | ≥ 6.9 | 24 |
| HAV | ≥ 4.3 | 24 |
| Canine parvovirus | ≥ 2.1 | 48 |
Kim et al., studied the effect of dry-heat treatment on the activity of coagulation factor VIII. In their experiment, the lyophilized final products were equilibrated at 30°C. Then, the dry heat treatment was processed at 60°C, 80°C, and 100°C. Their investigation on virucidal efficacy of the dry heat treatment showed significant reduction of viruses including HIV, encephalomyocarditis virus (EMCV), bovine viral diarrhea virus (BVDV), and bovine herpes virus (BHV) (50).
Usually, dry heat treatment is applied to the products in their final vials following the lyophilization (51). The common temperature for dry heat treatment is 60°C to 68°C for up to 72 or 96 hours. This range of temperature is quite effective for the inactivation of HIV, but to inactivate HBV and HCV, higher temperature of 80°C for 3 days is needed (52-54). But, under the severe conditions, still parvovirus B19 is not totally eliminated. As mentioned before, still the best method to eliminate parvovirus B19 is the nanofiltration (55).
Due to the lower humidity in dry heat treatment than pasteurization, the efficacy is lower in dry heat. One of the main advantages of dry heat treatment is avoiding the risk of down-stream contamination, because the heat treatment is carried on the final products. Using simple equipment is another advantage of this method.
Common stabilizers used during dry heat treatment include limited amount of sucrose or amino acids such as glycine, lysine, or arginine.
Validation of dry heat treatment is a paramount importance to ensure the precise temperature control and to indicate that suitable log reduction of viruses is guaranteed by spiking model viruses to sample.
3.2.1.3. Steam Heat Treatment
There are 2 subclasses of viruses, lipid-enveloped and non-enveloped viruses. Lipid-enveloped viruses are highly susceptible to both physical and chemical virus inactivation methods. But, non-enveloped viruses are more resistant. Viral sensitivity is higher to steam heat treatment than dry heat treatment. In other words, at equal temperatures, a higher level of virus inactivation can be obtained by the addition of water steam before starting the heat.
There are 3 key parameters in steam heat treatment including temperature, pressure, and the duration of heating. Generally, the pressure varies from 1190 to 1375 mbar, heating temperature varies from 60°C to 80°C, and the duration of heating can be up to 10 hours. Table 3 shows the coagulation factors of virus inactivation by steam heat treatment at 60°C for 10 hours (56, 57).
Table 3.Steam Heat Treatment Virus Inactivation of Coagulation Factors at 60°C for 10 Hours
| Product | Virus | Extent of Inactivation (log ID50) | Inactivation Time (Required Hours) |
|---|---|---|---|
| Factor VIII: Intermediate purity | HAV | > 3.3 | 8 |
| HIV | > 6.8 | 10 | |
| PRV | 5.9 | 10 | |
| Factor VIII: High purity | HAV | 3.9 | 10 |
| HIV | 6.7 | 10 | |
| PRV | 5.6 | 10 | |
| Factor IX: Intermediate purity | HAV | > 5.7 | 6 |
| HIV | > 6.5 | 6 | |
| PRV | > 7.1 | 8 | |
| Factor IX: Intermediate purity | HAV | > 6.7 | 3 |
| HIV | > 7.9 | 8 | |
| PRV | > 6.8 | 8 |
It should be noticed that more than 5-log reduction in the titer of virus indicates that the virus inactivation method is effective. It is noteworthy that some biological products are heated at 60°C for 10 hours, while others are additionally heated at 80°C for 1 hour. Although steam heat treatment can inactivate HAV in plasma products, some historical reports showed cases of transmission of enveloped virus such as HCV in coagulation factor.
3.2.2. Chemical Methods
There are 2 main chemical methods of viral reduction treatments applied to plasma products. One is the solvent/detergent (S/D) and the other is acid pH incubation at low pH of 4 (58, 59). Solvent/detergent method is excellent to inactivate lipid-enveloped viruses, and acid pH incubation method is also mostly effective against lipid-enveloped, but non-enveloped viruses are more resistant to this method.
3.2.2.1. Solvent/Detergent
The solvent/detergent method is quite potentially effective to inactivate lipid-enveloped viruses and they are killed only in a few minutes (60-62). This method is not effective for non-enveloped viruses and it is one of the main limitations of this method, while removing the solvent and the detergent after S/D treatment may cause some protein loss, which is a key challenge of solvent/detergent virus inactivation method. S/D virus inactivation method was developed by the New York blood center.
The organic solvent used in this method is tri-n-butyl phosphate (Figure 1) at the concentration of 0.3% and the detergent may vary from Tween 80, or Triton X100 to sodium cholate (Figure 2). The concentration of detergent may be about 1%.
By this method the plasma protein solution is incubated at 24°C to 30°C in the presence of tri-n-butyl phosphate and detergent. The duration of incubation is about 6 hours with mild stirring (63-65).

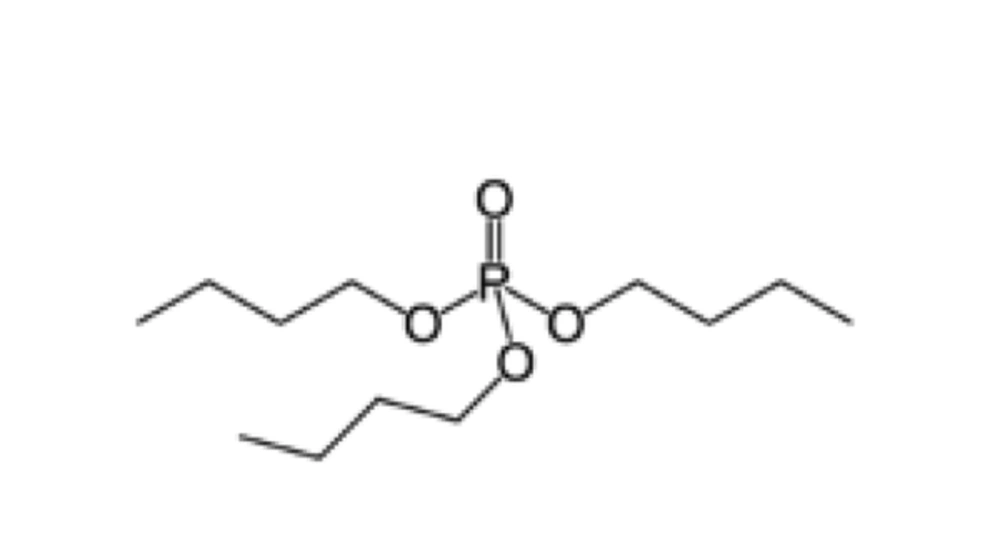

Figure 1.
Tri-n-Butyl Phosphate Chemical Structure

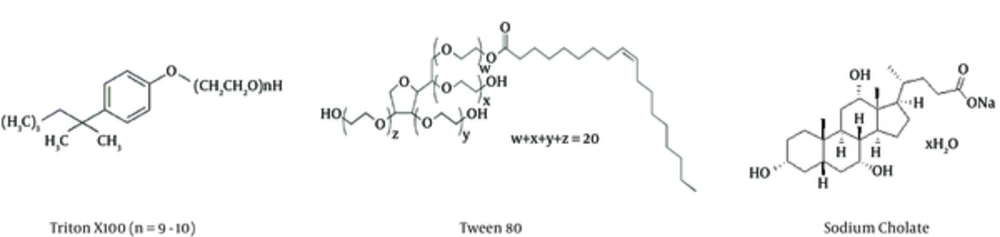

Figure 2.
Chemical Structure of Detergents Triton X100, Tween 80, and Sodium Cholate
Removal of organic solvent and the necessary detergent is quite possible by chromatographic, or precipitation and also extraction by soya bean oil techniques (66, 67).
The advantages of S/D treatment of human plasma products in the inactivation of lipid-enveloped viruses are as follows: maintaining biological activity of the plasma derived-products, no neoantigen formation, ease of control, and convenience of implementation. Table 4 shows the potency of S/D treatment in virus inactivation (68). As this method disrupts the lipid membrane of lipid-enveloped viruses, the main limitation of this method is its ineffectiveness for non-enveloped viruses.
Table 4.Inactivation of Lipid-enveloped Viruses by Solvent/Detergent Treatment
| Type of Virus | Inactivation (log10) | Duration, hr |
|---|---|---|
| Vesicular stomatitis virus | ≥ 7.5 | 0.25 |
| Sindbis virus | ≥ 6.9 | 0.25 |
| Duck hepatitis B virus | ≥ 7.3 | 2.5 |
| Bovine viral diarrhea virus | ≥ 6.1 | 0.25 |
| Human immunodeficiency virus | ≥ 7.2 | 0.25 |
| Hepatitis B virus | ≥ 6.0 | 4 |
| Hepatitis C virus | ≥ 5.0 | 4 |
3.2.2.2. Incubation in Acidic pH
Lipid-enveloped viruses denature when expose to acidic pH; therefore, pH incubation method, similar to S/D treatment, is effective for lipid-enveloped viruses. The key point in this method is the higher sensitivity of target protein to lower pH values than the virus. Low pH may denature the target protein as well (69).
Somehow, the process of preparation of some of the plasma-derived products may apply such a condition that is effective as a viral reduction step. For example, when preparing immunoglobulin G, to avoid the side effects of anti-complementary activity, one of the processing steps is the treatment at pH 4 with the presence of pepsin. It is proved that this treatment at acidic pH 4 is quite effective as a viral inactivation step for lipid-enveloped viruses (70, 71). The potency of this method for lipid-enveloped virus inactivation ranges from 5 to 8 log10 reduction. Non-enveloped viruses are more resistant to viral inactivation by this method. The duration of incubation in acidic pH may be 20 hours or more, and the temperature may vary from 30°C to 37°C.
3.2.3. Physicochemical Methods
3.2.3.1. Beta-Propiolactone with/without Irradiation
By this method of viral inactivation, firs the solution of protein is incubated with beta-propiolactone at a specific wavelength of ultraviolet (UV) light irradiated (72). Validation study indicated that this method was efficient against HIV, HBV, and HAV. The limitation of this method was losing biological activity, especially for labile proteins such as coagulation factor VIII. Therefore, this technique is not suitable for virus inactivation of F VIII.
Also, beta-propiolactone can be used without irradiation. In some procedures of immunoglobulin G preparation, it is treated with beta-propiolactone. This beta-propiolactone treatment shows the potency of viral reduction. The extension of this viral reduction is about 3.5 log10 for HCV and 4.5 log10 for HIV.
3.2.3.2. Methylene Blue and Visible Light
In this method of viral inactivation, there are parameters, which may affect the result; for instance, the volume of sample, the light intensity, the transparency of the bag of plasma, and mixing efficiency of methylene blue. The methylene blue compound is a photosensitizer, which can disrupt the biological systems in combination with light and presence of oxygen (73, 74). By this procedure, plasma units are treated with methylene blue and white fluorescent light for 1 hour or with sodium lamps for 20 minutes.
Methylene blue + light is an effective virus inactivation method for lipid-enveloped viruses, but not effective for non-enveloped viruses (75). Table 5 shows the efficacy of this technique (76, 77).
Table 5.Virus Inactivation by Methylene Blue and Light
| Virus | Inactivation (log10) | Duration, min |
|---|---|---|
| Vesicular stomatitis virus | 5.0 | 60 |
| Semliki forest virus | ≥ 7.0 | 10 |
| Herpes simplex virus | ≥ 5.5 | 60 |
| Bovine viral diarrhea | ≥ 5.9 | 2 |
| Duck hepatitis B virus | 3.9 | 60 |
| Hepatitis A virus | 0 | 60 |
| Porcine parvovirus | 0 | 60 |
3.2.4. Neutralization by Antibodies
Some of the antibodies are capable of neutralizing viruses (78). A good number of antibodies are available in pooled plasma, and that is why non-virally inactivated intramuscular or intravenous immunoglobulin preparations showed no contamination of viruses such as HBV, HAV, or parvovirus B19. But, nowadays by introducing many effective virus inactivation methods, neutralizing by antibodies are less implement.
4. Conclusions
Up to now, there is no virus inactivation method to ensure 100% inactivation of known plasma-borne viruses such as parvovirus B19, HAV, HBV, HCV, and HIV. To make sure that optimal viral safety level of plasma product is achieved; 2 different viral inactivation techniques should be implemented.
Implementation of the first specific viral inactivation method, that is S/D method, should ensure complete removal of major viruses such as HBV, HCV, and HIV. Use of the second virus reduction technique such as dry heat treatment or nanofiltration, should ensure elimination of other potential infectious agents.
Careful selection and elimination of donors susceptible to known viruses such as HAV, HBV, HCV, and HIV or emerging infectious agents, influence the viral safety of the plasma-derived biological medicines. Another parameter, which may influence the viral safety of plasma-derived drugs, is the refined viral testing procedure of each donation eliminate, within the sensitivity limit of the test used.
Although implementation of interventional virus inactivation methods in the process of biological plasma-derived medicines dramatically reduced the risk of contamination of such products, nowadays most of the residual transfusion-transmitted infections are due to the result of the interval between the time donor is infected and the real time that the tests are capable of detecting the agent and that is because of “window period”.
