1. Context
2. Objectives
3. Data Sources
3.1. Publication Search
3.2. Inclusion Criteria

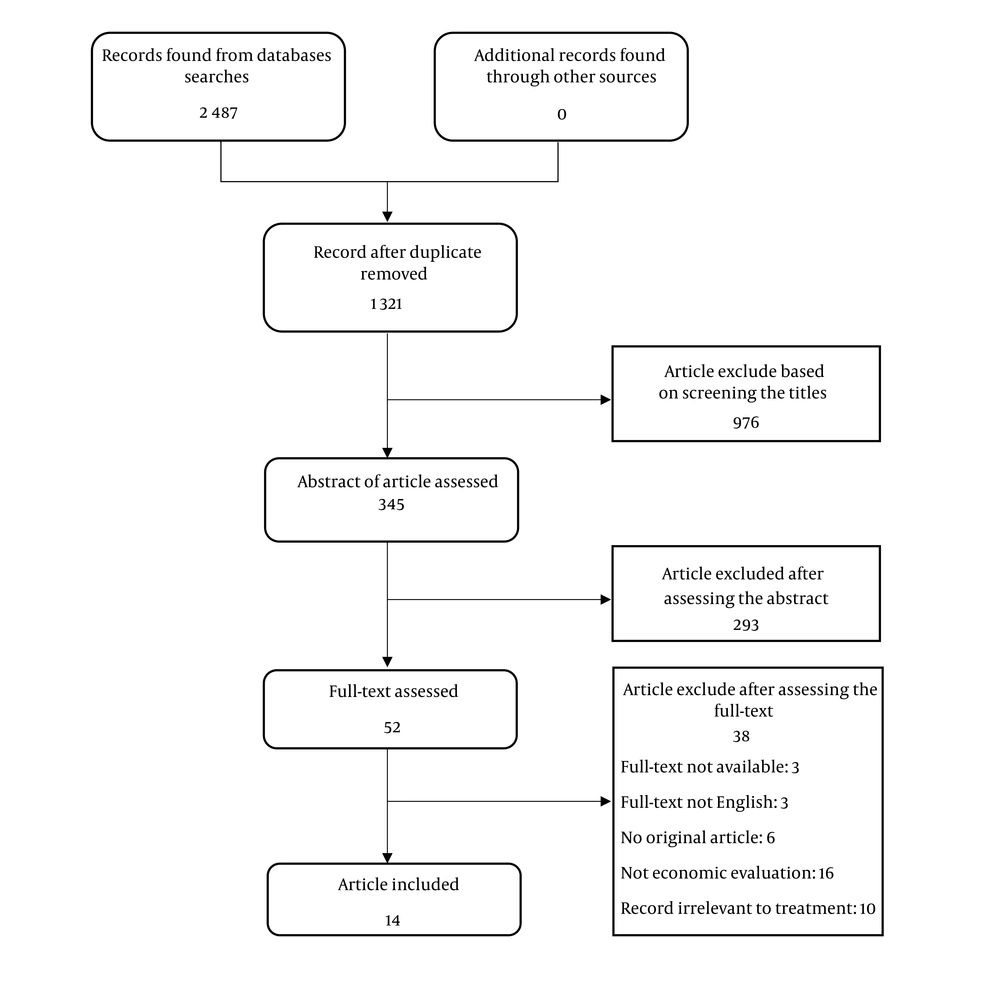

3.3. Study Selection
3.4. Data Extraction
4. Results
4.1. Description of the Included Studies
| Authors (Year), Country (Ref.) | Interventions | Economic Perspective (Time Horizon) | Model (Discount Rate) | Source for Effects and Cost Data | Cancer Subtype | Type of Evaluation (Threshold for Cost Effectiveness) |
|---|---|---|---|---|---|---|
| A: Esophagectomy vs. Endoscopy Treatment | ||||||
| Harewood and Wiersema (2002), USA (19) | Surgery, EUS FNA, CT FNA | Third party payer (not reported) | Decision tree (not applicable) | Effect: published literature cost: AMACPT, medicare fee schedule | Not specified | Cost minimization (not applicable) |
| Pohl et al. (2009), USA (20) | Surgery, EMR | Payer (5 years) | Decision tree (not applicable) | Effect: published literature, cost: based on DRG and AMACPT estimates | AC | CEA ($50000 per QALY gained) |
| Gordon et al. (2012), Australia (10) | Esophagectomy, EMR, downstaging, Add PET, chemoradiotherapy | Health system (5 years) | Decision tree (5%) | Effect: ACS, published literature, cost: patient-level from ACS, hospital record | AC | CEA ($50000 per QALY gained) |
| Chu et al. (2018), USA (21) | Esophagectomy, ET | Not reported (life time) | Markov (3%) | Effect: SEER data, published literature, cost: published literature | AC | CEA ($100000 per QALY gained) |
| B: Esophagectomy vs. Chemotherapy | ||||||
| Lin et al. (2016), Taiwan (22) | Esophagectomy, NCCRT | Payer (3 years) | Decision tree (not applicable) | Effect: Taiwan cancer registry, cost: national health insurance | SCC | CEA (US$50000-150000 per life year) |
| Fong Soe Khioe et al. (2018), UK (23) | Adjuvant statin + surgery, no-statin therapy | Health system (life time) | Markov (3.5%) | Effect: cohort of CPRD and study itself, cost: british national formulary and NHS data | AC | CUA (£20000 per QALY gained) |
| C: Chemotherapy Regimens | ||||||
| Webb et al. (1997), UK (24) | ECF, FAMTX | Health system (1 year) | Not modeling (not applicable) | Effect: primary data from the study itself, cost: hospital-based cost assessment | AC | CEA (not applicable) |
| Janmaat et al. (2016), Netherland (25) | CCF, CF | Health system (10.8 month) | Linear model (not applicable) | Effect: study of Lorenzen et al. cost: obtained from the dutch manual | SCC | CEA (€40000 per QALY gained) |
| D: Palliative Treatments | ||||||
| Shenfine et al. (2005), UK (26) | SEMS, Non-SEMS | Not reported (life time) | Descriptive costing study (not applicable) | Effect: primary data from the study itself cost: Micro costing model | SCC and ACC | CEA (£20,000 to 120,000 per QALY gained) |
| Wenger et al. (2005), Sweden (27) | SEMS, brachytherapy | Health system (Life time) | Not modeling (not applicable) | Effect: primary data from the study itself cost: sahlgren’s university hospital, goteborg | SCC and AC | CEA (not applicable) |
| Xinopoulos et al. 2005), Greece (28) | Stenting, laser palliation | Health system (life time) | descriptive costing study (not applicable) | Effect: primary data from the study itself, cost: micro costing model | SCC and AC | CEA (not applicable) |
| Da Silveira and Artifon (2008), USA (29) | Laser, brachytherapy, SES | Third party payer (9 month) | Markov (not applicable) | Effect: systematic literature review, cost: DRG and Medicare data | Not specified | CEA (0 to $15000) |
| McNamee and Seymour (2008), UK (13) | Plastic stent, brachytherapy, thermal ablation | Health system (1 year) | Not modeling (not applicable) | Effect: primary data from the study itself, cost: from case records by research nurses | Not specified | CEA (£10,000 to 50,000 per QALY gained) |
| Other Interventions | ||||||
| Lee et al. (2013), Canada (30) | Minimally invasive open, esophagectomy | Health system (1 year) | Decision tree (not applicable) | Effect: systematic literature review, Biere et al. study cost: mcGill university health centre, medical record | Not specified | CEA ( $0 to 100,000 per QALY in sensitivity analysis) |
Abbreviations: AC, adenoma carcinoma; ACS, Australian Cancer Study; AMACPT, American Medical Association Current Procedural Terminology; CCF, cetuximab cisplatin fluorouracil; CEA, cost effectiveness analysis; CF, cisplatin, and fluorouracil; SEMS, self-expanding metal stents; CPRD, clinical practice research datalink; CT FNA, computed tomography with guided fine needle aspiration; CUA, cost utility analysis; DRG, disease-related group; ECF, epirubicin, cisplatin, and fluorouracil; EMR, endoscopic mucosal resection; ET, endoscopic therapy; EUS FNA, endoscopic ultrasound with guided fine needle aspiration; FAMTX, fluorouracil (5-FU), doxorubicin, and methotrexate; HRQOL, health related quality of life; NCCRT, neoadjuvant concurrent chemoradiotherapy; QALY, quality adjusted Life year; SCC, squamous cell carcinoma; SEER, surveillance epidemiology and end results; SES, self-expandable stent.
4.2. Main Findings of the Included Studies
| Authors (Year), Country (Ref.) | Mean Cost or Incremental (Δ) Cost | Effectiveness Measure or Incremental (Δ) | ICER | Sensitivity Analyses | Conclusions |
|---|---|---|---|---|---|
| A: Esophagectomy vs. Endoscopy Treatment | |||||
| Harewood and Wiersema (2002), USA (19) | Mean cost: surgery $13992; EUS FNA $13811; CT FNA $14350 | Not applicable | Not applicable | Probabilistic | By minimizing unnecessary surgery, primarily by detecting CLN involvement, EUS FNA is the least costly staging strategy in the workup of patients with nonmetastatic esophageal cancer. Under certain circumstances, surgery is the preferred strategy |
| Pohl et al. (2009), USA (20) | Mean cost: Eso $27830; ET $17408, Δ cost Eso vs. ET: $10422 | QALY: ET 4.88; Eso 4.59, Δ QALY ER vs. Eso: 0.29 | Negative ICER, ET dominant over Eso | Probabilistic | ET is more effective and less expensive than esophagectomy |
| Gordon et al. (2012), Australia (10) | Δ cost EMR (base value: T1a 90%): 100% T1a -$256; 100%T1a +25% T1b -$357; 100%T1a +50% T1b -$458, Δ cost Eso: (base value: OM: 2% to 6%): 0% OM $225; 1% OM $166; 5% OM -$70 | Δ QALY EMR (base value: T1a 90%): 100%T1a -0.001; 100%T1a +25% T1b 0.002; 100%T1a +50% T1b 0.005, Δ QALY Eso: (base value: OM: 2% to 6%): 0% OM 0.049; 1%OM 0.036; 5% OM -0.018 | INT EMR (base value: T1a 90%):100%T1a $228; 100%T1a +25% T1b $428; 100%T1a +50% T1b $628, INT Eso: (base value: OM: 2% to 6%): 0% OM $1367; 1%OM $989; 5% OM -$523 | Probabilistic | These findings support measures that promote earlier diagnosis, such as developing risk assessment processes or endoscopic surveillance of Barrett’s esophagus. Incremental net monetary benefits for other strategies are relatively small in comparison to predicted gains from early detection strategies |
| Chu et al. (2018), USA (21) | Mean cost for T1a: Eso $47812; ET $12977, In T1b, Eso $46345; ET $ 11366., Δ cost for T1a and T1b, $34835 and $34979 | Life years: for T1a, Eso 6.97; ET 6.81, In T1b, Eso 5.73; ET 5.01., QALY: for T1a, Eso 4.95; ET 5.22, In T1b, Eso 4.07; ET 3.85 | $/QALY gained for Eso: 156981 in T1b | Probabilistic, deterministic | ET of T1a of EAC yields more QALYs and is more cost effective than esophagectomy for patients of all ages and comorbidity indices tested. selection of therapy for T1b EAC depends on age and comorbidities |
| B: Esophagectomy vs. Chemotherapy | |||||
| Lin et al. (2016), Taiwan (22) | Mean cost: NCCRT $ 91460; Eso $75836, Δ cost NCCRT vs. Eso: $15624 | Survival (year): NCCRT 2.2; Eso 1.8 | $/life years gained for NCCRT: 39060 | Probabilistic | When compared to esophagectomy, NCCRT is likely to improve survival and is probably more cost-effective |
| Fong Soe Khioe et al. (2018), UK (23) | Mean cost: adjuvant statin $12265; No-Statin therapy $19046 | QALY: adjuvant statin 4.93; no Statin therapy 3.25 | Negative ICER, statin therapy dominant over no-statin therapy | Probabilistic, deterministic | The cohort exposed to statins had lower costs and better QALY outcomes than the no statin cohort |
| C: Chemotherapy Regimens | |||||
| Webb et al. (1997), UK (24) | Mean cost: ECF $13760; FAMTX $13500, Δ cost ECF vs. FAMTX: $260 | Δ survival ECF vs. FAMTX: 3.2 month | $/life years gained for ECF: 975 | Not applicable | The ECF regimen results in a survival and response advantage, tolerable toxicity, better QL and cost-effectiveness compared with FAMTX chemotherapy |
| Janmaat et al. (2016), Netherland (25) | Δ cost CCF vs. CF: €26,459 | Δ QALY CCF vs. CF: 0.105, Δ life years CCF vs. CF: 0.187 | €/ QALY gained for CCF: 252203 | Probabilistic, deterministic | Addition of cetuximab to a cisplatin-5-fluorouracil first-line regimen for advanced esophageal squamous cell carcinoma is not cost-effective when appraised according to currently accepted criteria |
| D: Palliative Treatments | |||||
| Shenfine et al. (2005), UK (26) | Mean cost: non-SEMS £4792; SEMS £4648, Δ cost non-SEMS vs. SEMS: £144 | QALY: non-SEMS 0.25; SEMS 0.18, Δ QALY Non-SEMS vs. SEMS: 0.07 | £/QALY gained for non-SEMS: 2057 | Deterministic | The treatment choice for patients with inoperable esophageal cancer should be between a SEMS or a non-stent treatment after consideration has been given to both patient and tumor characteristics and clinician and patient preferences |
| Wenger et al. (2005), Sweden (27) | Mean cost: brachytherapy €35414; SEMS €24564 | Survival (mean): brachytherapy 162 day; SEMS 158 day | Not applicable | Not applicable | Stenting is currently more cost-effective compared with fractionated 3×7Gy brachytherapy for patients with incurable cancer of the esophagus and gastro-esophageal junction |
| Xinopoulos et al. (2005), Greece (28) | Mean total cost per patient: stenting €3103; laser palliation €2947 | Improvement in quality of life: in first month, stenting 96%; laser palliation 71%, in second month, stenting 75%; laser palliation 54% | Not applicable | Not applicable | Placement of self-expanding metal stents is a safe and cost-effective treatment modality that improves the quality of life, compared with laser therapy |
| Da Silveira and Artifon (2008), USA (29) | Mean cost: SES $5410; brachytherapy $4177; laser $3068 | Dysphagia score: SES 0.97; brachytherapy 1.06; laser 0.81 | ACER: SES 5559; brachytherapy 3908; laser 3756, ICER brachytherapy vs. laser: 4400 | Probabilistic, deterministic | Conditional to the WTP and current US Medicare costs, palliation of unresectable esophageal cancers with brachytherapy provides the largest amount of NHB and is the strategy with the highest probability of CE |
| McNamee and Seymour (2008), UK (13) | Mean cost: plastic stent £4538; brachytherapy £5310; thermal ablation £6084, Δ cost: brachytherapy vs. plastic stent £772; thermal ablation vs. plastic stent £1546 | QALY: plastic stent 0.25; brachytherapy 0.27; thermal ablation 0.25, Δ QALY brachytherapy vs. plastic stent: 0.02 | £/ qALY gained for brachytherapy: 38 600 | Not applicable | brachytherapy was identified as the more cost-effective treatment in terms of the incremental cost-per-QALY ratio by both the standard health outcome values approach and methods based on process values |
| Other Interventions | |||||
| Lee et al. (2013), Canada (30) | Mean yearly cost: MIE 45892 CAN$; open esophagectomy 47533 CAN$ | Mean yearly qALY: MIE 0.623; open esophagectomy 0.601 | Negative ICER, MIE dominant over open | Probabilistic, deterministic | MIE is cost-effective compared to open esophagectomy in patients with resectable esophageal cancer |
Abbreviations: ACER, average cost effectiveness ratio; CCF, cetuximab cisplatin fluorouracil; CF, cisplatin and fluorouracil; CT FNA, computed tomography with guided fine needle aspiration; ECF, epirubicin, cisplatin, and fluorouracil; EMR, endoscopic mucosal resection; Eso, esophagectomy; ET, endoscopic therapy; EUS FNA, Endoscopic ultrasound with guided fine needle aspiration; FAMTX; fluorouracil (5-FU), doxorubicin, and methotrexate; ICER, incremental cost effectiveness ratio; MIE, minimally invasive esophagectomy; NCCRT, neoadjuvant concurrent chemoradiotherapy; OM, operative mortality; QALY, quality adjusted life year; SEMS, self-expanding metal stents; SES, self-expandable stent.
