Breast cancer treatment and its challenges are one of the most important issues in medicine. The estrogenic receptor and its signaling pathway have a significant role in this issue. It is while that the traditional belief of estrogen being a pure proliferating and Tamoxifen, as an antiestrogen agent, acting as a solid anti-proliferating agent is shaken. Estradiol has presented a dual and tricky role on the cancer cells proliferation; to execute cell proliferation in physiologic but cytotoxicity in high concentrations. Tamoxifen has also been shown to present proliferating effects in some cell lines that have co-expression of ER and HER2 (
14). Various receptors and their cellular signaling pathways are the most reasonable candidates to explain these paradoxes. Although the traditional estrogen gene expression stimulation might work through the formation of a dimer and DNA binding adventure, its non-genomic pathway of EGFR and HER2 phosphorylation leading to PI3K/Akt and MAPK activation might be responsible for its diverse effects in different breast cancer cell lines (
15). Again, the traditional anti-estrogenic effects of Tamoxifen might weaken with its long application through the EGFR signaling pathway in some cell lines. Some other interfering agents on this pathway are coming along one by one to present their roles in estrogen chiastic adventure, including insulin that has shown a cross-talk between its IGF1R with the EGFR and HER2 pathways. In our experiments using different cell lines with the various expressions of the above receptors, we have explored these complexities further.
To show that the cellular characteristics of our five selected cell lines are in agreement with the previous publications for such an adventure, a general cytotoxicity assay was performed, and Trastuzumab blocked the HER2 positive cell line of SKBR-3 growth (IC
50 = 2.88 ± 0.55 µg/mL), high doses of estradiol blocked the proliferation of MCF7, BT-474, and ZR-75-1 cell lines. In contrast, Tamoxifen blocks all of these cell lines. For the Trastuzumab, in a study, by Costantini et al., that investigated the possibility of breaking the resistance to this drug in the Trastuzumab-resistant cell lines, the MDA-MB-231 cell line showed similar results to our study and didn’t respond to the drug. In another study, Trastuzumab has been applied on two cell lines with a positive HER2 receptor of BT-474 and SKBR-3, and the MCF7 cell line with the final result confirming our study. As per our results, they have also confirmed that the MCF7 cell line did not respond to this drug, indicating that HER2 receptor expression is required to respond to the treatment with Trastuzumab, and if this receptor is not expressed in patients, there will be no benefit from treatment with this drug. In the study of Zazo et al., the sensitivity of different cell lines to the presence of Trastuzumab with a concentration of 15µg/mL in their cell culture for 7 days was investigated, and the cell proliferation changes were compared with the control group. These investigators have also observed that the SKBR-3 cell line is one of the sensitive categories to this drug and its growth rate has decreased by 50.67% (
16-
18). Looking at our cytotoxicity results on the selected cell lines and the above mentioned references confirms the features of these cell lines for the understudy receptors and signaling pathways.
Our results of Tamoxifen cytotoxicity on these cell lines presented the following rank order: MCF7 > SKBR-3 > ZR-75-1 > MDA-MB-231. The highest level of cytotoxicity is observed for the MCF7 cell line. Tamoxifen is a non-steroidal drug that treats breast cancer with positive hormone receptors and works through the ER-mediated transcription cascade. However, it was also useful in estrogen receptor-negative cancers and causes toxicity through apoptosis and activation of the caspase-3 pathway. In Salami and Karami-Tehrani experiment, two cell lines, MCF7 and MDA-MB-468, with different expressions of estrogen receptors were studied. During this study, caspase cascade and proteins involved in apoptosis were studied. The MCF7 cell line has shown more sensitivity to Tamoxifen, presumably through the estrogenic receptors. However, the toxicity of the MDA-MB-468 cell line has been observed through the activation of the caspase pathway, with no alterations in the Bcl-2 and Bax apoptotic proteins (
19,
20).
In another study, 5 cell lines (SKBR-3, MDA-MB-231, MDA-MB-468, MDA-MB-453, and HCC-1937) that are ER-negative were examined, and Tamoxifen acts on these cells through the CIP2A-dependent p-Akt downregulation and causes apoptosis. It was found that ERβ receptor is expressed in these cell lines as one of the factors in the cell response to Tamoxifen in both ER-positive and ER-negative breast cancer patients (
21,
22). This study generally agrees with other studies that have shown differences in the response to Tamoxifen of ER+ and ER- breast cancer cells in-vitro.
Among the cell lines studied in our experiments, the MCF7 and ZR-75-1 cell lines have estrogen receptors and respond to the addition of estradiol in the media. According to the results of the clonogenic assays, it was observed that low concentrations of estradiol have a stimulating effect on growth, which gradually changed to the growth inhibitory effect with the increasing concentrations. When the concentration of 10 nM of 17β-estradiol was exposed to the MCF7 cell line for 48 hours, the Bcl-2 protein was increased and protected cells from apoptosis (
23). In another article, the effects of androgenic and estrogenic compounds on the ZR-75-1 cell line have been studied, and it has been observed that these two substances can neutralize the effects of each other, while estradiol exerts its effects faster than androgens (
24).
We have also investigated the effects of the estradiol and Tamoxifen presence in the culture medium in this paper. According to
Tables 2 and
3 and

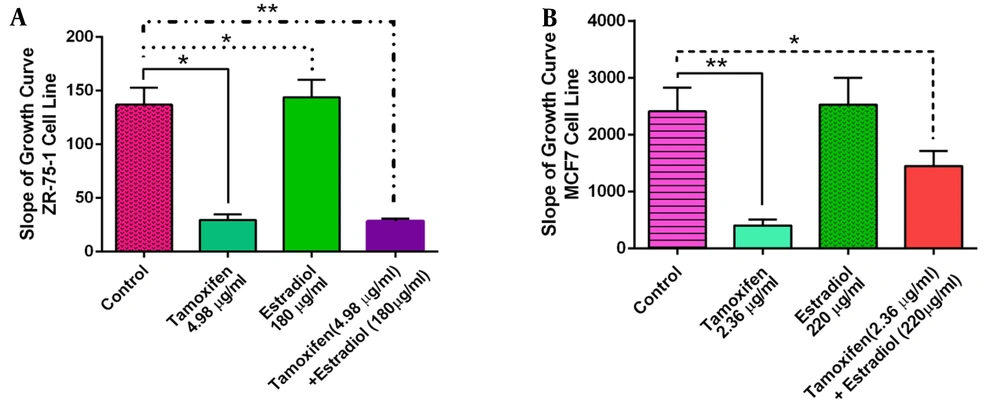

Figure 3, the ZR-75-1 cell line was also more sensitive to the effects of estradiol in a dose-dependent manner with a significant growth difference from the control cells. The magnitude of growth difference in the presence of estradiol was not significant for the MCF7 cell line. Tamoxifen, meanwhile, significantly inhibited the growth of both cell lines. In agreement with our results, Katzenellenbogen et al., have also shown that the estrogenic stimulating effects of estradiol are not as potent as the Tamoxifen inhibitory effects on the MCF7 cell line (
25). In another study comparing the growth stimulation and inhibition effects of estradiol and Tamoxifen on the ZR-75-1 cell line, cells were grown in the serum-free media to eliminate the potential effects of estrogens in the serum. These cells were exposed to the increasing concentrations of estradiol with or without Tamoxifen. The final result has confirmed that estradiol can only neutralize some of the inhibitory effects of Tamoxifen, being less potent on the estrogenic receptors than this drug (
26).
Our results as shown in
Figure 3 on the growth performance of the two cell lines in the presence of estradiol, Tamoxifen, and co-administration of these agents, have also confirmed that the inhibitory effects of Tamoxifen on cell growth are superior when co-administered with estradiol. The ZR-75-1 cell line is more sensitive to these effects and has a higher response to the estrogenic and anti-estrogenic compounds than the other cell lines studied in our experiments.
Insulin has been shown to have a meditative role during previous estrogenic or HER-2 studies. Different researchers have added different concentrations of insulin to the cells' growth media while investigating the effects of estrogen, Tamoxifen, or Trastuzumab (
27,
28). We have also looked at the potential effects of insulin on the two cell lines with variable kinds of receptors.
Table 4 shows the effects of insulin in the cell media of MCF7 and BT-474 and the changes in their response to the estrogenic and anti-estrogenic compounds of the estradiol and Tamoxifen. As the results show, insulin has no effect on the toxicity of Tamoxifen in either cell line while moderated the effects of estradiol toxicity at high concentrations.
Just as estrogen can stimulate estrogen receptors and cell proliferation, and its role in breast cancer is well-known, other factors, like the insulin-like growth factors (IGFs), also stimulate estrogen receptors in ER-positive breast cancer cell lines. This evidence has suggested that these two cell proliferation regulatory pathways are linked to each other and that the stimulation or inhibition of each pathway might affect the performance of the other. Insulin-like growth factor IGF-I protects many cells against apoptosis. One study has found that blood insulin levels were elevated in patients with uterine cancer and were directly related to tumorigenesis in these patients. Insulin is a mutagenic and anti-apoptotic agent for many types of cells, and these effects are dependent on the PI3K/Akt pathway (
29,
30). These findings confirm the results of our study on the toxicity of estradiol on the MCF7 and BT-474 cell lines showing that the presence of insulin in the cell media protects them against high doses of estradiol toxicity. One possibility to express these controversies might be looking at the cells' proliferation or cytotoxicity.
Table 4 and
Figures 4 and
5 represent two different assumptions in presenting cytotoxicity of estradiol and Tamoxifen, with
Table 4 focusing on the IC
50 and
Figures 4 and
5 on all ranges of different concentrations. Looking at
Table 4, insulin increases the IC
50 of estradiol but does not affect the cytotoxicity of the Tamoxifen. However, there is a different story with

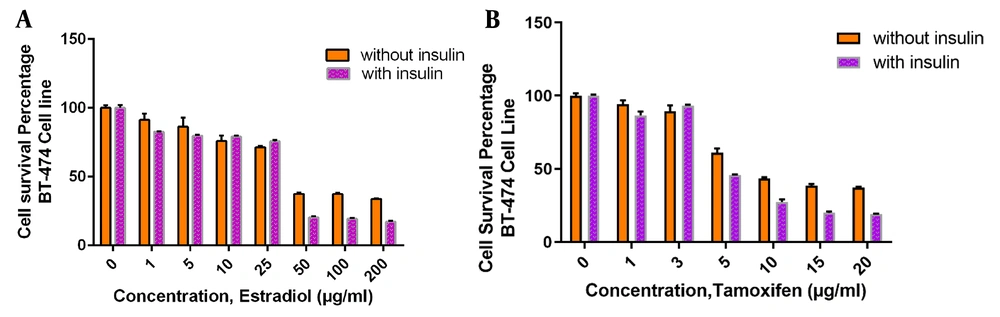

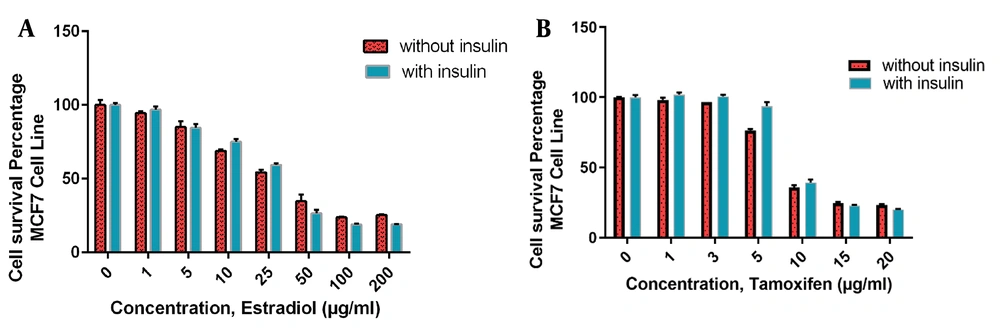

Figures 4 and
5. The cytotoxicity pattern of estradiol and Tamoxifen is presenting a well-sigmoidal shape with the breakdown values of 5 µg/mL for Tamoxifen and 50 µg/mL for estradiol. The IC
50s of these agents are within this falling range where the cell signaling may undergo dramatic alterations.
A single value of IC
50 within this range might well present an idea for the relative effects of different agents, but it is misleading in signaling interpretation. With a careful look at the other bars in
Figures 4 and
5, Insulin increases the resistance of MCF7 cells to both estradiol and Tamoxifen, while a reverse feature is shown for these agents' application on the BT-474 cell line which expresses HER2. Insulin has presented synergistic effects with estradiol through the PI3K/Akt pathway that eventually induces cell proliferation (
31). Tamoxifen has also been shown to present estrogen agonistic effects on cell proliferation in ER and HER2 positive cell lines like BT-474. This is also through the cross-talking between ER, EGFR, IGF1, and HER2. 4-hydroxy tamoxifen is about 4 times stronger than Tamoxifen on estrogen receptors. MCF7 cells growth inhibition is not high when these cells are exposed to this agent, unless when both IGF1-R and ER are suppressed. Our finding is in agreement with this observation since MCF7 cells exposed to insulin that stimulates IGF1-R became more resistant to Tamoxifen and estradiol high doses. On the other hand, 4-hydroxy tamoxifen has strongly inhibited the growth and proliferation of BT-474 cells that are overexpressing HER2 but are low in IGF1 receptor (
32). Our result does not agree with this experiment, as we have seen an increase in cytotoxicity in BT-474 while exposed to both Tamoxifen and insulin that stimulates IGF1. Estradiol is also presenting the same cytotoxic effects on BT-474 when it is co-exposed to insulin in our results. This might indicate the presence of some other interfering mechanism in the cross-talk of IGF1 and HER2 in the presence of ER that needs more investigations, and adds to the complexity of this story. Although Insulin has protected these cells against the high doses of estradiol, but did not present any significant effects on the toxicity of Tamoxifen.
The phosphoinositide-3 kinase (PI3K) pathway has been identified as an important target in breast cancer's appearance or therapeutic outcome. This pathway is probably one of the most important pathways in cancer metabolism, growth regulation, proliferation, and cell survival. Various factors cause resistance to endocrine therapy, one of which is activating the PI3K pathway. PI3K pathway is one of the common pathways between the three receptors, estrogen, HER2, and IGF-I. Studies show that increasing the activity of the PI3K signaling pathway causes resistance of cells to anti-HER2 treatment. This signaling pathway also interferes with the expression of estrogen receptors in ER-positive breast cancer, reducing the expression of estrogen receptors in these cells, thereby creating resistance to hormonal therapy. Insulin resistance, type 2 diabetes, and hyperinsulinemia also increase the activity of the PI3K signaling pathway, thereby impairing the response to HER2 and ER targeted therapy in cancer patients with a background in these diseases (
33,
34).
One of the non-genomic mechanisms by which Tamoxifen works is the G protein-coupled receptor of GPR30. This receptor is present in most of the ER-positive breast cancers, including MCF7 and ZR-75-1 cell lines that Tamoxifen inhibits their growth. GPR30 might well be a good reason for the sensitivity of these cell lines to the effects of Tamoxifen in the presence or absence of the estrogen receptor stimulating factor of estradiol. The same outcome has also been seen in our results of the co-treatment of cells with estradiol and insulin when the effects of Tamoxifen have always been predominant. However, there are reports that the chronic exposure of cells to Tamoxifen and the long-term treatment of patients with this agent might cause resistance to the drug. One of the reasons is the translocation of the GPR30 receptor, which activates the EGFR and PI3K pathway and thus creates resistance to the Tamoxifen, adding to the multifactorial nature of breast cancer therapy (
35,
36).
4.1. Conclusion
The mechanism of cellular signaling cross-talk isn’t a one-way pattern, each of the pathways increasingly affects the other signaling cascades, and not all of them produce similar results, making any simple outcome prediction for the cancer treatment so difficult. The results of the exposure of cells to any of these factors alone or in combinations are not accurately predictable. With the present knowledge, a simple selection of drugs for breast cancer patients with various cell types and biological environments is almost impossible. A complete examination of the presence of various receptors on the neoplastic cells and the amount of different growth-stimulating agents in any individual with breast cancer is required before making any final decision on the treatment protocol for such a patient.
