Chemical synthesis
A group of N-aryl derivatives of the 4-flurophthalimide (compounds 2-13) were synthesized by condensation of the respective aromatic amine with 4-flurophthalic anhydride in acetic acid at reflux temperature (
Scheme 1-A). Nitro moiety of compounds 2-5 was reduced to amine using Pd/C and cyclohexene in 2-propanol at reflux temperature (
Scheme 1-B) (
24-
26). All the solvents and chemicals were obtained from Merck and Sigma-Aldrich Company. Thin layer chromatography was performed on plastic TLC plates and TLC spots were visualized using ultraviolet lamp and iodine tank. Melting points were determined using Electro thermal IA 9300 capillary melting-point apparatus (Ontario, Canada).
1H-NMR and FT-IR spectra were prepared with the Bruker FT-250 and Nicolet 550-FT spectrometers respectively. A Perkin-Elmer model 240-C apparatus was used for elemental analysis and results were considered in range of + 0.4% of the calculated amounts.
Preparation of 2-(2-chloro-4-nitrophenyl)-5-fluoro-1H-isoindole-1, 3(2H)-dione (2)
A solution of 4-flurophthalic anhydride (200 mg, 1.2 mmol) and 2-chloro-4-nitroaniline (184 mg, 1.2 mmol) in glacial acetic acid (2 mL) was stirred and heated under reflux for 120 h. After cooling to room temperature, cold water (5 mL) was added and the resulting precipitate was collected by filtration, washed with cold water and cold ethanol, respectively, and recrystallized from ethanol to give compound 2 as pale yellow crystals (355 mg, 91.9% yield). TLC tank solvent was (dichloromethane/petroleum ether 2:1), m.p. 173-175 °C. 1H-NMR (CDCl3): δ 7.974 (d, J = 2.5Hz, 1H, H-3-phenyl), 8.299(dd, J = 2.5 and 8.75Hz, 1H, H-5-phenyl), 8.019(d, J=8.51H, H-7-phthalimide), 7.677(dd, J = 2, 2.5 and 6.88Hz, 1H, H-4-phthalimide), 7.573(d, J=8.5Hz, 1H, H-6-phenyl), 7.511 (ddd, J = 1.75, 2.5 and 8.38Hz, 1H, H-6-phthalimide); IR (KBr): ν cm- , 3103 and 3074 (CH-aromatic), 1788 and 1730 (CO), 1526, 1481 and 1375, 1340 (NO2). Anal. Cal. For (C14H6ClFN2O4): C, 52.44; H, 1.89; N, 8.74; Found: C, 52.49; H, 1.90; N, 8.72.
Preparation of 5-fluoro-2-(2-methyl-3-nitrophenyl)-1H-isoindole-1, 3(2H)-dione (3)
Using a procedure similar to that of 2, 4-flurophthalic anhydride and 2-methyl-3-nitroaniline provided the title compound after 96 h that the crude and impure product was recrystallized from ethanol to afford the desired compound as a brown crystals (340 mg, 94%); m.p. 152-153 °C; 1H-NMR (CDCl3): δ 7.982-8.033(m, 2H, H-7-phthalimide and H-4-phenyl), 7.665(dd, J = 2.25 and 7Hz, H-4-phthalimide), 7.484-7.546(m, 3H, H-6-phthalimide and H-5,6-phenyl), 2.358 ppm (s, 3H, CH3); IR (KBr): ν cm- , 3095 and 3076 (CH-aromatic), 2923 (CH-aliphatic), 1778 and 1722 (CO), 1531, 1475 and 1263, 1240 (NO2). Anal. Cal. For (C15H9FN2O4): C, 60.01; H, 3.02; N, 9.33; Found: C, 60.09; H, 3.03; N, 9.31.
Preparation of 5-fluoro-2-(2-methyl-4-nitrophenyl)-1H-isoindole-1,3 (2H)-dione (4)
Using a procedure similar to that of 2, 4-flurophthalic anhydride and 2-methyl-4-nitroaniline provided the title compound after 96 h that the crude and impure product was recrystallized from ethanol to afford the desired compound as a white crystals (350 mg, 96.8%); m.p. 170-171 °C; 1H-NMR (CDCl3): δ 8.266(s, 1H, H-3-phenyl), 8.205(d, J = 8.5Hz, 1H, H-5-phenyl), 8.003(dd, J = 4.5 and 8 Hz, 1H, H-7-phthalimide), 7.66(dd, J = 2 and 7Hz, H-4-phthalimide), 7.566(t, J = 8Hz, H-4-phenyl), 7.513(dt, J= 2, 2.25 and 8.625 Hz, 1H, H-6-phthalimide), 7.406(d, J = 8.5Hz, 1H, H-6-phenyl), 2.337 ppm (s, 3H, CH3). IR (KBr): ν cm- , 3103 and 3076 (CH-aromatic), 2926 (CH-aliphatic), 1780 and 1720 (CO), 1520, 1485 and 1375, 1344 (NO2). Anal. Cal. For (C15H9FN2O4): C, 60.01; H, 3.02; N, 9.33; Found: C, 60.07; H, 3.03; N, 9.34.
Preparation of 5-fluoro-2-(2-methyl-6-nitrophenyl)-1H-isoindole-1, 3(2H)-dione (5)
Using a procedure similar to that of 2, 4-flurophthalic anhydride and 2-methyl-6-nitroaniline provided the title compound after 144 h that the crude and impure product was recrystallized from ethanol to afford the desired compound as a pale brown crystals (340 mg, 94%); m.p. 108-110 °C; 1H-NMR (CDCl3): δ 8.053(d, J= 8.25 Hz, 1H, H-5-phenyl), 7.988(dd, J = 4.5 and 8.25 Hz, 1H, H-7-phthalimide), 7.632-7.693(m, 2H, H-4-phthalimide and H-3-phenyl), 7.566(t, J = 8Hz, H-4-phenyl), 7.501(dt, J= 2, 2,25 and 8.63 Hz, 1H, H-6-phthalimide), 2.334 ppm (s, 3H, CH3). IR (KBr): ν cm-1, 3072(CH-aromatic), 2923(CH-aliphatic), 1782 and 1728 (CO), 1531, 1481 and 1267, 1238(NO2). Anal. Cal. For (C15H9FN2O4): C, 60.01; H, 3.02; N, 9.33; Found: C, 60.08; H, 3.01; N, 9.31.
Preparation of 2-(2, 6-dimethylphenyl)-5-fluoro-1H-isoindole-1, 3(2H)-dione (6)
Using a procedure similar to that of 2, 4-flurophthalic anhydride and 2, 6-dimethylnitroaniline provided the title compound after 72 h that the crude and impure product was recrystallized from ethanol to afford the desired compound as a white crystals (120 mg, 74%); m.p. 146.5-148 °C; 1H-NMR (CDCl3): δ 7.975 (dd, J = 4, 5 and 8Hz, 1H, H-7-phthalimide), 7.644 (d, J =7 Hz, 1H, H-4-phthalimide), 7.478 (t, J = 7 and 7.75, 1H, H-6-phthalimide), 7.284 (t, J = 7Hz, H-4-phenyl), 7.19(d, 2H, H-3,5-phenyl), 2.156 ppm (s, 6H, CH3). IR (KBr): ν cm-1, 3101, 3074 and 3035 (CH-aromatic), 2932(CH-aliphatic), 1776 and 1720 (CO). Anal. Cal. For (C16H12FNO2): C, 71.37; H, 4.49; N, 5.20; Found: C, 71.31; H, 4.51; N, 5.22.

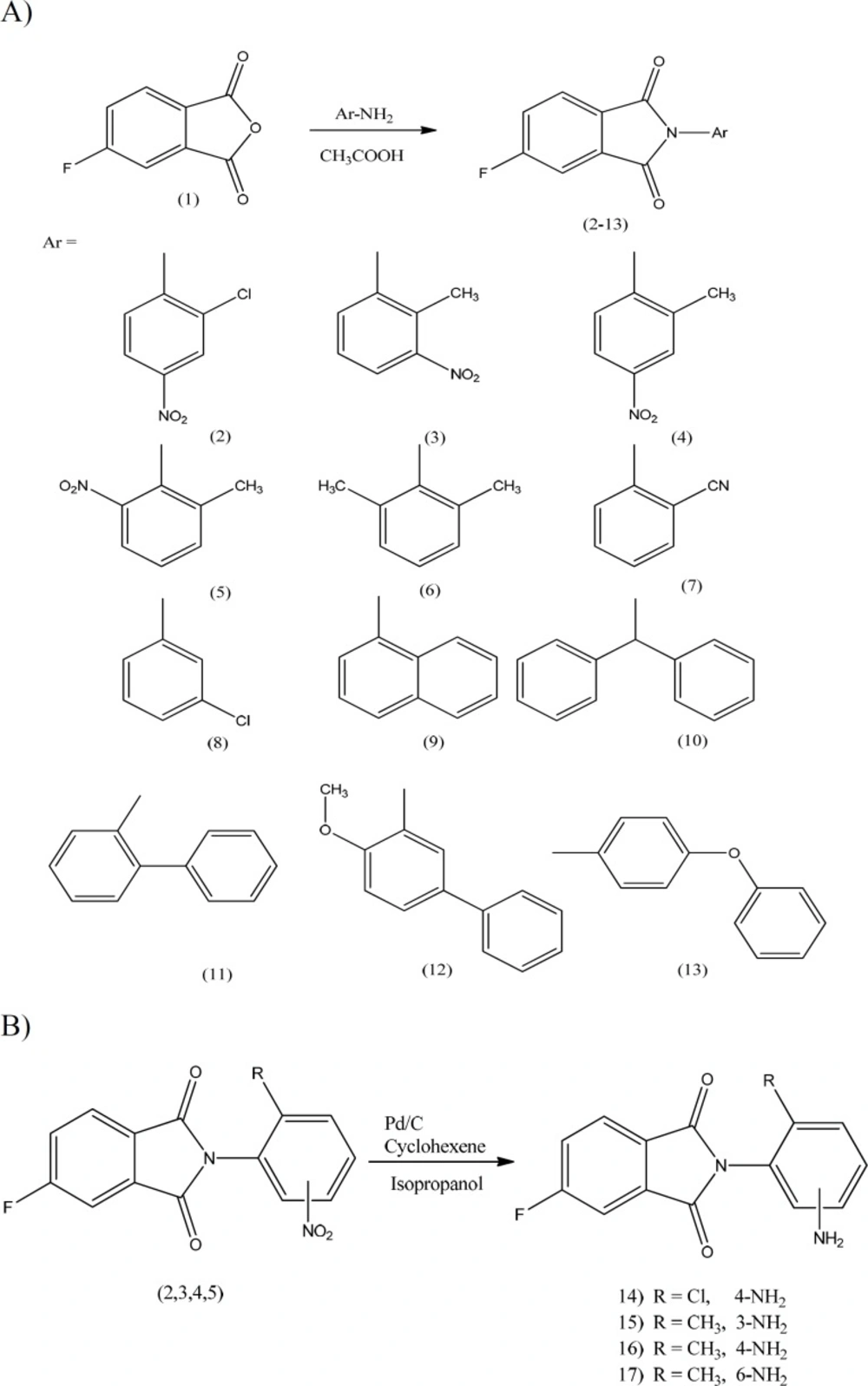

Synthetic route of 4-flurophthalimides 2-17

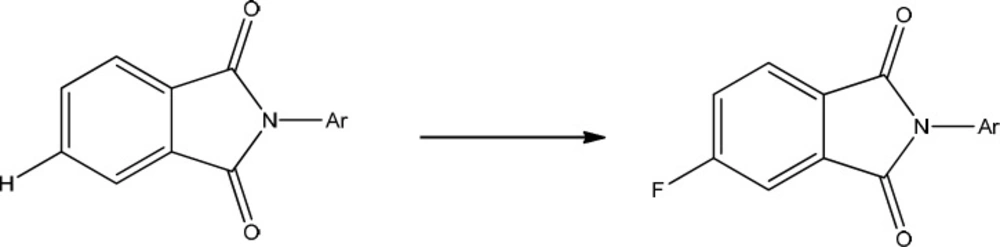

Bioisosteric replacement of hydrogen to design of 4-flurophthalimides
| Compound | PTZ- score 5Seizured/total | p-value |
|---|
| 2 | 4/10 | 0.0108* |
| 3 | 4/10 | 0.0108* |
| 4 | 6/10 | 0.0867 |
| 5 | 4/10 | 0.0108* |
| 6 | 6/10 | 0.0867 |
| 7 | 4/10 | 0.0108* |
| 8 | 4/10 | 0.0108* |
| 9 | 4/10 | 0.0108* |
| 10 | 0/10 | 0.0001*** |
| 11 | 6/10 | 0.0867 |
| 12 | 6/10 | 0.0867 |
| 13 | 4/10 | 0.0108* |
| 14 | 4/10 | 0.0108* |
| 15 | 8/10 | 0.4737 |
| 16 | 4/10 | 0.0108* |
| 17 | 4/10 | 0.0108* |
| Phenytoin | 2/10 | 0.0007*** |
| Control (DMSO) | 10/10 | |
p < 0.05,
p < 0.001 compared with the control group
| Compound | MES (protected/total) |
|---|
| 2 | 2/5 |
| 3 | 2/5 |
| 4 | 0/5 |
| 5 | 1/5 |
| 6 | 1/5 |
| 7 | 0/5 |
| 8 | 0/5 |
| 9 | 1/5 |
| 10 | 1/5 |
| 11 | 1/5 |
| 12 | 1/5 |
| 13 | 0/5 |
| 14 | 2/5 |
| 15 | 2/5 |
| 16 | 2/5 |
| 17 | 0/5 |
| Phenytion | 5/5 |
| Control (DMSO) | 0/5 |
Preparation of 2-(5-fluoro-1,3-dioxo-1,3-dihydro-2H-isoindol-2-yl)benzonitrile (7)
Using a procedure similar to that of 2, 4-flurophthalic anhydride and 2-aminobenzonitrile provide the title compound after 24 h that the crude and impure product was recrystallized from ethanol to afford the desired compound as a pale yellow crystals (90 mg, 56.2%); m.p. 193.5-196 ºC: 1H-NMR (CDCl3): δ 8.019(dd, J = 4, 5 and 8.25Hz, 1H, H-7-phthalimide), 7.853(dd, J = 1 and 7 Hz, 1H, H-4-phthalimide), 7.781(dt, J = 1.25, 1.5 and 7.875, 1H, H-6-phthalimide), 7.678(dd, J = 2 and 7Hz, 1H, H-6-phenyl), 7.61(dd, J = 1 and 7.75Hz, 1H, H-3-phenyl), 7.464-7.565 ppm(m, 2H, H-4,5-phenyl). IR (KBr): ν cm-1, 3067 (CH-aromatic), 2230(CN), 1788 and 1732 (CO). Anal. Cal. For (C15H7FN2O2): C, 67.67; H, 2.65; N, 10.52; Found: C, 67.60; H, 2.64; N, 10.55.
Preparation of 2-(3-chlorophenyl)-5-fluoro-1H-isoindole-1,3 (2H)-dione (8)
Using a procedure similar to that of 2, 4-flurophthalic anhydride and 3-chloroaniline provided the title compound after 72 h that the crude and impure product was recrystallized from ethanol to afford the desired compound as a white crystals (135 mg, 81.3%); m.p. 150.5-151.5 °C: 1H-NMR (CDCl3): δ 7.981(dd, J= 4, 5 and 8.25Hz, 1H, H-7-phthalimide), 7.643(dd, J= 2, 2,25 and 6.875 Hz, 1H, H-4-phthalimide), 7.35-7.52 ppm (m, 5H, H-6-phthalimide and H-2,4,5,6-phenyl). IR (KBr): ν cm-1, 3074 (CH-aromatic), 1778 and 1720(CO). Anal. Cal. For (C14H7ClFNO2): C, 61.00; H, 2.56; N, 5.08; Found: C, 61.09; H, 2.57; N, 5.06.
Preparation of 5-fluoro-2-(naphthalen-1-yl)-1H-isoindole-1,3 (2H)-dione (9)
Using a procedure similar to that of 2, 4-flurophthalic anhydride and 1-naphthylamine provided the title compound after 72 h that the crude and impure product was recrystallized from ethanol to afford the desired compound as a violet crystals (150 mg, 85.5%); m.p. 188-191 °C: 1H-NMR (CDCl3): δ 7.942-8.056(m, 3H, H-7-phthalimide and H-5, 8-naphthyl), 7.697(dd, J = 2, 2.25 and 6.875Hz, 1H, H-4-phthalimide), 7.446-7.641 ppm (m, 6H, H-6-phthalimide and H-2,3,4,6,7-naphthyl). IR (KBr): ν cm-1, 3110, 3072 and 3040 (CH-aromatic), 1778 and 1722(CO). Anal. Cal. For (C18H10FNO2): C, 74.22; H, 3.46; N, 4.81; Found: C, 74.18; H, 3.47; N, 4.83.
Preparation of 2-(diphenylmethyl)-5-fluoro-1H-isoindole-1, 3(2H)-dione (10)
Using a procedure similar to that of 2, 4-flurophthalic anhydride and 1,1-diphenylmethaneamine provided the title compound after 8 h that the crude and impure product was recrystallized from ethanol to afford the desired compound as a white crystals (185 mg, 92.7%); m.p. 254-256 °C: 1H-NMR (DMSO-d6): δ 7.842-7.898(m, 1H, H-7-phthalimide), 7.166-7.7.541(m, 12H, aromatic), 6.290 ppm (s, 1H, CH-N). IR (KBr): ν cm-1, 3030 and 3034 (CH-aromatic), 1692 and 1647(CO). Anal. Cal. For (C21H14FNO2): C, 76.12; H, 4.26; N, 4.23; Found: C, 76.19; H, 4.28; N, 4.20.
Preparation of 2-(biphenyl-2-yl)-5-fluoro-1H-isoindole-1, 3(2H)-dione (11)
Using a procedure similar to that of 2, 4-flurophthalic anhydride and biphenyl-2-amine provided the title compound after 100 h that the crude and impure product was recrystallized from ethanol to afford the desired compound as a white crystals (150 mg, 78.5%); m.p. 166-168 °C: 1H-NMR (CDCl3) : δ 7.819(dd, J= 4, 5 and 8.25 Hz, 1H, H-7-phthalimide), 7.46-7.566(m, 5H, H-4-phthalimide and H-2, 5, 3´,5´-biphenyl)), 7.256-7.409 ppm(m, 6H, H-6-phthalimide and H-3,4,2´4´6´-biphenyl). IR (KBr): ν cm-1, 3106, 3067 and 3031 (CH-aromatic), 1778 and 1724(CO). Anal. Cal. For (C20H12FNO2): C, 75.70; H, 3.81; N, 4.41; Found: C, 75.65; H, 3.82; N, 4.44.
Preparation of 5-fluoro-2-(4-methoxybiphenyl-3-yl)-1H-isoindole-1,3 (2H)-dione (12)
Using a procedure similar to that of 2, 4-flurophthalic anhydride and 4-methoxybiphenyl-3-amine provided the title compound after 72 h that the crude and impure product was recrystallized from ethanol to afford the desired compound as a white crystals (165 mg, 87.9 %); m.p. 201-203 °C: 1H-NMR (CDCl3) : δ 7.964 (dd, J = 4, 5 and 8.125Hz, 1H, H-7-phthalimide), 7.656(dt, J = 2, 2.5 and 8.375Hz, 1H, H-4-phthalimide), 7.650(s, 1H, H-2-biphenyl), 7.559(d, J = 7Hz, 2H, H-2´,6´-biphenyl), 7.391-7.485(m, 4H, H-6-phthalimide and H-3´,4´,5´-biphenyl), 7.336(d, J = 7.25Hz, 1H, H-6-biphenyl), 7.129(d, J = 8.75Hz, 1H, H-5-biphenyl), 3.845 ppm (3, 3H, OCH3). IR (KBr): ν cm-1, 3100 and 3057 (CH-aromatic), 1776 and 1722(CO), 1105(OCH3). Anal. Cal. For (C21H14FNO3): C, 72.62; H, 4.06; N, 4.03; Found: C, 72.68; H, 4.08; N, 4.06.
Preparation of 5-fluoro-2-(4-phenoxyphenyl)-1H-isoindole-1, 3(2H)-dione (13)
Using a procedure similar to that of 2, 4-flurophthalic anhydride and 4-phenoxyaniline provided the title compound after 48 h that the crude and impure product was recrystallized from ethanol to afford the desired compound as a white crystals (190 mg, 94.6%); m.p. 153-154.5 °C: 1H-NMR (CDCl3): δ 7.968(dd, J = 4, 5 and 8.25Hz, 1H, H-7-phthalimide), 7.633(dd, J = 2 and 7Hz, 1H, H-4-phthalimide), 7.481(dd, J= 2, 2.25 and 6.966 Hz, 1H, H-6-phthalimide) , 7.387-7.434(m, 1H, H-aromatic), 7.370(d, J = 8.75Hz, 4H, H-aromatic), 7.070-7.191 ppm (m, 4H, H-aromatic). IR (KBr): ν cm-1, 3105, 3059 and 3034 (CH-aromatic), 1775 and 1709(CO). Anal. Cal. For (C20H12FNO3): C, 72.07; H, 3.63; N, 4.20; Found: C, 72.02; H, 3.62; N, 4.22.
Preparation of 2-(4-amino-2-chlorophenyl)-5-fluoro-1H-isoindole-1, 3(2H)-dione (14)
A suspension of compound 2 (200mg, 0.62 mmol), isopropanol (8 mL), cyclohexene (2mL) and Pd/C 10% (45mg, 0.427 mmol) in a 50 mL round-bottomed flask equipped with a reflux condenser was heated and stirred vigorously under reflux for 24 h (
scheme 1B). The reaction mixture was filtered and the solvent removed under reduced pressure to get the desire compound as a brown powder (130 mg, 71.7%); TLC (dichloromethane/petroleum ether 2:1); mp 182-184 °C.
1H-NMR (CDCl
3): δ 7.957(dd, J = 4.25 and 8.12Hz, 1H, H-7-phthalimide), 7.62(d,J= 6.25 Hz, 1H, H-4-phthalimide), 7.458(t, J = 7.25 and , 8.5, 1H, H-6-phthalimide), 7.081(d, J = 8Hz, H-6-phenyl), 6.850(s, 1H, H-3-phenyl), 6.675 (d, J= 8Hz, 1H, H-5-phenyl), 3.01 ppm(br, 2H, NH
2). IR (KBr): ν cm
-1, 3417 and 3338(NH
2), 3220 (CH-aromatic), 1780 and 1722 (CO). Anal. Cal. For (C
14H
8ClFN
2O
2): C, 57.85; H, 2.77; N, 9.64; Found: C, 57.89; H, 2.76; N, 9.62.
Preparation of 2-(3-amino-2-methylphenyl)-5-fluoro-1H-isoindole-1, 3(2H)-dione (15)
Using a procedure similar to that of 14, compound 3 (186 mg, 0.62mmol) provided the title compound after 24 h as a light yellow crystals (130 mg, 77.6%); m.p. 219-221 °C: 1H-NMR ( CDCl3 ): δ 7.966(dd, J= 4.25, 4.5 and 8.125Hz, 1H, H-7-phthalimide), 7.633(dd, J= 2, 2.25 and 6.874 Hz, 1H, H-4-phthalimide), 7.465(dt, J= 2, 2.5, 8.5 and 8.625 Hz, 1H, H-6-phthalimide), 7.211(t, J = 8Hz, H-5-phenyl), 7.012(d, J = 8Hz, 1H, H-6-phenyl), 6.788(d,
J = 7.25Hz, 1H, H-4-phenyl), 2.053ppm (s, 3H, CH3). IR (KBr): ν cm-1, 3441 and 3352(NH2), 3110 and 3045 (CH-aromatic), 2923 (CH-aliphatic), 1772 and 1706 (CO). Anal. Cal. For (C15H11FN2O2): C, 66.66; H, 4.10; N, 10.37; Found: C, 66.71; H, 4.12; N, 10.35.
Preparation of 2-(4-amino-2-methylphenyl)-5-fluoro-1H-isoindole-1, 3(2H)-dione (16)
Using a procedure similar to that of 14, compound 4 (186 mg, 0.62mmol) provided the title compound after 24 h as a light brown crystals (112 mg, 66.9%); m.p. 182.5-184 °C: 1H-NMR (CDCl3): δ 7.943(dd, J=4.5 and 8Hz, 1H, H-7-phthalimide), 7.613(dd, J = 2 and 6.75 Hz, 1H, H-4-phthalimide), 7.443(dt, J = 2, 2.5 and 8.625, 1H, H-6-phthalimide), 6.959(d, J = 8.25Hz, H-6-phenyl), 6.657(s, 1H, H-3-phenyl), 6.623(d, J = 8.5Hz, 1H, H-5-phenyl), 2.80(brs, 2H, NH2), 2.092ppm (s, 3H, CH3). IR (KBr): ν cm-1, 3439 and 3360(NH2), 3097 and 3077 (CH-aromatic), 2966 (CH-aliphatic), 1776 and 1718 (CO). Anal. Cal. For (C15H11FN2O2): C, 66.66; H, 4.10; N, 10.37; Found: C, 66.62; H, 4.08; N, 10.39.
Preparation of 2-(2-amino-6-methylphenyl)-5-fluoro-1H-isoindole-1, 3(2H)-dione (17)
Using a procedure similar to that of 14, compound 5 (186 mg, 0.62 mmol) provide the title compound after 24 h as a yellow crystals (110 mg, 65.7%); m.p. 153-155 °C: 1H-NMR (CDCl3): δ 8.31(dd, J = 4.5 and 8.25 Hz, 1H, H-7-phthalimide), 7.930(dd, J = 2.01 and 6.76 Hz, 1H, H-4-phthalimide), 7.439-7.70(m,2H, H-6-phthalimide and H-4-phenyl), 7.065-7.45(m, 2H, H-3,5-phenyl), 2.09 ppm (s, 3H, CH3). IR (KBr): ν cm-1, 3430 and 3355(NH2), 3095 and 3070 (CH-aromatic), 2923(CH-aliphatic), 1761 and 1722, (CO). Anal. Cal. For (C15H11FN2O2): C, 66.66; H, 4.10; N, 10.37; Found: C, 66.63; H, 4.11; N, 10.39.
Pharmacology
The test compounds were evaluated for anticonvulsant activities using maximal electroshock- (MES) and pentylenetetrazole- (PTZ) induced seizure. Male NMRI mice (20 – 25 g; purchased from Pasture Institute, Tehran, Iran) were used for MES test. For PTZ-induced seizure, male wistar rats (150-200 g) were used. Animals were purchased from Pasture Institute (Tehran, Iran) and were kept in controlled light and temperature condition (12 h/12 h light/dark cycle; 22-25 ºC) with free access to food and tap water. The test compounds were dissolved in DMSO and injected intraperitoneally at the dose of 40 mg/kg 30 min before seizure tests. The different test compound-treated groups were compared with the control group (which received DMSO) or phenytoin-treated group (40 mg/kg) as reference drug. The volume of injected drugs/vehicle was 10 mL/kg in mice and 1 mL/kg in rats. Anticonvulsant evaluation by MES test was performed as described previously (
33). Electroshock was induced by applying an alternating current (intensity 40 mA, pulse duration 0.2 s, frequency 50 Hz) through ear clip electrodes by a stimulator (Borj Sanat, Iran). The end-point for seizure occurrence was the observation of hind-limb tonic extension (HLTE) in mice. In PTZ-induced seizure, the occurrence of stage 5 of Racine score (rearing and falling with forelimb clonus) (
34) was considered as the endpoint and the antiseizure effect was evaluated by measuring the number (ratio) of seizured animals out of total number of animals in each
group.
Statistical Analysis
The results of PTZ and MES test are presented as seizured/total and protected/total, respectively and the percent protection against seizure between the groups was analyzed by Chi-square test. P values less than 0.05 were considered as statistically significant.
