Chemicals and reagents
Trypan blue (Sigma–Aldrich, USA), Neutral red (Sigma–Aldrich, USA), EDTA (Merck, Germany), Trypsin (Sigma–Aldrich, USA), Roswell Park Memorial Institute medium (RPMI) 1640 (Sigma–Aldrich, USA), Fetal Bovine Serum (FBS) (Biocrom, AG), Penicillin G (Sigma–Aldrich, USA), Streptomycin Sulfate (Sigma–Aldrich, USA), DMSO (Merck, Germany), Ethidium bromide (Merck, Germany), GeneRuler™ 1 kb DNA Ladder (Fermentas, China), Annexin V-FLUOS staining kit (Roche, Germany), Quick apoptotic DNA ladder detection kit (Abcam, USA). Trolox (Sigma–Aldrich, USA), TPTZ (Tripyridyl-s-Triazine), Iron III-clorure-6-hydrate (FeCl3.6H2O), Sodium acetate and all of the solvents used in the present work were purchased from Merck (Germany).
Sample preparation and extraction procedure
F. angulata Boiss. was collected from the Shahoo Mountain– Kermanshah province (west of Iran) in May 2010 and authenticated by Dr. Seyedmohammad Masoumi, assistant professor of botany, Razi University, Kermanshah, Iran (Voucher Number: 580). Alcoholic extraction of aerial parts (flower and leaf) of F. angulata Boiss. was done as follow. After harvesting, aerial parts of the plant were dried at room temperature 20–25 C and kept in dark for 7 days. The yield of dried flower and leaf was about 7% (w/w) of the starting dried flower and leaf. Then, approximately 50 g of grounded dried flowers and leaves were put in a Soxhlet apparatus separately and were mixed with ether de petrole (~3 times) until it became colorless. Then, the two almost resin-free suspensions were centrifuged (at 3000 g for 10 min); the resulting pellets were re-mixed with 500 mL ethanol and were stirred for 4 days. After centrifugation (at 3000 g for 15 min), the supernatants were evaporated under vacuum to dry and turn into powders.
All extracts were dissolved in DMSO and subsequently diluted in RPMI 1640 containing 10% FBS at desired concentrations in the range of 20–240 μg/mL. The DMSO concentration in the culture medium did not exceed 1% v/v, which had no cytotoxic effect on AGS cell line.
FRAP assay
The FRAP assay was performed according to Benzie and Strain (
21), with some modifications. The fresh working solution (FRAP solution) was prepared by mixing 25 mL acetate buffer (300 mM, pH 3.6), 2.5 mL TPTZ solution (10 mM in 40 mM HCl), and 2.5 mL FeCl
3.6H
2O solution (20 mM) and then warmed at 37 C before using. Flower or leaf extracts (10 μL) were allowed to react with 990 μL of the FRAP solution for 30 min in the dark condition. Readings of the colored product were then taken at 595 nm using a Carry MODEL spectrophotometer. Results are expressed in μM Trolox (TE)/ g dry mass of samples.
Cell culture
AGS, a gastric adenocarcinoma cell line, was provided from National Cell Bank of Iran (NCBI), Pasteur Institute, Tehran, Iran. The cells were grown as a monolayer culture in RPMI 1640 medium, supplemented with 10% (v/v) heat-inactivated FBS, 100 U/mL penicillin G and 100 μg/mL streptomycin, incubated at 37 °C in a humidified incubator containing 5% CO2 atmosphere. The culture media were changed twice a week.

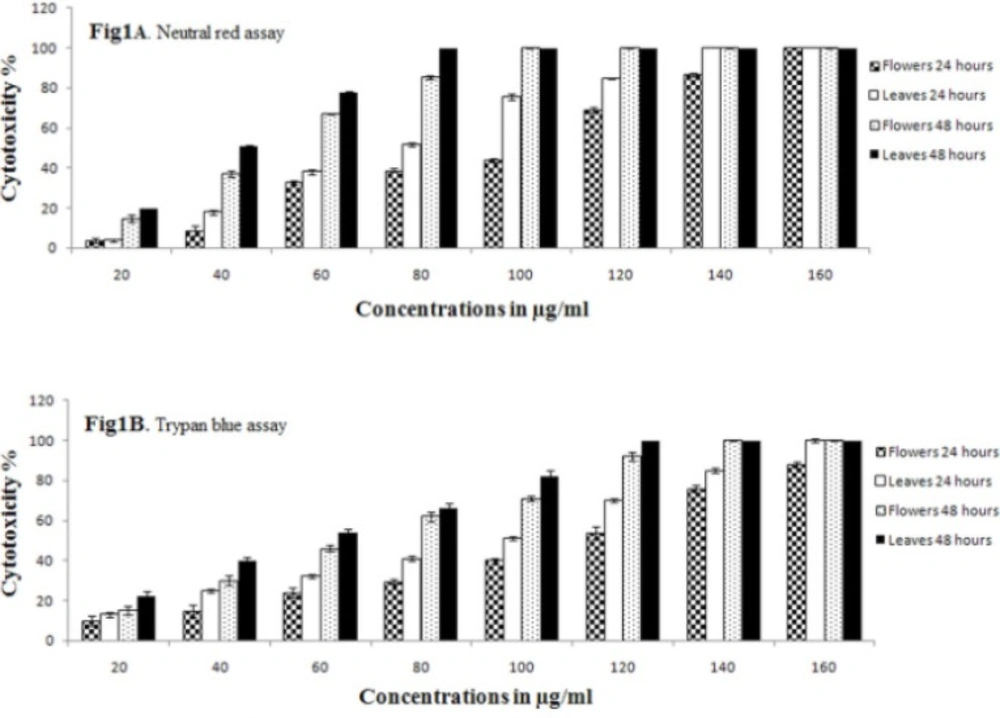

Cell viability assays
a) Trypan blue exclusion assay
AGS cells (1 × 105 cells/well) were cultured on 24–well plates in RPMI 1640 containing 10% FBS and supplemented with 100 U/mL penicillin and 100 μg/mL streptomycin. After 24 h, AGS cells (reached around 60–70% confluent) were treated with the different concentrations of F. angulata Boiss. extracts (20, 40, 60, 80, 100, 120, 140, 160 µg/mL) for 24 h and 48 h. The control groups included untreated AGS cells and 1% DMSO-treated AGS cells. At the end of incubation period, cell viability was measured by trypan blue dye using a hemocytometer. The percentage of cytotoxicity was expressed as 100% minus the cell viability percentage.
b) Neutral red assay
The neutral red assay was carried out according the method described by Borenfreund and Puerner (
22). AGS cells (1 × 10
5 cells/well) were cultured on 24–well plates in triplicate and incubated for 24 h in RPMI 1640 containing appropriate antibiotics and supplemented with 10% FBS in a humidified atmosphere of 5% CO
2 at 37 °C. Then, the medium of each well of 24–well plates was replaced by fresh RPMI 1640 containing 3% FBS, supplemented with appropriate antibiotics and conducted using several concentrations of
F. angulata Boiss. extracts (20, 40, 60, 80, 100, 120, 140, 160) µg/mL in a humidified atmosphere of 5% CO
2 at 37 °C for 24 h and 48 h.
At the end of incubation period, AGS cells were washed by PBS, and then incubated with neutral red dye for 2 h in CO2 incubator to promote the uptake of the dye by cells. Subsequently, the supernatant was removed and the cells were washed by warmed PBS. Then one mL/well of extraction solution (H2O: acetic acid: ethanol) (49:1:50) was added followed by incubation in the dark shaking incubator at 37 ˚C for 15 min. The absorbance of solutions was read with the spectrophotometer at 540 nm wavelength using extraction solution as a reference. The percentage of cytotoxicity was determined by comparing optical density (OD) of treated AGS cells with untreated AGS cells as control in 540 nm.
Also, the 50% inhibitory concentration (IC50) values of extracts against AGS cells were determined from dose response curves.
Annexin V-PI double staining assay
To observe cell surface exposure of phosphatidylserine, an early marker of apoptosis, AGS cells (1 × 105 cells /well) were seeded on 24–well plates in a humidified atmosphere of 5% CO2 at 37 °C for 24 h before the treatment. After that, F. angulata Boiss. extracts at concentrations of 80 μg/mL and 160 μg/mL were added to each well in a humidified atmosphere of 5% CO2 at 37 °C. After 24 h incubation, cells were washed with PBS and stained with Annexin V–FLUOS and PI according to the protocol of Annexin V–FLUOS staining kit. Subsequently, the cells were examined under a fluorescence microscope at the range of (515–565) nm. Annexin V (Green fluorescence) uptake was observed in early apoptotic cells and red fluorescence was observed in necrotic cells or late apoptotic cells which uptake the PI dye.

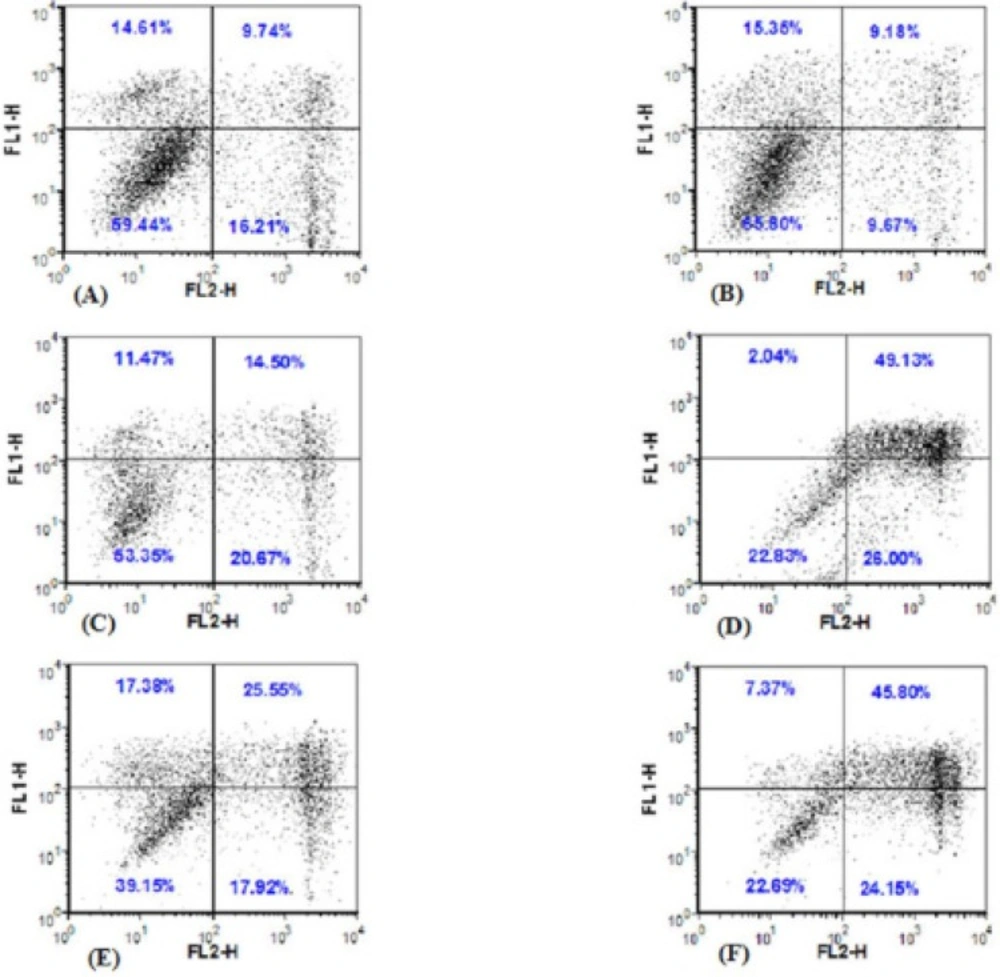

Flow cytometryanalysis
The apoptotic rate was detected by flow cytometry. AGS cells (1 × 106) cells /well were plated in 6–well plates for 24 h and then treated with F. angulata Boiss. at concentrations of 80 μg/mL and 160 μg/mL for an additional 24 h in a 5% CO2 humidified atmosphere at 37 °C. At the end of incubation period, the treated AGS cells and controls were harvested and incubated with Annexin V and PI for 15 min before being analyzed on flow cytometer with 488 nm excitation and 515 nm for Annexin V detection and a filter with the wavelengths above 600 nm for PI detection.
DNA fragmentation assay
AGS cells (1 × 106 cells/well) were treated with different concentrations of F. angulata Boiss. leaf extracts (80, 120, 160 and 200) µg/mL and flower extracts (120, 160, 200 and 240) µg/mL at 37 °C in a humidified atmosphere of 5% CO2 for 24 h. DNA fragmentation analysis was performed according to the manufacturer’s protocol. Fragmented DNA was separated on 1% agarose gel.
Statistical analysis
Results were presented as mean ± standard error of the mean (S.E.M.) of values obtained by at least triplicate measurements from three independent experiments. Student’s t-test was applied to evaluate the differences between treated and control groups (two-group comparison). Two-way ANOVA was used for multiple comparisons. p-values less than 0.05 were considered as statistically significant (p <0.05). Statistical analysis of data was performed with SPSS (Version 16: SPSS. Link. USA). IC50 (the 50% inhibitory concentration) values were estimated using linear regression analysis of plots of the percent of cytotoxic activity against the concentration of the samples using Microsoft Excel Software Program.
