Comparison of Phase-Sensitive Inversion Recovery and Conventional Magnetic Resonance Imaging for Detection of Cortical Plaques in MS Patients

Authors

Hassan Hashemi1, Maryam MohammadzadehMaryam Mohammadzadeh ORCID2, Mohammad Hossein Dianat1, Amir Reza Azimi3, Hamed Naghibi1, Madjid Shakiba1, Kavous Firouznia1,*
1Advanced Diagnostic and Interventional Radiology Research Center (ADIR), Tehran University of Medical Sciences, Tehran, Iran
2Department of Radiology, Division of Neuroradiology, Amiralam Hospital, Tehran University of Medical Sciences, Tehran, Iran
3MS Research Center, Neuroscience Institute, Tehran University of Medical Sciences, Tehran, Iran
*Corresponding Author: Advanced Diagnostic and Interventional Radiology Research Center (ADIR), Tehran University of Medical Sciences, Tehran, Iran. Email: [email protected]
IJ Radiology:Vol. 18, issue 3; e112129
Published online:Sep 04, 2021
Article type:Research Article
Received:Dec 13, 2020
Accepted:Jun 14, 2021
How to Cite:Hashemi H, Mohammadzadeh M, Dianat MH, Azimi AR, Naghibi H, et al. Comparison of Phase-Sensitive Inversion Recovery and Conventional Magnetic Resonance Imaging for Detection of Cortical Plaques in MS Patients. I J Radiol. 2021;18(3):e112129. doi: https://doi.org/10.5812/iranjradiol.112129

Abstract

Background:

Precise detection and classification of intracortical (IC) lesions in multiple sclerosis (MS) patients are very important for understanding their role in disease progression and determining their effects on the clinical presentations of the disease.

Objectives:

This study aimed to evaluate the efficacy of phase-sensitive inversion recovery (PSIR) in delineation of cortical lesions in MS patients.

Patients and Methods:

This cross-sectional, single-center study was performed among 38 patients with the mean age of 31 years, who were recruited from December 2018 to August 2020. All MS patients underwent magnetic resonance imaging (MRI), using a 1.5-Tesla scanner. Two expert neuroradiologists interpreted the fluid-attenuated inversion recovery (FLAIR), T2-weighted turbo spin echo (T2W-TSE), and PSIR images. The lesions were classified as purely IC, mixed gray/white matter (WM) [leukocortical (LC)], and juxtacortical (JC). The number of lesions in each region was compared between the FLAIR, T2W-TSE, and PSIR sequences.

Results:

The number of cortical lesions (IC and LC) was significantly higher in PSIR compared to T2W-TSE and Fluid attenuated inversion recovery (FLAIR) (P < 0.001), while the number of JC lesions was lower; in other words, the mean number of plaques was higher in T2W-TSE and FLAIR as compared to PSIR.

Conclusion:

The PSIR sequence significantly improved the delineation of cortical lesions and could be useful in monitoring cortical injuries and disease progression in MS patients.

KeywordsMagnetic Resonance ImagingMultiple SclerosisPSIRCortical Lesion

1. Background

Magnetic resonance imaging (MRI) is perhaps the single most important imaging modality for the diagnosis of multiple sclerosis (MS). MRI, which is widely used to monitor the disease activity, plays an important role in establishing the clinical diagnosis of MS. The gray matter (GM) lesions are common findings in the neuropathological studies of MS (1, 2). However, they are not easily delineated in conventional MR sequences because of their small size and lack of contrast between cortical lesions (CLs) and the surrounding GM.
Although routine MRI using T2-weighted (T2W) and fluid-attenuated inversion recovery (FLAIR) sequences may demonstrate CLs, these sequences are considerably less sensitive for the detection of CLs as compared to white matter (WM) plaques (3, 4). Overall, the limited detection of CLs influences our understanding of the impact of cortical plaques on the clinical presentations of MS patients, such as cognitive impairment, sensory loss (i.e., paresthesia), ataxia, tremors, and affective disorders (5-7).
Multiple MRI sequences have been developed at various field strengths to improve the visualization of CLs. FLAIR sequence is commonly used to assess WM lesions, especially those located in the brain. Although FLAIR is a T2W-based sequence, because it has the ability to suppress the cerebrospinal fluid (CSF) signals, it is preferred to T2W-turbo spin echo (TSE) for delineation of periventricular MS plaques; however, this modality fails to accurately visualize CLs (4). Besides, double inversion recovery (DIR) is the most widely applied sequence for manifestation of cortical plaques (2). In 2001, DIR was the first reported sequence to identify CLs along with MRI. This sequence suppresses both WM and CSF signals, leading to the improved conspicuity of demyelinating plaques in both WM and GM regions of the brain compared to T2W-TSE and FLAIR images (8).
Many studies have suggested a relationship between CLs delineated on DIR and the physical and cognitive impairments of MS patients and found cortical plaques to be clinically relevant (9, 10). However, the DIR sequence is generally prone to image artifacts, such as flow, which may affect the visualization of subtle intracortical (IC) lesions. It also shows regional variations in the GM signal intensity, possibly leading to the false-positive detection of lesions. Besides, DIR does not visualize the lesion borders precisely, and its low signal-to-noise ratio (SNR) further obscures small lesions (10).
Recently, phase-sensitive inversion recovery (PSIR), a T1-weighted sequence with a higher SNR and GM/WM contrast, has been shown to improve the detection and classification of CLs using DIR in MS patients (1-3). This technique has been used for the diagnosis of cervical cord MS plaques (11), although it has been recently applied for MS patients, as well. Overall, PSIR allows for a better classification of lesions into purely IC and subcortical types (WM lesions) (2).

2. Objectives

The present study aimed to compare the efficacy of T2W-TSE, FLAIR, and PSIR MR sequences in identifying CLs in MS patients. The number of lesions in each sequence was determined to show which sequence identified more lesions in the patients.

3. Patients and Methods

3.1. Study Population

This cross-sectional study was conducted on 38 patients with a confirmed diagnosis of relapsing-remitting MS (RR-MS), who underwent brain MRI from December 2018 to August 2020. The inclusion criteria were age above 18 years and a definite diagnosis of RR-MS, as defined by the McDonald criteria (2017) (12). Patients with MRI contraindications were not included. On the other hand, the exclusion criteria were as follows: (1) other major medical, neurological, or neuropsychiatric disorders in the patient’s medical history; and (2) incomplete MRI exam, defined as the absence of one or several sequences. The study protocol was approved by the local ethics review board, and all subjects provided a written informed consent form before the study. The patients’ characteristics are summarized in Table 1.
Table 1.
The Demographic and Clinical Characteristics of Relapsing-Remitting Multiple Sclerosis (RRMS) Patients
VariablesValues
Female/male31/7
Mean age (range) (y)31 (18 - 48)
Mean disease duration (y)8.7 ± 4.8
Median EDSS score (range)3.5 (1 - 6.5)
Abbreviation: EDSS, Expanded Disability Status Scale.

3.2. Imaging Protocol

The patients were scanned on a 1.5-T MRI scanner (MAGNETOM Symphony, Siemens, Erlangen, Germany) with a six-channel head coil. The PSIR images were obtained for each patient in every session as part of our routine MRI sequences, which also included conventional T2W-TSE and FLAIR. The relevant sequence parameters are presented in Table 2.
Table 2.
The Acquisition Parameters for the MRI Sequences Based on the MS Protocol
SequencePlaneTR (ms)TE (ms)TI (ms)FAImage matrixFOV (mm)Section thickness (mm)Scan time (min: sec)
PSIRAxial232010400150320 × 32024034: 15
FLAIRAxial85101502400150320 × 32024033: 32
T2W-TSEAxial4000130-150320 × 32024032: 30
Abbreviations: PSIR, phase-sensitive inversion recovery; TSE, turbo spin echo; FLAIR, fluid-attenuated inversion recovery; TR, repetition time; TE, echo time; TI, inversion time; FA, flip angle; FOV, field of view.

3.3. Image Analysis

Two independent neuroradiologists separately assessed all MR images. The number of plaques was determined in each sequence and compared blindly among sequences. The plaques were defined as hyperintense in T2W and FLAIR and as hypointense in PSIR. The number of plaques was also determined in terms of IC, leukocortical (LC), and juxtacortical (JC) regions. The IC lesions were confined to the GM, while lesions that involved both the cortex and the adjacent WM were identified as LC lesions. Finally, the JC lesions were WM lesions involving the subcortical U-fibers.

3.4. Statistical Analysis

The plaque count in different sequences is expressed as mean ± SD. Although this parameter does not have a decimal, we expressed it with a decimal for a better comparison between the groups [25 - 75 interquartile range (IQR)]. The plaque number was compared between the three different protocols by Friedman test. Also, a pairwise comparison between the groups was carried out using Wilcoxon signed-rank test, based on Bonferroni correction. Moreover, for nominal variables, the three groups were compared by Cochran’s Q test. For pairwise comparisons, McNemar’s test was performed based on the Bonferroni correction. A P-value of 0.05 was considered to be significant for comparisons using Friedman test, Cochran’s Q test, and other tests. For corrected P-values in Bonferroni correction, since we aimed to perform three post-hoc comparisons (T2 vs. FLAIR, T2 vs. PSIR, and FLAIR vs. PSIR), the significance level was set at 0.017 (0.05/3).
Because two neuroradiologists assessed all of the patients, and the results were reported separately, the interrater reliability was not a major issue. Also, for intra-rater reliability, we asked the two neuroradiologists to blindly assess 15 patients after two weeks. Next, we calculated the intra-rater reliability by measuring the intraclass correlation coefficient (ICC) and Kappa’s coefficient separately. All indices showed acceptable values (all above 0.75). SPSS version 18 (released in 2009, PASW Statistics for Windows, SPSS Inc., Chicago, IL, USA) was used for data analysis. P-values less than 0.05 were considered statistically significant.

4. Results

Thirty-eight RR-MS patients were included in this study. The mean age of the patients was 31 years (range: 18 - 48 years), and the median Expanded Disability Status Scale (EDSS) score was 3.5 (range: 1 - 6.5). The mean plaque number was compared between the three MRI sequences for each radiologist. Besides, the sum of lesions and the mean of results reported by the two neuroradiologists were compared between the sequences (Table 3).
Table 3.
Comparison of Plaque Number in Different MRI Sequences of Similar Anatomic Regions Reported by the Two Radiologists
VariablesMedian [25 - 75th percentile]Mean ± SDRangeP-value
Three groupsT2W-TSE vs. FLAIRT2W-TSE vs. PSIRFLAIR vs. PSIR
First radiologist
IC< 0.0010.320.0020.002
T2W-TSE0 [0 - 0]00
FLAIR0 [0 - 0]0.03 ± 0.160 - 1
PSIR0 [0 - 1]0.63 ± 1.570 - 9
LC< 0.0010.71< 0.001< 0.001
T2W-TSE0 [0 - 1]0.39 ± 0.590 - 2
FLAIR0 [0 - 1]0.34 ± 0.580 - 2
PSIR1 [0 - 2.25]1.45 ± 1.840 - 7
JC< 0.0010.004< 0.0010.047
T2W-TSE2 [0 - 3]2.29 ± 2.630 - 10
FLAIR1 [0 - 3]1.79 ± 2.240 - 9
PSIR1 [0 - 2]1.32 ± 1.540 - 7
Second radiologist
IC< 0.0010.180.0010.001
T2W-TSE0 [0 - 0]0.03 ± 0.160 - 1
FLAIR0 [0 - 0]0.11 ± 0.390 - 2
PSIR0 [0 - 1]0.61 ± 1.520 - 9
LC< 0.0010.13< 0.001< 0.001
T2W-TSE0 [0 - 1]0.50 ± 0.730 - 3
FLAIR0 [0 - 1]0.32 ± 0.570 - 2
PSIR1 [0 - 2.25]1.92 ± 2.340 - 9
JC< 0.0010.21< 0.0010.004
T2W-TSE2 [0 - 3.25]2.47 ± 2.970 - 12
FLAIR1 [0 - 2.25]2.18 ± 2.970 - 13
PSIR1 [0 - 2]1.26 ± 1.720 - 8
Sum of the three regions reported by the first radiologist< 0.0010.004< 0.023< 0.001
T2W-TSE2 [1 - 3.25]2.68 ± 3.050 - 12
FLAIR1.5 [1 - 3]2.16 ± 2.330 - 10
PSIR2 [1 - 5]3.39 ± 4.170 - 21
Sum of the three regions reported by the second radiologist< 0.0010.0080.001< 0.001
T2W-TSE2 [1 - 4]3.00 ± 3.460 - 14
FLAIR2 [0 - 3.25]2.61 ± 3.140 - 13
PSIR2.5 [1 - 5]3.79 ± 4.450 - 19
Mean of results reported by the two radiologists
IC< 0.0010.18< 0.001< 0.001
T2W-TSE0 [0 - 0]0.01 ± 0.080 - 0.5
FLAIR0 [0 - 0]0.07 ± 0.260 - 1.5
PSIR0 [0 - 1]0.62 ± 1.230 - 6
Mean of results reported by the two radiologists
LC< 0.0010.20< 0.001< 0.001
T2W-TSE0.25 [0 - 1]0.45 ± 0.580 - 2.5
FLAIR0 [0- 0.5]0.33 ± 0.510 - 2
PSIR1 [0 - 2.625]1.68 ± 2.060 - 8
Mean of results reported by the two radiologists
JC< 0.0010.01< 0.0010.006
T2W-TSE1.5 [0 - 3]2.38 ± 2.770 - 11
FLAIR1.5 [0.375 - 2.625]1.99 ± 2.580 - 11
PSIR1 [0 - 2]1.29 ± 1.570 - 6.5
Abbreviations: PSIR, phase-sensitive inversion recovery; FLAIR, fluid-attenuated inversion recovery; TSE, turbo spin echo; IC, intracortical lesion; LC, leukocortical lesion; JC, juxtacortical lesion.
The mean number of plaques in the IC region based on PSIR was higher than that found on FLAIR and T2W-TSE for both neuroradiologists (P < 0.001); a similar pattern was seen in the LC region (P < 0.001). However, the mean number of plaques in the JC region on T2W-TSE and FLAIR was higher than PSIR for both neuroradiologists (P < 0.001). Considering the mean count, the two neuroradiologists reported similar findings. Also, considering the sum of plaques in the three regions, the highest mean was reported for PSIR, followed by T2W-TSE and FLAIR, respectively; this pattern was similar for both neuroradiologists.
Besides the mean number of plaques, we performed pairwise comparisons of sequences in each anatomic site to determine the number of patients with a higher, similar, or lower number of plaques. For example, based on the data reported by the first radiologist, T2W-TSE and FLAIR were compared in the LC region. We found that three patients had more lesions on FLAIR than T2W-TSE; six patients had more lesions on T2W-TSE than FLAIR; and seven patients had an equal number of lesions in both sequences (22 cases without plaques in both T2W-TSE and FLAIR). A similar analysis was performed for the pairwise comparison of all anatomic sites for both neuroradiologists; the results are presented in Table 4. In each pairwise comparison regarding the number and percentage of plaques, a significant P-value shows which sequence can show more plaques using a patient-based approach (Table 4).
Table 4.
Pairwise Comparison of Sequences in Patients with a Higher Number of Plaques in Each Anatomic Region
Variables/T2W-TSE vs. FLAIRNo. (%)PT2W-TSE vs. PSIRNo. (%)PFLAIR vs. PSIRNo. (%)P
First radiologist
IC0.32< 0.001< 0.001
FLAIR > T2W-TSE1 (2.6)PSIR > T2W-TSE12 (31.6)PSIR > FLAIR12 (31.6)
FLAIR = T2W-TSE > 00PSIR = T2W-TSE > 00PSIR = FLAIR > 00
FLAIR < T2W-TSE0PSIR < T2W-TSE0PSIR < FLAIR0
FLAIR = T2W-TSE = 037 (97.4)PSIR = T2W-TSE = 026 (68.4)PSIR = FLAIR = 026 (68.4)
LC0.51< 0.001< 0.001
FLAIR > T2W-TSE3 (7.9)PSIR > T2W-TSE19 (50)PSIR > FLAIR19 (50)
FLAIR = T2W-TSE > 07 (18.4)PSIR = T2W-TSE > 04 (10.5)PSIR = FLAIR > 04 (10.5)
FLAIR < T2W-TSE6 (15.8)PSIR < T2W-TSE0PSIR < FLAIR1 (2.6)
FLAIR = T2W-TSE = 022 (57.9)PSIR = T2W-TSE = 015 (39.5)PSIR = FLAIR = 014 (36.8)
JC0.01<0.0010.04
FLAIR > T2W-TSE4 (10.5)PSIR > T2W-TSE1 (2.6)PSIR > FLAIR5 (13.2)
FLAIR = T2W-TSE > 09 (23.7)PSIR = T2W-TSE > 06 (15.8)PSIR = FLAIR > 09 (23.7)
FLAIR < T2W-TSE15 (39.5)PSIR < T2W-TSE20 (52.6)PSIR < FLAIR14 (36.8)
FLAIR = T2W-TSE = 010 (26.3)PSIR = T2W-TSE = 011 (28.9)PSIR = FLAIR = 010 (26.3)
Second radiologist
IC0.16< 0.001< 0.001
FLAIR > T2W-TSE2 (5.3)PSIR > T2W-TSE13 (34.2)PSIR > FLAIR12 (31.6)
FLAIR = T2W-TSE > 01 (2.6)PSIR = T2W-TSE > 00PSIR = FLAIR > 01 (2.6)
FLAIR < T2W-TSE0PSIR < T2W-TSE0PSIR < FLAIR0
FLAIR = T2W-TSE = 035 (92.1)PSIR = T2W-TSE = 025 (65.8)PSIR = FLAIR = 025 (65.8)
LC0.17< 0.001< 0.001
FLAIR > T2W-TSE4 (10.5)PSIR > T2W-TSE22 (57.9)PSIR > FLAIR25 (65.8)
FLAIR = T2W-TSE > 05 (13.2)PSIR = T2W-TSE > 04 (10.5)PSIR = FLAIR > 01 (2.6)
FLAIR < T2W-TSE9 (15.8)PSIR < T2W-TSE1 (2.6)PSIR < FLAIR2 (5.3)
FLAIR = T2W-TSE = 020 (52.6)PSIR = T2W-TSE = 011 (28.9)PSIR = FLAIR = 010 (26.3)
JC0.28< 0.0010.002
FLAIR > T2W-TSE8 (21.1)PSIR > T2W-TSE1 (2.6)PSIR > FLAIR4 (10.5)
FLAIR = T2W-TSE > 08 (21.1)PSIR = T2W-TSE > 06 (15.8)PSIR = FLAIR > 04 (10.5)
FLAIR < T2W-TSE13 (34.2)PSIR < T2W-TSE21 (55.3)PSIR < FLAIR19 (50)
FLAIR = T2W-TSE = 09 (23.7)PSIR = T2W-TSE = 010 (26.3)PSIR = FLAIR = 011 (28.9)
Abbreviations: PSIR, phase-sensitive inversion recovery; FLAIR, fluid-attenuated inversion recovery; TSE, turbo spin echo; IC, intracortical lesion; LC, leukocortical lesion; JC, juxtacortical lesion.
In both IC and LC regions, most patients showed more plaques in PSIR compared to FLAIR and T2W-TSE, while in the JC region, most patients had more plaques in T2W-TSE and FLAIR compared to PSIR (Figure 1); similar findings were reported by both neuroradiologists. Using another approach, we considered the presence or absence of plaques and performed comparisons, as presented in Tables 1 and 2. The patterns of statistical significance are similar to those presented in Table 5 and Figure 2.

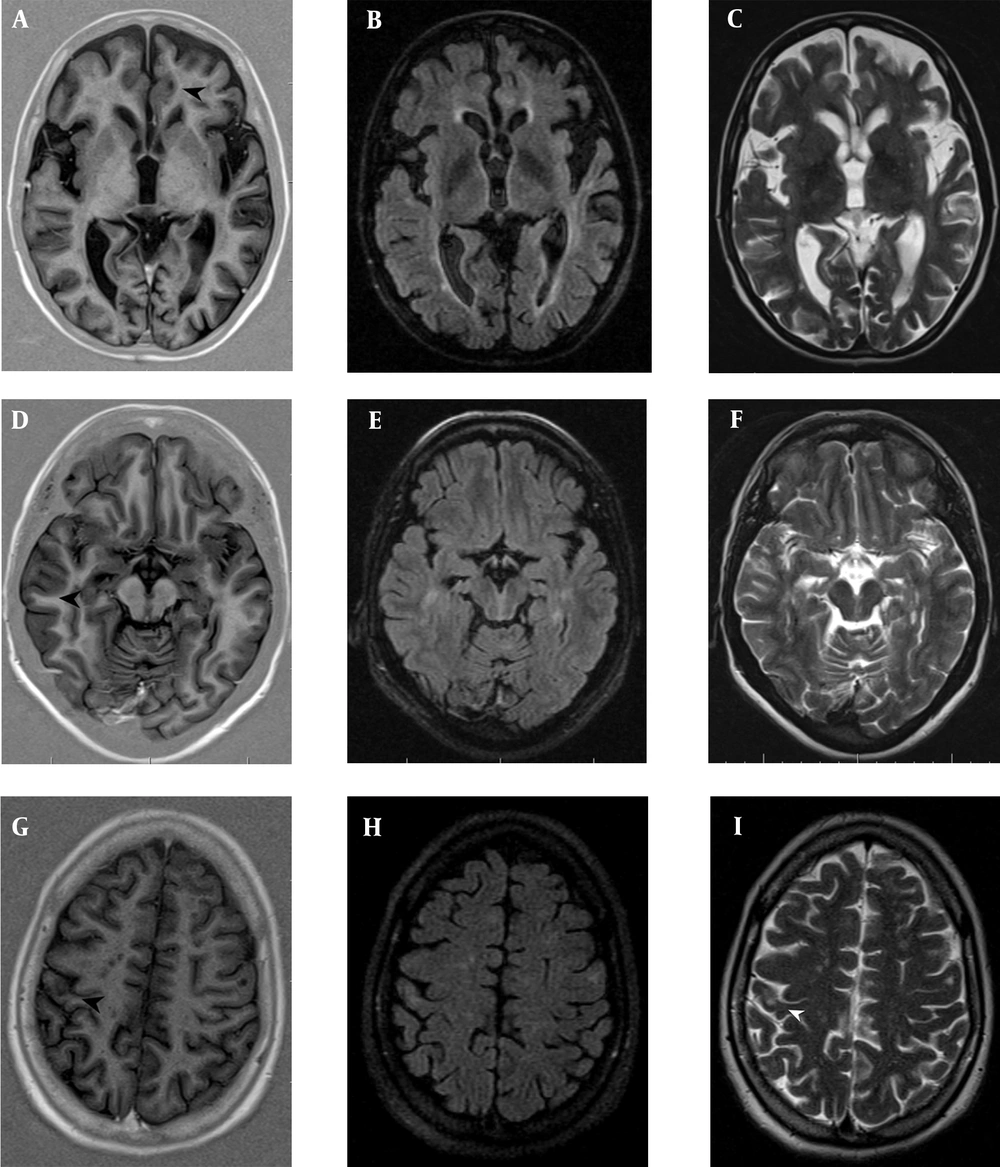

Several patients with relapsing-remitting multiple sclerosis (RRMS) showing focal lesions in the cortical grey matter. A, B &amp; C, Intracortical (IC); and D, E &amp; F, Leukocortical (LC) plaques were counted on PSIR (A,D) (black head arrows), but were not identified on FLAIR (B,E) and T2TSE (C,F). G, H &amp; I, The juxtacortical (JC) lesions were observed better on, T2TSE (I) (white head-arrow) and FLAIR (H) than PSIR (G) (black head-arrow). PSIR, phase-sensitive inversion recovery; FLAIR, fluid-attenuated inversion recovery; TSE, turbo spin echo.
Figure 1.
Several patients with relapsing-remitting multiple sclerosis (RRMS) showing focal lesions in the cortical grey matter. A, B & C, Intracortical (IC); and D, E & F, Leukocortical (LC) plaques were counted on PSIR (A,D) (black head arrows), but were not identified on FLAIR (B,E) and T2TSE (C,F). G, H & I, The juxtacortical (JC) lesions were observed better on, T2TSE (I) (white head-arrow) and FLAIR (H) than PSIR (G) (black head-arrow). PSIR, phase-sensitive inversion recovery; FLAIR, fluid-attenuated inversion recovery; TSE, turbo spin echo.
Table 5.
Evaluation of the Presence or Absence of Plaques a
Variables/T2W-TSE vs. FLAIRNo. (%)Overall PPT2W-TSE vs. PSIRNo. (%)PFLAIR vs. PSIRNo. (%)P
First radiologist
IC< 0.0010.32< 0.0010.001
Both yes0Both yes0Both yes1 (2.6)
FLAIR yes, T2W-TSE no1 (2.6)PSIR yes, T2W-TSE no12 (31.6)PSIR yes, FLAIR no11 (28.9)
FLAIR no, T2W-TSE yes0PSIR no, T2W-TSE yes0PSIR no, FLAIR yes0
Both no37 (97.4)Both no26 (68.4)Both no26 (68.4)
LC< 0.0010.730.0020.002
Both yes8 (21.1)Both yes13 (34.2)Both yes10 (26.3)
FLAIR yes, T2W-TSE no3 (7.9)PSIR yes, T2W-TSE no10 (26.3)PSIR yes, FLAIR no13 (34.2)
FLAIR no, T2W-TSE yes5 (13.2)PSIR no, T2W-TSE yes0PSIR no, FLAIR yes1 (2.6)
Both no22 (57.9)Both no15 (39.5)Both no14 (36.8)
JC0.370.90.50.63
Both yes26 (68.4)Both yes25 (65.8)Both yes24 (63.2)
FLAIR yes, T2W-TSE no1 (2.6)PSIR yes, T2W-TSE no0PSIR yes, FLAIR no1 (2.6)
FLAIR no, T2W-TSE yes1 (2.6)PSIR no, T2W-TSE yes2 (5.3)PSIR no, FLAIR yes3 (7.9)
Both no10 (26.3)Both no11 (28.9)Both no10 (26.3)
Second radiologist
IC< 0.0010.5< 0.0010.002
Both yes1 (2.6)Both yes1 (2.6)Both yes3 (7.9)
FLAIR yes, T2W-TSE no2 (5.3)PSIR yes, T2W-TSE no12 (31.6)PSIR yes, FLAIR no10 (26.3)
FLAIR no, T2W-TSE yes0PSIR no, T2W-TSE yes0PSIR no, FLAIR yes0
Both no35 (92.1)Both no25 (65.8)Both no25 (65.8)
LC< 0.0010.230.003< 0.001
Both yes7 (18.4)Both yes14 (36.8)Both yes8 (21.1)
FLAIR yes, T2W-TSE no3 (7.9)PSIR yes, T2W-TSE no12 (31.6)PSIR yes, FLAIR no18 (47.4)
FLAIR no, T2W-TSE yes8 (21.1)PSIR no, T2W-TSE yes1 (2.6)PSIR no, FLAIR yes2 (5.3)
Both no20 (52.6)Both no11 (28.9)Both no10 (26.3)
JC0.0050.90.0160.03
Both yes26 (68.4)Both yes21 (55.3)Both yes21 (55.3)
FLAIR yes, T2W-TSE no1 (2.6)PSIR yes, T2W-TSE no0PSIR yes, FLAIR no0
FLAIR no, T2W-TSE yes2 (5.3)PSIR no, T2W-TSE yes7 (18.4)PSIR no, FLAIR yes6 (15.8)
Both no9 (23.7)Both no10 (26.3)Both no11 (28.9)
Abbreviations: PSIR, phase-sensitive inversion recovery; FLAIR, fluid-attenuated inversion recovery; TSE, turbo spin echo; IC, intracortical lesion; LC, leukocortical lesion; JC, juxtacortical lesion.
a"yes" in table means "show/showes plaque" and "no" in table means "don't show/doesn't show plaque".

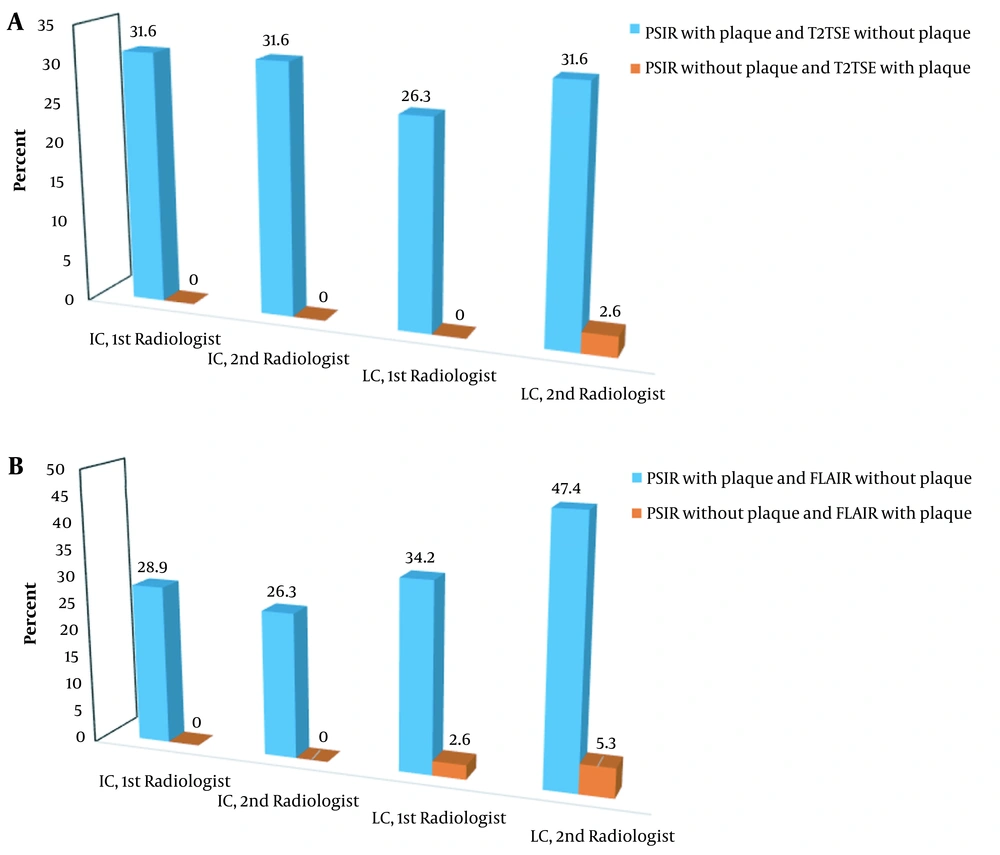

A, Comparison of PSIR with T2W-TSE: the distribution of patients in subgroups based on the presence of plaque in one sequence and its absence from another sequence (based on the radiologist’s observation and location); B, Comparison of PSIR with FLAIR: the distribution of patients in subgroups based on the presence of plaque in one sequence and its absence from another sequence (based on the radiologist’s observation and location). PSIR, phase-sensitive inversion recovery; FLAIR, fluid-attenuated inversion recovery; TSE, turbo spin echo; IC, intracortical lesion; LC, leukocortical lesion.
Figure 2.
A, Comparison of PSIR with T2W-TSE: the distribution of patients in subgroups based on the presence of plaque in one sequence and its absence from another sequence (based on the radiologist’s observation and location); B, Comparison of PSIR with FLAIR: the distribution of patients in subgroups based on the presence of plaque in one sequence and its absence from another sequence (based on the radiologist’s observation and location). PSIR, phase-sensitive inversion recovery; FLAIR, fluid-attenuated inversion recovery; TSE, turbo spin echo; IC, intracortical lesion; LC, leukocortical lesion.

5. Discussion

The present study aimed to assess the application of PSIR sequence compared to conventional sequences, including T2W-TSE and FLAIR, for the detection of CLs in MS patients. Based on the results, PSIR was superior to conventional sequences in the detection of cortical MS lesions in the IC and LC regions. Previous studies have shown that almost one-third of MS patients have at least one plaque or a lesion in the cortex, which may not be detected in conventional sequences (13).
Occasionally, IC plaques can be seen in the early stages of MS, although they usually occur in the advanced stages of the disease. They are found in patients with severe brain damage and can increase clinical disability (14). As CLs can adversely affect neurological and cognitive activities, their diagnosis plays an important role in the patients’ prognosis (15). It seems that a better delineation of the GM/WM border on PSIR sequences allows for a more precise classification of lesions into purely IC, LC, and JC.
Considering the inherent features of the PSIR sequence, image production is dependent on phase of the protons In this image, the tissue, nulled by the inversion time, is displayed as intermediate gray, while all other tissues have a lower or higher signal intensity, depending on their T1 relaxation time relative to T1 relaxation time of the nulled tissue; therefore, its grayscale criteria have a larger amplitude (16). The phase-sensitive reconstruction improves the GM/WM contrast and differentiation. Besides, it makes the CSF appear hypointense, as it produces a large negative magnetization field (16). According to a pervious study, CLs can appear hyperintense on T2W-TSE and FLAIR images. Also, blood and CSF flow artifacts appear hyperintense in such images, and the false positive probability increases; conversely, these lesions appear hypointense in PSIR sequences (4).
Our study showed that the total number of MS IC and LC plaques was significantly higher in PSIR compared to T2W-TSE and FLAIR sequences. This finding is similar to the results of a study conducted by Nelson et al. (3), which compared the number of lesions detected by PSIR, FLAIR, and DIR sequences. Moreover, in a study by Sethi et al. (2), the implementation of PSIR sequence significantly increased the number of additional plaques in the IC region. In another study by Favaretto et al. (17), the PSIR sequence could identify lesions four times more than DIR, especially IC and LC lesions. Another study by Harel et al. (1) verified that PSIR improves the detection and classification of CLs as compared to DIR; this study showed that CLs affected the physical and cognitive disabilities of patients with MS.
In the present study, PSIR showed significantly more MS lesions in the IC and LC regions compared to T2W-TSE and FLAIR sequences. The mean number of lesions in these two regions was greater in PSIR as compared to FLAIR and T2W-TSE, and the difference was statistically significant (P < 0.001). Besides, a higher number of lesions was found in the JC region by T2W-TSE compared to PSIR and FLAIR (P < 0.001). This finding is consistent with the results reported by Wattjes et al. (18), which also indicated more lesions in the JC region using FLAIR images; it should be noted that many lesions in the JC region are WM lesions rather than CLs, which are easily detected by FLAIR and T2W-TSE.
According to previous studies, the use of both DIR and PSIR sequences can improve the detection of MS CLs (4). In this regard, Sethi et al. (19) showed that the higher CNR, provided by the PSIR sequence, led to the improved detection and anatomic classification of GM lesions compared to other sequences, such as DIR. The cortical GM/WM junction is typically missed on conventional images used to distinguish between IC lesions and those extending into the WM (considered as LC lesions). On the other hand, the PSIR sequence creates a high contrast between the lesion and the adjunct MG, leading to the delineation of the lesion size and boundaries.
The diagnosis of MS according to the McDonald criteria is based on the lesion dissemination in time and space (in anatomic sites, including the JC, periventricular, infratentorial, IC, and spinal cord regions). In other words, at least two lesions in two anatomic sites fulfill the criteria for dissemination in space (12). Therefore, even a patient who shows, for example, 10 plaques in the periventricular area, does not fulfill the criteria for dissemination in space, while two plaques located in two different locations (mentioned above) fulfill these criteria. Therefore, although the number of plaques is important in MS diagnosis, finding plaques in different anatomic sites is even more important (i.e., finding only one plaque in different anatomic sites is more important than finding multiple plaques in the same location).
When comparing different MRI sequences for the detection of CLs in a group of suspected MS patients, it is even more important to compare the frequency of patients with at least one cortical plaque rather than merely compare the mean number of plaques between two sequences. Therefore, we compared the sequences regarding the presence or absence of plaques, in addition to the mean number of plaques; the results are presented in Table 5. For both radiologists, the percentage of patients who showed at least one plaques in PSIR and did not show plaque in T2W-TSE was higher (at least equal to 26.3%) than the patients who did no show plaque in PSIR and showed at least one plaques in T2W-TSE in both IC and LC regions. Therefore, compared to T2W-TSE, PSIR could potentially increase the MS diagnosis in more than 25% of the patients; however, such a conclusion cannot be made solely based on the comparison of the mean plaque counts.
Similarly, when we compared the presence of plaques (at least one) in PSIR and FLAIR in the IC and LC regions, we observed similar findings; in the PSIR sequence, at least 26.3% of the patients showed plaques, while they did not show any plaques in FLAIR; this finding could not be obtained based on the mean plaque comparison. It shows that PSIR, compared to T2W-TSE and FLAIR, can significantly improve the MS diagnosis in a group of suspected MS patients when evaluating the cortical regions.
The present study had some limitations. First, the sample size was small in this study. Second, most of our patients were diagnosed with RR-MS; it should be noted that in this subgroup of MS patients, the probability of CL is lower than that of primary progressive and secondary progressive MS subtypes. Third, we did not evaluate the relationship between the CL burden and the clinical course of the disease. We suggest using a 3D PSIR for the improved detection of CLs and also improved disease prediction, as lesions in the GM can lead to clinical disabilities.
In conclusion, a larger number of IC and LC lesions can be detected using PSIR compared to FLAIR and T2W-TSE sequences. Since the precise detection of IC lesions is important in monitoring cortical injuries and disease progression in MS patients over a long-term follow-up, we recommend adding PSIR sequence into the routine MR protocol for MS patients, especially those who are suspected of cognitive impairments.

Footnotes

  • Authors' Contribution: Hassan Hashemi, assessment, interpretation, and acquisition of imaging data, critical revision for important intellectual content, and final approval of the version to be published; Maryam Mohammadzadeh, assessment, interpretation, and acquisition of imaging data, critical revision for important intellectual content, and final approval of the version to be published; Mohammad Hossein Dianat, assessment, critical revision for important intellectual content, and final approval of the version to be published; Amir Reza Azimi, acquisition of data, critical revision for important intellectual content, and final approval of the version to be published; Hamed Naghibi, study conception, study design, acquisition of data, drafting the manuscript, critical revision for important intellectual content, and the final approval of the version to be published; Madjid Shakiba, study design, statistical data analysis, drafting the manuscript, critical revision for important intellectual content, and final approval of the version to be published; and Kavous Firouznia, study conception, study design, assessment, interpretation, and acquisition of imaging data, critical revision for important intellectual content, and final approval of the version to be published.

  • Conflict of Interests: The authors declare no relationships with any companies whose products or services may be related to the subject matter of this article.

  • Ethical Approval: Code: IR.TUMS.VCR.REC.1397.238.

  • Funding/Support: No funding was received for this study.

  • Informed Consent: All subjects provided a written informed consent form before the study.

References

  • 1.
    Harel A, Ceccarelli A, Farrell C, Fabian M, Howard J, Riley C, et al. Phase-sensitive inversion-recovery MRI improves longitudinal cortical lesion detection in progressive MS. PLoS One. 2016;11(3). e0152180. [PubMed ID: 27002529]. [PubMed Central ID: PMC4803340]. https://doi.org/10.1371/journal.pone.0152180.
  • 2.
    Sethi V, Yousry TA, Muhlert N, Ron M, Golay X, Wheeler-Kingshott C, et al. Improved detection of cortical MS lesions with phase-sensitive inversion recovery MRI. J Neurol Neurosurg Psychiatry. 2012;83(9):877-82. [PubMed ID: 22807559]. https://doi.org/10.1136/jnnp-2012-303023.
  • 3.
    Nelson F, Poonawalla A, Datta S, Wolinsky J, Narayana P. Is 3D MPRAGE better than the combination DIR/PSIR for cortical lesion detection at 3T MRI? Mult Scler Relat Disord. 2014;3(2):253-7. [PubMed ID: 25878013]. https://doi.org/10.1016/j.msard.2013.10.002.
  • 4.
    Nelson F, Poonawalla AH, Hou P, Huang F, Wolinsky JS, Narayana PA. Improved identification of intracortical lesions in multiple sclerosis with phase-sensitive inversion recovery in combination with fast double inversion recovery MR imaging. AJNR Am J Neuroradiol. 2007;28(9):1645-9. [PubMed ID: 17885241]. [PubMed Central ID: PMC8134176]. https://doi.org/10.3174/ajnr.A0645.
  • 5.
    Bisecco A, Rocca MA, Pagani E, Mancini L, Enzinger C, Gallo A, et al. Connectivity-based parcellation of the thalamus in multiple sclerosis and its implications for cognitive impairment: A multicenter study. Hum Brain Mapp. 2015;36(7):2809-25. [PubMed ID: 25873194]. [PubMed Central ID: PMC6869750]. https://doi.org/10.1002/hbm.22809.
  • 6.
    Preziosa P, Rocca MA, Pagani E, Stromillo ML, Enzinger C, Gallo A, et al. Structural MRI correlates of cognitive impairment in patients with multiple sclerosis: A Multicenter Study. Hum Brain Mapp. 2016;37(4):1627-44. [PubMed ID: 26833969]. [PubMed Central ID: PMC6867484]. https://doi.org/10.1002/hbm.23125.
  • 7.
    Damjanovic D, Valsasina P, Rocca MA, Stromillo ML, Gallo A, Enzinger C, et al. Hippocampal and deep gray matter nuclei atrophy is relevant for explaining cognitive impairment in MS: A multicenter study. AJNR Am J Neuroradiol. 2017;38(1):18-24. [PubMed ID: 27686487]. [PubMed Central ID: PMC7963669]. https://doi.org/10.3174/ajnr.A4952.
  • 8.
    Geurts JJ, Pouwels PJ, Uitdehaag BM, Polman CH, Barkhof F, Castelijns JA. Intracortical lesions in multiple sclerosis: Improved detection with 3D double inversion-recovery MR imaging. Radiology. 2005;236(1):254-60. [PubMed ID: 15987979]. https://doi.org/10.1148/radiol.2361040450.
  • 9.
    Geurts JJ, Roosendaal SD, Calabrese M, Ciccarelli O, Agosta F, Chard DT, et al. Consensus recommendations for MS cortical lesion scoring using double inversion recovery MRI. Neurology. 2011;76(5):418-24. [PubMed ID: 21209373]. https://doi.org/10.1212/WNL.0b013e31820a0cc4.
  • 10.
    Calabrese M, De Stefano N, Atzori M, Bernardi V, Mattisi I, Barachino L, et al. Detection of cortical inflammatory lesions by double inversion recovery magnetic resonance imaging in patients with multiple sclerosis. Arch Neurol. 2007;64(10):1416-22. [PubMed ID: 17923625]. https://doi.org/10.1001/archneur.64.10.1416.
  • 11.
    Naghibi H, Shekarchi B, Bagheri H, Azimi AR, Shakiba M. Comparison of phase sensitive inversion recovery MRI with T2W-TSE and STIR in the detection of cervical multiple sclerosis lesions. Iran J Radiol. 2019;16(2). e84059. https://doi.org/10.5812/iranjradiol.84059.
  • 12.
    Thompson AJ, Banwell BL, Barkhof F, Carroll WM, Coetzee T, Comi G, et al. Diagnosis of multiple sclerosis: 2017 revisions of the McDonald criteria. Lancet Neurol. 2018;17(2):162-73. [PubMed ID: 29275977]. https://doi.org/10.1016/S1474-4422(17)30470-2.
  • 13.
    Tallantyre EC, Morgan PS, Dixon JE, Al-Radaideh A, Brookes MJ, Morris PG, et al. 3 Tesla and 7 Tesla MRI of multiple sclerosis cortical lesions. J Magn Reson Imaging. 2010;32(4):971-7. [PubMed ID: 20882628]. https://doi.org/10.1002/jmri.22115.
  • 14.
    Nelson F, Datta S, Garcia N, Rozario NL, Perez F, Cutter G, et al. Intracortical lesions by 3T magnetic resonance imaging and correlation with cognitive impairment in multiple sclerosis. Mult Scler. 2011;17(9):1122-9. [PubMed ID: 21543552]. [PubMed Central ID: PMC3151473]. https://doi.org/10.1177/1352458511405561.
  • 15.
    Elnekeidy AM, Kamal MA, Elfatatry AM, Elskeikh ML. Added value of double inversion recovery magnetic resonance sequence in detection of cortical and white matter brain lesions in multiple sclerosis. Egypt J Radiol Nucl Med. 2014;45(4):1193-9. https://doi.org/10.1016/j.ejrnm.2014.06.010.
  • 16.
    Moran PR, Kumar NG, Karstaedt N, Jackels SC. Tissue contrast enhancement: Image reconstruction algorithm and selection of TI in inversion recovery MRI. Magn Reson Imaging. 1986;4(3):229-35. [PubMed ID: 3669934]. https://doi.org/10.1016/0730-725x(86)91062-3.
  • 17.
    Favaretto A, Poggiali D, Lazzarotto A, Rolma G, Causin F, Gallo P. The parallel analysis of phase sensitive inversion recovery (PSIR) and double inversion recovery (DIR) images significantly improves the detection of cortical lesions in multiple sclerosis (MS) since clinical onset. PLoS One. 2015;10(5). e0127805. [PubMed ID: 26010425]. [PubMed Central ID: PMC4444021]. https://doi.org/10.1371/journal.pone.0127805.
  • 18.
    Wattjes MP, Lutterbey GG, Gieseke J, Traber F, Klotz L, Schmidt S, et al. Double inversion recovery brain imaging at 3T: Diagnostic value in the detection of multiple sclerosis lesions. AJNR Am J Neuroradiol. 2007;28(1):54-9. [PubMed ID: 17213424]. [PubMed Central ID: PMC8134107].
  • 19.
    Sethi V, Muhlert N, Ron M, Golay X, Wheeler-Kingshott CA, Miller DH, et al. MS cortical lesions on DIR: Not quite what they seem? PLoS One. 2013;8(11). e78879. [PubMed ID: 24244381]. [PubMed Central ID: PMC3823986]. https://doi.org/10.1371/journal.pone.0078879.

Copyright

Copyright © 2021, Author(s). This is an open-access article distributed under the terms of the Creative Commons Attribution-NonCommercial 4.0 International License (http://creativecommons.org/licenses/by-nc/4.0/) which permits copy and redistribute the material just in noncommercial usages, provided the original work is properly cited.

Similar Articles

24
Apr
2019
Comparison of Phase Sensitive Inversion Recovery MRI with T2W-TSE and STIR in the Detection of Cervical Multiple Sclerosis Lesions

Comparison of Phase Sensitive Inversion Recovery MRI with T2W-TSE and STIR in the Detection of Cervical Multiple Sclerosis Lesions

Hamed Naghibi,
Babak Shekarchi,
Hamed Bagheri,
Amir Reza Azimi,
Madjid Shakiba
PDF

Naghibi H, Shekarchi B, Bagheri H, Azimi AR, Shakiba M. Comparison of Phase Sensitive Inversion Recovery MRI with T2W-TSE and STIR in the Detection of Cervical Multiple Sclerosis Lesions. I J Radiol. 2019;16(2):e84059. doi: https://doi.org/10.5812/iranjradiol.84059

2
Jun
2019
Comparison Between T2, STIR and PSIR Sequences, for Detection of Cervical Cord MS Plaques

Comparison Between T2, STIR and PSIR Sequences, for Detection of Cervical Cord MS Plaques

Amin Abolhasani Foroughi,
Mahdi Saeedi-Moghadam,
Banafsheh Zeinali-Rafsanjani,
Masoume Nazeri
PDF

Abolhasani Foroughi A, Saeedi-Moghadam M, Zeinali-Rafsanjani B, Nazeri M. Comparison Between T2, STIR and PSIR Sequences, for Detection of Cervical Cord MS Plaques. I J Radiol. 2019;16(3):e82134. doi: https://doi.org/10.5812/iranjradiol.82134

21
Oct
2020
Assessment of the Characteristics of Different Kinds of MS Lesions Using Multi-Parametric MRI

Assessment of the Characteristics of Different Kinds of MS Lesions Using Multi-Parametric MRI

Asieh Fatemidokht,
Mohammad Hossein Harirchian,
Elham Faghihzadeh,
Abbas Tafakhori,
Mohammad Ali Oghabian
PDF

Fatemidokht A, Harirchian MH, Faghihzadeh E, Tafakhori A, Oghabian MA. Assessment of the Characteristics of Different Kinds of MS Lesions Using Multi-Parametric MRI. Arch Neurosci. 2020;7(4):e102911. doi: https://doi.org/10.5812/ans.102911

28
Feb
2014

The Relationship Between Cognitive Function and Brain Lesion Volumes in Multiple Sclerosis Patients

Farzad Ashrafi,
Hamidreza Haghighatkhah,
Alireza Zali,
Davood Ommi,
Morteza Sanei Taheri,
Hamidreza Moghassemi
,et al.
PDF

Ashrafi F, Haghighatkhah H, Zali A, Ommi D, Sanei Taheri M, et al. The Relationship Between Cognitive Function and Brain Lesion Volumes in Multiple Sclerosis Patients. I J Radiol. 2014;11(30th Iranian Congress of Radiology):e21325. doi: https://doi.org/10.5812/iranjradiol.21325

22
Feb
2025
Imaging Correlates of Plaque Location and Cognitive Dysfunction in Multiple Sclerosis

Imaging Correlates of Plaque Location and Cognitive Dysfunction in Multiple Sclerosis

Mohamad Ghazanfari Hashemi,
Ahmad Enhesari
PDF

Ghazanfari Hashemi M, Enhesari A. Imaging Correlates of Plaque Location and Cognitive Dysfunction in Multiple Sclerosis. Thrita J Neu. 2024;13(2):e157054. doi: https://doi.org/10.5812/thrita-157054

More by these authors

Hassan HashemiPubMedScholar
Maryam MohammadzadehPubMedScholar
Mohammad Hossein DianatPubMedScholar
Amir Reza AzimiPubMedScholar
Hamed NaghibiPubMedScholar
Madjid ShakibaPubMedScholar
Kavous FirouzniaPubMedScholar

Find related work

PubMed
Google Scholar
Create citation alert
Download PDF2.68 MB
Import into EndNoteImport into BibTex
Share
Cited by
Metrics
Comments
Number of Comments:0
Indexed in
logoWeb of Sciences Core Collections
logoScopus
