1. Background
Nowadays public health authorities are concerned about toxic chemicals such as mercury which is found in the rivers and enters the human body through sea foods consumption (1). Naturally, mercury exists in the environment in small amounts; however its level has increased due to human activities (2). Mercury enters and aggregates in tissues, binds to the sulfhydryl groups of the enzymes and causes serious problems in humans (3). Consumption of methylmercury, the most toxic form of mercury, may cause Minamata disease which is distinguishable by different neurological symptoms in human (4). Even small amounts of mercury are toxic for all living organisms; however some bacteria residing in contaminated areas can exchange resistance genes due to continual exposure to the toxic levels of mercury and become resistant to it (3).
Resistance to mercury is controlled by a set of genes organized in an operon named mer. mer operon consists of mer RTPABD genes. Regulation of gene expression in mer operon is controlled by merD and merR. merP and merT are involved in transporting Hg into the cytoplasm, merB degrades organic mercury and finally merA encodes Mercuric reductase. This enzyme reduces Hg2+, one of the most toxic forms of mercury, to metallic mercury Hg0 which is less toxic and not stable in the environment. So it plays the key role in mercury bioremediation process (5-7). Moore et al. first reported bacterial resistance to mercury compounds in a clinically isolated Staphylococcus aureus (8).
Ray et al. evaluated the ability of N2 fixing bacteria (Beijerinckia and Azotobacter) to remove mercury. They reported that there is a direct relationship between increased use of herbicides and spreading resistant to mercury in bacterial communities residing in agricultural soils (9). Enhancement of mercury contamination increases antibiotic resistant strains. This is a serious environmental and public health concern in such regions (10-12). Moreover, using mercury-containing products such as disinfectants and amalgam may cause spreading of multiple antibiotic resistance strains in hospitals and human intestine (3, 13).
Most of mercury resistance genes are located adjacent to antibiotic resistance genes. These genes are found in mobile plasmids and transposons which can be exchanged between bacterial strains and species (14-16). Kor River is the main river in Fars province and supplies the drinking water of Shiraz (the largest city in the south west of Iran). The factories wastewater such as Petroshimi chloralkali unit which contains high amounts of mercury is discharged into Kor River. High levels of mercury have been accumulated throughout the river for many years.
2. Objectives
The main objective of this work was to isolate and identify mercury resistant bacteria in the water and sediments of Kor River and determine whether increasing amounts of Hg in the environment could spread multiple antibiotic resistance among bacterial communities residing in these areas.
3. Materials and Methods
3.1. Study Area
Considering industrial and agricultural activities along the Kor River bank, the study area stretched from Doroodzan dam to Bakhtegan Lake, which comprised of four stations. The position and coordination of the sampling stations was determined by GPS (Global Positioning System) (Table 1).
Table 1.Position of the Sampling Sites
| Sampling Sites | Altitude, m | Description | Coordinates | |
|---|---|---|---|---|
| Longitude | Latitude | |||
| Droodzan (D) | 1634 | after Droodzan barrier, without any wastewater | 52° 25´ 32ʺ E | 30° 12´ 22ʺ N |
| Pole Petroshimi (PP) | 1593 | after wastewater output of a chlor-alkali plant | 52° 45´ 39ʺ E | 29° 51´ 42ʺ N |
| Pole Khan (PKh) | 1588 | after Sivand river entrance, containing urban wastewater | 52° 46´ 15ʺ E | 29° 50´ 89ʺ N |
| Ghavmishi (G) | 1563 sites | ending of Kor river, near lake Bakhtegan | 52° 25´ 00ʺ E | 29° 32´ 51ʺ N |
3.2. Sampling
The samples were collected from surface water as well as sediments in four stations throughout the river. Sampling was performed three times during three weeks. For microbial studies, the samples were collected in sterile glass containers. For measuring the amounts of mercury, the samples were collected in nitric acid pre-rinsed polyethylene containers. Electrical conductivity (EC), pH and temperature of the water samples were determined at the sampling sites (Table 2). The samples were then placed into cooler boxes and transferred to the laboratory ( 17 ).
Table 2.Features of the Water Samples
| Sampling Sites | pH | EC | Tm |
|---|---|---|---|
| Droodzan | 6.9 | 489 | 16 |
| Pole Petroshimi | 8.2 | 1124 | 18 |
| Pole Khan | 8.4 | 1133 | 17 |
| Ghavmishi | 8.1 | 1062 | 19 |
3.3. Sample Preparation
Samples were prepared before measuring the amounts of mercury. Water samples were first filtered using 42 µm Whatman filter paper. The filtered samples were digested with a mixture of 3 mL of nitric acid and 1 ml of chloridric acid. Sediment samples were dehydrated using an oven at 103°C for 2 hours and pulverized to uniform particle sizes. The pulverized samples were digested with a mixture of 6 ml of nitric acid and 2 mL of perchloric acid for every 1 g of samples and heated. Finally, digested samples were filtered using 42 µm Whatman filter paper (17).
3.4. Mercury Analysis
Following the preparation, all samples were analyzed for the presence of Hg by cold vapor atomic absorption spectrophotometery using inductive coupled plasma (ICP) Varian model.
3.5. Bacterial Enumeration
After transferring the samples to the laboratory, enumeration of bacteria was performed using total viable plate count. All samples were serially diluted in phosphate buffered saline (PBS) (2.2 g of NaH2PO4 per liter, 6 g of Na2HPO4 per liter, 5.8 g of NaCl per liter [pH = 7.2]). Serial dilutions from 10-1 to 10-10 were prepared. From each dilution, 0.1 mL was speared on Luria-Bertani agar (LB agar) (Merck, Germany) (10 g of peptone per liter, 5 g of yeast extract per liter, 10 g of NaCl per liter, 12 g of agar per liter). The plates were incubated at 30°C for 48 hours. After the incubation period, the appeared colonies were enumerated (18).
3.6. Isolation and Identification of Mercury Resistant Bacteria
Isolation of mercury resistant bacteria was performed according to the method described in our previous study (19). One g of each sample was added to 9 mL of LB broth medium (10 g of peptone per liter, 10 gr NaCl per liter) containing 10 mg of HgCl2 per liter and incubated at 30°C for 48 hours. After the incubation period, 0.1 mL of enrichment culture was speared on LB agar and incubated at 30°C for 48 hours. The appeared colonies were purified and identified using Gram staining and conventional biochemical tests according to the method of Bergey (20).
3.7. Antibiotic Resistance
Antibiotic resistance susceptibility was assessed using disk diffusion method according to NCCLS instructions (21). A single colony was picked and added to containing HgCl2 and without HgCl2 LB broth media and incubated at 37°C for 24 hours. The turbidity of media were compared to the 0.5 McFarland standard, then spread on Muller Hinton agar using sterile swabs. Finally, antibiotic discs (MAST, England) were located on the surface of the plates. The following antibiotic discs were used in this study: Ampicillin (AM) 10 µg, Streptomycin (S) 10 µg, Gentamycin (GM) 10 µg, Nalidixic Acid (NA) 30 µg, Tetracycline (TE) 30 µg and Chloramphenicol (C) 30 µg.
3.8. Data Analysis
Data analysis was performed by ANOVA and Duncan tests. All statistical analyses were done using SPSS software Version 12 with significance based on 0.05 (P < 0.05) in most of the cases.
4. Results
4.1. Amount of Mercury
The highest levels of mercury were 0.083 and 0.769 ppm. These amounts were achieved from Pole khan Station water and sediments samples, respectively. The lowest amounts of mercury (0.011 and 0.248 ppm) were obtained from the water and sediment samples of Doroodzan Station. There was a significant difference (P < 0.05) between amounts of mercury in different stations (Table 3).
Table 3.Amounts of Hg in the Samples
| Type of Samples | Sampling Sites | |||
|---|---|---|---|---|
| Droodzan | Pole Petroshimi | Pole Khan | Ghavmishi | |
| Sediment, ppm | 0.248 ± 0.179 | 0.671 ± 0.048 | 0.769 ± 0.038 | 0.634 ± 0.053 |
| Water, ppm | 0.011 ± 0.043 | 0.093 ± 0.035 | 0.083 ± 0.005 | 0.077 ± 0.005 |
4.2. Bacterial Enumeration
Average number of mercury resistant bacteria and total bacteria were 5.9 × 10 6 and 2 × 10 7 CFU/mL respectively. There is a significant difference (P < 0.05) between the average number of mercury resistant bacteria and total bacteria. A comparison between the stations was performed in terms of the number of mercury resistant bacteria. The two highest numbers of mercury resistant bacteria, 8.2 × 10 6 and 1.4 × 10 7 CFU /mL were obtained from Pole petroshimi and Pole khan, respectively. The lowest number was 1.4 × 10 5 CFU/ml for Doroodzan station. There is a significant difference (P < 0.05) between the average number of mercury resistant bacteria isolated from different stations (Table 4, Figure 1).
Table 4.Frequencies of Mercury Resistant Bacteria
| Sampling Sites | Total Bacteria, CFU/mL | Hg Resistant Bacteria, CFU/mL | Hg Resistant Bacteria, % |
|---|---|---|---|
| Droodzan (D) | 5.6 × 106 | 1.4 × 105 | 2.5 |
| Pole Petroshimi (PP) | 3.1 × 107 | 8.2 × 106 | 26 |
| Pole Khan (PKh) | 3.7 × 107 | 1.4 × 107 | 35 |
| Ghavmishi (G) | 8.6 × 106 | 1.5 × 106 | 20 |

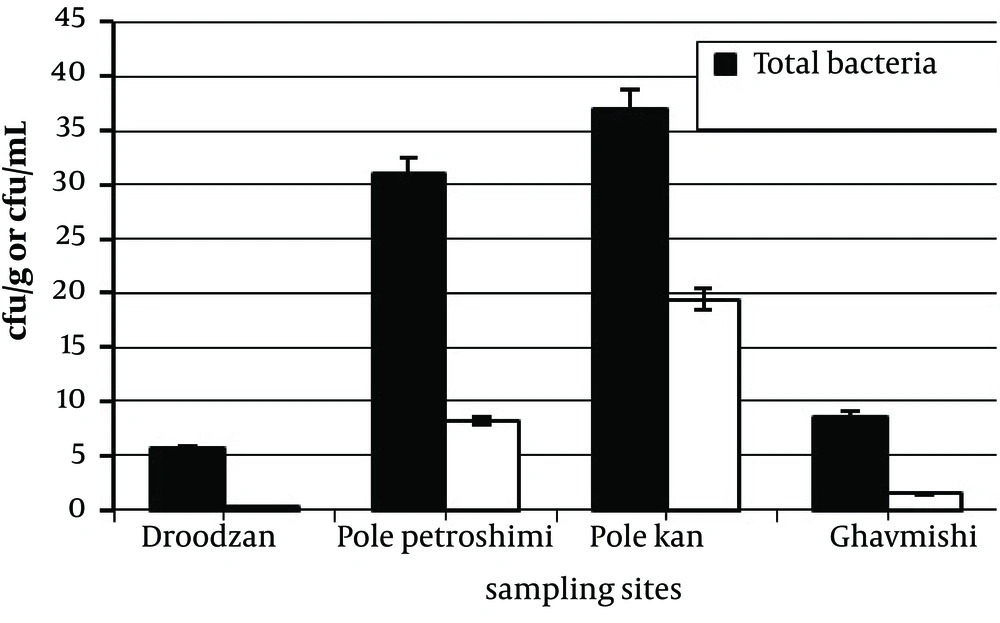

Figure 1.
Distribution of the Total and Mercury Resistant Bacteria in the Sampling Sites
4.3. Isolation and Identification of Mercury Resistant Bacteria
Mercury resistant isolates from different stations are shown in Table 5. The most common isolated bacteria were Serratia marcescens (83.3%) and the least common ones were Acinetobacter (25%) (Table 5).
Table 5.Mercury Resistant Species Isolated From Different Sampling Sites
| Sampling Sites | Percentage of Resistant Strains | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Droodzan | Pole Petroshim | Pole Khan | Gavmishi | ||||||||||
| Isolated bacteria, No. | 1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 | 3 | |
| Klebsiella sp. | - | - | + | - | + | + | + | + | + | - | + | - | 58.3 |
| E.coli | + | + | - | + | + | + | - | + | + | + | - | - | 66.7 |
| Serratia marcescens | + | + | + | - | + | + | + | + | + | - | + | + | 83.3 |
| Proteus sp. | - | - | - | + | + | + | + | + | - | + | - | - | 50 |
| Citrobacter sp. | - | - | - | + | - | - | + | - | - | + | + | + | 41.6 |
| Pseudomonas sp. | + | + | + | - | - | + | + | + | - | + | + | + | 75 |
| Acinetobacter sp. | - | - | - | + | - | + | + | - | - | - | - | - | 25 |
| Enterobacter sp. | + | + | + | + | - | + | - | - | + | + | - | - | 58.3 |
4.4. Antibiotic Resistance
Of 55 mercury resistant strains, the highest frequencies of antibiotic resistance were obtained for ampicillin (62%), tetracycline (53%), and streptomycin (42%) (Table 6). A higher frequency of antibiotic resistance was seen among mercury resistant strains in comparison to the sensitive strains. Many of Hg sensitive strains were also sensitive to all of the antibiotics. Frequencies of antibiotic resistance were between 8% to 24% for Hg sensitive and 22% to 62% for Hg resistant strains (Figure 2). Statistical analysis showed a significant difference between these data (P < 0.05). Moreover, the most antibiotic resistant strains were isolated from Pole khan station.
Resistance to at least two antibiotics was seen in most of Hg resistant strains, but none of them were resistant to all six tested antibiotics. 40 strains (73%) showed resistance to at least two antibiotics; tetracycline + chloramphenicol, tetracycline + Streptomycin or ampicillin + tetracycline (Table 7).
Table 6.Distribution of Antibiotic Resistance Frequencies
| Antibiotics Concentration, µg | Number of Resistant Strains | Percentage of Resistant Strains |
|---|---|---|
| Ampicillin, 10 | 34 | 62% |
| Nalidixic acid, 30 | 12 | 22% |
| Steptomycin, 10 | 23 | 42% |
| Gentamicin, 10 | 14 | 25% |
| Tetracycline, 30 | 29 | 53% |
| Chloramphenicol, 30 | 19 | 34% |

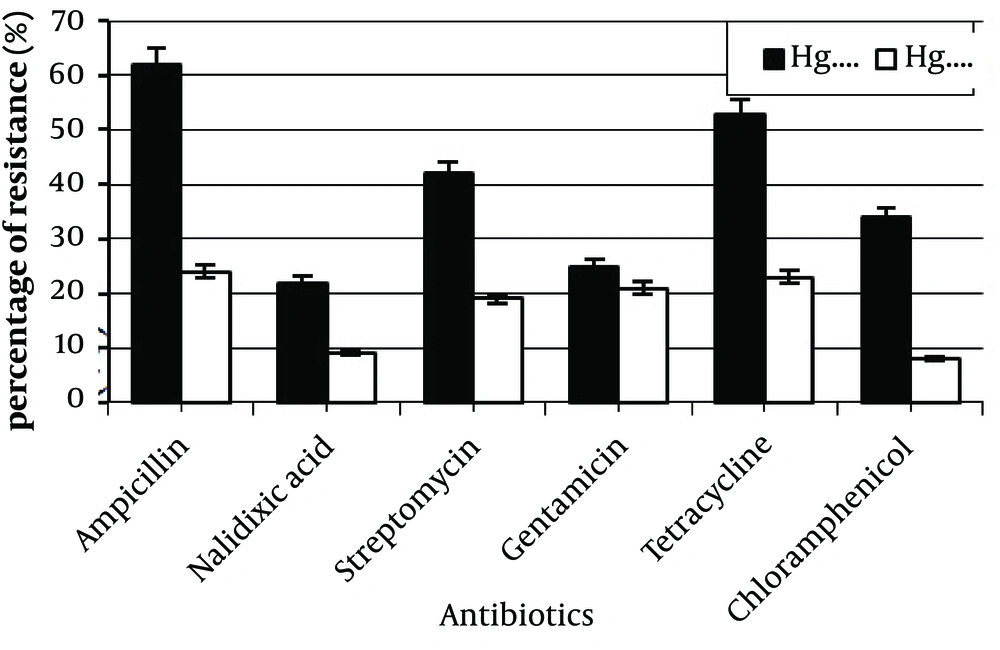

Figure 2.
Antibiotic Resistance Levels Among Hg Resistant and Sensitive Bacteria
Table 7.Distribution of Multiple Antibiotic Resistant Strains
| Antibiotics | Resistant Strains, No. (%) |
|---|---|
| Ampicillin + Streptomycin + Gentamicin + Nalidixixc acid | 1 (2%) |
| Tetracycline + Chloramphenicol | 8 (15%) |
| Tetracycline + Steptomycin | 17 (31%) |
| Tetracycline + Ampicillin | 14 (25%) |
| Total | 40 (73%) |
5. Discussion
Previous studies also reported Pole khan and Pole Petroshimi as the most mercury-contaminated areas of the Kor River (22). Pole Petroshimi is placed in the vicinity of a Chloralkali plant. Marvdasht urban wastewater, Azmayesh industries, Shiraz and Abbarik industrial town wastewaters are discharged directly into the Kor River near the Pole khan station. There are no industrial activities in the Doroodzan region; hence the highest and lowest contamination levels were obtained for Pole petroshimi and Doroodzan stations, respectively. To increase the chance of detecting mercury resistant bacteria, we used higher concentrations of Hg (10 mg/mL) in growth media as described previously (23, 24).
Jaysankar et al. and Aram et al. found that the number of bacteria in mercury-containing media is lower in comparison with the media without Hg (25, 26). In this study, the frequency of mercury resistant bacteria was also lower than those in the control medium. Presence of Hg in the medium may inhibit the bacterial growth. Mercury easily penetrates into the bacterial cell and interacts with the sulfhydryl groups of some amino acids such as cysteine. Hg covalently bonds to sulfur in the sulfhydryl groups and inactivates many proteins and enzymes by formation of the inhibiting disulfide bridges between the two cysteines (27).
In the present study, the highest frequencies of Hg resistant bacteria were 35% and 26% for Pole Khan and Pole Petroshimi stations, respectively, which were the most contaminated areas. Our results confirmed that there is a direct relationship between the number of isolated mercury resistant bacteria and the levels of environmental mercury. In mercury contaminated areas, bacteria can exchange plasmids and transposons carrying mercury resistance genes. This event increases the number of resistant bacteria in such environments (28).
Resistance to mercury has been reported in a wide range of bacterial genus particularly in Gram negative bacteria. In some earlier studies, Pseudomonas, Alcaligenes, E. coli and Klebsiella were identified as Gram negative Hg resistant genus (29-31). Petrova et al. also detected Pseudomonas, Acinetobacter and Plesiomonas as Gram negative Hg resistant bacteria (32). Similar results were also obtained in this study. Such resistant bacteria in extreme environmental conditions can exchange Hg resistant genes trough conjugation or transposition. The first step of interaction between bacterium and Hg in the environment is passing Hg2+ through the bacterial cell wall. Presence of outer membrane in Gram negative bacteria can inhibit the entrance of toxic chemicals into the cytoplasm; hence Gram negative bacteria are less affected in comparison to Gram positive ones. This natural barrier clearly increases the probability of isolation of Gram negatives bacteria from mercury contaminated environments.
Hg resistance genes are inducible. They are usually located on plasmids and transposons such as NR1, Tn21, Tn4, Tn2571, Tn1696, etc. which carry antibiotic resistance genes as well. These mobile elements encode resistance to different antibiotics such as streptomycin, ampicillin, chloramphenicol and tetracycline. These antibiotics have been frequently used in the previous studies for evaluating drug resistance prevalence among mercury resistant bacteria (30, 33, 34). We chose these antibiotics to test any possible connection between Hg contamination and multiple antibiotic resistance among the isolates. In this study, antibiotic resistance frequencies were higher among Hg resistant bacteria in comparison with the sensitive bacteria. The antibiotic resistance frequencies were similar to the result obtained in previous studies. Antibiotic resistance frequencies for ampicillin, tetracycline, streptomycin and chloramphenicol were between 30% to 60% which were similar to the results of Wireman et al. study (35).
Pike et al. have reported high frequencies of tetracycline and ampicillin resistance among isolated strains (34). McIntoch et al. showed occurrence of Hg and antibiotic resistance abilities in Aeromonas salmonicida. They reported resistance to ampicillin in of mercury resistant strains (15). In the present study, the highest antibiotic resistance frequencies were seen for ampicillin and tetracycline. Moreover, resistance to streptomycin and chloramphenicol was detected in many isolated bacteria from Pole Khan and Pole Petroshimi stations. Resistance to more than one antibiotic occurred in most of the Hg resistant isolates. These findings showed that Kor River is highly contaminated with mercury so that residing bacteria can easily gain mer genes along with the antibiotic resistance genes via conjugation or transposition. In addition, the highest frequency of antibiotic resistance was obtained for Hg resistant isolates from Pole Khan and Pole Petroshimi stations which were the most contaminated areas of the river.
Resistance to these antibiotics is controlled by a set of genes that are usually located on the mobile elements such as R100 or transposons such as Tn4 and Tn2571. Most R plasmids also carry Hg resistance genes. In addition, R100 encodes some enzymes that are responsible for self-translocation and conjugation. According to these findings, isolated strains in this study may acquire antibiotic resistance genes from other bacteria which carrying R plasmids and transposons by conjugation or any other horizontal gene transfer method. Resistance to streptomycin and tetracycline is mediated by production of degradable enzymes and changing bacterial cell membrane permeability.
Our results clearly showed that enhancement of Hg levels in the environment directly increases the frequency of antibiotic resistance especially among Gram negative bacteria and family of Entrobacteriace. These bacteria are responsible for serious infections in human. Contaminated areas residents can easily get infected by such multiple antibiotic resistant bacteria. Nowadays, prevalence of multiple antibiotic resistant bacteria is one of the most important problems in the treatment of infectious diseases. Molecular analyses using antibiotic and mercury resistance gene-specific primers can reveal the presence of these genes at the same time in bacterial communities residing in mercury contaminated areas.
Using developed and effective wastewater treatment systems in Chloralkali plants and other industrial units and limiting utilization of herbicides and fungicides in agricultural fields will certainly reduce multiple resistant bacteria spread in the natural environments.
