1. Background
Racquet sports, especially lawn tennis and badminton have been gaining popularity in Asian countries like India. With this increase in popularity, the injury rate in the sport has also increased. The injury rate in tennis varies from 0.04 injuries/1000 hours to 21.5 injuries/1000 hours (1). Different overhead sports show different characteristics, but have similar movement patterns. In each, the dominant upper limb is subjected to repeated overhead movements (2, 3). The mechanics of an overhead stroke or serve in racquet sports are similar to that of an overhead throw (4), wherein the shoulder has to be lax enough to allow the extra degrees of external rotation necessary for an adequate serve and at the same time has to be stable enough to prevent any subluxations. This delicate balance between mobility and stability is referred to as ‘throwers paradox’ (3) and if compromised, can lead to injury (5). A racquet serve/stroke is a combination of true gleno-humeral rotation, trunk hyperextension and scapulo-thoracic motion. The cocking phase maintains the dominant arm in 90° abduction and external rotation which reaches a maximum of 172° to 180° during the late cocking phase (6-8). It ends with internal rotation and forward flexion of the dominant shoulder along with upper torso and pelvic rotation during the follow through phase. Each phase places an asymmetric load between the two shoulders, with the dominant shoulder exposed to maximum stress (9). Studies have shown a significant difference in the gleno-humeral internal rotation range of motion between dominant and non-dominant shoulders of overhead sport players (2, 3, 10-14). This is defined as ‘Gleno-humeral internal rotation deficit’ (GIRD), which is the loss in degrees of the gleno-humeral internal rotation of the throwing shoulder compared with the non-throwing shoulder (15). An accepted level of GIRD is less than 20° deficit of gleno-humeral internal rotation or less than 10% deficit of the total rotation seen in throwing shoulder as compared to the non-throwing shoulder (15). The scapula provides a stable base to the movement of humeral head during an overhead motion. The stability of the scapula becomes important in these movement patterns (9). An asymmetry develops in the scapular posture of overhead athletes like tennis players, where the dominant scapula is more protracted than the non-dominant side (16). The acronym SICK scapula (scapular malposition, inferior medial border prominence, coracoid pain and malposition and dyskinesis) is used to describe this asymmetry of scapula (17). This asymmetry is accentuated in unilateral overhead athletes who use their dominant shoulder repetitively in a forceful manner (16). Many authors suggest that this increased scapular protraction along with GIRD, increases the likelihood of shoulder injuries in these players (18-20). Shoulder girdle injuries account for 17.27% in racquet players with 43.4% of elite tennis players presenting with scapular dyskinesia (21, 22). Most of the studies on overhead sports have been conducted on baseball players with very limited studies on asymptomatic racquet players. With the increasing popularity of racquet sports and an increase in its injury rate, it is essential to determine the predisposing risk factors in these overhead sports. Not much attention is paid to evaluation of movement dysfunction during periodic evaluation and screening of elite players. Thus, a meticulous examination of the shoulder girdle in asymptomatic players will prevent them from becoming symptomatic in the near future.
2. Objectives
With the aim of studying the presence of scapular resting position abnormality and gleno-humeral movement dysfunction in asymptomatic racquet players, the objectives of the study were to compare the scapular resting position and gleno-humeral range of motion between the dominant and non-dominant shoulder of the asymptomatic racquet players and to compare the scapular resting position and gleno-humeral range of motion of the dominant shoulder between the asymptomatic racquet players and non-racquet players.
3. Materials and Methods
A case-control, observational, single-blind study was designed and approved from Institutional Ethics Committee. Asymptomatic volunteers in the age group of 15 - 25 years, playing badminton, lawn tennis or football regularly for more than 1 year at professional competitive level were recruited by a process of simple randomization. Players with history of shoulder pain or injury, neck pain, surgery or deformity near shoulder complex were excluded. A sample of 46 players was included in the study (Figures 1 and 2).

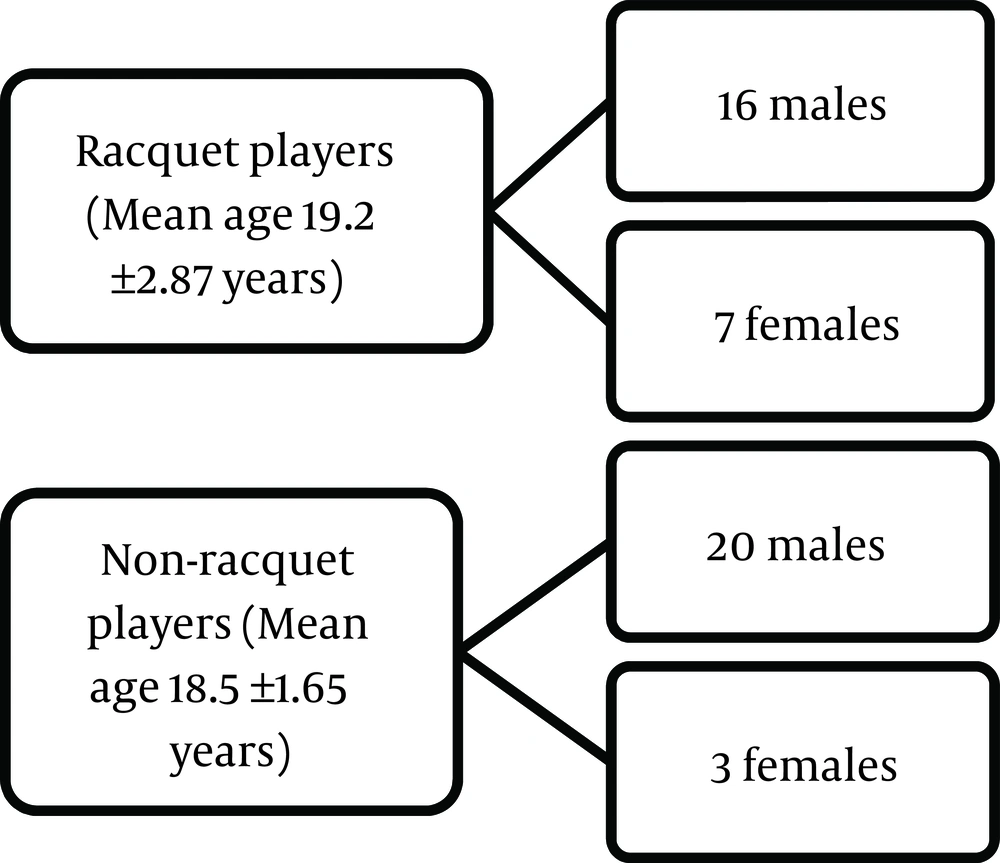

Figure 1.
Demographic Data

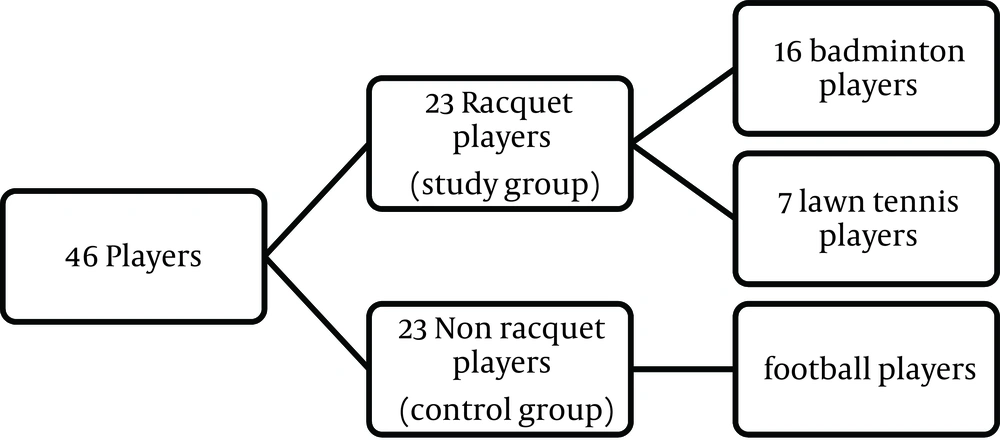

Figure 2.
Division of Groups
The purpose of the study was explained to the coach and the players and written informed consent was obtained prior to testing. Subjects were given a questionnaire to obtain demographic data and rule out exclusion criteria. The assessment included:
1) Spino-scapular distance: (a) at the spine of the scapula bilaterally; (b) at the inferior angle of the scapula bilaterally.
2) Level of the Scapula: (a) at the spine of the scapula bilaterally; (b) at the inferior angle of the scapula bilaterally.
Scapular assessment (23-25): Was performed by one assessor (author 2), wherein, the subjects were made to stand with the back facing the assessor. The spine of the scapula was palpated from the acromion process and the medial end of the spine of the scapula was marked with a marker. The inferior angle was palpated and marked with a marker. The spinous processes of the vertebral column were palpated starting from C7 to T10. The subject was asked to flex his/her neck to find the prominent C7 spinous process and then with deep postero-anterior pressure the remaining thoracic spinous processes were palpated and marked with the marker. The levels of the spine of the scapula and the inferior angle were noted and then the spino-scapular distance at the spine of the scapula and at the inferior angle was measured using a measuring tape.
3) Shoulder range of motion (ROM) assessment (15, 26): Bilateral gleno-humeral range of motion was measured passively with standard goniometer by the same assessor (author 2) (Table 1). Data decoding and chart preparation was done by another assessor (authors 1 and 3 respectively). Statistical analysis was done by SPSS version 12.0. Comparison of the dominant and non-dominant side of the racquet players was done using 2-tailed, dependent-sample paired t test. Comparison of the dominant side of racquet and non-racquet players was done by unpaired t test. Alpha level of P ≤ 0.05 was set.
Table 1. Assessment of ROM
| Shoulder ROM | Patient Position | Fulcrum | Starting Position of the Limb |
|---|---|---|---|
| Flexion | Supine | Greater tuberosity | Arm by the side of the body |
| Abduction | Supine | Coracoid process | Arm by the side of the body |
| Adduction | Supine | Coracoid process | Arm by the side of the body |
| External rotation | Supine | Olecranon process | Shoulder in 90° abduction and elbow in 90° flexion |
| Internal rotation | Supine | Olecranon process | Shoulder in 90° abduction and elbow in 90° flexion |
| Extension | Prone | Greater tuberosity | Arm by the side of the body |
4. Results
Table 2. Comparison of Scapular Resting Position in Racquet Players Between Dominant and Non-dominant Sides a
| Spino-Scapular Distance, cm | Groups | ||
|---|---|---|---|
| Dominant Side | Non-Dominant Side | P Value | |
| At level of spine of scapula | 8.52 ± 1.38 | 8.34 ± 1.43 | > 0.05 |
| At level of inferior angle of scapula | 10.23 ± 1.43 | 9.86 ± 1.40 | < 0.05 |
a P values less than 0.05 are considered as significant.
Table 3. Comparison of Scapular Resting Position in Dominant Shoulder Between Racquet and Non-Racquet Players a
| Spino-Scapular Distance, cm | Groups | ||
|---|---|---|---|
| Racquet Players | Non Racquet Players | P Value | |
| At level of spine of scapula | 8.52 ± 1.38 | 8.15 ± 0.88 | > 0.05 |
| At level of inferior angle of scapula | 10.23 ± 1.43 | 9.91 ± 0.68 | > 0.05 |
a P values less than 0.05 are considered as significant.
Table 4. Comparison of ROM in Racquet Players Between Dominant and Non-Dominant Sides a
| ROM, Degrees | Groups | ||
|---|---|---|---|
| Dominant Side | Non-Dominant Side | P Value | |
| Flexion | 180 | 180 | > 0.05 |
| Extension | 39.78 ± 4.12 | 41.3 ± 4.05 | < 0.05 |
| Abduction | 180 | 180 | > 0.05 |
| Adduction | 29.78 ± 1.83 | 30 | > 0.05 |
| Internal rotation | 62.17 ± 8.09 | 76.39 ± 7.16 | < 0.05 |
| External rotation | 106.95 ± 7.49 | 99.78 ± 5.93 | < 0.05 |
a P values less than 0.05 are considered as significant.
Table 5. Comparison of ROM in Dominant Shoulder Between Racquet and Non-Racquet Players a
| ROM, Degrees | Groups | ||
|---|---|---|---|
| Racquet Players | Non-Racquet Players | P Value | |
| Flexion | 180 | 180 | > 0.05 |
| Extension | 39.78 ± 4.12 | 44.78 ± 3.19 | < 0.05 |
| Abduction | 180 | 180 | > 0.05 |
| Adduction | 29.78 ± 1.83 | 37.39 ± 6.54 | < 0.05 |
| Internal rotation | 62.17 ± 8.09 | 78.69 ± 10.24 | < 0.05 |
| External rotation | 106.95 ± 7.49 | 102.6 ± 5.19 | < 0.05 |
a P values less than 0.05 are considered as significant.
5. Discussion
