1. Background
Chronic hepatitis B virus (HBV) infection is a major health problem, especially in Asia. The clinical outcomes of HBV infection are extremely variable and includes self-resolving acute hepatitis, chronic hepatitis B carriers, acute-on-chronic liver failure (ACLF) cirrhosis and hepatocellular carcinoma (1). In China, more than 80% of ACLF incidence is caused by HBV infection (2). HBV-related ACLF (HBV-ACLF) is an increasingly recognized syndrome corresponding to an acute and severe exacerbation of liver function in patients with chronic HBV infection. The pathogenic mechanism of HBV-ACLF is not well understood. Despite the identification of important predisposing factors and prognostic markers, HBV-ACLF remains a disease associated with high mortality (3-5). The majority of studies using nucleoside analog therapy, bioartificial liver support systems and stem cell transplantation have not shown a significant improvement in long-term survival; as a result, larger future studies are needed in this area of research (6-8). Liver transplantation is the best method for treating HBV-ACLF, but liver donation resources remain limited. Therefore, there exists a real challenge for finding key pathogenic targets in the development of HBV-ACLF for preventing the disease.
The development process of HBV-ACLF can be divided into prior to and at the time of diagnosing HBV-ACLF as it corresponds to the early stage, progression stage and remission stage. Immunological changes are relevant in the development process of HBV-ACLF. Our preliminary studies suggested that there were high immune activities in vivo at the early stage of HBV-ACLF (9). Fujiwara et al.’s reports also showed that the use of corticosteroid therapy in the early phase of HBV-related liver failure could partly improve liver regeneration and reduce mortality rate; however, its efficacy remains limited (10, 11). These studies also indicated the presence of a high immune state in the early phase of HBV-ACLF. It is generally agreed that rapid diagnosis and management are of primary importance for allowing survival; however, the indicators that can determine the disease's progression remain unclear.
2. Objectives
The aim of the study was to explore potential key immune molecular targets that could serve as early predictive markers for HBV-ACLF.
3. Patients and Methods
3.1. Patients
Patients who had been referred to the Department of Infectious Diseases at the third affiliated hospital of the Sun Yat-sen University (Guangzhou, China) between May 2009 and December 2012 were recruited for this study. The preliminary screening included 189 patients who were admitted for the treatment of severe chronic hepatitis B (CHB) or CHB-related liver failure. We removed 162 patients who do not meet the research standards in the following order: 60 cases with liver cirrhosis, 38 cases with incomplete hospitalization for economy, 54 cases with liver failure at admission and 10 cases using artificial liver support systems or immunomodulatory drugs therapy. Finally, 27 patients with acute exacerbation (aeCHB) were selected for participation. Eighteen of these 27 aeCHB patients did not progress to acute-on-chronic liver failure (HBV-ACLF) (as defined below), thereby corresponding to the “aeCHB without ACLF” patients; nine developed ACLF (corresponding to the “HBV-ACLF” patients). These 9 HBV-ACLF patients were studied both prior to and at the time of ACLF (corresponding to the “beforeHBV-ACLF” and “atHBV-ACLF” subgroups). Nine healthy people were recruited for the normal control group (NC). Plasma samples were collected in the time frame of the study concerning the pathogenesis of CHB-related liver failure, a process supported by the National Science and Technology Major Project (No. 2008ZX10002007, No. 2012ZX10002007). The study was conducted according to the guidelines of the Declaration of Helsinki and was approved by the Human Ethics Committee of the Third Affiliated; Sun Yat-sen University. Written informed consent was obtained from each subject.
3.2. The Diagnostic Criteria of CHB Acute Exacerbation and HBV-ACLF
The adopted criteria for the present study corresponded to those proposed by Fujiwara et al. and to the recommended guidelines of the 2009 Asian Pacific Association for the Study of the Liver (APASL), with minor modifications (11, 12). Briefly, the CHB acute exacerbation criteria were as follows: duration of plasma hepatitis B surface antigen (HBsAg) presence more than six months before entry, alanine transaminase (ALT) greater than 20 ULN (normal values range between 3 and 35 UI/L), total bilirubin (T-Bil) greater than 5 ULN (normal values range between 4 and 24 µmol/L), prothrombin time activity (PTA) less than 60% of normal controls and no cirrhosis according to imaging examination (ultrasound or computed tomography or magnetic resonance). Patients with PTA less than 40% and/or an international normalized ratio (INR) higher than 1.5, and who experience complications within four weeks brought on by hepatic encephalopathy and/or ascites were defined as having HBV-ACLF. Clinical assessment and blood plasma were performed approximately every week (5 ± 2 days) according to the degree of disease progression. Anti-viral therapies, including lamivudine or entecavir, were prescribed according to HBV replication levels, economical condition and willingness of the patient. No patients received corticosteroids, stem cell transfusions, bioartificial liver support or other immune related treatments prior to the diagnosis of HBV-ACLF.
The participants were free of autoimmune liver diseases, bacterial infection, fungal infection and viral infection, including human immunodeficiency (HIV), hepatitis C virus (HCV), cytomegalovirus (CMV) and Epstein-Barr virus (EBV). Patients with recent exposure to drugs and chemical agentsor with recent heavy alcohol intake were ruled out.
3.3. The Determination of Circulating Inflammatory Cytokines Using Flow Cytometry
Plasma cytokines were measured serially by cytometric bead array (CBA) using a FACSC alibur flow cytometer LSR II (Becton Dickinson, CA, USA). In brief, nine bead populations with distinct fluorescence intensities had capturing antibodies specific for different cytokines. These bead populations could be resolved in the fluorescence channels of the flow cytometer. After the beads had been incubated with 50 µL of plasma, different cytokines or chemokines in the sample were captured by their corresponding beads. The cytokine captured beads were then mixed with phycoerythrin-conjugated detection antibodies to form sandwich complexes. Following incubation, washing and acquisition of fluorescence data, the results were generated in graphical format using the Becton, Dickinson and Company (BD) CBA software. The concentrations of inflammatory cytokines Interleukin (IL)-1β, IL-2, IL-4, IL-6, IL-8, IL-10, IL-12 p70, tumor necrosis factor (TNF)-α and Interferon (IFN)-γ were measured using a CBA kit (BD Pharmingen, CA, USA). The assay sensitivities of these nine cytokines were 48.4 fg/mL, 88.9 fg/mL, 144.4fg/mL, 68.4 fg/mL, 69.9 fg/mL, 13.7 fg/mL, 12.6 fg/mL, 67.3 fg/mL and 66.7 fg/mL, respectively (data were supplied by the manufacturer’s kit). The inter- and intra-assay coefficient variations (CVs) were less than 10% for all cytokine assays.
3.4. The Detection of IL-10 Level Using ELISA Assay
To validate the CBA results, the plasma IL-10 levels were further determined using the enzyme linked immunosorbent assay (ELISA) method (R&D Systems, Inc., MN, USA) according to the manufacturer’s protocols. The detection sensitivity of each ELISA kit was 3.9 pg/mL for IL-10. The results showed that there was no significant difference concerning the CBA and ELISA assay detected data (P = 0.930).
3.5. Serum HBV DNA Assay and Laboratory Tests of Liver Function
The viral load of HBV DNA in the serum samples was quantified by a quantitative polymerase chain reaction assay (Roche Diagnostics, Basel, Switzerland). The detection sensitivity of the polymerase chain reaction (PCR) assay was 100 IU/mL. Laboratory tests of liver function, such as ALT, T-Bil and PTA were performed using standard methods in a clinical laboratory.
3.6. Statistical Analysis
The Mann-Whitney rank sum test was used for assessing the differences between groups, because the plasma cytokine concentrations were not in a Gaussian distribution. Separate repeated analyses of variances (ANOVAs) were performed for the prior to and at time of diagnosis of HBV-ACLF. A paired chi-square test was used to assess the agreement between CBA and ELISA methods. Data for the different groups with baseline characteristics were compared using a Pearson chi-square test and ANOVAs. Results were expressed as medians (interquartile range, or ± SEM). All analyses were performed using the Statistical Package for Social Sciences (SPSS) software for Windows, Version 13.0 (SPSS Inc., IL, USA). Values of P < 0.05 were considered statistically significant.
4. Results
4.1. Patient Characteristics
The clinical characteristics of these subjects are presented in Tables 1 and 2. Six patients did not receive anti-viral treatment, seven patients received lamivudine (LAM) and 14 patients received entecavir (ETV). The starting date of the antiviral treatment was the date of diagnosis during hospitalization for 15 patients. Six patients had received anti-viral therapy one year or more prior to the hospitalization. Among the nine patients who progressed to HBV-ACLF, five patients died and four recovered within three months.
Table 1. Baseline Characteristics of Patients and Normal Controls a
| Parameters | NC (n = 9) | aeCHB without ACLF (n = 18) | beforeHBV-ACLF (n = 9) | P Value |
|---|---|---|---|---|
| Age b, y | 38 (34-46) | 41 (26-62) | 50 (23-64) | 0.201 |
| Gender, Male/Female | 8/1 | 17/1 | 8/1 | 0.834 |
| ALT b, IU/L | 23.0 (15-35) | 1085.5 (729-2698) | 749.0 (705-1138) | 0.000 |
| T-Bil b, µmol/L | 11.60 (5-23) | 178.95 (127-572) | 320.90 (169-671) | 0.000 |
| PTA b, No. (%) | 96 (87-103) | 56 (48-59) | 52 (41-56) | 0.000 |
| INR b, No. (%) | 1.02 (0.98-1.11) | 1.50 (1.41-1.78) | 1.57 (1.48-1.93) | 0.000 |
| HBeAg (+/-) | 0/9 | 9/9 | 2/7 | 0.166 |
| HBV-DNA b, log10IU/mL | ND c | 7.09 (0-8.65) | 5.47 (2.87-7.99) | 0.234 d |
| Antiviral Drug, LAM/ETV | 0/0 | 4/9 | 3/5 | 0.751 d |
a NC, aeCHB without ACLF, beforeHBV-ACLF represent normal control, CHB acute exacerbation without ACLF group, before diagnosis of HBV-ACLF group, respectively.
b For age, ALT, T-Bil, PTA, INR and HBV DNA, the median (range) for each group is shown.
c Abbreviation: ND, not detected.
d represents the comparison between aeCHB without ACLF group and beforeHBV-ACLF group.
Table 2. Changes in Clinical Characteristics Between “Prior to” and “at the Time of” Diagnoses of HBV-ACLF (Nine Cases)
| Case | Age, y | Sex | NAs | HBeAg (+/-) | HBV DNA, IU/mL | Before diagnosis of HBV-ACLF | At the time of diagnosis of HBV-ACLF | Duration time a, days | outcome | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ALT, IU/L | T-Bil, µmol/L | PTA, % | INR | Complication | ALT, IU/L | T-Bil, µmol/L | PTA, % | INR | Complication | ||||||||
| 1 | 50 | Male | ETV | - | 2.93 × 10E5 | 714 | 169 | 54 | 1.57 | - | 239 | 373 | 54 | 1.56 | Ascites | 7 | Recovery |
| 2 | 53 | Female | LAM | - | 9.67 × 10E7 | 780 | 173 | 51 | 1.55 | - | 118 | 447 | 53 | 1.6 | Ascites | 7 | Recovery |
| 3 | 39 | Male | ETV | - | 1580 | 714 | 398 | 52 | 1.54 | - | 68 | 559 | 31 | 2.48 | Encephalopathy /Ascites | 6 | Death |
| 4 | 54 | Male | LAM | + | 16600 | 705 | 423 | 56 | 1.48 | - | 45 | 231 | 46 | 1.75 | Ascites | 7 | Recovery |
| 5 | 40 | Male | NU b | + | 7.54 × 10E7 | 749 | 321 | 41 | 1.93 | - | 80 | 358 | 34 | 2.31 | Ascites | 5 | Death |
| 6 | 64 | Male | ETV | - | 6.88 × 10E6 | 1044 | 260 | 53 | 1.55 | - | 410 | 441 | 25 | 3.04 | Ascites | 6 | Death |
| 7 | 63 | Male | ETV | - | 5.35 × 10E6 | 1138 | 260 | 52 | 1.57 | - | 395 | 440 | 28 | 2.98 | Ascites | 6 | Death |
| 8 | 23 | Male | LAM | - | 10400 | 775 | 411 | 45 | 1.76 | - | 85 | 343 | 36 | 2.14 | Ascites | 7 | Recovery |
| 9 | 35 | Male | ETV | - | 744 | 705 | 671 | 54 | 1.58 | - | 110 | 607 | 37 | 2.13 | Ascites | 7 | Death |
a Time interval between the two subsequent samples in the same patients.
b NU: No anti-viral drugs.
4.2. Comparison of the Plasma Cytokine Levels Betweenthe Different Groups
IL-4, IL-12p70 and IFN-γ levels were not detected (Figure 1). IL-1β, IL-6, IL-8, IL-10 and TNF-α levels were remarkably higher in all patient groups than in NC, except for TNF-α levels, which were not significantly different between ACLF patients prior to diagnosis and NC. When comparing the aeCHB without ACLF patients with HBV-ACLF patients (both before and at the time of ACLF diagnosis), IL-1β, IL-6, IL-10 and TNF-α levels were higher in the aeCHB without the ACLF group, but the only statistically significant difference concerned IL10 levels between the aeCHB without ACLF group and the at time of ACLF patients group (P = 0.024). When comparing the cytokine levels between the “before and at time of diagnosis” ACLF patients, the only significant difference was again related to the IL-10 levels, which were significantly lower at than before time of the diagnosis of ACLF (P = 0.008, Figure 1).

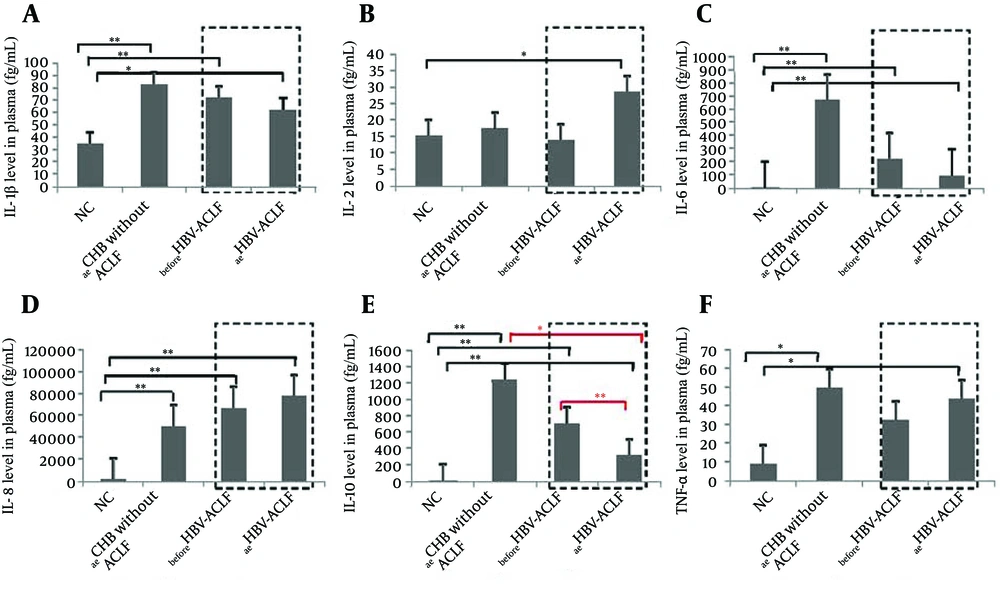

Figure 1.
Only IL-10 levels were significantly different between aeCHB without ACLF and the “before/at time of diagnosis” ACLF patients (P = 0.024). Dashed boxes display the plasma cytokine levels of beforeHBV-ACLF and atHBV-ACLF subgroups in the same patients. The data show that only IL-10 levels in atHBV-ACLF were significantly lower than beforeHBV-ACLF (P = 0.008). Data that are shown as mean ± SEM. P < 0.05 (*) and P < 0.01 (**) were considered to have significant differences between groups.
4.3. The Correlation of ALT Level and the Plasma Cytokine Level
To understand the possible relationship of ALT and immuno-inflammatory cytokines in the development of HBV-ACLF, we further analyzed the correlation between the ALT and the different cytokines levels. No significant correlations were observed forIL-1β, IL-2 and TNF-α. IL-6 6: r = 0.451, P = 0.006; for IL8: r = 0.342, P = 0.041), but the graphical representations did not confirm these trends. and IL-8 showed a theoretical statistical difference (for IL-In fact, the only significant correlation was for IL-10 with a high r value (0.711), a P value < 0.001 and graphical confirmation (Figure 2).

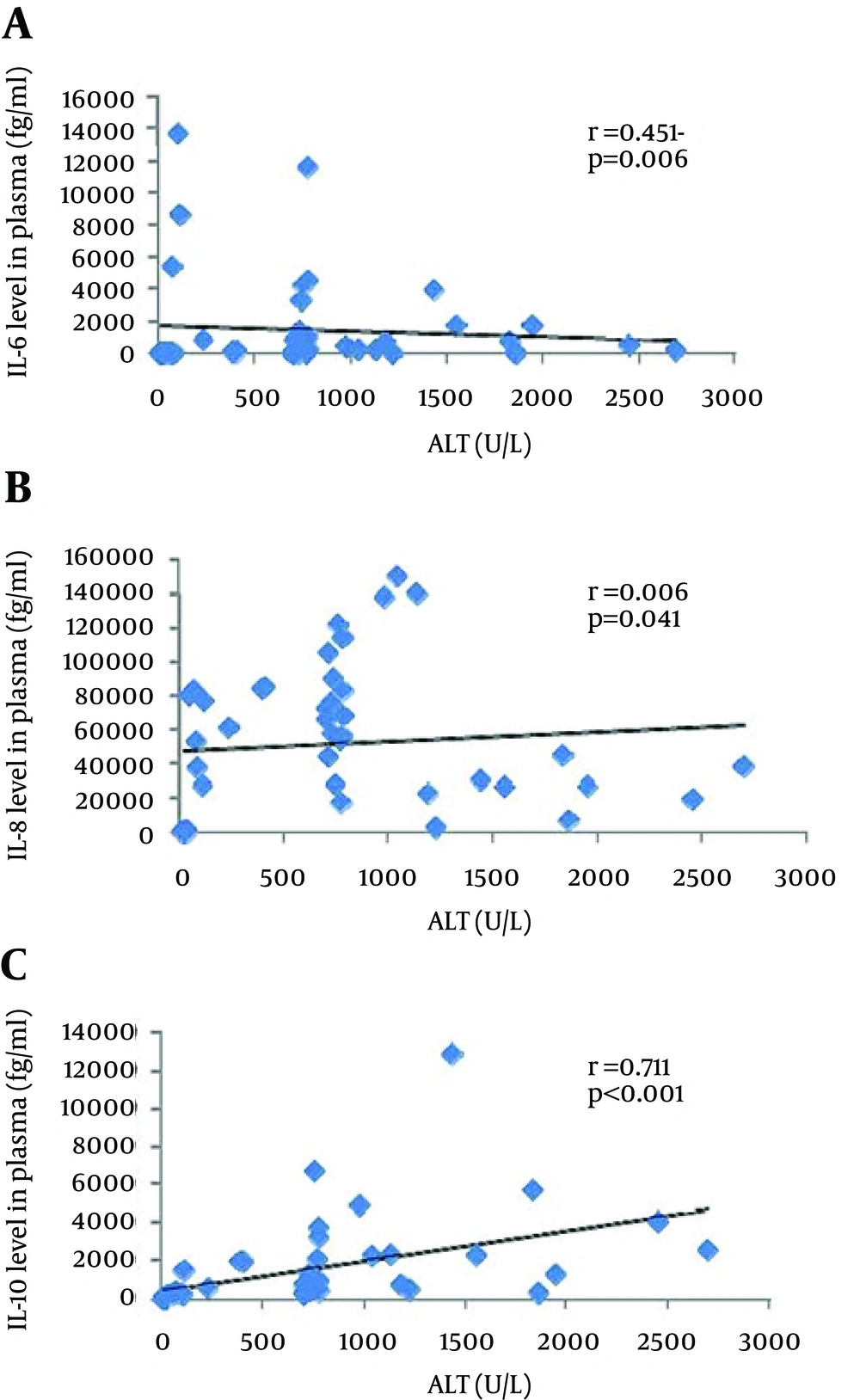

Figure 2.
The only convincing statistical correlation, when considering graphical representation, concerned IL-10.
5. Discussion
It is has been well-established that acute exacerbation of CHB may lead to liver failure, with potential severe and even lethal consequences. An estimated 40-50% of hepatitis B e antigen-positive patients can undergo the immune clearance phase and partly develop CHB acute severe exacerbation (13). A three-month mortality in more than 50% of cases with HBV-ACLF without liver transplantation has been reported (7, 14). However, epidemiological data regarding the progression of aeCHB to HBV-ACLF are poorly documented. Our data showed that 33% of the patients progressed to HBV-ACLF and 56% of patients with HBV-ACLF died within three months. These results illustrate the unique severity of this disease, which should draw the attention of clinicians.
A number of studies have shown that the immune-inflammatory cytokines in the prophase or early phase of HBV-ACLF corresponds to a high-expression status, suggesting that cytokines play an important factor in the development of HBV-ACLF (9, 10, 15). In this context, we used the CBA method to detect the changes in the various cytokine levels in vivo prior to and at the time of the diagnosis of HBV-ACLF. Our preliminary results showed that IL-1β, IL-6, IL-10 and TNF-α levels in patients with aeCHB and without ACLF were higher than in the other groups and that IL-2 and IL-8 levels were higher at the time of HBV-ACLF. With the progression of the disease, IL-2 and IL-8, the two types of pro-inflammatory cytokines, increased continuously and may play an important role in promoting HBV-ACLF development. However, we found that the increase of IL-2 and IL-8 levels was not statistically different between the aeCHB without ACLF and the beforeHBV-ACLF groups. This may be related to the small number of samples and/or to the different efficacies of various anti-viral treatments, which may have interfered in the disease's progression; this isa point that requires further study.
More specifically, we explored the dynamic changes of two cytokines, including IL-6 and IL-10 before ACLF and at time of ACLF diagnosis, with the hypothesis that the decline of their levels could be another key factor in promoting the progression of the disease. IL-10 level diminution, in contrast to IL-6 data, was significantly more pronounced at the time of HBV-ACLF than before HBV-ACLF. Several reports have shown that there was a differential expression of IL-10 levels in various disease states of chronic HBV infection. By studying the expression of intrahepatic cytokines through immunochemistry, Zou et al. observed similar anti-inflammatory IL-10 expression in ACLF and CHB (16). Hu et al. reported that IL-10 secretion by peripheral blood mononuclear cells stimulated by rhIL-21 was significantly increased in HBV-ACLF (17). Shen et al. reported that regulatory T cells were increased in HBV-ACLF and positively correlated with IL-10 levels (18). However, none of these studies were done in a longitudinal and dynamic manner, as was the case in the present study.
Considering that IL-10 is an important negative regulator of inflammation, this finding favors the close relationship between IL-10 levels and disease progression. Moreover, our results showed that IL-10 levels were significantly positively correlated to ALT levels (Figure 2). These data are consistent with that of Das et al. who reported that IL-10 levels were closely and positively related with HBV DNA load and ALT levels in the HBeAg-negative patients (19). In contrast, although IL-10 promoter polymorphisms and expression of IL-10 were closely related (20), Sofian et al. reported that IL-10 promoter polymorphisms were not correlated with HBV infection outcome in vivo (21). However, neither HBeAg- nor IL-10-level data were available in their study; therefore,these results remain difficult to explain. Interestingly, in two reported trials on hepatitis C, treatment with IL-10 has already been shown to result in normalization of aminotransferase levels, improved liver histology and reduced fibrosis (22, 23). Therefore, a new approach for preventing the progression of aeCHB disease to the HBV-ACLF could be to combine NAs antiviral drugs and IL-10 therapy. However, it should be noted that one of the two trials also reported that IL-10 therapy may increase viral replication.
Corticosteroids have been used in the treatment of chronic active hepatitis B since the 1980s (24). Currently, glucocorticoids are mainly used for acute exacerbation of CHB, but their specific duration and dose remain unclear (11, 15). Some experts have proposed that they may be applied to the early stage of HBV-ACLF (10); however, Karkhanis et al. reported that corticosteroids did not improve overall survival or spontaneous survival in drug-induced, indeterminate or autoimmune acute liver failure (25). Like corticosteroids, IL-10 is a negative regulator of inflammation and could therefore be considered as a possible therapeutic tool. In addition, our results suggest that negative regulatory treatment (corticosteroids or IL-10) should be started at the CHB acute exacerbation phase and not at the time of diagnosing liver failure. Regarding the correlation study between cytokines and ALT, our results support the fact that ALT levels could reflect, at least partly, the degree of inflammatory activity in vivo.
Studies larger in scope are warranted to confirm the present results, which indicate that a decrease inIL-10 levels may be one of the main factors associated with the pathogenesis of HBV-ACLF. As most cytokines (IL-1β, IL-6, IL-10, TNF-α) in this study reached the highest expression in the acute exacerbation group, immunosuppressive drugs or other negative regulators of immune status should preferably be introduced at this earlier stage. From a practical point of view, the assessment of plasma IL-10 levels in chronic hepatitis B acute exacerbation may provide an early predictive marker for progression to HBV-ACLF.
