1. Background
2. Objectives
3. Methods
3.1. Patients and Sample Selection
3.2. Protein Extraction and Trypsin Digestion for DIA LC-MS/MS-Based Serum Proteomic Analysis
3.3. Extraction, Collection, and Preparation of Compounds for UHPLC-Q-Orbitrap MS/MS-Based Serum Metabolomics Analysis
3.4. Bioinformatics Analysis of the Differentially Expressed Proteins and Metabolites
3.5. Integrated Correlation Analysis of Proteomic and Metabolomic Data
3.6. Validation of Selected Dysregulated Proteins and Metabolites
3.7. Statistical Analysis
4. Results
4.1. Clinical Characteristics of Participants
| Clinical Indicators | CO group | TDF-12 group | TDF-24 group |
|---|---|---|---|
| Age (y) | 41.67 ± 3.50 | 41.67 ± 3.50 | 41.67 ± 3.50 |
| HBsAg (log10 IU/mL) | 4.13 ± 0.62 | 2.85 ± 0.58 a | 2.47 ± 0.63 b |
| HBeAg (%) | 94 | 88 | 77 |
| HBV DNA(log10IU/mL) | 6.18 ± 1.81 | 3.07 ± 0.78 a | < 1.48 b |
| ALT (IU/L) | 56.1 ± 6.43 | 51.11 ± 10.98 | 36.33 ± 16.87 b |
| AST (IU/L) | 53.56 ± 7.86 | 51.22 ± 6.40 | 46.89 ± 5.99 |
| TBIL (µmol/L) | 11.74 ± 2.42 | 11.82 ± 1.33 | 10.74 ± 2.01 |
| GGT (IU/L) | 57.22 ± 16.01 | 43.82 ± 14.78 | 43.99 ± 13.86 b |
| AKP (IU/L) | 71.00 ± 6.26 | 81.67 ± 9.19 | 77.56 ± 7.72 |
| Cr (ummol/L) | 75.3 ± 4.99 | 73.09 ± 4.28 | 68.13 ± 4.72b |
| PLT (× 109/L) | 163.22 ± 15.63 | 134.11 ± 15.77 a | 160.67 ± 21.37 |
a Week 12 of treatment (TDF-12) vs. before treatment initiation (baseline, CO) P-value < 0.05. Abbreviations: HBsAg, Hepatitis B surface antigen; HBeAg, hepatitis Be antigen; ALT, Alanine aminotransferase; AST, Aspartate aminotransferase; TBIL, total bilirubin; GGT, Glutamyl transpeptidase; AKP, Alkaline phosphatase; Cr, creatinine; PLT, Platelet.
b Week 24 of treatment (TDF-24) vs. before treatment initiation (baseline, CO) P < 0.05.
4.2. Proteomic Profiles of Patients with HBV During TDF Therapy
| Protein accession | Protein description | Gene Name | Fold Change | ||
|---|---|---|---|---|---|
| TDF-12 vs CO | TDF-24 vs CO | TDF-24 vs TDF-12 | |||
| P09912 | Interferon alpha-inducible protein 6 | IFI6 | 2.67 | 4.47 | 1.67 |
| O15145 | Actin-related protein 2/3 complex subunit 3 | ARPC3 | 2.11 | 4.00 | 1.90 |
| Q9NQ30 | Endothelial cell-specific molecule 1 | ESM1 | 2.43 | 3.20 | 1.32 |
| Q5JRA6 | Transport and Golgi organization protein 1 homolog | MIA3 | 2.22 | 2.94 | 1.33 |
| P55157 | Microsomal triglyceride transfer protein large subunit | MTTP | 1.19 | 2.78 | 2.34 |
| O00468 | Agrin | AGRN | 2.46 | 2.74 | 1.11 |
| P0C0L4 | Complement C4-A | C4A | 1.78 | 2.53 | 1.43 |
| P61769 | Beta-2-microglobulin | B2M | 1.77 | 2.51 | 1.42 |
| P00326 | Alcohol dehydrogenase 1C | ADH1C | 1.03 | 2.33 | 2.26 |
| P02763 | Alpha-1-acid glycoprotein 1 | ORM1 | 2.27 | 2.23 | 0.98 |
| P08833 | Insulin-like growth factor-binding protein 1 | IGFBP1 | 1.56 | 2.17 | 1.39 |
| P19971 | Thymidine phosphorylase | TYMP | 1.88 | 2.09 | 1.11 |
| Q9BRK5 | 45 kDa calcium-binding protein | SDF4 | 1.52 | 2.09 | 1.37 |
| Q08380 | Galectin-3-binding protein | LGALS3BP | 2.28 | 2.00 | 0.87 |
| Q01469 | Fatty acid-binding protein 5 | FABP5 | 1.62 | 1.94 | 1.20 |
| P02787 | Serotransferrin | TF | 1.80 | 1.91 | 1.06 |
| Q8NDI1 | EH domain-binding protein 1 | EHBP1 | 0.44 | 0.31 | 0.71 |
| P11678 | Eosinophil peroxidase | EPX | 0.44 | 0.32 | 0.72 |
| Q684P5 | Rap1 GTPase-activating protein 2 | RAP1GAP2 | 0.27 | 0.33 | 1.24 |
| P29279 | CCN family member 2 | CCN2 | 0.78 | 0.50 | 0.64 |
| Q14831 | Metabotropic glutamate receptor 7 | GRM7 | 0.78 | 0.52 | 0.66 |
| O43852 | Calumenin | CALU | 0.56 | 0.52 | 0.94 |
| Q9BQI4 | Coiled-coil domain-containing protein 3 | CCDC3 | 0.59 | 0.57 | 0.97 |
| Q6Q788 | Apolipoprotein A-V | APOA5 | 0.62 | 0.57 | 0.92 |
| P07093 | Glia-derived nexin | SERPINE2 | 0.67 | 0.60 | 0.89 |
| O94907 | Dickkopf-related protein 1 | DKK1 | 0.66 | 0.61 | 0.92 |

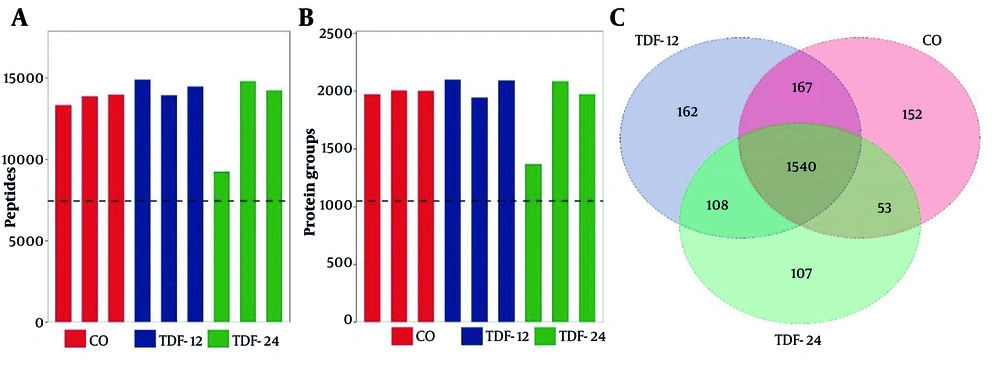

Profiling of the serum proteome in patients with HBV at baseline (CO) and after 12 (TDF-12) and 24 (TDF-24) weeks of TDF therapy. (A) Peptides identified in each replicate. (B) Protein groups identified in each replicate. (C) Overlap of proteins consistently quantified among the three groups.

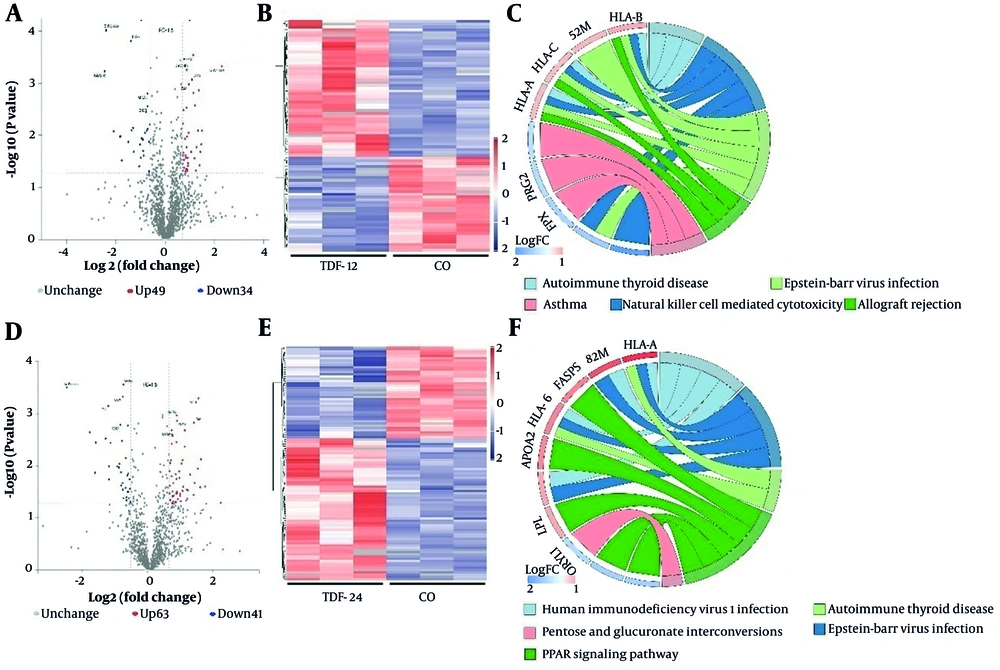

Bioinformatic characterization of serum proteome changes during TDF treatment by comparing the 12-week (TDF-12) and 24-week (TDF-24) groups against baseline (CO). (A) Volcano plot of differential protein abundance (CO vs. TDF-12), identifying 83 dysregulated proteins. (B) Hierarchical clustering of the 83 dysregulated proteins (CO vs. TDF-12). (C) KEGG pathway enrichment analysis (chord diagram) for proteins dysregulated in CO vs. TDF-12. (D) Volcano plot of differential protein abundance (CO vs. TDF-24), identifying 104 dysregulated proteins. (E) Hierarchical clustering of the 104 dysregulated proteins (CO vs. TDF-24). (F) KEGG pathway enrichment analysis (chord diagram) for dysregulated proteins (CO vs. TDF-24).
4.3. Serum Untargeted Metabolomic Profiling of Patients with HBV During TDF Therapy
Identification of serum metabolites in patients with CHB before treatment initiation (baseline, CO), at week 12 of treatment (TDF-12), and at week 24 of treatment (TDF-24). (A) Features identified in metabolomic analysis. (B) Venn diagram showing the overlap of identified metabolites among the three groups. (C) Chemical classification of the differentially expressed metabolites.
| Metabolite ID | Adducted form | Metabolite Name | TDF-12 vs CO | TDF-24 vs CO | TDF-24 vs TDF-12 |
|---|---|---|---|---|---|
| M367T170 | [M-H]- | 2,2'-methylene-bis(6-tert-butyl)-4-ethylphenol | 1.73 | 4.96 | 2.87 |
| M187T24_1 | [M-H]- | 2,4-diaminobenzenesulfonic acid | 2.24 | 5.14 | 2.30 |
| M153T24 | [M-H]- | 2,6-dihydroxybenzoic acid | 1.74 | 3.22 | 1.85 |
| M178T211 | [M-H-CH3]- | 3-hydroxy-4-methoxycinnamic acid | 2.52 | 3.92 | 1.56 |
| M397T50 | [M-H-C7H12O4]- | Atorvastatin | 1.39 | 1.83 | 1.32 |
| M182T320 | [M+Na]+ | Betonicine | 10.78 | 10.65 | 0.99 |
| M173T24_1 | [M-H-H2O]- | Isocitric acid | 1.54 | 1.91 | 1.25 |
| M339T193 | [M-H]1- | Leukotriene b4 | 1.18 | 1.62 | 1.38 |
| M443T31 | [M-H]- | Mitoxantrone | 1.40 | 2.09 | 1.50 |
| M439T58 | [M-H-C7H15NO7]- | Natamycin | 6.31 | 7.41 | 1.17 |
| M93T24 | [M-H]- | Phenol | 1.50 | 2.12 | 1.41 |
| M263T244 | [M-H]- | Phenylacetyl-l-glutamine | 1.30 | 1.98 | 1.52 |
| M515T104 | [M+H]+ | Telmisartan | 76.32 | 135.69 | 1.78 |
| M101T120 | [M-H]- | 2-ketobutyric acid | 0.63 | 0.45 | 0.71 |
| M103T253 | [M-H]- | 3-hydroxybutyric acid | 0.18 | 0.09 | 0.51 |
| M187T101 | [M-H]- | 3-hydroxycapric acid | 0.48 | 0.43 | 0.90 |
| M103T216 | [M-H]- | Dl-a-hydroxybutyric acid | 0.46 | 0.38 | 0.82 |
| M137T188 | [M+H]+ | Hypoxanthine | 0.60 | 0.41 | 0.68 |
| M267T240 | [M-H]- | Inosine | 0.24 | 0.10 | 0.42 |
| M275T31 | [M-H]- | Menthyl salicylate | 0.52 | 0.49 | 0.94 |
| M123T53 | [M-H]- | Orcinol | 0.50 | 0.43 | 0.86 |
| M175T349 | [M-H]- | Ser-Ala | 0.51 | 0.33 | 0.65 |
| M227T310 | [M-H]- | Trans-traumatic acid | 0.12 | 0.14 | 1.23 |

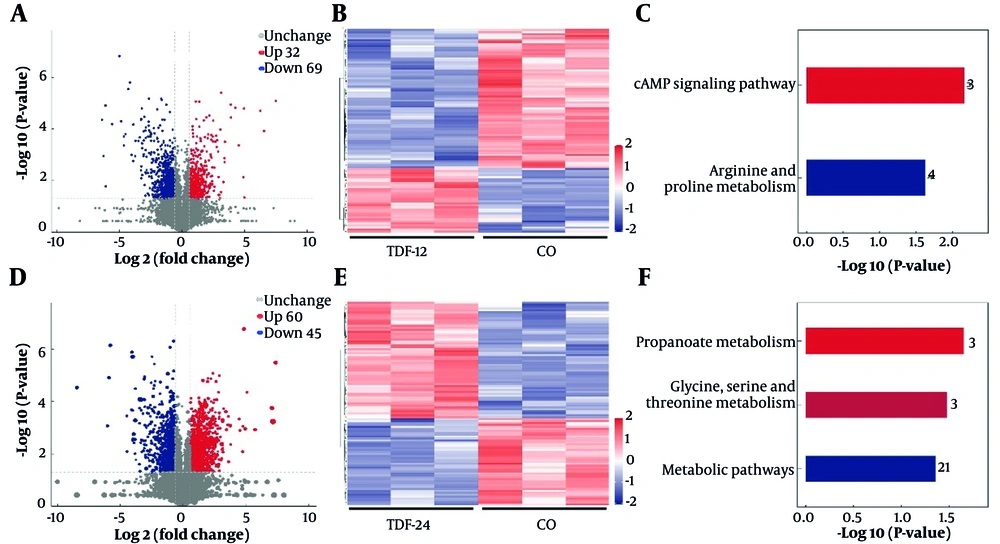

Bioinformatics analysis of differentially expressed serum metabolites. Analyses compare the week 12 of treatment (TDF-12) and week 12 of treatment (TDF-12) treatment groups against the baseline control (CO) group. (A) Volcano plot of metabolite abundance changes between the CO and TDF-12 groups. (101 dysregulated metabolites). (B) Hierarchical clustering of the 101 dysregulated metabolites (CO vs. TDF-12). (C) Bar chart of KEGG pathway enrichment for dysregulated metabolites (CO vs. TDF-24). (D) Volcano plot of metabolite abundance changes between the CO and TDF-24 groups (105 dysregulated metabolites). (E) Hierarchical clustering of the 105 dysregulated metabolites (CO vs. TDF-24). (F) Bar chart of KEGG pathway enrichment for dysregulated metabolites (CO vs. TDF-24).

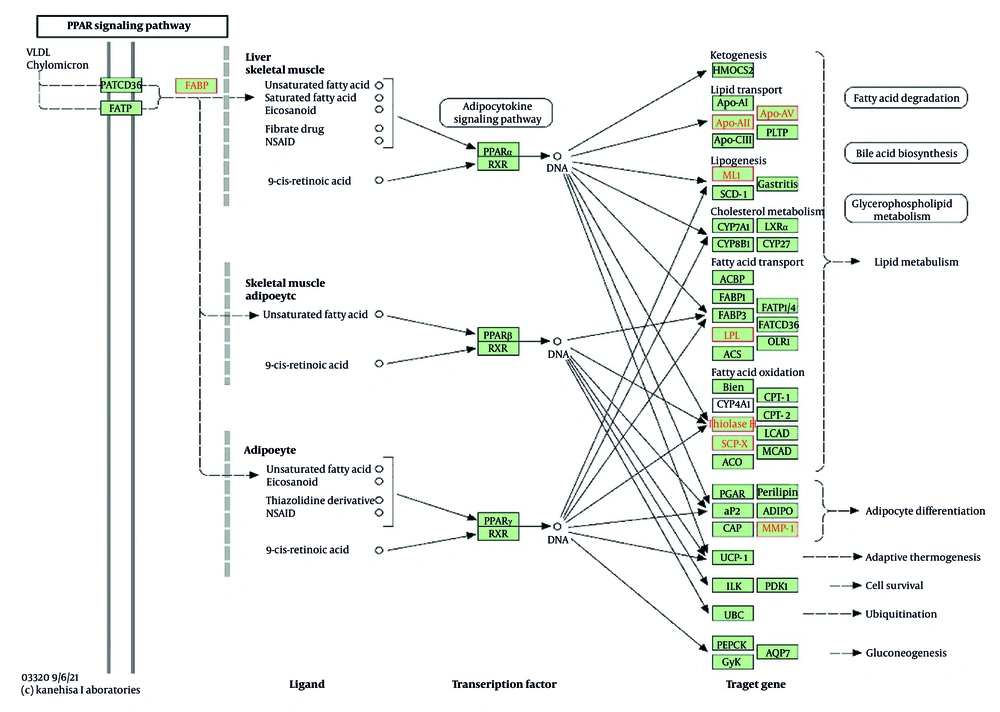

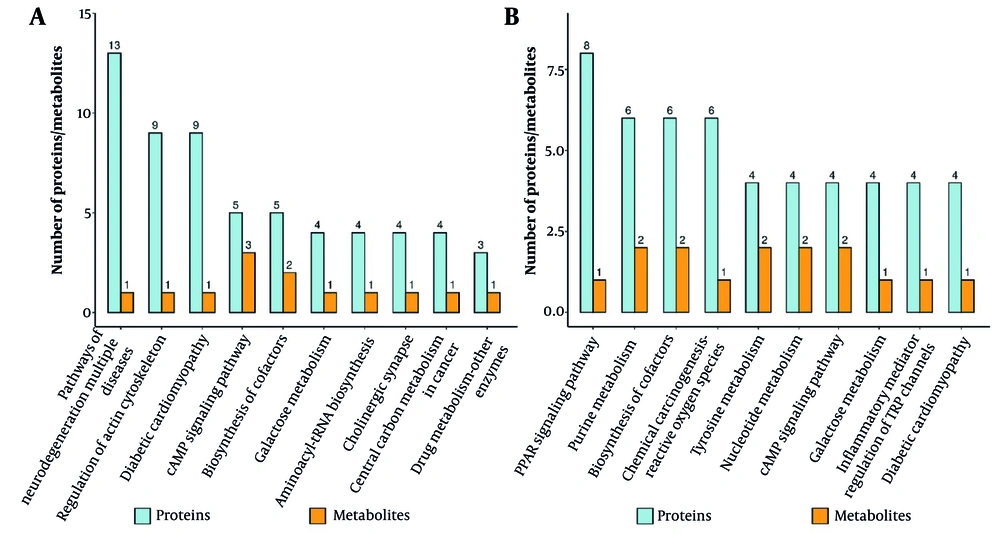

4.4. Pathway Analysis Integrating Proteomic and Metabolomic Data from Patients with CHB During TDF Therapy
4.5. Validation of Selected Differentially Expressed Proteins and Metabolites

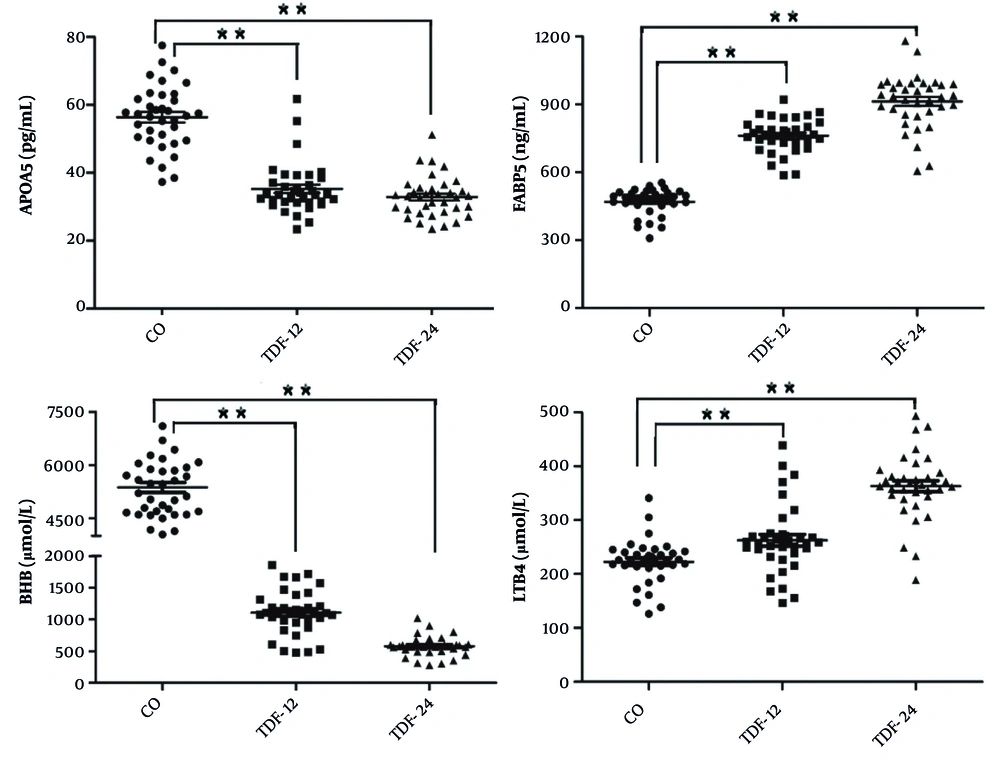

Verification of serum protein and metabolite expression in chronic hepatitis B (CHB) patients at baseline (CO) and after 12 (TDF-12) and 24 (TDF-24) weeks of tenofovir disoproxil fumarate (TDF) treatment. Differential expression was confirmed by enzyme-linked immunosorbent assay (ELISA). Data are presented as mean ± SEM (n = 18; *P < 0.05, **P < 0.01).

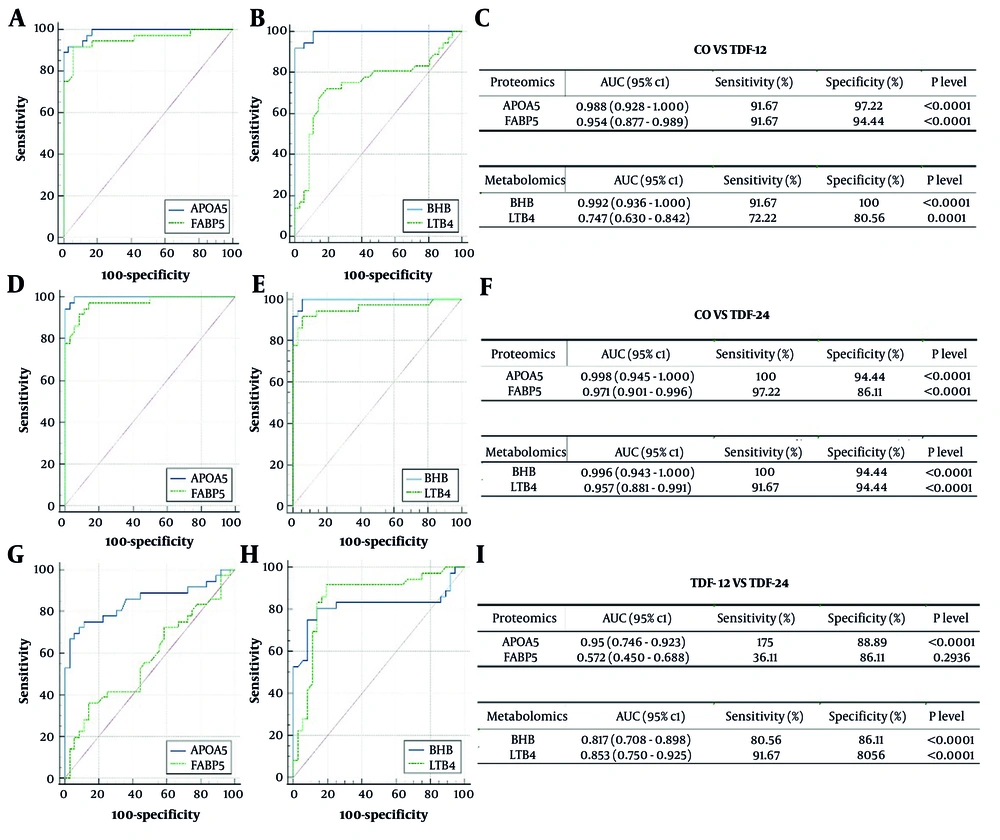

Diagnostic performance of candidate protein and metabolite molecules for distinguishing chronic hepatitis B (CHB) patients at baseline (before treatment initiation, CO), 12 weeks after tenofovir disoproxil fumarate (TDF) treatment (TDF-12), and 24 weeks after TDF treatment (TDF-24). A, D, G, ROC curves for proteomic models (APOA5/FABP5) in pairwise TDF time-point comparisons (CO vs. TDF-12; CO vs. TDF-24; TDF-12 vs. TDF-24); B, E, H, ROC curves for metabolomic models (BHB/LTB4) in the same pairwise comparisons; C, F, I, Performance metrics (AUC, Sensitivity, Specificity, P-value) for proteomic/metabolomic models in CO vs. TDF-12, CO vs. TDF-24, and TDF-12 vs. TDF-24 comparisons, respectively.
