A total of 72 papers met the inclusion criteria of the study.

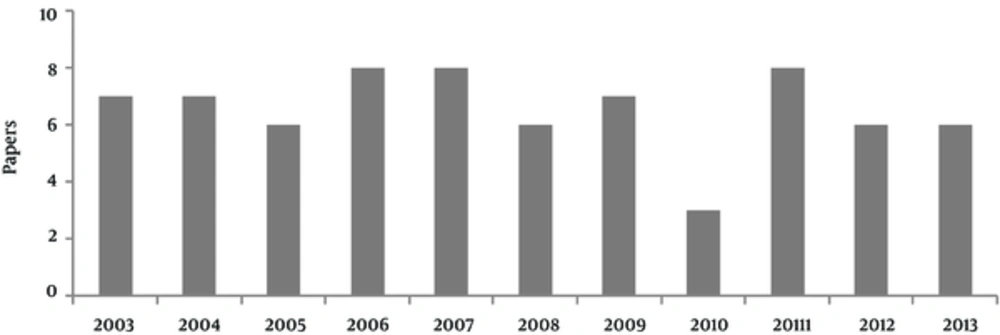

Figure 1 shows the number of papers in the field of milk enrichment with CLA during years 2003 - 2013. It illustrates that the number of papers published during the period of study increased and decreased narrowly; only in 2010 there was a significant decline so that the number of papers decreased from 7 papers in 2009 to 3 papers in 2010.
The Number of Papers in the Field of Milk Enrichment with CLA in Journal of Dairy Science (2003 - 2013)
A total of 275 authors from 17 countries involved in publishing the papers in the field of milk enrichment with CLA.
Table 1 shows 10 productive countries and their organizations list. The USA was the leading country by contribution of about 51.43% of papers, followed by Canada and France. Surprisingly, Iran did not have any papers in the field and China was the only Asian country which contributed a paper. 10 prolific authors and their countries of origin are shown in
Table 2. AbuGhazaleh A. A. was the most prolific author by participating in the production of 11.43% of papers, followed by D. E. Bauman and K. J. Shingfield (each with 10% of papers). As shown in
Table 2, six prolific authors are from the USA. The number of participant organizations in publishing papers in this field was 78, of which 13 organizations involved in at least 3 papers (
Table 3). Cornell University and National Institute for agricultural research, each sharing 11.43% of papers were leading organizations. The following was agriculture and agri-food Canada.
| Rank | Country | Papers | Percentage | Organization No |
|---|
| 1 | USA | 36 | 51.43 | 28 |
| 2 | Canada | 14 | 20 | 13 |
| 3 | France | 9 | 12.86 | 2 |
| 4 | Finland | 7 | 10 | 2 |
| 5 | Belgium | 3 | 4.29 | 6 |
| 6 | Brazil | 3 | 4.29 | 4 |
| 7 | China | 3 | 4.29 | 4 |
| 8 | Germany | 3 | 4.29 | 1 |
| 9 | England | 2 | 2.86 | 2 |
| 10 | Netherlands | 2 | 2.86 | 5 |
| Rank | Authors | Papers | Percentage | Country | Organization |
|---|
| 1 | A. A. AbuGhazaleh | 8 | 11.43 | USA | South Dakota State University; Southern Illinois University |
| 2 | D. E. Bauman | 7 | 10 | USA | Cornell University |
| 3 | K. J. Shingfield | 7 | 10 | England; Finland | The University of Reading; MTT Agrifood Research Finland |
| 4 | A. R. Hippen | 6 | 8.57 | USA | South Dakota State University |
| 5 | D. J. Schingoethe | 6 | 8.57 | USA | South Dakota State University |
| 6 | H. V. Petit | 5 | 7.14 | Canada | Agriculture and Agri-Food Canada |
| 7 | K. F. Kalscheur | 5 | 7.14 | USA | South Dakota State University |
| 8 | Y. Chilliard | 5 | 7.14 | France | National Institute for Agricultural Research |
| 9 | A. Ferlay | 4 | 5.71 | France | National Institute for Agricultural Research |
| 10 | A. L. Lock | 4 | 5.71 | USA | Cornell University; University of Vermont |
| Rank | Organization | Papers | Percentage | Country |
|---|
| 1 | Cornell University | 8 | 11.43 | USA |
| 2 | INRA | 8 | 11.43 | France |
| 3 | Agriculture and Agri-Food Canada | 7 | 10 | Canada |
| 4 | South Dakota State University | 6 | 8.57 | USA |
| 5 | University of Idaho | 5 | 7.14 | USA |
| 6 | MTT Agrifood Research Finland | 5 | 7.14 | Finland |
| 7 | University of Helsinki | 4 | 5.71 | Finland |
| 8 | Southern Illinois University | 4 | 5.71 | USA |
| 9 | University of Alberta | 4 | 5.71 | Canada |
| 10 | Bioproducts Inc. | 3 | 4.28 | USA |
| 11 | Ghent University | 3 | 4.28 | Belgium |
| 12 | North Carolina A&T State University | 3 | 4.28 | USA |
| 13 | US Food and Drug Administration | 3 | 4.28 | USA |
Based on extracted data, the total number of experiments was 75 which consisted of 171 dietary treatments that significantly increased the content of CLA in the dairy cattle milk. The Milk contain cis-9, trans-11 CLA was significantly enriched via 147 treatments and 61 treatments had significantly increased the milk trans- 10-, cis-12 CLA content and the milk total CLA content was considerably increased by 71 treatments. Dietary supplements which were added to dairy cattle rations in order to raise the level of CLA in milk were included as oilseeds, oils (plant and animal oils), marine oils and feeds, forages, mixed dietary and other feed. Based on the result of the experiments the amount of total fatty acids of CLA-enriched milk was between 1.44% - 5.21%. CLA-enriched milk cis-9, trans-11 CLA, trans- 10-, cis-12 CLA and total CLA content were reported as 0.06% - 6.05% of FA, 0.0097 - 1.82% of FA and 0.35% - 5.22% of FA, respectively.
Oil seeds:
Table 4 shows oil seeds which were used to proliferate the milk content CLA and their amount in dairy cattle rations. Oilseeds include wild flaxseed, sunflower, cotton seeds, linseed, Solin (high linoleic flaxseed), corn, canola and rapeseed, which are rich in linoleic or linolenic acids. The total number of oilseed treatments was 43. Flaxseed was used in 58.14% of treatments. Oilseeds proliferated the milk
cis-9,
trans-11 CLA content, about 0.33% - 1.484% of FA, the content of
trans- 10-,
cis-12 CLA about 0.01% - 0.2% of FA and the content of total CLA about 0.57% - 1.9% of FA. The maximum level of
cis-9,
trans-11 CLA in milk was proliferated by 5.9% flaxseed; the maximum level of
trans- 10-,
cis-12 CLA and total CLA were proliferated by 21% corn and 12.6% linseed, respectively.
| Dietary Supplement | % of DM | Cis-9, trans-11 CLA | Trans- 10-, cis-12 CLA | Total CLA | Total Fatty Acid | Cis-9, trans-11 CLA, mg/227 mL |
|---|
| Camelina | 2.9 | 0.927 | - | 1.026 | 2.51 | 53 |
| 5.9 | 1.484 | - | 1.737 | 1.44 | 50 |
| 2.9 | 1.02 | - | 1.33 | 3.67 | 85 |
| Cottonseed | 9.44 | 0.66 | - | - | 3.67 | 55 |
| Sunflower seed | 8.7 | 1.43 | - | - | 3.37 | 110 |
| 10.55 | 0.97 | - | - | 3 | 66 |
| Flaxseed | 8.3 | 0.73 | - | 0.97 | 3.44 | 57 |
| 8.3 | 1.46 | - | 1.83 | 2.72 | 91 |
| 12.6 | - | - | 1.4 | - | - |
| 12.6 | - | - | 1.4 | - | - |
| 12.6 | - | - | 1.9 | - | - |
| 11.8 | 0.77 | - | - | 4.45 | 80 |
| 9 | 0.98 | - | - | 3.69 | 80 |
| 6.5 | 0.87 | 0.12 | 1 | 3.99 | 79 |
| 9.3 | 1.24 | - | - | 4.24 | 120 |
| 9.32 | 0.68 | - | - | 3.3 | 51 |
| 6.5 | 0.56 | - | 0.57 | 4.3 | 55 |
| 9.9 | 0.35 | - | 0.35 | 4.75 | 38 |
| 5 | 0.915 | - | 1.08 | 3.5 | 73 |
| 10 | 1.64 | - | 1.89 | 3.5 | 130 |
| 15 | 1.122 | - | 1.28 | 2.91 | 74 |
| 5 | 0.71 | 0.015 | 0.81 | 3.07 | 50 |
| 10 | 0.77 | 0.02 | 0.96 | 2.71 | 47 |
| 15 | 0.92 | 0.01 | 1.05 | 3.12 | 65 |
| 8.3 | 0.91 | - | - | 4.31 | 89 |
| 11.83 | 1.19 | - | - | 4.27 | 115 |
| 8.3 | 0.9 | - | - | 4.3 | 88 |
| 7.9 | 0.43 | - | - | 4.28 | 42 |
| 7.9 | 0.53 | - | - | 4.36 | 52 |
| 9 | 0.8 | - | - | 3.7 | 67 |
| 9 | 0.9 | - | - | 2.89 | 59 |
| -* | 0.91 | - | - | 3.35 | 70 |
| -* | 0.9 | 0.017 | 1.2 | 3.35 | 64 |
| Solin | 10 | 1.3 | - | - | 3.86 | 114 |
| Corn | 30.8 | 0.39 | - | 0.41 | 3.79 | 34 |
| 20.9 | 0.33 | - | 0.35 | 4.07 | 30 |
| 7 | 0.86 | 0.12 | - | 3.72 | 70 |
| 14 | 0.97 | 0.13 | - | 3.78 | 80 |
| 21 | 1.13 | 0.2 | - | 3.3 | 85 |
| Canola seed | 9.32 | 0.61 | - | - | 3.1 | 43 |
| 8.13 | 0.61 | - | 0.84 | 3.34 | 45 |
| 8.13 | 0.56 | - | 0.79 | 2.94 | 23 |
| Rapeseed | 6.9 | 1 | - | - | 4.18 | 95 |
| -* | 0.84 | - | - | | - |
| -* | 0.9 | - | - | | - |
| -* | 0.744 | - | - | | - |
| -* | 0.89 | - | - | | - |
Oils: At 50 dietary treatments, oils were added to the dairy cattle rations. The oils included synthetic CLA, unsaturated fatty acids, animal fat and plant oil seed (sunflower oil, flaxseed oil, cottonseed oil, corn oil, soybean oil, safflower oil, rapeseed oil). In the CLA-enriched milk by oils, range of
cis-9,
trans-11 CLA content were between 0.43% - 4.12% of FA, range of
trans- 10-,
cis-12 CLA and total CLA contents were 0.0038% - 1.82% of FA and 0.6% - 5.44% of FA, respectively. The maximum enriched level of
cis-9,
trans-11 CLA was resulted with 6% safflower. Using 3% linseed oil and rumen injection of 80g/d synthetic CLA, respectively, caused the maximum level of
trans- 10-,
cis-12 CLA and total CLA in milk (
Table 5).
| Dietary Supplement | % of DM | Cis-9, trans-11 CLA | Trans- 10-, cis-12 CLA | Total CLA | Total Fatty Acid | Cis-9, trans-11 CLA), mg/227 mL |
|---|
| CLA synthetic | 1.13 | - | 0.09 | 0.6 | - | - |
| 1.22 | - | 0.08 | 1.08 | - | - |
| 2.11 | - | 0.16 | 1.7 | - | - |
| 3.75 | - | 0.25 | 2.69 | - | - |
| 0.43 | - | 0.028 | 0.83 | - | - |
| 1 | 0.48 | 0.05 | 0.72 | 2.62 | 30 |
| 1 | 0.44 | 0.17 | 0.9 | 2.62 | 30 |
| 0.75 | 1.72 | 0.08 | 2.28 | 2.14 | 84 |
| 2.5 | 1.07 | 0.28 | - | 3.86 | 83 |
| CLA synthetica | 20 | - | - | 2.56 | - | - |
| 40 | - | - | 2.98 | - | - |
| 80 | - | - | 5.44 | - | - |
| 150 | 1.77 | 0.85 | - | 1.78 | 72 |
| 2 | - | 0.02 | - | - | - |
| 4 | - | 0.06 | - | - | - |
| 6 | - | 0.1 | - | - | - |
| 4 | 0.66 | 0.19 | - | 1.95 | 30 |
| 10 | 0.83 | 0.08 | - | 2.37 | 45 |
| 10 | 0.8 | 0.09 | - | 2.34 | 40 |
| 5 | - | 0.18 | - | - | - |
| 100 | 0.83 | 0.02 | 2.59 | 2.16 | 40 |
| DHA | 0.5 | 1.04 | 0.51 | - | 3.24 | 76 |
| LA | 2.7 | 1.43 | - | - | 3.13 | 100 |
| LA+DHA | - | 2.67 | - | - | 3.01 | 180 |
| tallow | 1.67 | 0.71 | - | - | 3.56 | 60 |
| Sunflower oil | 1.5 | 1.46 | - | 1.9 | - | - |
| 3 | 1.85 | - | 2.36 | 3.63 | 150 |
| 4.5 | 3.28 | - | 3.87 | 3.39 | 250 |
| 2 | 1.61 | 0.0069 | - | 3.27 | 120 |
| 2.9 | 0.64 | - | 0.83 | 3.64 | - |
| 1.99 | - | - | 1.11 | - | - |
| 2.94 | - | - | 0.976 | - | - |
| 4.18 | - | | 1.95 | - | - |
| Flaxseed oil | 3 | 1.34 | 1.82 | - | 3.45 | 100 |
| 3 | 2.54 | - | - | 2.22 | 130 |
| 4 | 1.6 | - | - | 3.21 | 120 |
| 2.57 | 1.18 | - | - | 3.44 | 92 |
| 5.12 | 1.39 | - | - | 3.35 | 100 |
| 7.67 | 1.65 | - | - | 3.27 | 120 |
| 2 | 1.54 | - | - | 3.59 | 130 |
| 1.9 | 0.67 | - | - | 1.83 | 28 |
| 5 | 2.67 | 0.08 | - | 3.07 | 190 |
| 1.88 | 0.876 | - | 0.95 | 5.21 | 104 |
| 2.96 | 1.73 | - | 1.82 | 4.52 | 177 |
| 4.44 | 2.09 | - | 2.22 | 4.68 | 22 |
| 3.3 | 0.43 | - | 0.45 | 4.67 | 46 |
| Camelina oil | 2.9 | 0.567 | 0.004 | 0.79 | 3.93 | 51 |
| Ca salt of palm fatty acids | 1.6 | 0.44 | - | - | 3.34 | 30 |
| Cottonseed oil | 2 | 0.6 | - | - | 3.34 | 46 |
| Corn oil | 2 | 0.69 | - | - | 3.18 | 50 |
| 1.5 | 0.89 | - | - | 3.28 | 66 |
| 5 | 3.68 | 0.09 | - | 3.05 | 250 |
| Soybean oil | 2 | 1.02 | - | - | 3.05 | 70 |
| 4 | 2.39 | - | - | 3.26 | 180 |
| 1.7 | 0.65 | 0.009 | 0.75 | 3.59 | 53 |
| 3.4 | 0.96 | 0.016 | 1.09 | 3.14 | 70 |
| 5 | 0.984 | 0.11 | 1.23 | 2.73 | 60 |
| PUFA | 2.5 | 0.63 | 0.03 | - | 2.43 | 35 |
| Safflower oil | 6 | 3.36 | 0.05 | . | 2.83 | 220 |
| 6 | 4.12 | 0.04 | | 2.97 | 280 |
| 5 | 2.16 | 0.09 | | 3.06 | 150 |
| 5 | 4.09 | 0.12 | | 2.83 | 260 |
| Rapeseed oil | 2.9 | 0.56 | 0.0038 | 0.77 | 3.86 | 50 |
aHas been injected into the rumen.
Forages: The numbers of forage treatments for the milk enrichment with CLA were 11 including, silages of corn, red clover and grass, alfalfa hay and fresh forage. The treatments only significantly increased the milk
cis-9,
trans-11 CLA content. Enriched level of
cis-9,
trans-11 CLA was between 0.4% - 109% of FA and 80% fresh grass had resulted maximum level (
Table 6).
| Dietary Supplement | % of DM | Cis-9, trans-11 CLA | Trans- 10-, cis-12 CLA | Total CLA | Total Fatty Acid | Cis-9, trans-11 CLA, mg/227 mL |
|---|
| Corn silage | 50.1 | 1.37 | - | - | 2.45 | 20 |
| 77.5 | 1.61 | - | - | 4.47 | 160 |
| red clover silage | 50 | 0.4 | - | - | 3.78 | 34 |
| Grass silage | 50 | 0.45 | - | - | 3.68 | 38 |
| Alfalfa hay | 49.2 | 0.69 | - | - | 3.13 | 50 |
| Fresh forage | 50 | 1.57 | - | - | 3.42 | 120 |
| 65 | 1.61 | - | - | 3.91 | 143 |
| 80 | 1.9 | - | - | 3.71 | 160 |
| 30 | 0.54 | - | - | 4.39 | 50 |
| 60 | 1.21 | - | - | 4.09 | 110 |
| 100 | 1.65 | - | - | 4.01 | 150 |
Agricultural byproducts: Distillers grains plus soluble, corn germ and mustard bran were agricultural byproducts which were used in 6 treatments for milk enrichment with CLA. CLA-enriched milk
cis-9,
trans-11 CLA content was about 0.6% - 1.11% of FA. Also 10% Distillers grain plus soluble led to the maximum level (
Table 7).
| Dietary Supplement | % of DM | Cis-9, trans-11 CLA | Trans- 10-, cis-12 CLA | Total CLA | Total Fatty Acid | Cis-9, trans-11 CLA (mg/227 ml) |
|---|
| Distillers grain plus solubles | 5 | 0.6 | - | - | 3.35 | 64 |
| 10 | 0.77 | - | - | 3.33 | 60 |
| 15 | 0.83 | - | - | 3.24 | 60 |
| 10 | 1.11 | 0.13 | 1.24 | 3.33 | 10 |
| Corn germ | 3.64 | 0.92 | - | - | 3.55 | 70 |
| Mustard bran | 7.9 | - | 0.009 | - | - | - |
Marine oils and feeds: Treatments of marine oils and feeds included 14 treatments of fish oil and algae. CLA-enriched milk
cis-9,
trans-11 CLA content by marine was about 0.14% - 6.05% of FA and content of
trans- 10-,
cis-12 CLA and total CLA were about 0.0097% - 1.12% of FA and 0.6% - 4.18% of FA, respectively. Injection of 16g/d fish oil into the rumen increased
cis-9,
trans-11 CLA content at maximum level. The highest levels of
trans- 10-,
cis-12 CLA and total CLA were achieved as a result of adding 0.97% fish oil and adding 1% algae to dairy cattle rations (
Table 8).
| Dietary Supplement | % of DM | Cis-9, trans-11 CLA | Trans- 10-, cis-12 CLA | Total CLA | Total Fatty Acid | Cis-9, trans-11 CLA, mg/227 mL |
|---|
| Fish oil | 16, g/da | 6.05 | - | - | 2.76 | 380 |
| 16, g/da | 0.49 | - | - | 3.56 | 40 |
| 0.5 | 0.14 | 1.04 | - | 3.4 | 10 |
| 2.14 | 3.41 | - | - | 3.17 | 230 |
| 1.1 | 0.45 | 0.154 | 0.6 | 3.56 | 36 |
| 0.97 | - | 1.12 | - | - | - |
| algae | 8.5 | 1 | - | - | 3.22 | 10 |
| 2.14 | 4.21 | - | - | 3.43 | 330 |
| 11 | 1.36 | 0.0097 | - | 3.16 | 98 |
| 1 | - | - | 3.59 | - | - |
| 1 | - | - | 4.18 | - | - |
aHas been injected into the rumen.
Mixed diets: Based on the data analysis, in 28 treatments combinations of oilseeds, oils, oil seeds and oil were examined. CLA-enriched milk
cis-9,
trans-11 CLA content ranged from 0.52% - 4.47% of FA and the content of
trans- 10-,
cis-12 CLA was about 0.2% - 0.28% of FA. Mixed diets increased the content of total CLA for levels 1.12% - 3.47% of FA. Adding mixture of fish oil and algae, soybean oil and synthetic CLA, fish oil and sunflower oil to dairy cattle rations respectively, led to the highest levels of
cis-9,
trans-11 CLA,
trans- 10-,
cis-12 CLA and total CLA in milk (
Table 9).
| Dietary Supplement | % of DM | Cis-9, trans-11 CLA | Trans- 10-, cis-12 CLA | Total CLA | Total Fatty Acid | Cis-9, trans-11 CLA, g/227 mL |
|---|
| Flaxseed + flax oil | - | 0.53 | - | - | 2.3 | 28 |
| Flaxseed + buck wheat | - | 1.27 | - | 1.33 | 3.53 | 100 |
| Corn + pasture | 6.66 | - | - | 1.12 | - | - |
| PUFA + pasture | 15.83 | - | - | 1.91 | | - |
| PUFA+ Ca salt of palm fatty acids | 1.6 | 0.52 | - | - | 3.22 | 40 |
| Flax oil + DHA | - | 1.45 | - | 1.45 | 3.27 | 110 |
| Flax oil + soybean oil | - | 1.81 | - | - | 3.3 | 140 |
| Soybean oil + CLA | - | 0.98 | 0.1 | 1.27 | 2.17 | 50 |
| - | 0.79 | 0.28 | 1.41 | 2.22 | 40 |
| Fish oil + sunflower oil | - | 1.04 | 0.07 | - | 2.81 | 70 |
| - | 1.7 | 0.12 | - | 2.66 | 100 |
| - | 4.46 | - | - | 3.54 | 360 |
| - | 3.04 | 0.075 | 3.47 | 2.9 | 200 |
| - | 1.64 | - | - | 3.5 | 130 |
| - | 0.84 | - | - | 2.51 | 48 |
| - | 1.53 | - | - | 2.95 | 100 |
| | - | | | - | - |
| Fish oil + soy beans | - | 1.17 | 0.03 | - | 3.81 | 100 |
| - | 1.03 | 0.03 | - | 3.8 | 90 |
| - | 1.19 | 0.03 | - | 4.03 | 110 |
| Fish oil + soybean oil | - | 1.16 | 0.04 | - | 3.17 | 80 |
| Fish oil + stearic acid | - | 0.7 | 0.02 | - | 3.14 | 50 |
| Fish oil + algae | - | 3.69 | - | - | 3.49 | 290 |
| | 4.47 | - | - | 3.74 | 360 |
| Fish oil + flaxseed | - | 1.06 | 0.03 | - | 3.08 | 74 |
| Fish oil + Ca salt of palm fatty acids | - | 1.2 | 0.07 | 1.27 | 3.32 | 90 |
| - | 0.7 | - | - | 3.76 | 60 |
| - | 1.04 | - | - | 3.61 | 85 |
| Fish oil + Ca salt of palm fatty acids + soybeans | - | 1.36 | 0.08 | 1.44 | 3.33 | 100 |
| Fish oil + Ca salt of palm fatty acids + soybean oil | - | 1.74 | 0.08 | 1.82 | 2.89 | 110 |
Canola meal and concentrate were other dietary supplements which were added to dairy cattle rations for enriching milk with CLA. Canola meal increased total CLA levels to 1.17% of FA. However, concentrate increased level of
cis-9,
trans-11 CLA to 1.13% of FA (
Table 10).
| Dietary Supplement | % of DM | Cis-9, trans-11 CLA | Trans- 10-, cis-12 CLA | Total CLA | Total Fatty Acid | Cis-9, trans-11 CLA, mg/227 mL |
|---|
| Canola meal | 13 | - | - | 1.17 | - | - |
| Concentrate | 2.55 | 1.13 | - | - | 3.81 | 100 |
3.1. Amount of CLA in One Serving CLA-Enriched Dairy Cattle Milk
Data analysis showed 227 mL (one serving) of CLA-enriched milk can provide 10 - 380 mg
cis-9,
trans-11 CLA. Among all treatments, 52 treatments led to supply of 95 - 380 mg, 58 treatments let to supply of 48 - 92 mg and 30 treatments led to supply of 10 - 48 mg
cis-9,
trans-11 CLA in 227 mL CLA-enriched milk. (
Tables 4 -
10)
