Introduction
Tanacetum is a remarkable genus of the Asteraceae family, comprises about 14 sections and 200 species, native to Europe, Mediterranean region, Western Asia and North America (1). Tanacetum species have been used for centuries as valuable herbal remedy in traditional medicine because of their cytotoxic, antimicrobial, antiviral and anti-inflammatory activities (2, 3). Tanacetum parenthium (feverfew) which is listed in European Pharmacopeia as a traditional remedy has been used for the treatment of migraine (4, 5). It has been reported that sesquiterpene lactones are the major classes of the secondary metabolites from the genus Tanacetum. Also, it has been reported that the flavonoids, coumarins, and triterpenoids are the main classes of compounds in this genus (6–8). In the flora of Iran, the genus Tanacetum consists of 36 annual and perennial species, 16 of which are endemic (9)M.V.Agab. & Wagenitz (Asteraceae, Anthemideae.
Tanacetum sonbolii Mozaff. is an endemic species of West Azerbaijan province of Iran. A literature survey showed that there has been no phytochemical study on T. sonbolii, apart from an analysis of the essential oil (10). Antioxidant activity, protective effect against hydrogen peroxide-induced oxidative stress in K562 cell line, and effect on PTZ-induced seizures in male mice have been reported for various extracts prepared from different parts of the plant (10–12). As a part of our ongoing research on discovering new and potentially bioactive secondary metabolites from Iranian species (13–15), we investigated the phytochemical compostion of ethyl acetate extract from the aerial parts of T. sonbolii. Here we report the isolation and structure elucidation of eight compounds by applying 1D and 2D NMR spectroscopy. Compounds 1, 3, and 5 were tested against Trypanosoma brucei rhodesiense, Trypanosoma cruzi, Leish-mania donovani and Plasmodium falciparum parasites, and showed good activities against T. b. rhodesiense.
Experimental
General experimental procedures
NMR spectra were mesured at 18 °C on a Bruker Avance III 500 MHz spectrometer, 500.13 MHz for 1H, and 125.77 MHz for 13C. A 1-mm TXI-microprobe with z-gradient was used for 1H-detected experiments. 13C NMR spectra were recorded with a 5 mm BBO probe head with z-gradient. The spectra were analyzed using Bruker TopSpin 3.1 software. Deuterated solvents for NMR (100% D) were purchased from Armar Chemicals. HPLC separations were performed on a Knauer HPLC system consisting of a mixing pump 1000 with degasser module, PDA detector, and an autosampler. Knauer Eurospher П 100-5 RP C18 column (5 μm, 4.6 × 250 mm) and SunFire Prep C18 ODB (5 μm, 19 × 50 mm i.d.) columns were used for reversed-phase analytical and semipreparative separations, respectively. The solvents used for extraction and column chromatography were of technical grade and were distilled before use (Emertat, Iran). The solvents used for HPLC were of HPLC grade (Merck, Germany). Silica gel (70–230 mesh) was used for column chromatography, and pre-coated silica gel F254 (20 × 20 cm) plates (Merck, Darmstadt, Germany) for TLC. Anisaldehye (Merck, Germany) was used for visualization of the TLC plates.
Plant material
Aerial parts of Tanacetum sonbolii were collected from Takab mountains, West-Azerbaijan province, Iran, in June 2015 and identified by Dr. Ali Sonboli. A voucher specimen (MPH-2556) has been deposited in the Herbarium of the Medicinal Plants and Drugs Research Institute of Shahid Beheshti University, Tehran, Iran.
Extraction and isolation
The air-dried aerial parts of T. sonbolii (1.6 kg) were crushed and extracted with ethyl acetate (5 × 7 L) by maceration at room temperature. The extract was concentrated in vacuum, to afford 60 g of a dark gummy residue. The residue was separated on a silica gel column (70–230 mesh, 6.0 × 120 cm, 850 g) with a gradient of n-hexane–EtOAc (100:0 → 0:100) as eluent, followed by increasing concentration of MeOH (up to 100%) in EtOAc. On the basis of TLC analysis (detection at 254 nm, and after spraying anisaldehyde-sulfuric acid reagent), fractions with similar compositions were pooled to yield 21 combined fractions.
Fraction 2 [eluted with n-hexane–EtOAc (80:20)] (1.1 g ) was separated on a silica gel column (70–230 mesh, 2.5 × 45 cm, 150 g) eluted with CH2Cl2/Me2CO (90:10). Fractions of 50 mL were collected and pooled together on the basis of TLC patterns to give seven subfractions (F21-F27). Precipitates of subfraction F24 were recrystallized from Me2CO to afford compound 1 (7 mg). From fraction 3 [eluted with n-hexane/EtOAc (75:25)] (0.12 g) crude crystals were obtained, which were recrystallized from Me2CO to afford compound 8 (12 mg). Fraction 6 [eluted with n- hexane/EtOAc (70:30)] (0.15 g) was separated on a silica gel column (70–230 mesh, 2.0 × 64 cm, 110 g) eluted with CH2Cl2/Me2CO (80:20). Fractions of 50 mL were collected, and combined to five subfractions (F61–F65) on the basis of TLC patterns. Recrystallization of subfraction F63 afforded compound 7 (20 mg). Fraction 13 [eluted with n-hexane–EtOAc (60:40)] (0.09 g) was separated by preparative HPLC (MeCN/ H2O, 50:50, v/v) to yield 2 (0.8 mg), 3 (0.8mg) and 4 (0.4mg). Fraction 15 [eluted with n-hexane–EtOAc (40:60)] (0.10 g) was separated by preparative HPLC (MeCN/ H2O, 40:60, v/v) to yield compounds 5 (3 mg) and 6 (2 mg).
In-vitro Biological Testing
The in-vitro activities against the protozoan parasites Trypanosoma brucei rhodesiense (STIB900) bloodstream forms, Trypanosoma cruzi (Tulahuen C4 LacZ) intracellular amastigotes, Leishmania donovani (MHOM-ET-67/L82) axenically grown amastigotes, and Plasmodium falciparum (NF54) erythrocytic stage and also the cytotoxicity against L6 cells were tested according to the literature procedures (16, 17).
Statistical analysis
All measurements were expressed as the mean ± standard deviations (SD) in triplicate manner. Excel 2010 was employed for analyzing data. The IC50 values were calculated by linear regression from the sigmoidal dose inhibition curves using SoftmaxPro software. The selectivity index was calculated as IC50 for L-6 cells/IC50 for parasites.
Results and Discussion
Purification processes on ethyl acetate extract obtained from aerial parts of T. sonbolii via chromatography on normal and reverse phase silica gel columns as well as recrystallization led to isolation and identification of eight known compounds. Structure elucidation was accomplished by 1D and 2D NMR spectra (COSY, HMQC-DEPT, and HMBC) and confirmed by comparing their NMR data with those reported in the literature. The compounds including six phenolics comprise four flavone type, apigenin (2) (18), 5-desmethylsinensetin (3) (19), 5-demethylnobiletin (4) (20), 8-methoxycirsilineol (5) (20), a cumarin, scopoletin (6) (21), and a phenylethanone, 2,4-dihydroxy-6-methoxyacetophenone (1) (22). Moreover, a triterpenoid, ursolic acid (7) (23), and an steroidal compound, β-sitosterol (8) (24) were also isolated (Figure 1). Compounds 1 (25), 2 (26), 3 (27), 4 (28), 6 (29), and 8 (30) have been previously isolated from other Tanacetum species; however the compounds 5 and 7 are reported here from this genus for the first time.
In-vitro antiprotozoal activity of compounds 1, 3, and 5 were studied against T. b. rhodesiense, T. cruzi, L. donovani, and P. falciparum. The compounds showed good inhibition against T. b. rhodesiense. Compound 1 inhibited the growth of the parasite equal to 95.2% at the concentration of 10 µg/mL, while Melarsoprol as the reference compound showed 100% inhibition. Also, compound 3 and 5 showed considerable inhibition equal to 99.6% and 96.8% at 10 µg/mL concentration, respectively. Accordingly, these compounds were considered for further study to evaluate the IC50 values against T. b. rhodesiense and cytotoxicity against L6 cells. The results are presented in Table 1; Compound 5 exhibited the most inhibitory activity against T. b. rhodesiense with IC50 value of 6.1 μM and selectivity index (SI) equal to 5.4.
In the past few years the class of phenolics specially flavonoids and cumarins have attracted attention of scientists as good antiprotozoal agents, particularly against T. brucei rhodesiense, the causative agent of the East African form of Human Africa Trypanosomiasis (HAT) (31–35). Flavonoid structures similar to those we reported here such as apigenin (36)”ISSN” : “15206025”, “PMID” : “25768915”, “abstract” : “Leishmaniasis is an important neglected disease caused by protozoa of the genus Leishmania that affects more than 12 million people worldwide. Leishmaniasis treatment requires the administration of toxic and poorly tolerated drugs, and parasite resistance greatly reduces the efficacy of conventional medications. Apigenin (1, sinensetin (35), and cirsilineol (37) and also the flavonoids with more than two methoxy groups have shown considerable activities against several protozoan parasites (33, 38, 32, 39). In a previous study, 5-desmethylsinensetin (compound 3) showed IC50 values of 0.2 mg/mL against T. cruzi epimastigotes, 78.7 mg/mL against T. cruzi amastigotes, and 37.0 mg/mL against L. braziliensis promastigotesso (35).
Spectral data of the isolated compounds
2, 4-dihydroxy- 6-methoxyacetophenone (1)
Colourless crystals; 1H NMR (DMSO, 500.13 MHz): δ 2.50 (3H, s, CH3), 3.82 (3H, s, OMe), 5.87 (1H, brd s, H-3), 5.97 (1H, brd s, H-5); 13C NMR (DMSO, 125 MHz): δ 33.0 (CH3), 56.2 (OMe), 91.7 (C-5), 96.0 (C-3), 105.0 (C-1), 163.8 (C-6), 165.6 (C-4), 166.8 (C-2), 202.6 (CO).
Apigenin (2)
yellow powder; 1H NMR (500.13 MHz, CDCl3), δ (ppm): 6.16 (1H, s, H-6), 6.45 (1H, s, H-8), 6.68 (1H, s, H-3) , 6.93 (2H, d, J=8.6 Hz, H-3’, 5’), 7.88 (2H, d, J=8.6 Hz, H-2’, 6’), 12.96 (1H, s, OH). for 13C NMR (125.77 MHz, CDCl3), δ (ppm): 93.9 (C-8), 98.8 (C-6), 102.7 (C-3), 104.6 (C-10), 115.9 (C-3’, 5’),120.6 (C-1’), 128.1 (C-2’), 129.4(C-6’), 156.5 (C-5), 161.4 (C-9), 162.0 (C-4’), 163.2(C-7), 165.3(C-2), 181.9 (C-4).
5-desmethylsinensetin (3)
Yellow powder; 1H NMR (500.13 MHz, CDCl3), δ (ppm): 3.88, 3.89, 3.90, 3.91(3H, s, OMe 6,7, 3’, 4’), 6.54 (1H, s, H-3), 6.58 (1H, s, H-8), 6.97 (1H, d, J = 8.5 Hz, H-5′), 7.33 (1H, d, J = 2.5 Hz, H-2′), 7.52 (1H, dd, J = 8.5, 2.5 Hz, H-6′), 12.38 (1H, s, OH). for 13C NMR (125.77 MHz, CDCl3), δ (ppm): 55.8 (OMe 7), 56.1 (OMe 3’, 4’), 60.8 (OMe 6), 90.8 (C-8), 104.5 (C-3), 106.4 (C-10), 109.1 (C-2′),111.5 (C-5′), 120.3 (C-6′), 124.5 (C-1’), 132.9 (C-6), 149.6 (C-3′), 152.6 (C-4′), 153.3 (C-5), 153.5 (C-9), 159 (C-7), 163.6 (C-2), 182.0 (C-4).
5-demethylnobiletin(4)
Yellow powder; 1H NMR (500.13 MHz, CDCl3), δ (ppm): 3.80, 3.82, 3.84, 3.86 (3H, s, OMe 6, 7, 8, 3’, 4’), 6.48 (1H, s, H-3), 6.90 (1H, d, J=1.5 Hz, H-2’) , 7.30 (1H, d, J=6.8 Hz, H-5’), 7.59 (1H, dd, J=1.5 Hz, 6.8 Hz, H-6’), 12.50 (1H, s, OH). for 13C NMR (125.77 MHz, CDCl3), δ (ppm): 56.6 (OMe 3’), 57.1 (OMe 4’ ), 60.1 (OMe 8), 61.2 (OMe 6), 61.4 (OMe 7), 104.5 (C-3), 107.4 (C-10), 111.7 (C-2’), 109.5 (C-5’), 121.2 (C-6’), 123.6 (C-1’), 132.5 (C-8), 136.8 (C-6), 146.1 (C-9), 150.9 (C-4’), 149.5 (C-5), 149.5 (C-3’), 152.4 (C-7), 163.6 (C-2), 182.1 (C-4).
8-methoxycirsilineol (5)
Yellow crystals; 1H NMR (500.13 MHz, CDCl3), δ (ppm): 3.80 (3H, s, OMe 7), 3.82 (3H, s, OMe 8), 3.84 (3H, s, OMe 3’), 3.86 (3H, s, OMe 6), 6.40 (1H, s, H-3), 6.85 (1H, d, J = 1.7 Hz, H-2’) , 7.58 (1H, d, J = 6.5 Hz, H-5’), 7.59 (1H, dd, J = 1.7 Hz, 6.5 Hz, H-6’), 12.54 (1H, s, OH). for 13C NMR (125.77 MHz, CDCl3), δ (ppm): 56.6 (OMe 3’), 57.1 (OMe 7 ), 60.1 (OMe 6), 61.2 (OMe 8), 104.5 (C-3), 105.4 (C-10), 112.0 (C-2’), 117.1 (C-5’), 121.2 (C-6’), 123.6 (C-1’), 132.5 (C-8), 136.8 (C-6), 145.2 (C-9), 146.9 (C-4’), 149.5 (C-5), 149.2 (C-3’), 152.4 (C-7), 163.6 (C-2), 182.1 (C-4).
scopoletin (6)
Yellow crystals; 1H NMR (500.13 MHz, CDCl3), δ (ppm): 3.88 (3H, s, OMe), 6.18 (1H, d, J= 9.2 Hz, H-3), 6.77 (1H, s, H-5), 6.84 (1H, s, H-8), 7.50 (1H, d, J = 9.2 Hz, H-4) for 13C NMR (125.77 MHz, CDCl3), δ (ppm): 56.1 (OMe), 102.7 (C-8), 110.2 (C-5), 111.3 (C-10), 113.4 (C-3), 143.5 (C-4), 144.0 (C-7), 145.9 (C-6), 150.0 (C-9), 161.9 (C-2).
Ursolic acid (7)
White powder; 1H NMR (500.13 MHz, CDCl3), δ (ppm): 0.68 (3H, s, Me-23), 0.75 (3H, s, Me-26), 0.81 (3H, d, J = 6.25 Hz, Me-29), 0.87 (3H, s, Me-25), 0.89 (3H, s, Me-24), 0.92 (3H, d, J = 6.5 Hz, Me-30), 1.04 (3H, s, Me-27), 2.10 (1H, d, J = 11.25 Hz, H-18),3.00 (1H, m, H-3), 4.31 (1H, brs, D2O exchangeable, OH), 5.13 (1H, m, H-12). for 13C NMR (125.77 MHz, CDCl3), δ (ppm): 16.2 (C-24), 16.7 (C-25), 17.8 (C-26), 17.9 (C-29), 18.9 (C-6), 21.9 (C-30), 23.7 (C-11), 24.1 (C-27), 24.7 (C-16), 27.8 (C-2), 28.4 (C-15), 29.1 (C-23), 31.1 (C-21), 33.6 (C-7), 37.2 (C-22), 37.4 (C-10), 39.2 (C-4), 39.2(C-1), 39.3 (C-20), 39.4 (C-19), 40.0 (C-8), 42.5 (C-14), 47.7 (C-17), 47.9 (C-9 ), 53.2 (C-18), 55.6 (C-5), 77.7 (C-3), 125.4 (C-12), 139.0 (C-13), 179.1 (C-29).
β-sitosterol (8)
Colorless crystals; 1H NMR (500.13 MHz, CDCl3), δ (ppm): 0.68 (3H, s, H-18), 0.81 (3H, brd s, H-26), 0.82 (3H, brd s, H-27), 0.84 (3H, brd s, H-24b), 0.92 (3H, d, J = 6.7 Hz, H-21), 1.01 (3H, s, H-19), 3.45 (1H, m, H-3), 5.37 (1H, m, H-6). for 13C NMR (125.77 MHz, CDCl3), δ (ppm): 12.0 (C-18), 12.2 (C-29), 18.8 (C-21), 19.0 ( C-26), 19.3 (C-27), 19.8 (C-19), 21.1 (C-11), 23.2 (C-28), 25.9 (C-15), 26.3 (C-16), 26.4 (C-23), 29.2 (C-25), 30.4 (C-2), 31.8 (C-7), 32.0 (C-8), 33.9 (C-22), 36.1 (C-10), 36.2 (C-20), 37.4 (C-1), 39.8 (C-12), 41.8 (C-4), 42.7 (C-13),45.9 (C-24), 50.8 (C-9), 56.2 (C-17), 56.5 (C-14), 71.6 (C-3), 121.8 (C-6), 140.8 (C-5).

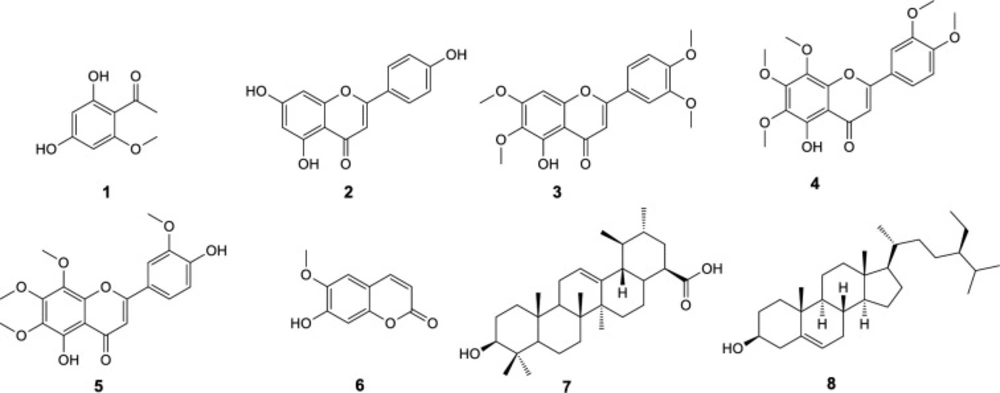

Figure 1
The structures of compounds 1-8
Table 1In-vitro activity of compounds 1, 3 and 5 against T. b. rhodesiense (STIB 900) and cytotoxicity on L6 Cells [IC50 (μM)].
| Compound | T. b. rhodesiensea | L6 cells |
|---|---|---|
| 1 | >200 | - |
| 3 | 14.3 ± 0.1 (5.2)b | 74.1 ± 0.1 |
| 5 | 6.1 ± 0.1 (5.4)b | 32.6 ± 0.2 |
| Melarsoprol | 0.003 ± 0.01 | - |
| Podophyllotoxin | - | 0.005 ± 0.01 |
Conclusion
In the present study, eight known compounds were isolated from the aerial parts of Tanacetum sonbolii. Their structures were elucidated by means of extensive 1D, 2D NMR spectroscopy. Also the in-vitro antiprotozoal activity of the compounds was studied. Compounds 1, 3, and 5 were the active constituents for growth inhibition of T. brucei rhodesiense at 10 µg/mL concentration and the most active compound was compound 5 with IC50 value of 6.1 μM and selectivity index of 5.4.
