Oxidative Aromatization, Cytotoxic Activity Evaluation and Conformational Study of Novel 7-aryl-10, 11-dihydro-7H-chromeno [4, 3-b]quinoline-6, 8(9H, 12H)-dione Derivatives.

Author(s):
Radineh MotamediRadineh Motamedia, Abbas ShafieeAbbas Shafieeb, Mohammad Reza RezaiMohammad Reza Rezaia, Omidreza FiruziOmidreza Firuzic, Najmeh EdrakiNajmeh Edrakic, Ramin MiriRamin Miric,*
aDepartment of Chemistry, Payame Noor University, Delijan, Iran.
bPharmaceutical Sciences Research Center, Faculty of Pharmacy, Tehran University of Medical Sciences, Tehran 14174, Iran.
cMedicinal and Natural Products Chemistry Research Center, Shiraz University of Medical Sciences, Shiraz, Iran.
*Corresponding Author: Corresponding author E-mail: [email protected] Email:
IJ Pharmaceutical Research:Vol. 13, issue 1; 103-114
Published online:Jan 31, 2014
Article type:Original Article
Received:Feb 29, 2012
Accepted:Oct 31, 2013
How to Cite:Motamedi R, Shafiee A, Rezai MR, Firuzi O, Edraki N, et al. Oxidative Aromatization, Cytotoxic Activity Evaluation and Conformational Study of Novel 7-aryl-10, 11-dihydro-7H-chromeno [4, 3-b]quinoline-6, 8(9H, 12H)-dione Derivatives.. Iran J Pharm Res. 2014;13(1):e125441. doi: https://doi.org/10.22037/ijpr.2014.1444

Abstract

In the present work, novel 7-aryl-10, 11-dihydro-7H-chromeno [4, 3-b]quinoline-6, 8(9H, 12H)-dione derivatives were synthesized by oxidation of 7-aryl-8, 9, 10, 12-tetrahydro-7H-chromeno[4, 3-b]quinoline-6, 8-diones in the presence of silica sulfuric acid/NaNO2 with yields of 64-74%. Cytotoxic activity of synthesized compounds was assessed on three different human cancer cell lines (K562, LS180, and MCF-7). Synthesized compounds showed moderate cytotoxic activities. The most active one apeared to be 2e, containing a methoxy group on the meta position of phenyl ring (IC50 range in different cell lines: 11.1–55.7 µM). Furthermore; comparison of the cytotoxic activity of these novel oxidized derivatives with non-oxidized counterparts revealed that oxidation of dihydropyridine ring to pyridine, improves the activity especially in LS180 cell line. Conformational analysis revealed that some conformational aspects of oxidized derivatives such as orientation of C7-aryl substitute were clearly different from non-oxidized ones.

Keywords
Oxidative aromatization
Chromeno [4
3-b]quinolone
Cytotoxicity
Conformational analysis

Introduction

1, 4-Dihydropyridine (DHP) compounds are well known as calcium channel modulators and have emerged as one of the most important classes of drugs for the treatment of cardiovascular diseases (1). Although the DHP nucleus has been particularly well explored as L-type calcium channel modulator, DHP is a privileged structure or scaffold that can, when appropriately decorated, interact with diverse receptors and possess a variety of biological activities (2).
Previous studies have demonstrated the cytotoxic and anticancer activity of some 1, 4-DHPs derivatives (3-5). Moreover, the results of different studies indicate that 1, 4-DHP derivatives have significant inhibitory effects on MDR in cancer cell lines (6-8).
On the other hand, synthetic and naturally occurring coumarine derivatives are one of the most promising scaffolds in medicinal chemistry (9-11). In addition, different coumarine derivatives such as 4-hydroxycoumarine and 7-hydroxycoumarine derivatives demonstrated cytotoxic and antitumoral properties (12-13).
We have previously synthesized and evaluated the cytotoxic activity of some novel heteroanalogues of fused DHPs with the features of 1,4-DHPs and 4-hydroxycoumarins named as “chromeno[4, 3-b]quinoline or 7-aryl-8,9,10,12-tetrahydro-7H-chromeno[4, 3-b]quinoline-6,11-dione derivatives” 1 (14). Some of these derivatives showed moderate cytotoxic capacity and at the same time very low calcium channel antagonist activity, an undesirable effect when these compounds are used as antitumoral agents. These findings prompted us to further optimize this structure for design of more potent and specific cytotoxic agents. Armed with our experience and our interest in pharmacological properties and especially cytotoxic and DNA-intercalating activity of polycondensed heterocyclic compounds such as 1,8-acridinone and benzopyrano[3, 2-c]chromene-6, 8-dione derivatives (15-18), we were persuaded to aromatize these newly synthesized 1,4-DHPs (1) in order to obtain new pyridine derivatives with higher cytotoxic effect. We also examined some structural properties by means of computational conformational analysis.

Experimental

Chemistry
All chemicals and solvents used in this study were purchased from Merck (Darmstadt, Germany) and Sigma-Aldrich (San Louis, MO, USA). Melting points were determined on a Kofler hot stage apparatus and are uncorrected. The IR spectra were obtained on a Shimadzu 470 spectrophotometer (potassium bromide disks).
1H-NMR spectra were measured using a Bruker FT-500 spectrometer, and chemical shifts are expressed as d (ppm) with tetramethylsilane as internal standard. The mass spectra were run on a Finnigan TSQ-70 spectrometer at 70 eV. Merck silica gel 60 F254 plates were used for analytical TLC; column chromatography was performed on Merck silica gel (70–230 mesh). Yields were calculated for purified products and were not optimized.
Typical Procedure for synthesis of 7-Aryl-10, 11-dihydro-9H-chromeno[4,3-b]quinoline-6,8-dione (2)
Compounds 1 (5.4 mmol), sodium nitrite (16 mmol, 1.1 g) and silica sulfuric acid (1.6 g) and silica (1.07 g) were refluxed in chloroform (100 mL) for 8-12 h. The mixture was cooled to room temperature and was filtered. The filtrate was evaporated to dryness under reduced pressure, and the crude product was purified by short column chromatography to give 2 (Table 1).
7-(2-Methylphenyl)-10, 11-dihydro-6H-chromeno[4, 3-b]quinoline-6, 8-dione (2a).
Yellowish solid 1.36 g (yield 71%), mp = 210-212 °C, Rf = 0.70 (2:8 EtOAc/Petrolum Ether).
νmax cm-1(KBr): 2922, 2848 (C-H aliphatic), 1754 (C = O ester), 1691 (C = O ketone), 757 (C-H bending).
1HNMR (CDCl3), δ (ppm): 2.02 (s, 3H, CH3 ), 2.24 (qn, 2H, J = 6.6 Hz, H10), 2.66 (t, 2H, J = 6.6 Hz, H9), 3.38 (t, 2H, J = 6.6 Hz, H11), 6.81 (d, 1H, J = 7.0 Hz, H15 ), 7.23 (t, 1H, J = 7.0 Hz, H17), 7.28-7.35 (m, 3H, H16, H18, H4), 7.40 (t, 1H, J = 8.0 Hz, H2), 7.61 (t, 1H, J = 8.0 Hz, H3), 8.68 (d, 1H, J = 8.0 Hz, H1).
13CNMR (CDCl3), δ: 20.01, 20.98, 34.61, 40.13, 115.13, 116.90, 118.83, 124.61, 124.89, 125.58, 126.09, 127.44, 127.69, 129.26, 133.33, 134.24, 137.84, 153.43, 154.13, 156.39, 157.92, 169.58, 196.14.
MS : m/z (%), 355 (M+, 44), 340 (44), 327 (37), 299(100), 271(37), 151(50), 126 (50), 114 (63), 100 (44), 87 (25).
Anal. Calcd for C23H17NO3: C, 77.73; H, 4.82; N, 3.94. Found: C, 77.40 ; H, 4.56; N, 3.95.
7-(3-Methylphenyl)-10, 11-dihydro-6H-chromeno[4, 3-b]quinoline-6, 8-dione (2b).
White solid, 1.22 g (yield 64%), mp = 172-174 °C, Rf = 0.73 (2:8 EtOAc/Petrolum Ether).
νmax cm-1(KBr): 2848 (C-H aliphatic), 1754 (C=O ester), 1691(C=O ketone), 757 (C-H bending).
1HNMR (CDCl3), δ (ppm): 2.24 (qn, 2H, J = 6.6 Hz, H10), 2.39 (s, 3H, CH3 ), 2.67 (t, 2H, J = 6.5 Hz, H9), 3.36 (t, 2H, J = 6.5 Hz, H11), 6.91 (m, 2H, H14, H16 ), 7.24 (d, 1H, J = 7.5 Hz, ), 7.30 (d, 1H, J = 8.0 Hz, H4), 7.33 (t, 1H, J = 7.5 Hz, H17), 7.39 (t, 1H, J = 8.0 Hz, H2), 7.60 (t, 1H, J = 8.0 Hz, H3), 8.67 (d, 1H, J = 8.0 Hz, H1).
13CNMR (CDCl3), δ: 20.93, 21.64, 34.56, 40.33, 115.08, 116.83, 118.80, 123.34, 124.56, 125.67, 126.11, 126.78, 127.74, 128.41, 133.25, 133.40, 137.35, 153.41, 153.86, 156.60, 158.13, 169.29, 196.39.
MS : m/z (%), 355 (M+, 48), 340 (38), 265 (38), 149 (86), 121 (100), 105 (23), 92 (35), 71 (35), 57 (42), 43 (50).
Anal. Calcd for C23H17NO3: C, 77.73; H, 4.82; N, 3.94. Found: C, 77.80; H, 4.85; N, 3.97.
7-(4-Methylphenyl)-10, 11-dihydro-6H-chromeno[4, 3-b]quinoline-6, 8-dione (2c).
White solid, 1.30 g (yield 68%) mp = 241-243 °C, Rf= 0.74 (2:8 EtOAc/Petrolum Ether).
νmax cm-1(KBr): 3033 (C-H aromatic), 2853 (C-H aliphatic), 1750 (C=O ester), 1698 (C=O ketone), 759 (C-H bending).
1HNMR (CDCl3), δ (ppm): 2.24 (qn, 2H, J = 6.6 Hz, H10), 2.46 (s, 3H, CH3 ), 2.68 (t, 2H, J = 6.6 Hz, H9), 3.37 (t, 2H, J = 6.3 Hz, H11), 7.02 (d, 2H, J = 8.0 Hz, H15, H17), 7.27 (d, 2H, J = 8.0 Hz, H14, H18), 7.32 (d, 1H, J = 8.2 Hz, H4), 7.41 (t, 1H, J = 8.2 Hz, H2), 7.61 (t, 1H, J = 8.2 Hz, H3), 8.68 (d, 1H, J = 8.2 Hz, H1).
13CNMR (CDCl3), δ: 20.94, 21.57, 34.54, 40.33, 115.19, 116.86, 118.84, 124.56, 126, 11, 126.15, 127.94, 128.75, 133.24, 134.93, 137.19, 153.42, 153.89, 156.67, 158.25, 169.27, 196.58.
MS : m/z (%), 355 (M+, 100), 340 (31), 327 (25), 299 (19), 127 (13).
Anal. Calcd for C23H17NO3: C, 77.73; H, 4.82; N, 3.94. Found: C, 77.68 ; H, 4.78; N, 3.90.
7-(2-Methoxyphenyl)-10, 11-dihydro-6H-chromeno[4, 3-b]quinoline-6, 8-dione(2d).
White solid, 1.42 g (yield 71%), mp = 180-182 °C, Rf = 0.69 (2:8 EtOAc/Petrolum Ether).
νmax cm-1(KBr): 3056 (C-H aromatic), 2852 (C-H aliphatic), 1749 (C=O ester), 1693 (C=O ketone), 753 (C-H bending).
1HNMR (CDCl3), δ (ppm): 2.25 (qn, 2H, J = 6.7 Hz, H10), 2.69 (t, 2H, J = 6.7 Hz, H9), 3.38 (t, 2H, J = 6.7 Hz, H11), 3.74 (s, 3H, OCH3 ), 6.90 (d, 1H, J =6.0 Hz, H15 ), 6.89 (d, 1H, J =6.0 Hz, H18 ), 7.00 (m, 1H, H17), 7.31 (d, 1H, J = 8.2 Hz, H4), 7.41 (t, 1H, J =6.0 Hz, H16 ), 7.43 (t, 1H, J =8.2 Hz, H2 ), 7.61 (t, 1H, J = 8.2 Hz, H3), 8.68 (d, 1H, J = 8.2 Hz, H1).
13CNMR (CDCl3), δ: 20.97, 34.48, 40.06, 55.67, 110.39, 115.60, 116.82, 118.97, 120.73, 124.49, 126.04, 126.76, 127.40, 128.07, 129.21, 133.08, 153.32, 153.51, 153.87, 155.85, 158.13, 169.18, 196.28.
MS : m/z (%), 371 (M+, 38), 340 (100), 120 (31), 91 (31), 75 (25).
Anal. Calcd for C23H17NO4: C, 74.38; H, 4.61; N, 3.77. Found: C, 74.32 ; H, 4.58; N, 3.70.
7-(3-Methoxyphenyl)-10, 11-dihydro-6H-chromeno[4, 3-b]quinoline-6, 8-dione (2e).
White solid, 1.32 g (yield 66%), mp = 155-157 °C, Rf = 0.67 (2:8 EtOAc/Petrolum Ether).
νmax cm-1(KBr): 3060 (C-H aromatic), 2835 (C-H aliphatic), 1755 (C=O ester), 1692 (C=O ketone), 766 (C-H bending).
1HNMR (CDCl3), δ (ppm): 2.25 (qn, 2H, J = 6.5 Hz, H10), 2.68 (t, 2H, J = 6.5 Hz, H9), 3.37 (t, 2H, J = 6.5 Hz, H11), 3.82 (s, 3H, OCH3 ), 6.67 (s, 1H, H14 ), 6.72 (d, 1H, J = 7.5 Hz, H18), 6.98 (d, 1H, J = 7.5 Hz, H16), 7.31 (d, 1H, J = 8.0 Hz, H4), 7.37-7.42 (m, 2H, H17, H2), 7.61 (t, 1H, J = 8.0 Hz, H3), 8.68 (d, 1H, J = 8.0 Hz, H1).
13CNMR (CDCl3), δ: 20.91, 34.56, 40.29, 55.13, 112.49, 112.56, 115.02, 116.86, 118.76, 124.57, 126.11, 127.62, 128.97, 133.29, 133.89, 139.26, 153.41, 153.91, 155.96, 157.97, 159.33, 169.35, 196.17.
MS : m/z (%), 371 (M+, 44), 340 (37), 341 (50), 196 (63), 120 (38), 91 (100), 43 ( 50).
Anal. Calcd for C23H17NO4: C, 74.38; H, 4.61; N, 3.77. Found: C, 74.33; H, 4.56; N, 3.68.
7-(4-Methoxyphenyl)-10, 11-dihydro-6H-chromeno[4, 3-b]quinoline-6, 8-dione(2f).
White solid, 1.50 g (yield 75%), mp = 185-187 °C, Rf = 0.71 ( 2:8 EtOAc/Petrolum Ether).
νmax cm-1(KBr): 2854(C-H aliphatic), 1747(C=O ester), 1688(C=O ketone), 761(C-H bending).
1HNMR (CDCl3), δ (ppm): 2.24 (qn, 2H, J = 6.6 Hz H10), 2.69 (t, 2H, J = 6.5 Hz, H9), 3.37 (t, 2H, J = 6.4 Hz, H11), 3.88 (s, 3H, OCH3 ), 7.00 (d, 2H, J = 8.7 Hz, H15, H17), 7.05 (d, 2H, J = 8.7 Hz, H14, H18), 7.32 (d, 1H, J = 8.2 Hz, H4), 7.41 (t, 1H, J = 8.2 Hz, H2), 7.62 (t, 1H, J = 8.2 Hz, H3), 8.68 (d, 1H, J = 8.2 Hz, H1).
13CNMR (CDCl3-d), δ: 20.94, 34.54, 40.38, 55.11, 113.51, 115.29, 116.84, 118.85, 124.56, 126.12, 127.73, 128.11, 129.89, 130.03, 133.23, 153.40, 153.89, 156.37, 158.33, 169.25, 196.70.
MS : m/z (%), 371 (M+, 11), 289 (18), 149 29), 121 (32), 85 (63), 71 (88), 57 (100), 43 (95).
Anal. Calcd for C23H17NO4: C, 74.38; H, 4.61; N, 3.77. Found: C, 74.43 ; H, 4.59; N, 3.69.
7-(2-Cholorophenyl)-10, 11-dihydro-6H-chromeno[4, 3-b]quinoline-6, 8-dione (2g).
White solid, 1.33 g (yield 66%), mp = 253-255 °C, Rf= 0.65 (2:8 EtOAc/Petrolum Ether).
νmax cm-1(KBr): 3068 (C-H aromatic), 2854 (C-H aliphatic), 1744 (C=O ester), 1690 (C=O ketone), 762 (C-H bending).
1HNMR (CDCl3), δ (ppm): 2.27 (qn, 2H, J = 6.5 Hz, H10), 2.69 (t, 2H, J = 6.5 Hz, H9), 3.41 (t, 2H, J = 6.5 Hz, H11), 7.03 (d, 1H, J = 7.8 Hz, H18), 7.27-7.43 (m, 4H, H2, H4, H16, H17), 7.50 (d, 1H, J = 7.8 Hz, H15), 7.62 (t, 1H, J = 7.8 Hz, H3), 8.70 (d, 1H, J = 7.8 Hz, H1).
13CNMR (CDCl3), δ: 20.88, 34.55, 39.89, 114.97, 116.94, 118.75, 124.68, 126.08, 126.68, 127.09, 127.18, 128.92, 130.77, 133.42, 133.90, 137.28, 152.92, 153.38, 154.26, 157.99, 169.69, 196.94.
MS : m/z (%),377 (M++2, 33), 375 (M+, 100), 340 (25), 187 (13), 127 (13), 113 (13), 100 (10), 87 (5).
Anal. Calcd for C22H14ClNO3: C, 70.31; H, 3.75; N, 3.73. Found: C, 70.40 ; H, 3.69; N, 3.70.
7-(3-Cholorophenyl)-10, 11-dihydro-6H-chromeno[4, 3-b]quinoline-6, 8-dione (2h).
White solid, 1.37 g (yield 68%), mp = 188-190 °C, Rf= 0.64 (2:8 EtOAc/Petrolum Ether).
νmax cm-1(KBr): 3018 (C-H aromatic), 2853 (C-H aliphatic), 1744 (C=O ester), 1691 (C=O ketone), 757 (C-H bending).
1HNMR (CDCl3), δ (ppm): 2.23-2.28 (qn, 2H, J = 6.5 Hz, H10), 2.67-2.70 (t, 2H, J = 6.5 Hz, H9), 3.39-3.40 (t, 2H, J = 6.5 Hz, H11), 7.02 (d, 1H, J = 7.0 Hz, H16 ), 7.10 (s, 1H, H14), 7.30 (d, 1H, J = 8.0 Hz, H4), 7.37-7.42 (m, 3H, H2, H17, H18), 7.62 (t, 1H, J = 8.0 Hz, H3), 8.68 (d, 1H, J = 8.0 Hz, H1).
13CNMR (CDCl3) δ: 20.85 (C10), 34.57 (C11), 40.24 (C9), 114.86 (C7), 116.88 (C4), 118.64 (C1a), 124.59 (C16), 124.72 (C2), 126.15 (C1), 126.27 (C14), 127.26 (C7a), 127.62 (C17), 129.16 (C18), 133.49 (C3), 133.90 (C13), 139.79 (C6a), 153.38 (C12a), 154.04 (C4a), 154.48 (C15), 158.07 (C6), 169.64 (C11a), 196.08 (C8).
MS : m/z (%), 377 (M++2, 10), 375 (M+, 30), 340 (30), 319 (27), 289 (14), 227 (44), 127 (44), 120 (100), 100 (64), 87 (32), 74 (36).
Anal. Calcd for C22H14ClNO3: C, 70.31; H, 3.75; N, 3.73. Found: C, 70.38; H, 3.56; N, 3.67.
7-(4-Cholorophenyl)-10, 11-dihydro-6H-chromeno[4, 3-b]quinoline-6, 8-dione (2i).
White solid, 1.41 g (yield 70%), mp = 281-283 °C, Rf = 0.66 (2:8 EtOAc/Petrolum Ether).
νmax cm-1(KBr): 2851 (C-H aliphatic), 1745 (C=O ester), 1691 (C=O ketone), 753 (C-H bending).
1HNMR (CDCl3), δ (ppm): 2.25 (qn, 2H, J = 6.6 Hz H10), 2.68 (t, 2H, J = 6.6 Hz, H9), 3.38 (t, 2H, J = 6.6 Hz, H11), 7.05 (d, 2H, J = 8.3 Hz, H14, H18), 7.33 (d, 1H, J = 8.2 Hz, H4), 7.41(d, 1H, J = 8.2 Hz, H2), 7.43 (d, 2H, J = 8.3 Hz, H15, H17), 7.62 (t, 1H, J = 8.2 Hz, H3), 8.68 (d, 1H, J = 8.2 Hz, H1).
13CNMR (CDCl3), δ: 20.87, 34.56, 40.28, 114.85, 116.90, 118.62, 124.70, 126.16, 126.25, 127.64, 128.29, 133.47, 133.88, 136.46, 153.39, 154.07, 155.15, 158.08, 169.55, 196.34.
MS : m/z (%), 377 (M+ +2, 10), 375 (M+, 29), 289 (100), 265 (58), 237 (64), 121 (100), 85 (44), 71 (59), 57 (80).
Anal. Calcd for C22H14ClNO3: C, 70.31; H, 3.75; N, 3.73. Found: C, 70.28 ; H, 3.70; N, 3.70.
7-(3-Nitrophenyl)-10, 11-dihydro-6H-chromeno[4, 3-b]quinoline-6, 8-dione (2j).
White solid, 1.45 g (yield 70%), mp = 161-163 °C, Rf = 0.64 (2:8 EtOAc/Petrolum Ether).
νmax cm-1(KBr): 3086 (C-H aromatic), 2849 (C-H aliphatic), 1748 (C=O ester), 1693 (C=O ketone), 1543, 1343 (N=O nitro aryl), 765 (C-H bending).
1HNMR (CDCl3), δ (ppm): 2.28 (qn, 2H, J = 6.6 Hz, H10), 2.68 (t, 2H, J = 6.6 Hz, H9), 3.39 (t, 2H, J = 6.6 Hz, H11), 7.33 (d, 1H, J = 8.0 Hz, H4), 7.42-7.48 (m, 2H, H2, H17), 7.61-7.66 (m, 2H, H3, H18), 7.98 (s, 1H, H14), 8.31 (d, 1H, J = 7.75 Hz, H16), 8.70 (d, 1H, J = 8.0 Hz, H1).
13CNMR (CDCl3δ
MS : m/z (%), 386 (M+, 30), 289 (37), 167 (62.5), 149 (51), 121 (29), 77 (98), 43 (100).
Anal. Calcd for C23H17NO3: C, 77.73; H, 4.82; N, 3.94. Found: C, 77.69 ; H, 4.80; N, 3.86.
7-(4-Nitrophenyl)-10, 11-dihydro-6H-chromeno[4, 3-b]quinoline-6, 8-dione (2k).
White solid, 1.39 g (yield 67%), mp = 265-267 °C, Rf = 0.63(2:8 EtOAc/Petrolum Ether).
νmax cm-1(KBr): 3072 (C-H aromatic), 2951, 2849 (C-H aliphatic), 1741 (C=O ester), 1689 (C=O ketone), 1547, 1346 (N=O nitro aryl), 765 (C-H bending).
1HNMR (CDCl3), δ(ppm): 2.25 (qn, 2H, J = 6.4 Hz, H10), 2.68 (t, 2H, J = 6.4 Hz, H9), 3.39 (t, 2H, J = 6.4 Hz, H11), 7.30 (d, 2H, J = 8.6 Hz, H14, H18), 7.33 (d, 1H, J = 8.2 Hz, H4), 7.43 (t, 1H, J = 8.0 Hz, H2), 7.64 (t, 1H, J = 8.0 Hz, H3), 8.31 (d, 2H, J = 8.6 Hz, H15, H17), 8.70 (d, 1H, J = 8.0 Hz, H1).
13δ
MS : m/z (%),386 (M+, 12.5), 289(34), 265(18), 121(80), 84(100), 57(75).
Anal. Calcd for C23H17NO3: C, 77.73; H, 4.82; N, 3.94. Found: C, 77.80; H, 4.92; N, 3.89.
7-(3-Bromophenyl)-10, 11-dihydro-6H-chromeno[4, 3-b]quinoline-6, 8-dione (2l).
White solid, 1.44 g (yiled 64%), mp = 184-186 °C, Rf = 0.72 ( 2:8 EtOAc/Petrolum Ether).
νmax cm-1(KBr): 3070 (C-H aromatic), 2954 (C-H aliphatic), 1748 (C=O ester), 1693 (C=O ketone), 768 (C-H bending).
1HNMR (CDCl3), δ (ppm): 2.25 (qn, 2H, J = 6.5 Hz, H10), 2.69 (t, 2H, J = 6.5 Hz, H9), 3.39 (t, 2H, J = 6.5 Hz, H11), 7.08 (d, 1H, J = 7.6 Hz, H16), 7.24 (s, 1H, H14), 7.32, 7.35 (m, 2H, H4, H17), 7.41 (t, 1H, J = 8.0 Hz, H2), 7.58 (d, 1H, J = 7.6 Hz, H18), 7.64 (t, 1H, J = 8.0 Hz, H3), 8.68 (d, 1H, J = 8.0 Hz, H1).
13CNMR (CDCl3), δ: 20.85, 34.58, 40.24, 114.88, 116.91, 118.64, 122.04, 124.71, 125.03, 126.16, 127.22, 128.96, 129.38, 130.52, 133.50, 140.01, 153.40, 154.08, 154.40, 158.08, 169.61, 196.06.
MS : m/z (%), 421 (M+ +2, 98), 419 (100), 340 (33), 312 (68), 169 (80), 155 (38), 127 (67), 113 (70), 100 (60), 87 ( 47).
Anal. Calcd for C22H14BrNO3: C, 62.87; H, 3.36; N, 3.33. Found: C, 62.78 ; H, 3.29; N, 3.40.
7-(4-Bromophenyl)-10, 11-dihydro-6H-chromeno[4, 3-b]quinoline-6, 8-dione (2m).
White solid, 1.47 g (yiled 65%), mp = 279-281 °C Rf = 0.77 ( 2:8 EtOAc/Petrolum Ether).
νmax cm-1(KBr): 3042 (C-H aromatic), 2922 (C-H aliphatic), 1745 (C=O ester), 1693 (C=O ketone), 771 (C-H bending).
1HNMR (CDCl3), δ (ppm): 2.24 (qn, 2H, J = 6.5 Hz, H10), 2.67 (t, 2H, J = 6.5 Hz, H9), 3.38 (t, 2H, J = 6.4 Hz, H11), 6.98 (d, 2H, J = 8.3 Hz, H14, H18), 7.32 (d, 1H, J = 7.0 Hz, H4), 7.40 (t, 1H, J = 7.0 Hz, H2), 7.58 (d, 2H, J = 8.3 Hz, H15, H17), 7.62 (t, 1H, J = 70 Hz, H3), 8.67 (d, 1H, J = 7.0 Hz, H1). 13CNMR (CDCl3), δ: 20.87, 34.56, 40.28, 114.92, 116.91, 118.68, 124.71, 126.16, 126.26, 127.40, 127.91, 131.19, 133.48, 136.99, 153.39, 154.08, 155.10, 158.23, 169.57, 196.34.
MS : m/z (%), 421 (M+ +2, 11), 419 (M+, 11), 330 (13), 289 (100), 216 (22), 149 (20), 83 (31), 57 (76).
Anal. Calcd for C22H14BrNO3: C, 62.87; H, 3.36; N, 3.33. Found: C, 62.79 ; H, 3.37; N, 3.40.
7-(Phenyl)-10, 11-dihydro-6H-chromeno[4, 3-b]quinoline-6, 8-dione (2n).
Yellowish solid, 1.36 g (yield 74%), mp = 121-123 °C, Rf = 0.79 (2:8 EtOAc/Petrolum Ether).
νmax cm-1(KBr): 3056 (C-H aromatic), 2949 (C-H aliphatic), 1744 (C=O ester), 1693 (C=O ketone), 776 (C-H bending).
1HNMR (CDCl3), δ (ppm): 2.25 (qn, 2H, J = 6.6 Hz, H10), 2.68 (t, 2H, J = 6.6 Hz, H9), 3.38 (t, 2H, J = 6.6 Hz, H11), 7.13 (m, 2H, H14, H18 ), 7.32 (d, 1H, J = 8.0 Hz, H4), 7.42 (t, 1H, J = 8.0 Hz, H2), 7.46 (m, 3H, H15, H16, H17), 7.61 (t, 1H, J = 8.0 Hz, H3), 8.68 (d, 1H, J = 8.0 Hz, H1).
13CNMR (CDCl3), δ: 20.91, 34.57, 40.30, 115.06, 116.87, 118.80, 124.59, 124.75, 126.13, 126.16, 127.56, 127.92, 133.30, 138, 153.43, 153.95, 156.38, 158.19, 169.38, 196.36.
MS : m/z (%), 341 (M+, 81), 313 (69), 289 (38), 196 (44), 120 (75), 90 (100), 76 (44).
Anal. Calcd for C22H15NO3: C, 77.41, H, 4.43; N, 4.10. Found: C, 77.39; H, 4.40; N, 4.09.
Pharmacology
RPMI 1640, fetal bovine serum (FBS), trypsin and phosphate buffered saline (PBS) were purchased from Biosera (Ringmer, UK). 3-(4, 5-Dimethylthiazol-2-yl)-2, 5-diphenyltetrazolium bromide (MTT) was obtained from Sigma-Aldrich (Saint Louis, MO, USA) and penicillin/streptomycin was purchased from Invitrogen (San Diego, CA, USA). Doxorubicin and dimethyl sulphoxide were obtained from EBEWE Pharma (Unterach, Austria) and Merck (Darmstadt, Germany), respectively.
Cell lines and Maintenance of human cell lines
K562 (human chronic myelogenous leukemia), LS180 (human colon adenocarcinoma) and MCF-7 (human breast adenocarcinoma) cells μ2 and were grown in monolayer cultures, except for K562 cells, which were grown in suspension.
MTT-based Cytotoxicity assay
Cell viability following exposure to synthetic compounds was estimated by using the MTT reduction assay (19-20). K562 and LS180 cells were plated in 96-well microplates at a density of 5 × 104 cells/mL (100 μL per well), While MCF-7cells were plated at densities of 3 × 105. Control wells contained no drugs and blank wells contained only growth medium for background correction. After overnight incubation at 37 °C, half of the growth medium was removed and 50 μL of medium supplemented with 3 different concentrations of synthetic were added in duplicate. Plates with K562 cells were centrifuged before this procedure. Compounds were all first dissolved in DMSO and then diluted in the growth medium. The maximum concentration of DMSO in the wells was 0.5%. Cells were further incubated for 72 h and at the end of the incubation time; the medium was replaced with fresh medium containing 0.5 mg/mL of MTT. Plates were incubated for another 4 h at 37 °C. Then the formazan crystals formed in the cells dissolved in 200 μL DMSO. The optical density was measured at 570 nm with background correction at 655 nm using a Bio-Rad microplate reader (Model 680). The percentage inhibition of viability for each concentration of compound was calculated compared to the control wells and IC50±
Conformational study
The chemical structure of molecules was constructed using Hyperchem (Version 7, Hypercube Inc., http://www.hyper.com, USA). The Z-matrices of the structures were provided by the software and were then transferred to the Gaussian 98 program (21). Complete geometry optimization was performed taking the most extended conformations as starting geometries. Semi empirical molecular orbital calculations (AM1) of the structures were performed using Gaussian 98 program. Then we calculated some important dihedral angles of this optimized structure such as orientation of C7-aryl substitute and conformation of cyclohexenone ring.

Results and Discussion

In this paper, we aromatized synthesized dihydropyridines (DHPs) (1) in the presence of oxidizing reagent, silica sulfuric acid/NaNO2 to corresponding new pyridine derivatives (2), (Scheme 1).

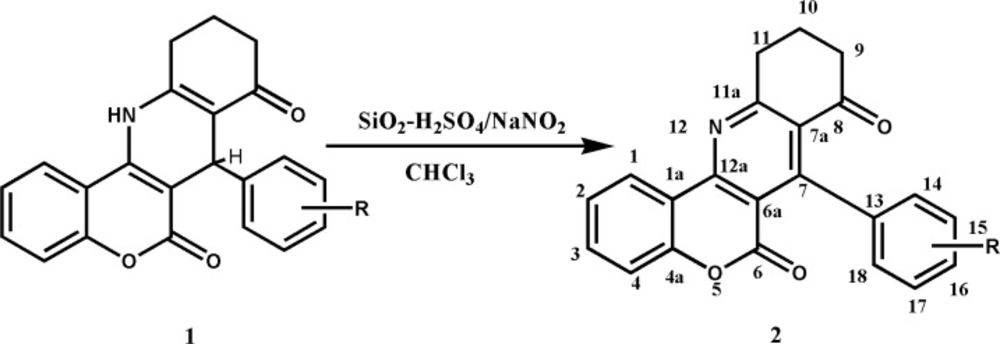

synthetic route for oxidative aromatization of chromeno[4, 3-b]quinoline
Scheme 1

synthetic route for oxidative aromatization of chromeno[4, 3-b]quinoline

We first used the most common methods of oxidation by means of oxidizing agents such as Mn(IV), Ti(IV) and V(V) for the oxidation of compound 1, but all these methods proved unsuccessful. However, compound 1 could be aromatized to compound 2 using silica sulfuric acid and sodium nitrite in boiling chloroform with 64-74 yields. All reactions were completed in an appropriate time and gave only the corresponding pyridine derivatives. The results are summarized in Table 1.
Table 1Reactions time and yields of oxidation reaction
CompoundRTime(h)Yield (%)MP(0C)
2a2-CH3871210-212
2b3-CH3864172-174
2c4-CH3868241-243
2d2-OCH3871180-182
2e3-OCH3866155-157
2f4-OCH3875185-187
2g2-Cl966253-255
2h3-Cl868188-190
2i4-Cl870281-283
2j2-NO21270161-163
2k4-NO21267265-267
2l3-Br864184-186
2m4-Br865279-281
2nH874121-123
The proposed mechanism involved two steps; nitrosation of DHP by nitrous acid and aromatization by losing hydrogen and NO (Scheme 2). Nitrosation reaction was performed under mild and heterogeneous conditions. In this reaction, wet SiO2 acts as a media and provides a heterogeneous effective surface area for in situ generation of HNO2.

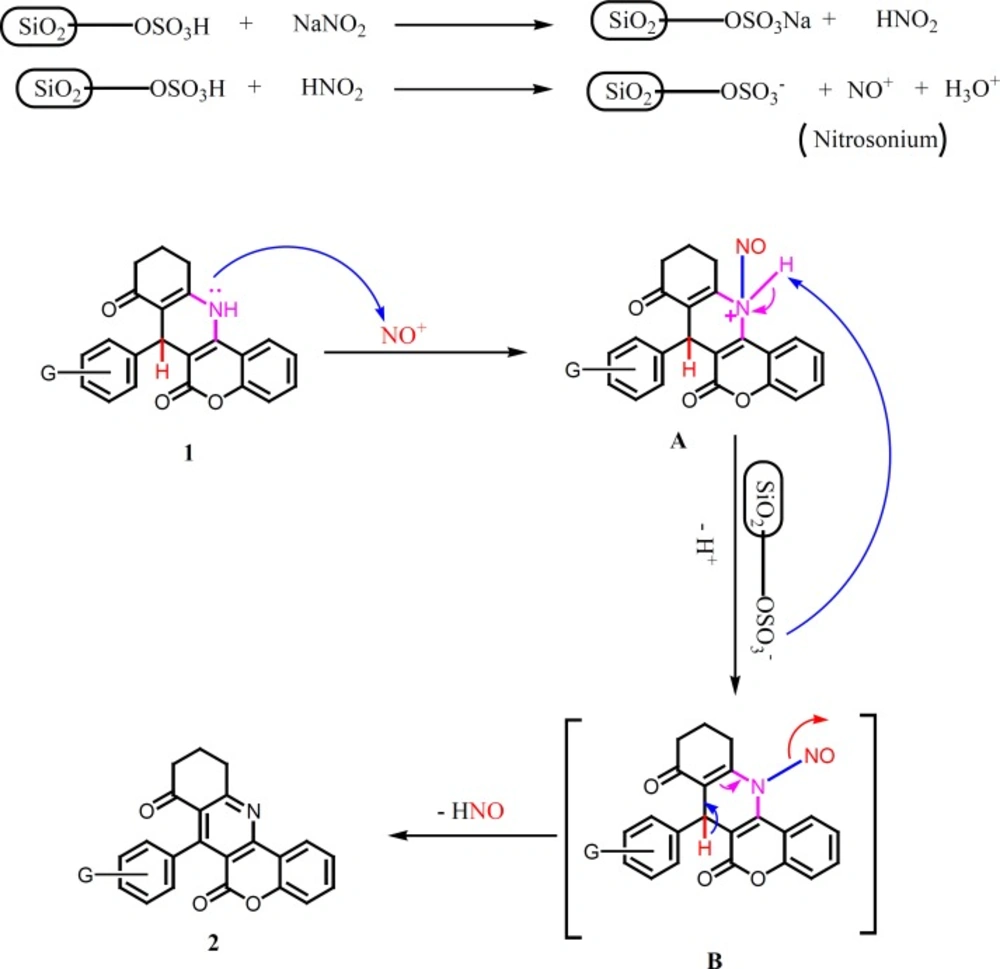

Probable Mechanism pathway for the aromatization of Chromeno [4, 3b]quinoline
Scheme 2

Probable Mechanism pathway for the aromatization of Chromeno [4, 3b]quinoline

The structures of compounds were confirmed by 1H NMR, 13CNMR and EI-MS spectra. The 1H NMR spectra showed the high deshielding character of aliphatic protons from 1.8-2.9 in 1 to 2.2-3.5 in 2 confirming the formation of pyridine. The protons belonging to CH and NH in dihydropyridine of compounds 1 was disappeared in compounds 2. Mass spectrum and elemental analysis clearly supports the proposed structure.
The cytotoxic activity of synthesized compounds was evaluated in three different human cancer cell lines including K562 (chronic myelogenous leukemia), LS180 (colon adenocarcinoma) and MCF-7 (breast adenocarcinoma). Data are demonstrated in Table 2. Compounds showed moderate cytotoxic activities. The most active one apeared to be 2e, containing a methoxy group on the meta position of phenyl ring, with the lowest IC50 values (11.1, 26.8 and 55.7 µM on LS180, MCF-7 and K562 cells, respectively). When comparing this most potent compound with the dihydropyridine derivative counterpart of our previous study (14) (1e containing methoxy group on meta position of phenyl ring) an interesting result is achieved; 1e is not active on any of these cell lines (the IC50 of 1e is greater than 100 µM in all three cell lines). The other compounds 2c, 2m and 2k also showed good activities. All of these compounds are more potent than the corresponding dihydropyridine derivatives especially in LS-180 cell line (the corresponding IC50 of 2c, 2m and 2k in LS-180 cell line is 21.9, 41.9 and 38.7 µM respectively. However, 1c, 1m and 1k were not active in this cell line and 2d, 2g and 2b compunds were inactive on all three cell lines (14).
Table 2Cytotoxic activity of synthetic compounds assessed by the MTT reduction assay
IC50 (µM)
CompoundK562 cellsLS180 cellsMCF-7cells
2l137.1 ± 48.1 200120.8 ± 29.8
2n116.1 ± 31.7 20090.6 ± 23.1
2f 20046.9 ± 9.185.4 ± 21.7
2d 200 200 200
2i67.6 ± 9.4 20055.0 ± 20.5
2e55.7 ± 26.711.1 ± 3.526.8 ± 5.9
2c89.9 ± 43.121.9 ± 3.663.5 ± 13.9
2h 200 200133.6 ± 30.2
2g 200 200 200
2a132.0 ± 13.5 200 200
2k147.5 ± 7.638.7 ± 12.166.4 ± 14.1
2m52.5 ± 13.641.9 ± 6.543.8 ± 6.9
2b 200 200 200
Cisplatin6.5 ± 0.515.5 ± 1.915.7 ± 9.6
By comparing the pyridine derivatives with the non-oxidized drivatives of our previous study (14), it can be concluded that the cytotoxic activity of some pyridine derivatives are improved especially in LS180 cell lines. Therefore the condensation and aromatization of the structure resulted in enhanced antitumoral activity in most of studied compounds.
The optimized 3D structures of molecules (1a-n and 2a-m) were obtained by semi-empirical molecular orbital calculations (AM1). Structures of six compounds are presented in Figure. 1. The calculated dihedral angles are represented in Table 3.

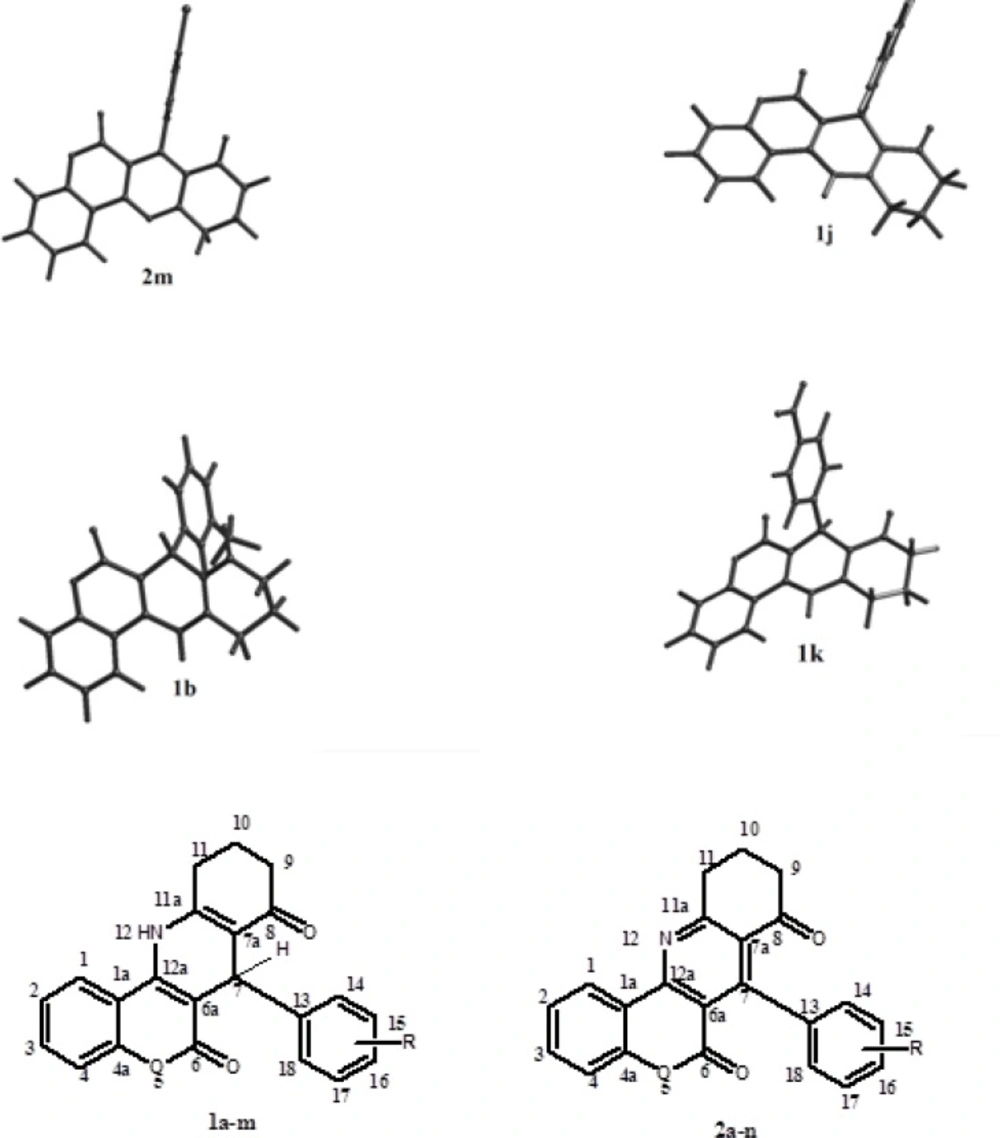

The optimized three-dimensional structural representation of six selected compounds
Figure 1

The optimized three-dimensional structural representation of six selected compounds

Table 3Geometrical features of the optimized structures of synthesized compounds
CompoundRpIC50K562 cellspIC50LS180 cellspIC50MCF7 cellsФ1a (◦)Ф2b (◦)Ф3c (◦)
1a2-CH3NAdNANDe35.9760.69-102.43
1b3-CH34.244.28ND36.69134.21-103.23
1c4-CH34.254.18ND36.9058.15-102.18
1d2-OCH3NANAND36.71-123.64-102.18
1e3-OCH3NANAND44.7551.99-100.60
1f4-OCH3NA4.21ND35.81-123.56-101.88
1g2-ClNANAND37.4555.95-102.13
1h3-Cl4.294.14ND37.41-145.51-104.01
1i4-Cl4.434.38ND38.5960.22-103.33
1j2-NO24.604.23ND20.69-63.87101.47
1k4-NO24.36NAND15.71130.28113.42
1l3-Br4.414.50ND23.11-67.25101.24
1m4-Br4.324.34ND20.25-61.37101.71
2a2-CH33.88NAND-33.88-92.55-179.32
2b3-CH3NANAND-52.81-75.72-173.63
2c4-CH34.054.664.20-47.26-94.67-179.92
2d2-OCH3NANANA-53.46-77.95-150.79
2e3-OCH34.254.954.57-40.98-101.115-177.93
2f4-OCH3NA4.334.07-47.36-96.79-179.28
2g2-ClNANANA-49.20-91.61-173.87
2h3-ClNANA3.87-39.98-95.41-178.63
2i4-Cl4.17NA4.26-47.47-93.20-176.10
2j2-NO2NANANA-37.88-96.99-178.68
2k4-NO23.834.414.18-41.58-98.02-178.94
2l3-Br3.86NA3.92-43.05-93.33-178.58
2m4-Br4.284.384.36-50.73-81.2-173.87
2nH3.94NA4.04-44.02-94.73-179.06
The cyclohexenone ring exhibited a semi-boat conformer in all studied derivatives. The “C6a–C7–C13–C14” dihedral angle reflects the orientation of aryl group at C7 position. As it can be seen in Table 3, the aryl group positioned at the axial coordinate especially in oxidized derivatives 2a-m (the relevant dihedral angle is 90-100◦). However, some deviation from axial orientation is seen in non-oxidized group 1a-n. Besides, the deviation of aryl ring from axial position is clear in less potent compounds. Moreover, it seems that the main difference of pyridine 2a-m and dihydropyridine 1a-n derivatives is the spatial orientation of C7-aryl ring with respect to the main structure (Table 3). The dihydropyridine series 1a-n show approximately antiplanar position with respect to four main ring structure (the relevant dihedral angle is 90-100◦). While in pyridine series 2a-m, the aryl ring adopt synplanar orientation with respect to main four ring structure in most cases (Ф3 is near 180◦ or -180◦).

Conclusion

In search of novel antitumoral compounds, a set of 7-aryl-10,11-dihydro-7H-chromeno [4,3-b] quinoline-6,8(9H, 12H)-dione derivatives were synthesized by a simple one-pot method using silica sulfuric acid/NaNO2 as an oxidative agent for aromatization of 1,4-DHPs. The cytotoxic activity of these compounds was evaluated in-vitro on three different cancer cell lines (K562, LS180, and MCF-7). Most of synthetic compounds showed moderate cytotoxic activities. Comparison of the cytotoxic activity of these novel oxidized derivatives with non-oxidized counterpart revealed that oxidation of dihydropyridine ring to pyridine, improves the cytotoxic activity especially in LS180 cell line. Conformational analysis revealed that some conformational aspects of oxidized derivatives such as orientation of C7-aryl were clearly different from non-oxidized ones. Therefore, these novel condensed derivatives seem to have promising anticancer properties and further investigation on this group, especially by optimization of heterocyclic and aromatic rings of the structure, could potentially lead to the discovery of potent cytotoxic agents.

Acknowledgments

References

  • 1.
    Triggle DL. In Comprehensive Medicinal Chemistry. 3. Oxford: Pergmon; 1990. p. 293-313.
  • 2.
    Edraki N, Mehdipour AR, Khoshneviszadeh M, Miri R. Dihydropyridines: evaluation of their current and future pharmacological applications. Drug Discovery Today. 2009;14:1058-1066. [PubMed ID: 19729074].
  • 3.
    Sirisha K, Achaiah G, Reddy VM. Facile synthesis and antibacterial, antitubercular, and anticancer activities of novel 1, 4-dihydropyridines. Arch Pharm. Chem. Life Sci. 2010;343:342-352.
  • 4.
    Ryabokona NI, Nikitchenkob NV, Dalivelyab OV, Goncharovab RI, Dubursc G, Konopackaa M, Rzeszowska-Wolnya J. Modulation of cellular defense processes in human lymphocytes in-vitro by a1, 4- dihydropyridine derivative. Mut Res. 2009;679:33-38. [PubMed ID: 19660575].
  • 5.
    Tasaka S, Hiromasa Ohmori, Noriaki Gomi, Mayumi Iino, Machida H, Kiue A, Naito S, Kuwanoc M. Synthesis and structure activity analysis of novel dihydropyridine derivatives to overcome multidrug résistance. Bioorg Med. Chem. Lett. 2011;11:275-277. [PubMed ID: 11206476].
  • 6.
    Foroughinia F, Javidnia K, Amirghofran Z, Mehdipour AR, Miri R. Design and synthesis of new symmetrical derivatives of dihydropyridine containing a pyridyl group on the 3, 5-positions and evaluation of their cytotoxic and multidrug resistance reversal activity. J Pharm. Pharmacol. 2008;60:1481-1489. [PubMed ID: 18957169].
  • 7.
    Kawase M, Shah A, Gaveriya H, Motohashi N, Sakagami H, Vargae A, Molna J. 3, 5-Dibenzoyl-1, 4-dihydropyridines: synthesis and MDR reversal in tumor cells. Bioorg Med. Chem. 2002;10:1051-1055. [PubMed ID: 11836114].
  • 8.
    Mehdipour AR, Javidnia K, Hemmateenejad B, Amirghofran Z, Miri R. Dihydropyridine derivatives to overcome atypical multidrug resistance: design, synthesis, QSAR studies, and evaluation of their cytotoxic and pharmacological activities. Chem Biol. Drug Des. 2007;70:337-346. [PubMed ID: 17937779].
  • 9.
    Su CR, Yeh SF, Liu CM, Damu AG. Anti-HBV and cytotoxic activities of pyranocoumarine derivatives. Bioorg Med. Chem. 2009;17:6137-6143. [PubMed ID: 19635670].
  • 10.
    Stanchev S, Momekov G, Jensen F, Manolov I. Synthesis, computational study and cytotoxic activity of new 4-hydroxycoumarin derivatives. Eur J. Med. Chem. 2008;43:694-706. [PubMed ID: 17614164].
  • 11.
    El-Bassuony AA, Gohar AA, Kabbash AM. Two New Sesquiterpene Coumarins, Ferusinol and Samarcandin Diastereomer, from Ferula sinaica. Iran J. Pharm. Res. 2007;6:217-221.
  • 12.
    Marshall ME, Kervin K, Benefield C, Umerani A, Albainy-Jenei S, Zhao Q, Khazaeli MB. Growth-inhibitory effects of coumarin (1, 2-benzopyrone) and 7-hydroxycoumarin on human malignant cell lines in-vitro. J Cancer Res. Clin. Oncol. 1994;120:3-10.
  • 13.
    Jung JC, Lee JH, Oh S, Lee JG, Park OS. Synthesis and antitumor activity of 4-hydroxycoumarin derivatives. Bioorg Med. Chem. Lett. 2004;14:5527-5531. [PubMed ID: 15482917].
  • 14.
    Miri R, Motamedi R, Rezai MR, Firuzi O, Javidnia K, Shafiee A. Design, synthesis and evaluation of cytotoxicity of novel chromeno[4, 3-b]- quinoline derivatives. Arch Pharm. Chem. Life Sci. 2010;344:111-118.
  • 15.
    Navidpour L, Shafaroodi H, Miri R, Dehpour AR, Shafiee A. lipophilic 4-Imidazolyl 1, 4-dihydropyridines: Synthesis, calcium channel antagonist activity and protection against pentylenetetrazol-induce. Farmaco II. 2004;59:261-269.
  • 16.
    Jamalian A, Shafiee A, Hemmateenejad B, Khoshneviszadeh M, Miri R, Madadkar-Sobhanie A, Bathaie SZ, Moosavi-Movahedie AA. Novel imidazolyl derivatives of 1,8-acridinedione as potential DNA-intercalating agents. J Iran. Chem. Soc. 2011;8:1098-1112.
  • 17.
    Shafiee A, Motamedi R, Firozi O, Meili S, Mehdipour AR, Miri R. Synthesis and cytotoxic activity of novel benzopyrano[3, 2-c]chromene-6, 8-dione derivatives. Med Chem. Res. 2011;20:466-474.
  • 18.
    Miri R, Firuzi O, Peymani P, Nazarian Z, Shafiee A. Synthesis and Cytotoxicity Study of New Cyclopenta [b] quinoline-1,8-dione Derivatives. Iran J. Pharm. res. 2011;10:489-496. [PubMed ID: 24250380].
  • 19.
    Firuzi O, Asadollahi M, Gholami M, Javidnia K. Comparison and biological activities of essential oils from four Heracleum species. Food Chem. 2010;122:117-122.
  • 20.
    Mosmann T. Rapid colorimetric assay for cellular growth and survival: Application to proliferation and cytotoxicity assays. J Immunol. Methods. 1983;65:55-63. [PubMed ID: 6606682].
  • 21.
    Frisch MJ, Trucks MJ, Schlegel HB, Scuseria GE, Robb MA, Cheeseman JR, Zakrzewski VG, Montgomery JA, Stratmann JR, Burant JC, Dapprich S, Millam JM, Daniels AD, Kudin KN, Strain MC, Farkas O, Tomasi J, Barone V, Cossi M, Cammi R, Mennucci B, Pomelli C, Adamo C, Clifford S, Ochterski J, Petersson GA, Ayala PY, Cui Q, Morokuma K, Malick DK, Rabuck AD, Raghavachari K, Foresman JB, Cioslowski J, Ortiz JV, Baboul AG, Stefanov BB, Liu G, Liashenko A, Piskorz P, Komaromi I, Gomperts R, Martin RL, Fox DJ, Keith T, Al-Laham MA, Peng CY, Nanayakkara A, Gonzalez C, Challacombe M, Gill PMW, Johnson B, Chen W, Wong MW, Andres JL, Gonzalez C, Head-Gordon M, Replogle ES, Pople JA. Gaussian 98. Pittsburgh: Revision A.7. Gaussian Inc; 1998.

Copyright

© 2014 by School of Pharmacy, Shaheed Beheshti University of Medical Sciences and Health Services. This is an Open Access article distributed under the terms of the Creative Commons Attribution License, (http://creativecommons.org/licenses/by/3.0/) which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Similar Articles

20
Nov
2017
Can Functionalization of Quinoline Derivatives Be Exploited to Control Quinolines Cytotoxic Effects?

Can Functionalization of Quinoline Derivatives Be Exploited to Control Quinolines Cytotoxic Effects?

Zahra Hami,
Ramin Zibaseresht

Hami Z, Zibaseresht R. Can Functionalization of Quinoline Derivatives Be Exploited to Control Quinolines Cytotoxic Effects?. J Arch Mil Med. 2017;5(4):e58194. doi: https://doi.org/10.5812/jamm.58194

30
Apr
2017

Synthesis, In-Vitro Activity and Metabolic Properties of Quinocetone and Structurally Similar Compounds

Keyu Zhang,
Chunmei Wang,
Xiaoyang Wang,
Haihong Zheng,
Juan Zhao,
Mi Wang
,et al.

Zhang K, Wang C, Wang X, Zheng H, Zhao J, et al. Synthesis, In-Vitro Activity and Metabolic Properties of Quinocetone and Structurally Similar Compounds. Iran J Pharm Res. 2017;16(2):e125004. doi: https://doi.org/10.22037/ijpr.2017.2039

31
Jul
2017

Esters of Quinoxaline 1ˏ4-Di-N-oxide with Cytotoxic Activity on Tumor Cell Lines Based on NCI-60 Panel

Gildardo Rivera,
Syed Shoaib Ahmad Shah,
Daniel Arrieta-Baez,
Isidro Palos,
Antonio Mongue,
Luvia Enid Sánchez-Torres

Rivera G, Ahmad Shah SS, Arrieta-Baez D, Palos I, Mongue A, et al. Esters of Quinoxaline 1ˏ4-Di-N-oxide with Cytotoxic Activity on Tumor Cell Lines Based on NCI-60 Panel. Iran J Pharm Res. 2017;16(3):e124983. doi: https://doi.org/10.22037/ijpr.2017.2065

31
Jan
2016

Synthesis, Biological Evaluation and Docking Analysis of Some Novel Quinazolin Derivatives as Antitumor Agents

Walaa S. El-serwy,
Neama A. Mohamed,
Emad M. M. Kassem,
Khaled Mahmoud,
M. M Mounier

El-serwy WS, A. Mohamed N, M. M. Kassem E, Mahmoud K, Mounier MM. Synthesis, Biological Evaluation and Docking Analysis of Some Novel Quinazolin Derivatives as Antitumor Agents. Iran J Pharm Res. 2016;15(1):e125119. doi: https://doi.org/10.22037/ijpr.2016.1799

18
Apr
2023
Innov J Pharm Res

Synthesis, Antioxidant, Cytotoxicity, Induce Apoptosis Investigation and Docking Study of New Halogenated Dihydropyrano[3,2-b]Chromene-3-Carbonitrile Derivatives on MCF-7 Breast Cancer Cell Line

Touba Eslaminejad,
Ehsan Faghih Mirzaei,
Mehdi Abaszadeh

Eslaminejad T, Faghih Mirzaei E, Abaszadeh M. Synthesis, Antioxidant, Cytotoxicity, Induce Apoptosis Investigation and Docking Study of New Halogenated Dihydropyrano[3,2-b]Chromene-3-Carbonitrile Derivatives on MCF-7 Breast Cancer Cell Line. Iran J Pharm Res. 2023;22(1):e132932. doi: https://doi.org/10.5812/ijpr-132932

Download PDF508.47 KB
Import into EndNoteImport into BibTex
Crossmark

Crossmark

Checking

Share on
Comments
Number of Comments:0
Cited by
Metrics
Licensing and reuse information

Ordering Reprints

Articles are published under the Creative Commons license stated on each article. No permission or royalty fee is required for uses permitted by that license. CCC handles optional bulk and customized reprint orders. Any quotation covers production and delivery services only, not copyright permission. > Request Reprints from CCC

Search Relations

Author(s):

Related Articles

Related Article in PubMed

Related Article in Google Scholar

Create Citation Alert via Google Reader
