1. Background
Raw sewage contains many fecal bacteria which are naturally exposed to antibiotic residues and eventually become resistant to several antibiotics (1). Sewage treatment plants (STP) are considered to be the hotspots for antibiotic resistance transfer among bacterial species in the collected water from different sources (2). Enterococci are common microorganisms in environment where animal and human fecal materials are present (3). Over the past two decades, Enterococcus has been identified with an increasing frequency as the agent of nosocomial infections (4). At the same time, there has been a corresponding increase of antimicrobial resistance to most currently approved antibiotics among Enterococcus (2).
In recent years there has been a special concern about the Enterococci with high resistance to the glycopeptide antibiotics such as vancomycin. Until now, this group of drugs has been the last option against multiresistant Enterococci infections (3). VanA phenotype, which is responsible for high resistance to both vancomycin and teicoplanin, is the most important phenotype among different types of vancomycin resistance (5). In contrast to vanA positive Enterococci, strains carrying vanB gene are not being associated to the disease outbreaks (5).
As a result of a highly acquired antibiotic resistance, Enterococci are recognized as the main spreading agent of the vancomycin resistance in intra- and inter- enterococcal species (6). Since the antibiotic resistance genes involved in spreading of resistance, in part, are transferable via plasmids, Enterococci can contribute to the spread of antibiotic resistances in the environment (7). Although, plasmid profiling is very simple and rapidly performed, it is considered to have a low discriminatory power (8). Combination of plasmid profile, antibiotic resistance and biochemical fingerprinting could increase the ability to analyze the diversity of the isolated species.
2. Objectives
Study on the diversity of vancomycin resistant Enterococcus faecium in Tehran sewage by plasmid profile, biochemical fingerprinting and antibiotic resistance.
3. Materials and Methods
3.1. Sample Collection
Samples were collected three times from December 2009 to February 2010. The sampling was carried out in Ekbatan central STP located in west of Tehran. Samples were collected from urban raw sewages kept in sterile 250 mL bottles and transported to the laboratory on ice and analyzed within 3 hours.
3.2. Isolation of Enterococci
The samples were diluted 10-fold with phosphate-buffered saline and 200mL of diluted samples were filtered with 0.45μm filter membrane (Millipore Corporation, Bedford, MA, USA). The filters were put on brain heart infusion (Merck, KGaA, Darmstadt, Germany) agar and incubated at 37°C for 2 hours. Then the filters were transferred on Enterococcus agar (Becton Dickinson and Co., Sparks, MD, USA) containing 8 μg/mL vancomycin and incubated at 45°C for 48 hours (5). The filters were transferred to bile Esculin agar and incubated at 45°C for 2 hours. Black colonies were selected and biochemical tests including catalase, pyrrolidonylarylamidase (PYR) and growth on 6.5% NaCl condition (Merck, KGaA, Darmstadt, Germany) were performed. The isolates that grew under 6.5% NaCl and 45°C conditions, catalase negative and Esculin and PYR positive were defined as Enterococci (5).
These isolates were identified to the species level using the following biochemical tests; acid production of L-arabinose, lactose, D-sorbitol, D-mannitol, L-sorbose, methyl-α-D-glucopyranoside, arginine dihydrolase, motility, hippurate hydrolysis, haemolysis, pigmentation, and reduction of 0.04% tellurite (Merck, KGaA, Darmstadt, Germany) (9).
3.3. Antimicrobial Susceptibility Test
Disk diffusion was done for seven common used antibiotics according to the CLSI guidelines (10). The following antibiotics were tested: ampicillin (10 µg), gentamicin (10 µg), vancomycin (30 µg), ciprofloxacin (5 µg), chloramphenicol (30 µg), erythromycin (15 µg), tetracycline (30 µg) (BBL, Sensi Disk, USA). The minimum inhibitory concentration (MIC) of the vancomycin and teicoplanin was evaluated by using E test (AB Biodisk, Sweden) (10). E. faecalis (ATCC 29212) and E. faecalis (ATCC 51299) were used as control strains.
3.4. Plasmid Extraction and PCR
Extraction of plasmid DNA was performed with a QIAprep Miniprep kit (Qiagen GmbH, Hilden, Germany) according to the manufacturer recommendations. Plasmid DNA separated by 0.8% agarose gel electrophoresis and stained with ethidium bromide. The patterns clustered by unweighted pair-group method with arithmetic averages (UPGMA) and Gelcompar II version 4.0 (Applied Maths, Sint-Matens-latem, Belgium). All VREF were tested for van genes using plasmid DNA. Identification of van genotype (vanA and vanB) for each isolate of VREF was performed by PCR with specific primers.
Primer sequences (vanA: 5'-CATGAATAGAATAAAAGTTGCAATA-3', 5'-CCCCTTTAACGCTAATACGATCAA-3'vanB: 5'-GTGACAAACCGGAGGCGAGGA-3', 5'-CCGCCATCCTCCTGCAAAAAA-3') were derived from the published sequences of the genes (11). PCR assay was performed in a total volume of 25 µL containing 40 pM of each primer, 1.5 mM MgCl2, 0.2 mM of each dNTP,10 mM Tris-HCl (pH 8.3), 0.5 U of Taq DNA polymerase (HT Biotechnology, Cambridge, United Kingdom). The PCR was done using the following cycling condition: initial denaturation at 94° C for 3 minutes, 30 cycles of denaturation at 94° C for 1 minute, annealing at 54° C for 1 minute and extension at 72° C for 1 minute and a final extension at 72°C for 10 minute. The amplified PCR mixtures were identified by electrophoresis using 1% agarose gel and 90 V. The gels were then stained with ethidium bromide (11).
3.5. Biochemical Fingerprinting
For biochemical typing, the PhP-RF plate method (PhPlate AB, Stockholm, Sweden) was used. Then, eleven quantitative fingerprints were analyzed by PhPWin software version 4221 (PhPlate Microplates Techniques AB, Sweden) to assess the level of similarity (12). Preparation and inoculation of the plates was done according to the manufacturer instruction. The absorbance value (A620) of each well was measured at the 16, 40, and 64hours of incubation. The mean value of all three readings was calculated and the similarity value was measured as the correlation coefficient after pair wise comparison of the strains. After that, the similarity matrix was clustered according to the UPGMA to depict a dendrogram in which each isolate represents a horizontal line connected to each other at the similarity level. An identity level (ID level = 0.965) was set up by testing five isolates in duplicate. Isolates showing similarity level more than the identity levels were considered as identical (Common Biochemical Phenotypes: C-BPT). The diversity was defined as Simpson’s index of diversity (Di). The optical readings, calculation of correlation coefficients, diversity indexes and clustering all were done by the PhPWin software (12).
4. Results
In all, 40 colonies were randomly selected from the colonies grown on Enterococcus agar and bile Esculin agar (BEA). PCR amplification was performed separately for each vanA and vanB genes. All of 40 VRE isolates carried vanA gene (100%) and 5 (13%) isolates harbored vanA and vanB genes, concomitantly.
Antibiotic susceptibility test showed that all VRE isolates (100%) were resistant to 5 antibiotics including ampicillin, erythromycin and ciprofloxacin, vancomycin and teicoplanin. Out of all isolates, 98% were resistant to gentamicin. Among the tested antibiotics, the lowest rate of resistance was found in chloramphenicol (20%) and tetracycline (15%). Overall, 4 different antibiotic resistance patterns were observed for all examined isolates (Table 1).
Table 1.Antibiotic Resistance Pattern of 40 Vancomycin Resistant E. faecium Isolates
| Pattern of Antibiotic Resistance | Isolates, No. (%) | Antibiotic Resistance Group |
|---|---|---|
| Gm /Am/C/E/Cipa | 8 (20%) | 1 |
| Gm /Am/E/TE/Cip | 6 (15%) | 2 |
| Gm /Am/E/ Cip | 24 (60%) | 3 |
| Am/E/Cip | 2 (5%) | 4 |
a Abbreviations: Am, ampicillin; C, chloramphenicol; Cip, ciprofloxacin; Gm, gentamicin; E, erythromycin; TE, tetracycline.

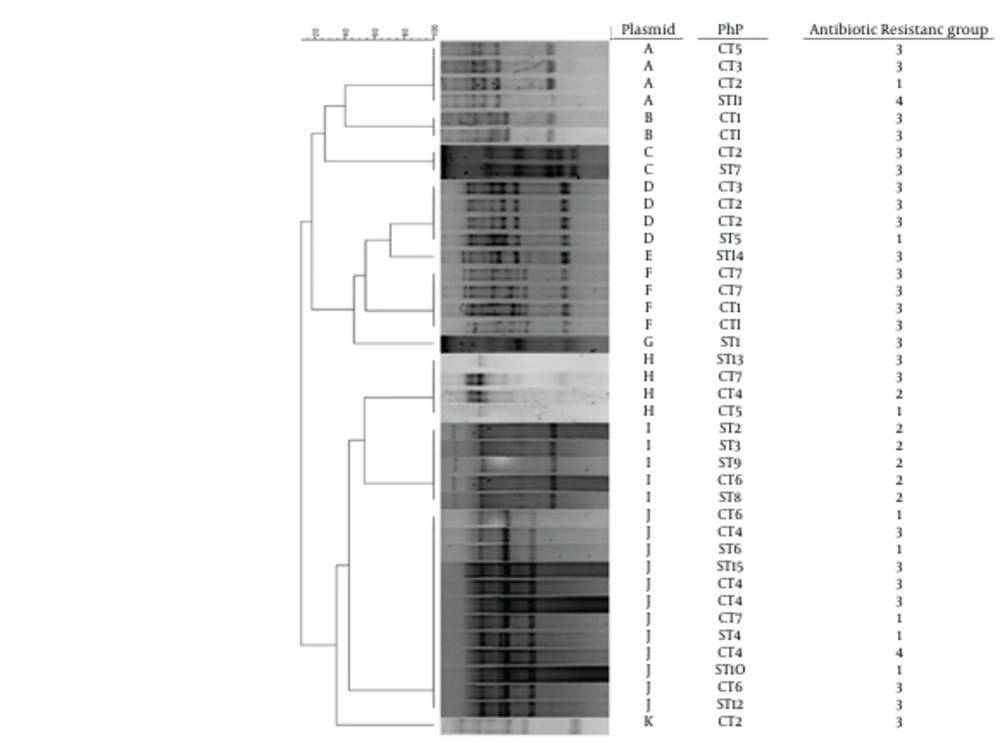

MIC of vancomycin showed that all of the isolates were highly resistant to vancomycin (MIC ≥128–256 µg/mL). The range of MIC for teicoplanin was 24-256µg/mL. The PhP typing of isolates revealed that all of our VRE isolates were from diverse populations (Di = 0.96). Twenty-four isolates belonged to 7 common types and 16 isolates belonged to 16 single types. The common types were common in 2 to 5 isolates. According to plasmid profile, among 40 purified plasmids from VRE, 11 different plasmid profiles (A- k) were detected (Figure 1).
All of the isolates harbored plasmids. The plasmid profiles showed that the isolates differed from 2 to 9 bands. Three isolates (7.5%) showed distinct plasmid profiles (E, G, K) and the remaining 37 (92.5%) isolates showed identical plasmid patterns in 6 types comprising 2-12 isolates. The major cluster, J, contained 12 isolates with the same plasmid pattern.
Figure 1.
UPGMA: Unweighted Pair Group Method with Arithmetic Mean
5. Discussion
Wastewater contains pathogens causing risks to human health unless measures are taken to control the hazard. The development of treatment process for sewage was driven by the need to reduce the environmental contamination because of uncontrolled discharge of human wastes to surface water (1). It is generally assumed that Enterococci are fecal bacteria with an excellent ability for adoption to adverse environmental conditions (13). In this study VRE were isolated from sewage at different occasions in Tehran. Recovery of sewages VRE and treated sewages has been shown by other studies (3). Other studies from European countries have reported a high prevalence of VRE in STPs (14-16). These studies reported that E. faecium was the most prevalent isolate followed by E. hirae and E. faecalis (17). In the contrary of other reports, E. faecium was the only VRE species isolated in present study.
The results of antibiotic susceptibility tests revealed that all or most of our isolates were resistant to 5 or 6 antibiotics which are commonly used in the clinical wards. Our results confirmed the reported data that previously published by other authors, indicating that E. faecium are frequently and increasingly becoming resistance to multiple antibiotics (18). On the basis of biochemical fingerprinting and plasmid profiles, 23 PhP types with discriminatory power of (Di = 0.96) were determined. By using plasmid profiling alone, 11 patterns out of 40 isolates of VRE were identified. The presence of diverse plasmid and biochemical fingerprinting patterns amongst the VRE isolates suggest the dissemination of the vanA gene cluster among different strains of E. faecium.
Although plasmid analysis is not the method of choice for fingerprinting, it could provide useful epidemiology information. To some extent, it is useful for determining the bacterial potential for transmission of the antibiotic resistance (19). Our results showed that some isolates such as plasmid types B strain had an identical biochemical characteristics and antibiotic resistance patterns. On the other hand, the isolates with identical plasmid profile (i.e. A, H or J) had different PhP and antibiotic resistance pattern. There could be several reasons for this: i) the antibiotic resistance was developed by other mode besides conjugation, ii) following conjugation and plasmid transfer certain mutation have occurred within the isolated species that resulted in antibiotic resistance or iii) the isolates were originally resistant to the selected antibiotics.
The result of this study revealed that vanA positive E. faecium is ubiquitous in STPs of Tehran. The presence of different VRE clones in the sewage suggests the ability of these bacteria in disseminating the resistance genes. Consequently, reducing the release of bacteria or genetic elements to the community is becoming a critical issue to avoid the increase of environmental reservoirs of antibiotic resistance. Furthermore, these results indicated that plasmid typing in combination with PhP could be suitable techniques for studying on VRE clone types.
