1. Introduction
The first magnetic resonance spectroscopy (MRS) for the human myocardium was performed in the middle of 1980s using 31P MRS. 31P MRS requires additional hardware and software such as nucleus-specific coils (e.g. 31P coil), a broadband radiofrequency transmitter, spectroscopy pulse sequence and post-processing program (1). Furthermore, clinical use of 31P MRS technique is limited because of its inherent low sensitivity and long T1 of the metabolites, which necessitates longer data acquisition time than 1H MRS. Therefore, 1H MRS has greater potential for routine clinical applications compared with 31P MRS. With the use of 1H MRS of the human myocardium, the levels of myocardial metabolites such as creatine (Cr), choline (Cho), lactate (Lac) and lipids (Lip) can be quantified providing an insight into the pathophysiology of the heart diseases including myocardial infarction, heart failure, dilated or hypertrophic cardiomyopathies and cardiac tumors. Recent studies with in vivo MRS have mainly focused on myocardial infarction (2), heart failure (3), and cardiomyopathies (4), and no study has been reported about cardiac tumor. This assessment was performed to evaluate the MR spectral patterns for diagnosing the primary myocardial sarcoma using localized 1H MRS at 3T.
2. Case Presentation
A 73-year-old woman complaining of dyspnea with chest pain was admitted to our hospital, and was prescreened as arrhythmia. She underwent an examination of 1H cardiac MR spectroscopy. This assessment protocol was approved by the Institutional Review Board. The patient submitted an informed written consent to participate in the assessment.
To delineate and characterize the cardiac mass, a chest CT scan and cardiac MRI scans were performed. For cardiac MRI scans, this assessment was performed on a 3.0 T MRI scanner (Magnetom Tim Trio; Siemens Medical Solutions, Erlangen, Germany) with a body matrix coil. The patient was in the supine position with monitoring electrocardiography (ECG) and motion of respiration, and a series of images including 2 chamber, 4 chamber, and short axis views were acquired to provide the reference anatomic images for voxel localization of MRS. In order to minimize the distance between body matrix coil and the heart, subject and matrix coil were fastened with rubber bands. Using fast gradient echo pulse sequence with parallel acquisition techniques, 2 chamber view, 4 chamber view, and short axis view images (TR/TE = 8.1/4.5 ms) were acquired with field of view (FOV) equal to 360 × 360 mm2, matrix size equal to 192 × 192, and slice thickness equal to 5 mm. In order to determine the myocardial mass and volumes (5), cardiac cine MRI was acquired using true fast imaging with steady state precession (TrueFISP) pulse sequence (TR/TE = 3.7/1.5 ms). These examinations showed a 2.8 cm vascularized mass in the left atrium causing infiltration from the left posteroinferior atrial wall (Figure 1) and the pathological findings were well consistent with those features in previous case reports (6, 7).
Figure 1.
A 73-year-old woman with dyspnea and chest pain. Cardiac CT and MR images show a thickened mass in the left atrium, causing infiltration from the left posteroinferior atrial wall. A, Thoracic CT angiography (100 KVp, 270 mAs). B, True fast imaging with steady state precession pulse sequence (TR/TE = 3.7/1.5 ms, FA 50°). C, Cardiac MR perfusion image (TR/TE = 177.2/1.0 ms, FA 10°). D, Delayed enhanced MR image (TR/TE/TI = 696/1.6/230 ms, FA 20°) at 10 minutes after injection of gadolinium-based contrast media. E, fat-suppressed T2-weighted MR image (fast spin echo; TR/TE/TI = 1743.5/49/180 ms, FA 180°); and F, T1-weighted MR image with double inversion recovery (IR) pulse (spin echo; TR/TE = 1068.2/28 ms, FA 180°). The lesion showed iso-signal intensity on double IR T1-weighted image (F), slightly higher signal intensity on the fat-suppressed T2-weighted image (E), and well enhanced signal intensity resulting from somewhat hemorrhagic necrotic change on the delayed enhanced MR images. White asterisks *, and arrows indicate the rhabdomyosarcoma
For MR spectroscopy examination, the single-voxel 1H-MRS was performed using a point-resolved spectroscopy (PRESS) sequence with TR/TE = 2000/30 ms, flip angle = 90°, 64 acquisitions (within 1 R-R interval; scanning time 2 minutes 34 seconds), 1200 Hz spectral width, 1024 data points, and 4.5 cm3 (10×15×30 mm3) voxel size in the interventricular septum and 6.0 cm3 (20×20×15 mm3) in the rhabdomyosarcoma area of the posteroinferior wall of the left atrium (Figure 2)

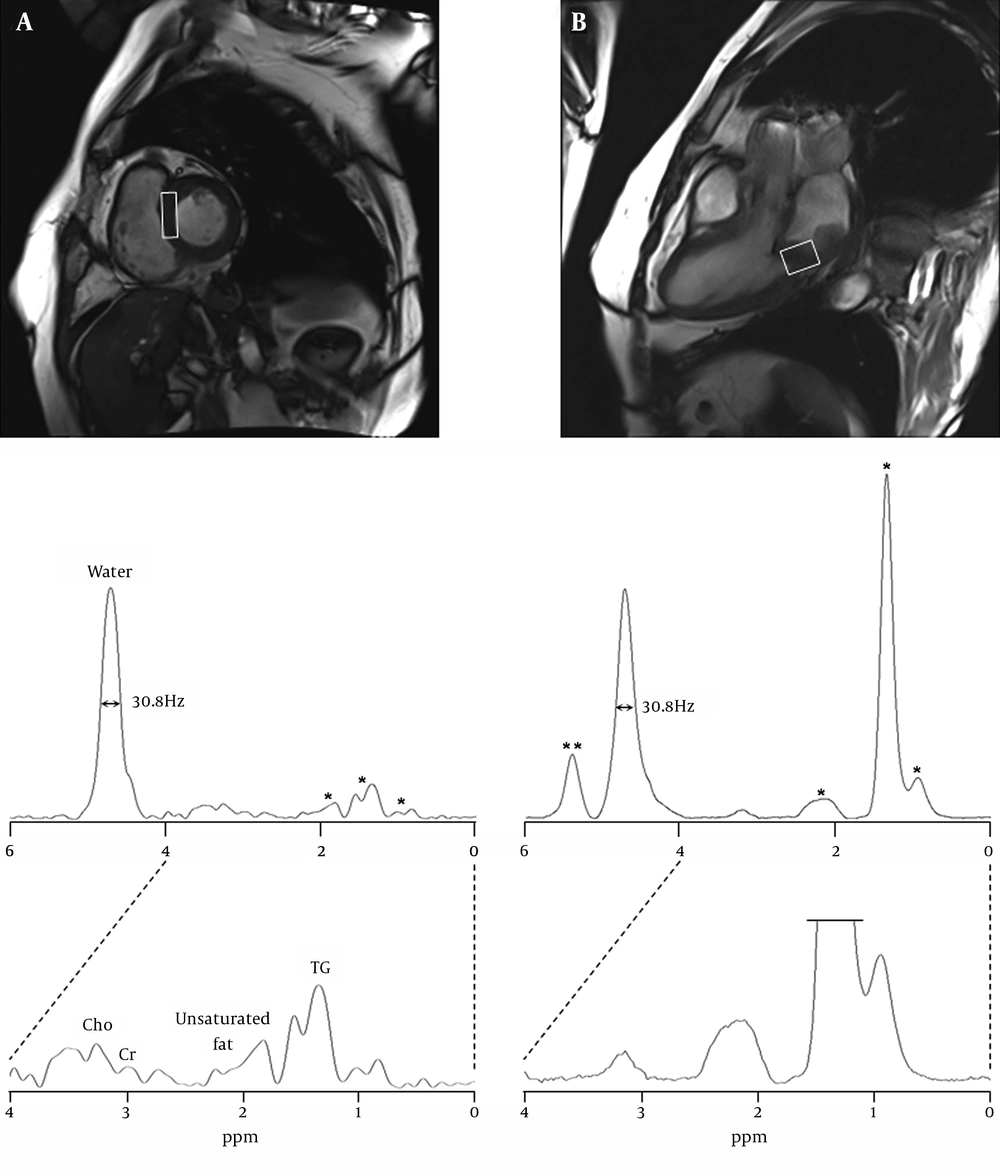

Figure 2.
Cardiac MR images were acquired using true fast imaging with steady state precession (TrueFISP) pulse sequence (TR/TE = 3.7/1.5 ms). A, short-axis and B, four-chamber views with localized spectroscopic voxels, 10×15×30 mm3 in the normal interventricular septum; 20×20×15 mm3 in the rhabdomyosarcoma on the posteroinferior left atrial wall. 1H MR spectra were acquired using PRESS sequence with TR/TE equal to 2000/30 ms and NEX equal to 64. The spectral intensities were normalized to the residual water peak demonstrating its full width at a half maximum, 30.8 Hz. * indicates triglyceride (TG) components at 0.9-2.2 ppm. ** indicates the unsaturated groups of fatty acid at 5.4 ppm
Prior to the MRS acquisition, manual shimming of the B0 magnetic field and optimization of the transmitter pulse power were performed. After shimming and gradient tuning, water suppression was accomplished with three 50 Hz bandwidth chemical-shift-selective saturation (CHESS) pulses, followed by spoiling gradients at the beginning of data acquisition. The raw data of MRS were post-processed and analyzed by using an MR spectroscopy data analysis package (Siemens Medical Solutions) (8, 9): the free induction decay data were multiplied by Gaussian line broadening function with 5 Hz, zero-filling (2 times, giving 4096 data points), and Fourier-transformed to frequency domain. The spectral baseline was corrected with nine-polynomial fitting, followed by phase correction with the zero- and first-order. The residual water peak at 4.7 ppm was used as an internal reference for the quantification of the metabolites including Cr, Cho and TG (10). The percentage of myocardial metabolites relative to water was calculated as the integrals of each metabolite (11).
Resonance frequencies for intramyocellular lipids were estimated with the assumption of Gaussian line shapes at 0.9 ppm, 1.3 ppm and 2.1 ppm. The integrals of lipid resonances at 0.9 and 1.3 ppm were summed for TG quantification. Also, prior knowledge for the chemical shift of metabolites was incorporated into the fitting algorithm by using previous criteria (11-13). For analysis of MR spectra, major myocardial metabolites were assigned as follows: choline (Cho, 3.20 ppm), creatine (Cr, 3.02 ppm), unsaturated group of lipids (2.10 ppm) and triglyceride (TG, 0.91 and 1.30 ppm).
The full-width at half maximum (FWHM) of both residual water peaks in the septum and the sarcoma of posteroinferior left atrial wall was 30.8 Hz. The levels of myocardial metabolites are summarized in Table 1. In the septum, the percentages of myocardial metabolites were 18.4% TG, 4.0% unsaturated group of lipids, 1.6% Cr and 3.3% Cho, whereas the sarcoma showed 118.8% TG, 5.1% unsaturated group of lipids, 1.3% Cr and 3.5% Cho. Also, the olefinic components of fatty acid or cholesterol in the rhabdomyosarcoma were identified at 5.4 ppm and its percentage was 24.5%.
Table 1.Myocardial Metabolites in the Interventricular Septum and Rhabdomyosarcoma of the Posteroinferior Left Atrial Wall a
| Metabolites | Concentration, ppm | Interventricular Septum | Rhabdomyosarcoma | ||
|---|---|---|---|---|---|
| Integral | Percentage b | Integral | Percentage b | ||
| Water | (4.70) | 748.51 | 100.0 | 12026.44 | 100.0 |
| Cho | (3.20) | 24.99 | 3.3 | 418.32 | 3.5 |
| Cr | (3.02) | 12.16 | 1.6 | 152.22 | 1.3 |
| Unsaturated fat | (2.10) | 30.29 | 4.0 | 610.38 | 5.1 |
| TG | (0.90, 1.30) | 135.97 | 18.4 | 14297.55 | 118.8 |
| Olefinic components | (5.40) | - | - | 2942.46 | 24.5 |
a Abbreviations: Cho, choline; Cr, creatine; TG, triglyceride.
3. Discussion
Cardiac 1H-MRS with ECG gating and respiratory motion at 3T MR system was allowed to achieve quantitative information of myocardial metabolites from small voxel volumes (< 5 mL) in the interventricular septum.
The acquisition time of a single spectrum was about 3 minutes, and the total examination time including MR spectroscopy with cardiac anatomic imaging was less than 50 minutes. With regard to spectral quality in the human myocardium, FWHM of the residual water peak was reproducible values, about 30 Hz. Accurate and precise positioning with adequate voxel size on the sarcoma of the posteroinferior left atrial wall is essential for accurate quantification of the metabolites. The MRS voxels were localized to avoid the contamination of unwanted tissues such as perimyocardium and chest muscle and the voxel sizes were optimized to cover the focal regions with minimal sizes, septum (4.5 cm3) and myosarcoma (6.0 cm3). In quantification of the resonance peaks in spectra of the septum and myosarcoma, the metabolic signal intensities were normalized to the residual water peak by weak water suppression as shown in Figure 2 (4, 10, 14).
This study was performed to compare quantitative metabolic information acquired from the normal septum and sarcoma region of the left atrial wall. The heart is the main myogenic muscular organ in the circulatory system and the spectral appearance of normal septal myocardium in this study was considerably similar to the spectral pattern in the skeletal muscle (14). Rhabdomyosarcoma is a type of sarcoma that rarely occurs in the striated muscle. The voxel size of rhabdomyosarcoma was localized within the tumor part with a maximal thickness of 2.8 cm, and the resulting spectral pattern was similar to that of the calf muscle (voxel size of 180 cm3) reported in Bongers’ study (15).
Cho is a marker of cell membrane metabolism/turnover and is involved in acetylcholine (ACh) synthesis with acetyl CoA and cholinergic neurotransmission. It is well known that the Cho peak is a common biomarker for cancers with a variety of histological types (16). Also, the Cho level is closely related to the degree of malignancy of the hypercellular tumors with rapid growth. In the present study, however, the Cho levels in both normal and lesional myocardium were in the normal range, and the concentration difference was not significant, suggesting that the sarcoma is in the early stage of malignancy (Table 1). Myocardial Cr is associated with high-energy phosphate metabolism as an indicator of oxidative metabolism and the previous study showed that reduction of energy reserve underlies impaired contractile function in the failing heart (3). Consequently, the tumor-specific abnormalities of Cho and Cr metabolites were not found in this case.
On the other hand, the peak at 5.4 ppm on the spectrum of rhabdomyosarcoma was assigned to C6 protons of cholesterol and/or the unsaturated groups of the olefinic region of lipids (15, 17). In addition, the TG metabolite at 0.9 and 1.3 ppm showed the prominent difference, giving 18% in the septum and 119% in the sarcoma. In an animal study (18), TG metabolite has shown a negative correlation with heart function, while treatment with insulin-sensitizing drugs reduced myocardial TG deposition and reversed contractile dysfunction in lipotoxic heart disease in rats with obesity. Also, myocardial TG may be a marker of myocardial viability after coronary occlusion due to enhanced esterification and/or reduced oxidation of fatty acids in ischemically insulted but viable myocardium (19). These findings suggest that intramyocelluar TG accumulation is deleterious to the heart. Therefore, 1H MRS is a promising tool for assessing TG metabolites in human myocardial tissue.
This study included several technical limitations. First, the signal intensities on the focal regions may contain contaminations of unwanted signal from the outside of the voxel. Second, the differential voxel sizes (4.5 cc vs. 6.0 cc) on the normal septum and rhabdomyosarcoma may give rise to a quantitative error because of different signal-to-noise ratio. Third, this study used the residual water peak as a reference for quantification of the metabolites in the myocardium. However, the use of residual water signal can be prone to quantification error, due to cardiac motion and different water contents in different tissues. Fourth, the finding of increased TG content may not be specific to cardiac sarcoma because the predominant changes in TG content are frequently reported for various cardiac diseases and cancer. This study dealt with one patient and further studies are needed to confirm a more specific finding from a large population.
Although the present case report had several limitations, the advantages of 1H MRS over other cardiac imaging techniques, PET and contrast media-based MRI are that it does not expose patients to ionizing radiation and side effect of agents. Therefore, 1H MRS is widely accessible for assessing the normal myocardium and myocardial tumors (about 5 minutes in both tissues), and can concurrently provide the information of quantitative metabolic concentrations for effective therapeutic strategies in clinical settings.
In conclusion, this study, for the first time, demonstrates the feasibility that cardiac 1H-MRS would be potentially useful for the diagnosis of rhabdomyosarcoma by the use of TG level in the myocardium.
